Model Whirlpool EV170NXAN00 VERTICAL FREEZER – Common Parts & Diagrams
04 - UNIT
03 - DOOR

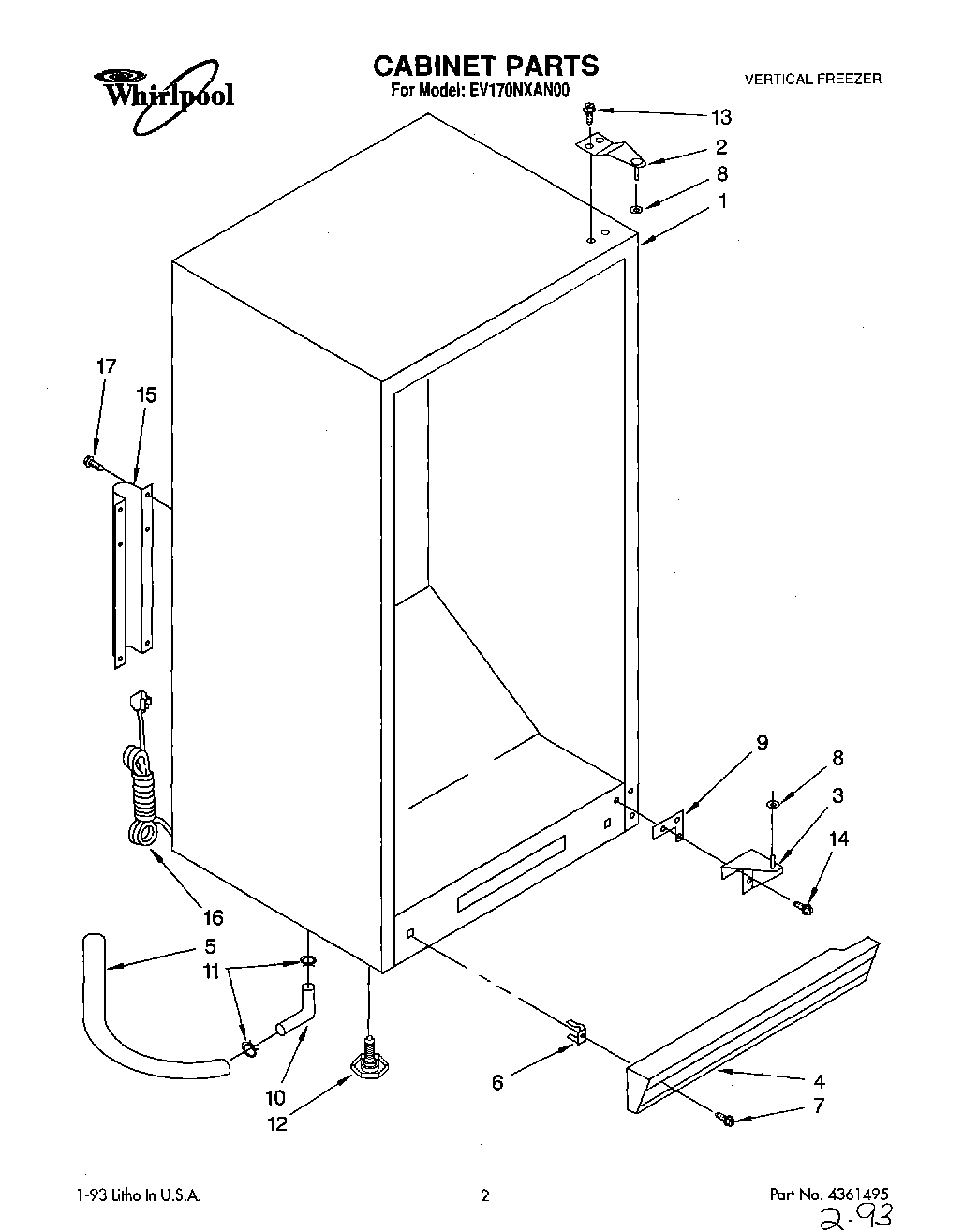

01 - CABINET, LIT/OPTIONAL

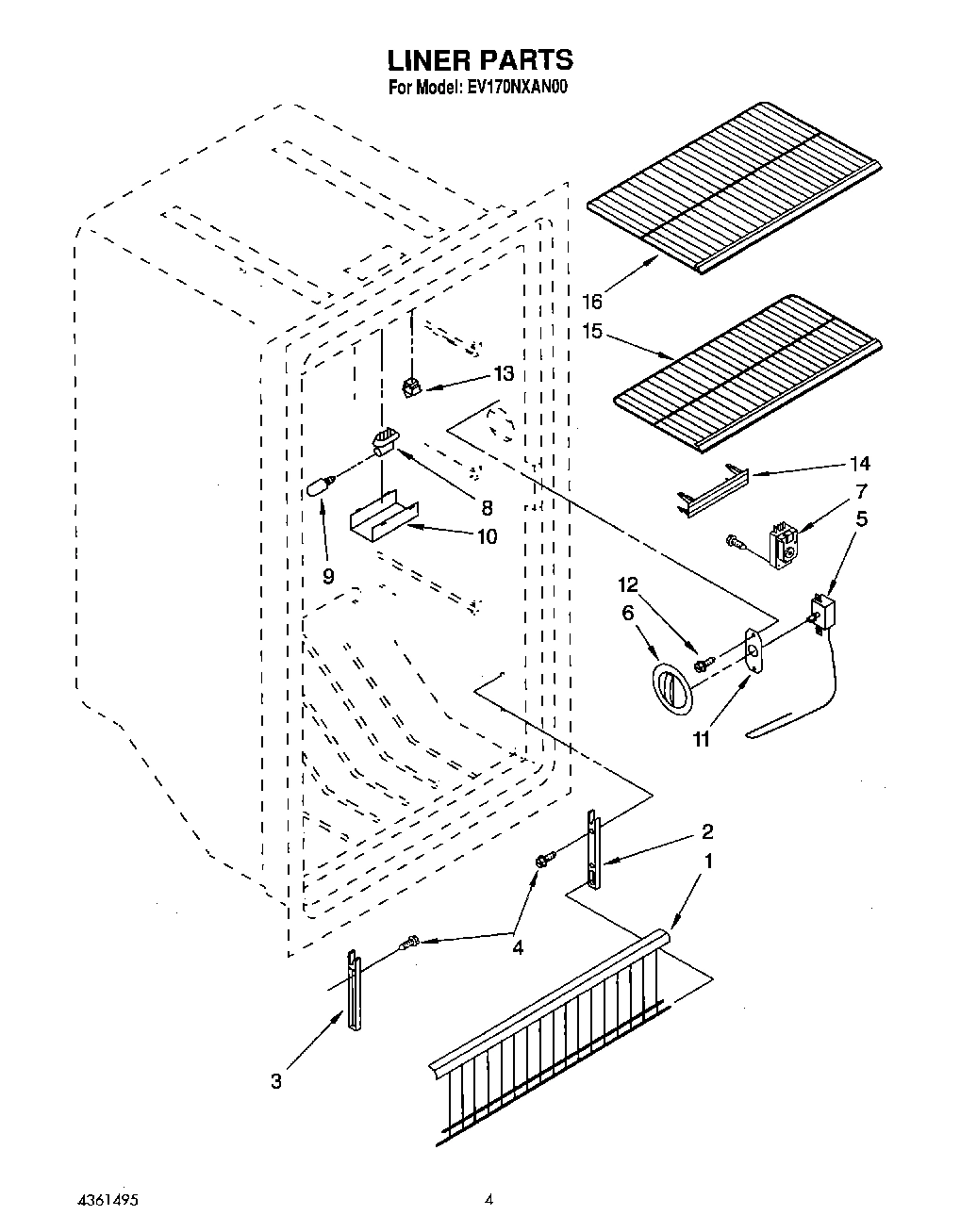

02 - LINER
Common parts from model Whirlpool EV170NXAN00 VERTICAL FREEZER
Use & Care Guide WPL LIT4356948 Contact Us For Availability
Parts List WPL LIT4361495 Contact Us For Availability
1
Exterior Door Almond (Includes Insulation) WPL 4357003 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI55934A8 Contact Us For Availability
1
Gate WPL 4356888 Contact Us For Availability
2
Interior Panel WPL 4356930 Contact Us For Availability
2
Top, Hinge Almond WPL 4356915 Contact Us For Availability
2
Support, Fence, (R.H.) WPL 4356889 Contact Us For Availability
3
Gasket (Brown) WPL 4357005 Contact Us For Availability
3
Bottom, Hinge Almond WPL 4356916 Contact Us For Availability
4
Grille (Black) WPL 4356903 Contact Us For Availability
4
Screw (4) WPL 4356891 Contact Us For Availability
5
Trim Shelf WPL 4356932 Contact Us For Availability
5
Drain Hose WPL 4356937 Contact Us For Availability
6
Thermostat Knob WPL 4356802 Contact Us For Availability
7
Spring, Clip Mounting WPL 4356842 Contact Us For Availability
7
Timer, Defrost WPL 4356929 Contact Us For Availability
8
Socket, Lamp WPL 4356874 Contact Us For Availability
9
Shim, Bottom WPL 4356828 Contact Us For Availability
10
Clip WPL 4356941 Contact Us For Availability
10
Tube, Drain WPL 4356825 Contact Us For Availability
10
Light Shield WPL 4356934 Contact Us For Availability
11
Clamp Hose WPL 4356827 Contact Us For Availability
12
Anchor, Screw WPL 4356812 Contact Us For Availability
12
Screw WPL 4356809 Contact Us For Availability
13
Screw (4) WPL 4356944 Contact Us For Availability
13
Screw WPL 302717 Contact Us For Availability
14
Compressor WPL 4356973 Contact Us For Availability
14
Screw WPL 488839 Contact Us For Availability
15
Relay WPL 4356994 Contact Us For Availability
15
Nameplate WPL 4356940 Contact Us For Availability
15
Cover, Suction Line WPL 4356947 Contact Us For Availability
15
Shelf, Small WPL 4356922 Contact Us For Availability
16
Handle WPL 4356895 Contact Us For Availability
16
Power Cord WPL 4356986 Contact Us For Availability
16
Shelf, Large WPL 4356921 Contact Us For Availability
17
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
17
Clip, Cover WPL 4356951 Contact Us For Availability
17
Insert, Nameplate WPL 4356896 Contact Us For Availability
17
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
17
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
17
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
18
Cover WPL 4356946 Contact Us For Availability
19
Overload WPL 4356974 Contact Us For Availability
21
Compressor Grommet WPL 4356855 Contact Us For Availability
22
Washer WPL 4356847 Contact Us For Availability
23
Screw, Compressor WPL 4356852 Contact Us For Availability
24
Overload Spring WPL 4356945 Contact Us For Availability
26
Compressor Pan WPL 4356939 Contact Us For Availability
27
Thermostat, Clip WPL 4356952 Contact Us For Availability
28
Precooler WPL 4356950 Contact Us For Availability
× ![]()
