Model Whirlpool EV161FZTQ01 VERTICAL FREEZER – Common Parts & Diagrams
05 - OPTIONAL PARTS (NOT INCLUDED)

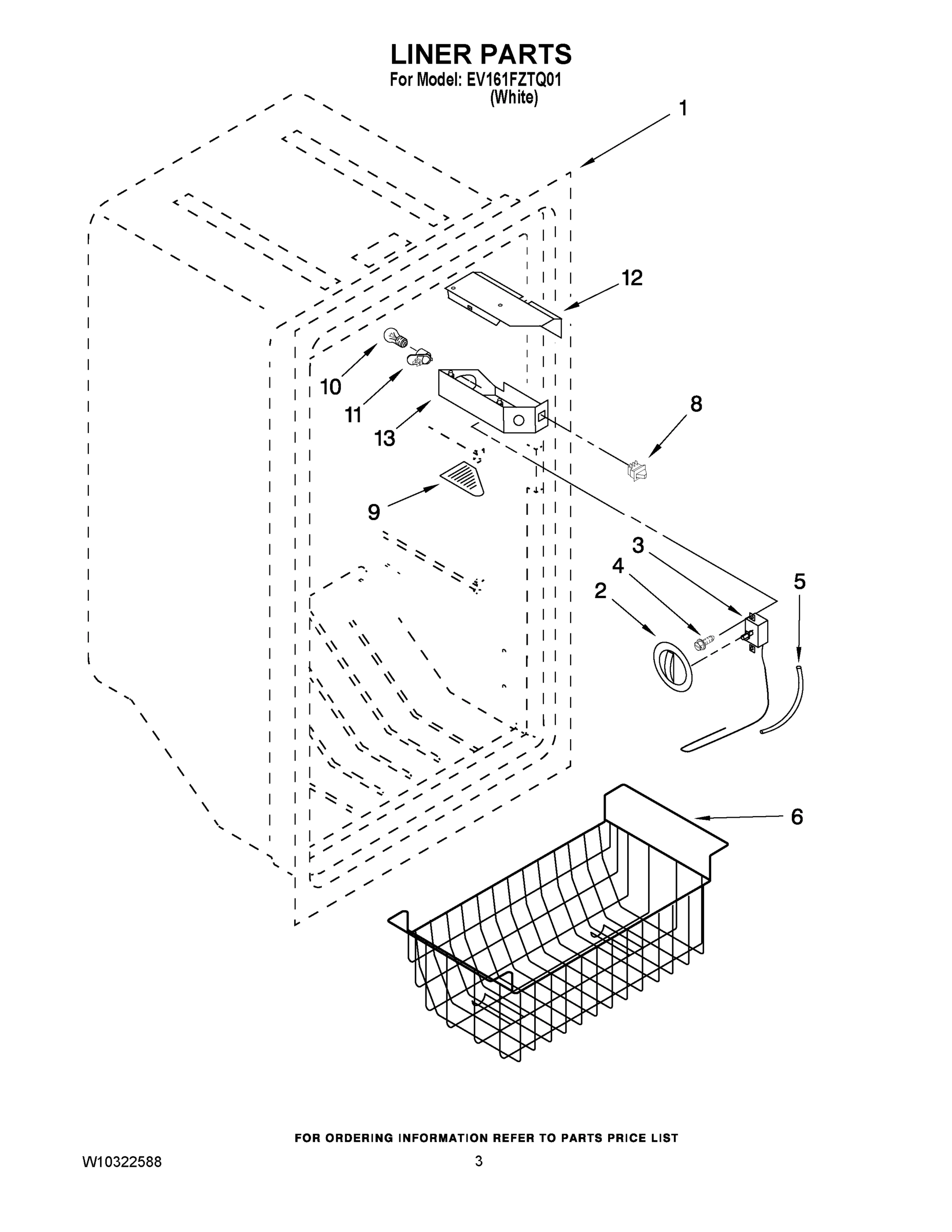

02 - LINER PARTS

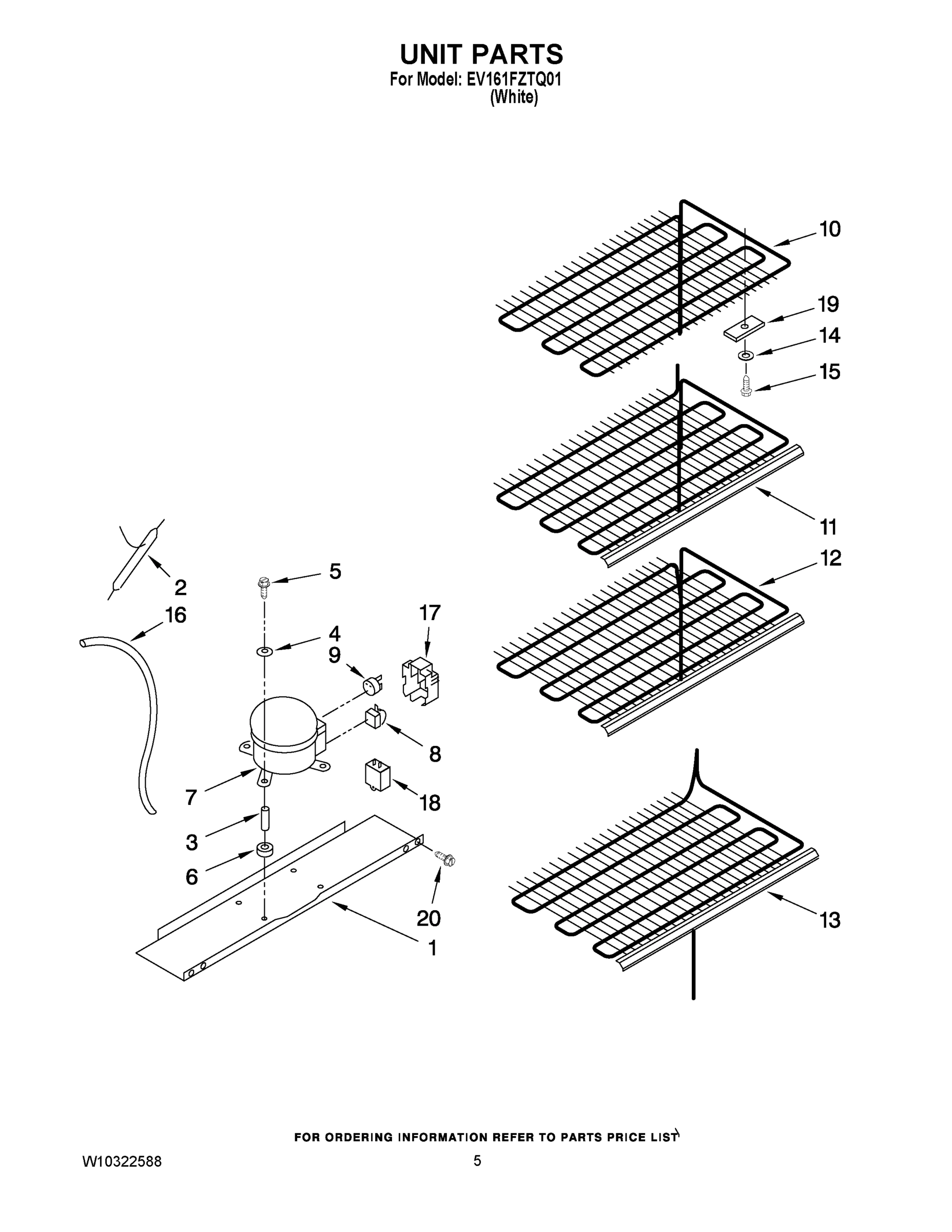

03 - UNIT PARTS

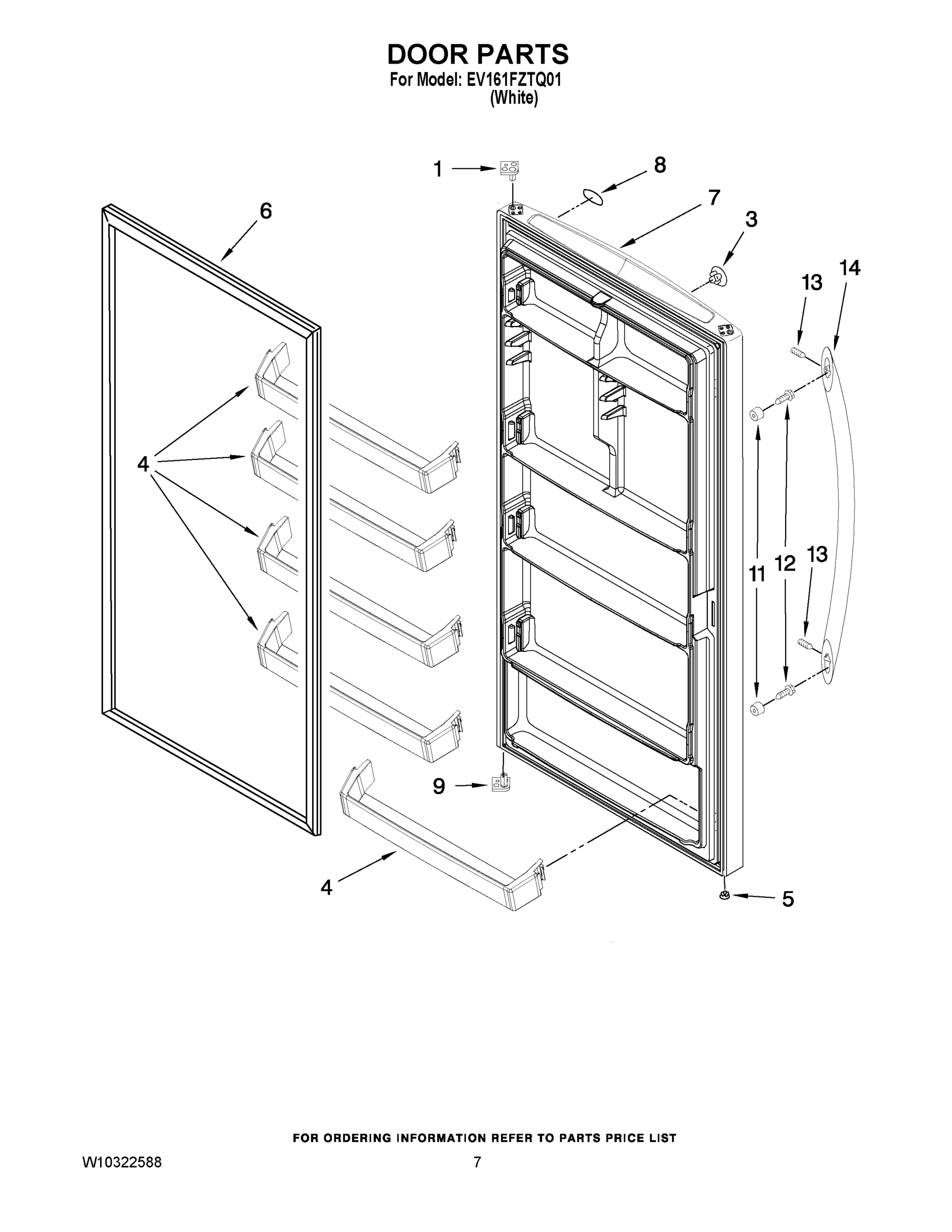

04 - DOOR PARTS

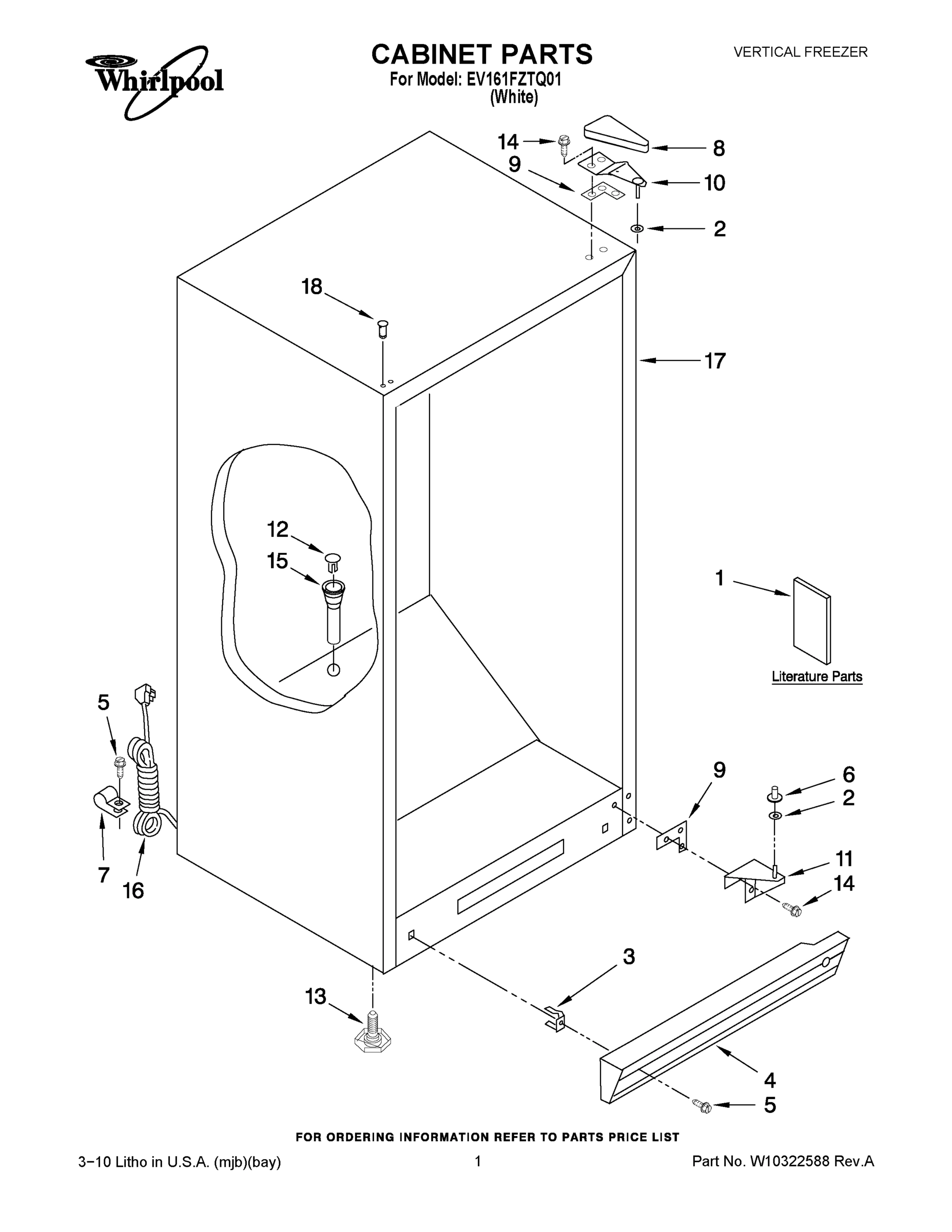

01 - CABINET PARTS
Common parts from model Whirlpool EV161FZTQ01 VERTICAL FREEZER
1
PAN, COMPRESSOR MOUNTING WPL W10260544 Contact Us For Availability
1
Owners Manual WPL 8210432 Contact Us For Availability
1
ENERGY LABEL/TAG WPL W10296573 Contact Us For Availability
4
Washer WPL 4356847 Contact Us For Availability
6
Grommet WPL 4356335 Contact Us For Availability
7
COMPRESSOR (INCLUDES ITEMS 6, 8, 9, & 17) WPL 432972141 Contact Us For Availability
7
DOOR ASSEMBLY (INCLUDES INTERIOR LINER) WPL 482827073 Contact Us For Availability
9
OVERLOAD WPL 234286039 Contact Us For Availability
10
Evaporator, Top WPL 8210398 Contact Us For Availability
10
HINGE, TOP WPL 281016105 Contact Us For Availability
11
Evaporator Shelf WPL 8210304 Contact Us For Availability
11
STUD, HANDLE WPL 283030001 Contact Us For Availability
11
HINGE, BOTTOM WPL 482693002 Contact Us For Availability
12
Shield, Light WPL 8210351 Contact Us For Availability
12
Evaporator Shelf WPL 8210305 Contact Us For Availability
12
Drain Plug WPL 4357019 Contact Us For Availability
13
Box, Control WPL 8210406 Contact Us For Availability
13
Screw, Set WPL 8533976 Contact Us For Availability
14
HANDLE WPL 383029002 Contact Us For Availability
15
Grommet, Drain WPL 4357269 Contact Us For Availability
16
Heat Exchanger WPL 4390881 Contact Us For Availability
16
Cord, Power WPL 8210375 Contact Us For Availability
17
CABINET (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability
18
Capacitor WPL 8210273 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
× ![]()
