Model Whirlpool EV160NZTQ01 VERTICAL FREEZER – Common Parts & Diagrams

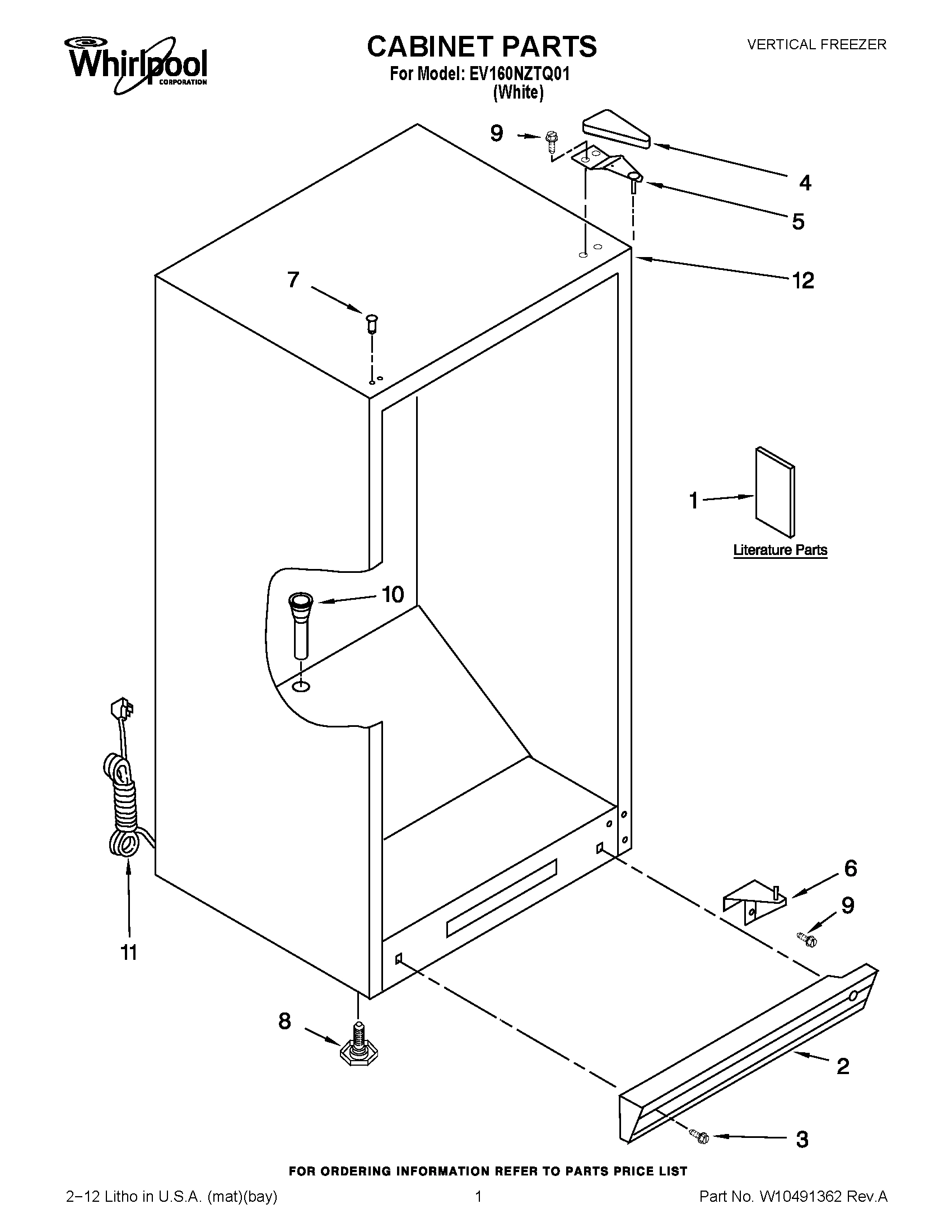

01 - CABINET PARTS

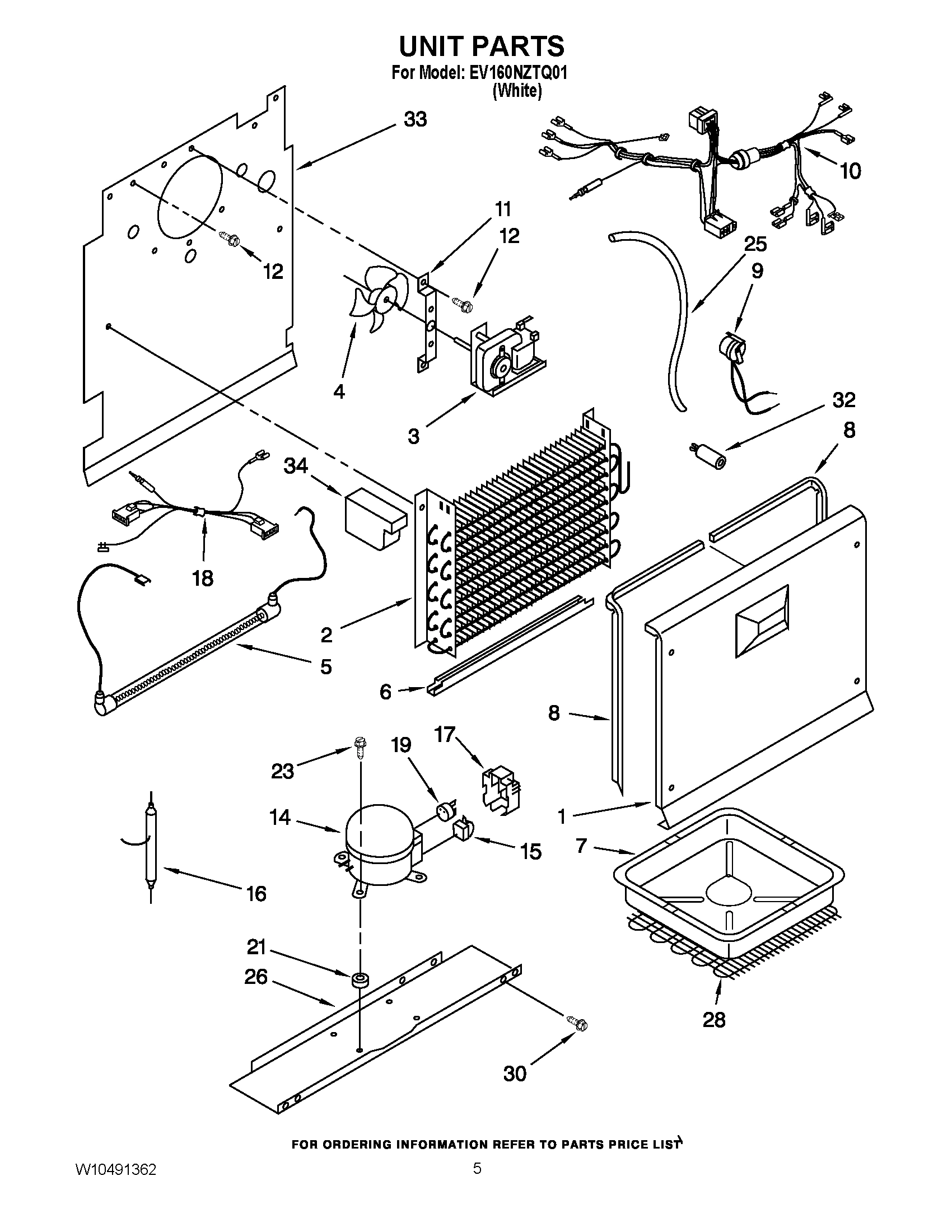

03 - UNIT PARTS

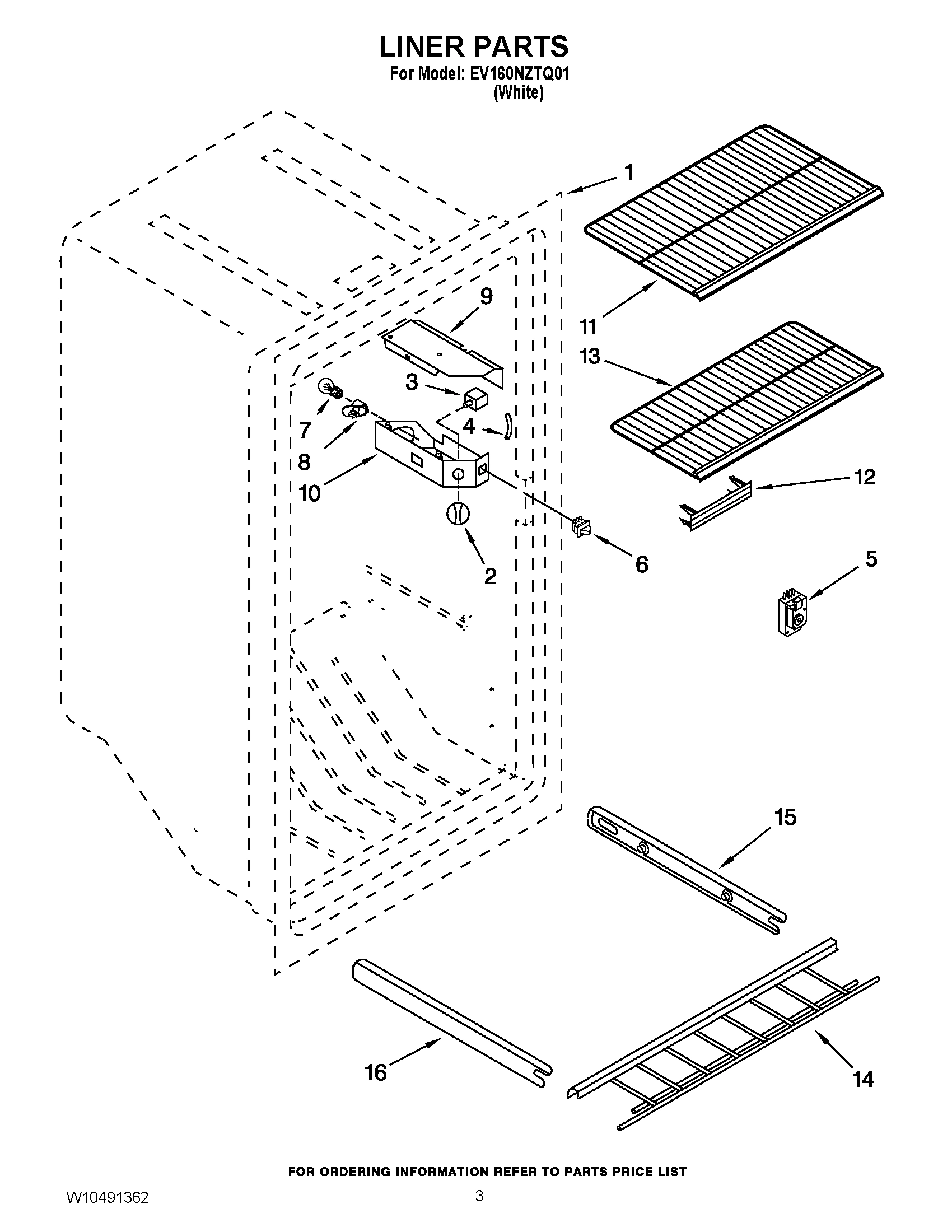

02 - LINER PARTS

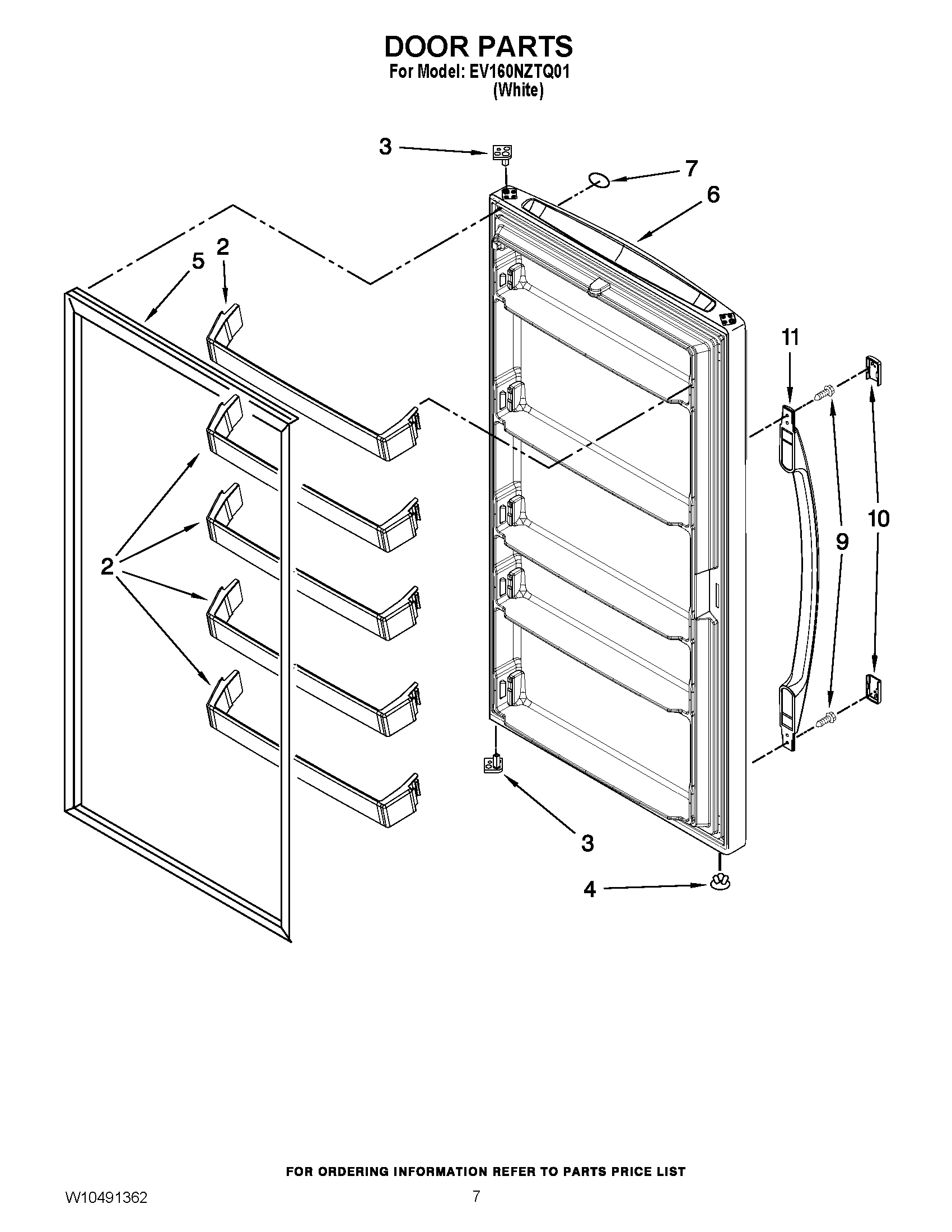

04 - DOOR PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool EV160NZTQ01 VERTICAL FREEZER
1
LINER (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability
1
COVER, EVAPORATOR WPL 482699001 Contact Us For Availability
2
EVAPORATOR WPL 481546 Contact Us For Availability
2
KNOB, CONTROL WPL 382390001 Contact Us For Availability
2
RAIL, DOOR (5) WPL 465450001 Contact Us For Availability
3
MOTOR, FAN WPL 360336001 Contact Us For Availability
3
THERMOSTAT WPL 483053002 Contact Us For Availability
3
STOP, DOOR WPL 281124001 Contact Us For Availability
4
TUBING, THERMOSTAT WPL W10389334 Contact Us For Availability
4
VENT PLUG WPL 324898007 Contact Us For Availability
5
HEATER, DEFROST WPL 380405003 Contact Us For Availability
5
TIMER, DEFROST WPL 381329 Contact Us For Availability
5
GASKET, DOOR WPL 465151001 Contact Us For Availability
6
SHIELD, HEATER WPL 382697001 Contact Us For Availability
6
SWITCH, LIGHT WPL 232164001 Contact Us For Availability
6
DOOR ASSEMBLY (INCLUDES INTERIOR DOOR PANEL) WPL 482827012 Contact Us For Availability
7
PAN, DRAIN WPL 482674001 Contact Us For Availability
7
BULB, LIGHT WPL 134291002 Contact Us For Availability
8
GASKET, COVER EVAPORATOR WPL 360180002 Contact Us For Availability
9
BI-METAL DEFROST WPL 181801001 Contact Us For Availability
9
SHIELD, LIGHT WPL 382392001 Contact Us For Availability
9
SCREW WPL 324004091 Contact Us For Availability
10
GROMMET, DRAIN WPL 360696001 Contact Us For Availability
10
HARNESS, FF, LT WPL 482408001 Contact Us For Availability
10
BOX, CONTROL WPL 482389002 Contact Us For Availability
10
TRIM, HANDLE WPL 282012001 Contact Us For Availability
11
CORD, POWER WPL 482399001 Contact Us For Availability
11
BRACKET, MOTOR WPL 280028101 Contact Us For Availability
11
SHELF, UPPER WIRE WPL 482315001 Contact Us For Availability
11
HANDLE (INCLUDES ITEM 10) WPL 382013003 Contact Us For Availability
12
SCREW, MOTOR WPL 380732004 Contact Us For Availability
12
VENT PLUG (4) WPL 380414103 Contact Us For Availability
13
SHELF, LOWER WIRE WPL 482314001 Contact Us For Availability
14
COMPRESSOR WPL 432972142 Contact Us For Availability
14
GATE WPL 380340105 Contact Us For Availability
15
SUPPORT-FENCE RH WPL 480576201 Contact Us For Availability
16
SUPPORT-FENCE LH WPL 480576202 Contact Us For Availability
18
HARNESS, FAN WPL 481785001 Contact Us For Availability
19
OVERLOAD WPL 234286038 Contact Us For Availability
23
BOLT, COMPRESSOR WPL 282082001 Contact Us For Availability
25
EXCHANGER, HEAT WPL 282072003 Contact Us For Availability
28
CONDENSER WPL 482234002 Contact Us For Availability
30
SCREW WPL 324838048 Contact Us For Availability
32
GROMMET WPL 180275101 Contact Us For Availability
33
PLATE, EVAPORATOR MOUNT WPL 480504101 Contact Us For Availability
34
BLOCK, FOAM WPL 180252101 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
× ![]()
