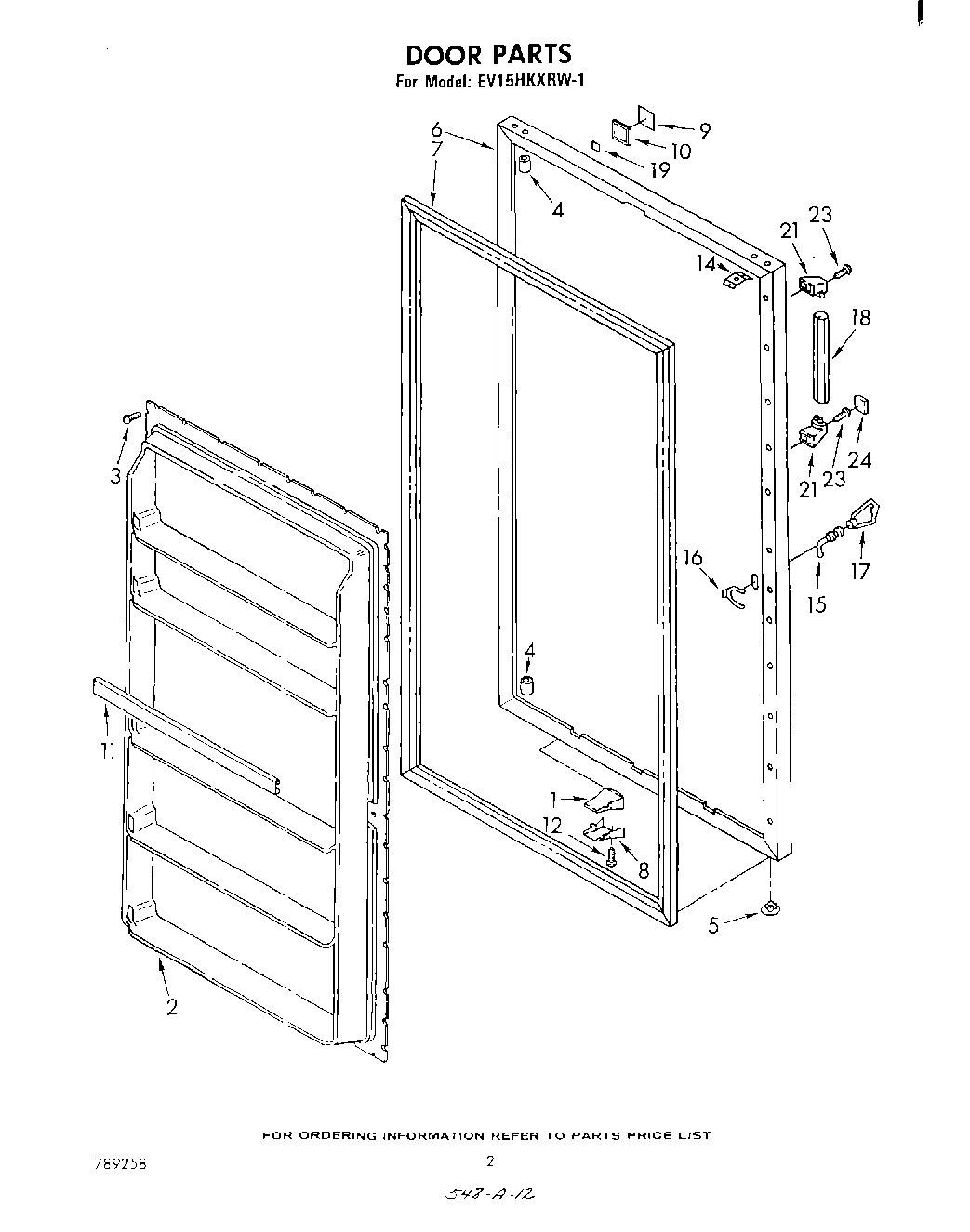

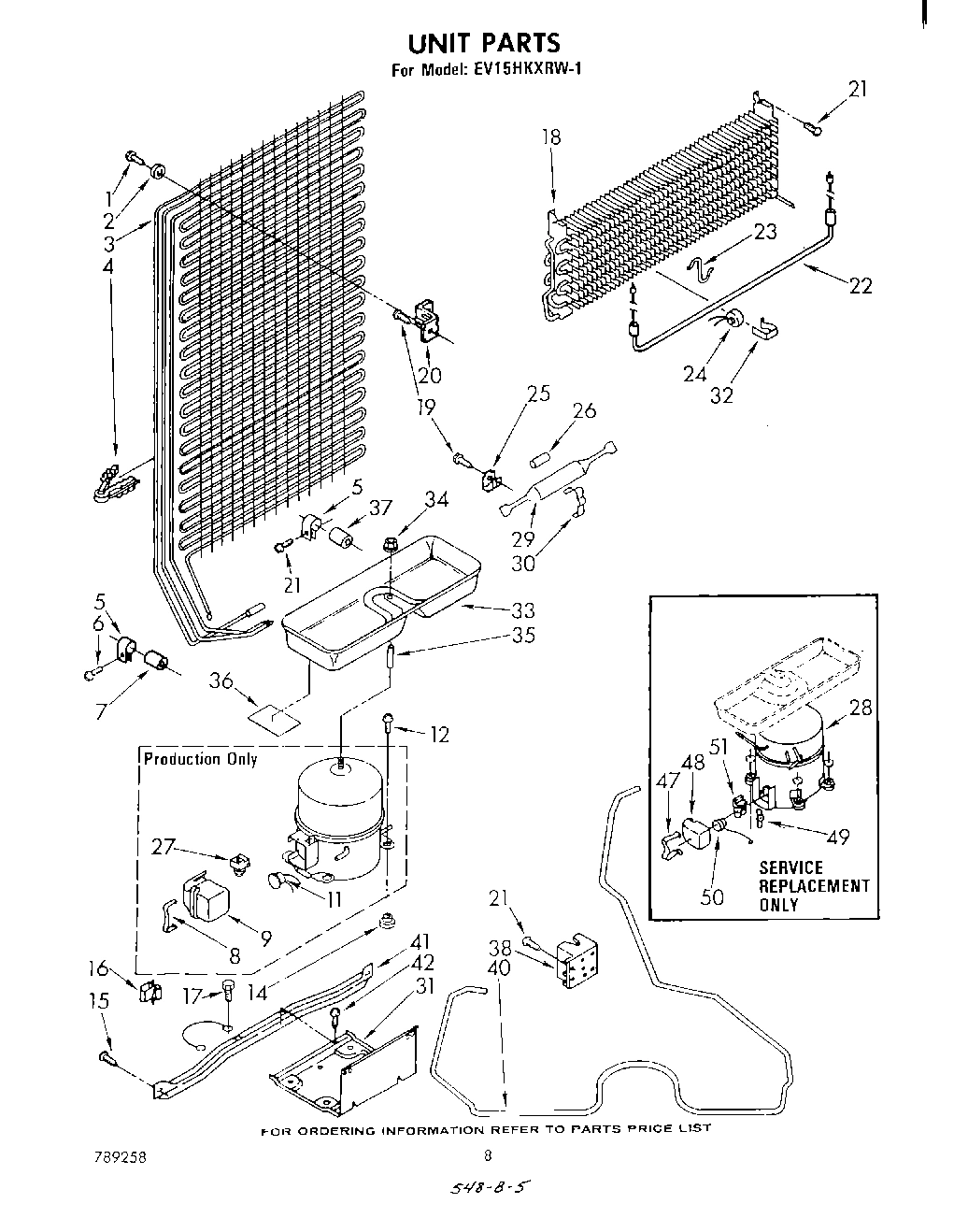

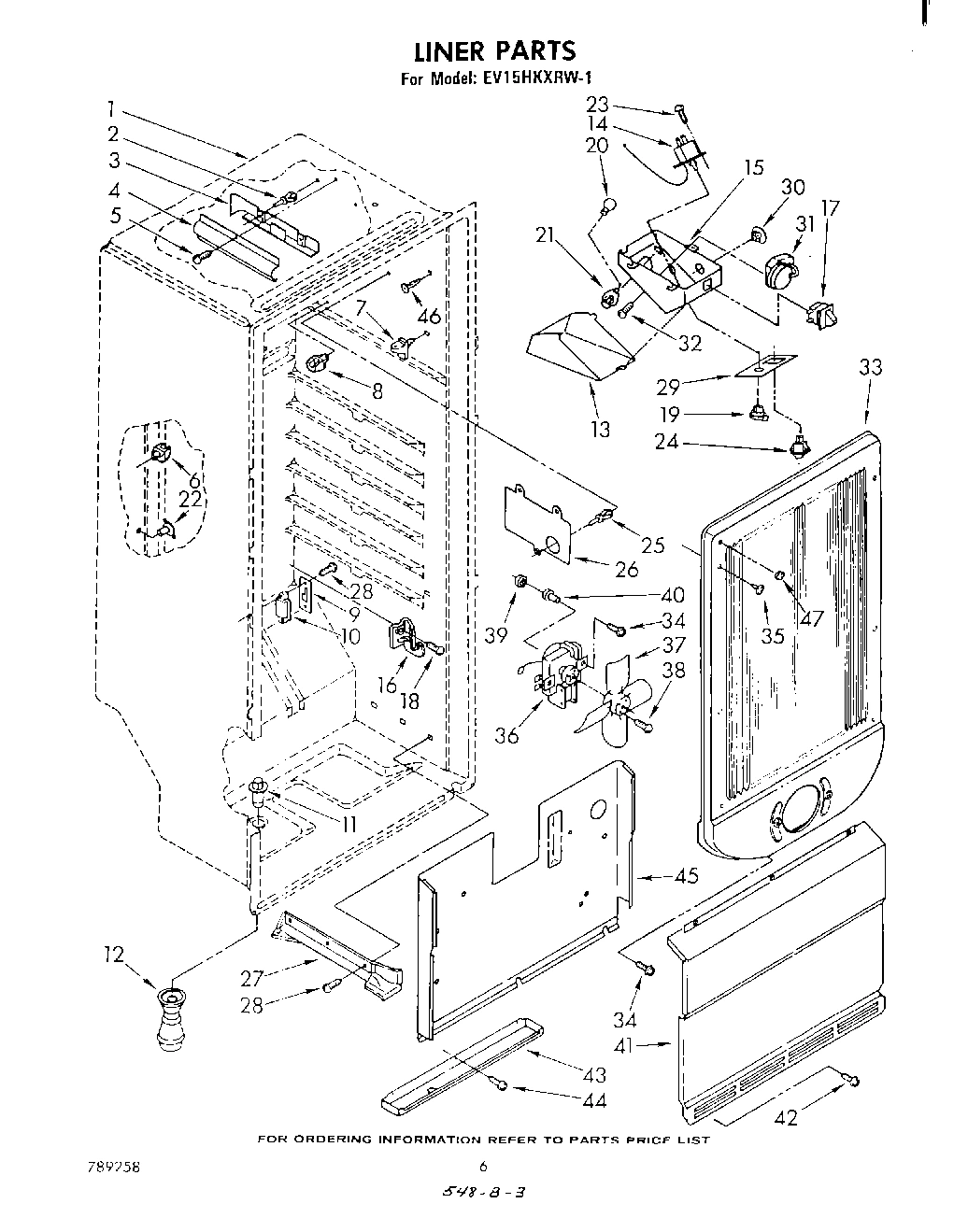

Model Whirlpool EV15HKXRW1 VERTICAL FREEZER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

xLeveler, Enamel (13 Oz. Spray WPL 206925 Contact Us For Availability

WPL 511881 WPL 511881 Contact Us For Availability

1

Transmitter, Light WPL 1103638 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI55884A8 Contact Us For Availability

1

Screw, 8 x 7/8 (2) WPL 487888 Contact Us For Availability

2

Panel, Interior WPL 1100450 Contact Us For Availability

2

Rivet, Plastic (2) WPL 939961 Contact Us For Availability

2

Bumper (2) WPL 204349 Contact Us For Availability

3

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

3

Wire, Cover (Rear) WPL 1100469 Contact Us For Availability

3

Condenser & Precooler Assembly WPL 1100420 Contact Us For Availability

4

Wire, Cover (Front) WPL 1100468 Contact Us For Availability

4

Clip, Tube (2) WPL 938232 Contact Us For Availability

5

Hole Plug WPL 534927 Contact Us For Availability

5

Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability

5

Tube Clamp WPL 510716 Contact Us For Availability

6

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

6

Door, Exterior (White) WPL 946752 Contact Us For Availability

6

(Almond) WPL 946754 Contact Us For Availability

7

2188436A Whirlpool Refrigerator Door Gasket Backorder WPL 2188436A $145.07

7

Stud, Shelf (2) WPL 946356 Contact Us For Availability

7

dampener WPL 938368 Contact Us For Availability

8

819091 Whirlpool Refrigerator Shelf Stud Backorder WPL 819091 $13.89

8

Cover, Light Transmitter WPL 1103726 Contact Us For Availability

8

Strap (Used W/Original Compressor) WPL 938384 Contact Us For Availability

9

Nameplate Assembly WPL 945116 Contact Us For Availability

9

Strike, Lock WPL 940167 Contact Us For Availability

9

Cover, Terminal (Used W/Original Compressor) WPL 1105015 Contact Us For Availability

10

Nameplate WPL 945108 Contact Us For Availability

10

Lock Strike, Back-Up WPL 940168 Contact Us For Availability

repair WPL 946209 Contact Us For Availability

Trim, Door Shelf (Three Used) WPL 1100102 Contact Us For Availability

Trim, Door (1) WPL 1100116 Contact Us For Availability

Drain, Ferrule Cap WPL 934607 Contact Us For Availability

Overload (Used W/Original Compressor) WPL 946616 Contact Us For Availability

12

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

12

Screw (Repair) WPL 488949 Contact Us For Availability

12

Fitting, Drain WPL 842256 Contact Us For Availability

13

Shim, Top Hinge WPL 836151 Contact Us For Availability

13

shim, repair WPL 836192 Contact Us For Availability

13

Light, Lens WPL 1100466 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

4389248 Whirlpool Refrigerator Thermostat Backorder WPL 4389248 $119.90

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

Hinge & Shim (Top) WPL 842038 Contact Us For Availability

Lock WPL 940165 Contact Us For Availability

Control Box WPL 1100458 Contact Us For Availability

16

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $4.08

16

Clip, Lock WPL 983465 Contact Us For Availability

16

Support, Evaporator (2) WPL 935700 Contact Us For Availability

17

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

17

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

17

WP842177 Whirlpool Refrigerator Door Key In Stock WPL WP842177 $2.51

18

Bracket, Signal Light WPL 1103637 Contact Us For Availability

18

Handle, Center WPL 946738 Contact Us For Availability

18

Evaporator WPL 1100424 Contact Us For Availability

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

Tape Strip WPL 991259 Contact Us For Availability

Control Knob, Thermostat WPL 1100467 Contact Us For Availability

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

Light, Signal WPL 1103639 Contact Us For Availability

Condenser Bracket (2) WPL 510721 Contact Us For Availability

21

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

21

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

21

End, Handle WPL 946737 Contact Us For Availability

22

Cover, Wiring WPL 946218 Contact Us For Availability

22

Spacer (8) WPL 1100445 Contact Us For Availability

22

Heater, Defrost WPL 1100434 Contact Us For Availability

Clamp WPL 937357 Contact Us For Availability

Screw, 8-15 x 1-5/8 WPL 488987 Contact Us For Availability

Screw, 8 x 1/2A WPL 488974 Contact Us For Availability

Support, Heater WPL 851358 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

WP4387499 Whirlpool Refrigerator Bimetallic D In Stock WPL WP4387499 $41.78

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

kit, foam slabl (30`` x 32-1/2`` x 1-1/2``) WPL 876029 Contact Us For Availability

Use & Care Guide WPL 1103667 Contact Us For Availability

energy guide WPL 1103670 Contact Us For Availability

tech sheet WPL 1105070 Contact Us For Availability

Transformer, Stepdown (230-115 Volt) WPL 515393 Contact Us For Availability

How To Freeze Booklet WPL 656493 Contact Us For Availability

list, parts WPL 789258 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

Kit, Porcelain Repair WPL 799832 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Cover, End WPL 946742 Contact Us For Availability

Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability

25

939962 Whirlpool Refrigerator Rivet Backorder WPL 939962 $7.21

25

Grommet, Wiring (Not A Service Item) WPL 946650 Contact Us For Availability

25

Clip, Condenser Mounting (2) WPL 935788 Contact Us For Availability

26

Heater, Stile (Not A Service Item) WPL 938361 Contact Us For Availability

26

Shield, Electrical WPL 1100464 Contact Us For Availability

26

Restrictor Sleeve WPL 510446 Contact Us For Availability

27

Tap Plate WPL 935743 Contact Us For Availability

27

Tube Entry Cover (Bottom) WPL 941776 Contact Us For Availability

27

relay (used w/original compressor) WPL 946615 Contact Us For Availability

28

W10439652 Whirlpool Refrigerator Compressor Backorder WPL W10439652 $276.71

28

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

28

screw (repair) WPL 488706 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

29

Insert, Control Panel WPL 1100789 Contact Us For Availability

30

Rail Cover, Tube Entry (White) WPL 935707 Contact Us For Availability

30

Rail Cover, Tube Entry (Almond) WPL 935711 Contact Us For Availability

30

Clamp WPL 547637 Contact Us For Availability

31

Screw WPL 488895 Contact Us For Availability

31

Timer, Defrost WPL 945486 Contact Us For Availability

31

Unit Mounting Plate WPL 942860 Contact Us For Availability

32

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

32

Shim, Bottom Hinge WPL 935737 Contact Us For Availability

32

Clamp WPL 513584 Contact Us For Availability

33

Hinge Assembly (Bottom R.H.) WPL 943668 Contact Us For Availability

33

Air Duct & Fan Cover WPL 1103661 Contact Us For Availability

33

Tray, Evaporator WPL 935781 Contact Us For Availability

34

WP487939 Whirlpool Refrigerator Nut Backorder WPL WP487939 $2.51

34

Screw, 8-15 x 5/8A WPL 489042 Contact Us For Availability

35

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

35

Spacer WPL 938275 Contact Us For Availability

36

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

36

Pad, Sound WPL 301774 Contact Us For Availability

37

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

37

Dampener WPL 945593 Contact Us For Availability

38

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

38

Box, Junction WPL 937068 Contact Us For Availability

39

Grommet (2) WPL 531933 Contact Us For Availability

40

Spacer (2) WPL 935701 Contact Us For Availability

40

Heat Exchanger WPL 1100429 Contact Us For Availability

41

Evaporator, Cover WPL 1100476 Contact Us For Availability

41

Mounting Rail WPL 945448 Contact Us For Availability

42

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

42

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

42

repair WPL 487883 Contact Us For Availability

43

Pan, Drain WPL 1100471 Contact Us For Availability

45

Shield, Heat WPL 1100470 Contact Us For Availability

46

Support, Stud WPL 946355 Contact Us For Availability

47

Hole Plug WPL 1103725 Contact Us For Availability

47

Strap (Used W/Service Compressor) WPL 549342 Contact Us For Availability

48

Cover (Used W/Service Compressor) WPL 549336 Contact Us For Availability

49

Spring, Overload (Used W/Service Compressor) WPL 549086 Contact Us For Availability

50

Overload (Used W/Service Compressor) WPL 936073 Contact Us For Availability

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Relay (Used W/Service Compressor) WPL 549500 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
