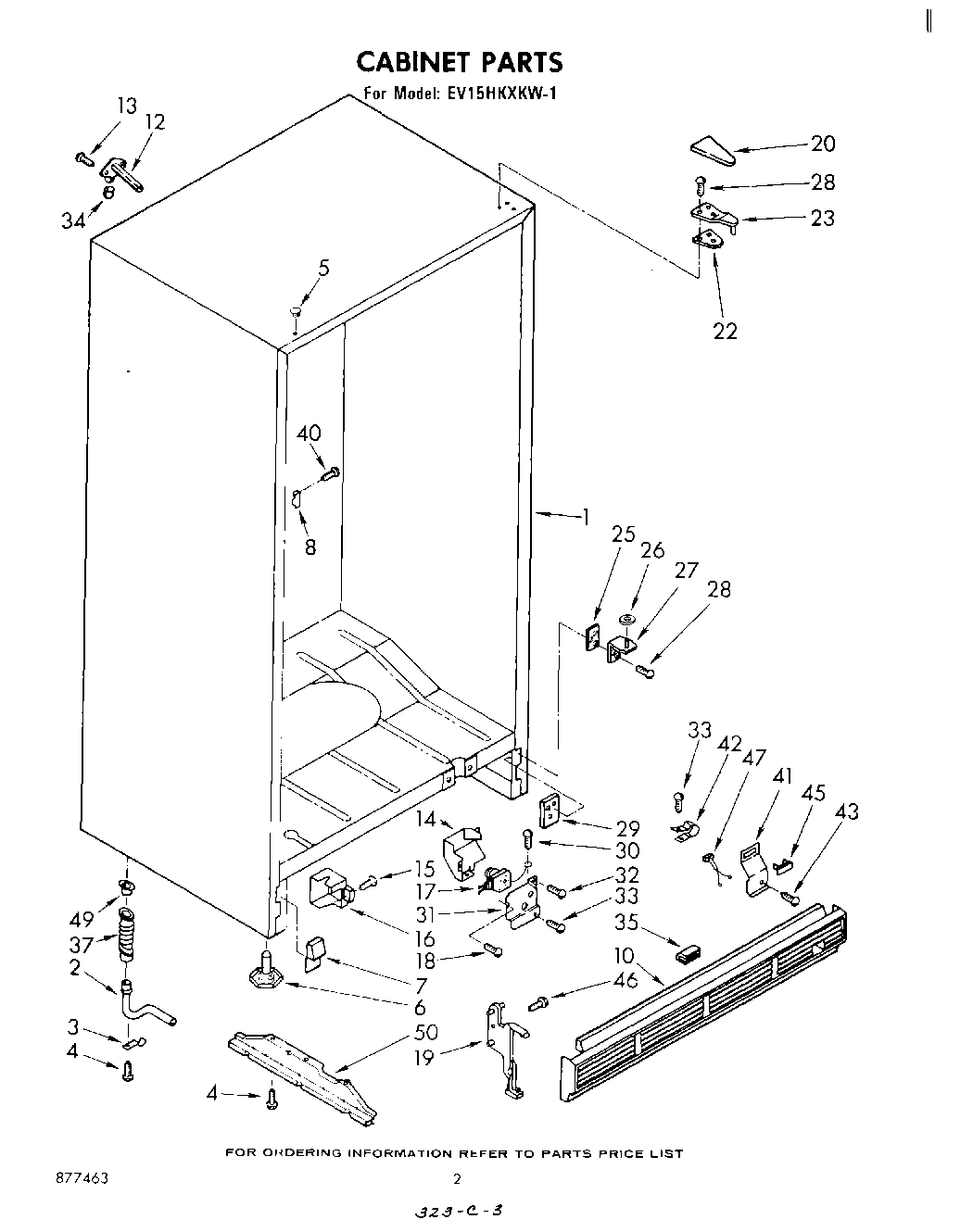

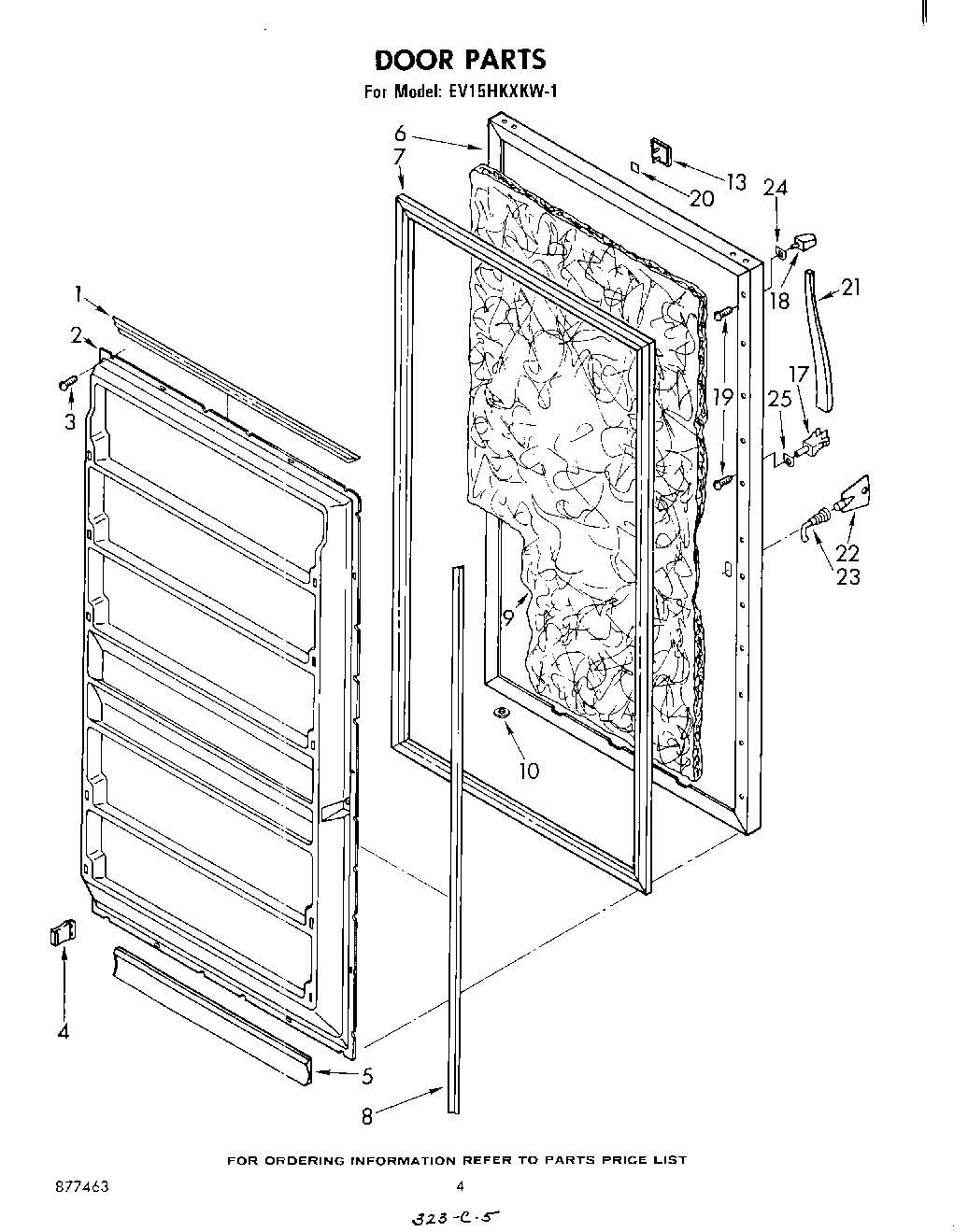

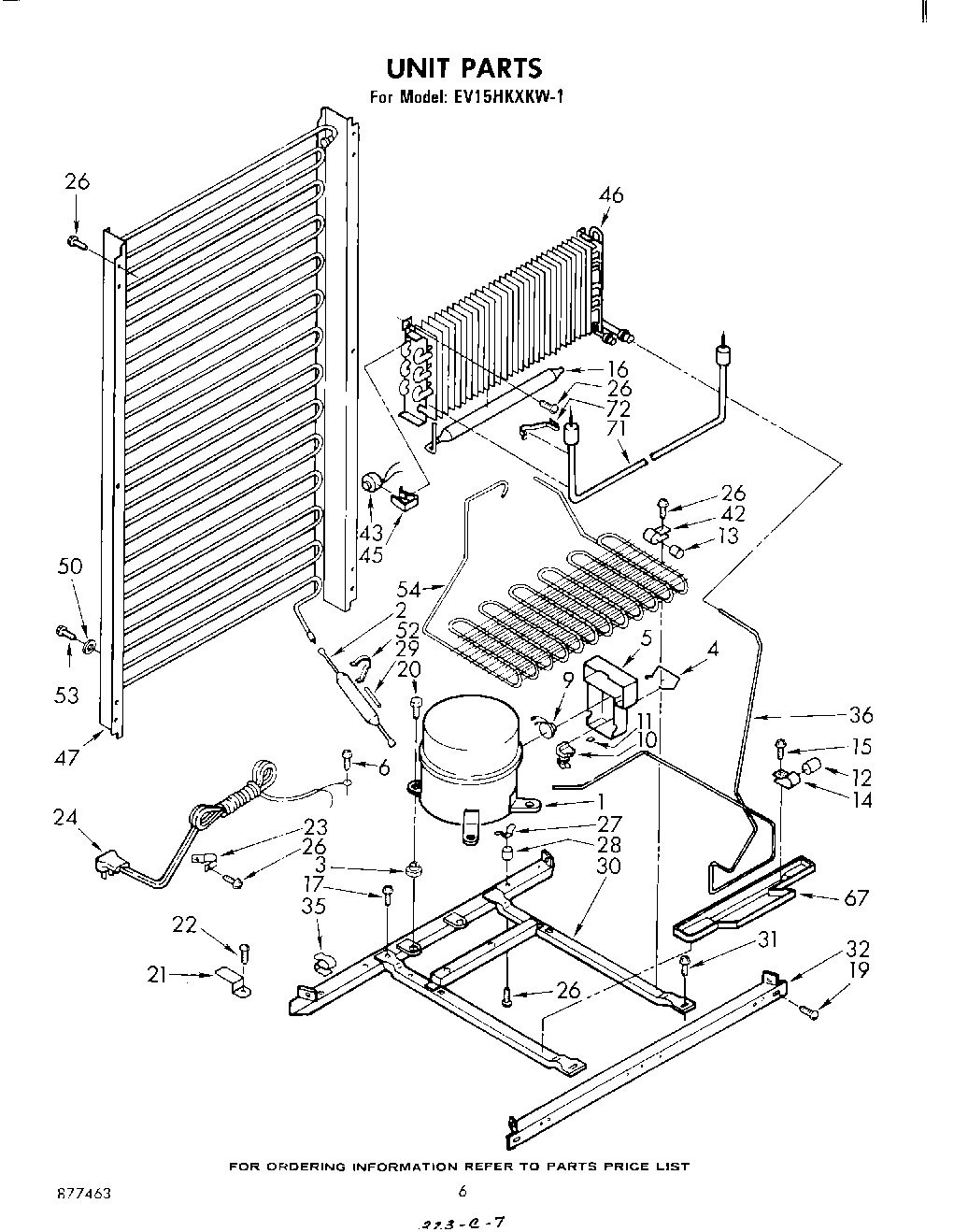

Model Whirlpool EV15HKXKW1 VERTICAL FREEZER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

WPL 206925 WPL 206925 Contact Us For Availability

WPL 511881 WPL 511881 Contact Us For Availability

1

Breaker, Top WPL 940923 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI55880A8 Contact Us For Availability

1

Compressor WPL 464082 Contact Us For Availability

1

Retainer, Gasket (2) WPL 836115 Contact Us For Availability

2

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

2

Breaker, L.S. WPL 981082 Contact Us For Availability

2

Extension Fitting WPL 841646 Contact Us For Availability

2

Panel WPL 942673 Contact Us For Availability

3

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

3

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

3

Breaker, R.S. WPL 836627 Contact Us For Availability

3

Clip, Drain WPL 841648 Contact Us For Availability

3

Grommet (4) WPL 547283 Contact Us For Availability

4

Switch, Light WPL 549191 Contact Us For Availability

4

Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability

4

Spring WPL 531318 Contact Us For Availability

4

Retainer, Trim (8) WPL 943151 Contact Us For Availability

5

Breaker, Bottom WPL 836176 Contact Us For Availability

5

Plug, Hole (3) (White) WPL 842031 Contact Us For Availability

5

Plug, Hole (3) (Almond) WPL 989195 Contact Us For Availability

5

Plug, Hole (3) (Coffee) WPL 989875 Contact Us For Availability

5

Plug, Hole (3) (New Gold) WPL 989876 Contact Us For Availability

5

Plug, Hole (3) (New Avocado) WPL 989877 Contact Us For Availability

5

Case WPL 549945 Contact Us For Availability

5

Trim, Shelf WPL 984916 Contact Us For Availability

6

W11117769 Whirlpool Refrigerator Leveler In Stock WPL W11117769 $6.97

6

Grommet (4) WPL 216446 Contact Us For Availability

6

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

6

Door, Exterior (White) WPL 934995 Contact Us For Availability

6

Door, Exterior (Almond) WPL 934999 Contact Us For Availability

7

2188439A Whirlpool Refrigerator Door Gasket Backorder WPL 2188439A $145.11

7

Trim, Shelf Front (2) WPL 942631 Contact Us For Availability

7

Filler Grille (White) WPL 838535 Contact Us For Availability

7

Filler, Grille (Coffee) WPL 989928 Contact Us For Availability

7

Filler, Grille (New Gold) WPL 989929 Contact Us For Availability

7

Filler, Grille (New Avocado) WPL 989930 Contact Us For Availability

7

Filler Grille (Almond) WPL 989931 Contact Us For Availability

8

Bracket, Strike WPL 991992 Contact Us For Availability

8

Retainer, Gasket (Side) (2) WPL 836120 Contact Us For Availability

9

Shelf (2) WPL 983425 Contact Us For Availability

9

Overload WPL 549041 Contact Us For Availability

Shelf (1) WPL 983426 Contact Us For Availability

Grille, Exterior (Coffee) WPL 942603 Contact Us For Availability

Grille, Exterior (New Gold) WPL 942604 Contact Us For Availability

Grille, Exterior (New Avocado) WPL 942605 Contact Us For Availability

Grille, Exterior (Almond) WPL 942606 Contact Us For Availability

Grille, Exterior (White) WPL 981088 Contact Us For Availability

Relay WPL 989662 Contact Us For Availability

Plug, Hole (2) WPL 534927 Contact Us For Availability

11

Trivet WPL 934901 Contact Us For Availability

11

Bumper WPL 547272 Contact Us For Availability

12

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

12

Clip (2) WPL 939139 Contact Us For Availability

12

Dampener WPL 510769 Contact Us For Availability

13

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

13

Dampener WPL 850194 Contact Us For Availability

13

Nameplate WPL 945107 Contact Us For Availability

14

Stud, Shelf (L.S.) WPL 836492 Contact Us For Availability

14

Guard, Timer WPL 548708 Contact Us For Availability

14

Clamp Tube WPL 510716 Contact Us For Availability

15

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

15

Stud WPL 984394 Contact Us For Availability

16

Box, Junction WPL 549947 Contact Us For Availability

16

Header & Tube Assembly WPL 850596 Contact Us For Availability

17

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

17

Timer, Defrost WPL 851160 Contact Us For Availability

17

End, Handle (Bottom) WPL 982947 Contact Us For Availability

18

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

18

End, Handle (Top) WPL 982948 Contact Us For Availability

19

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

19

Support, Grille (2) WPL 844614 Contact Us For Availability

19

Screw WPL 488818 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

Cover, Hinge (Coffee) WPL 989895 Contact Us For Availability

Cover, Hinge (New Gold) WPL 989896 Contact Us For Availability

Cover, Hinge (New Avocado) WPL 989897 Contact Us For Availability

Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability

Tape Strip WPL 991259 Contact Us For Availability

21

Clip, Plug WPL 653035 Contact Us For Availability

21

Handle WPL 982978 Contact Us For Availability

Baffle, Evaporator (2) WPL 981079 Contact Us For Availability

Shim, Hinge WPL 836151 Contact Us For Availability

Screw WPL 486899 Contact Us For Availability

Key WPL 941380 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Hinge, Top WPL 842038 Contact Us For Availability

Lock WPL 941379 Contact Us For Availability

24

Gasket, Drain Trough WPL 981083 Contact Us For Availability

24

Cord, Service WPL 850626 Contact Us For Availability

24

Shim, Handle End WPL 941918 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Kit, Slab Foam (30.0`` x 32.5`` x 1.5``) (2) WPL 876029 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Shim, Hinge WPL 836196 Contact Us For Availability

Booklet, Freezing WPL 656493 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

Thinner, Blend (1 Gal.) WPL 799351 Contact Us For Availability

Kit, Porcelain Repair WPL 799832 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

List, Parts WPL 877463 Contact Us For Availability

Shim, Handle End WPL 941917 Contact Us For Availability

Guide, Use & Care WPL 942640 Contact Us For Availability

Energy Guide WPL 942655 Contact Us For Availability

Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability

26

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

27

Hinge (Bottom) WPL 836686 Contact Us For Availability

27

Clamp (4) WPL 531086 Contact Us For Availability

28

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

28

Screw (Repair) WPL 488949 Contact Us For Availability

28

Grommet (4) WPL 513646 Contact Us For Availability

29

Tap Plate WPL 836162 Contact Us For Availability

29

Sleeve, Restrictor WPL 510446 Contact Us For Availability

30

Clip, Expansion WPL 537095 Contact Us For Availability

30

Frame WPL 548655 Contact Us For Availability

31

Plate, Timer WPL 548705 Contact Us For Availability

31

Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability

32

Screw, 6-20 x 3/8 WPL 488424 Contact Us For Availability

32

Rail, Front WPL 941699 Contact Us For Availability

33

Grommet WPL 548268 Contact Us For Availability

33

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

34

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

34

Bracket (Single) WPL 548264 Contact Us For Availability

35

Bracket (Double) WPL 548263 Contact Us For Availability

35

Bumper (2) WPL 546131 Contact Us For Availability

35

Clip (2) WPL 548745 Contact Us For Availability

36

Screw, 8 x 1-1/8 WPL 488876 Contact Us For Availability

36

Exchanger, Heat WPL 943327 Contact Us For Availability

37

Fitting, Drain WPL 981147 Contact Us For Availability

38

Cover, Thermostat WPL 836553 Contact Us For Availability

40

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

40

Knob WPL 981928 Contact Us For Availability

41

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

41

Bracket, Pilot Light WPL 842250 Contact Us For Availability

42

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

42

Cleat, Cord WPL 653037 Contact Us For Availability

42

Clamp WPL 515268 Contact Us For Availability

43

WP4387489 Whirlpool Refrigerator Bi-Metal Def In Stock WPL WP4387489 $33.76

43

Shield, Light WPL 848158 Contact Us For Availability

45

Light, Pilot WPL 530584 Contact Us For Availability

45

Clamp WPL 513584 Contact Us For Availability

46

Evaporator WPL 850594 Contact Us For Availability

47

WPL 549538 WPL 549538 Contact Us For Availability

47

Condenser Assembly WPL 938147 Contact Us For Availability

48

4389248 Whirlpool Refrigerator Thermostat Backorder WPL 4389248 $119.90

49

Escutcheon, Thermostat WPL 843953 Contact Us For Availability

49

WPL 981148 WPL 981148 Contact Us For Availability

50

WPL 843164 WPL 843164 Contact Us For Availability

50

Bumper, Rubber WPL 204349 Contact Us For Availability

51

Cover, Fan Motor WPL 984538 Contact Us For Availability

52

482469 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482469 $88.24

52

Clamp WPL 547637 Contact Us For Availability

53

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

53

Blade, Fan WPL 839859 Contact Us For Availability

54

Cover, Fan Orifice WPL 988097 Contact Us For Availability

54

Precooler Assembly WPL 938355 Contact Us For Availability

55

Gasket WPL 659202 Contact Us For Availability

56

Pan, Drain WPL 981076 Contact Us For Availability

57

Cover, Evaporator WPL 983675 Contact Us For Availability

58

Grommet, Screw (2) WPL 538449 Contact Us For Availability

59

Evaporator Support (2) WPL 842436 Contact Us For Availability

62

Extension, Drain Trough WPL 984549 Contact Us For Availability

67

Pan, Drip WPL 989269 Contact Us For Availability

71

Heater, Defrost WPL 989613 Contact Us For Availability

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Clip, Heater WPL 548459 Contact Us For Availability

Clip, Heater (Repair) WPL 549696 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
