Model Whirlpool EV150NXWW03 VERTICAL FREEZER – Common Parts & Diagrams
04 - LINER
06 - UNIT

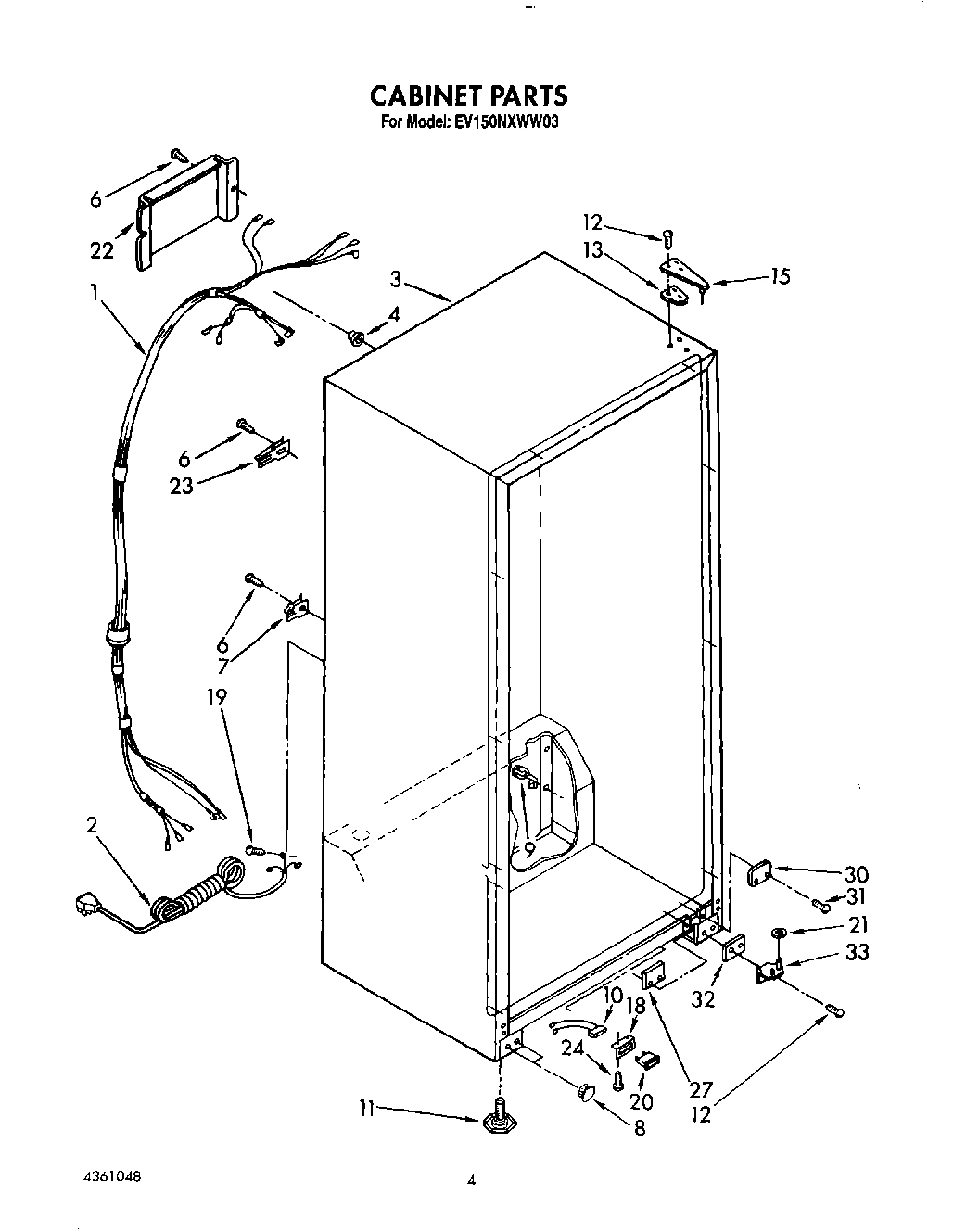

03 - CABINET
05 - SHELF

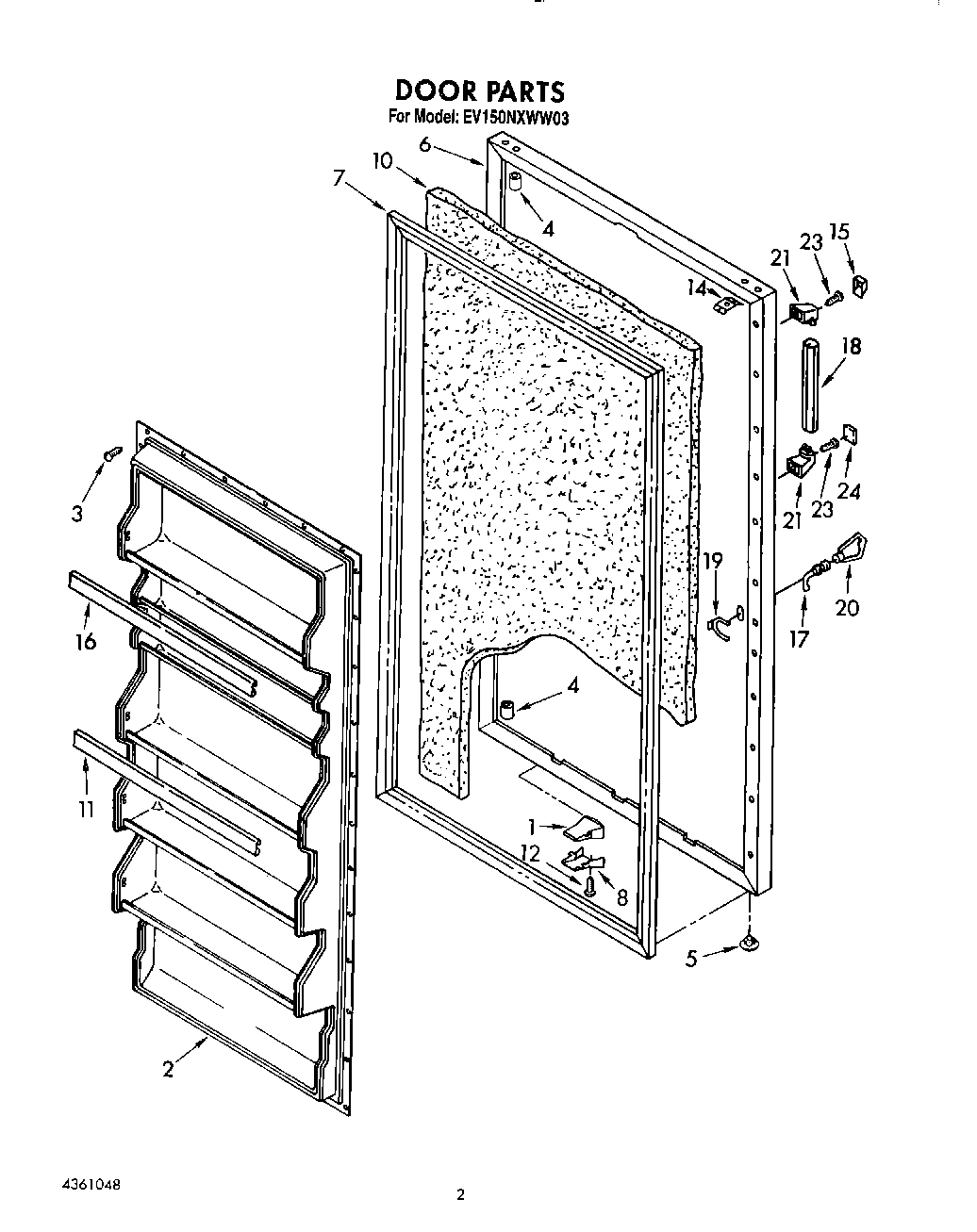

02 - DOOR, LIT/OPTIONAL
Common parts from model Whirlpool EV150NXWW03 VERTICAL FREEZER
WPL LIT1114915 WPL LIT1114915 Contact Us For Availability
WPL LIT1114942 WPL LIT1114942 Contact Us For Availability
WPL LIT1127780 WPL LIT1127780 Contact Us For Availability
WPL LIT4361048 WPL LIT4361048 Contact Us For Availability
WPL LIT656493 WPL LIT656493 Contact Us For Availability
1
Screw, 8 x 7/8 (2) WPL 487888 Contact Us For Availability
1
Cabinet Wiring Assembly WPL 1127778 Contact Us For Availability
1
Shelf, Pullout (Long) WPL 1106603 Contact Us For Availability
1
Transmitter, Light WPL 1103638 Contact Us For Availability
2
Bumper (2) WPL 204349 Contact Us For Availability
2
Cord, Service WPL 850626 Contact Us For Availability
2
Trivet WPL 1106607 Contact Us For Availability
2
Panel, Interior WPL 946763 Contact Us For Availability
3
Condenser Assembly WPL 2150498 Contact Us For Availability
3
Cabinet (Not A Serviceable Part) WPL ARI55874A3 Contact Us For Availability
3
Pullout Shelf (Short) (2) WPL 1106605 Contact Us For Availability
4
Tube Clip (2) WPL 510414 Contact Us For Availability
4
Grommet, Wiring WPL 938284 Contact Us For Availability
4
Shelf, Wire WPL 1106610 Contact Us For Availability
4
Cap, Hinge Sleeve (2) WPL 509929 Contact Us For Availability
5
Tube Clamp WPL 510716 Contact Us For Availability
5
Trim, Snap-On WPL 1103660 Contact Us For Availability
5
Hole Plug WPL 534927 Contact Us For Availability
6
Trim, Snap-On WPL 1103659 Contact Us For Availability
6
Door, Exterior (White) WPL 1111092 Contact Us For Availability
6
Door, Exterior (Almond (Also Order Item 10)) WPL 1111094 Contact Us For Availability
7
Dampener WPL 1108064 Contact Us For Availability
7
Clamp WPL 939009 Contact Us For Availability
7
Bumper (4) WPL 941879 Contact Us For Availability
8
Hole Plug (White) WPL 941416 Contact Us For Availability
8
Hole Plug (Almond) WPL 941417 Contact Us For Availability
8
Grommet (2) WPL 216446 Contact Us For Availability
8
Cover, Light Transmitter WPL 1103726 Contact Us For Availability
9
Terminal Cover WPL 1108115 Contact Us For Availability
9
Bushing, Strain Relief WPL 544108 Contact Us For Availability
9
Trim, Snap-On WPL 946736 Contact Us For Availability
10
Wire Assembly, Signal Light WPL 1103733 Contact Us For Availability
11
Overload WPL 1127804 Contact Us For Availability
11
repair WPL 946209 Contact Us For Availability
11
Trim, Door Shelf (3) WPL 1104177 Contact Us For Availability
12
Screw, 6-32 x 1/2 WPL 489132 Contact Us For Availability
13
Spring, Overload WPL 1114190 Contact Us For Availability
13
Shim, Top Hinge WPL 1100509 Contact Us For Availability
15
Shim, Hinge Top WPL 1100513 Contact Us For Availability
15
Cover, End Cap WPL 1124593 Contact Us For Availability
16
Trim, Door Shelf WPL 1104176 Contact Us For Availability
17
Lock WPL 940165 Contact Us For Availability
18
Evaporator WPL 1100424 Contact Us For Availability
18
Bracket, Signal Light WPL 1103637 Contact Us For Availability
18
Handle, Center WPL 1114871 Contact Us For Availability
19
Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability
19
Clip, Lock WPL 983465 Contact Us For Availability
20
Condenser Bracket (2) WPL 510721 Contact Us For Availability
20
Light, Signal WPL 1103639 Contact Us For Availability
21
End, Handle (2) WPL 1124591 Contact Us For Availability
22
Heater, Defrost WPL 1100434 Contact Us For Availability
22
Cover, Wiring WPL 946218 Contact Us For Availability
23
Support, Heater WPL 851358 Contact Us For Availability
23
Clamp WPL 937357 Contact Us For Availability
23
Screw, 8-15 x 1-5/8 (2) WPL 817000 Contact Us For Availability
24
WPL 876029 WPL 876029 Contact Us For Availability
24
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
24
Cover, End Cap WPL 1114895 Contact Us For Availability
24
Leveler, Enamel (13 Oz. Spray Can) WPL 206925 Contact Us For Availability
24
Transformer, Stepdown (230-115 Volt) WPL 515393 Contact Us For Availability
24
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
24
KIT, EVAPORATOR REPAIR (AL WPL 799833 Contact Us For Availability
24
WPL 978883 WPL 978883 Contact Us For Availability
25
Clip, Condenser Mounting (2) WPL 935788 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Tap Plate WPL 935743 Contact Us For Availability
28
Compressor, (Includes Items 13, 47, 48, 49, 5 WPL 482981 Contact Us For Availability
29
Insert, Control Panel WPL 1100789 Contact Us For Availability
30
Clamp, Dryer WPL 1127590 Contact Us For Availability
30
Rail Cover, Tube Entry (White) WPL 935707 Contact Us For Availability
30
Rail Cover, Tube Entry (Almond) WPL 935711 Contact Us For Availability
31
Timer, Defrost WPL 1127570 Contact Us For Availability
31
Plate Assembly, Unit Mounting WPL 1118879 Contact Us For Availability
31
Screw WPL 488895 Contact Us For Availability
32
Clamp WPL 513584 Contact Us For Availability
32
Shim, Bottom Hinge WPL 935737 Contact Us For Availability
33
Air Duct & Fan Cover WPL 2147294 Contact Us For Availability
33
Tray, Evaporator WPL 935781 Contact Us For Availability
33
Hinge Assembly (Bottom R.H.) WPL 943668 Contact Us For Availability
34
Screw, 8 x 1/2 WPL 489168 Contact Us For Availability
35
Spacer WPL 938275 Contact Us For Availability
36
Motor, Fan WPL 1106739 Contact Us For Availability
37
Dampener WPL 1118888 Contact Us For Availability
38
Junction Box WPL 1108078 Contact Us For Availability
39
Grommet (2) WPL 531933 Contact Us For Availability
40
Strike, Lock WPL 940167 Contact Us For Availability
40
Heat Exchanger WPL 1127737 Contact Us For Availability
41
Evaporator, Cover WPL 1100476 Contact Us For Availability
41
Mounting Rail WPL 945448 Contact Us For Availability
43
Pan, Drain WPL 1100471 Contact Us For Availability
43
Precooler WPL 1128121 Contact Us For Availability
44
Dampener (2) WPL 1118889 Contact Us For Availability
45
Shield, Heat WPL 1100470 Contact Us For Availability
45
Clamp (2) WPL 1115557 Contact Us For Availability
46
Support, Stud WPL 946355 Contact Us For Availability
47
Hole Plug WPL 1103725 Contact Us For Availability
47
Strap WPL 938384 Contact Us For Availability
48
Cover, Terminal WPL 1105015 Contact Us For Availability
49
Capacitor WPL 482996 Contact Us For Availability
50
Lock Strike, Back-Up WPL 940168 Contact Us For Availability
50
Overload WPL 483037 Contact Us For Availability
51
Heat, Probe WPL 986635 Contact Us For Availability
52
Fan, Mounting Cover WPL 1108194 Contact Us For Availability
52
Nut WPL 489142 Contact Us For Availability
53
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
53
Washer WPL 489143 Contact Us For Availability
53
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
