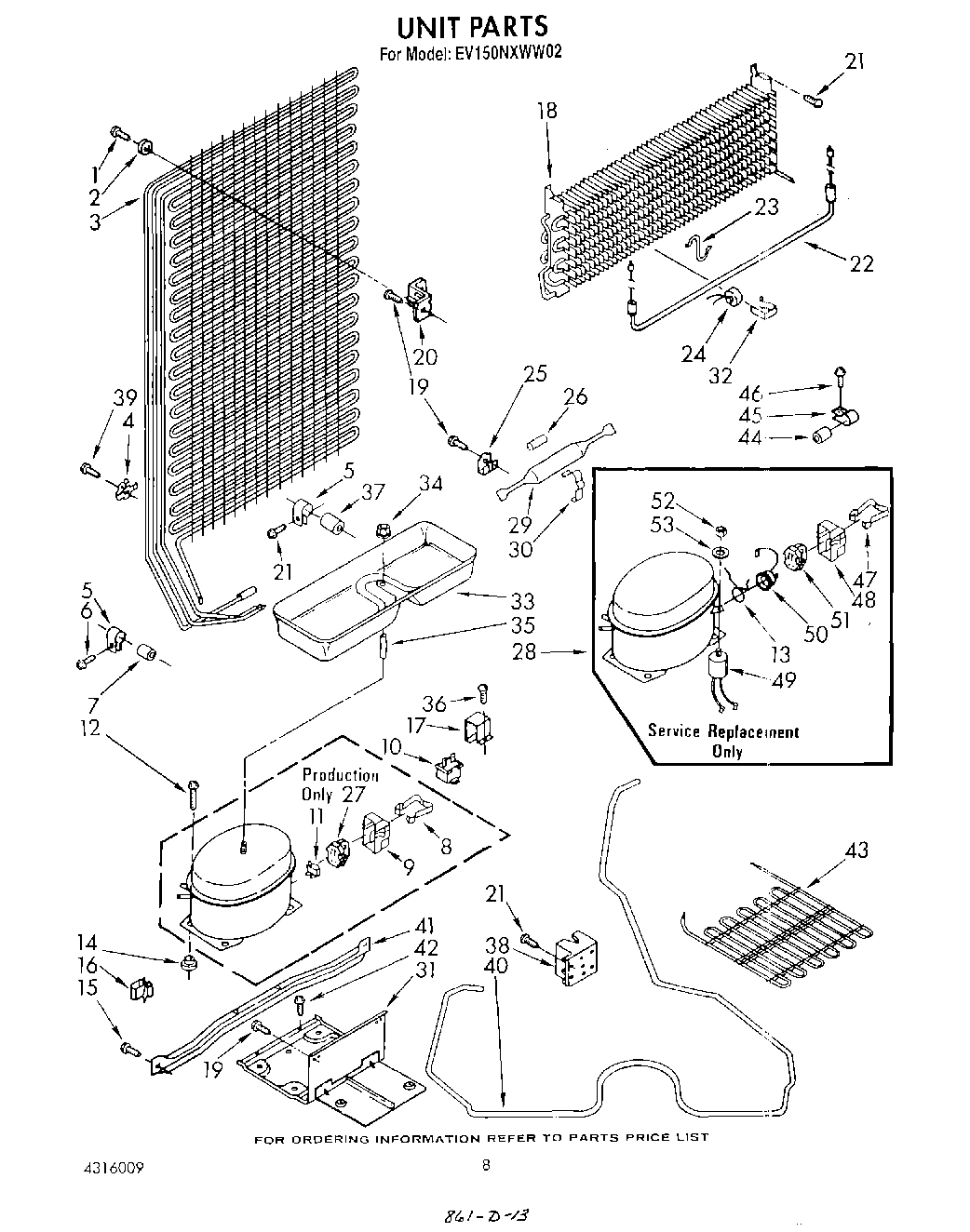

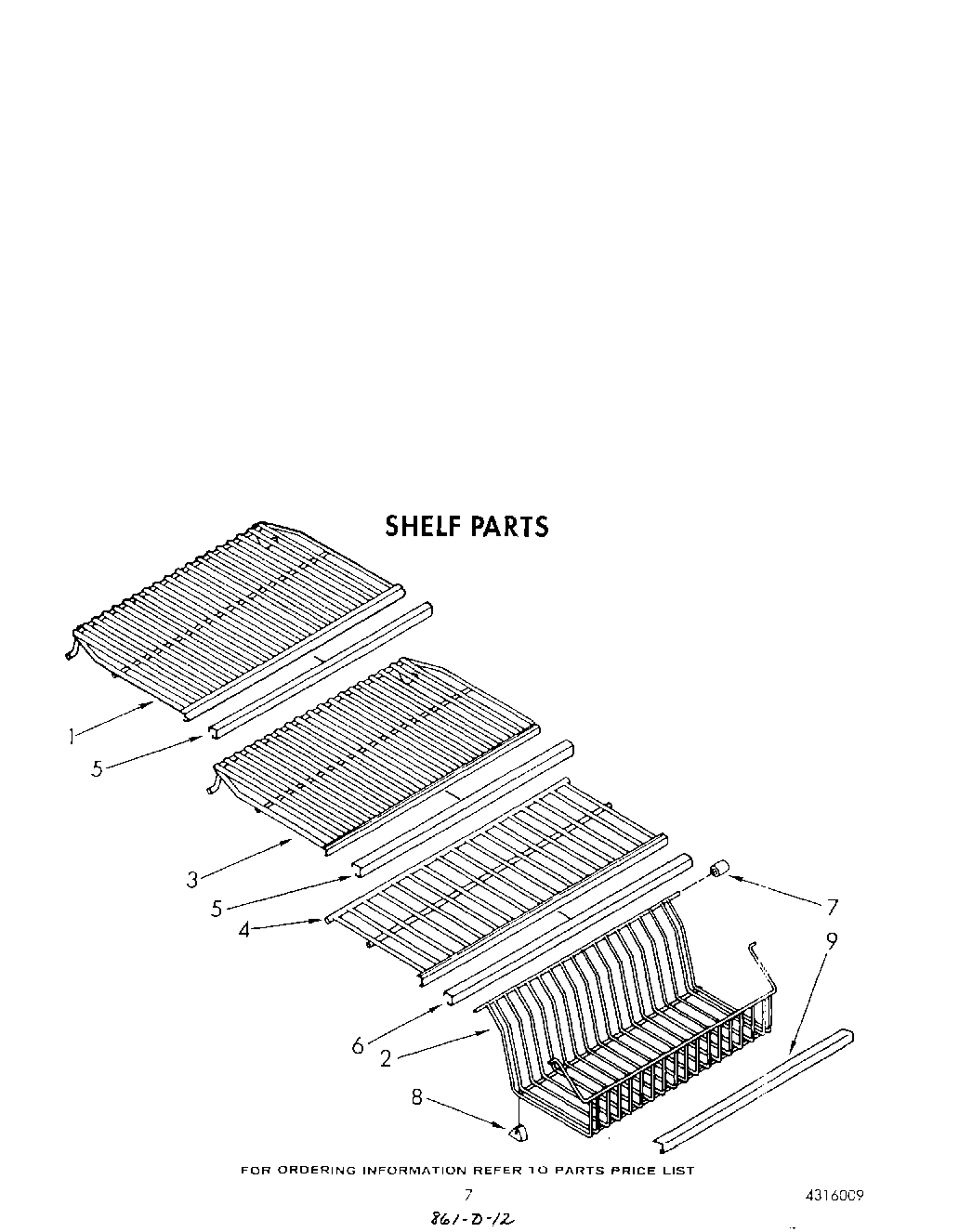

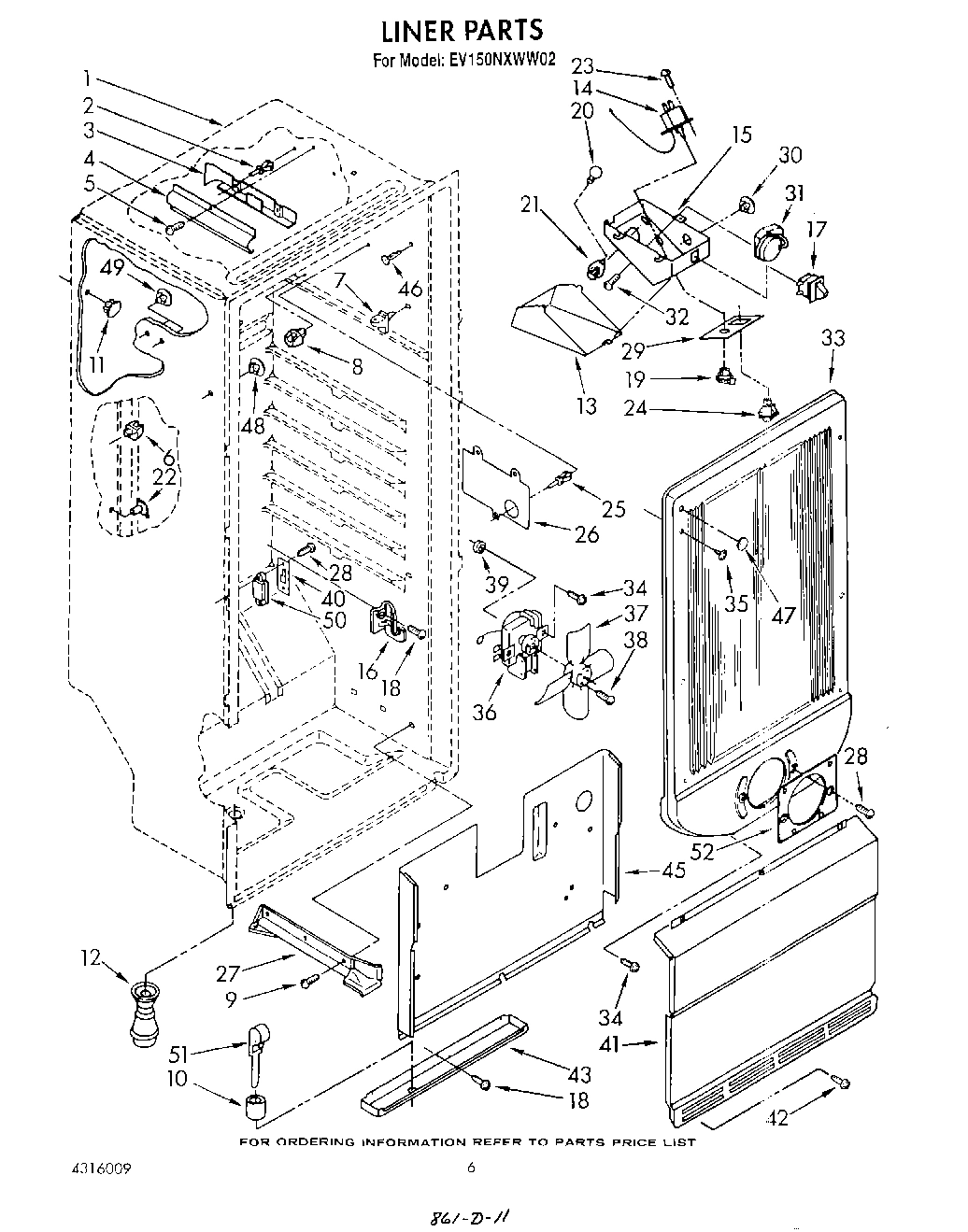

Model Whirlpool EV150NXWW02 VERTICAL FREEZER – Common Parts &amp; Diagrams

1

Cabinet Wiring Assembly WPL 1127778 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI55873A1 Contact Us For Availability

1

Screw, 8 x 7/8 (2) WPL 487888 Contact Us For Availability

1

Shelf, Pullout (Long) WPL 1106603 Contact Us For Availability

2

Cord, Service WPL 850626 Contact Us For Availability

2

Rivet, Plastic (2) WPL 939961 Contact Us For Availability

2

Bumper (2) WPL 204349 Contact Us For Availability

2

Trivet WPL 1106607 Contact Us For Availability

3

Cabinet (Not A Serviceable Part) WPL ARI55872A5 Contact Us For Availability

3

Wire, Cover (Rear) WPL 1100469 Contact Us For Availability

3

Condenser Assembly WPL 1118881 Contact Us For Availability

3

Pullout Shelf (Short) (2) WPL 1106605 Contact Us For Availability

4

Grommet, Wiring WPL 938284 Contact Us For Availability

4

Wire, Cover (Front) WPL 1100468 Contact Us For Availability

4

Tube Clip (2) WPL 510414 Contact Us For Availability

4

Shelf, Wire WPL 1106610 Contact Us For Availability

5

Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability

5

Tube Clamp WPL 510716 Contact Us For Availability

5

Trim, Snap-On WPL 1103660 Contact Us For Availability

6

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

6

Trim, Snap-On WPL 1103659 Contact Us For Availability

7

Clamp WPL 939009 Contact Us For Availability

7

Stud, Shelf (2) WPL 946356 Contact Us For Availability

7

Dampener WPL 1108064 Contact Us For Availability

7

Bumper (4) WPL 941879 Contact Us For Availability

8

819091 Whirlpool Refrigerator Shelf Stud In Stock WPL 819091 $13.89

8

Hole Plug (White) WPL 941416 Contact Us For Availability

8

Hole Plug (Almond) WPL 941417 Contact Us For Availability

8

Grommet (2) WPL 216446 Contact Us For Availability

9

Bushing, Strain Relief WPL 544108 Contact Us For Availability

9

Terminal Cover WPL 1108115 Contact Us For Availability

9

Trim, Snap-On WPL 946736 Contact Us For Availability

10

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

10

Wire Assembly, Signal Light WPL 1103733 Contact Us For Availability

10

Extension, Drain Hole WPL 836123 Contact Us For Availability

W11117769 Whirlpool Refrigerator Leveler In Stock WPL W11117769 $6.97

repair WPL 946209 Contact Us For Availability

Hole Plug WPL 655411 Contact Us For Availability

Overload WPL 1127804 Contact Us For Availability

12

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

12

Screw (Repair) WPL 489297 Contact Us For Availability

12

Fitting, Drain WPL 842256 Contact Us For Availability

Shim, Top Hinge WPL 836151 Contact Us For Availability

shim, repair WPL 836192 Contact Us For Availability

Light, Lens WPL 1100466 Contact Us For Availability

Spring, Overload WPL 1114190 Contact Us For Availability

14

4389248 Whirlpool Refrigerator Thermostat Backorder WPL 4389248 $119.90

14

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

14

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

15

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

15

Hinge & Shim (Top) WPL 842038 Contact Us For Availability

15

Control Box WPL 1100458 Contact Us For Availability

16

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $4.08

16

Hole Seal WPL 1120224 Contact Us For Availability

16

Support, Evaporator (2) WPL 935700 Contact Us For Availability

17

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

17

WP43449 Whirlpool Bracket Backorder WPL WP43449 $2.38

18

Handle, Center WPL 1114871 Contact Us For Availability

18

Bracket, Signal Light WPL 1103637 Contact Us For Availability

18

Evaporator WPL 1100424 Contact Us For Availability

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

Clip, Lock WPL 983465 Contact Us For Availability

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

Control Knob, Thermostat WPL 1100467 Contact Us For Availability

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.89

WP842177 Whirlpool Refrigerator Door Key In Stock WPL WP842177 $2.51

Light, Signal WPL 1103639 Contact Us For Availability

Condenser Bracket (2) WPL 510721 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

End, Handle (2) WPL 1124591 Contact Us For Availability

22

Cover, Wiring WPL 946218 Contact Us For Availability

22

Spacer (8) WPL 1100445 Contact Us For Availability

22

Heater, Defrost WPL 1100434 Contact Us For Availability

Screw, 8-15 x 1-5/8 (2) WPL 488987 Contact Us For Availability

Clamp WPL 937357 Contact Us For Availability

Screw, 8 x 1/2 WPL 488974 Contact Us For Availability

Support, Heater WPL 851358 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

WP4387499 Whirlpool Refrigerator Bimetallic D In Stock WPL WP4387499 $43.87

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Cover, End Cap WPL 1114895 Contact Us For Availability

Transformer, Stepdown (230-115 Volt) WPL 515393 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability

25

939962 Whirlpool Refrigerator Rivet Backorder WPL 939962 $7.21

25

Grommet, Wiring (Not A Service Item) WPL 946650 Contact Us For Availability

25

Clip, Condenser Mounting (2) WPL 935788 Contact Us For Availability

26

Heater, Stile (Not A Service Item) WPL 938361 Contact Us For Availability

26

Shield, Electrical WPL 1100464 Contact Us For Availability

26

Restrictor Sleeve WPL 510446 Contact Us For Availability

27

Tap Plate WPL 935743 Contact Us For Availability

27

Tube Entry Cover (Bottom) WPL 941776 Contact Us For Availability

28

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

28

screw (repair) WPL 488706 Contact Us For Availability

28

Compressor, (Includes Items 13, 47, 48, 49, 5 WPL 482981 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

29

Insert, Control Panel WPL 1100789 Contact Us For Availability

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

Rail Cover, Tube Entry (White) WPL 935707 Contact Us For Availability

Rail Cover, Tube Entry (Almond) WPL 935711 Contact Us For Availability

Clamp, Dryer WPL 1127590 Contact Us For Availability

31

Screw WPL 488895 Contact Us For Availability

31

Timer, Defrost WPL 1127570 Contact Us For Availability

31

Plate Assembly, Unit Mounting WPL 1118879 Contact Us For Availability

32

WP487353 Whirlpool Refrigerator Screw In Stock WPL WP487353 $2.51

32

Shim, Bottom Hinge WPL 935737 Contact Us For Availability

32

Clamp WPL 513584 Contact Us For Availability

33

Hinge Assembly (Bottom R.H.) WPL 943668 Contact Us For Availability

33

Air Duct & Fan Cover WPL 1108141 Contact Us For Availability

33

Tray, Evaporator WPL 935781 Contact Us For Availability

34

285002 Whirlpool Nut Backorder WPL 285002 $7.58

34

Screw, 8 x 1/2 WPL 489168 Contact Us For Availability

35

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

35

Spacer WPL 938275 Contact Us For Availability

36

Motor, Fan WPL 1115477 Contact Us For Availability

36

Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability

37

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $28.95

37

Dampener WPL 945593 Contact Us For Availability

38

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

38

Junction Box WPL 1108078 Contact Us For Availability

39

Grommet (2) WPL 531933 Contact Us For Availability

40

Strike, Lock WPL 940167 Contact Us For Availability

40

Heat Exchanger WPL 1127737 Contact Us For Availability

41

Evaporator, Cover WPL 1100476 Contact Us For Availability

41

Mounting Rail WPL 945448 Contact Us For Availability

42

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

42

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

42

repair WPL 487883 Contact Us For Availability

43

Pan, Drain WPL 1100471 Contact Us For Availability

43

Precooler WPL 1118884 Contact Us For Availability

44

Dampener (2) WPL 1118889 Contact Us For Availability

45

Shield, Heat WPL 1100470 Contact Us For Availability

45

Clamp (2) WPL 1115557 Contact Us For Availability

46

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

46

Support, Stud WPL 946355 Contact Us For Availability

47

Hole Plug WPL 1103725 Contact Us For Availability

47

Strap WPL 938384 Contact Us For Availability

48

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

48

Cover, Terminal WPL 1105015 Contact Us For Availability

49

Hole Plug WPL 944795 Contact Us For Availability

49

Capacitor WPL 482996 Contact Us For Availability

50

Lock Strike, Back-Up WPL 940168 Contact Us For Availability

50

Overload WPL 483037 Contact Us For Availability

51

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $53.03

51

Heat, Probe WPL 849689 Contact Us For Availability

52

Fan, Mounting Cover WPL 1108194 Contact Us For Availability

52

Nut WPL 489142 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Washer WPL 489143 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
