Model Whirlpool EV150NXKW1 VERTICAL FREEZER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

WPL 206925 WPL 206925 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

1

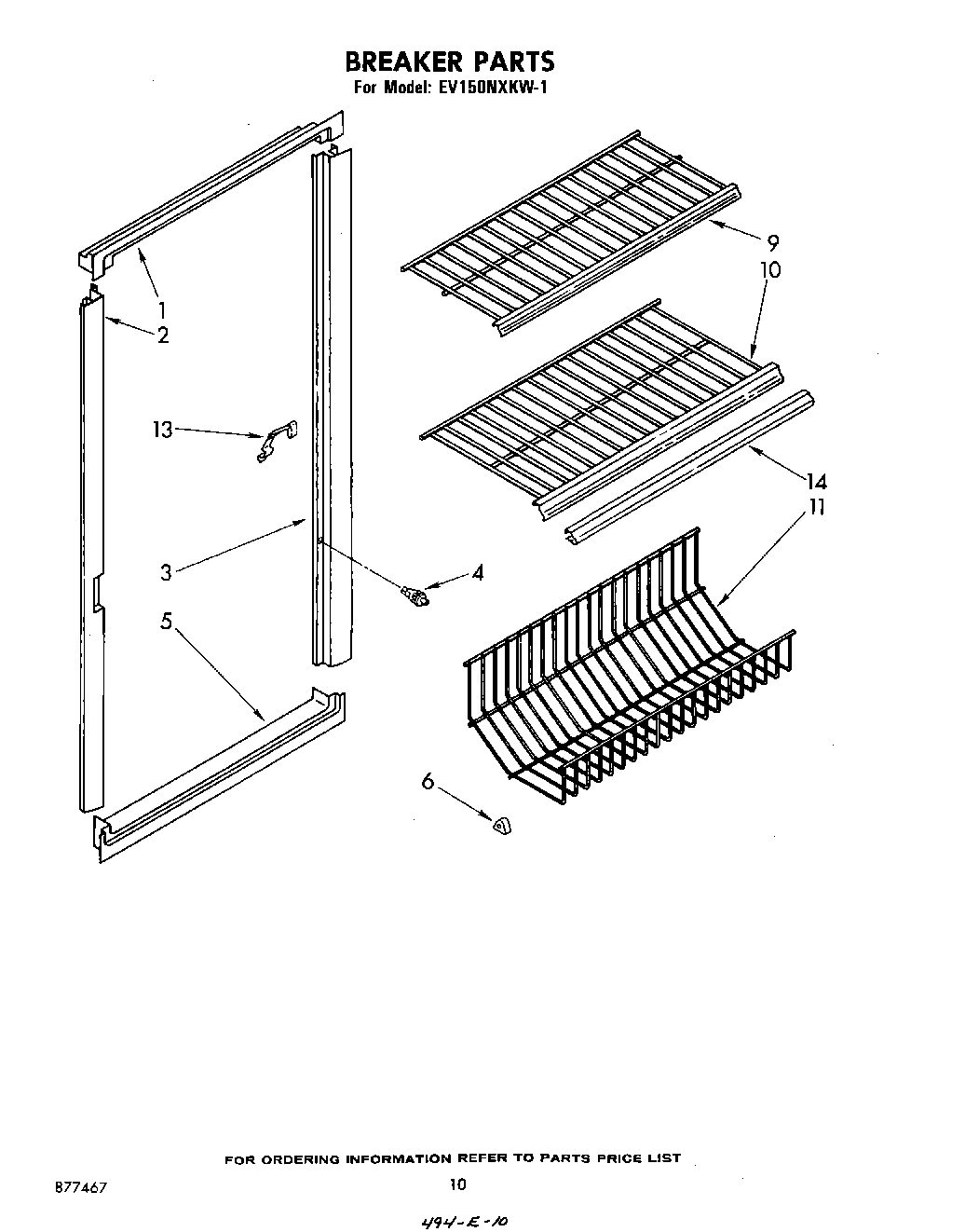

Breaker, Top WPL 836178 Contact Us For Availability

1

Retainer, Gasket (2) WPL 836115 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI55841A3 Contact Us For Availability

1

Cord, Service WPL 850626 Contact Us For Availability

2

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

2

Breaker, L.S. WPL 981082 Contact Us For Availability

2

Panel WPL 942673 Contact Us For Availability

2

Extension Fitting WPL 841646 Contact Us For Availability

3

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

3

WP681414 Whirlpool Screw Backorder WPL WP681414 $2.51

3

Breaker, R.S. WPL 836627 Contact Us For Availability

3

Clip, Drain WPL 841648 Contact Us For Availability

4

Switch, Light WPL 549254 Contact Us For Availability

4

Retainer, Trim (8) WPL 943151 Contact Us For Availability

4

Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability

4

Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability

5

Breaker, Bottom WPL 836176 Contact Us For Availability

5

Trim, Shelf (4) WPL 984916 Contact Us For Availability

5

Plug, Hole (3) (White) WPL 842031 Contact Us For Availability

5

Plug, Hole (3) (Almond) WPL 989195 Contact Us For Availability

5

Plug, Hole (3) (Coffee) WPL 989875 Contact Us For Availability

5

Plug, Hole (3) (New Gold) WPL 989876 Contact Us For Availability

5

Plug, Hole (3) (New Avocado) WPL 989877 Contact Us For Availability

5

Compressor WPL 464081 Contact Us For Availability

6

W11117769 Whirlpool Refrigerator Leveler In Stock WPL W11117769 $6.97

6

Grommet (4) WPL 216446 Contact Us For Availability

6

Door, Exterior (White) WPL 934995 Contact Us For Availability

6

Door, Exterior (Coffee) WPL 934996 Contact Us For Availability

6

Door, Exterior (New Gold) WPL 934997 Contact Us For Availability

6

Door, Exterior (New Avocado) WPL 934998 Contact Us For Availability

6

Door, Exterior (Almond) WPL 934999 Contact Us For Availability

6

Grommet (4) WPL 547283 Contact Us For Availability

7

2188439A Whirlpool Refrigerator Door Gasket Backorder WPL 2188439A $145.11

7

Filler Grille (White) WPL 838535 Contact Us For Availability

7

Filler, Grille (Coffee) WPL 989928 Contact Us For Availability

7

Filler, Grille (New Gold) WPL 989929 Contact Us For Availability

7

Filler, Grille (New Avocado) WPL 989930 Contact Us For Availability

7

Filler Grille (Almond) WPL 989931 Contact Us For Availability

7

Header & Tube Assembly WPL 850596 Contact Us For Availability

8

Tray, Evaporating WPL 842041 Contact Us For Availability

8

Retainer, Gasket (Side) (2) WPL 836120 Contact Us For Availability

8

Strike, Lock WPL 991992 Contact Us For Availability

9

Shelf WPL 981080 Contact Us For Availability

9

Cover, Strike WPL 839865 Contact Us For Availability

9

Grommet (4) WPL 548737 Contact Us For Availability

Shelf WPL 981081 Contact Us For Availability

Plug, Hole (2) WPL 534927 Contact Us For Availability

Grille, Exterior (Coffee) WPL 942603 Contact Us For Availability

Grille, Exterior (New Gold) WPL 942604 Contact Us For Availability

Grille, Exterior (New Avocado) WPL 942605 Contact Us For Availability

Grille, Exterior (Almond) WPL 942606 Contact Us For Availability

Grille, Exterior (White) WPL 981088 Contact Us For Availability

Clamp (4) WPL 548738 Contact Us For Availability

11

Trivet WPL 849674 Contact Us For Availability

11

Heater, Stile WPL 851608 Contact Us For Availability

12

Cover, Drain Hole WPL 835370 Contact Us For Availability

12

Bumper WPL 547272 Contact Us For Availability

13

Clip (17) WPL 845807 Contact Us For Availability

13

Nameplate Assembly (Includes Items 20 & 27) WPL 945116 Contact Us For Availability

14

Trim, Shelf Front (2) WPL 942631 Contact Us For Availability

14

Guard, Timer WPL 548708 Contact Us For Availability

15

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

15

Screw, .190DT x 3/4 WPL 488818 Contact Us For Availability

16

Box, Junction WPL 549947 Contact Us For Availability

17

End, Handle (Bottom) WPL 982947 Contact Us For Availability

17

Timer, Defrost WPL 851160 Contact Us For Availability

18

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

18

End, Handle (Top) WPL 982948 Contact Us For Availability

18

Relay WPL 989662 Contact Us For Availability

19

Support, Grille (2) WPL 844614 Contact Us For Availability

19

Overload WPL 549041 Contact Us For Availability

Tape Strip WPL 991259 Contact Us For Availability

Cover, Hinge (Coffee) WPL 989895 Contact Us For Availability

Cover, Hinge (New Gold) WPL 989896 Contact Us For Availability

Cover, Hinge (New Avocado) WPL 989897 Contact Us For Availability

Cover WPL 549945 Contact Us For Availability

21

Handle WPL 982978 Contact Us For Availability

21

Fitting, Drain WPL 981147 Contact Us For Availability

22

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

22

Key WPL 941380 Contact Us For Availability

22

Shim, Hinge WPL 836151 Contact Us For Availability

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Lock WPL 941379 Contact Us For Availability

Hinge, Top WPL 842038 Contact Us For Availability

Clip (2) WPL 548745 Contact Us For Availability

Gasket, Drain Trough WPL 981083 Contact Us For Availability

Shim, Handle End WPL 941918 Contact Us For Availability

Connector, Screw-On WPL 547217 Contact Us For Availability

Frame WPL 548655 Contact Us For Availability

25

Shim, Handle End WPL 941917 Contact Us For Availability

25

Shim, Hinge WPL 836196 Contact Us For Availability

26

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

26

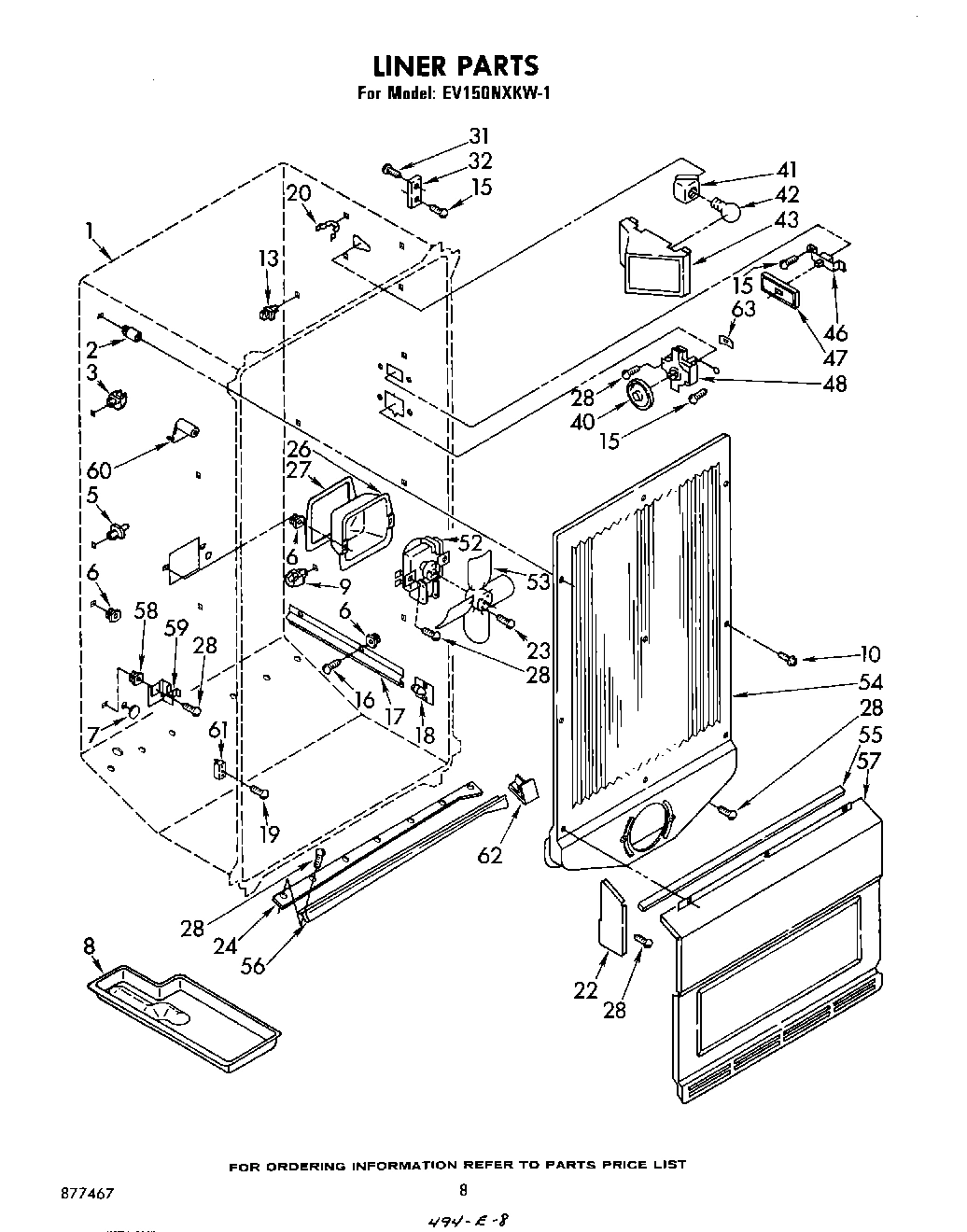

Fan, Motor Cover WPL 836474 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.93

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Gasket, Cover WPL 836475 Contact Us For Availability

Lacquer, Bright Aluminum (12 Oz. Spray Can) WPL 511881 Contact Us For Availability

Booklet, Freezing WPL 656493 Contact Us For Availability

Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

Thiner, Blend (1 Gal.) WPL 799351 Contact Us For Availability

KIT, EVAPORATOR REPAIR (AL WPL 799833 Contact Us For Availability

WPL 877467 WPL 877467 Contact Us For Availability

WPL 942633 WPL 942633 Contact Us For Availability

WPL 942654 WPL 942654 Contact Us For Availability

WPL 945108 WPL 945108 Contact Us For Availability

WPL 992905 WPL 992905 Contact Us For Availability

Hinge (Bottom) WPL 836686 Contact Us For Availability

28

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

28

Screw (Repair) WPL 488949 Contact Us For Availability

28

Clip (2) WPL 548744 Contact Us For Availability

29

Tap Plate WPL 836162 Contact Us For Availability

29

Rail, Front WPL 941699 Contact Us For Availability

30

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

30

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

31

Screw, 8-32 x 1-1/2 WPL 488684 Contact Us For Availability

31

Plate, Timer WPL 548705 Contact Us For Availability

31

Clamp WPL 548508 Contact Us For Availability

32

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

32

Strap, Ground WPL 547603 Contact Us For Availability

32

Screw, 6-20 x 3/8 WPL 488424 Contact Us For Availability

34

Insert, Air Baffle WPL 836372 Contact Us For Availability

35

Bumper (2) WPL 546131 Contact Us For Availability

37

WP4387489 Whirlpool Refrigerator Bi-Metal Def In Stock WPL WP4387489 $33.76

38

Clamp WPL 513584 Contact Us For Availability

40

Knob WPL 981934 Contact Us For Availability

41

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

41

Bracket, Pilot Light WPL 842250 Contact Us For Availability

41

Evaporator WPL 850594 Contact Us For Availability

42

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

42

Cleat, Cord WPL 653037 Contact Us For Availability

43

Shield, Light WPL 848158 Contact Us For Availability

43

Heater, Defrost WPL 989613 Contact Us For Availability

45

WPL 530584 WPL 530584 Contact Us For Availability

45

Exchanger, Heat WPL 943354 Contact Us For Availability

46

Bracket, Switch WPL 845049 Contact Us For Availability

46

Dampener (2) WPL 510769 Contact Us For Availability

47

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

47

Escutcheon, Power Saver WPL 984976 Contact Us For Availability

47

WPL 549538 WPL 549538 Contact Us For Availability

48

4389249 Whirlpool Refrigerator Thermostat Backorder WPL 4389249 $106.57

48

WPL 850156 WPL 850156 Contact Us For Availability

48

Clamp (2) WPL 510716 Contact Us For Availability

49

WPL 981148 WPL 981148 Contact Us For Availability

49

Pan, Drip WPL 989269 Contact Us For Availability

50

WPL 843164 WPL 843164 Contact Us For Availability

50

Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability

52

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

53

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $28.95

53

Screw, 6-32 x 1/2 WPL 486899 Contact Us For Availability

54

Cover, Fan Orifice WPL 981071 Contact Us For Availability

54

Clip, Plug WPL 653035 Contact Us For Availability

55

Gasket WPL 659202 Contact Us For Availability

56

Trough, Drain WPL 981076 Contact Us For Availability

57

Cover, Evaporator WPL 981070 Contact Us For Availability

58

Grommet, Screw (2) WPL 538449 Contact Us For Availability

58

Clip, Heater WPL 548459 Contact Us For Availability

58

Clip, Heater (Repair) WPL 549696 Contact Us For Availability

59

Evaporator Support (2) WPL 842436 Contact Us For Availability

59

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

60

Insulator, Spacer (2) WPL 836040 Contact Us For Availability

61

Insulator, Spacer (8) WPL 539760 Contact Us For Availability

62

Extension, Drain Trough WPL 984549 Contact Us For Availability

63

488660 Whirlpool Refrigerator Nut Backorder WPL 488660 $9.13

64

Precooler & Condenser WPL 481846 Contact Us For Availability

68

Strap WPL 531318 Contact Us For Availability

70

Air, Baffle WPL 850764 Contact Us For Availability

71

Bracket, Fan Motor Mounting WPL 548695 Contact Us For Availability

72

Screw, 8 x 3/8A WPL 488624 Contact Us For Availability

73

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

74

Screw, 8-36 x 3/8ST WPL 488868 Contact Us For Availability

75

Fan, Blade WPL 989524 Contact Us For Availability

76

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

77

Cover, Unit WPL 850639 Contact Us For Availability

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

NLA:SCREW Backorder WPL WPW10141645 $3.70

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Valve, Access (1/4``) WPL 97825 Contact Us For Availability
