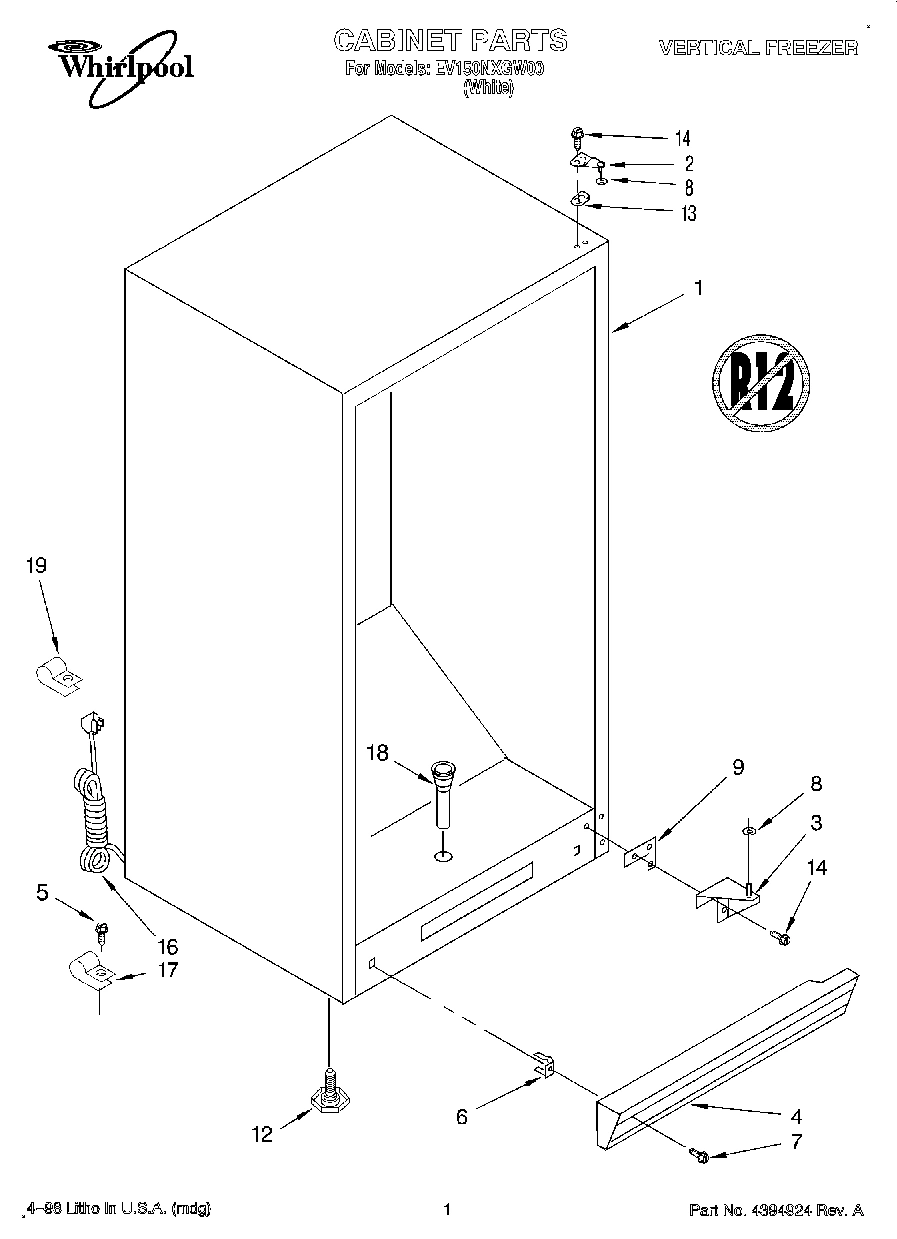

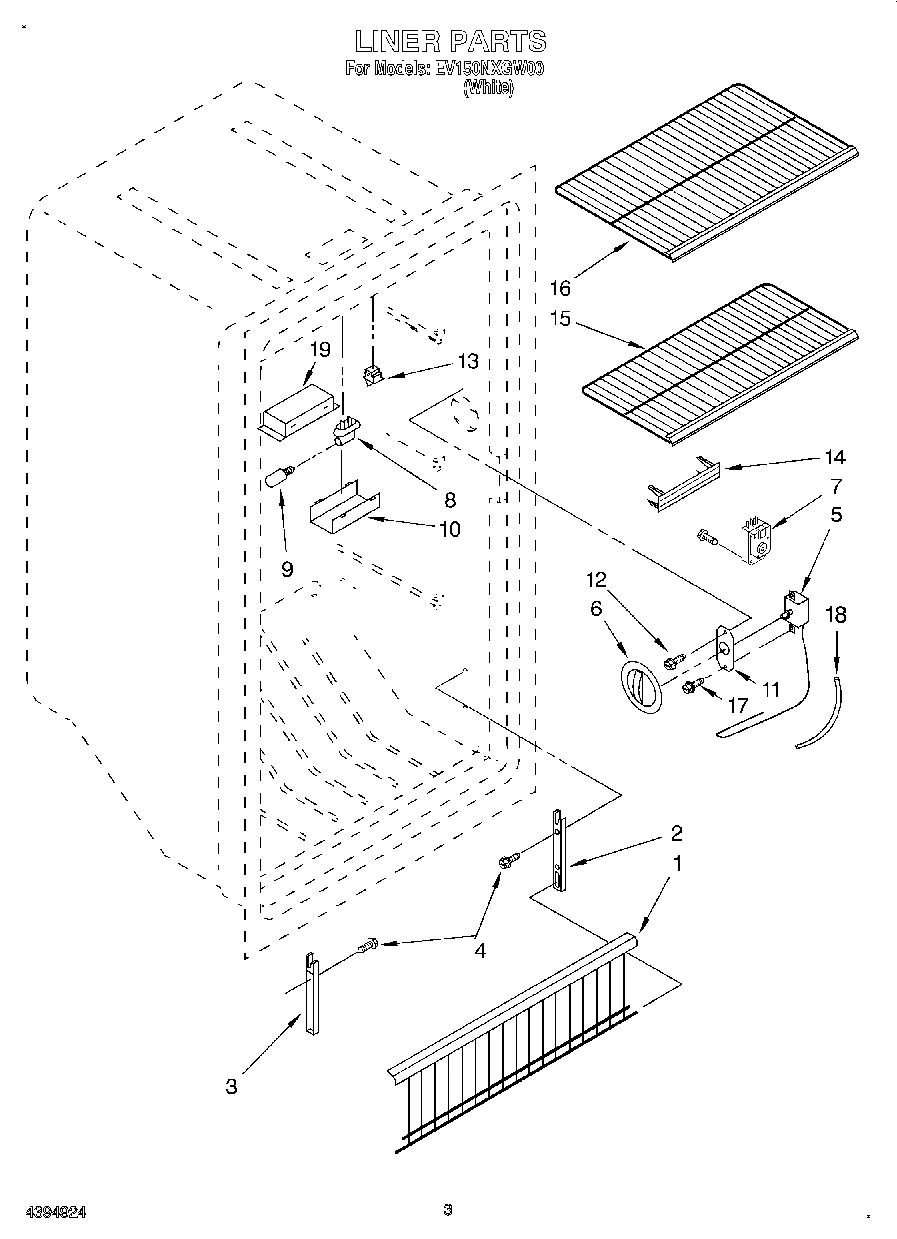

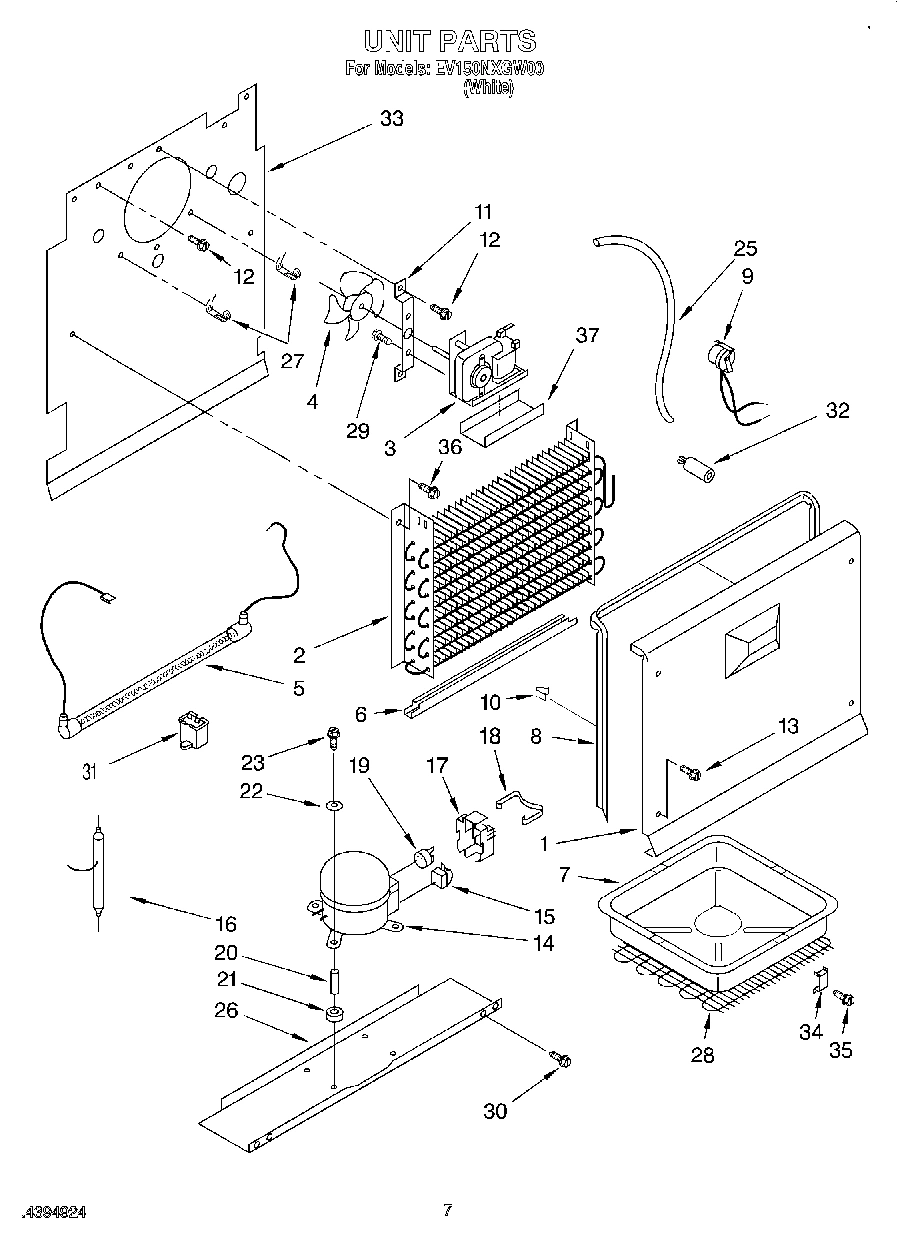

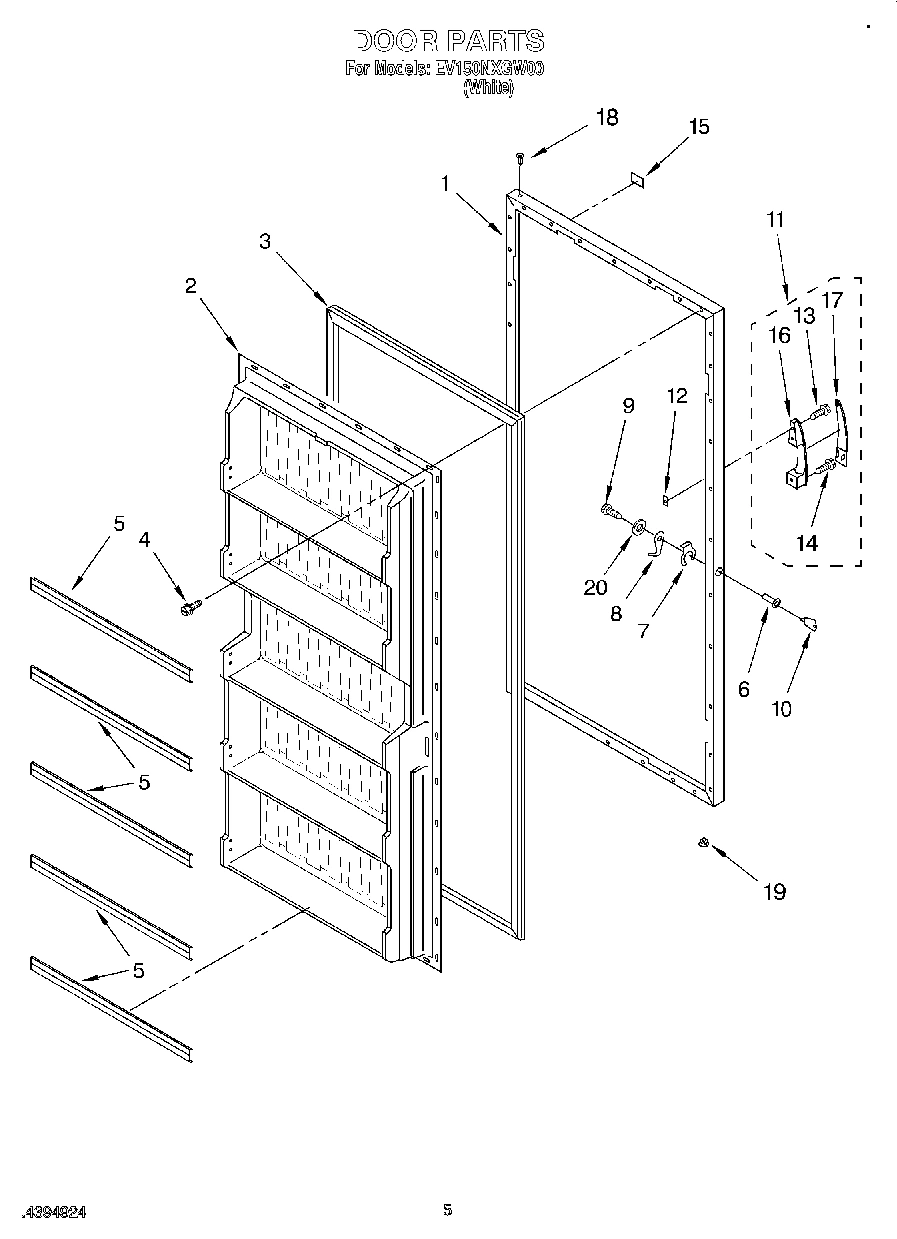

Model Whirlpool EV150NXGW00 VERTICAL FREEZER – Common Parts &amp; Diagrams

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Use & Care Guide WPL LIT4356948 Contact Us For Availability

Energy Label WPL LIT4357248 Contact Us For Availability

1

Exterior Door (Includes Insulation) WPL 4357249 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI55836A2 Contact Us For Availability

1

Gate WPL 4357163 Contact Us For Availability

2

WP4390870 Whirlpool Refrigerator Panel Backorder WPL WP4390870 $237.14

2

Top, Hinge WPL 4357276 Contact Us For Availability

2

Support, Fence, (R.H.) WPL 4356889 Contact Us For Availability

3

4-80576-202 Whirlpool Refrigerator Gate Suppo Backorder WPL 4-80576-202 $9.08

3

WP4357099 Whirlpool Refrigerator Door Gasket In Stock WPL WP4357099 $152.08

3

Bottom Hinge WPL 4357250 Contact Us For Availability

4

WP4-60461-005 Whirlpool Refrigerator Grille Backorder WPL WP4-60461-005 $40.88

4

Screw (4) WPL 4356891 Contact Us For Availability

5

WP4-83053-003 Whirlpool Refrigerator Thermost Backorder WPL WP4-83053-003 $111.23

5

Screw WPL 4357139 Contact Us For Availability

5

Trim Shelf WPL 4356813 Contact Us For Availability

6

1-80247-101 Whirlpool Refrigerator Clip Backorder WPL 1-80247-101 $4.63

6

4357145 Whirlpool Refrigerator Door Lock Backorder WPL 4357145 $15.85

6

Knob, Thermostat WPL 4357040 Contact Us For Availability

7

WP3-81329 Whirlpool Refrigerator Defrost Time In Stock WPL WP3-81329 $67.95

7

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

7

Spring, Clip Mounting WPL 4356842 Contact Us For Availability

8

W10851331 Whirlpool Refrigerator Washer Backorder WPL W10851331 $4.26

8

Lock, Bolt WPL 4357224 Contact Us For Availability

8

Socket, Lamp WPL 4356874 Contact Us For Availability

9

W10873798 Whirlpool Refrigerator Light Bulb Backorder WPL W10873798 $5.89

9

Shim, Bottom WPL 4356828 Contact Us For Availability

10

WP4356840 Whirlpool Refrigerator Door Key In Stock WPL WP4356840 $4.81

10

Light Shield WPL 4356934 Contact Us For Availability

11

1-81154 Whirlpool Plate Backorder WPL 1-81154 $6.39

11

Handle Kit (Includes Items 13, 14, 16 & 17) WPL 4390551 Contact Us For Availability

12

W11117769 Whirlpool Refrigerator Leveler In Stock WPL W11117769 $6.97

12

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.91

12

Anchor, Screw WPL 4356812 Contact Us For Availability

13

4390489 Whirlpool Refrigerator Shim Backorder WPL 4390489 $3.70

13

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

14

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

14

WP3-80414-103 Whirlpool Refrigerator Vent Plu Backorder WPL WP3-80414-103 $5.84

14

WP8204624 Whirlpool Bolt Backorder WPL WP8204624 $8.82

15

8210347 Whirlpool Refrigerator Wire Shelf Backorder WPL 8210347 $193.27

15

Relay WPL 4356994 Contact Us For Availability

15

Nameplate WPL 4356940 Contact Us For Availability

4-82315-001 Whirlpool Refrigerator Wire Shelf Backorder WPL 4-82315-001 $196.42

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

Handle WPL 4356895 Contact Us For Availability

Power Cord WPL 4357278 Contact Us For Availability

3-25095-011 Whirlpool Tube Clamp Backorder WPL 3-25095-011 $5.18

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

Cover WPL 4356946 Contact Us For Availability

Insert, Handle WPL 4357036 Contact Us For Availability

4390731 Whirlpool Refrigerator Hinge Bushing Backorder WPL 4390731 $7.39

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

Clip WPL 4356951 Contact Us For Availability

Drain Hose WPL 4357268 Contact Us For Availability

3-24898-007 Whirlpool Refrigerator Vent Plug Backorder WPL 3-24898-007 $4.72

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Overload WPL 4356661 Contact Us For Availability

Clamp WPL 4356403 Contact Us For Availability

Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability

Bracket, Light WPL 4357089 Contact Us For Availability

20

4356846 Whirlpool Refrigerator Sleeve Backorder WPL 4356846 $8.73

20

Washer WPL 4356992 Contact Us For Availability

21

Compressor Grommet WPL 4356335 Contact Us For Availability

22

Washer WPL 4356847 Contact Us For Availability

25

WP4357245 Whirlpool Refrigerator Exchanger Backorder WPL WP4357245 $120.99

26

Compressor Pan WPL 4357257 Contact Us For Availability

27

Thermostat, Clip WPL 4356952 Contact Us For Availability

28

Condenser WPL 4357158 Contact Us For Availability

29

WP3400094 Whirlpool Screw Backorder WPL WP3400094 $2.51

30

WP3-24838-048 Whirlpool Refrigerator Screw Backorder WPL WP3-24838-048 $2.51

31

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

32

Grommet WPL 4357020 Contact Us For Availability

33

Plate, Evaporator Mount WPL 4357123 Contact Us For Availability

34

Bracket WPL 4357252 Contact Us For Availability

37

4357128 Whirlpool Refrigerator Motor Bracket Backorder WPL 4357128 $40.53
