Model Whirlpool EV150NXAN00 VERTICAL FREEZER – Common Parts & Diagrams
03 - LINER
01 - DOOR, LIT/OPTIONAL

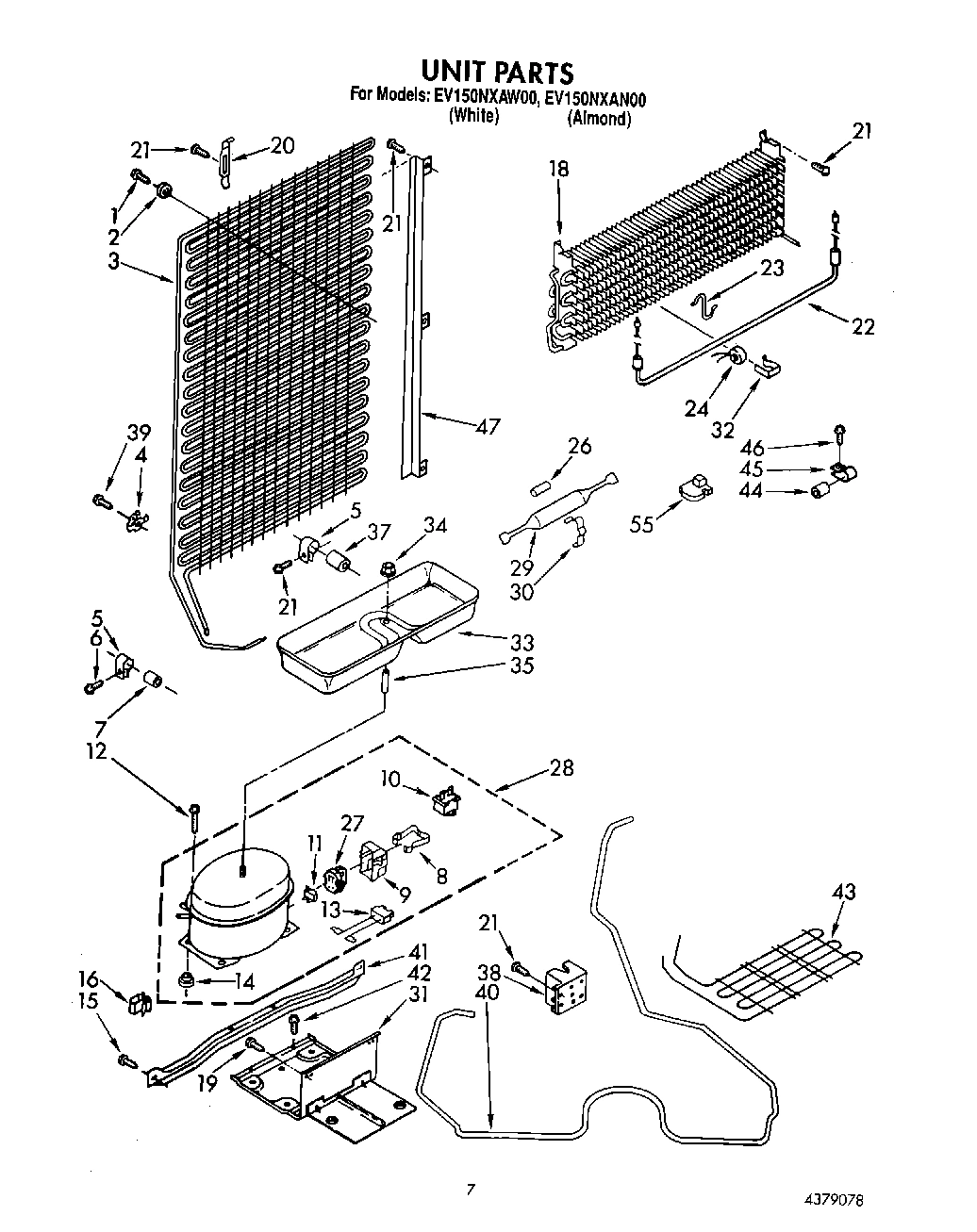

05 - UNIT

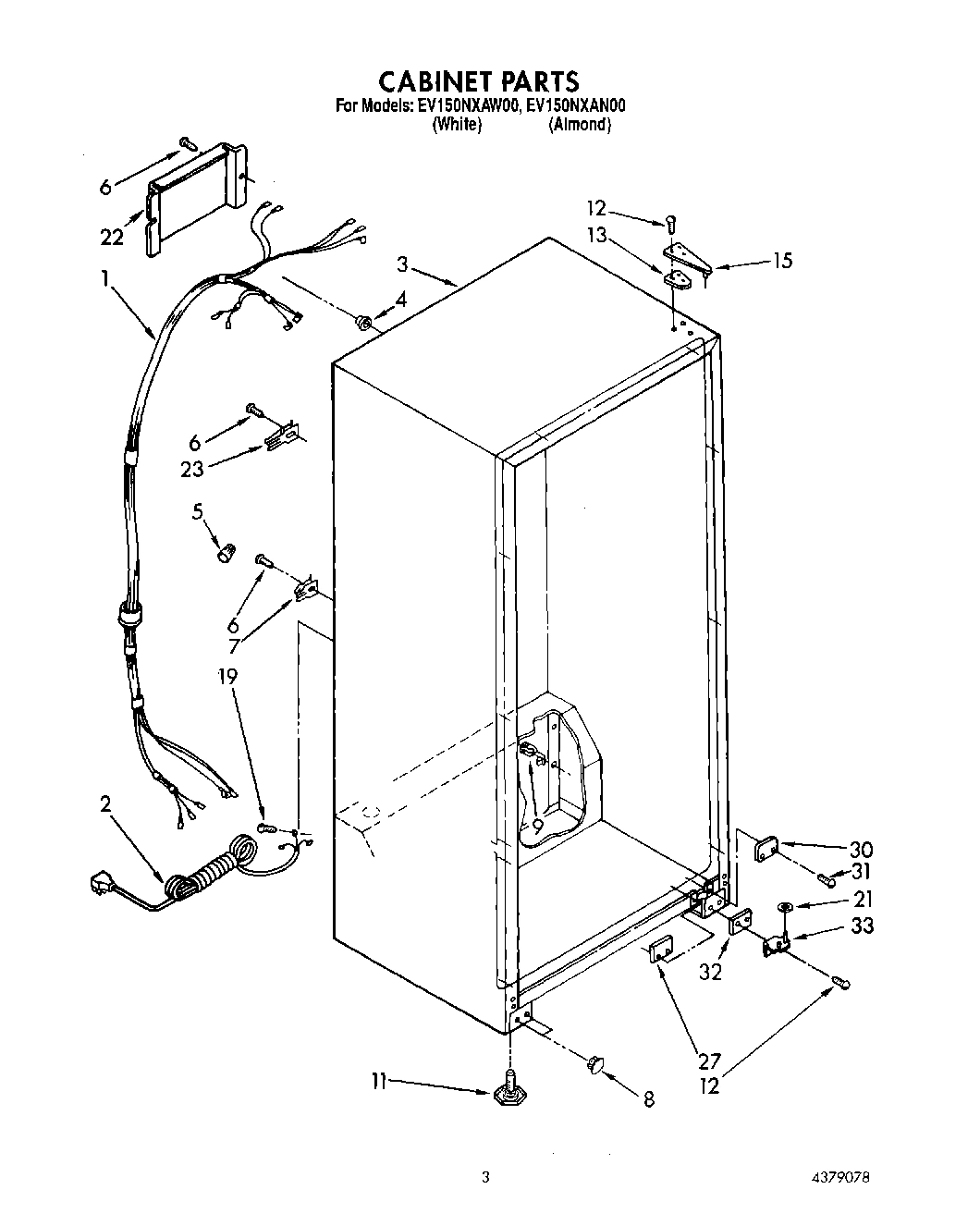

02 - CABINET

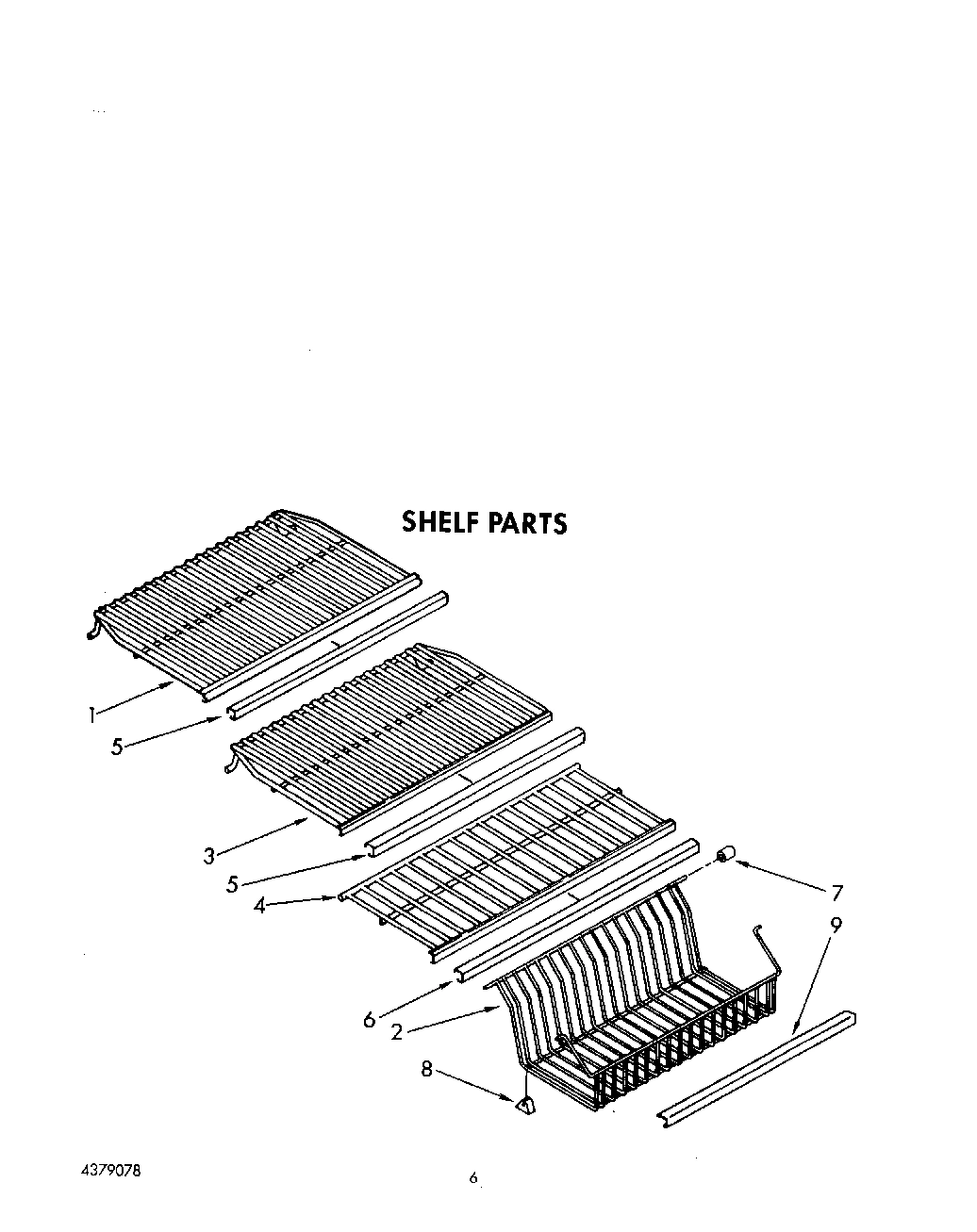

04 - SHELF
Common parts from model Whirlpool EV150NXAN00 VERTICAL FREEZER
WPL LIT2150660 WPL LIT2150660 Contact Us For Availability
WPL LIT2151248 WPL LIT2151248 Contact Us For Availability
WPL LIT2165303 WPL LIT2165303 Contact Us For Availability
WPL LIT4379078 WPL LIT4379078 Contact Us For Availability
WPL LIT656493 WPL LIT656493 Contact Us For Availability
1
Screw, 8 x 7/8 (2) WPL 487888 Contact Us For Availability
1
Cabinet Wiring Assembly WPL 2150666 Contact Us For Availability
1
Shelf, Pullout (Long) WPL 1106603 Contact Us For Availability
2
Panel, Interior WPL 2151205 Contact Us For Availability
2
Bumper (2) WPL 204349 Contact Us For Availability
2
Cord, Service WPL 850626 Contact Us For Availability
2
Trivet WPL 1106607 Contact Us For Availability
3
Condenser Assembly WPL 2151126 Contact Us For Availability
3
Cabinet (Not A Serviceable Part) WPL ARI55830A4 Contact Us For Availability
3
Pullout Shelf (Short) (2) WPL 1106605 Contact Us For Availability
4
Cap, Hinge Sleeve (2) WPL 509929 Contact Us For Availability
4
Tube Clip (2) WPL 510414 Contact Us For Availability
4
Grommet, Wiring WPL 938284 Contact Us For Availability
4
Shelf, Wire WPL 1106610 Contact Us For Availability
5
Hole Plug WPL 534927 Contact Us For Availability
5
Tube Clamp WPL 510716 Contact Us For Availability
5
Connector-Wire WPL 549752 Contact Us For Availability
5
Trim, Snap-On WPL 1103660 Contact Us For Availability
6
Door, Exterior (White) WPL 2150670 Contact Us For Availability
6
Door, Exterior (Almond (Also Order Item 10)) WPL 2150671 Contact Us For Availability
6
Trim, Snap-On WPL 1103659 Contact Us For Availability
7
Dampener WPL 1108064 Contact Us For Availability
7
Clamp WPL 939009 Contact Us For Availability
7
Bumper (4) WPL 941879 Contact Us For Availability
8
Strap WPL 938384 Contact Us For Availability
8
Hole Plug (White) WPL 941416 Contact Us For Availability
8
Hole Plug (Almond) WPL 941417 Contact Us For Availability
8
Grommet (2) WPL 216446 Contact Us For Availability
9
Tap Plate WPL 1123568 Contact Us For Availability
9
Terminal Cover WPL 1108115 Contact Us For Availability
9
Bushing, Strain Relief WPL 544108 Contact Us For Availability
9
Trim, Snap-On WPL 946736 Contact Us For Availability
10
Running Capacitor WPL 2154565 Contact Us For Availability
11
Trim, Door Shelf (3) WPL 1104177 Contact Us For Availability
11
repair WPL 946209 Contact Us For Availability
13
Shim, Top Hinge WPL 1100509 Contact Us For Availability
15
Cover, End Cap WPL 934724 Contact Us For Availability
15
Shim, Hinge Top WPL 1100513 Contact Us For Availability
16
Trim, Door Shelf WPL 1104176 Contact Us For Availability
17
Lock WPL 2150736 Contact Us For Availability
18
Handle, Center (Almond) WPL 2151225 Contact Us For Availability
18
Handle, Center (White) WPL 2152295 Contact Us For Availability
18
Evaporator WPL 1100424 Contact Us For Availability
19
Clip, Lock WPL 983465 Contact Us For Availability
19
Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability
20
Condenser Bracket (6) WPL 2150664 Contact Us For Availability
21
End, Handle (2) (Almond) WPL 2151226 Contact Us For Availability
21
End, Handle (2) (White) WPL 992814 Contact Us For Availability
22
Heater, Defrost WPL 1100434 Contact Us For Availability
22
Cover, Wiring WPL 946218 Contact Us For Availability
23
Screw, 8-15 x 1-5/8 (2) WPL 817000 Contact Us For Availability
23
Support, Heater WPL 851358 Contact Us For Availability
23
Clamp WPL 937357 Contact Us For Availability
24
Cover, End Cap WPL 1114895 Contact Us For Availability
25
Door Stop WPL 2157748 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Nameplate WPL 2162781 Contact Us For Availability
27
Tap Plate WPL 935743 Contact Us For Availability
28
Mounting Kit WPL 482801 Contact Us For Availability
28
WPL 876029 WPL 876029 Contact Us For Availability
28
Leveler, Enamel (13 Oz. Spray Can) WPL 206925 Contact Us For Availability
28
Transformer, Stepdown (230-115 Volt) WPL 515393 Contact Us For Availability
28
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
28
WPL 799833 WPL 799833 Contact Us For Availability
28
WPL 978883 WPL 978883 Contact Us For Availability
28
WPL 991259 WPL 991259 Contact Us For Availability
28
Compressor, (Includes Items 8, 9, 10, 11, 13, WPL 2154803 Contact Us For Availability
29
Insert, Control Panel WPL 1100789 Contact Us For Availability
30
Clamp, Dryer WPL 1127590 Contact Us For Availability
30
Rail Cover, Tube Entry (White) WPL 935707 Contact Us For Availability
30
Rail Cover, Tube Entry (Almond) WPL 935711 Contact Us For Availability
31
Plate Assembly, Unit Mounting WPL 1118879 Contact Us For Availability
31
Screw WPL 488895 Contact Us For Availability
32
Clamp WPL 513584 Contact Us For Availability
32
Shim, Bottom Hinge WPL 935737 Contact Us For Availability
33
Air Duct & Fan Cover WPL 2147294 Contact Us For Availability
33
Tray, Evaporator WPL 935781 Contact Us For Availability
33
Hinge Assembly (Bottom R.H.) WPL 2150980 Contact Us For Availability
34
Screw, 8 x 1/2 WPL 489168 Contact Us For Availability
35
Spacer WPL 938275 Contact Us For Availability
36
Motor, Fan WPL 2150623 Contact Us For Availability
37
Dampener WPL 1118888 Contact Us For Availability
38
Junction Box WPL 1108078 Contact Us For Availability
39
Grommet (2) WPL 531933 Contact Us For Availability
40
Lock Strike WPL 2150960 Contact Us For Availability
40
Heat Exchanger WPL 1127737 Contact Us For Availability
41
Evaporator, Cover WPL 1100476 Contact Us For Availability
41
Mounting Rail WPL 945448 Contact Us For Availability
43
Pan, Drain WPL 1100471 Contact Us For Availability
43
Precooler WPL 2151191 Contact Us For Availability
44
Dampener (2) WPL 1118889 Contact Us For Availability
45
Shield, Heat WPL 1100470 Contact Us For Availability
45
Clamp (2) WPL 1115557 Contact Us For Availability
46
Support, Stud WPL 946355 Contact Us For Availability
47
Hole Plug WPL 1103725 Contact Us For Availability
47
Channel, Condenser (Right) WPL 2150553 Contact Us For Availability
47
Channel, Condenser (Left) WPL 2150554 Contact Us For Availability
50
Lock Strike, Back-Up WPL 940168 Contact Us For Availability
51
Heat, Probe WPL 986635 Contact Us For Availability
52
Fan, Mounting Cover WPL 1108194 Contact Us For Availability
53
Drain, Ferrule Cap WPL 934607 Contact Us For Availability
55
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
55
Side Block, Evaporator (Left) WPL 2150618 Contact Us For Availability
55
Side Block, Evaporator (Right) WPL 2150621 Contact Us For Availability
55
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
