Model Whirlpool EV150LXKW2 VERTICAL FREEZER – Common Parts & Diagrams

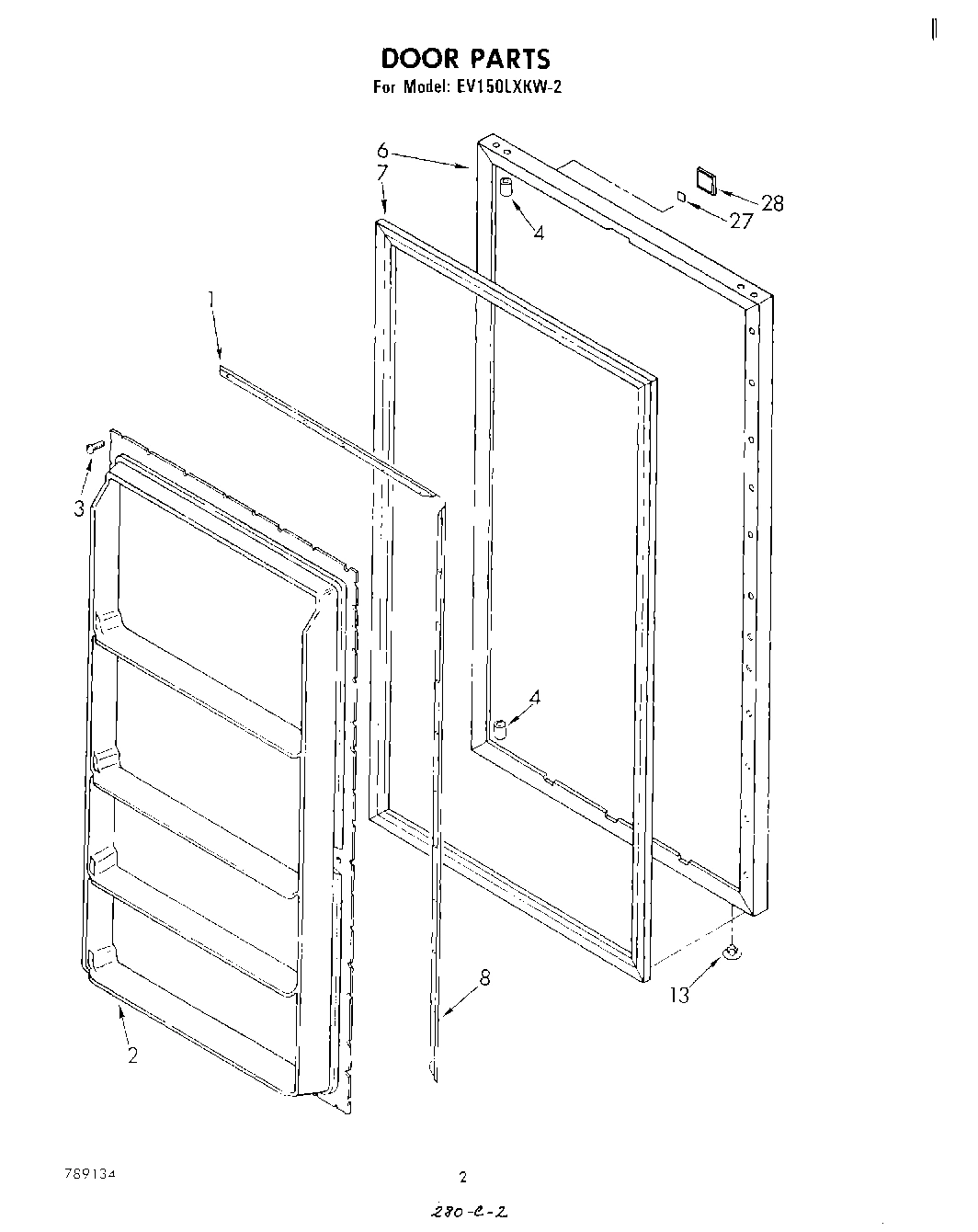

02 - DOOR , LIT/OPTIONAL

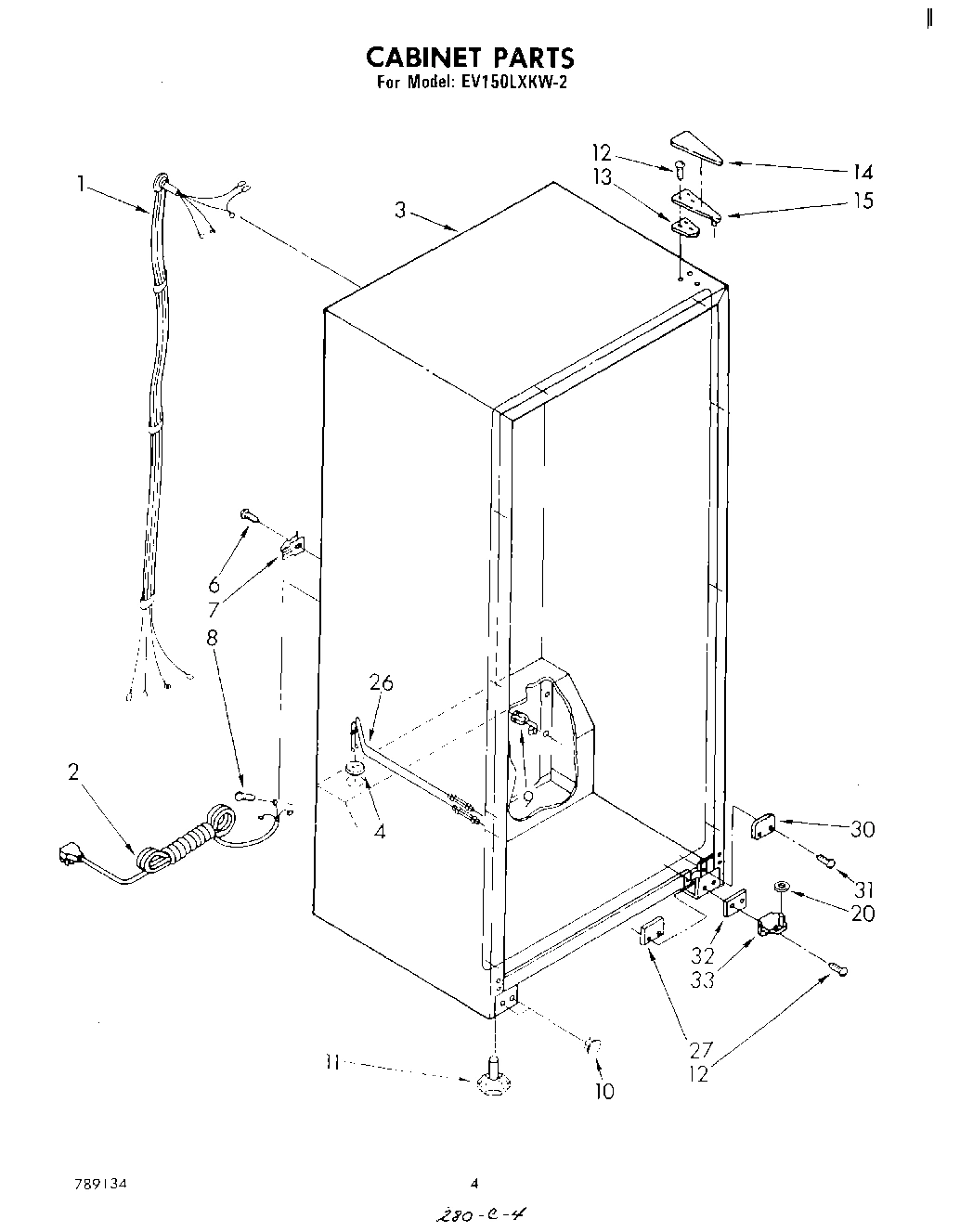

03 - CABINET

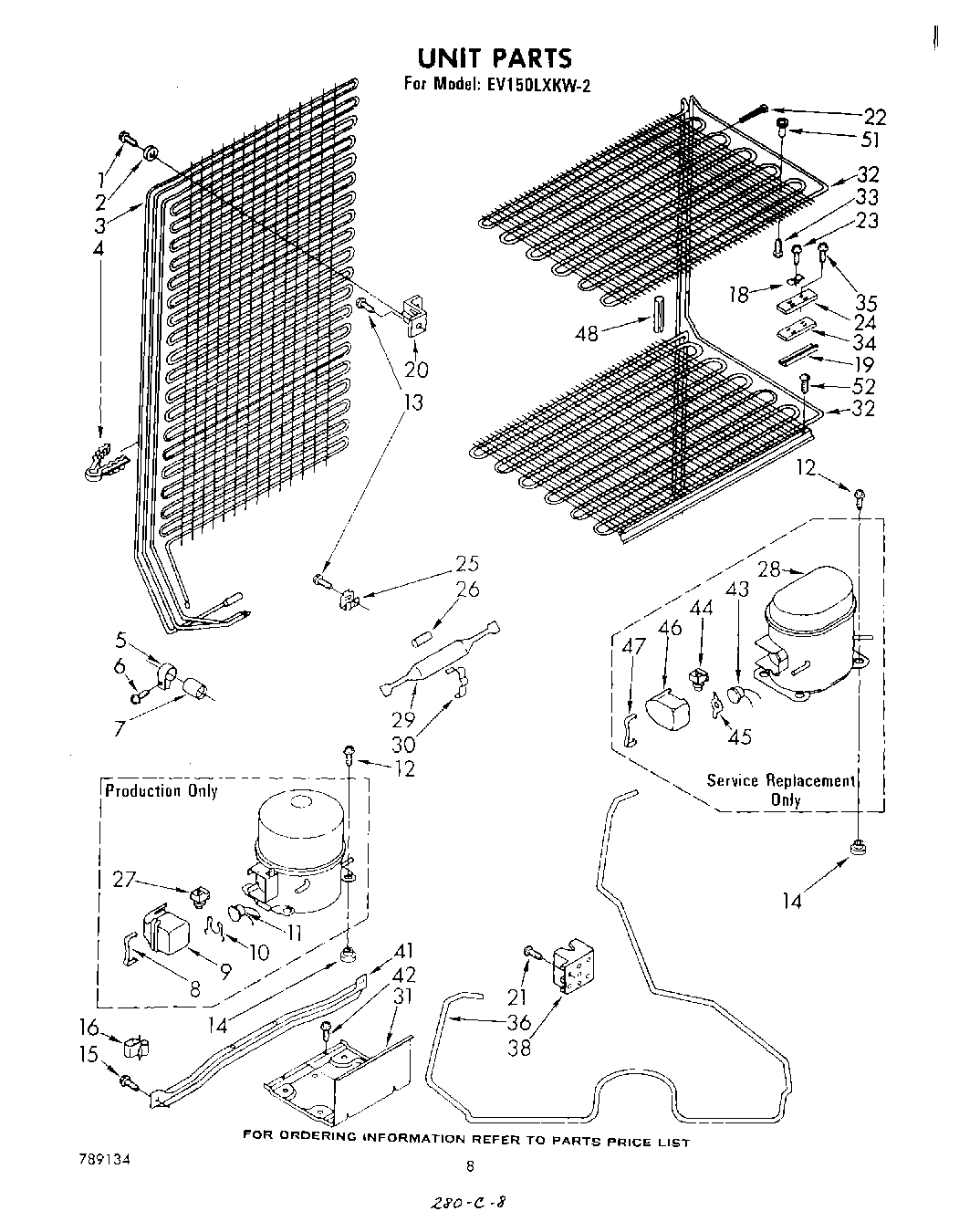

05 - UNIT

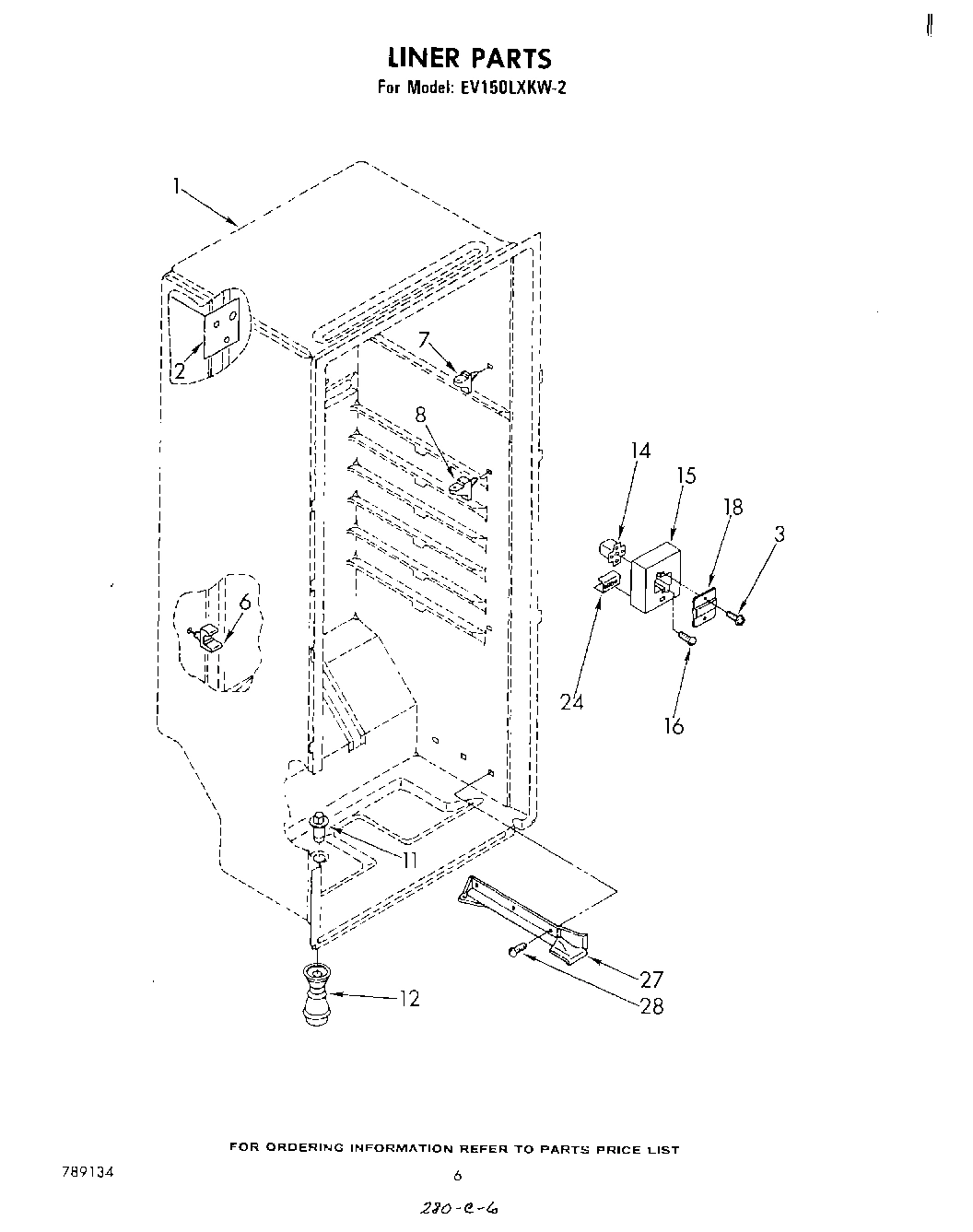

04 - LINER

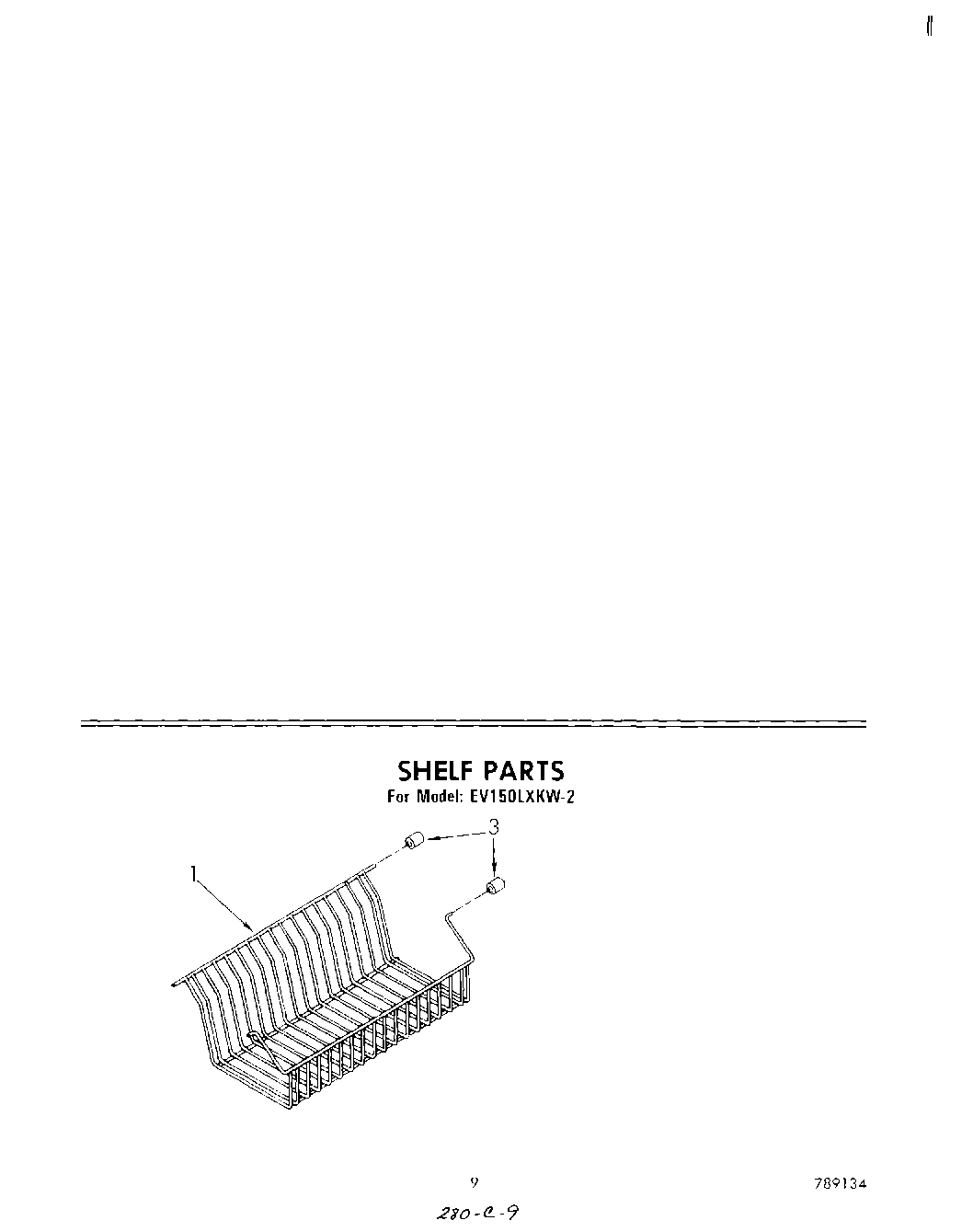

06 - SHELF
Common parts from model Whirlpool EV150LXKW2 VERTICAL FREEZER
1
Cabinet Wiring Assembly WPL 941543 Contact Us For Availability
1
Screw, 8 x 7/8 (2) WPL 487888 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI55827A4 Contact Us For Availability
1
Trivet WPL 941734 Contact Us For Availability
2
Cord, Service WPL 850626 Contact Us For Availability
2
Bumper (2) WPL 204349 Contact Us For Availability
2
Shield, Liner WPL 940169 Contact Us For Availability
3
Cabinet (Not A Serviceable Part) WPL ARI55826A2 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 945495 Contact Us For Availability
3
Bumper (4) WPL 941879 Contact Us For Availability
4
Grommet, Wiring WPL 946650 Contact Us For Availability
4
Tube Clip (2) WPL 942739 Contact Us For Availability
5
Tube Clamp WPL 510716 Contact Us For Availability
6
Stud, Shelf (6) WPL 940144 Contact Us For Availability
7
Clamp WPL 939009 Contact Us For Availability
7
dampener WPL 938368 Contact Us For Availability
7
Stud, Shelf (2) WPL 940143 Contact Us For Availability
8
Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability
8
Strap WPL 943497 Contact Us For Availability
8
Stud, Shelf (4) WPL 940142 Contact Us For Availability
9
Bushing, Strain Relief WPL 544108 Contact Us For Availability
9
Terminal Cover WPL 943496 Contact Us For Availability
10
Plug, Hole WPL 941416 Contact Us For Availability
10
Overload Spring WPL 943494 Contact Us For Availability
11
Overload WPL 945591 Contact Us For Availability
11
Cap, Drain Ferrule WPL 934607 Contact Us For Availability
12
Screw (Repair) WPL 488949 Contact Us For Availability
12
Fitting, Drain WPL 942768 Contact Us For Availability
13
Shim, Top Hinge WPL 836151 Contact Us For Availability
15
Hinge & Shim (Top) WPL 842038 Contact Us For Availability
15
Escutcheon, Thermostat WPL 941792 Contact Us For Availability
18
Header Clamp Plate (2) WPL 510614 Contact Us For Availability
18
Cover, Thermostat WPL 656422 Contact Us For Availability
19
Clip, Thermostat WPL 510754 Contact Us For Availability
20
Condenser Bracket (2) WPL 510721 Contact Us For Availability
22
Strap, Tube (3) WPL 851095 Contact Us For Availability
23
Screw, 8-32 x 7/16 (3) WPL 488054 Contact Us For Availability
24
Shim, Thermostat Plate WPL 987316 Contact Us For Availability
24
Switch WPL 981990 Contact Us For Availability
26
Heater, Stile WPL 938361 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Tap Plate WPL 935743 Contact Us For Availability
27
Relay WPL 945590 Contact Us For Availability
27
Tube Entry Cover (Bottom) WPL 941776 Contact Us For Availability
28
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
28
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
28
Lacquer, Bright Aluminum (12 Oz. Spray Can) WPL 511881 Contact Us For Availability
28
Transformer, Stepdown (230-115 Volt) WPL 515393 Contact Us For Availability
28
Booklet, How To Freeze WPL 656493 Contact Us For Availability
28
List, Parts WPL 789134 Contact Us For Availability
28
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
28
Thinner, Blend (1 Gal.) WPL 799351 Contact Us For Availability
28
Kit, Porcelain Repair WPL 799832 Contact Us For Availability
28
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
28
Guide, Use & Care WPL 942611 Contact Us For Availability
28
Nameplate WPL 942669 Contact Us For Availability
28
Tech Sheet WPL 946601 Contact Us For Availability
28
Energy Guide WPL 946715 Contact Us For Availability
30
Rail Cover, Tube Entry (White) WPL 935707 Contact Us For Availability
30
Clamp WPL 547637 Contact Us For Availability
31
Screw WPL 488895 Contact Us For Availability
31
Unit, Compressor Mounting WPL 942860 Contact Us For Availability
32
Shim, Bottom Hinge WPL 935737 Contact Us For Availability
32
Evaporator Shelves (Shelf, Top) WPL 940175 Contact Us For Availability
32
Evaporator Shelves (Shelf, 2nd) WPL 940179 Contact Us For Availability
32
Evaporator Shelves (Shelf, 3rd) WPL 940184 Contact Us For Availability
32
Evaporator Shelves (Shelf, Bottom) WPL 940187 Contact Us For Availability
33
Hinge (Bottom) WPL 943668 Contact Us For Availability
34
Plate, Thermostat WPL 851289 Contact Us For Availability
35
Screw, 8-32 x 5/8 (2) WPL 488436 Contact Us For Availability
36
Heat Exchanger WPL 943334 Contact Us For Availability
38
Box, Junction WPL 937068 Contact Us For Availability
41
Rail, Unit Mounting WPL 945448 Contact Us For Availability
43
Overload (Used W/Service Compressor) WPL 936073 Contact Us For Availability
44
Relay (Used W/Service Compressor) WPL 549500 Contact Us For Availability
45
Spring, Overload (Used W/Service Compressor) WPL 549086 Contact Us For Availability
46
Cover (Used W/Service Compressor) WPL 549336 Contact Us For Availability
47
Strap (Used W/Service Compressor) WPL 549342 Contact Us For Availability
48
Cover, Connecting Lines (Top) WPL 941384 Contact Us For Availability
48
Cover, Connecting Lines (Center) WPL 941447 Contact Us For Availability
48
Cover, Connecting Lines (Bottom) WPL 941448 Contact Us For Availability
51
Spacer (3) WPL 941842 Contact Us For Availability
52
WPL 978029 WPL 978029 Contact Us For Availability
52
WPL 978028 WPL 978028 Contact Us For Availability
× ![]()
