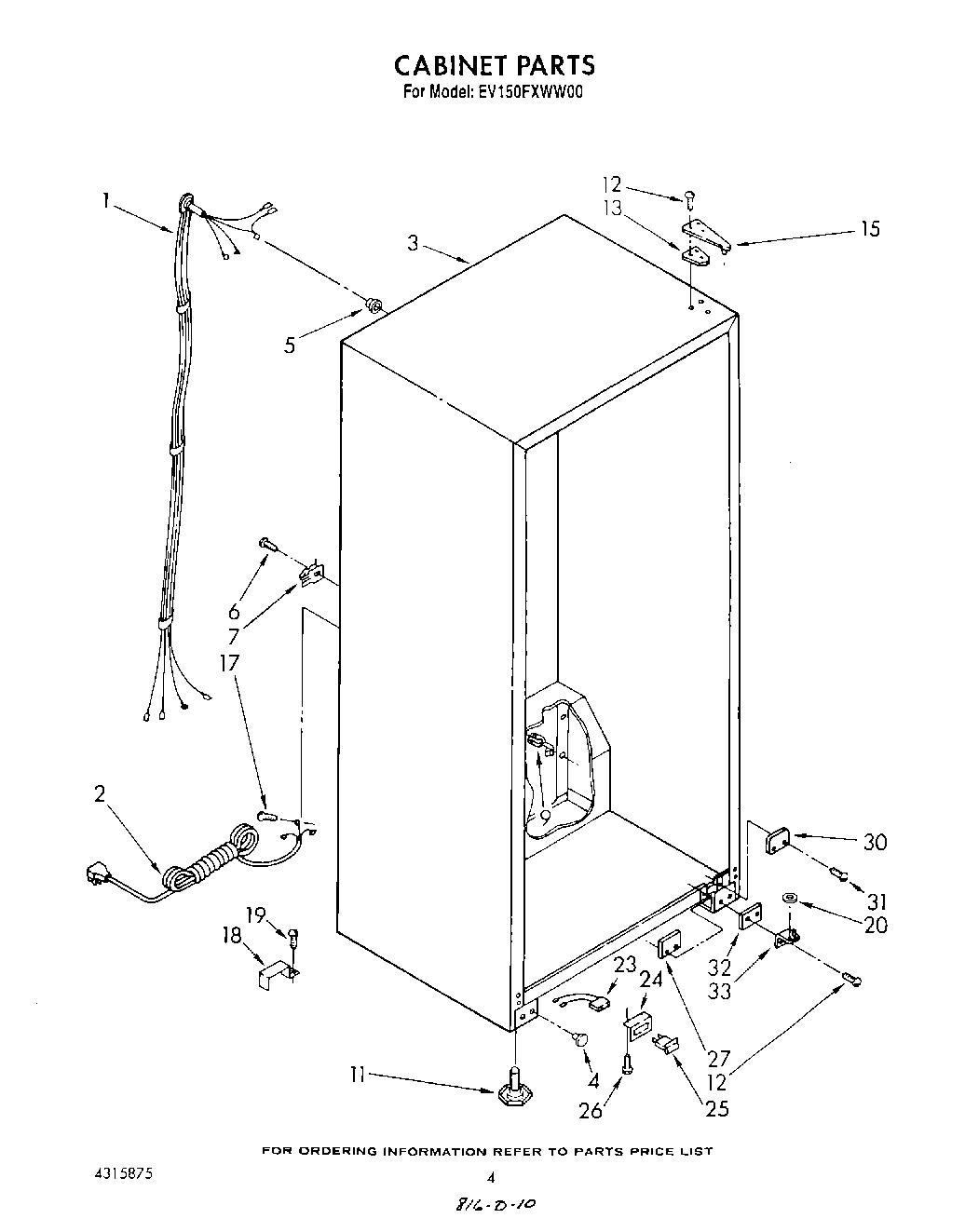

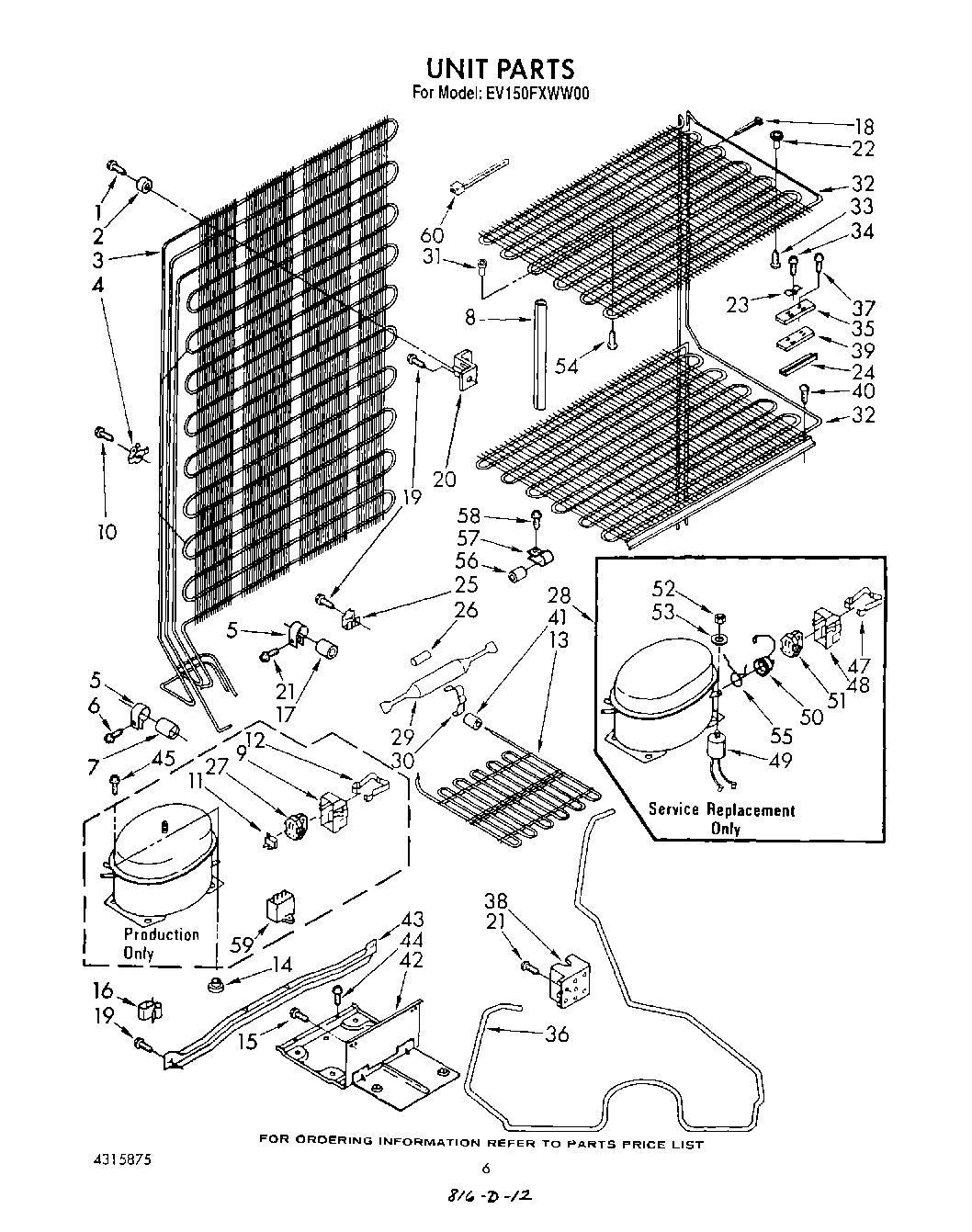

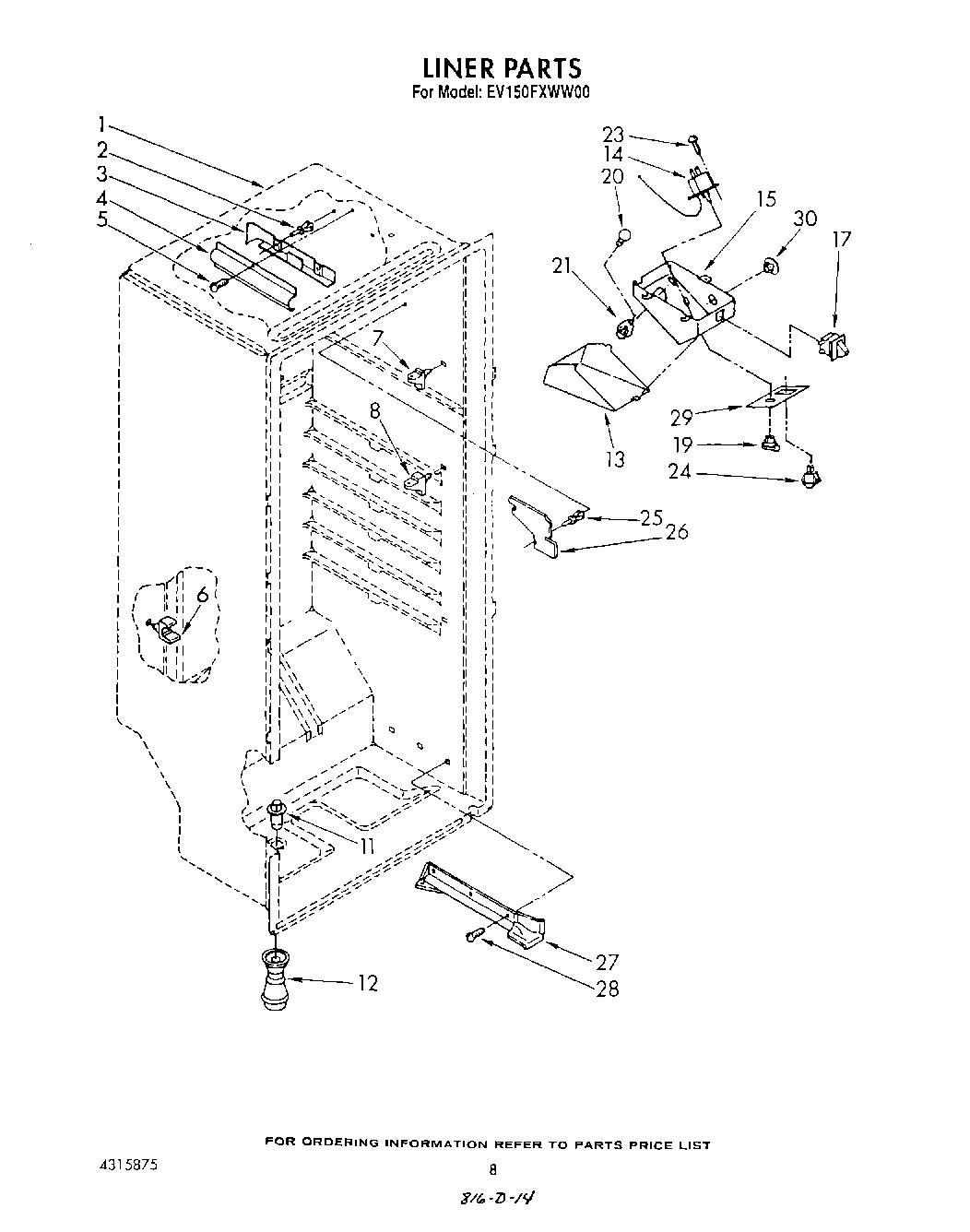

Model Whirlpool EV150FXWW00 VERTICAL FREEZER – Common Parts &amp; Diagrams

Torx Key WPL 1117510 Contact Us For Availability

1

Trivet WPL 946745 Contact Us For Availability

1

Cabinet Wiring WPL 941536 Contact Us For Availability

1

Screw, 8 x 7/8 (2) WPL 487888 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI55819A2 Contact Us For Availability

2

Trim, Snap-On WPL 946736 Contact Us For Availability

2

Cord, Service WPL 850626 Contact Us For Availability

2

Bumper (2) WPL 204349 Contact Us For Availability

2

Rivet, Plastic (2) WPL 939961 Contact Us For Availability

3

Bumper (4) WPL 941879 Contact Us For Availability

3

Cabinet (Not A Serviceable Part) WPL ARI55818A4 Contact Us For Availability

3

Condenser Assembly WPL 1127508 Contact Us For Availability

3

Wire, Cover (Rear) WPL 1100469 Contact Us For Availability

4

Grommet WPL 216446 Contact Us For Availability

4

Hole Plug (White) WPL 941416 Contact Us For Availability

4

Hole Plug (Almond) WPL 941417 Contact Us For Availability

4

Tube Clip (2) WPL 1105406 Contact Us For Availability

4

Wire, Cover (Front) WPL 1100468 Contact Us For Availability

5

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

5

Grommet, Wiring WPL 938284 Contact Us For Availability

5

Tube Clamp WPL 510716 Contact Us For Availability

5

Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability

6

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

6

Stud, Shelf (6) WPL 940144 Contact Us For Availability

7

Clamp WPL 939009 Contact Us For Availability

7

Dampener WPL 1108064 Contact Us For Availability

7

Stud, Shelf (2) WPL 940143 Contact Us For Availability

8

Cover, Connecting Lines (11.5 Inches) WPL 941384 Contact Us For Availability

8

Cover, Connecting Lines (10 Inches) WPL 941447 Contact Us For Availability

8

Cover, Connecting Lines (15 Inches) WPL 941448 Contact Us For Availability

8

Stud, Shelf (4) WPL 940142 Contact Us For Availability

9

Bushing, Strain Relief WPL 544108 Contact Us For Availability

9

Cover, Terminal WPL 1108115 Contact Us For Availability

W11117769 Whirlpool Refrigerator Leveler In Stock WPL W11117769 $6.97

repair WPL 946209 Contact Us For Availability

Overload WPL 1108114 Contact Us For Availability

Drain, Ferrule Cap WPL 934607 Contact Us For Availability

12

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

12

Screw (Repair) WPL 489297 Contact Us For Availability

12

Fitting, Drain WPL 942768 Contact Us For Availability

13

Shim, Top Hinge WPL 836151 Contact Us For Availability

13

Precooler WPL 1118884 Contact Us For Availability

13

Light, Lens WPL 1100466 Contact Us For Availability

14

4389248 Whirlpool Refrigerator Thermostat Backorder WPL 4389248 $119.90

14

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

14

Screw, Torx (2) WPL 489246 Contact Us For Availability

15

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

15

Hinge & Shim (Top) WPL 842038 Contact Us For Availability

15

Control Box WPL 1100458 Contact Us For Availability

16

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $4.08

17

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

17

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

17

Dampener WPL 945593 Contact Us For Availability

18

Transmitter, Light WPL 1103638 Contact Us For Availability

18

Clip, Plug WPL 653035 Contact Us For Availability

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

Cover, Light Transmitter WPL 1103726 Contact Us For Availability

Screw, 6-32 x 1/2 WPL 486899 Contact Us For Availability

Control Knob, Thermostat WPL 1100467 Contact Us For Availability

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

Screw WPL 489132 Contact Us For Availability

Condenser Bracket (2) WPL 510721 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

Trim, Door Top WPL 1104176 Contact Us For Availability

Transformer, Stepdown (230-115 Volt) WPL 515393 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability

22

Spacer (3) WPL 941842 Contact Us For Availability

23

Wire Assembly, Signal Light WPL 1103733 Contact Us For Availability

23

Header Clamp Plate (2) WPL 510614 Contact Us For Availability

23

Screw, 8 x 1/2A WPL 488974 Contact Us For Availability

24

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

24

Bracket, Signal Light WPL 1103637 Contact Us For Availability

24

Clip, Thermostat WPL 510754 Contact Us For Availability

25

4386951 Whirlpool Refrigerator Clip In Stock WPL 4386951 $3.51

25

939962 Whirlpool Refrigerator Rivet Backorder WPL 939962 $7.21

25

Light, Signal WPL 1103639 Contact Us For Availability

26

Restrictor Sleeve WPL 510446 Contact Us For Availability

26

Shield, Electrical WPL 1100464 Contact Us For Availability

27

Tap Plate WPL 935743 Contact Us For Availability

27

Tube Entry Cover (Bottom) WPL 941776 Contact Us For Availability

28

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

28

Compressor (Includes Items 47, 48, 49, 50, 51 WPL 482981 Contact Us For Availability

28

screw (repair) WPL 488706 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

29

Insert, Control Panel WPL 1100789 Contact Us For Availability

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

Rail Cover, Tube Entry (White) WPL 935707 Contact Us For Availability

Rail Cover, Tube Entry (Almond) WPL 935711 Contact Us For Availability

Clamp WPL 547637 Contact Us For Availability

31

Screw WPL 488895 Contact Us For Availability

31

Spacer WPL 1103816 Contact Us For Availability

Shim, Bottom Hinge WPL 935737 Contact Us For Availability

Evaporator Assembly (Shelf, 3rd) WPL 1100891 Contact Us For Availability

Evaporator Assembly (Shelf, Bottom) WPL 1100895 Contact Us For Availability

Evaporator Assembly (Shelf, Top) WPL 1114222 Contact Us For Availability

Evaporator Assembly (Shelf, 2nd) WPL 1114232 Contact Us For Availability

33

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

33

Butt, Hinge (Bottom) WPL 943668 Contact Us For Availability

34

Screw, 8-32 x 7/16 WPL 488054 Contact Us For Availability

35

Shim, Thermostat Plate WPL 987316 Contact Us For Availability

36

Heat Exchanger WPL 1127514 Contact Us For Availability

37

Screw, 8-32 x 5/8 WPL 488436 Contact Us For Availability

38

Junction Box WPL 1108078 Contact Us For Availability

39

Plate, Thermostat WPL 851289 Contact Us For Availability

40

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

40

Screw (Repair) WPL 489036 Contact Us For Availability

41

Dampener (4) WPL 1118888 Contact Us For Availability

42

Plate Assembly, Unit Mounting WPL 1118879 Contact Us For Availability

43

Rail, Unit Mounting WPL 945448 Contact Us For Availability

44

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

47

Strap WPL 938384 Contact Us For Availability

48

Cover, Terminal WPL 1105015 Contact Us For Availability

49

Capacito WPL 482996 Contact Us For Availability

50

WPL 483037 WPL 483037 Contact Us For Availability

51

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $50.51

52

WPL 489142 WPL 489142 Contact Us For Availability

53

WPL 489143 WPL 489143 Contact Us For Availability

54

WPL 488748 WPL 488748 Contact Us For Availability

55

WPL 1114190 WPL 1114190 Contact Us For Availability

56

WPL 1118889 WPL 1118889 Contact Us For Availability

57

WPL 1115557 WPL 1115557 Contact Us For Availability

58

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

59

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPL 978029 WPL 978029 Contact Us For Availability

WPL 851095 WPL 851095 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability
