  • Whirlpool EV150FXKQ06 Parts List

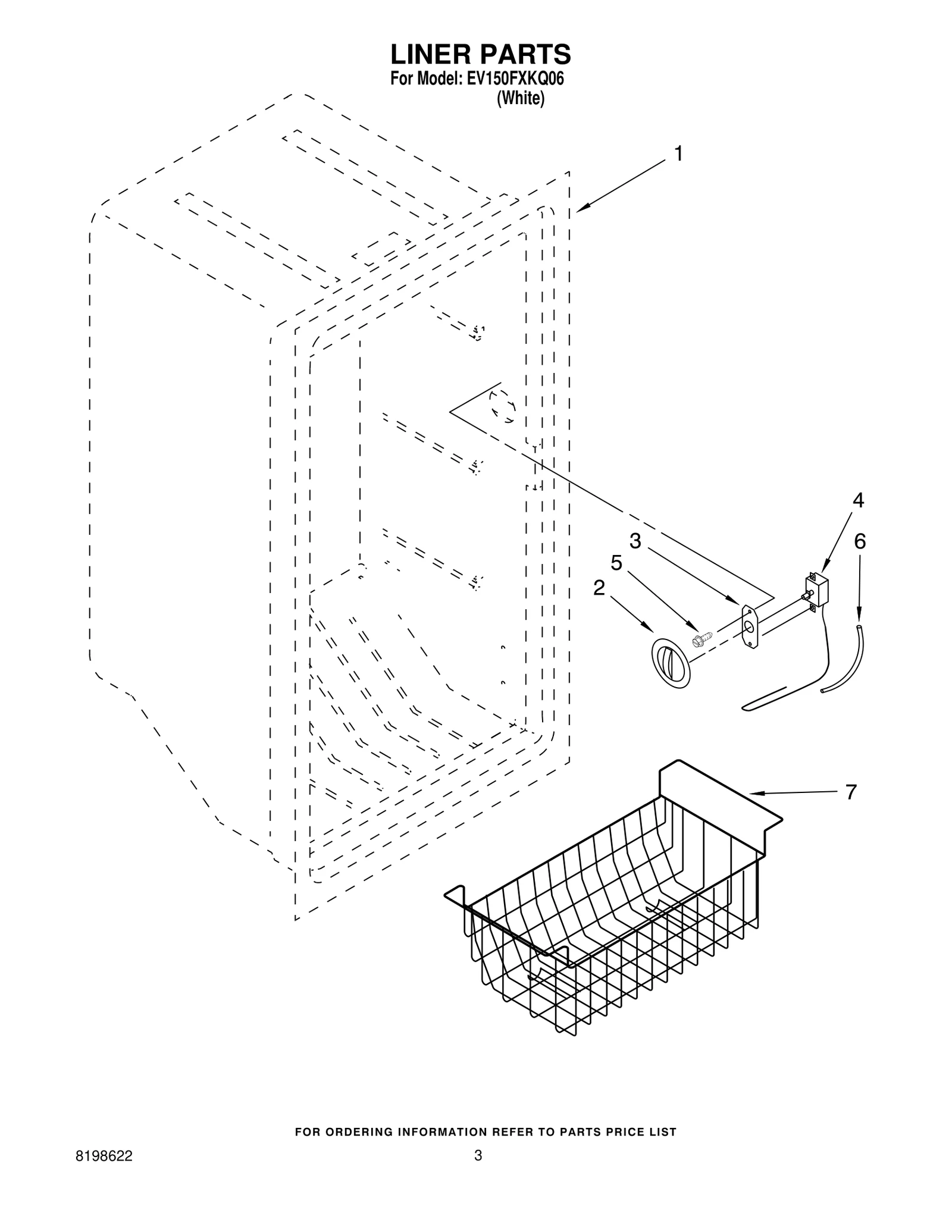

Model Whirlpool EV150FXKQ06 Vertical Freezer – Common Parts & Diagrams

1
Liner (Not A Serviceable Part)
Liner (Not A Serviceable Part) WPL N/S Contact Us For Availability
View on Model
1
Compressor Mounting Pan
Compressor Mounting Pan WPL 4357087 Contact Us For Availability
View on Model
2
Control Knob
Control Knob WPL 4390619 Contact Us For Availability
View on Model
2
Hinge, Bushing
Hinge, Bushing WPL 4390659 Contact Us For Availability
View on Model
3
Anchor, Screw
Anchor, Screw WPL 4390680 Contact Us For Availability
View on Model
4
Thermostat
Thermostat WPL 4390620 Contact Us For Availability
View on Model
4
Washer
Washer WPL 4356847 Contact Us For Availability
View on Model
4
Door Shelf Trim (4)
Door Shelf Trim (4) WPL 4390608 Contact Us For Availability
View on Model
5
Compressor Mounting Screw
Compressor Mounting Screw WPL 4356852 Contact Us For Availability
View on Model
5
Foam Block
Foam Block WPL 4356893 Contact Us For Availability
View on Model
6
Compressor Grommet
Compressor Grommet WPL 4356335 Contact Us For Availability
View on Model
7
Enamel, White Miscellaneous
Enamel, White Miscellaneous WPL 799344 Contact Us For Availability
View on Model
7
Tape, Vinyl
Tape, Vinyl WPL 479502 Contact Us For Availability
View on Model
7
Basket, Wire Parts Not Illustrated and Custom
Basket, Wire Parts Not Illustrated and Custom WPL 4390621 Contact Us For Availability
View on Model
7
Interior Door
Interior Door WPL 4390697 Contact Us For Availability
View on Model
8
Relay
Relay WPL 4356730 Contact Us For Availability
View on Model
10
Evaporator Top
Evaporator Top WPL 4390875 Contact Us For Availability
View on Model
10
Nameplate
Nameplate WPL 4390656 Contact Us For Availability
View on Model
11
Evaporator Shelf
Evaporator Shelf WPL 4390876 Contact Us For Availability
View on Model
12
Evaporator Shelf
Evaporator Shelf WPL 4390690 Contact Us For Availability
View on Model
12
Insert, Handle
Insert, Handle WPL 4390668 Contact Us For Availability
View on Model
13
Evaporator Shelf
Evaporator Shelf WPL 4390878 Contact Us For Availability
View on Model
14
Washer
Washer WPL 4357057 Contact Us For Availability
View on Model
16
Power Cord
Power Cord WPL 4390696 Contact Us For Availability
View on Model
16
Heat Exchanger
Heat Exchanger WPL 4390883 Contact Us For Availability
View on Model
16
Lock, Bolt
Lock, Bolt WPL 4357224 Contact Us For Availability
View on Model
17
Clamp
Clamp WPL 4356854 Contact Us For Availability
View on Model
17
Spring Clip
Spring Clip WPL 4356842 Contact Us For Availability
View on Model
20
Cover
Cover WPL 4390882 Contact Us For Availability
View on Model
20
Washer
Washer WPL 4356992 Contact Us For Availability
View on Model
21
Handle Assembly (Includes Items 12 & 13)
Handle Assembly (Includes Items 12 & 13) WPL 4390667 Contact Us For Availability
View on Model
23
Door Stop
Door Stop WPL 4390695 Contact Us For Availability
View on Model
