Model Whirlpool EV150FXKQ05 VERTICAL FREEZER – Common Parts & Diagrams

1

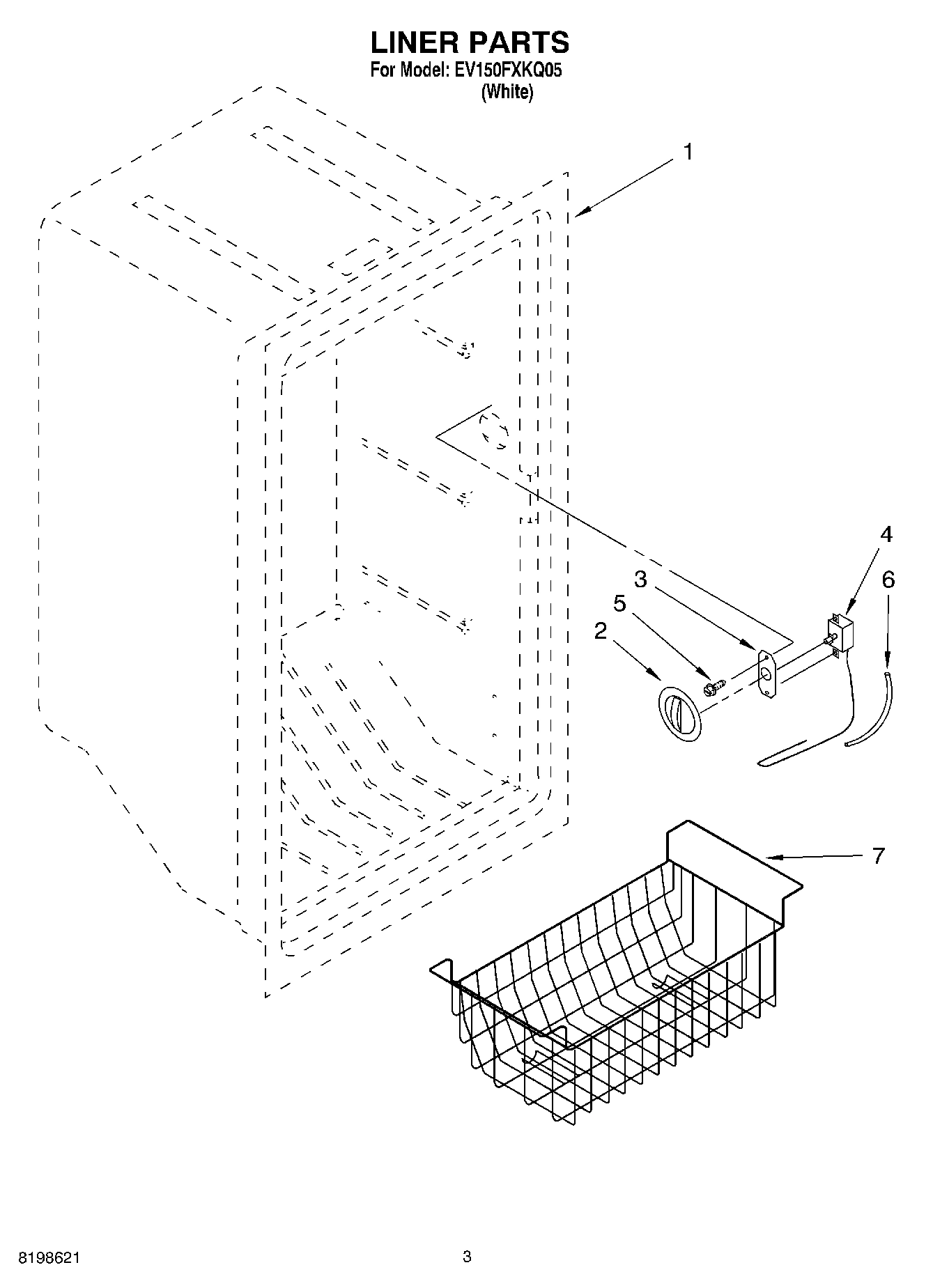

Liner (Not A Serviceable Part)
Liner (Not A Serviceable Part) WPL ARI55774A8 Contact Us For Availability
View on Model
1
Literature Parts (Owners Manual)
Literature Parts (Owners Manual) WPL LIT4390678 Contact Us For Availability
View on Model
1
Literature Parts (Energy Label)
Literature Parts (Energy Label) WPL LIT4390686 Contact Us For Availability
View on Model
1

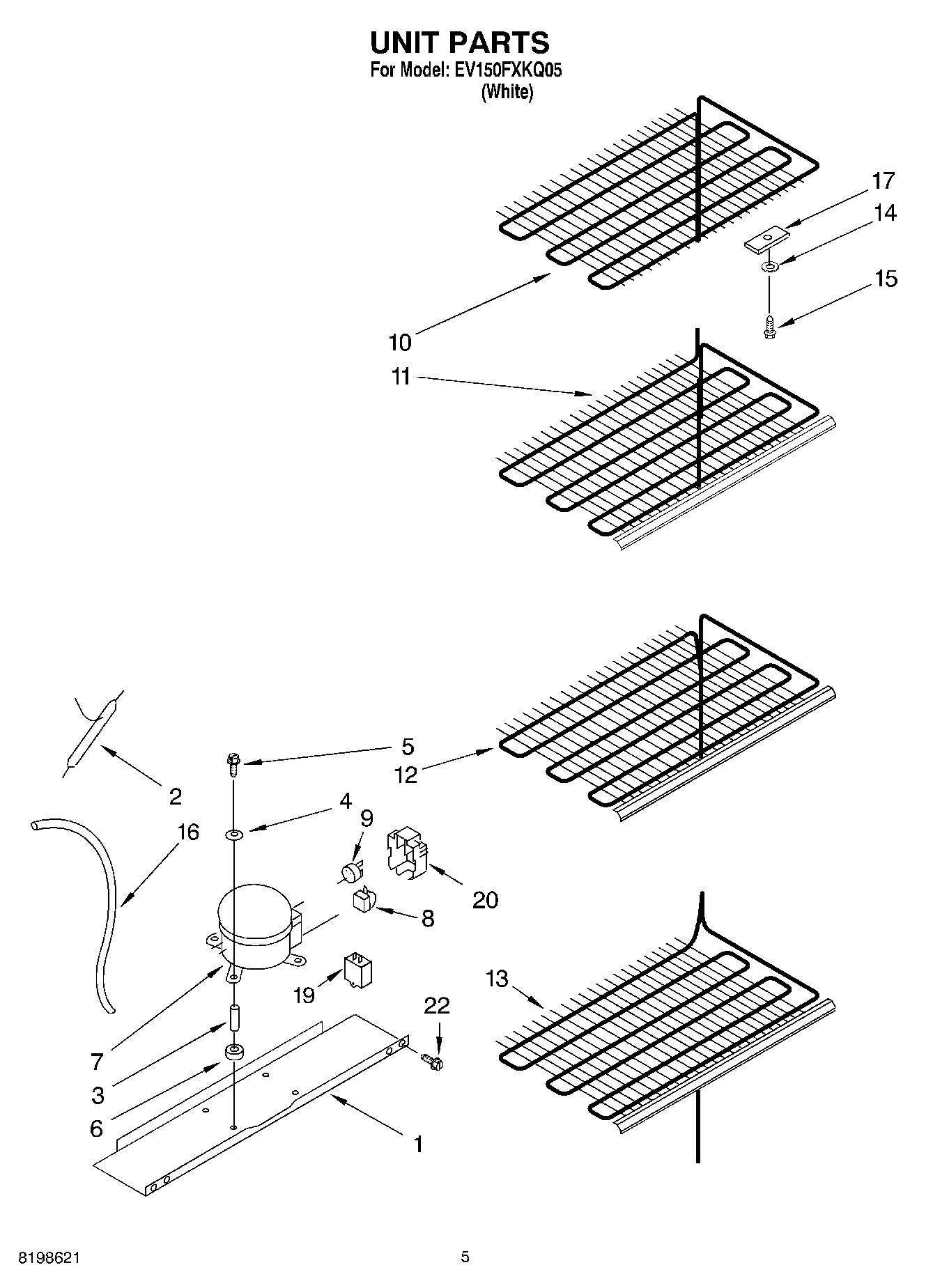

Compressor Mounting Pan
Compressor Mounting Pan WPL 4357087 Contact Us For Availability
View on Model
2
Control Knob
Control Knob WPL 4390619 Contact Us For Availability
View on Model
4
Thermostat
Thermostat WPL 4390620 Contact Us For Availability
View on Model
4
Washer
Washer WPL 4356847 Contact Us For Availability
View on Model
5
Compressor Mounting Screw
Compressor Mounting Screw WPL 4356852 Contact Us For Availability
View on Model
6
Compressor Grommet
Compressor Grommet WPL 4356335 Contact Us For Availability
View on Model
7
TAPE, VINYL (3/4 X 108``)
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
7
Basket, Wire
Basket, Wire WPL 4390621 Contact Us For Availability
View on Model
7
Parts Not Illustrated and Optional Parts (Not
Parts Not Illustrated and Optional Parts (Not WPL ARI55775A7 Contact Us For Availability
View on Model
7
Customer Touch-Up Material
Customer Touch-Up Material WPL ARI55776A1 Contact Us For Availability
View on Model
7
REFINISHING MATERIAL
REFINISHING MATERIAL WPL ARI55777A6 Contact Us For Availability
View on Model
7
Miscellaneous
Miscellaneous WPL ARI55778A2 Contact Us For Availability
View on Model
8
Relay
Relay WPL 4356730 Contact Us For Availability
View on Model
9
Shim, Bottom
Shim, Bottom WPL 4356828 Contact Us For Availability
View on Model
10
Top, Hinge
Top, Hinge WPL 4357052 Contact Us For Availability
View on Model
10
Evaporator Top
Evaporator Top WPL 4390875 Contact Us For Availability
View on Model
11
Bottom, Hinge
Bottom, Hinge WPL 4357050 Contact Us For Availability
View on Model
11
Evaporator Shelf
Evaporator Shelf WPL 4390876 Contact Us For Availability
View on Model
12
Drain Plug
Drain Plug WPL 4357019 Contact Us For Availability
View on Model
12
Evaporator Shelf
Evaporator Shelf WPL 4390690 Contact Us For Availability
View on Model
13
Evaporator Shelf
Evaporator Shelf WPL 4390878 Contact Us For Availability
View on Model
15
Grommet, Drain
Grommet, Drain WPL 4357269 Contact Us For Availability
View on Model
16
Lock, Bolt
Lock, Bolt WPL 4357224 Contact Us For Availability
View on Model
16
Power Cord
Power Cord WPL 4390696 Contact Us For Availability
View on Model
16
Heat Exchanger
Heat Exchanger WPL 4390883 Contact Us For Availability
View on Model
17
Spring Clip
Spring Clip WPL 4356842 Contact Us For Availability
View on Model
17

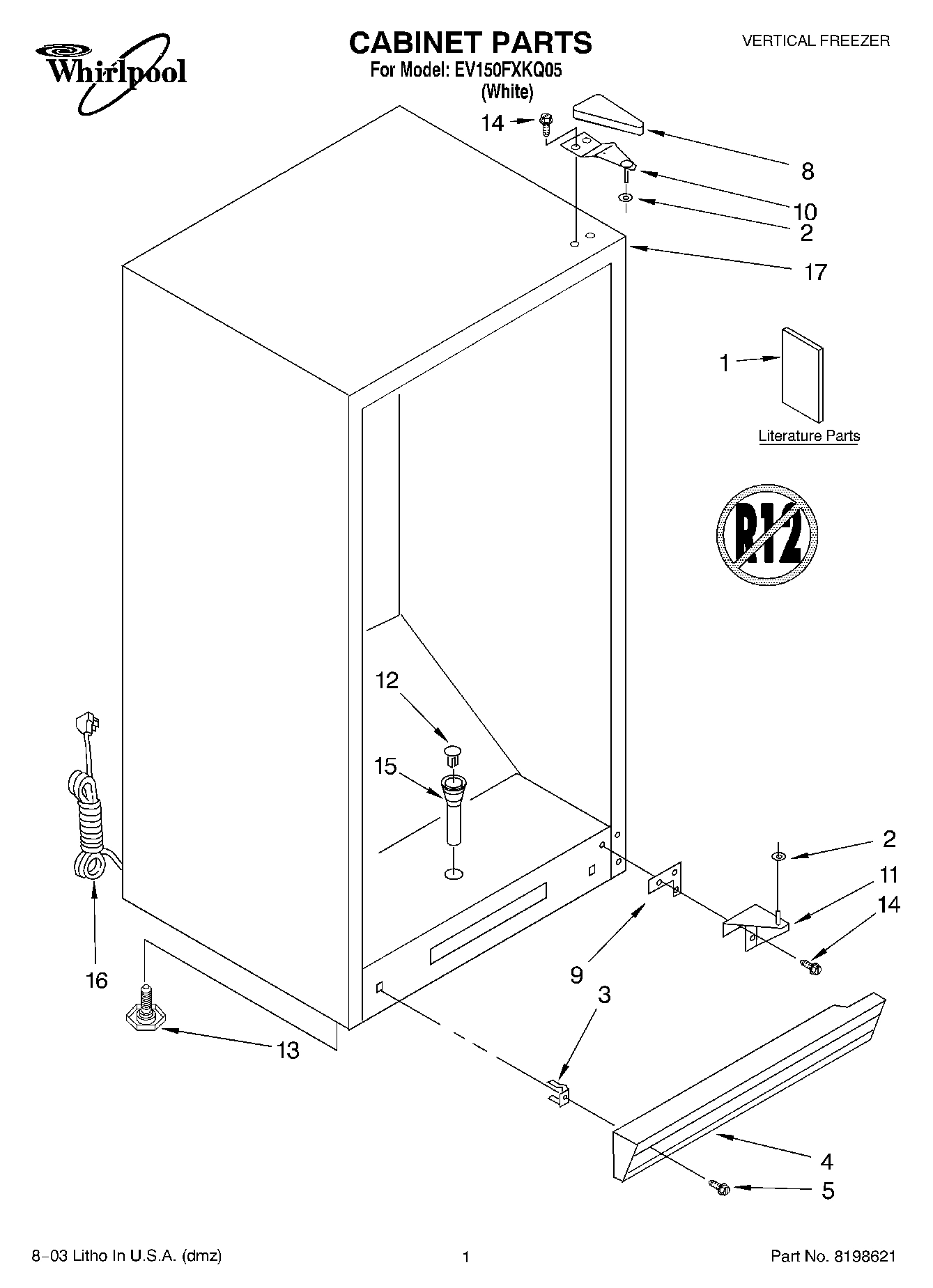

Cabinet (Not A Serviceable Part)
Cabinet (Not A Serviceable Part) WPL ARI55773A7 Contact Us For Availability
View on Model
20
Washer
Washer WPL 4356992 Contact Us For Availability
View on Model
20
Cover
Cover WPL 4390603 Contact Us For Availability
View on Model
21
Handle Assembly (Includes Items 12 & 13)
Handle Assembly (Includes Items 12 & 13) WPL 4390667 Contact Us For Availability
View on Model
22
REFRIGERANT CHARGE 6.0 oz. (R-134A)
REFRIGERANT CHARGE 6.0 oz. (R-134A) WPL ARI55779A4 Contact Us For Availability
View on Model
23

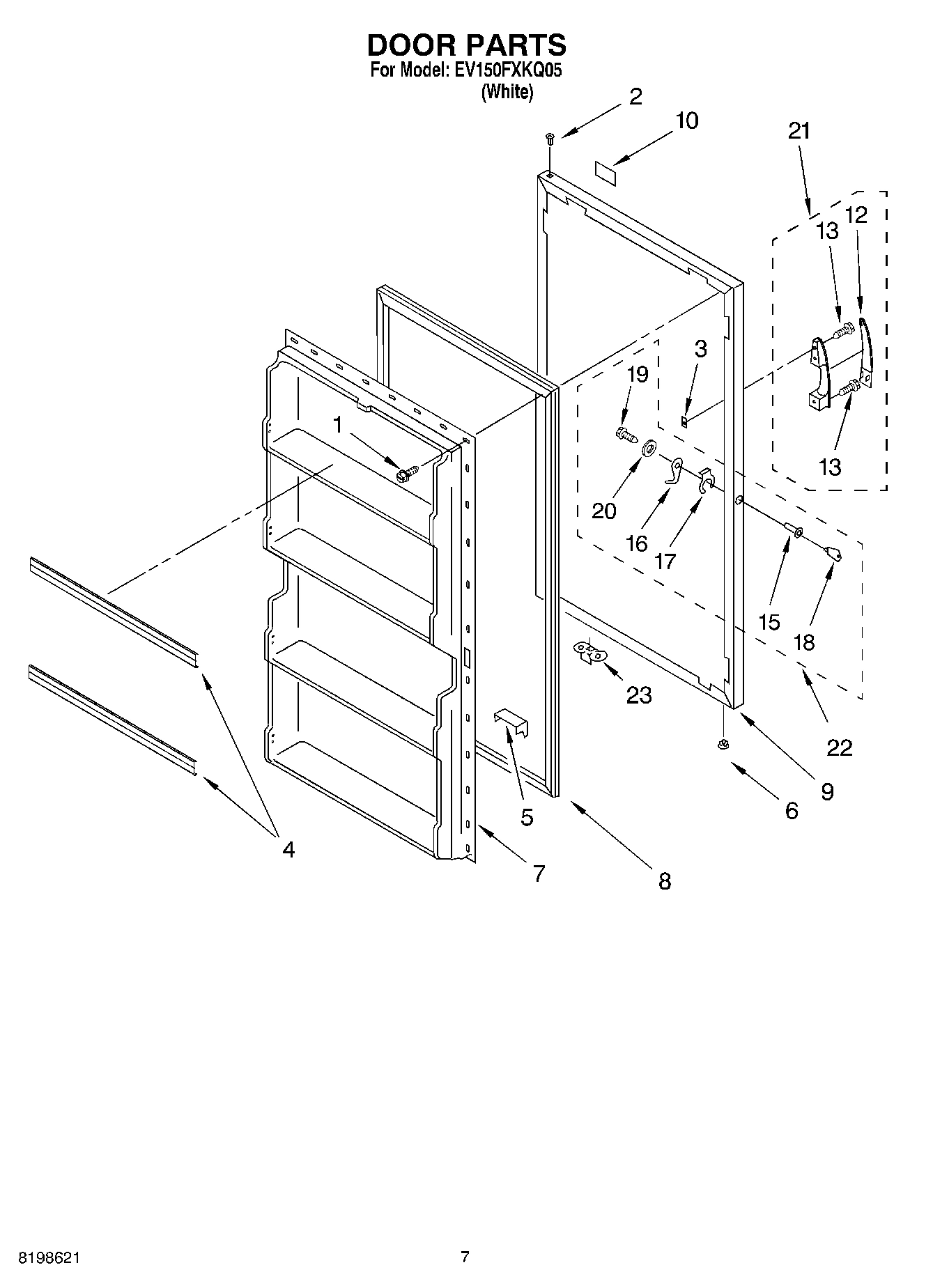

Door Stop
Door Stop WPL 4390695 Contact Us For Availability
View on Model
