Model Whirlpool EV150FXKQ03 VERTICAL FREEZER – Common Parts & Diagrams

1
Compressor Mounting Pan
Compressor Mounting Pan WPL 4357087 Contact Us For Availability
View on Model
1

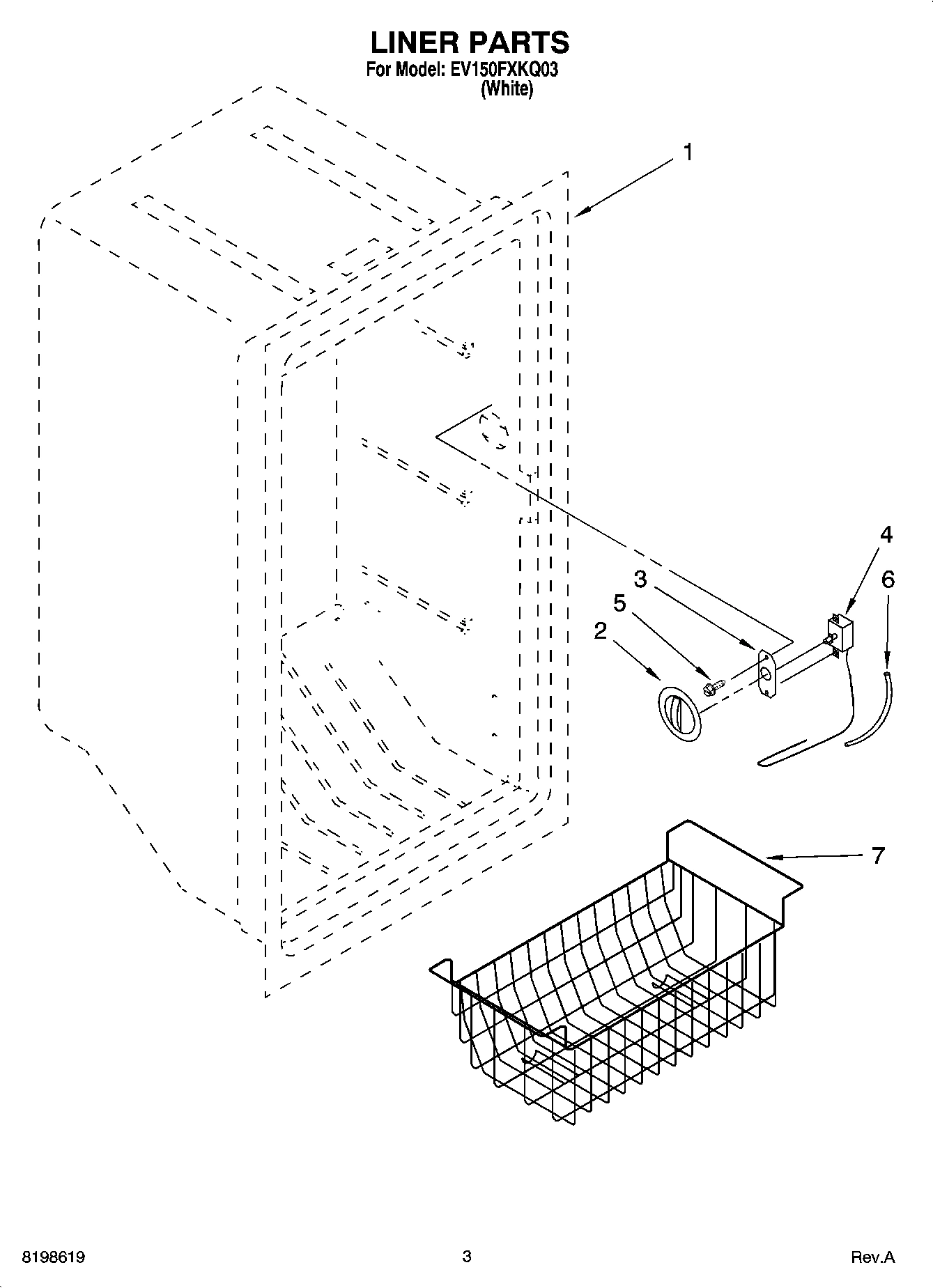

Liner (Not A Serviceable Part)
Liner (Not A Serviceable Part) WPL ARI55767A8 Contact Us For Availability
View on Model
2
Control Knob
Control Knob WPL 4390619 Contact Us For Availability
View on Model
3
Anchor, Screw
Anchor, Screw WPL 4390680 Contact Us For Availability
View on Model
4
Washer
Washer WPL 4356847 Contact Us For Availability
View on Model
4
Thermostat
Thermostat WPL 4390620 Contact Us For Availability
View on Model
4

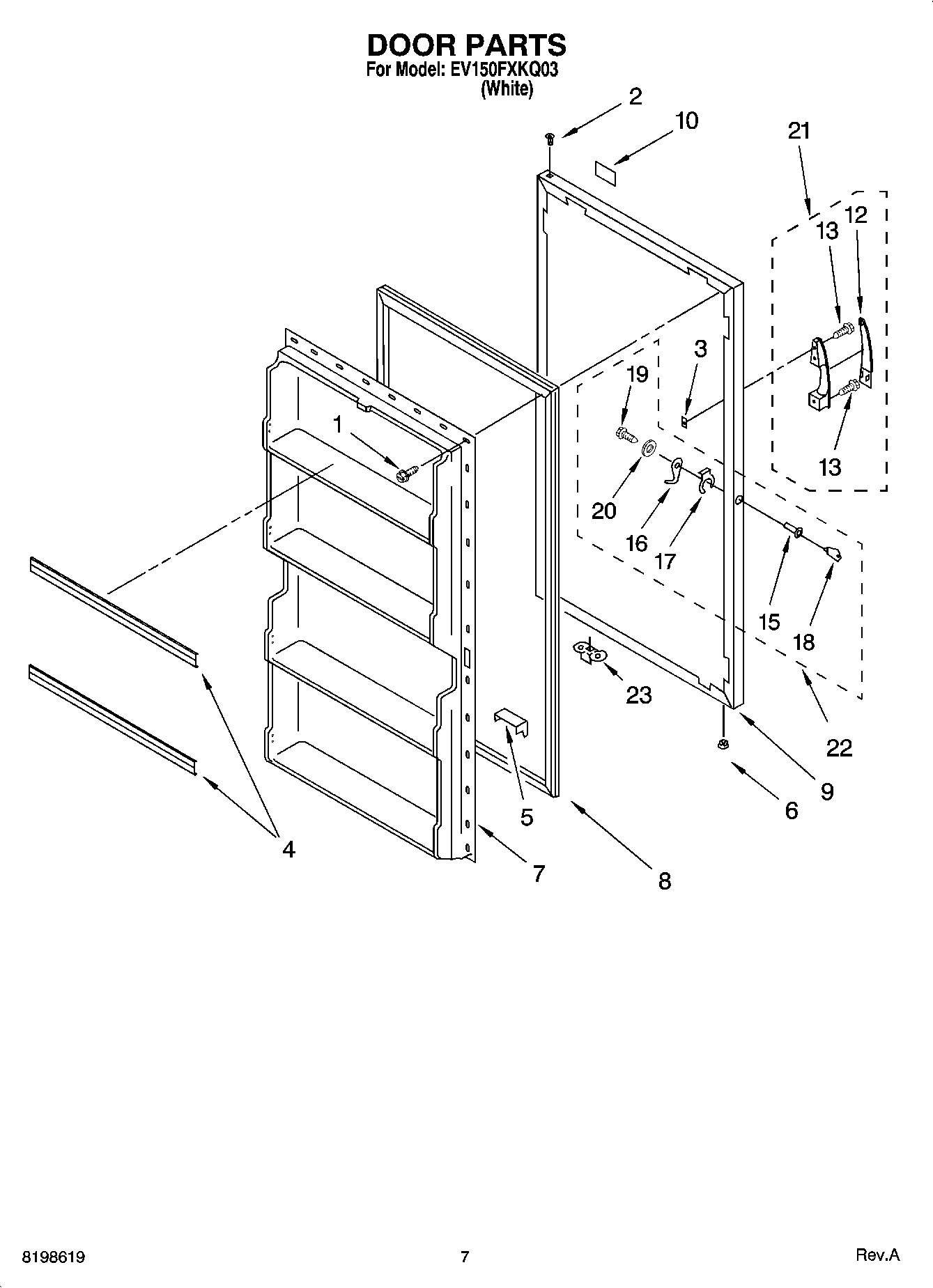

Door Shelf Trim (4)
Door Shelf Trim (4) WPL 4390608 Contact Us For Availability
View on Model
5
Compressor Mounting Screw
Compressor Mounting Screw WPL 4356852 Contact Us For Availability
View on Model
5
Foam Block
Foam Block WPL 4356893 Contact Us For Availability
View on Model
6
Compressor Grommet
Compressor Grommet WPL 4356335 Contact Us For Availability
View on Model
7
TAPE, VINYL (3/4 X 108``)
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
7
PAINT, BULK (1 QT.) (WHITE (UNCUT))
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
7
Basket, Wire
Basket, Wire WPL 4390621 Contact Us For Availability
View on Model
7
Parts Not Illustrated and Optional Parts (Not
Parts Not Illustrated and Optional Parts (Not WPL ARI55768A2 Contact Us For Availability
View on Model
7
Customer Touch-Up Material
Customer Touch-Up Material WPL ARI55769A7 Contact Us For Availability
View on Model
7
Miscellaneous
Miscellaneous WPL ARI55770A9 Contact Us For Availability
View on Model
7
REFINISHING MATERIAL
REFINISHING MATERIAL WPL ARI55771A7 Contact Us For Availability
View on Model
8
Relay
Relay WPL 4356738 Contact Us For Availability
View on Model
9
Exterior Door
Exterior Door WPL 4390687 Contact Us For Availability
View on Model
10
Evaporator Top
Evaporator Top WPL 4390875 Contact Us For Availability
View on Model
10
Nameplate
Nameplate WPL 4390656 Contact Us For Availability
View on Model
11
Evaporator Shelf
Evaporator Shelf WPL 4390876 Contact Us For Availability
View on Model
12
Evaporator Shelf
Evaporator Shelf WPL 4390690 Contact Us For Availability
View on Model
12
Insert, Handle
Insert, Handle WPL 4390668 Contact Us For Availability
View on Model
13
Evaporator Shelf
Evaporator Shelf WPL 4390878 Contact Us For Availability
View on Model
14
Washer
Washer WPL 4357057 Contact Us For Availability
View on Model
15
Grommet, Drain
Grommet, Drain WPL 4357269 Contact Us For Availability
View on Model
16
Power Cord
Power Cord WPL 4390696 Contact Us For Availability
View on Model
16
Heat Exchanger
Heat Exchanger WPL 4390883 Contact Us For Availability
View on Model
16
Lock, Bolt
Lock, Bolt WPL 4357224 Contact Us For Availability
View on Model
17
Cabinet (Not A Serviceable Part)
Cabinet (Not A Serviceable Part) WPL ARI55766A8 Contact Us For Availability
View on Model
17
Spring Clip
Spring Clip WPL 4356842 Contact Us For Availability
View on Model
19
Capacitor
Capacitor WPL 4390927 Contact Us For Availability
View on Model
20
Cover
Cover WPL 4390882 Contact Us For Availability
View on Model
20
Washer
Washer WPL 4356992 Contact Us For Availability
View on Model
21
Handle Assembly (Includes Items 12 & 13)
Handle Assembly (Includes Items 12 & 13) WPL 4390667 Contact Us For Availability
View on Model
22
REFRIGERANT CHARGE 6.0 oz. (R-134A)
REFRIGERANT CHARGE 6.0 oz. (R-134A) WPL ARI55772A8 Contact Us For Availability
View on Model
23
Door Stop
Door Stop WPL 4390695 Contact Us For Availability
View on Model
