Model Whirlpool EV150CXRW0 VERTICAL FREEZER – Common Parts & Diagrams

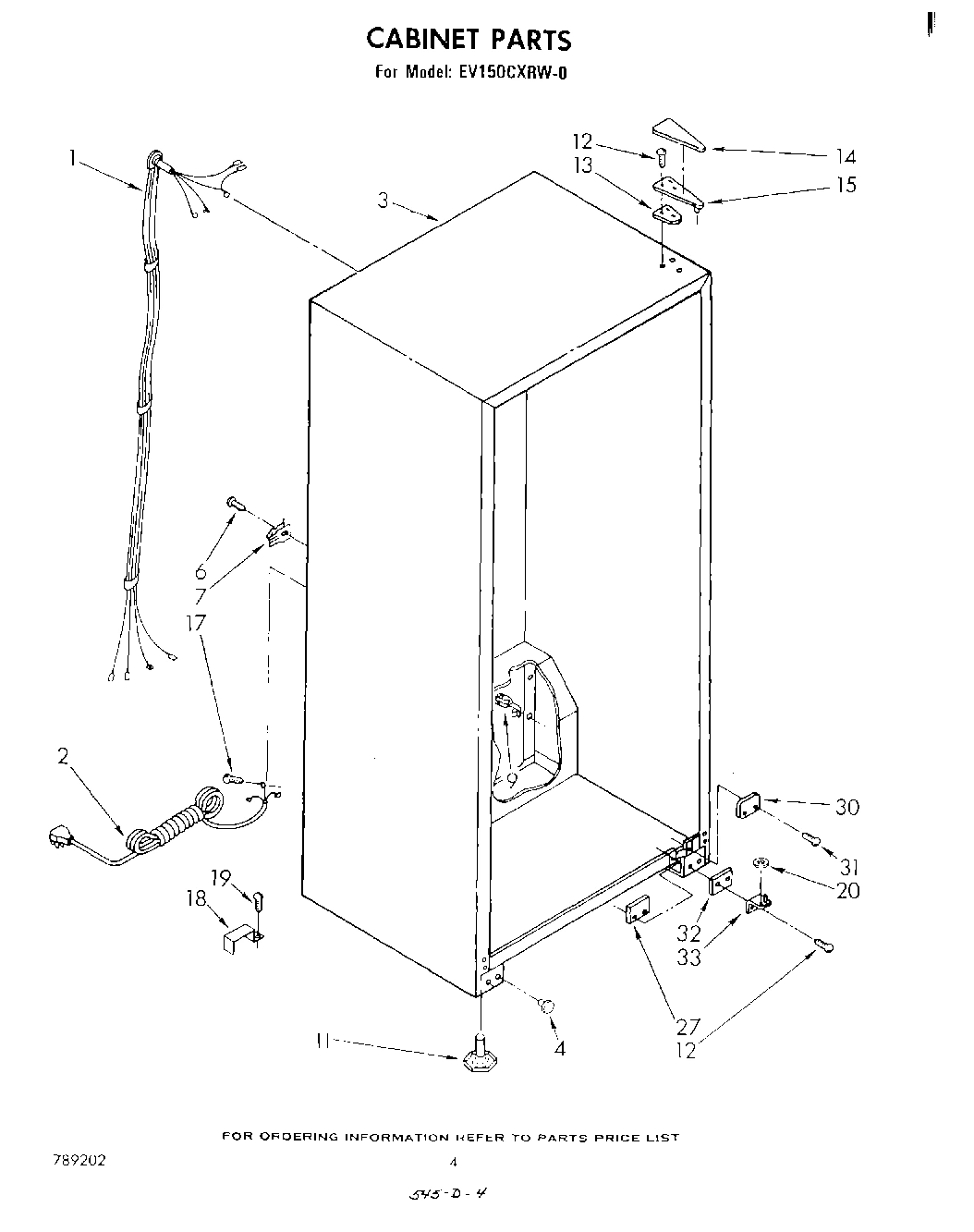

03 - CABINET

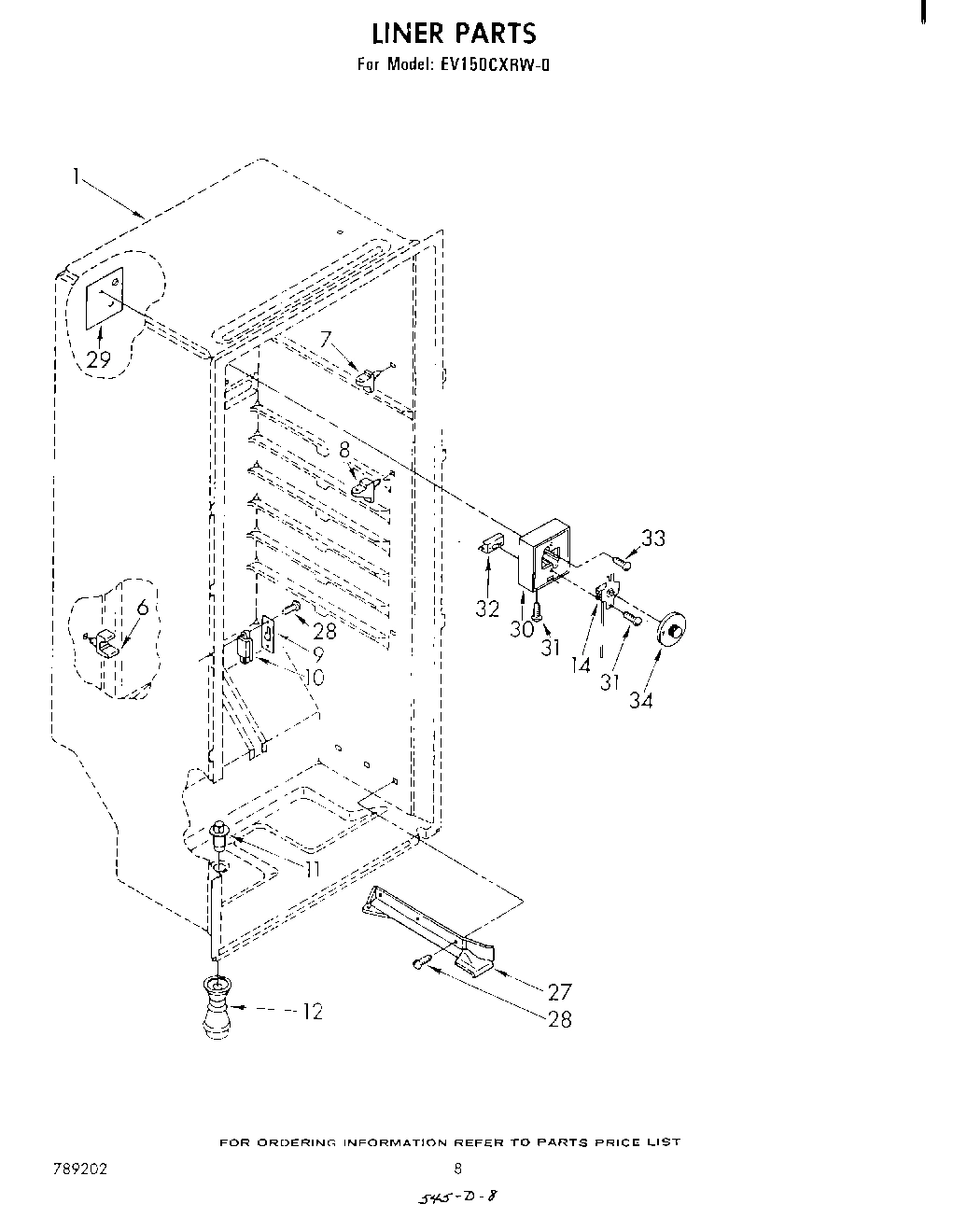

06 - LINER

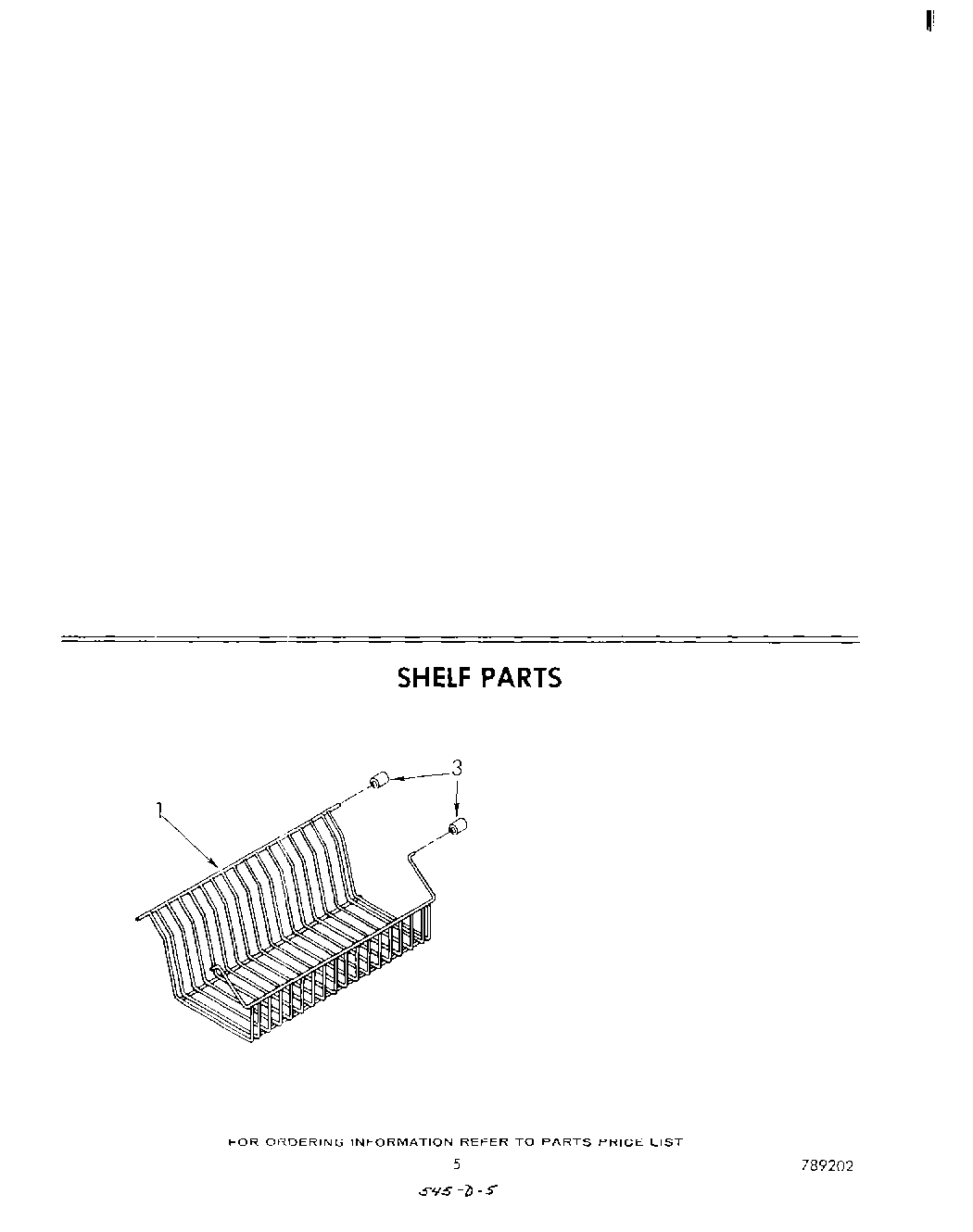

04 - SHELF
05 - UNIT
Common parts from model Whirlpool EV150CXRW0 VERTICAL FREEZER
1
Liner (Not A Serviceable Part) WPL ARI55735A3 Contact Us For Availability
1
Trivet WPL 941734 Contact Us For Availability
1
Screw, 8 x 7/8 (2) WPL 487888 Contact Us For Availability
2
Bumper (2) WPL 204349 Contact Us For Availability
3
Bumper (4) WPL 941879 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 945495 Contact Us For Availability
4
Tube Clip (2) WPL 942739 Contact Us For Availability
5
Tube Clamp WPL 510716 Contact Us For Availability
6
Stud, Shelf (6) WPL 940144 Contact Us For Availability
7
Stud, Shelf (2) WPL 940143 Contact Us For Availability
7
dampener WPL 938368 Contact Us For Availability
8
Stud, Shelf (4) WPL 940142 Contact Us For Availability
8
Cover, Connecting Lines (11.5 Inches) WPL 941384 Contact Us For Availability
8
Cover, Connecting Lines (10 Inches) WPL 941447 Contact Us For Availability
8
Cover, Connecting Lines (15 Inches) WPL 941448 Contact Us For Availability
9
Strike, Lock WPL 940167 Contact Us For Availability
9
Relay (Used W/Original Compressor) WPL 945590 Contact Us For Availability
10
Lock Strike, Back-Up WPL 940168 Contact Us For Availability
10
Overload (Used W/Original Compressor) WPL 945591 Contact Us For Availability
11
Drain, Ferrule Cap WPL 934607 Contact Us For Availability
11
Spring, Overload (Used W/Original Compressor) WPL 943494 Contact Us For Availability
12
Screw (Repair) WPL 488949 Contact Us For Availability
12
Fitting, Drain WPL 942768 Contact Us For Availability
12
Cover, Terminal (Used W/Original Compressor) WPL 943496 Contact Us For Availability
13
Shim, Top Hinge WPL 836151 Contact Us For Availability
13
Strap (Used W/Original Compressor) WPL 943497 Contact Us For Availability
15
Hinge & Shim (Top) WPL 842038 Contact Us For Availability
17
Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability
18
Clip, Plug WPL 653035 Contact Us For Availability
18
Strap (2) WPL 851095 Contact Us For Availability
19
Screw, 6-32 x 1/2 WPL 486899 Contact Us For Availability
20
Condenser Bracket (2) WPL 510721 Contact Us For Availability
22
Spacer (3) WPL 941842 Contact Us For Availability
23
Header Clamp Plate (2) WPL 510614 Contact Us For Availability
24
Clip, Thermostat WPL 510754 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Tap Plate WPL 935743 Contact Us For Availability
27
Tube Entry Cover (Bottom) WPL 941776 Contact Us For Availability
29
Shield, Liner WPL 940169 Contact Us For Availability
30
Rail Cover, Tube Entry (White) WPL 935707 Contact Us For Availability
30
Rail Cover, Tube Entry (Almond) WPL 935711 Contact Us For Availability
30
Escutcheon, Thermostat WPL 934927 Contact Us For Availability
30
Clamp WPL 547637 Contact Us For Availability
31
Screw WPL 488895 Contact Us For Availability
32
Shim, Bottom Hinge WPL 935737 Contact Us For Availability
32
Bracket & Switch Assembly WPL 981990 Contact Us For Availability
32
Evaporator Assembly (Shelf, 2nd) WPL 1100887 Contact Us For Availability
32
Evaporator Assembly (Shelf, 3rd) WPL 1100891 Contact Us For Availability
32
Evaporator Assembly (Shelf, Bottom) WPL 1100895 Contact Us For Availability
32
Evaporator Assembly (Shelf, Top) WPL 940175 Contact Us For Availability
33
Butt, Hinge (Bottom) WPL 943668 Contact Us For Availability
34
Knob, Thermostat WPL 981853 Contact Us For Availability
34
Screw, 8-32 x 7/16 WPL 488054 Contact Us For Availability
35
Shim, Thermostat Plate WPL 987316 Contact Us For Availability
36
Heat Exchanger WPL 943334 Contact Us For Availability
37
Screw, 8-32 x 5/8 WPL 488436 Contact Us For Availability
38
Box, Junction WPL 937068 Contact Us For Availability
39
Plate, Thermostat WPL 851289 Contact Us For Availability
40
Screw (Repair) WPL 489036 Contact Us For Availability
42
Plate, Unit Mounting WPL 942860 Contact Us For Availability
43
Rail, Unit Mounting WPL 945448 Contact Us For Availability
47
WPL 549342 WPL 549342 Contact Us For Availability
48
WPL 549336 WPL 549336 Contact Us For Availability
49
WPL 549086 WPL 549086 Contact Us For Availability
50
WPL 936073 WPL 936073 Contact Us For Availability
51
WPL 978029 WPL 978029 Contact Us For Availability
51
WPL 549500 WPL 549500 Contact Us For Availability
51
WPL 978028 WPL 978028 Contact Us For Availability
× ![]()
