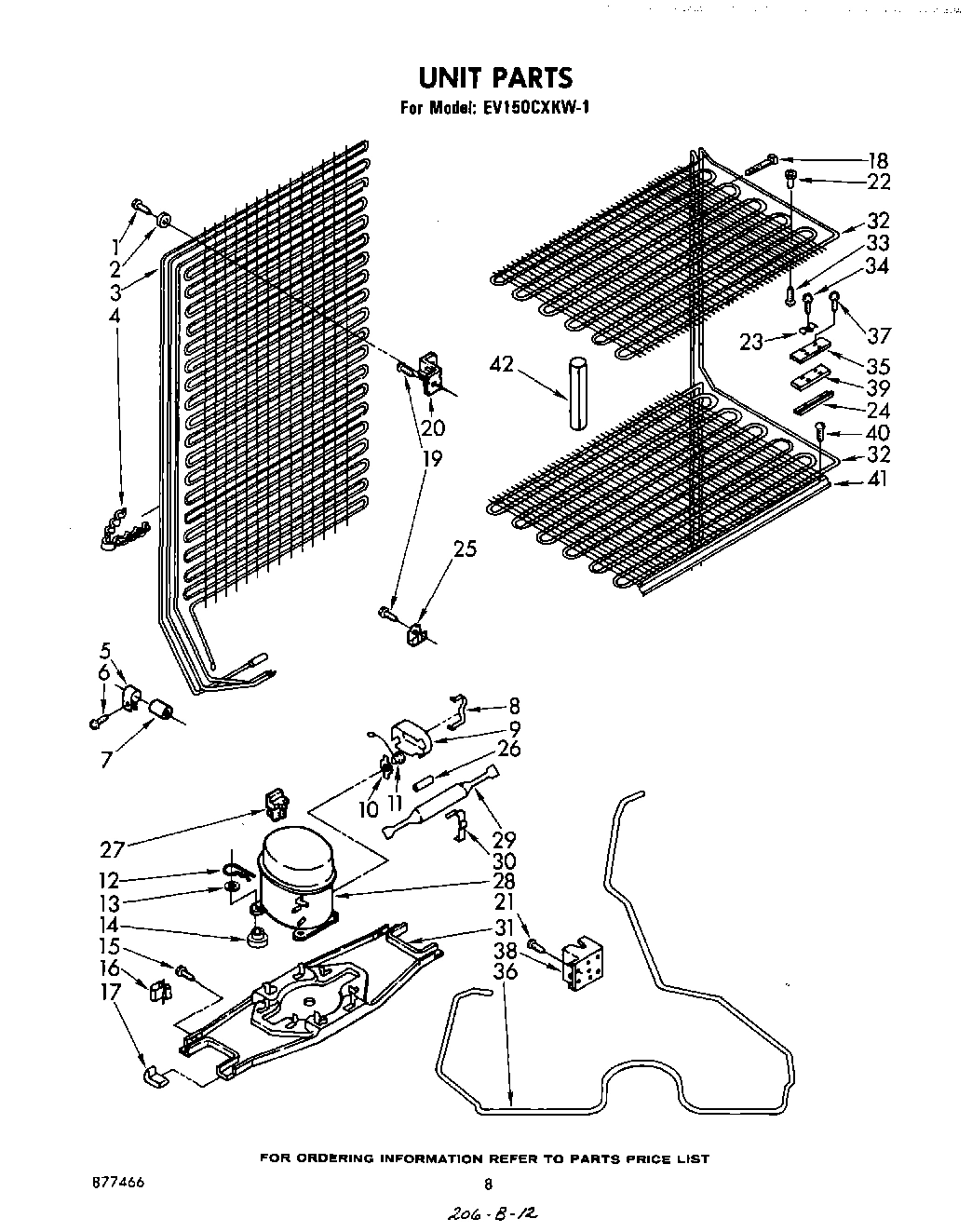

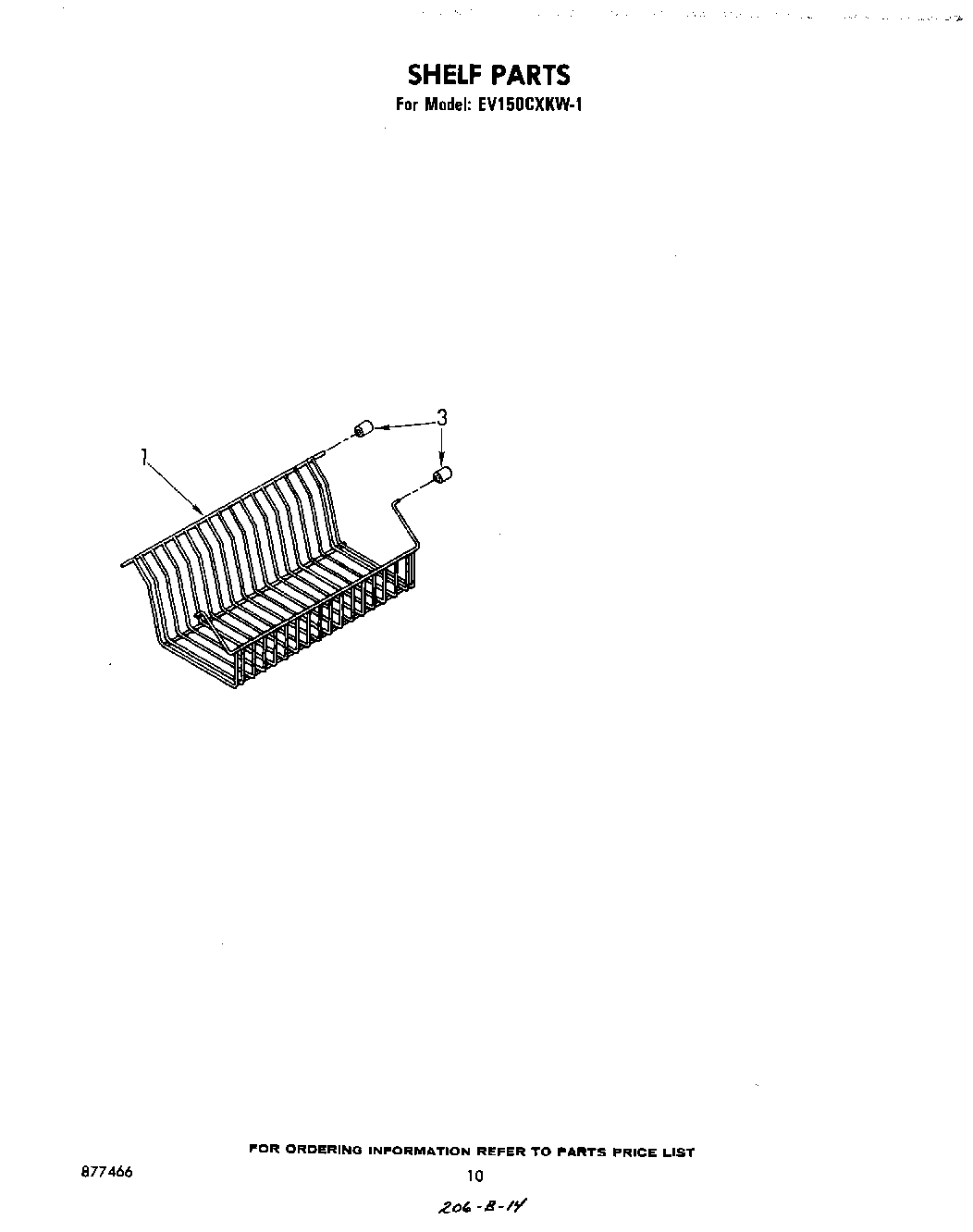

Model Whirlpool EV150CXKW1 VERTICAL FREEZER – Common Parts &amp; Diagrams

1

Cabinet Wiring WPL 941540 Contact Us For Availability

1

Trivet WPL 941734 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI55729A3 Contact Us For Availability

1

Screw, 8 x 7/8 (2) WPL 487888 Contact Us For Availability

2

Cord, Service WPL 850626 Contact Us For Availability

2

Bumper (2) WPL 204349 Contact Us For Availability

3

Cabinet (Not A Serviceable Part) WPL ARI55728A8 Contact Us For Availability

3

Bumper (4) WPL 941879 Contact Us For Availability

3

Condenser & Precooler Assembly WPL 940191 Contact Us For Availability

4

Plug, Hole (White) WPL 941416 Contact Us For Availability

4

Hole Plug (Almond) WPL 941417 Contact Us For Availability

4

Clip, Tube (2) WPL 938232 Contact Us For Availability

5

Tube Clamp WPL 510716 Contact Us For Availability

6

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

6

Stud, Shelf (6) WPL 940144 Contact Us For Availability

7

Clamp WPL 939009 Contact Us For Availability

7

Stud, Shelf (2) WPL 940143 Contact Us For Availability

7

dampener WPL 938368 Contact Us For Availability

8

Stud, Shelf (4) WPL 940142 Contact Us For Availability

8

Strap WPL 549342 Contact Us For Availability

9

Bushing, Strain Relief WPL 544108 Contact Us For Availability

9

Strike, Lock WPL 940167 Contact Us For Availability

9

Terminal Cover WPL 549336 Contact Us For Availability

10

Lock Strike, Back-Up WPL 940168 Contact Us For Availability

10

Overload Spring WPL 549086 Contact Us For Availability

11

W11117769 Whirlpool Refrigerator Leveler In Stock WPL W11117769 $6.97

11

Drain, Ferrule Cap WPL 934607 Contact Us For Availability

11

overload WPL 941778 Contact Us For Availability

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Screw (Repair) WPL 488949 Contact Us For Availability

Fitting, Drain WPL 942768 Contact Us For Availability

clip (4) WPL 596712 Contact Us For Availability

13

Shim, Top Hinge WPL 836151 Contact Us For Availability

13

slotted washer (4) WPL 992950 Contact Us For Availability

14

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

14

4389248 Whirlpool Refrigerator Thermostat Backorder WPL 4389248 $119.90

14

Grommet (4) WPL 646499 Contact Us For Availability

15

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

15

Hinge & Shim (Top) WPL 842038 Contact Us For Availability

16

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $4.08

17

WP842177 Whirlpool Refrigerator Door Key In Stock WPL WP842177 $2.51

17

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

17

support grommet (2) WPL 937000 Contact Us For Availability

18

Clip, Plug WPL 653035 Contact Us For Availability

18

Strap (2) WPL 851095 Contact Us For Availability

19

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

19

Screw, 6-32 x 1/2 WPL 486899 Contact Us For Availability

20

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

20

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

20

Bracket, Condenser (2) WPL 937066 Contact Us For Availability

21

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

22

Spacer (3) WPL 941842 Contact Us For Availability

23

Header Clamp Plate (2) WPL 510614 Contact Us For Availability

24

Shim, End WPL 941918 Contact Us For Availability

24

Clip, Thermostat WPL 510754 Contact Us For Availability

25

Shim, End WPL 941917 Contact Us For Availability

25

Grommet, Wiring WPL 940172 Contact Us For Availability

25

Clip, Condenser Mounting (2) WPL 935788 Contact Us For Availability

26

Heater, Stile WPL 940171 Contact Us For Availability

26

Restrictor Sleeve WPL 510446 Contact Us For Availability

End, Handle WPL 982947 Contact Us For Availability

Tap Plate WPL 935743 Contact Us For Availability

Tube Entry Cover (Bottom) WPL 941776 Contact Us For Availability

Relay WPL 989646 Contact Us For Availability

Relay (Alternate) WPL 989647 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

Nameplate (Includes Items 29 & 31) WPL 945119 Contact Us For Availability

Repair WPL 488706 Contact Us For Availability

Compressor WPL 482736 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

29

Insert WPL 945111 Contact Us For Availability

29

Shield, Liner WPL 940169 Contact Us For Availability

Screw, .190DT x .351 WPL 488818 Contact Us For Availability

Rail Cover, Tube Entry (White) WPL 935707 Contact Us For Availability

Rail Cover, Tube Entry (Almond) WPL 935711 Contact Us For Availability

Escutcheon, Thermostat WPL 934927 Contact Us For Availability

Clamp WPL 547637 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

Transformer, Stepdown (230-115 Volt) WPL 515393 Contact Us For Availability

Booklet, How To Freeze WPL 656493 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

Thinner, Blend (1 Gal.) WPL 799351 Contact Us For Availability

Kit, Porcelain Repair WPL 799832 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

List, WPL 877466 Contact Us For Availability

WPL 941542 WPL 941542 Contact Us For Availability

WPL 942608 WPL 942608 Contact Us For Availability

WPL 946714 WPL 946714 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL 991259 WPL 991259 Contact Us For Availability

Screw WPL 488895 Contact Us For Availability

Unit, Frame WPL 935779 Contact Us For Availability

Shim, Bottom Hinge WPL 935737 Contact Us For Availability

Bracket & Switch Assembly WPL 981990 Contact Us For Availability

Evaporator Assembly (Shelf, Top) WPL 940175 Contact Us For Availability

Evaporator Assembly (Shelf, 2nd) WPL 940179 Contact Us For Availability

Evaporator Assembly (Shelf, 3rd) WPL 940184 Contact Us For Availability

Evaporator Assembly (Shelf, Bottom) WPL 940187 Contact Us For Availability

33

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

33

Butt, Hinge (Bottom) WPL 943668 Contact Us For Availability

34

Knob, Thermostat WPL 981853 Contact Us For Availability

34

Screw, 8-32 x 7/16 WPL 488054 Contact Us For Availability

35

Shim, Thermostat Plate WPL 987316 Contact Us For Availability

36

Heat Exchanger WPL 940195 Contact Us For Availability

37

Screw, 8-32 x 5/8 WPL 488436 Contact Us For Availability

38

Box, Junction WPL 937068 Contact Us For Availability

39

Plate, Thermostat WPL 851289 Contact Us For Availability

40

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

40

Screw (Repair) WPL 489036 Contact Us For Availability

41

Trim, Shelf WPL 941795 Contact Us For Availability

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Cover, Connecting Lines (Top) WPL 941384 Contact Us For Availability

Cover, Connecting Lines (Center) WPL 941447 Contact Us For Availability

Cover, Connecting Lines (Bottom) WPL 941448 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
