Model Whirlpool EV130NXRW0 VERTICAL FREEZER – Common Parts &amp; Diagrams

1

Cabinet Wiring Assembly WPL 1106940 Contact Us For Availability

1

Screw, 8 x 7/8 (2) WPL 487888 Contact Us For Availability

1

Trivet WPL 1106607 Contact Us For Availability

1

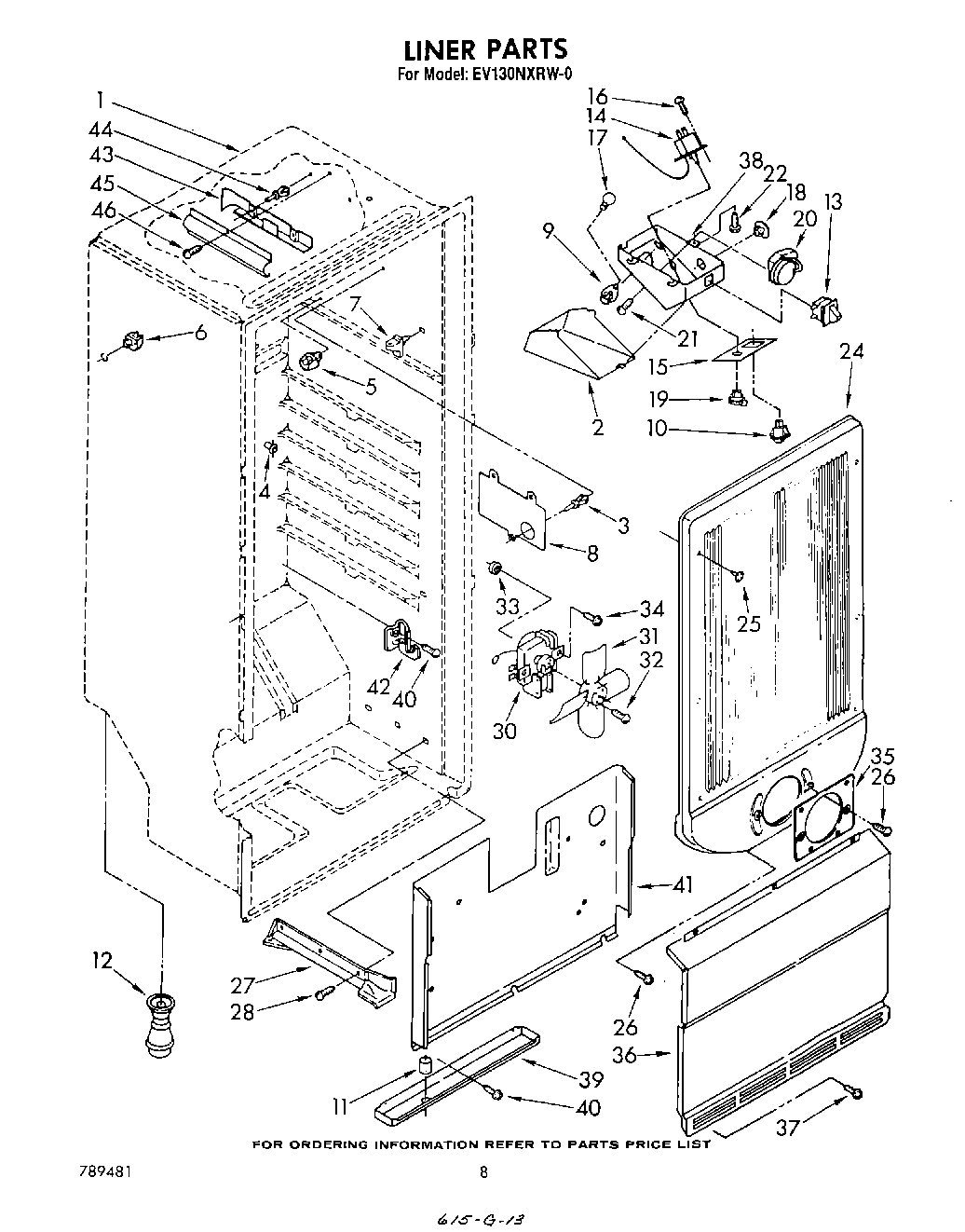

Liner (Not A Serviceable Part) WPL ARI55723A7 Contact Us For Availability

2

Cord, Service WPL 850626 Contact Us For Availability

2

Bumper (2) WPL 204349 Contact Us For Availability

2

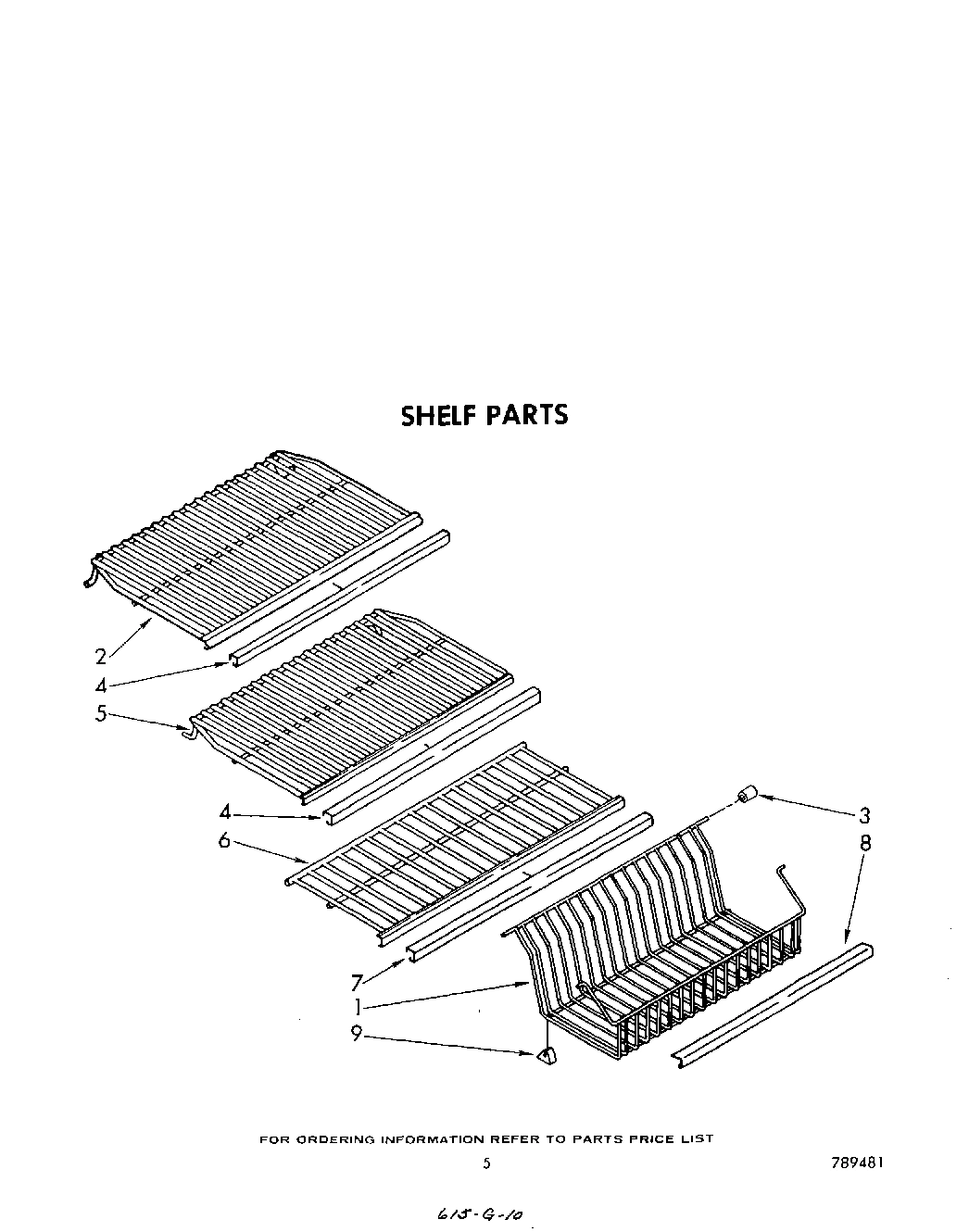

Shelf, Pullout (Long) WPL 1106603 Contact Us For Availability

2

Light, Lens WPL 1100466 Contact Us For Availability

3

939962 Whirlpool Refrigerator Rivet Backorder WPL 939962 $7.21

3

Cabinet (Not A Serviceable Part) WPL ARI55722A7 Contact Us For Availability

3

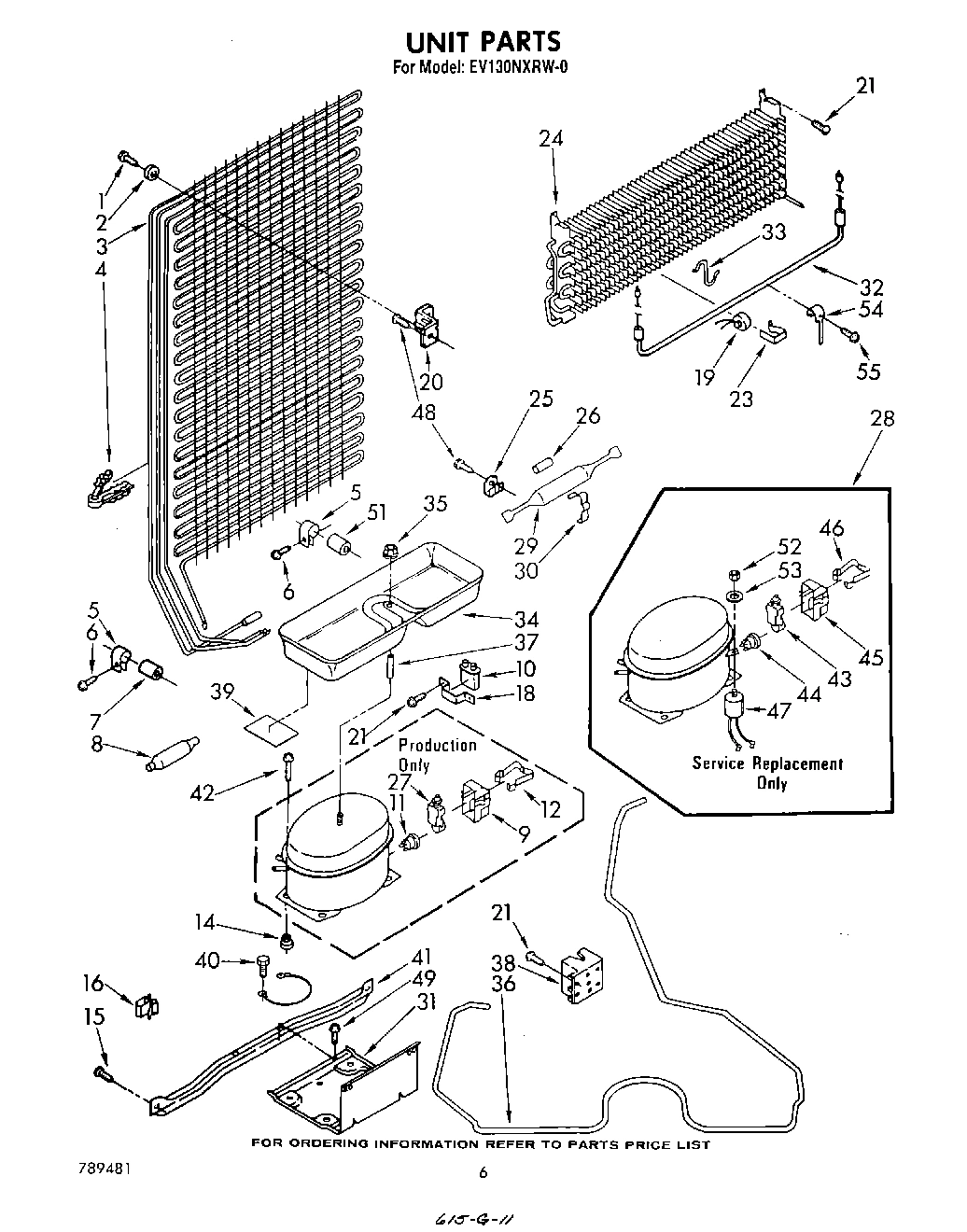

Condenser & Precooler Assembly WPL 1106956 Contact Us For Availability

3

Bumper (4) WPL 941879 Contact Us For Availability

4

Hole Plug (White) WPL 941416 Contact Us For Availability

4

Hole Plug (Almond) WPL 941417 Contact Us For Availability

4

Clip, Tube (2) WPL 938232 Contact Us For Availability

4

Trim, Shelf (2) WPL 1103660 Contact Us For Availability

4

Spacer (8) WPL 1100445 Contact Us For Availability

5

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

5

Grommet, Wiring WPL 938284 Contact Us For Availability

5

Tube Clamp WPL 510716 Contact Us For Availability

5

Shelf, Pullout (Short) WPL 1106605 Contact Us For Availability

5

Shelf, Stud Saddle (R.S) WPL 939063 Contact Us For Availability

6

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

6

Wire, Shelf (Top) WPL 1106610 Contact Us For Availability

6

Shelf, Stud Saddle (L.S) WPL 939064 Contact Us For Availability

7

Clamp WPL 937357 Contact Us For Availability

7

Trim, Shelf WPL 1103659 Contact Us For Availability

7

Stud, Shelf (2) WPL 939200 Contact Us For Availability

8

Muffler WPL 1103820 Contact Us For Availability

8

Trim, Snap-On WPL 946736 Contact Us For Availability

8

Shield, Electrical WPL 1100464 Contact Us For Availability

9

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

9

Bushing, Strain Relief WPL 544108 Contact Us For Availability

9

Grommet (2) WPL 216446 Contact Us For Availability

10

Capacitor (Used W/Original Compressor) WPL 1108074 Contact Us For Availability

11

W11117769 Whirlpool Refrigerator Leveler In Stock WPL W11117769 $6.97

11

Overload (Used W/Original Compressor) WPL 1105075 Contact Us For Availability

11

Extension, Drain WPL 836123 Contact Us For Availability

12

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

12

Screw (Repair) WPL 488949 Contact Us For Availability

12

Fitting, Drain WPL 842256 Contact Us For Availability

13

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

13

Shim, Top Hinge WPL 836151 Contact Us For Availability

13

Shim WPL 836192 Contact Us For Availability

14

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

14

4389248 Whirlpool Refrigerator Thermostat Backorder WPL 4389248 $119.90

14

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

15

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

15

Hinge & Shim (Top) WPL 842038 Contact Us For Availability

15

Insert, Control Panel WPL 1100789 Contact Us For Availability

16

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $4.08

16

Screw WPL 488974 Contact Us For Availability

17

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.89

18

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

18

WP43449 Whirlpool Bracket Backorder WPL WP43449 $2.38

WP4387499 Whirlpool Refrigerator Bimetallic D In Stock WPL WP4387499 $43.87

Cover, Handle End WPL 946770 Contact Us For Availability

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

Control Knob, Thermostat WPL 1100467 Contact Us For Availability

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

Screw, 8-15 x 1-5/8 WPL 488987 Contact Us For Availability

Condenser Bracket (2) WPL 510721 Contact Us For Availability

Defrost, Timer (10 Hours) WPL 945486 Contact Us For Availability

21

WP487353 Whirlpool Refrigerator Screw In Stock WPL WP487353 $2.51

21

Handle, Center WPL 992813 Contact Us For Availability

23

Clamp WPL 513584 Contact Us For Availability

24

Evaporator WPL 1100424 Contact Us For Availability

24

Air Duct WPL 1110532 Contact Us For Availability

25

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

25

Clip, Condenser Mounting (2) WPL 935788 Contact Us For Availability

26

Restrictor Sleeve WPL 510446 Contact Us For Availability

27

Tape Strip WPL 991259 Contact Us For Availability

27

Tap Plate WPL 935743 Contact Us For Availability

27

Tube Entry Cover (Bottom) WPL 941776 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Transformer, Stepdown (230-115 Volt) WPL 515393 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

Kit, Porcelain Repair WPL 799832 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Nameplate WPL 945119 Contact Us For Availability

Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability

Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482981 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

Rail Cover, Tube Entry (White) WPL 935707 Contact Us For Availability

Rail Cover, Tube Entry (Almond) WPL 935711 Contact Us For Availability

Clamp WPL 547637 Contact Us For Availability

Motor, Fan WPL 1106739 Contact Us For Availability

31

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $28.95

31

Screw WPL 488895 Contact Us For Availability

31

Plate, Unit Mounting WPL 942860 Contact Us For Availability

32

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

32

Shim, Bottom Hinge WPL 935737 Contact Us For Availability

32

Heater, Defrost WPL 1100434 Contact Us For Availability

33

Butt, Hinge (Bottom R.H.) WPL 943668 Contact Us For Availability

33

Support, Heater WPL 851358 Contact Us For Availability

33

Grommet (2) WPL 531933 Contact Us For Availability

34

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

34

Tray, Evaporator WPL 935781 Contact Us For Availability

35

285002 Whirlpool Nut Backorder WPL 285002 $7.58

35

Fan, Mounting Cover WPL 1108194 Contact Us For Availability

36

Heat Exchanger WPL 1100429 Contact Us For Availability

36

Evaporator, Cover WPL 1100476 Contact Us For Availability

37

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

37

Spacer WPL 938275 Contact Us For Availability

38

Junction Box WPL 1108078 Contact Us For Availability

38

Control Box WPL 1100458 Contact Us For Availability

39

Pad, Sound Front (3) WPL 301774 Contact Us For Availability

39

Pan, Drain WPL 1100471 Contact Us For Availability

40

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

40

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

41

Rail, Unit Mounting WPL 945448 Contact Us For Availability

41

Shield, Heat WPL 1100470 Contact Us For Availability

42

Evaporator Support (2) WPL 935700 Contact Us For Availability

43

Relay (Used W/Service Compressor) WPL 1100806 Contact Us For Availability

43

Wire, Cover (Rear) WPL 1100469 Contact Us For Availability

44

Overload (Used W/Service Compressor) WPL 1105077 Contact Us For Availability

44

Plastic, Rivet WPL 939961 Contact Us For Availability

45

Cover, Terminal (Used On Service Compressor) WPL 1105015 Contact Us For Availability

45

Wire, Cover (Front) WPL 1100468 Contact Us For Availability

46

Strap, Cover (Used W/Service & Original Compr WPL 938384 Contact Us For Availability

46

Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability

47

Capacitor (Used W/Service Compressor) WPL 482996 Contact Us For Availability

48

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

49

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

51

WPL 1108064 WPL 1108064 Contact Us For Availability

52

WPL 489142 WPL 489142 Contact Us For Availability

53

WPL 489143 WPL 489143 Contact Us For Availability

54

WPL 849689 WPL 849689 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

WPL 978029 WPL 978029 Contact Us For Availability

WPL 482278 WPL 482278 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability
