Model Whirlpool EV130EXSW00 VERTICAL FREEZER – Common Parts & Diagrams
02 - DOOR, LIT/OPTIONAL
03 - CABINET

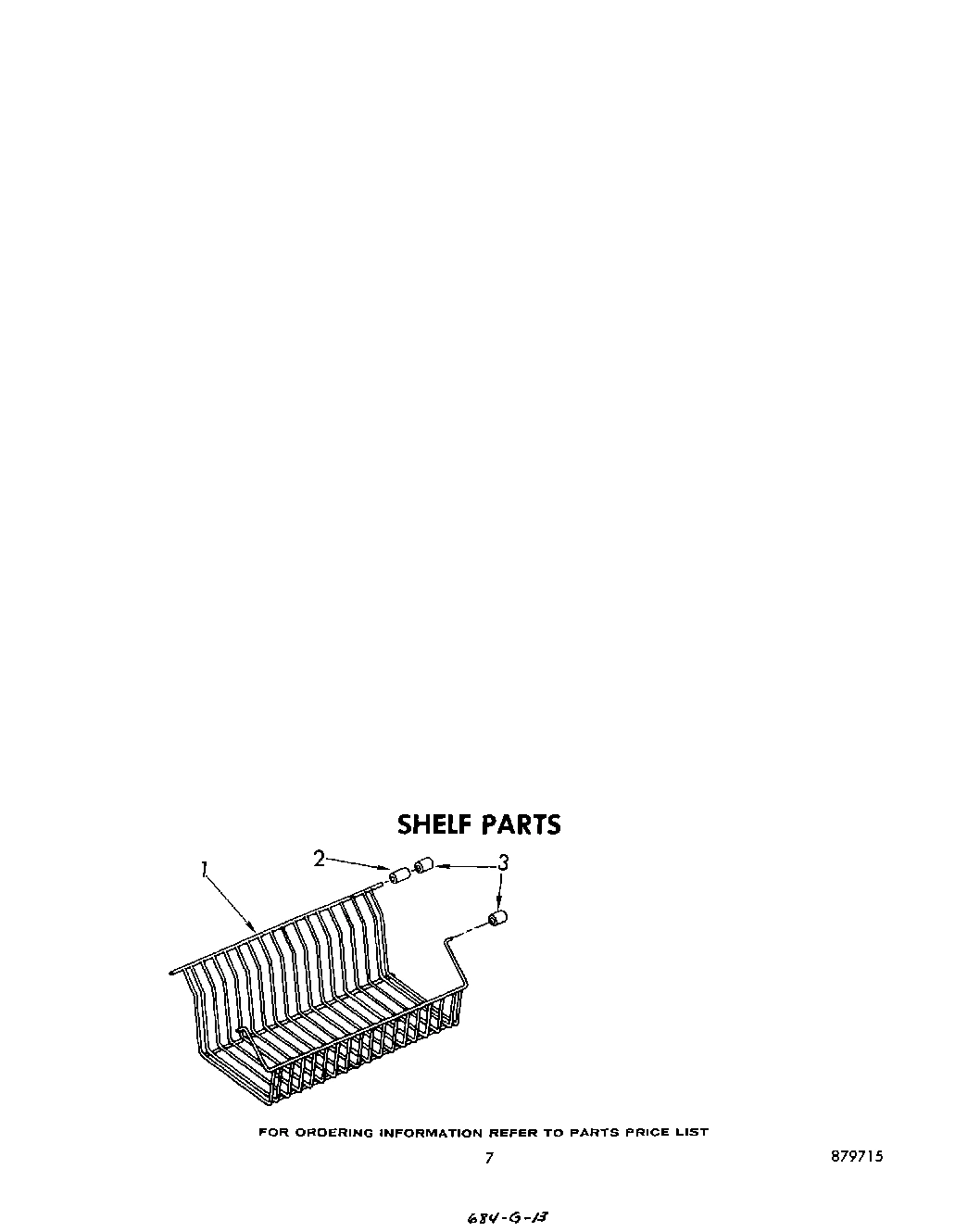

05 - SHELF

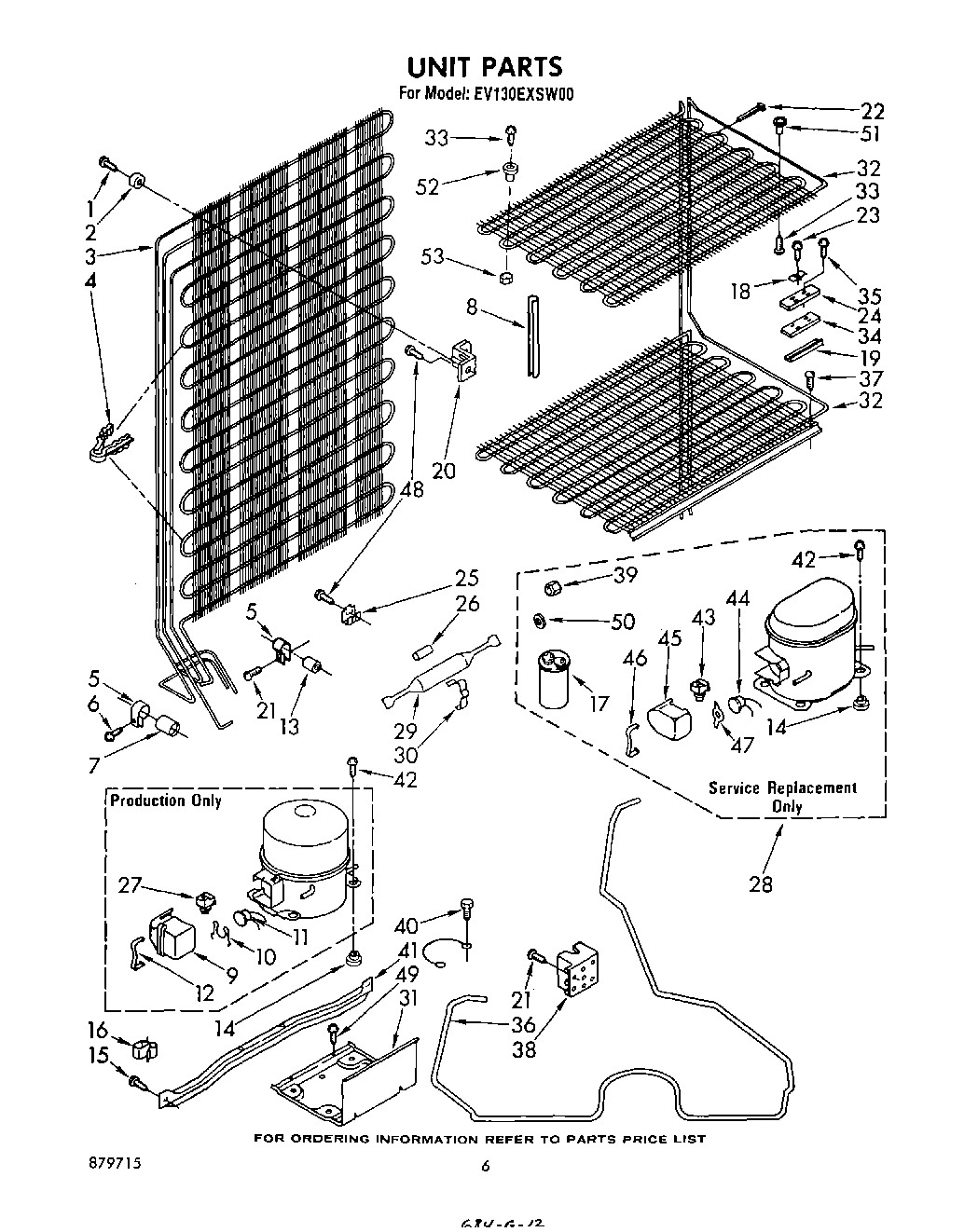

04 - UNIT

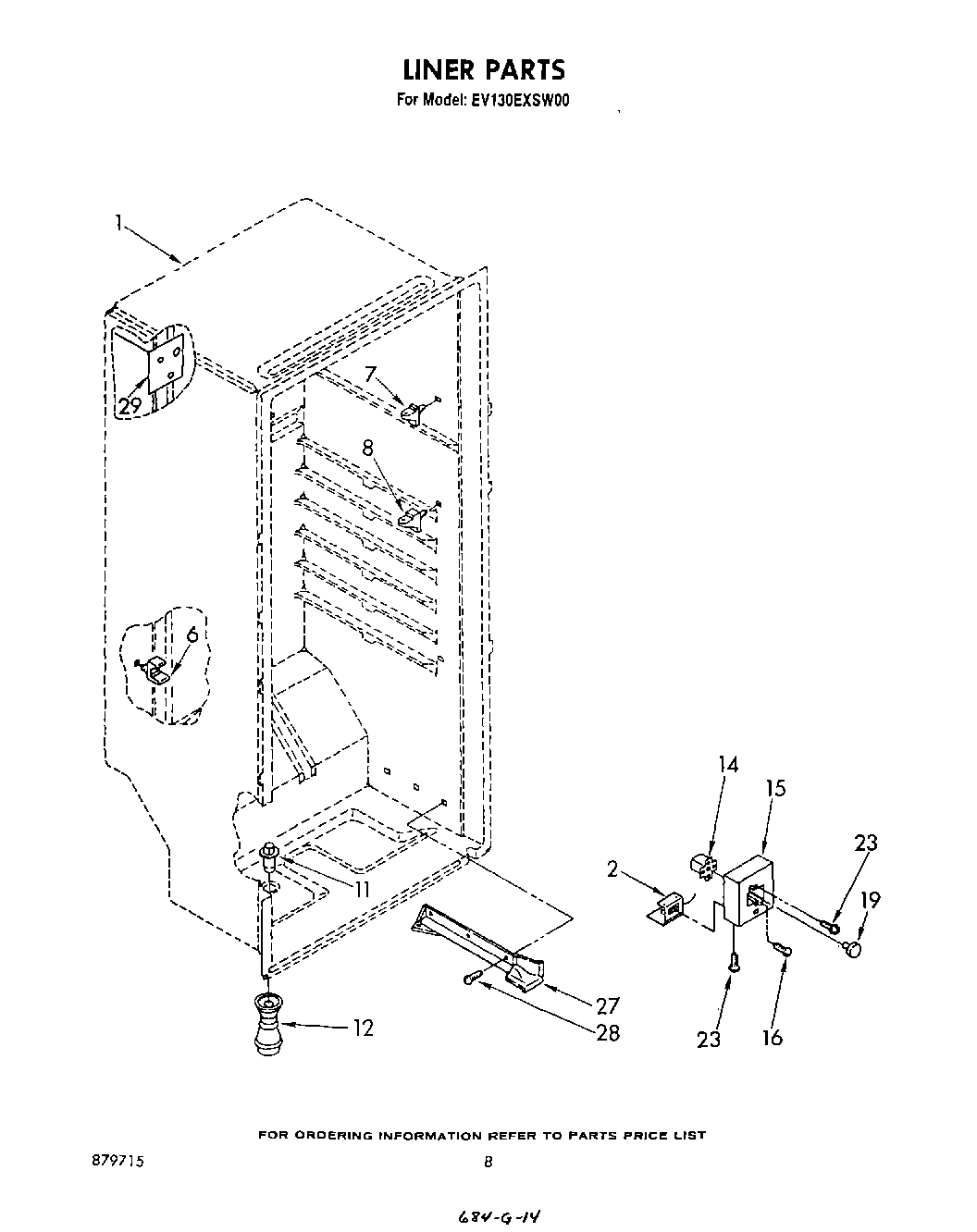

06 - LINER
Common parts from model Whirlpool EV130EXSW00 VERTICAL FREEZER
1
Cabinet Wiring Assembly WPL 941518 Contact Us For Availability
1
Trivet WPL 941734 Contact Us For Availability
1
Screw, 8 x 7/8 (2) WPL 487888 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI55713A5 Contact Us For Availability
2
Cord, Service WPL 850626 Contact Us For Availability
2
Sleeve, Spacer WPL 1103517 Contact Us For Availability
2
Bumper (2) WPL 204349 Contact Us For Availability
2
Bracket & Switch Assembly WPL 981990 Contact Us For Availability
3
Cabinet (Not A Serviceable Part) WPL ARI55712A3 Contact Us For Availability
3
Bumper (4) WPL 941879 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 945491 Contact Us For Availability
4
Hole Plug (White) WPL 941416 Contact Us For Availability
4
Tube Clip (2) WPL 942739 Contact Us For Availability
5
Tube Clamp WPL 510716 Contact Us For Availability
6
Stud, Shelf (6) WPL 940144 Contact Us For Availability
7
Clamp WPL 939009 Contact Us For Availability
7
Dampener WPL 1108064 Contact Us For Availability
7
Stud, Shelf (2) WPL 940143 Contact Us For Availability
8
Cover, Connecting Lines ((1)) WPL 941384 Contact Us For Availability
8
Cover, Connecting Lines ((2)) WPL 941447 Contact Us For Availability
8
Stud, Shelf (4) WPL 940142 Contact Us For Availability
9
Bushing, Strain Relief WPL 544108 Contact Us For Availability
9
Cover, Terminal (Used W/Original Compressor) WPL 943496 Contact Us For Availability
10
Overload Spring (Used W/Original Compressor) WPL 943494 Contact Us For Availability
11
Trim, Door Shelf (4) WPL 940164 Contact Us For Availability
11
Overload (Used W/Original Compressor) WPL 945591 Contact Us For Availability
11
Cap, Drain Ferrule WPL 934607 Contact Us For Availability
12
Screw (Repair) WPL 488949 Contact Us For Availability
12
Strap, Cover (Used W/Original Compressor) WPL 943497 Contact Us For Availability
12
Fitting, Drain WPL 942768 Contact Us For Availability
13
Hole Plug (White) WPL 534927 Contact Us For Availability
13
Shim, Top Hinge WPL 836151 Contact Us For Availability
13
Shim WPL 836192 Contact Us For Availability
13
Dampener WPL 945593 Contact Us For Availability
15
Hinge & Shim (Top) WPL 842038 Contact Us For Availability
15
Escutcheon, Thermostat WPL 934927 Contact Us For Availability
17
Capacitor, Start WPL 482996 Contact Us For Availability
18
Header Clamp Plate (2) WPL 510614 Contact Us For Availability
19
Cover, Handle End WPL 946742 Contact Us For Availability
19
Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability
19
Clip, Thermostat WPL 510754 Contact Us For Availability
19
Control Knob WPL 981853 Contact Us For Availability
20
Screw, No.8-15 x 1-5/8 WPL 488987 Contact Us For Availability
20
Repair, 1/16 WPL 587576 Contact Us For Availability
20
Condenser Bracket (2) WPL 510721 Contact Us For Availability
21
Handle, Center WPL 1104123 Contact Us For Availability
22
Strap, Tube (3) WPL 851095 Contact Us For Availability
23
Screw, 8-32 x 7/16 (3) WPL 488054 Contact Us For Availability
24
Shim, Thermostat Plate WPL 987316 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Tape Strip WPL 991259 Contact Us For Availability
27
Tap Plate WPL 935743 Contact Us For Availability
27
Relay (Used W/Original Compressor) WPL 945590 Contact Us For Availability
27
Tube Entry Cover (Bottom) WPL 941776 Contact Us For Availability
28
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
28
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
28
Nameplate WPL 1104899 Contact Us For Availability
28
Transformer, Stepdown (230-115 Volt) WPL 515393 Contact Us For Availability
28
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
28
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
28
Compressor WPL 482981 Contact Us For Availability
29
Shield, Liner WPL 940169 Contact Us For Availability
30
Rail Cover, Tube Entry (White) WPL 935707 Contact Us For Availability
30
Clamp WPL 547637 Contact Us For Availability
31
Screw WPL 488895 Contact Us For Availability
31
Plate, Unit Mounting WPL 942860 Contact Us For Availability
32
Shim, Bottom Hinge WPL 935737 Contact Us For Availability
32
Evaporator Shelves (Shelf, 3rd) WPL 1100889 Contact Us For Availability
32
Evaporator Shelves (Shelf, Bottom) WPL 1100893 Contact Us For Availability
32
Evaporator Shelves (Shelf, Top) WPL 1114224 Contact Us For Availability
32
Evaporator Shelves (Shelf, 2nd) WPL 1114234 Contact Us For Availability
33
Butt, Hinge (Bottom R.H.) WPL 943668 Contact Us For Availability
34
Plate, Thermostat WPL 851289 Contact Us For Availability
35
Screw, 8-32 x 5/8 (2) WPL 488436 Contact Us For Availability
36
Heat Exchanger WPL 943334 Contact Us For Availability
38
Box, Junction WPL 937068 Contact Us For Availability
39
Nut WPL 489142 Contact Us For Availability
41
Rail, Unit Mounting WPL 945448 Contact Us For Availability
44
WPL 483037 WPL 483037 Contact Us For Availability
45
WPL 1108115 WPL 1108115 Contact Us For Availability
46
WPL 938384 WPL 938384 Contact Us For Availability
47
WPL 1114190 WPL 1114190 Contact Us For Availability
50
WPL 489143 WPL 489143 Contact Us For Availability
51
WPL 941842 WPL 941842 Contact Us For Availability
52
WPL 1103816 WPL 1103816 Contact Us For Availability
53
WPL 978029 WPL 978029 Contact Us For Availability
53
WPL 482278 WPL 482278 Contact Us For Availability
53
WPL 488748 WPL 488748 Contact Us For Availability
53
WPL 978028 WPL 978028 Contact Us For Availability
× ![]()
