Model Whirlpool EV130CXRW0 VERTICAL FREEZER – Common Parts & Diagrams

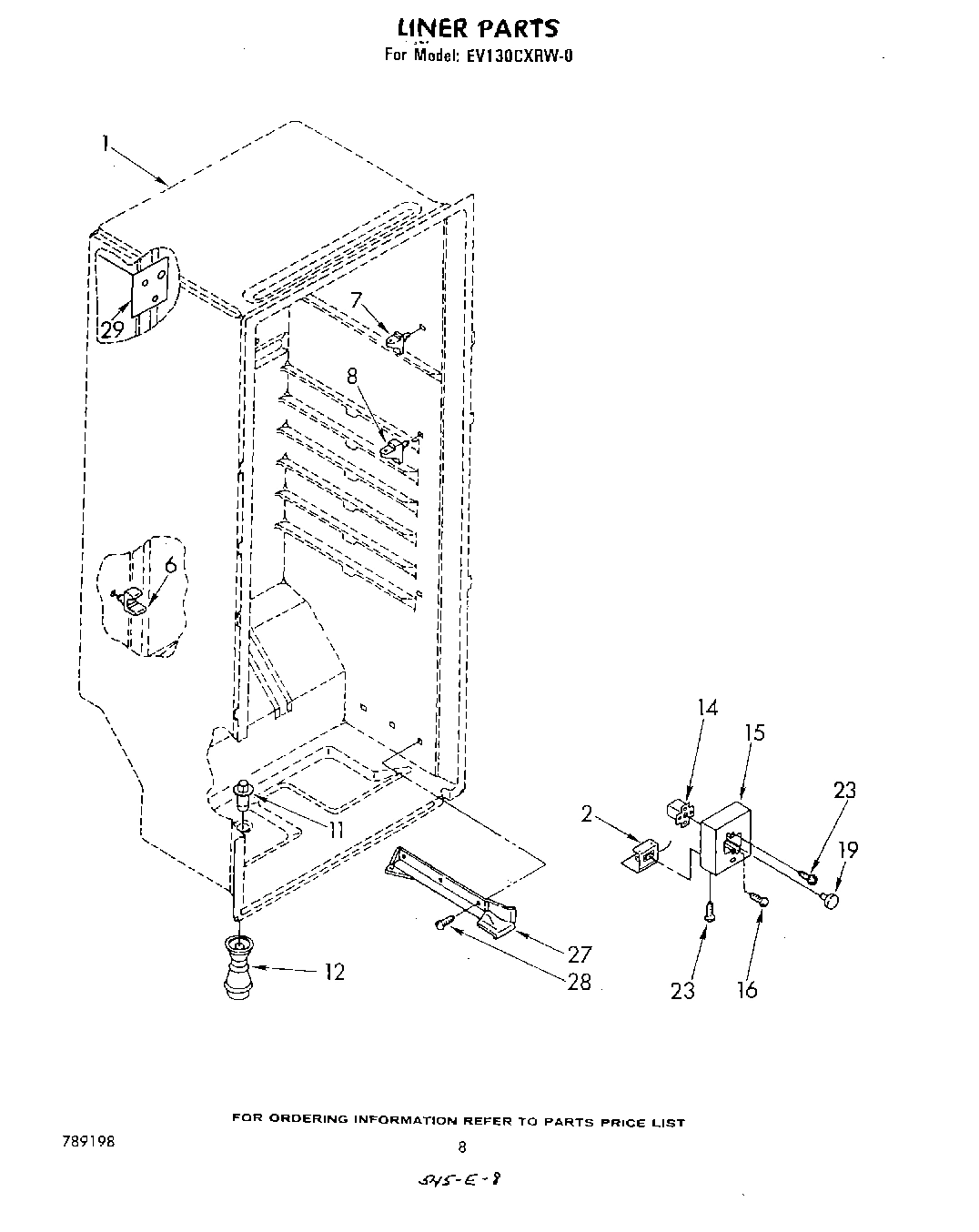

06 - LINER

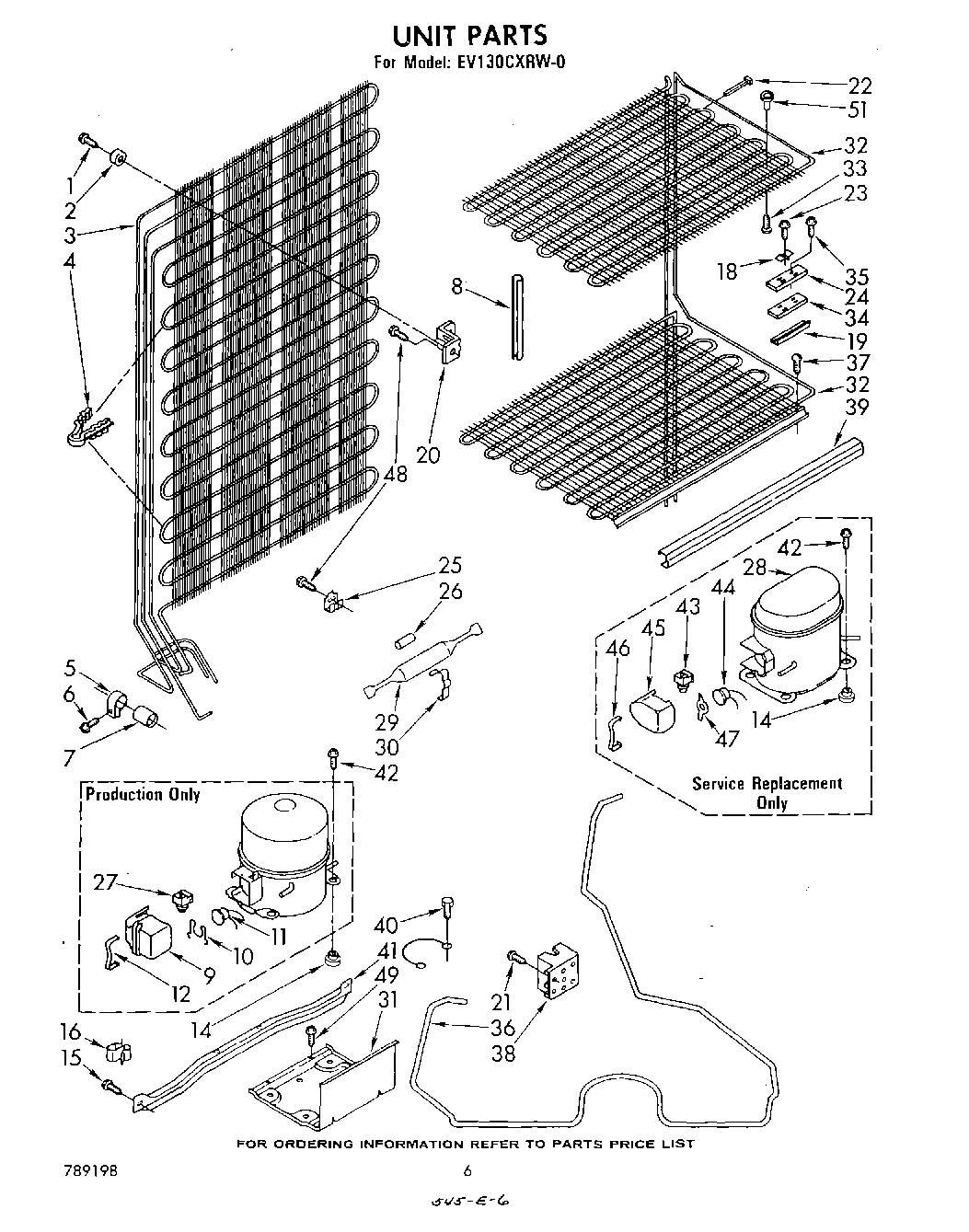

04 - UNIT

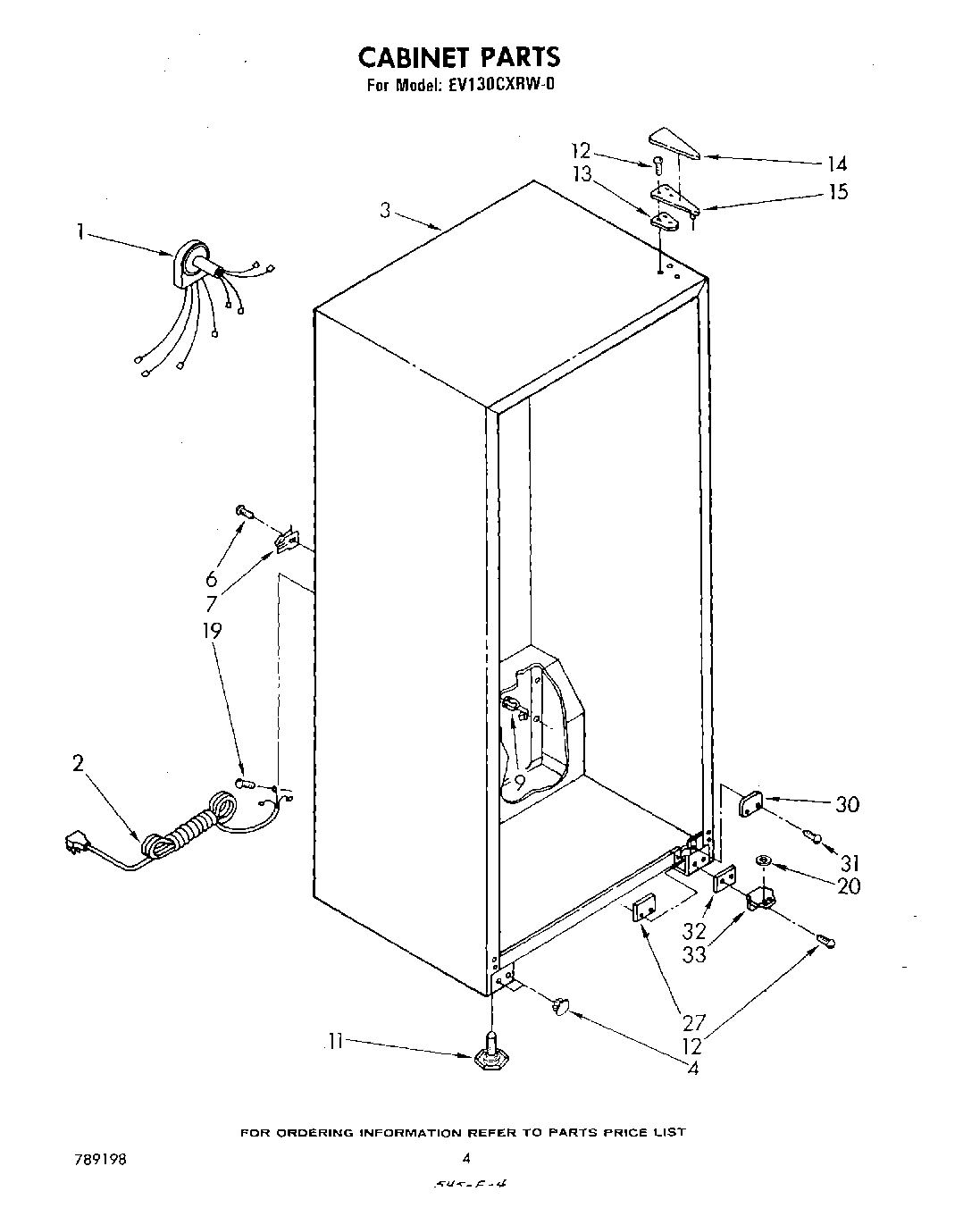

03 - CABINET

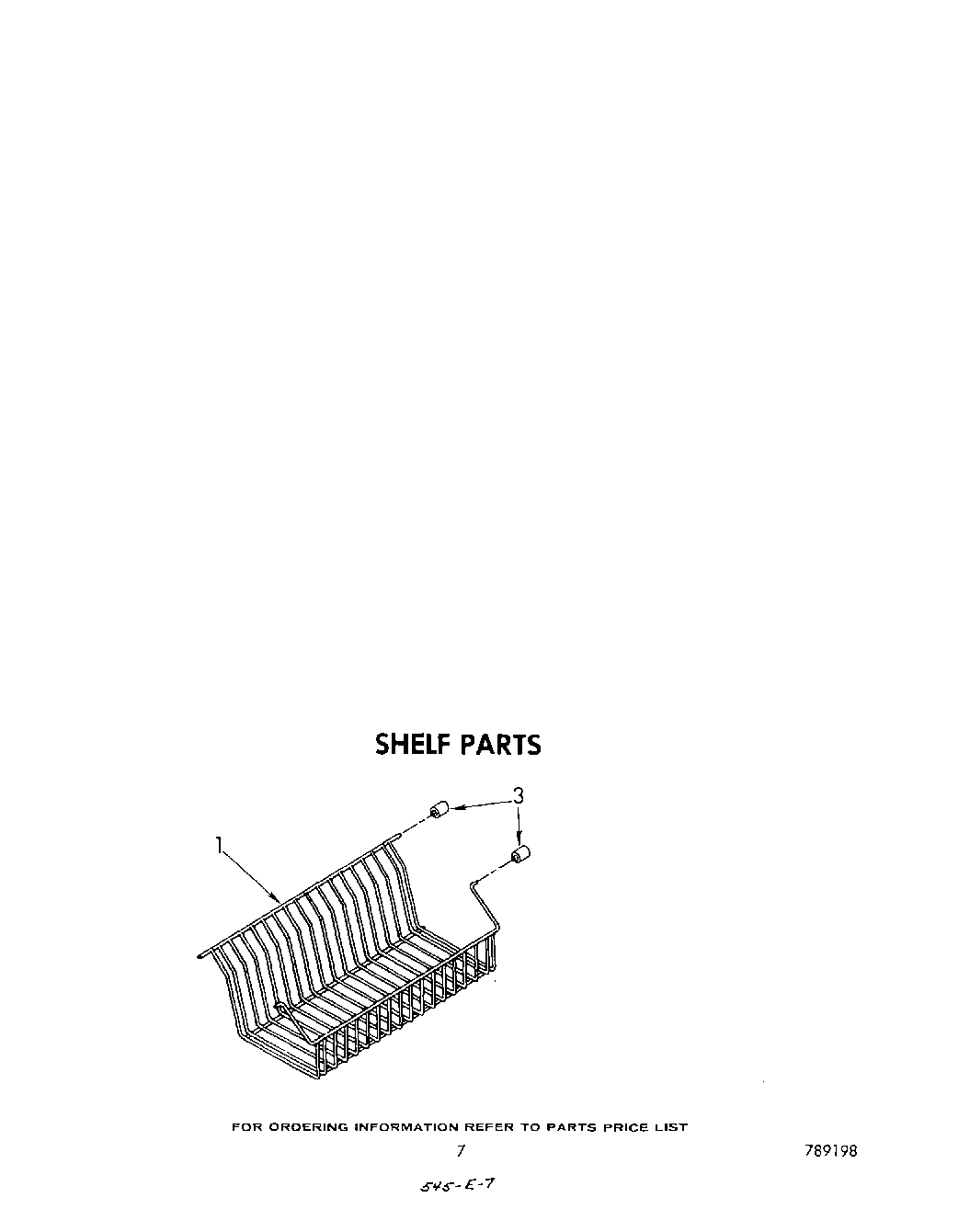

05 - SHELF
Common parts from model Whirlpool EV130CXRW0 VERTICAL FREEZER
1
Screw, 8 x 7/8 (2) WPL 487888 Contact Us For Availability
1
Cabinet Wiring Assembly WPL 941518 Contact Us For Availability
1
Trivet WPL 941734 Contact Us For Availability
2
Bumper (2) WPL 204349 Contact Us For Availability
2
Cord, Service WPL 850626 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 945491 Contact Us For Availability
3
Cabinet (Not A Serviceable Part) WPL ARI55706A9 Contact Us For Availability
3
Bumper (4) WPL 941879 Contact Us For Availability
4
Tube Clip (2) WPL 942739 Contact Us For Availability
4
Hole Plug (White) WPL 941416 Contact Us For Availability
5
Tube Clamp WPL 510716 Contact Us For Availability
7
dampener WPL 938368 Contact Us For Availability
7
Clamp WPL 939009 Contact Us For Availability
8
Cover, Connecting Lines ((1)) WPL 941384 Contact Us For Availability
8
Cover, Connecting Lines ((2)) WPL 941447 Contact Us For Availability
9
Cover, Terminal (Used W/Original Compressor) WPL 943496 Contact Us For Availability
9
Bushing, Strain Relief WPL 544108 Contact Us For Availability
10
Overload Spring (Used W/Original Compressor) WPL 943494 Contact Us For Availability
11
Overload (Used W/Original Compressor) WPL 945591 Contact Us For Availability
12
Strap, Cover (Used W/Original Compressor) WPL 943497 Contact Us For Availability
12
Screw (Repair) WPL 488949 Contact Us For Availability
13
Shim, Top Hinge WPL 836151 Contact Us For Availability
13
Shim WPL 836192 Contact Us For Availability
15
Escutcheon, Thermostat WPL 934927 Contact Us For Availability
15
Hinge & Shim (Top) WPL 842038 Contact Us For Availability
18
Header Clamp Plate (2) WPL 510614 Contact Us For Availability
19
Control Knob WPL 981853 Contact Us For Availability
19
Clip, Thermostat WPL 510754 Contact Us For Availability
19
Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability
20
Condenser Bracket (2) WPL 510721 Contact Us For Availability
20
Repair, 1/16 WPL 587576 Contact Us For Availability
22
Strap, Tube (3) WPL 851095 Contact Us For Availability
23
Screw, 8-32 x 7/16 (3) WPL 488054 Contact Us For Availability
24
Shim, Thermostat Plate WPL 987316 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Tube Entry Cover (Bottom) WPL 941776 Contact Us For Availability
27
Relay (Used W/Original Compressor) WPL 945590 Contact Us For Availability
27
Tap Plate WPL 935743 Contact Us For Availability
29
Shield, Liner WPL 940169 Contact Us For Availability
30
Clamp WPL 547637 Contact Us For Availability
30
Rail Cover, Tube Entry (White) WPL 935707 Contact Us For Availability
31
Plate, Unit Mounting WPL 942860 Contact Us For Availability
31
Screw WPL 488895 Contact Us For Availability
32
Evaporator Shelves (Shelf, 2nd) WPL 1100885 Contact Us For Availability
32
Evaporator Shelves (Shelf, 3rd) WPL 1100889 Contact Us For Availability
32
Evaporator Shelves (Shelf, Bottom) WPL 1100893 Contact Us For Availability
32
Evaporator Shelves (Shelf, Top) WPL 941823 Contact Us For Availability
32
Shim, Bottom Hinge WPL 935737 Contact Us For Availability
33
Butt, Hinge (Bottom R.H.) WPL 943668 Contact Us For Availability
34
Plate, Thermostat WPL 851289 Contact Us For Availability
35
Screw, 8-32 x 5/8 (2) WPL 488436 Contact Us For Availability
36
Heat Exchanger WPL 943334 Contact Us For Availability
38
Box, Junction WPL 937068 Contact Us For Availability
39
Trim, Shelf Front (3) WPL 941795 Contact Us For Availability
41
Rail, Unit Mounting WPL 945448 Contact Us For Availability
43
Relay (Used W/Service & Original Compress WPL 549500 Contact Us For Availability
44
WPL 936073 WPL 936073 Contact Us For Availability
45
WPL 549336 WPL 549336 Contact Us For Availability
46
WPL 549342 WPL 549342 Contact Us For Availability
47
WPL 549086 WPL 549086 Contact Us For Availability
51
WPL 978029 WPL 978029 Contact Us For Availability
51
WPL 482278 WPL 482278 Contact Us For Availability
51
WPL 941842 WPL 941842 Contact Us For Availability
51
WPL 978028 WPL 978028 Contact Us For Availability
× ![]()
