Model Whirlpool EV120FXKQ06 VERTICAL FREEZER – Common Parts & Diagrams

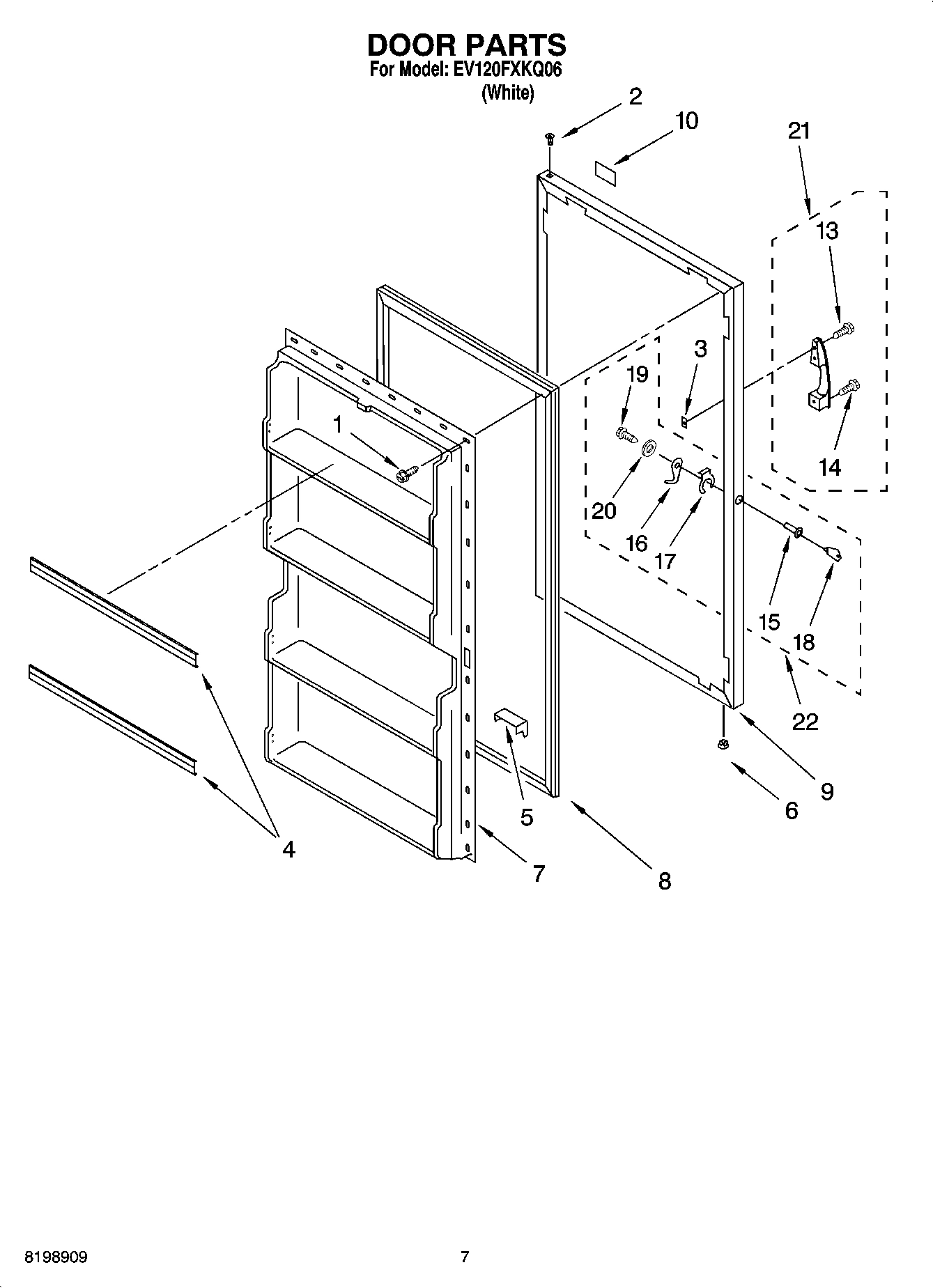

04 - DOOR PARTS

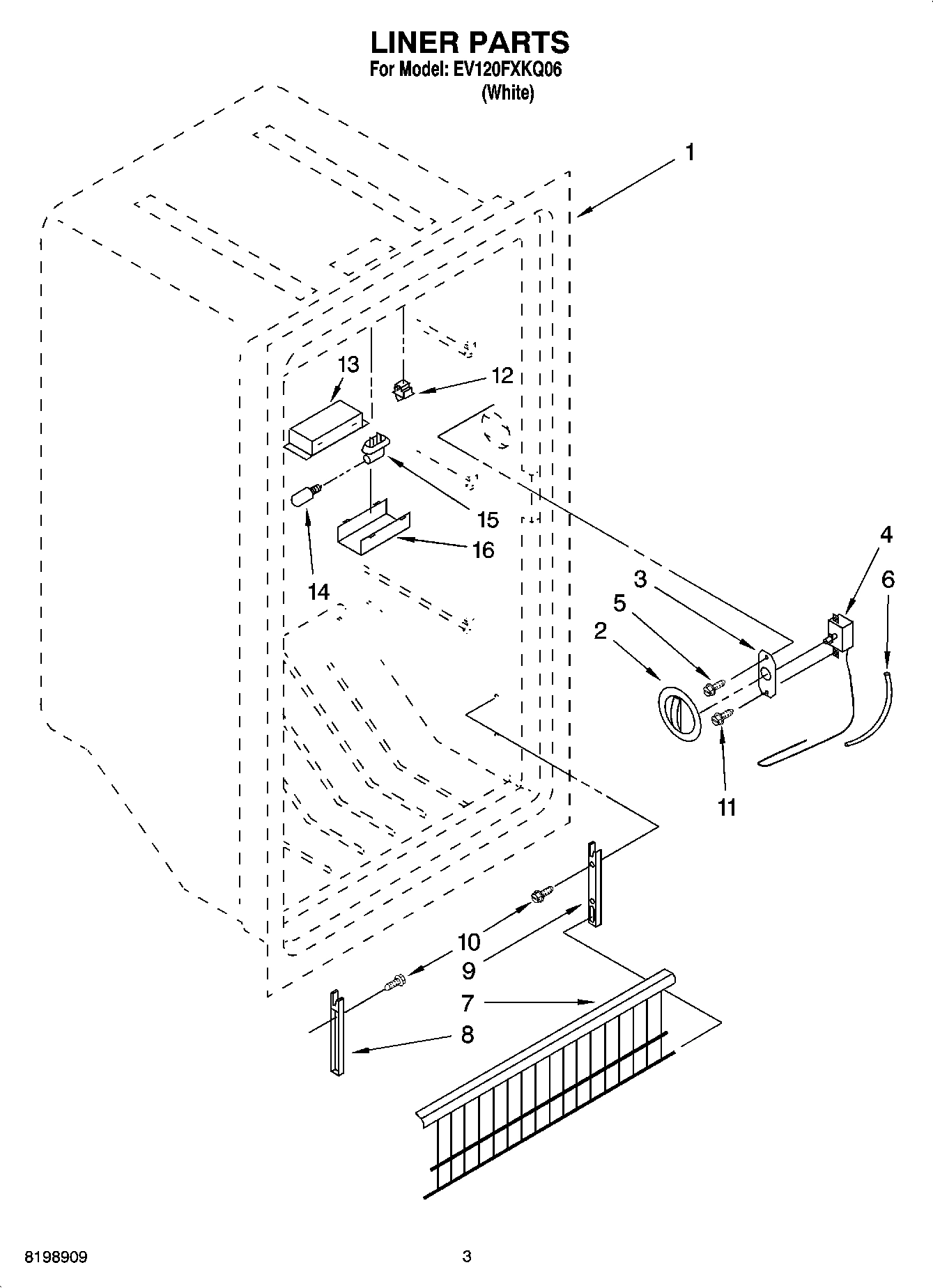

02 - LINER PARTS PARTS NOT ILLUSTRATED
01 - CABINET PARTS
03 - UNIT PARTS
Common parts from model Whirlpool EV120FXKQ06 VERTICAL FREEZER
1
Liner (Not A Serviceable Part) WPL ARI55644A7 Contact Us For Availability
1
Literature Parts (Energy Label) WPL LIT4390677 Contact Us For Availability
1
Literature Parts (Owners Manual) WPL LIT4390678 Contact Us For Availability
1
Compressor Mounting Pan WPL 4357056 Contact Us For Availability
2
Control Knob WPL 4390619 Contact Us For Availability
4
Thermostat WPL 4390620 Contact Us For Availability
4
Grille WPL 4357271 Contact Us For Availability
4
Washer WPL 4356847 Contact Us For Availability
5
Compressor Mounting Screw WPL 4356852 Contact Us For Availability
6
Compressor Grommet WPL 4356335 Contact Us For Availability
7
Gate WPL 4357179 Contact Us For Availability
8
Door Gasket WPL 4357136 Contact Us For Availability
8
Support, Fence, (L.H.) WPL 4356889 Contact Us For Availability
8
Relay WPL 4356730 Contact Us For Availability
9
Support, Fence, (R.H.) WPL 4356890 Contact Us For Availability
9
Shim, Bottom WPL 4356828 Contact Us For Availability
10
Screw WPL 4356891 Contact Us For Availability
10
Top, Hinge WPL 4357052 Contact Us For Availability
10
Evaporator Top WPL 4390886 Contact Us For Availability
11
Bottom, Hinge WPL 4357050 Contact Us For Availability
11
Evaporator Shelf WPL 4390887 Contact Us For Availability
12
Drain Plug WPL 4357019 Contact Us For Availability
12
Evaporator Shelf WPL 4390683 Contact Us For Availability
13
Bracket WPL 4390626 Contact Us For Availability
13
Evaporator Shelf WPL 4390888 Contact Us For Availability
14
Screw, 2`` WPL 4390511 Contact Us For Availability
14
Washer WPL 4357057 Contact Us For Availability
15
Light Socket WPL 4356874 Contact Us For Availability
15
Grommet, Drain WPL 4357269 Contact Us For Availability
16
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
16
Lock, Bolt WPL 4357224 Contact Us For Availability
16
Light Shield WPL 4357285 Contact Us For Availability
16
Enamel (Almond) (1 Qt. Uncut) WPL 798883 Contact Us For Availability
16
Parts Not Illustrated and Optional Parts (Not WPL ARI55645A2 Contact Us For Availability
16
Customer Touch-Up Material WPL ARI55646A2 Contact Us For Availability
16
REFINISHING MATERIAL WPL ARI55647A2 Contact Us For Availability
16
Miscellaneous WPL ARI55648A5 Contact Us For Availability
16
Power Cord WPL 4390693 Contact Us For Availability
16
Heat Exchanger WPL 4390921 Contact Us For Availability
17
Spring Clip WPL 4356842 Contact Us For Availability
17
Cabinet (Not A Serviceable Part) WPL ARI55643A9 Contact Us For Availability
17
Cover WPL 4390603 Contact Us For Availability
18
Clip WPL 4390604 Contact Us For Availability
20
Washer WPL 4356992 Contact Us For Availability
20
Clamp WPL 4356854 Contact Us For Availability
21
Handle Assembly (Includes Items 13 & 14) WPL 4390667 Contact Us For Availability
22
REFRIGERANT CHARGE 5.6 oz. (R-134A) WPL ARI55649A2 Contact Us For Availability
× ![]()
