Model Whirlpool EV120FXKQ05 VERTICAL FREEZER – Common Parts &amp; Diagrams

1

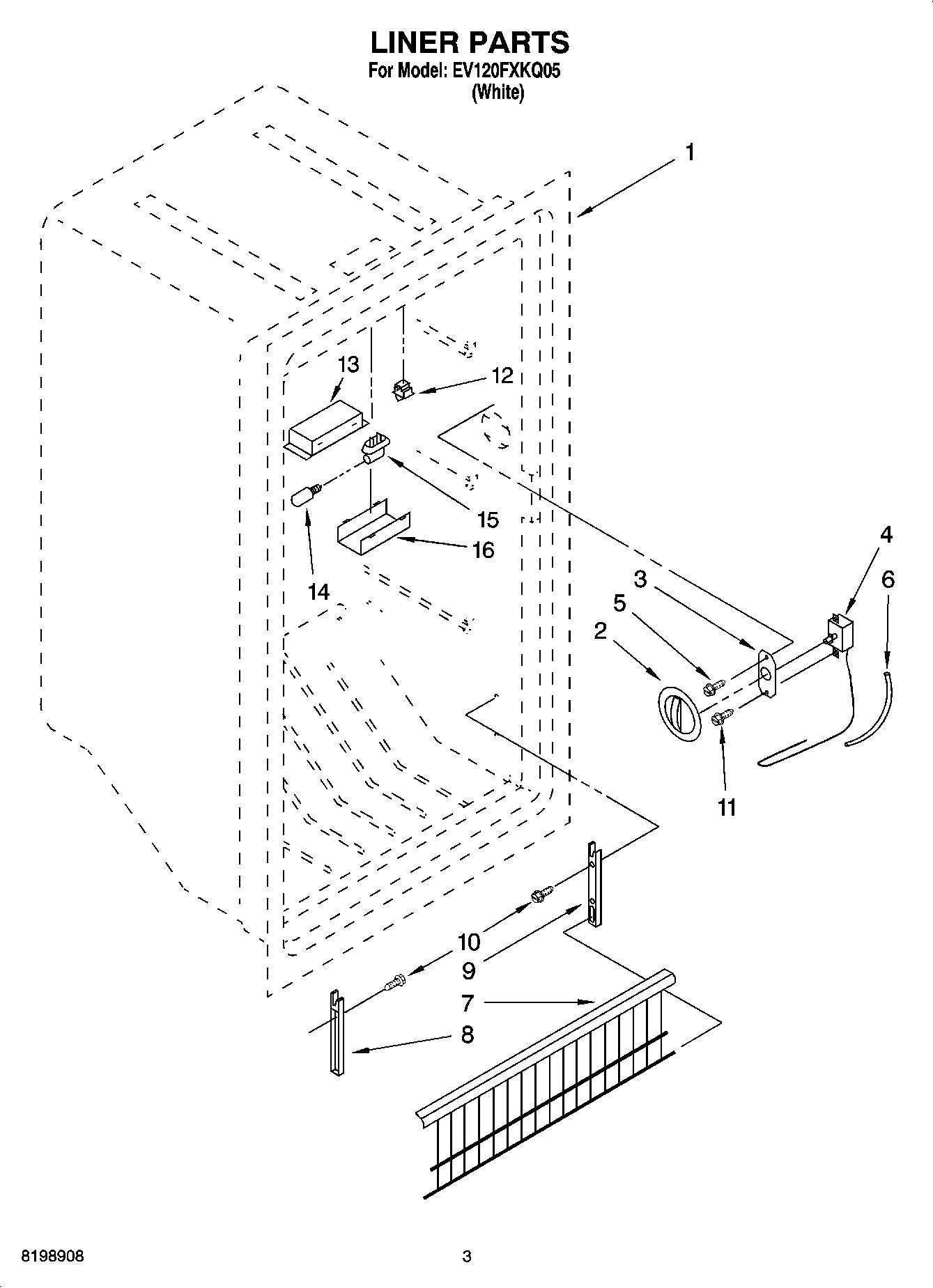

Liner (Not A Serviceable Part) WPL ARI55637A8 Contact Us For Availability

1

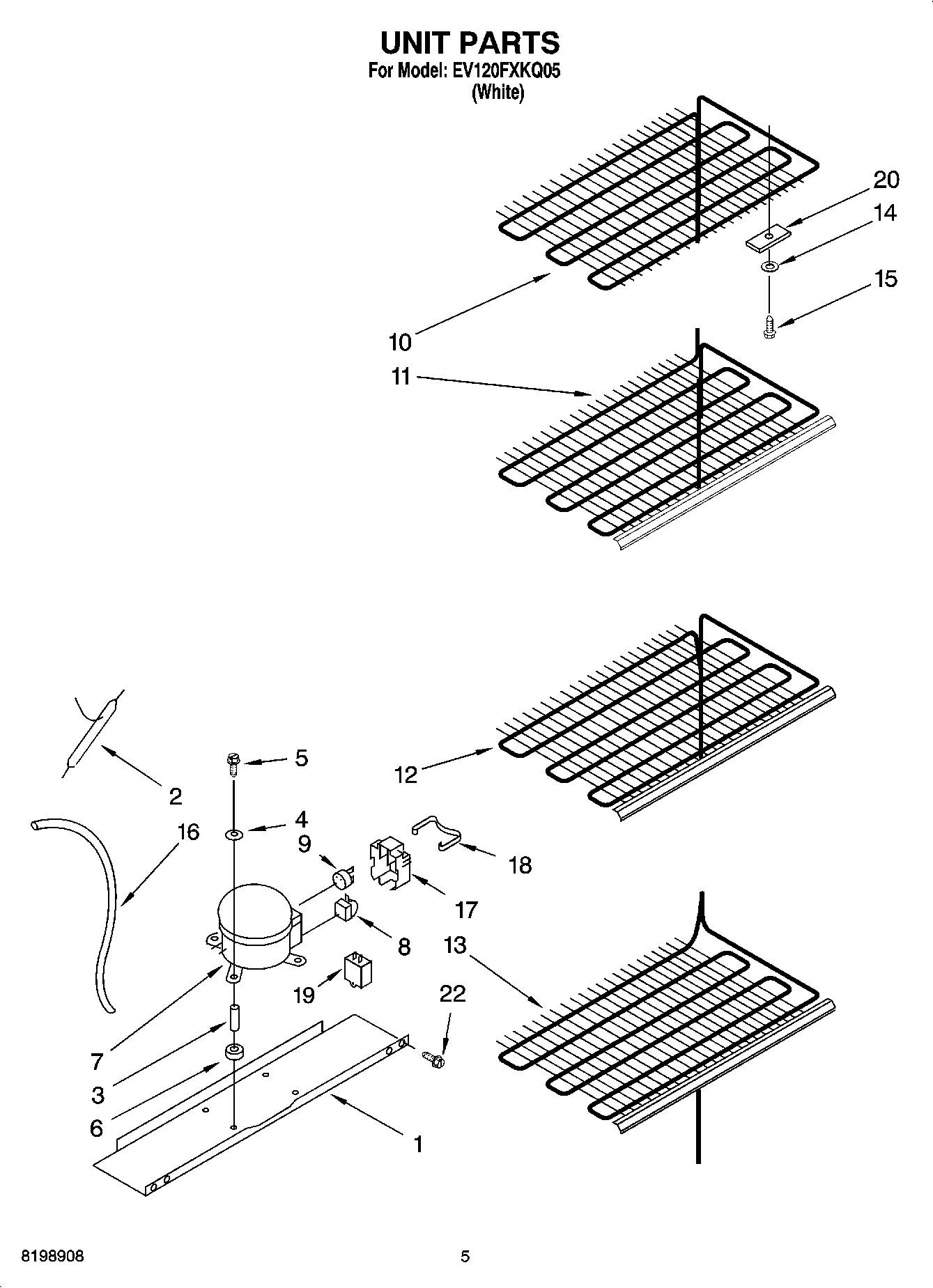

Compressor Mounting Pan WPL 4357056 Contact Us For Availability

2

4390731 Whirlpool Refrigerator Hinge Bushing Backorder WPL 4390731 $7.39

2

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

2

W10851331 Whirlpool Refrigerator Washer Backorder WPL W10851331 $4.26

2

Control Knob WPL 4390619 Contact Us For Availability

3

1-81154 Whirlpool Plate Backorder WPL 1-81154 $6.39

3

4356846 Whirlpool Refrigerator Sleeve Backorder WPL 4356846 $8.73

3

Clip, Handle WPL 4390918 Contact Us For Availability

4

Door Shelf Trim (4) WPL 4390606 Contact Us For Availability

4

Thermostat WPL 4390620 Contact Us For Availability

4

Washer WPL 4356847 Contact Us For Availability

5

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.91

5

Foam Block WPL 4356893 Contact Us For Availability

5

Compressor Mounting Screw WPL 4356852 Contact Us For Availability

6

3-24898-007 Whirlpool Refrigerator Vent Plug Backorder WPL 3-24898-007 $4.72

6

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

6

Compressor Grommet WPL 4356335 Contact Us For Availability

7

W10309989 Whirlpool Refrigerator Compressor In Stock WPL W10309989 $344.71

7

Interior Door WPL 4390694 Contact Us For Availability

7

Gate WPL 4357179 Contact Us For Availability

8

Door Gasket WPL 4357136 Contact Us For Availability

8

Support, Fence, (L.H.) WPL 4356889 Contact Us For Availability

8

Relay WPL 4356730 Contact Us For Availability

9

2183409 Whirlpool Refrigerator Overload Backorder WPL 2183409 $43.54

9

4-80576-202 Whirlpool Refrigerator Gate Suppo Backorder WPL 4-80576-202 $9.08

9

Exterior Door WPL 4390919 Contact Us For Availability

10

Nameplate WPL 4390670 Contact Us For Availability

10

Screw WPL 4356891 Contact Us For Availability

10

Evaporator Top WPL 4390886 Contact Us For Availability

11

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

11

Evaporator Shelf WPL 4390887 Contact Us For Availability

12

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

12

Drain Plug WPL 4357019 Contact Us For Availability

12

Evaporator Shelf WPL 4390683 Contact Us For Availability

13

W11117769 Whirlpool Refrigerator Leveler In Stock WPL W11117769 $6.97

13

Bracket WPL 4390626 Contact Us For Availability

13

Evaporator Shelf WPL 4390888 Contact Us For Availability

W10873798 Whirlpool Refrigerator Light Bulb Backorder WPL W10873798 $5.89

W10903204 Whirlpool Refrigerator Washer Backorder WPL W10903204 $4.03

WP8204624 Whirlpool Bolt Backorder WPL WP8204624 $8.82

Screw, 2`` WPL 4390511 Contact Us For Availability

4357145 Whirlpool Refrigerator Door Lock Backorder WPL 4357145 $15.85

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

Grommet, Drain WPL 4357269 Contact Us For Availability

Light Socket WPL 4356874 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Power Cord WPL 4390693 Contact Us For Availability

Lock, Bolt WPL 4357224 Contact Us For Availability

Light Shield WPL 4357285 Contact Us For Availability

Enamel (Almond) (1 Qt. Uncut) WPL 798883 Contact Us For Availability

Parts Not Illustrated and Optional Parts (Not WPL ARI55638A5 Contact Us For Availability

Customer Touch-Up Material WPL ARI55639A8 Contact Us For Availability

REFINISHING MATERIAL WPL ARI55640A9 Contact Us For Availability

Miscellaneous WPL ARI55641A8 Contact Us For Availability

Heat Exchanger WPL 4390922 Contact Us For Availability

17

Cabinet (Not A Serviceable Part) WPL ARI55636A8 Contact Us For Availability

17

Spring Clip WPL 4356842 Contact Us For Availability

17

Cover WPL 4390603 Contact Us For Availability

18

WP4356840 Whirlpool Refrigerator Door Key In Stock WPL WP4356840 $4.81

18

Clip WPL 4390604 Contact Us For Availability

19

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

19

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

20

1-80308-101 Whirlpool Refrigerator Bulb Clamp Backorder WPL 1-80308-101 $26.21

20

Washer WPL 4356992 Contact Us For Availability

21

Handle Assembly (Includes Items 13 & 14) WPL 4390667 Contact Us For Availability

22

WP3-24838-048 Whirlpool Refrigerator Screw Backorder WPL WP3-24838-048 $2.51

22

REFRIGERANT CHARGE 5.6 oz. (R-134A) WPL ARI55642A2 Contact Us For Availability
