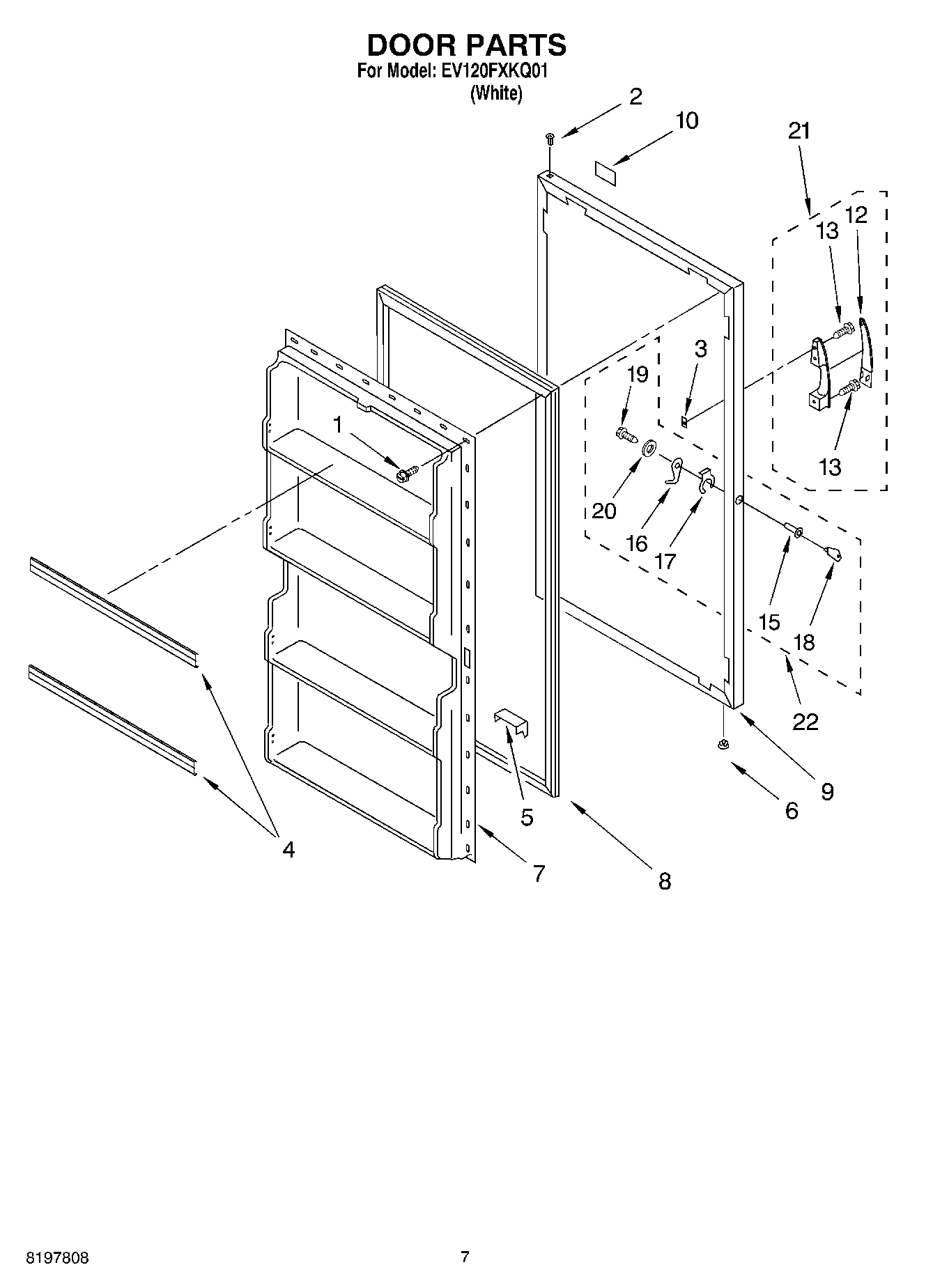

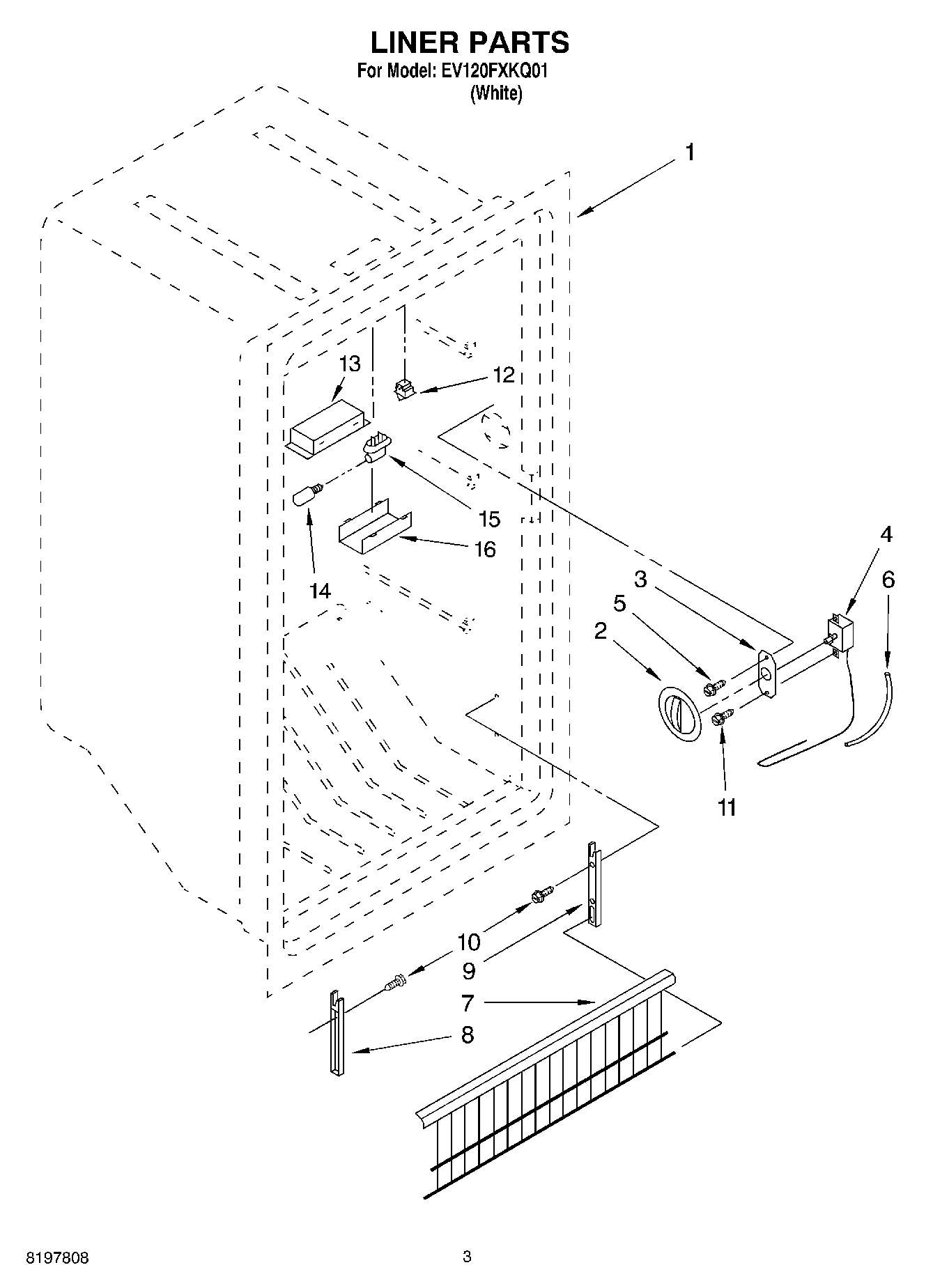

Model Whirlpool EV120FXKQ01 VERTICAL FREEZER – Common Parts &amp; Diagrams

1

Literature Parts (Energy Label) WPL LIT4390677 Contact Us For Availability

1

Literature Parts (Owners Manual) WPL LIT4390678 Contact Us For Availability

1

Compressor Mounting Pan WPL 4357056 Contact Us For Availability

2

4390731 Whirlpool Refrigerator Hinge Bushing Backorder WPL 4390731 $7.39

2

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

2

W10851331 Whirlpool Refrigerator Washer Backorder WPL W10851331 $4.26

3

1-80247-101 Whirlpool Refrigerator Clip Backorder WPL 1-80247-101 $4.63

3

4356846 Whirlpool Refrigerator Sleeve Backorder WPL 4356846 $8.73

3

Anchor, Screw WPL 4390680 Contact Us For Availability

4

Door Shelf Trim (4) WPL 4390606 Contact Us For Availability

4

Grille WPL 4357271 Contact Us For Availability

4

Washer WPL 4356847 Contact Us For Availability

5

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

5

Foam Block WPL 4356893 Contact Us For Availability

5

Compressor Mounting Screw WPL 4356852 Contact Us For Availability

6

3-24898-007 Whirlpool Refrigerator Vent Plug Backorder WPL 3-24898-007 $4.72

6

Compressor Grommet WPL 4356335 Contact Us For Availability

7

3-80838-003 Whirlpool Refrigerator Cover Backorder WPL 3-80838-003 $26.21

7

W10309989 Whirlpool Refrigerator Compressor In Stock WPL W10309989 $344.71

7

Interior Door WPL 4390605 Contact Us For Availability

8

Door Gasket WPL 4357136 Contact Us For Availability

8

Relay WPL 4356730 Contact Us For Availability

9

2183409 Whirlpool Refrigerator Overload Backorder WPL 2183409 $43.54

9

Exterior Door WPL 4390679 Contact Us For Availability

9

Shim, Bottom WPL 4356828 Contact Us For Availability

Screw WPL 4356891 Contact Us For Availability

Nameplate WPL 4390670 Contact Us For Availability

Top, Hinge WPL 4357052 Contact Us For Availability

Evaporator Top WPL 4390681 Contact Us For Availability

11

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

11

Bottom, Hinge WPL 4357050 Contact Us For Availability

11

Evaporator Shelf WPL 4390682 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

Insert, Handle WPL 4390668 Contact Us For Availability

Drain Plug WPL 4357019 Contact Us For Availability

Evaporator Shelf WPL 4390683 Contact Us For Availability

W11117769 Whirlpool Refrigerator Leveler In Stock WPL W11117769 $6.97

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

Bracket WPL 4390626 Contact Us For Availability

Evaporator Shelf WPL 4390684 Contact Us For Availability

14

W10873798 Whirlpool Refrigerator Light Bulb Backorder WPL W10873798 $5.89

14

W10903204 Whirlpool Refrigerator Washer Backorder WPL W10903204 $4.03

14

WP8204624 Whirlpool Bolt Backorder WPL WP8204624 $8.82

4357145 Whirlpool Refrigerator Door Lock Backorder WPL 4357145 $15.85

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

Socket, Lamp WPL 4356874 Contact Us For Availability

Grommet, Drain WPL 4357269 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Shield, Light WPL 4357285 Contact Us For Availability

Enamel (Almond) (1 Qt. Uncut) WPL 798883 Contact Us For Availability

Lock, Bolt WPL 4357224 Contact Us For Availability

Power Cord WPL 4390693 Contact Us For Availability

Heat Exchanger WPL 4356999 Contact Us For Availability

17

Spring Clip WPL 4356842 Contact Us For Availability

17

Cover WPL 4390603 Contact Us For Availability

18

WP4356840 Whirlpool Refrigerator Door Key In Stock WPL WP4356840 $4.81

18

Clip WPL 4390604 Contact Us For Availability

19

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

20

1-80308-101 Whirlpool Refrigerator Bulb Clamp Backorder WPL 1-80308-101 $26.21

20

Washer WPL 4356992 Contact Us For Availability

21

Handle Assembly (Includes Items 12 & 13) WPL 4390667 Contact Us For Availability

22

WP3-24838-048 Whirlpool Refrigerator Screw Backorder WPL WP3-24838-048 $2.51
