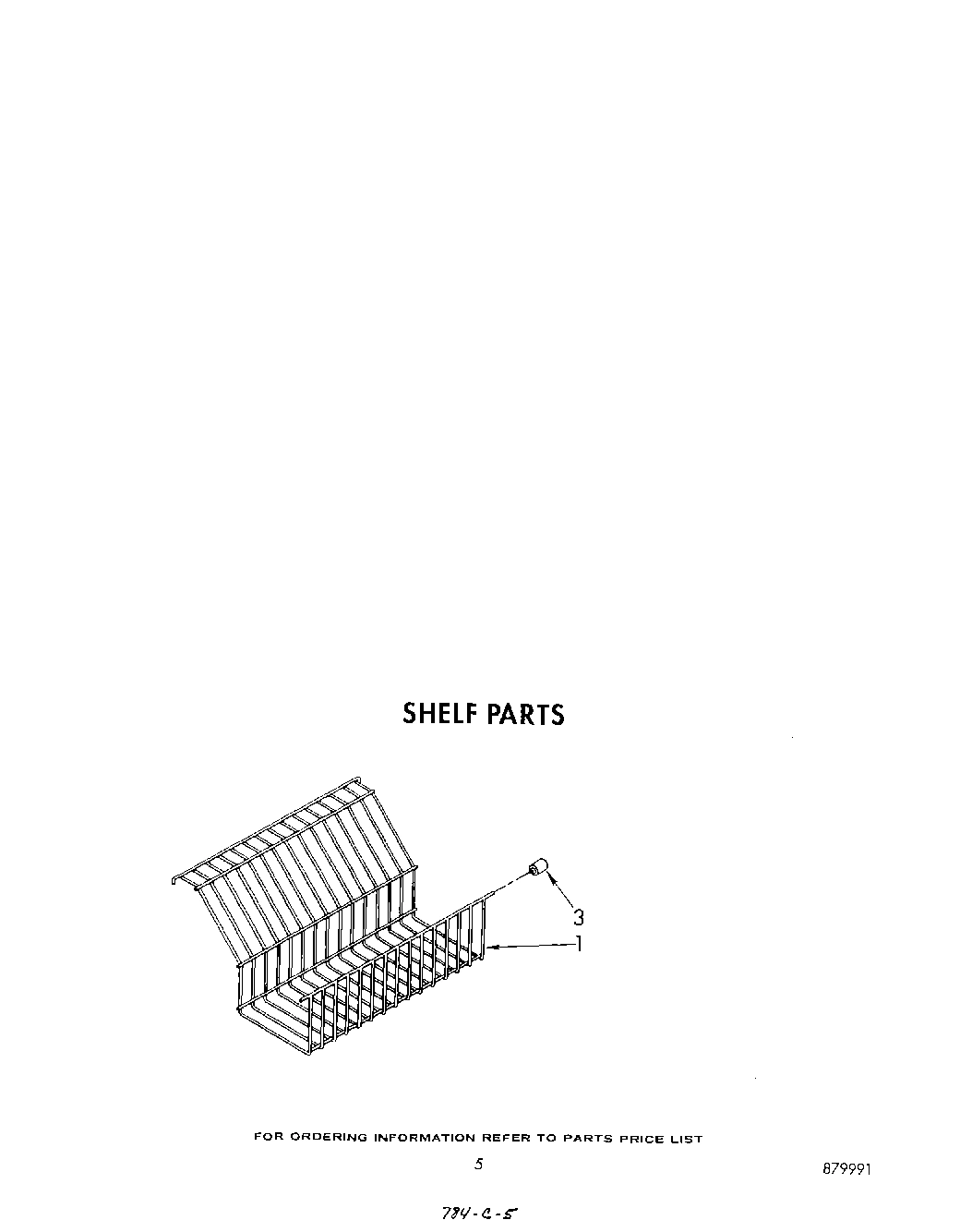

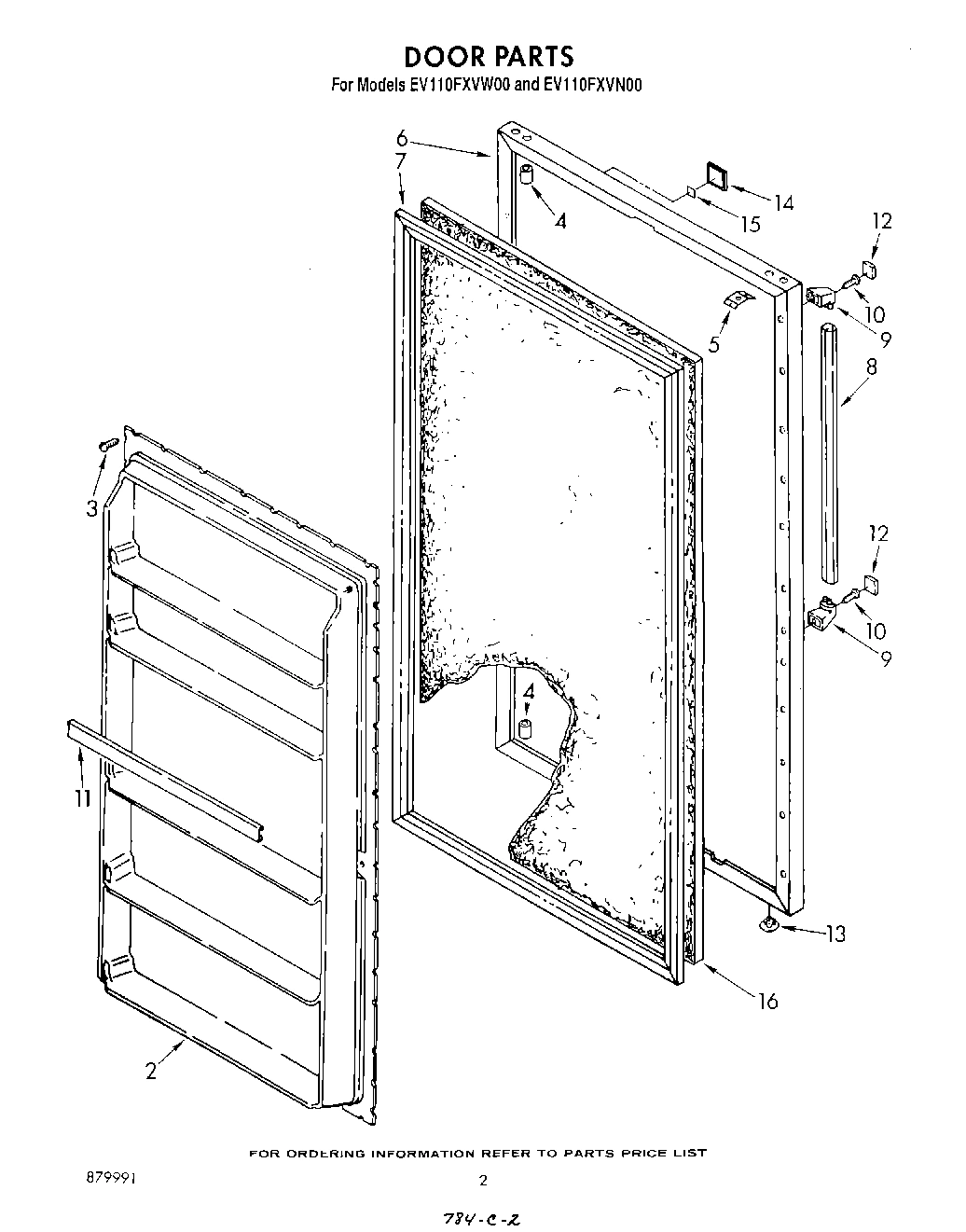

Model Whirlpool EV110FXVN00 VERTICAL FREEZER – Common Parts &amp; Diagrams

1

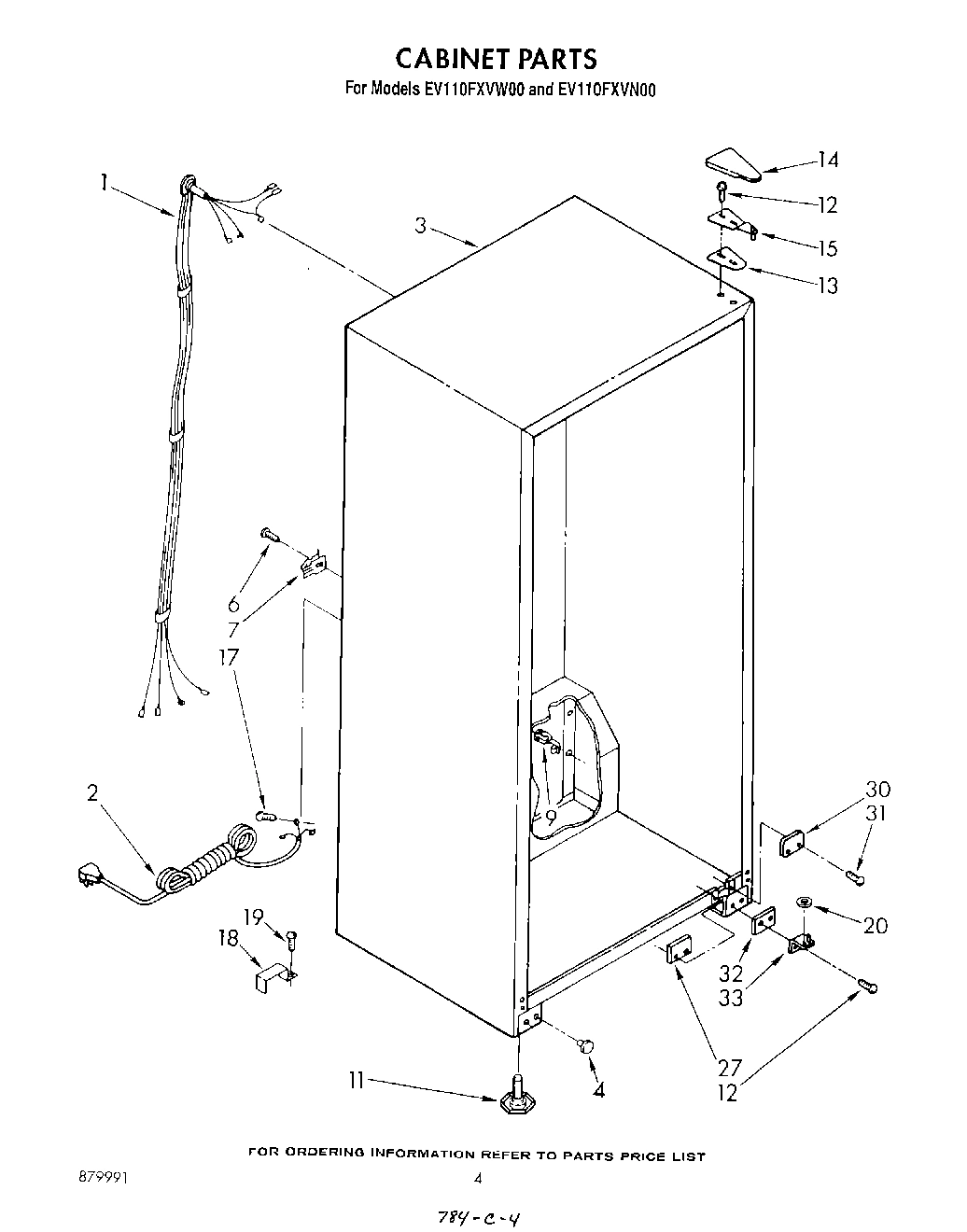

Cabinet Wiring WPL 941518 Contact Us For Availability

1

Screw, 8 x 7/8 (2) WPL 487888 Contact Us For Availability

1

Trivet WPL 1104118 Contact Us For Availability

1

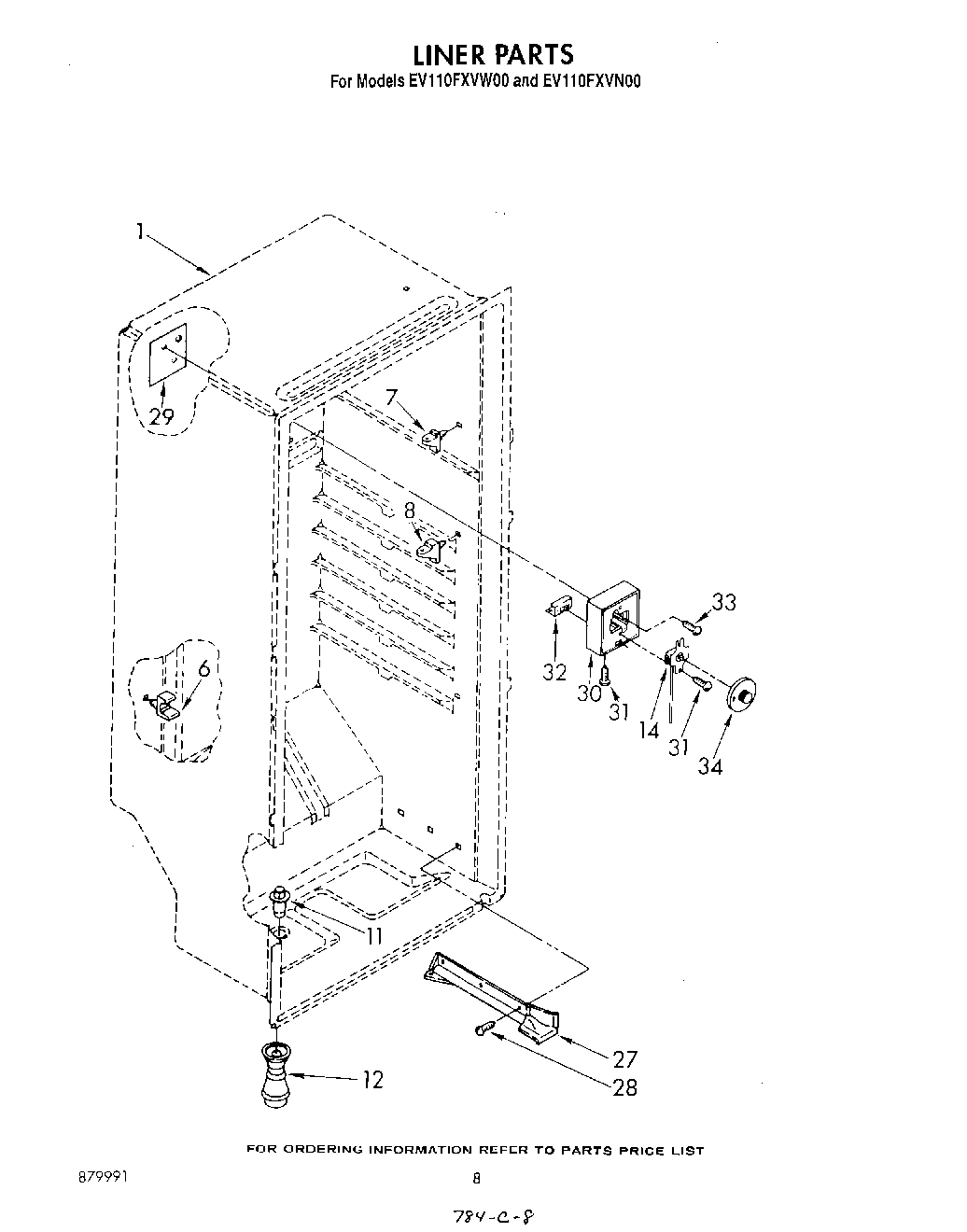

Liner (Not A Serviceable Part) WPL ARI55596A4 Contact Us For Availability

2

Cord, Service WPL 850626 Contact Us For Availability

2

Bumper (2) WPL 204349 Contact Us For Availability

3

Cabinet (Not A Serviceable Part) WPL ARI55595A5 Contact Us For Availability

3

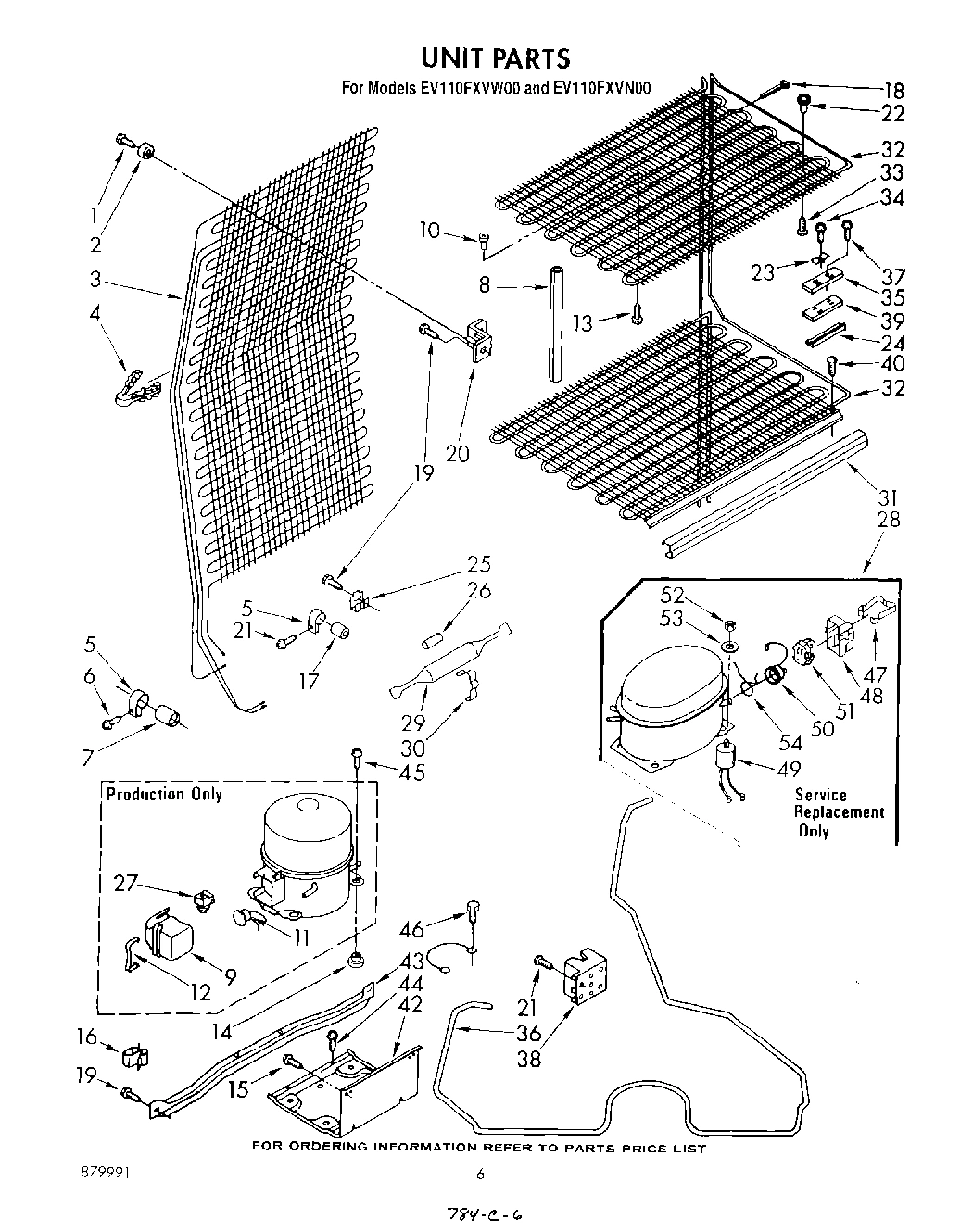

Condenser & Precooler Assembly WPL 1105576 Contact Us For Availability

3

Bumper (2) WPL 1114831 Contact Us For Availability

4

Hole Plug (White) WPL 941416 Contact Us For Availability

4

Hole Plug (Almond) WPL 941417 Contact Us For Availability

4

Tube Clip (2) WPL 942739 Contact Us For Availability

5

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

5

Tube Clamp WPL 510716 Contact Us For Availability

6

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

6

Stud, Shelf (6) WPL 940144 Contact Us For Availability

7

Clamp WPL 939009 Contact Us For Availability

7

Dampener WPL 1108064 Contact Us For Availability

7

Stud, Shelf (2) WPL 940143 Contact Us For Availability

8

Cover, Connecting Lines (11.5 Inches) WPL 941384 Contact Us For Availability

8

Cover, Connecting Lines (9.25 Inches) WPL 941385 Contact Us For Availability

8

Cover, Connecting Lines (10.0 Inches) WPL 941447 Contact Us For Availability

8

Stud, Shelf (4) WPL 940142 Contact Us For Availability

9

Bushing, Strain Relief WPL 544108 Contact Us For Availability

9

Cover, Terminal WPL 1108115 Contact Us For Availability

10

Spacer WPL 1103816 Contact Us For Availability

W11117769 Whirlpool Refrigerator Leveler In Stock WPL W11117769 $6.97

Trim, Door Shelf (Top (1)) WPL 1114846 Contact Us For Availability

Trim, Door Shelf (Bottom (3)) WPL 1114847 Contact Us For Availability

repair WPL 946209 Contact Us For Availability

Overload WPL 941605 Contact Us For Availability

Drain, Ferrule Cap WPL 934607 Contact Us For Availability

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Cover (2) WPL 1110070 Contact Us For Availability

Screw (Repair) WPL 488949 Contact Us For Availability

Fitting, Drain WPL 942768 Contact Us For Availability

Hole Plug (White) WPL 534927 Contact Us For Availability

Hole Plug (Almond) WPL 989197 Contact Us For Availability

Shim, Top Hinge WPL 1100509 Contact Us For Availability

Screw WPL 488748 Contact Us For Availability

14

4389248 Whirlpool Refrigerator Thermostat Backorder WPL 4389248 $119.90

14

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

14

Nameplate WPL 942669 Contact Us For Availability

15

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

15

Tape Strip WPL 991259 Contact Us For Availability

15

Shim, Hinge Top WPL 1100513 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.93

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $4.08

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Transformer, Stepdown (230-115 Volt) WPL 515393 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability

17

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

17

Dampener WPL 945593 Contact Us For Availability

18

Clip, Plug WPL 653035 Contact Us For Availability

18

Strap (2) WPL 851095 Contact Us For Availability

19

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

19

Screw, 6-32 x 1/2 WPL 486899 Contact Us For Availability

20

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

20

Condenser Bracket (2) WPL 1105574 Contact Us For Availability

21

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

22

Spacer (3) WPL 941842 Contact Us For Availability

23

Header Clamp Plate (2) WPL 510614 Contact Us For Availability

24

Clip, Thermostat WPL 510754 Contact Us For Availability

25

4386951 Whirlpool Refrigerator Clip In Stock WPL 4386951 $3.51

26

Restrictor Sleeve WPL 510446 Contact Us For Availability

27

Tap Plate WPL 935743 Contact Us For Availability

27

Relay WPL 938385 Contact Us For Availability

27

Tube Entry Cover (Bottom) WPL 941776 Contact Us For Availability

28

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

28

Compressor (Includes Items 47, 48, 49, 50, 51 WPL 482980 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

29

Shield, Liner WPL 940169 Contact Us For Availability

Rail Cover, Tube Entry (White) WPL 935707 Contact Us For Availability

Rail Cover, Tube Entry (Almond) WPL 935711 Contact Us For Availability

Clamp WPL 547637 Contact Us For Availability

Escutcheon, Thermostat WPL 934927 Contact Us For Availability

31

Screw WPL 488895 Contact Us For Availability

31

Trim, Shelf (3) WPL 1114848 Contact Us For Availability

Shim, Bottom Hinge WPL 935737 Contact Us For Availability

Evaporator (Shelf, Top) WPL 1105581 Contact Us For Availability

Evaporator (Shelf, 2nd & 3rd) WPL 1105584 Contact Us For Availability

Evaporator (Shelf, Bottom) WPL 1105587 Contact Us For Availability

Bracket & Switch Assembly WPL 981990 Contact Us For Availability

33

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

33

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

33

Butt, Hinge (Bottom) WPL 944776 Contact Us For Availability

34

Screw, 8-32 x 7/16 WPL 488054 Contact Us For Availability

34

Knob, Thermostat WPL 981853 Contact Us For Availability

35

Shim, Thermostat Plate WPL 1105573 Contact Us For Availability

36

Heat Exchanger WPL 1105590 Contact Us For Availability

37

Screw, 8-32 x 5/8 WPL 488436 Contact Us For Availability

38

Box, Junction WPL 937068 Contact Us For Availability

39

Plate, Thermostat WPL 1105572 Contact Us For Availability

40

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

40

Screw (Repair) WPL 489036 Contact Us For Availability

42

Plate, Unit Mounting WPL 942860 Contact Us For Availability

43

Rail, Unit Mounting WPL 945449 Contact Us For Availability

44

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

46

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

47

Strap WPL 938384 Contact Us For Availability

48

Cover, Terminal WPL 1105015 Contact Us For Availability

49

Capacitor WPL 482996 Contact Us For Availability

50

Overload WPL 483036 Contact Us For Availability

51

WP2262181 Whirlpool Refrigerator Start Relay Backorder WPL WP2262181 $53.03

52

Nut WPL 489142 Contact Us For Availability

53

Washer WPL 489143 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

WPL 978029 WPL 978029 Contact Us For Availability

Overload Spring WPL 1114190 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability
