Model Whirlpool EV110CXRW0 VERTICAL FREEZER – Common Parts & Diagrams

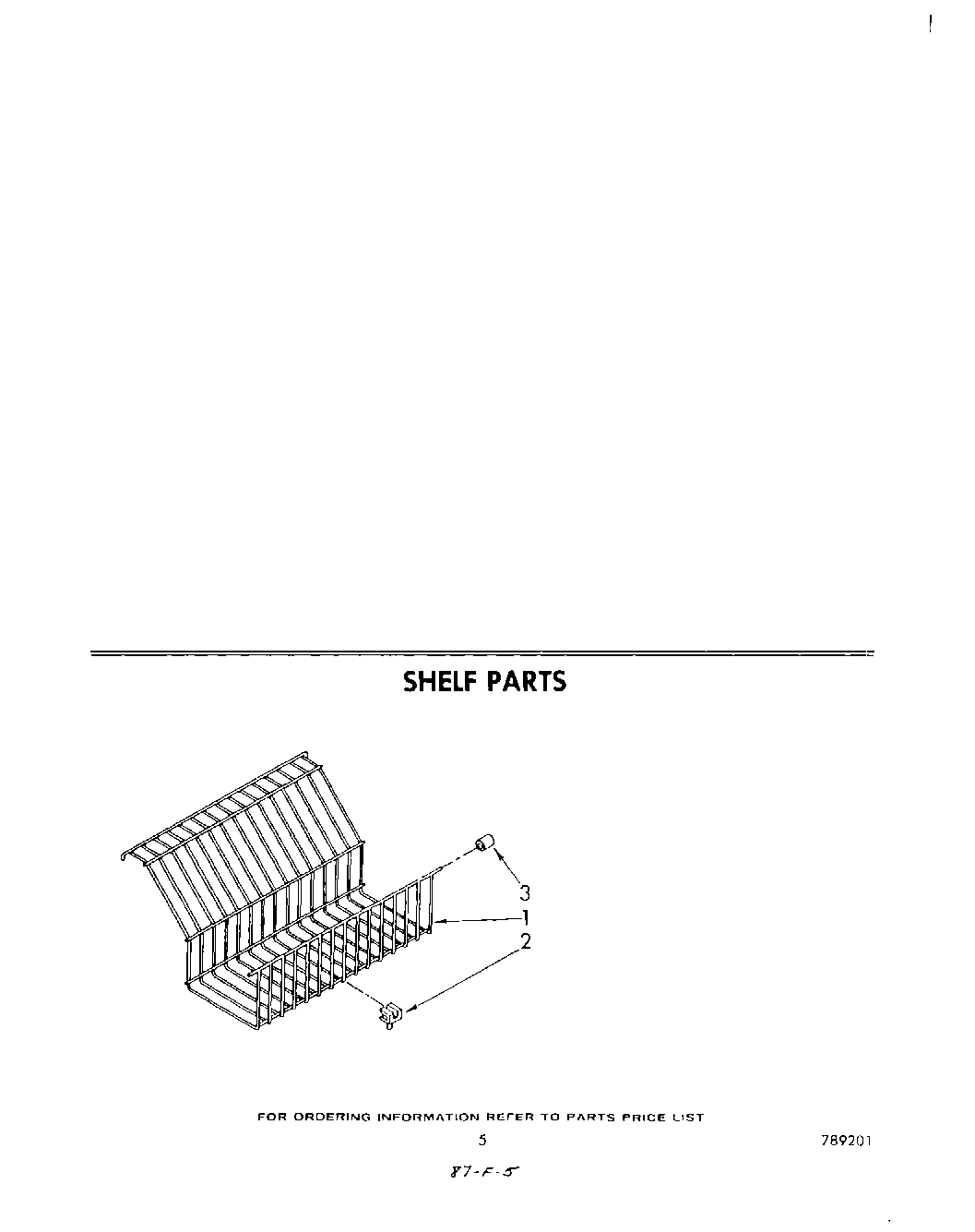

04 - SHELF

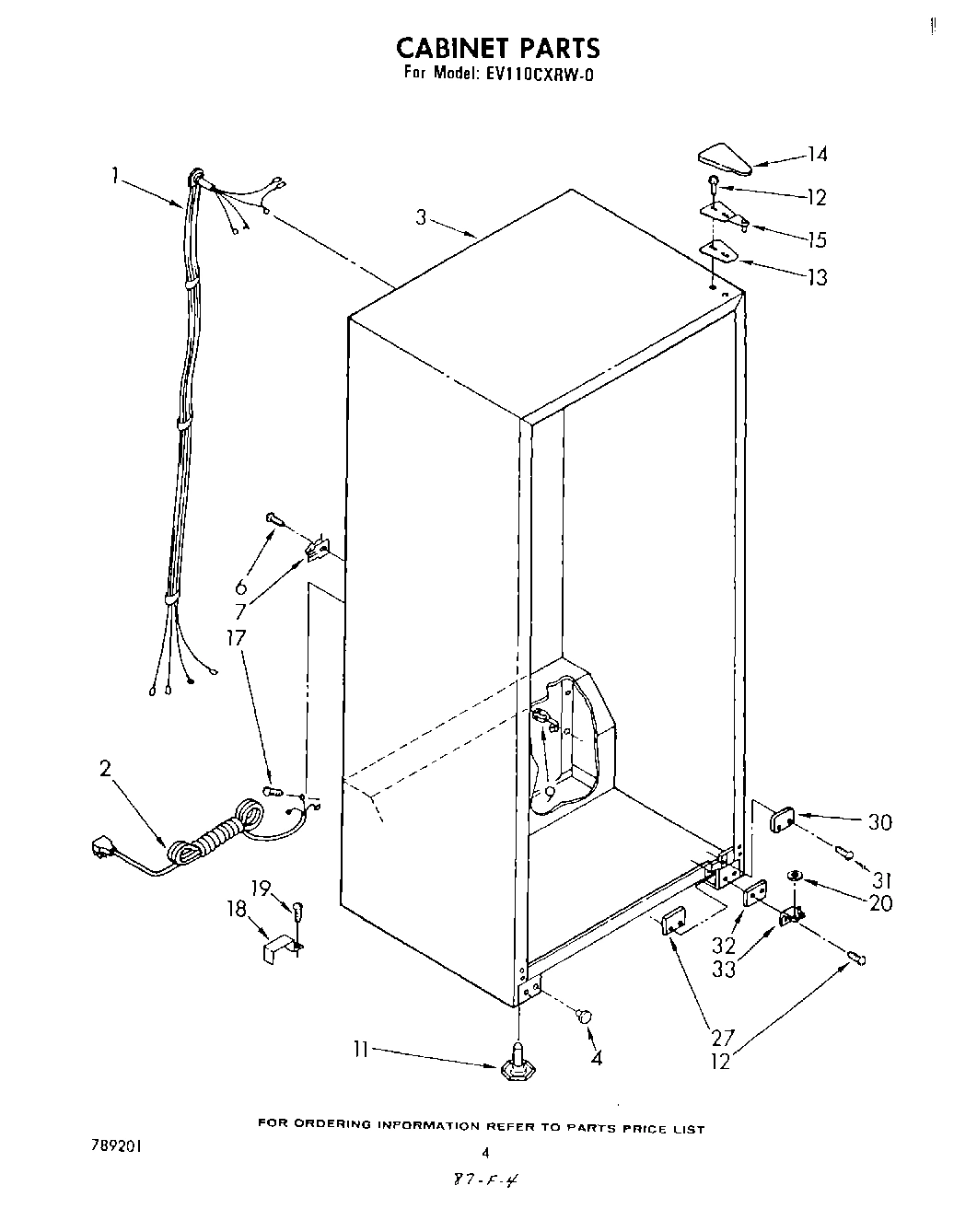

03 - CABINET
05 - UNIT
06 - LINER
Common parts from model Whirlpool EV110CXRW0 VERTICAL FREEZER
1
Screw, 8 x 7/8 (2) WPL 487888 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI55588A8 Contact Us For Availability
2
Bumper (2) WPL 204349 Contact Us For Availability
2
Grommet (2) WPL 533881 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 1103869 Contact Us For Availability
3
Stud, Center WPL 1105350 Contact Us For Availability
4
Tube Clip (2) WPL 942739 Contact Us For Availability
5
Tube Clamp WPL 510716 Contact Us For Availability
6
Stud, Shelf (6) WPL 940144 Contact Us For Availability
7
Clamp WPL 939009 Contact Us For Availability
7
dampener WPL 938368 Contact Us For Availability
7
Stud, Shelf (2) WPL 940143 Contact Us For Availability
8
Cover, Connecting Lines (11.5 Inches) WPL 941384 Contact Us For Availability
8
Cover, Connecting Lines (10 Inches (2)) WPL 941447 Contact Us For Availability
8
Stud, Shelf (4) WPL 940142 Contact Us For Availability
9
Bushing, Strain Relief WPL 544108 Contact Us For Availability
9
Cover, Terminal (Used W/Original Compressor) WPL 943321 Contact Us For Availability
11
repair WPL 946209 Contact Us For Availability
11
Overload (Used W/Original Compressor) WPL 1100921 Contact Us For Availability
11
Drain, Ferrule Cap WPL 934607 Contact Us For Availability
12
Screw (Repair) WPL 488949 Contact Us For Availability
12
Strap, Cover (Used W/Original Compressor) WPL 943322 Contact Us For Availability
12
Fitting, Drain WPL 942768 Contact Us For Availability
13
Shim, Top Hinge WPL 1100509 Contact Us For Availability
13
Spring, Overload (Used W/Original Compressor) WPL 943320 Contact Us For Availability
15
Shim, Hinge Top WPL 1100513 Contact Us For Availability
17
Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability
17
Dampener WPL 945593 Contact Us For Availability
18
Clip, Plug WPL 653035 Contact Us For Availability
18
Strap (2) WPL 851095 Contact Us For Availability
19
Screw, 6-32 x 1/2 WPL 486899 Contact Us For Availability
20
Condenser Bracket (2) WPL 510721 Contact Us For Availability
22
Spacer (3) WPL 941842 Contact Us For Availability
23
Header Clamp Plate (2) WPL 510614 Contact Us For Availability
24
Clip, Thermostat WPL 510754 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Tap Plate WPL 935743 Contact Us For Availability
27
Relay (Used W/Original Compressor) WPL 943317 Contact Us For Availability
27
Tube Entry Cover (Bottom) WPL 941776 Contact Us For Availability
28
Compressor WPL 482736 Contact Us For Availability
29
Shield, Liner WPL 940169 Contact Us For Availability
30
Rail Cover, Tube Entry (White) WPL 935707 Contact Us For Availability
30
Clamp WPL 547637 Contact Us For Availability
30
Escutcheon, Thermostat WPL 934927 Contact Us For Availability
31
Screw WPL 488895 Contact Us For Availability
32
Shim, Bottom Hinge WPL 935737 Contact Us For Availability
32
Evaporator (Shelf, Top) WPL 1100744 Contact Us For Availability
32
Evaporator (Shelf, 2nd) WPL 1100747 Contact Us For Availability
32
Evaporator (Shelf, 3rd) WPL 1100751 Contact Us For Availability
32
Evaporator (Shelf, Bottom) WPL 1100754 Contact Us For Availability
32
Bracket & Switch Assembly WPL 981990 Contact Us For Availability
33
Butt, Hinge (Bottom) WPL 944776 Contact Us For Availability
34
Screw, 8-32 x 7/16 WPL 488054 Contact Us For Availability
34
Knob, Thermostat WPL 981853 Contact Us For Availability
35
Shim, Thermostat Plate WPL 987316 Contact Us For Availability
36
Heat Exchanger WPL 1100757 Contact Us For Availability
37
Screw, 8-32 x 5/8 WPL 488436 Contact Us For Availability
38
Box, Junction WPL 937068 Contact Us For Availability
39
Plate, Thermostat WPL 851289 Contact Us For Availability
40
Screw (Repair) WPL 489036 Contact Us For Availability
42
Plate, Unit Mounting WPL 942860 Contact Us For Availability
43
Rail, Unit Mounting WPL 945449 Contact Us For Availability
44
repair WPL 487883 Contact Us For Availability
47
Strap (Used W/Service Compressor) WPL 549342 Contact Us For Availability
48
WPL 549336 WPL 549336 Contact Us For Availability
49
WPL 549086 WPL 549086 Contact Us For Availability
50
WPL 941778 WPL 941778 Contact Us For Availability
51
WPL 978029 WPL 978029 Contact Us For Availability
51
WPL 978028 WPL 978028 Contact Us For Availability
51
WPL 989646 WPL 989646 Contact Us For Availability
× ![]()
