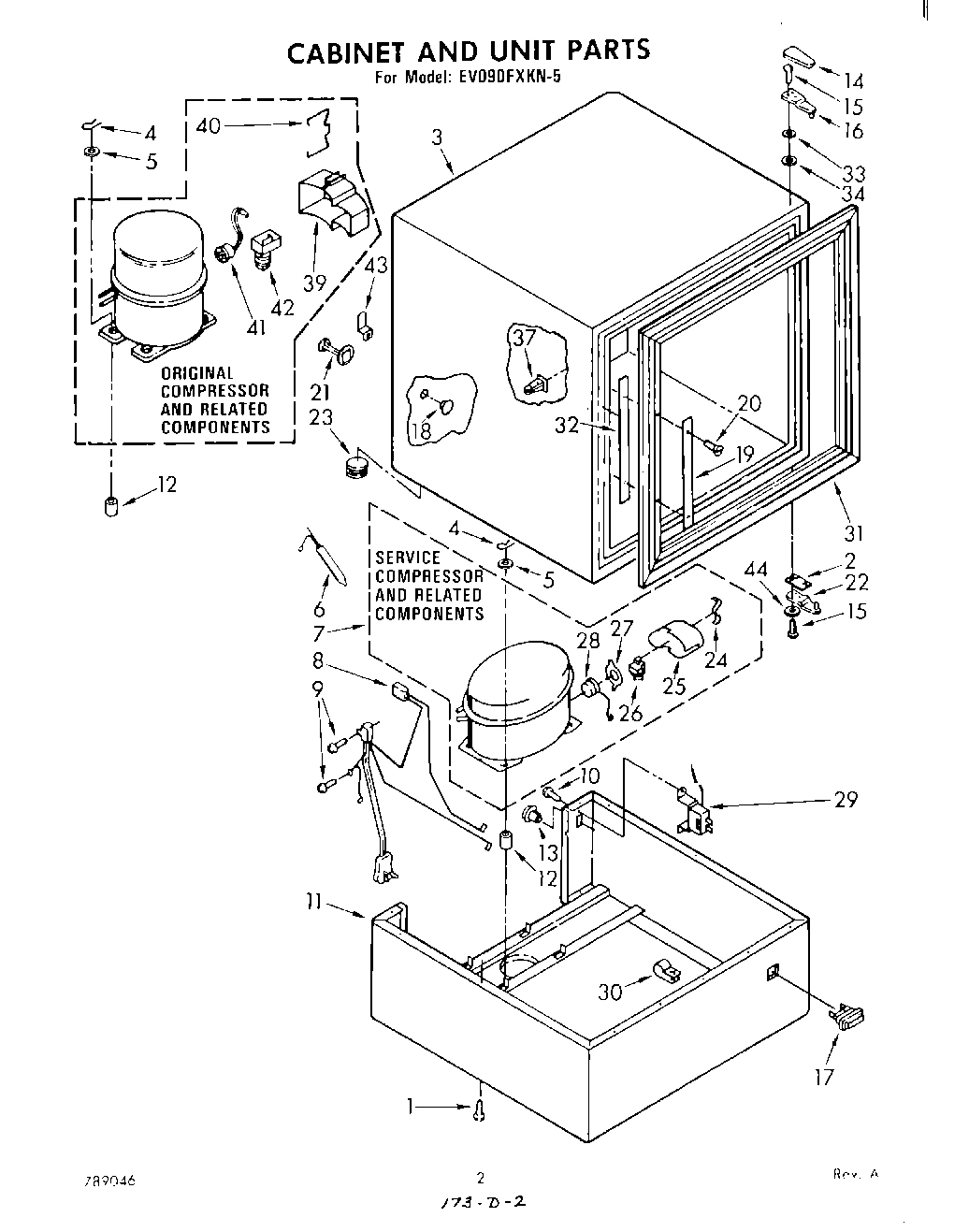

Model Whirlpool EV090FXKN5 VERTICAL FREEZER – Common Parts & Diagrams
02 - SECTION
01 - SECTION
03 - SECTION
Common parts from model Whirlpool EV090FXKN5 VERTICAL FREEZER
2
Trim, Door Shelf (3) WPL 942482 Contact Us For Availability
3
Retainer, Door Trim (6) WPL 985671 Contact Us For Availability
4
Screw WPL 681216 Contact Us For Availability
5
Cover, Magnet WPL 942481 Contact Us For Availability
6
Retainer, Magnet (2) WPL 509188 Contact Us For Availability
7
Magnet (2) WPL 727440 Contact Us For Availability
9
Screw, 8-32 x 5/8 WPL 595325 Contact Us For Availability
9
Grommet, Screw (3) WPL 842339 Contact Us For Availability
10
Screw WPL 595022 Contact Us For Availability
10
Handle, Door WPL 934508 Contact Us For Availability
11
Base, Cabinet WPL 727260 Contact Us For Availability
13
Knob, Control WPL 727020 Contact Us For Availability
14
Cover, Hinge WPL 989891 Contact Us For Availability
14
Gasket, Handle WPL 727809 Contact Us For Availability
15
Screw WPL 681452 Contact Us For Availability
15
Brace WPL 727442 Contact Us For Availability
16
Hinge, Top WPL 844575 Contact Us For Availability
17
Light, Indicator WPL 556230 Contact Us For Availability
17
Shelf, Wire (2) WPL 727508 Contact Us For Availability
18
Hole, Plug (4) WPL 534927 Contact Us For Availability
19
Strike, Door WPL 589293 Contact Us For Availability
21
Spacer (2) WPL 594613 Contact Us For Availability
21
Retainer, Gasket Top & Bottom (2) WPL 727474 Contact Us For Availability
22
Hinge, Bottom WPL 589409 Contact Us For Availability
22
Panel, Interior Door WPL 727958 Contact Us For Availability
23
Grommet WPL 596745 Contact Us For Availability
23
Retainer, Gasket Side (2) WPL 727475 Contact Us For Availability
24
Strap, Terminal Cover (W/Service Compressor) WPL 549342 Contact Us For Availability
24
Bearing, Hinge (2) WPL 652804 Contact Us For Availability
25
Cover, Terminal (W/Service Compressor) WPL 549336 Contact Us For Availability
25
Panel, Exterior Door WPL 727954 Contact Us For Availability
26
Relay, Starting (W/Service Compressor) WPL 989646 Contact Us For Availability
26
Tape Strip WPL 991259 Contact Us For Availability
27
Spring, Overload (W/Service Compressor) WPL 549086 Contact Us For Availability
27
Escutcheon, Nameplate WPL 849310 Contact Us For Availability
28
Overload (W/Service Compressor) WPL 941778 Contact Us For Availability
28
Insert, Nameplate WPL 941746 Contact Us For Availability
29
Control, Temperature WPL 589929 Contact Us For Availability
29
Control (Used W/727959 Wire Harness) WPL 727961 Contact Us For Availability
30
Clamp, Wire WPL 596171 Contact Us For Availability
31
Collar WPL 727345 Contact Us For Availability
32
Plate, Strike WPL 727183 Contact Us For Availability
33
Lockwasher, 1/4 (3) WPL 668347 Contact Us For Availability
33
Stud, Shelf Back (R.S.) (4) WPL 596690 Contact Us For Availability
33
Stud, Shelf Back (L.S.) (4) WPL 596691 Contact Us For Availability
34
Stud, Shelf Front (4) WPL 596737 Contact Us For Availability
35
Trim, Shelf Front (2) WPL 942717 Contact Us For Availability
37
Screw WPL 595361 Contact Us For Availability
38
Plug, Vent WPL 727900 Contact Us For Availability
39
Cover (W/Original Compressor) WPL 753597 Contact Us For Availability
39
Insulation Block (Vented) WPL 727810 Contact Us For Availability
40
Clamp (W/Original Compressor) WPL 753598 Contact Us For Availability
40
Gasket, Vacuum Release WPL 728648 Contact Us For Availability
41
Overload (W/Original Compressor) WPL 753611 Contact Us For Availability
42
Relay (W/Original Compressor) WPL 753612 Contact Us For Availability
43
Clip, Cord WPL 653035 Contact Us For Availability
44
WPL 978029 WPL 978029 Contact Us For Availability
44
Transformer, Stepdown (230-115 Volt) WPL 515393 Contact Us For Availability
44
Kit, Insulation (Door Only) WPL 588599 Contact Us For Availability
44
WPL 799340 WPL 799340 Contact Us For Availability
44
WPL 799351 WPL 799351 Contact Us For Availability
44
WPL 799832 WPL 799832 Contact Us For Availability
44
WPL 978028 WPL 978028 Contact Us For Availability
44
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
