Model Whirlpool EV090FXKN2 VERTICAL FREEZER – Common Parts & Diagrams
03 - SECTION
01 - SECTION
02 - SECTION

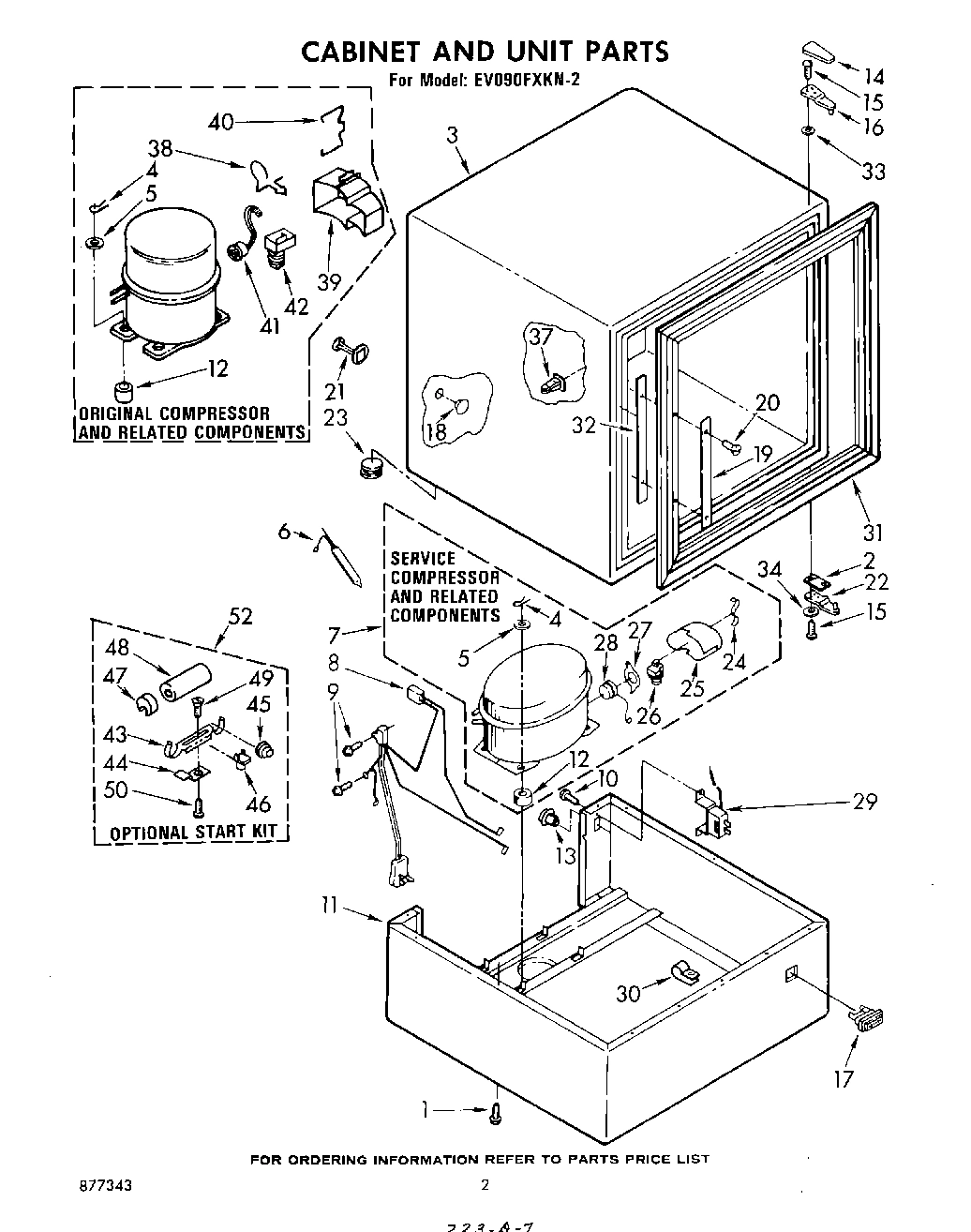

Common parts from model Whirlpool EV090FXKN2 VERTICAL FREEZER
WPL 206925 WPL 206925 Contact Us For Availability
WPL LIT656493 WPL LIT656493 Contact Us For Availability
WPL LIT727639 WPL LIT727639 Contact Us For Availability
WPL LIT727641 WPL LIT727641 Contact Us For Availability
WPL LIT727649 WPL LIT727649 Contact Us For Availability
WPL LIT877343 WPL LIT877343 Contact Us For Availability
2
Spacer, Hinge WPL 589913 Contact Us For Availability
3
Cabinet (Not A Serviceable Part) WPL ARI55582A9 Contact Us For Availability
4
Clip, Compressor Mounting (4) WPL 596712 Contact Us For Availability
5
Washer, Compressor Mounting (5) WPL 680975 Contact Us For Availability
7
Compressor (Use Installation Kit 482331) WPL 702219 Contact Us For Availability
8
Harness, Wiring WPL 589824 Contact Us For Availability
9
Screw, 8-32 x 5/8 WPL 595325 Contact Us For Availability
10
Screw WPL 595022 Contact Us For Availability
11
Base, Cabinet WPL 727260 Contact Us For Availability
12
Grommet, Compressor Mounting (4) WPL 596355 Contact Us For Availability
13
Knob, Control WPL 727020 Contact Us For Availability
14
Cover, Hinge WPL 989891 Contact Us For Availability
15
Screw WPL 681452 Contact Us For Availability
16
Hinge, Top WPL 844575 Contact Us For Availability
17
Light, Indicator WPL 556230 Contact Us For Availability
18
Hole, Plug (4) WPL 534927 Contact Us For Availability
19
Strike, Door WPL 589293 Contact Us For Availability
20
Screw WPL 595361 Contact Us For Availability
21
Spacer (2) WPL 594613 Contact Us For Availability
22
Hinge, Bottom WPL 589409 Contact Us For Availability
23
Retainer, Gasket Side (2) WPL 727475 Contact Us For Availability
23
Grommet WPL 596745 Contact Us For Availability
24
Bearing, Hinge (2) WPL 652804 Contact Us For Availability
24
Strap, Terminal Cover WPL 560850 Contact Us For Availability
25
Panel, Exterior Door WPL 727647 Contact Us For Availability
25
Cover, Terminal WPL 560849 Contact Us For Availability
26
Tape Strip WPL 991259 Contact Us For Availability
26
Relay, Starting WPL 727308 Contact Us For Availability
27
Escutcheon, Nameplate WPL 849310 Contact Us For Availability
27
Spring, Overload WPL 560851 Contact Us For Availability
28
Insert, Nameplate WPL 941746 Contact Us For Availability
28
Overload WPL 727309 Contact Us For Availability
29
Control, Temperature WPL 589929 Contact Us For Availability
30
Clamp, Wire WPL 596171 Contact Us For Availability
31
Collar WPL 727345 Contact Us For Availability
32
Plate, Strike WPL 727183 Contact Us For Availability
33
Stud, Shelf Back (R.S.) (6) WPL 596690 Contact Us For Availability
33
Stud, Shelf Back (L.S.) (6) WPL 596691 Contact Us For Availability
33
Lockwasher, 1/4 (3) WPL 668347 Contact Us For Availability
34
Stud, Shelf Front (4) WPL 596737 Contact Us For Availability
35
Trim, Shelf Front (2) WPL 942717 Contact Us For Availability
37
Grommet, Screw (2) WPL 842339 Contact Us For Availability
38
Clip (Used W/Original Compressor) WPL 727046 Contact Us For Availability
39
Cover (W/Original Compressor) WPL 727044 Contact Us For Availability
40
Clamp (W/Original Compressor) WPL 727045 Contact Us For Availability
41
Overload (W/Original Compressor) WPL 727599 Contact Us For Availability
42
Relay (W/Original Compressor) WPL 727598 Contact Us For Availability
43
Bracket, Capacitor (Used On Start Kit) WPL 482158 Contact Us For Availability
44
Bracket, Support (Used On Start Kit) WPL 549939 Contact Us For Availability
45
Overload (Used On Start Kit) WPL 482280 Contact Us For Availability
46
Relay (Used On Start Kit) WPL 482279 Contact Us For Availability
47
Cap, Capacitor (Used On Start Kit) WPL 482157 Contact Us For Availability
49
Screw (2) (Used On Start Kit) WPL 487631 Contact Us For Availability
50
Screw (Used On Start Kit) WPL 488487 Contact Us For Availability
52
WPL 978029 WPL 978029 Contact Us For Availability
52
WPL 799344 WPL 799344 Contact Us For Availability
52
Start Kit WPL 482278 Contact Us For Availability
52
WPL 515393 WPL 515393 Contact Us For Availability
52
WPL 588599 WPL 588599 Contact Us For Availability
52
WPL 799340 WPL 799340 Contact Us For Availability
52
WPL 799351 WPL 799351 Contact Us For Availability
52
WPL 799832 WPL 799832 Contact Us For Availability
52
WPL 978028 WPL 978028 Contact Us For Availability
52
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
