Model Whirlpool ET2WTKXLQ01 REFRIGERATOR – Common Parts & Diagrams
02 - LINER PARTS
04 - DOOR PARTS

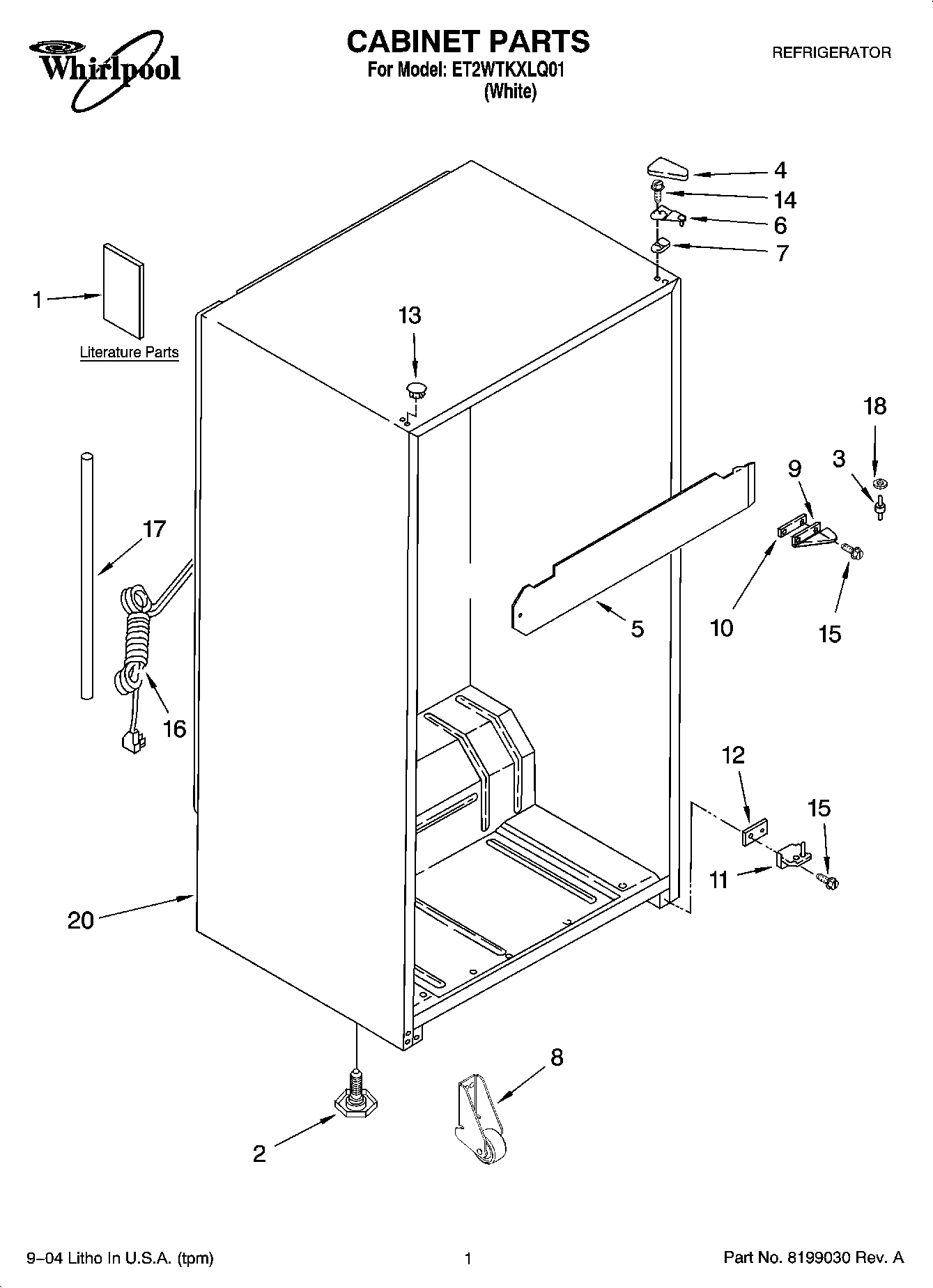

01 - CABINET PARTS

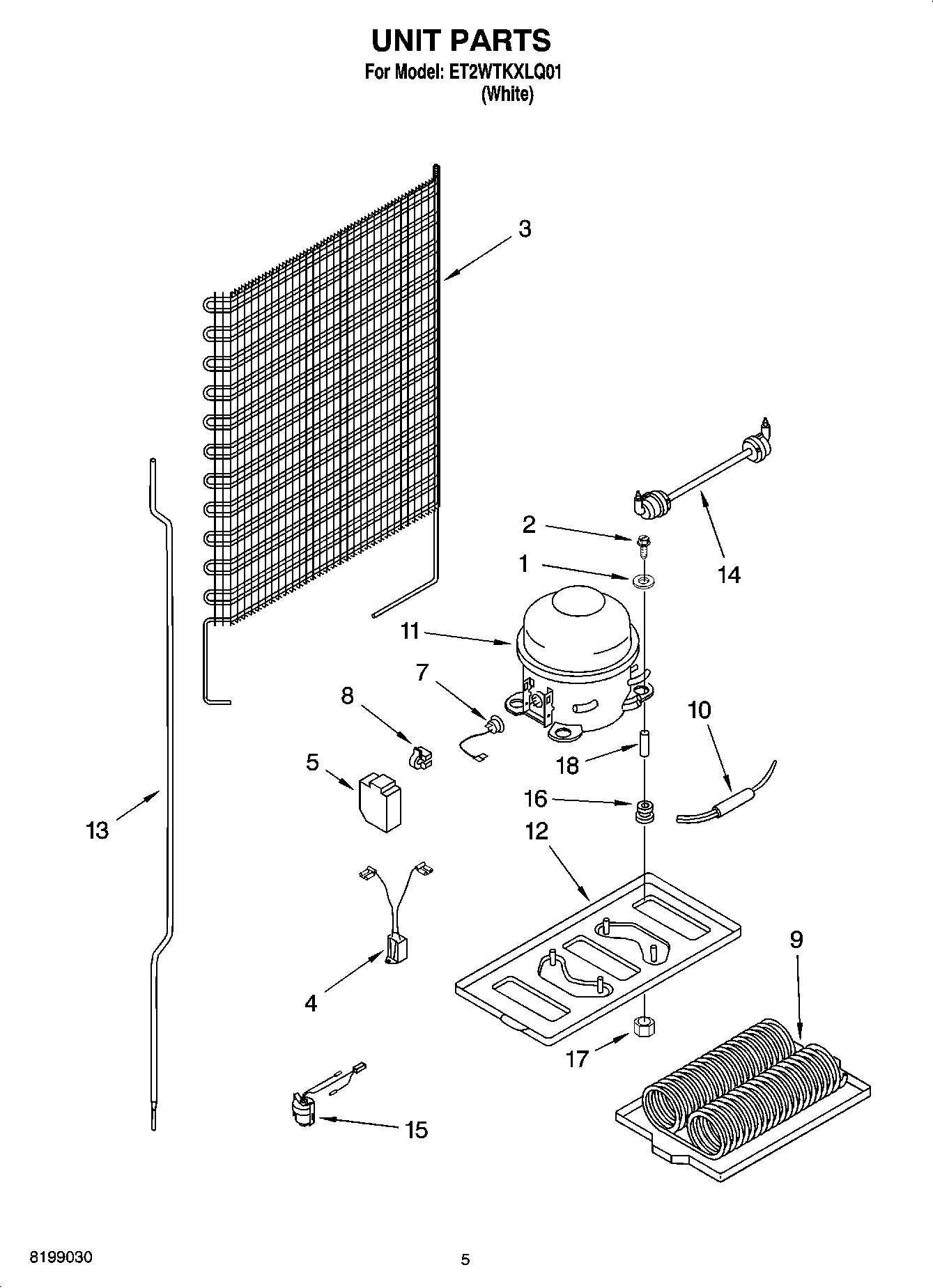

03 - UNIT PARTS

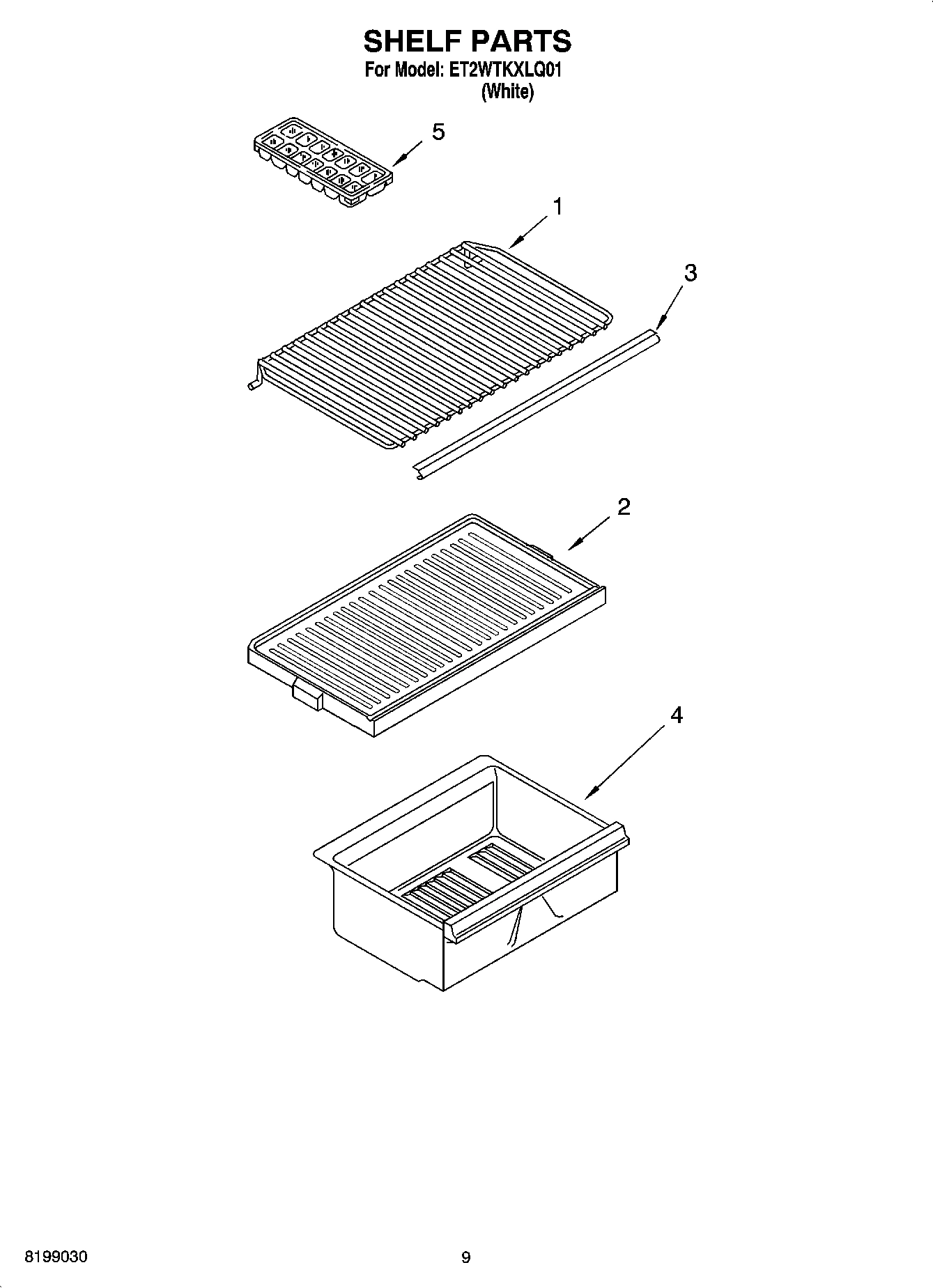

05 - SHELF PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool ET2WTKXLQ01 REFRIGERATOR
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
Customer Touch-Up Material WPL ARI50571A6 Contact Us For Availability
REFINISHING MATERIAL WPL ARI50572A3 Contact Us For Availability
FIELD INSTALLABLE ICE MAKER WPL ARI50573A6 Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 4390837 Contact Us For Availability
1
Owners Manual WPL 2300215 Contact Us For Availability
1
Energy Label WPL 4390844 Contact Us For Availability
1
Washer WPL 4356847 Contact Us For Availability
1
Shelf, Wire (2) WPL 4390728 Contact Us For Availability
2
Cap, Hinge Sleeve (White) WPL 4390731 Contact Us For Availability
2
Cover, Crisper WPL 4390472 Contact Us For Availability
3
Handle Kit (White) WPL 4390575 Contact Us For Availability
3
Pin, Center Hinge WPL 4390544 Contact Us For Availability
3
Condenser WPL 4390647 Contact Us For Availability
3
Trim, Shelf (2) WPL 4390729 Contact Us For Availability
4
Timer, Defrost WPL 4390515 Contact Us For Availability
4
Hinge Cover (White) WPL 4357279 Contact Us For Availability
4
Anchor, Screw WPL 4356306 Contact Us For Availability
4
Pan, Crisper WPL 4390835 Contact Us For Availability
5
Center Rail WPL 4390723 Contact Us For Availability
6
Screw WPL 4390511 Contact Us For Availability
6
Hinge, Top (White) WPL 4390673 Contact Us For Availability
8
Relay WPL 4356738 Contact Us For Availability
8
Door Gasket, Magnetic WPL 4390727 Contact Us For Availability
8
Roller Assembly WPL 8210218 Contact Us For Availability
9
Center Hinge (White) WPL 4390732 Contact Us For Availability
9
Evaporator WPL 4390936 Contact Us For Availability
10
Thermostat WPL 4390730 Contact Us For Availability
10
Shim, Center Hinge WPL 4390646 Contact Us For Availability
11
Interior Door Panel (Refrigerator) WPL 4390726 Contact Us For Availability
11
Bottom Hinge (White) WPL 4390733 Contact Us For Availability
12
Shim, Bottom Hinge WPL 4390497 Contact Us For Availability
12
Unit Mounting Plate WPL 8210219 Contact Us For Availability
13
Freezer Door Panel (White) WPL 8210216 Contact Us For Availability
13
Hole Plug (White) WPL 4390836 Contact Us For Availability
13
Exchanger, Heat WPL 4390721 Contact Us For Availability
14
Trim, Door Shelf WPL 8210215 Contact Us For Availability
14
Heater, Defrost WPL 4390940 Contact Us For Availability
15
Bi-Metal, Defrost WPL 8210213 Contact Us For Availability
16
Door Gasket, Magnetic WPL 4390724 Contact Us For Availability
16
Cord, Service WPL 4390591 Contact Us For Availability
16
Grommet WPL 4356335 Contact Us For Availability
17
Interior Door Panel (Freezer) WPL 4390725 Contact Us For Availability
17
Tube Insulation, Heat Exchanger WPL 4390648 Contact Us For Availability
17
Nut WPL 4390590 Contact Us For Availability
18
Nameplate (White) WPL 4390656 Contact Us For Availability
18
Washer, Door Adjust WPL 4390623 Contact Us For Availability
18
REFRIGERANT CHARGE 3.0 oz. (R-134A) WPL ARI50570A3 Contact Us For Availability
19
Drain Tube WPL 4390537 Contact Us For Availability
19
Bracket, Door Stop WPL 4390738 Contact Us For Availability
20
Plate, Defrost Timer WPL 4390514 Contact Us For Availability
20
Cabinet (Not A Serviceable Part) WPL ARI50568A9 Contact Us For Availability
21
Shield, Heater (Aluminum) WPL 4390556 Contact Us For Availability
21
Compartment Door WPL 4390949 Contact Us For Availability
22
Cover, Evaporator Housing WPL 4390517 Contact Us For Availability
23
Insulation, Compartment WPL 4390722 Contact Us For Availability
24
Separator, Compartment (Top) WPL 4390720 Contact Us For Availability
25
Bracket, Motor WPL 4390452 Contact Us For Availability
26
Motor, Fan WPL 4390451 Contact Us For Availability
27
Blade, Fan WPL 4390518 Contact Us For Availability
28
Scroll, Fan WPL 4390519 Contact Us For Availability
× ![]()
