Model Whirlpool ET25DKXDW01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

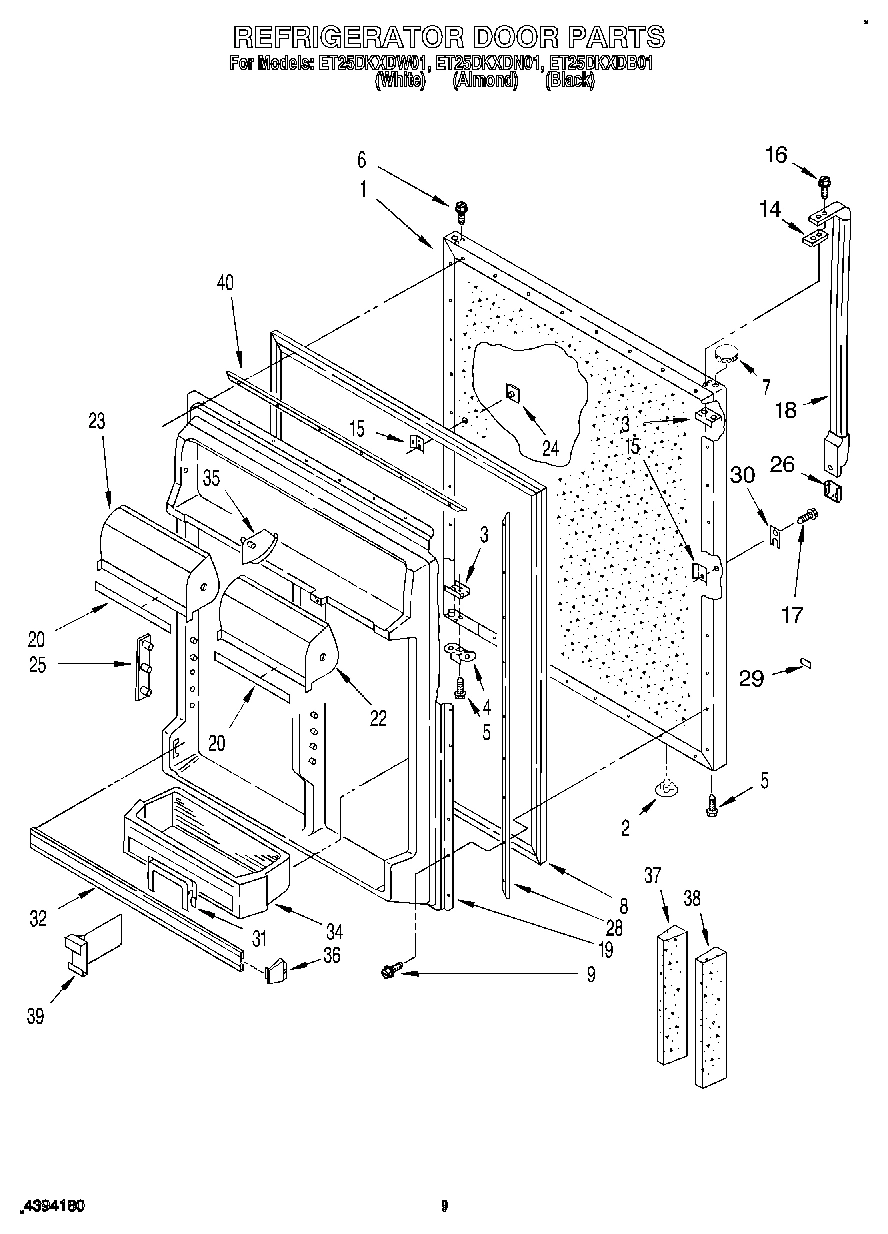

06 - REFRIGERATOR DOOR

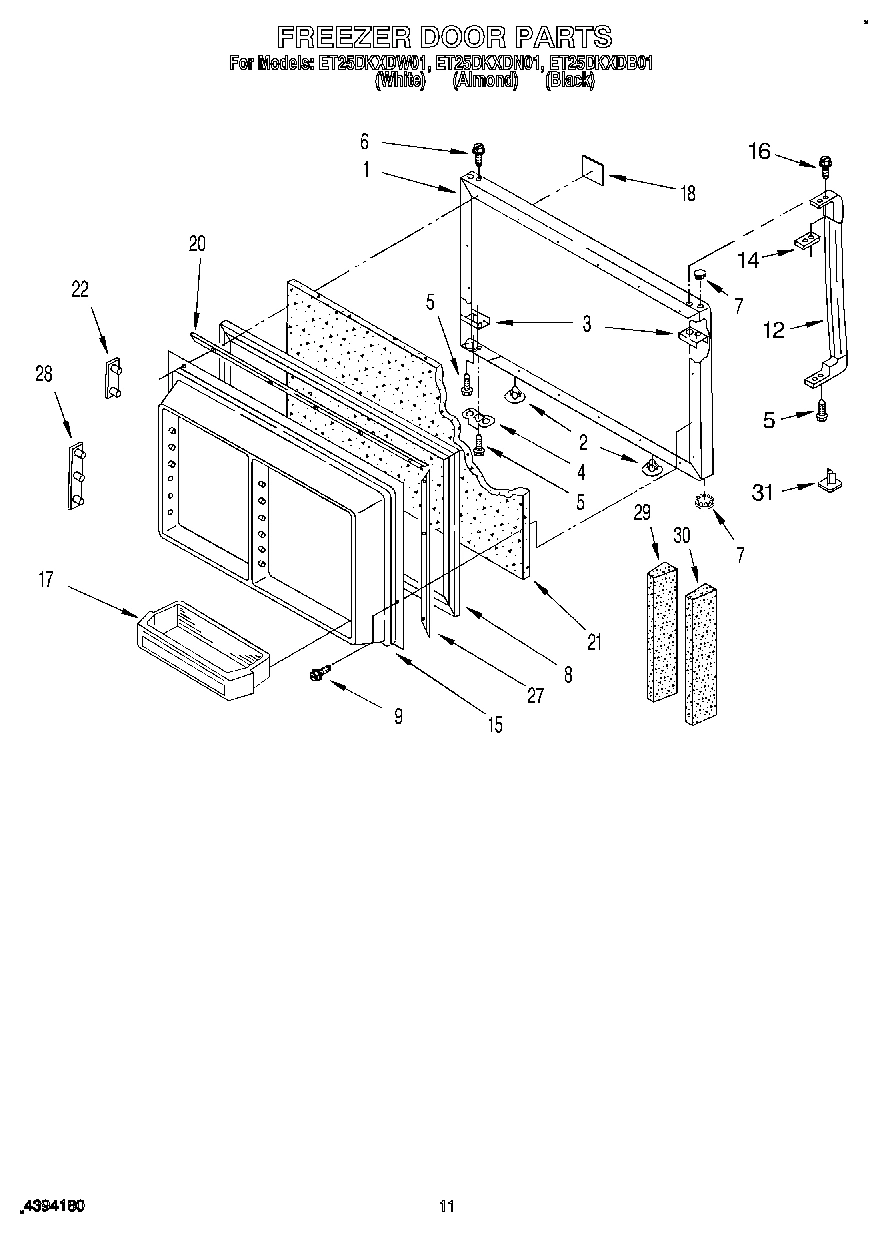

07 - FREEZER DOOR, LIT/OPTIONAL
05 - UNIT
03 - COMPARTMENT SEPARATOR
01 - CABINET
02 - LINER
04 - SHELF
Common parts from model Whirlpool ET25DKXDW01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159164 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159167 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Bla WPL 2161856 Contact Us For Availability
1
Bottom, Compartment Separator WPL 2174812 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI50296A4 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI50297A1 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1118102 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
2
Box, Control WPL 2174824 Contact Us For Availability
2
Roller, Front WPL 2174748 Contact Us For Availability
2
Shelf Ladder, Center WPL 1118101 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
3
Grommet (2) WPL 2172803 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Drain Pan & Heat Shield WPL 1116511 Contact Us For Availability
7
Shelf, Cantilever WPL 2174039 Contact Us For Availability
8
Door Gasket Magnetic (White And Almond Models WPL 1121202 Contact Us For Availability
8
Door Gasket Magnetic (Black Model) WPL 2170603 Contact Us For Availability
8
Shelf Assembly, Spillguard WPL 2174224 Contact Us For Availability
9
Insert, Air Baffle Heat Shield WPL 2176796 Contact Us For Availability
9
Control, Front Cover WPL 2148635 Contact Us For Availability
9
Crisper Cover WPL 2179421 Contact Us For Availability
10
Heater, Mullion WPL 2154069 Contact Us For Availability
11
Knob, Thermostat WPL 2174826 Contact Us For Availability
11
Clip, Rail (4) WPL 2149060 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174146 Contact Us For Availability
12
Handle (White) WPL 2179308 Contact Us For Availability
12
Handle (Almond) WPL 2179309 Contact Us For Availability
12
Handle (Black) WPL 2179310 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Shelf Assembly, Spillguard WPL 2174044 Contact Us For Availability
13
Light, Bar (R.S.) WPL 2160639 Contact Us For Availability
13
Center Rail (Black) WPL 2173821 Contact Us For Availability
13
Center Rail (White) WPL 2174743 Contact Us For Availability
13
Cover, Air Duct WPL 2159578 Contact Us For Availability
14
Shim, Handle WPL 2151813 Contact Us For Availability
14
Tube, Discharge WPL 2162475 Contact Us For Availability
14
Knob, Air Control WPL 2174827 Contact Us For Availability
14
Hook, Shelf WPL 2169608 Contact Us For Availability
15
Interior Door Panel WPL 2183179 Contact Us For Availability
15
Relay (See Overload) WPL ARI50298A4 Contact Us For Availability
15
Light, Bar (L.S.) WPL 2160638 Contact Us For Availability
15
Deck Rail Cover WPL 2174745 Contact Us For Availability
16
Housing Plug WPL 2154491 Contact Us For Availability
16
Rod, Connecting WPL 1118057 Contact Us For Availability
16
Shelf Assembly, Spillguard WPL 2174038 Contact Us For Availability
17
Bin, Shelf (4) WPL 2179603 Contact Us For Availability
17
Running Capacitor WPL 2169137 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157253 Contact Us For Availability
17
Shelf, Freezer WPL 1125745 Contact Us For Availability
18
Nameplate (White) WPL 2180544 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2180545 Contact Us For Availability
18
Nameplate (Black) WPL 2180546 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Pan, Crisper Wide WPL 2179413 Contact Us For Availability
20
Retainer, Gasket WPL 1121119 Contact Us For Availability
20
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
20
Grommet (4) WPL 1110779 Contact Us For Availability
20
Pan, Meat WPL 2179414 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Crisper Gasket, Front WPL 2179393 Contact Us For Availability
22
Pin Plate WPL 1118048 Contact Us For Availability
22
Evaporator WPL 2174780 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2174831 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Screw WPL 489419 Contact Us For Availability
23
Drain Pan WPL 1114597 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159734 Contact Us For Availability
23
Scroll, Fan WPL 1114593 Contact Us For Availability
24
Washer (Black) WPL 489200 Contact Us For Availability
24
Evaporator Cover WPL 1123399 Contact Us For Availability
24
Shelf, Freezer (Top) WPL 2179447 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Tube, Suction WPL 2162473 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Divider WPL 2179446 Contact Us For Availability
27
Retainer, Gasket WPL 1121120 Contact Us For Availability
27
Insulation, Compartment Separator WPL 2174818 Contact Us For Availability
27
Track Assembly, Shelf WPL 2169801 Contact Us For Availability
28
Pin Plate WPL 1116986 Contact Us For Availability
29
Reinforcement, Mid Door WPL 1118008 Contact Us For Availability
29
Support, Heater WPL 851358 Contact Us For Availability
29
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
30
Reinforcement, WPL 1118007 Contact Us For Availability
30
Light Lens WPL 2174443 Contact Us For Availability
31
WPL 876029 WPL 876029 Contact Us For Availability
31
TAPE, VINYL (3 WPL 479502 Contact Us For Availability
31
WPL 799344 WPL 799344 Contact Us For Availability
31
Hole Plug, Endcap (White) WPL 2174433 Contact Us For Availability
31
Hole Plug, Endcap (Almond) WPL 2174434 Contact Us For Availability
31
Hole Plug, Endcap (Black Side Door) WPL 2174435 Contact Us For Availability
31
Door Reversal Instructions WPL 2180411 Contact Us For Availability
31
WPL 542639 WPL 542639 Contact Us For Availability
31
WPL 799833 WPL 799833 Contact Us For Availability
31
WPL 978883 WPL 978883 Contact Us For Availability
31
Spacer WPL 2172744 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
33
Heater, Defrost WPL 2162021 Contact Us For Availability
33
Separator, Compartment (Top) (Front) WPL 1115189 Contact Us For Availability
33
Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Filler, Wrap Corner (Black) WPL 2162679 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Grille (White) WPL 1125714 Contact Us For Availability
35
Grille (Almond) WPL 1125716 Contact Us For Availability
35
Grille (Black) WPL 1129002 Contact Us For Availability
35
Pan, Ice Cube WPL 2174616 Contact Us For Availability
36
Compartment Sep. Top-Rear WPL 2162455 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
Cover WPL 2169935 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
41
Crisper Support WPL 2179449 Contact Us For Availability
43
Wire Assy WPL 2176857 Contact Us For Availability
44
Cover, Unit Bottom WPL 2157369 Contact Us For Availability
44
Shelf Stud (3) WPL 946356 Contact Us For Availability
45
Shelf Stud (2) WPL 1106612 Contact Us For Availability
46
support stud (8) WPL 946355 Contact Us For Availability
47
Cover, Water Valve WPL 2183114 Contact Us For Availability
47
Shelf, Ice Compartment WPL 1125543 Contact Us For Availability
48
Cover, Unit WPL 2183134 Contact Us For Availability
48
Trim, Ice Pan WPL 2176360 Contact Us For Availability
51
Tube, Drain WPL 2183033 Contact Us For Availability
54
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
54
Wedge, Air Baffle WPL 2174787 Contact Us For Availability
54
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
