Model Whirlpool ET25DKXBN00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

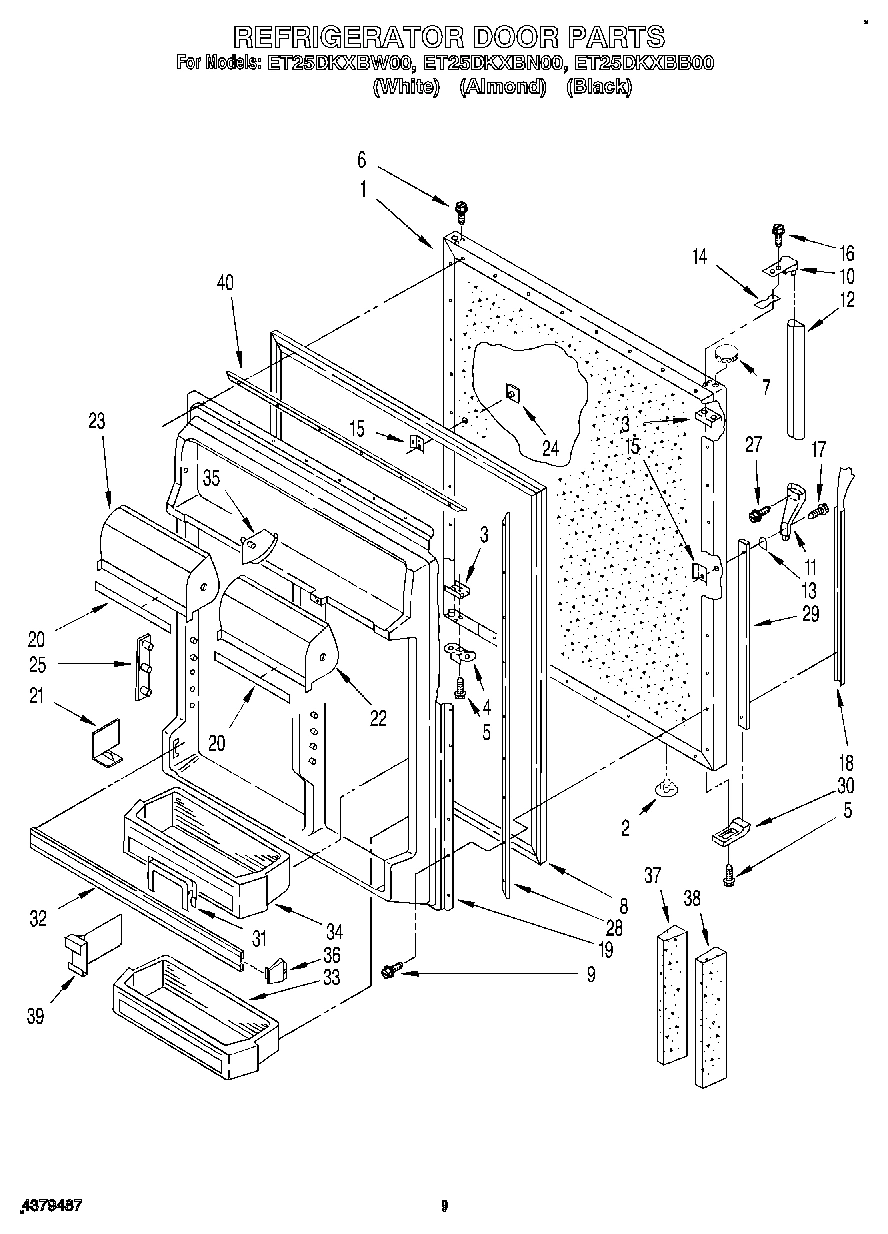

06 - REFRIGERATOR DOOR

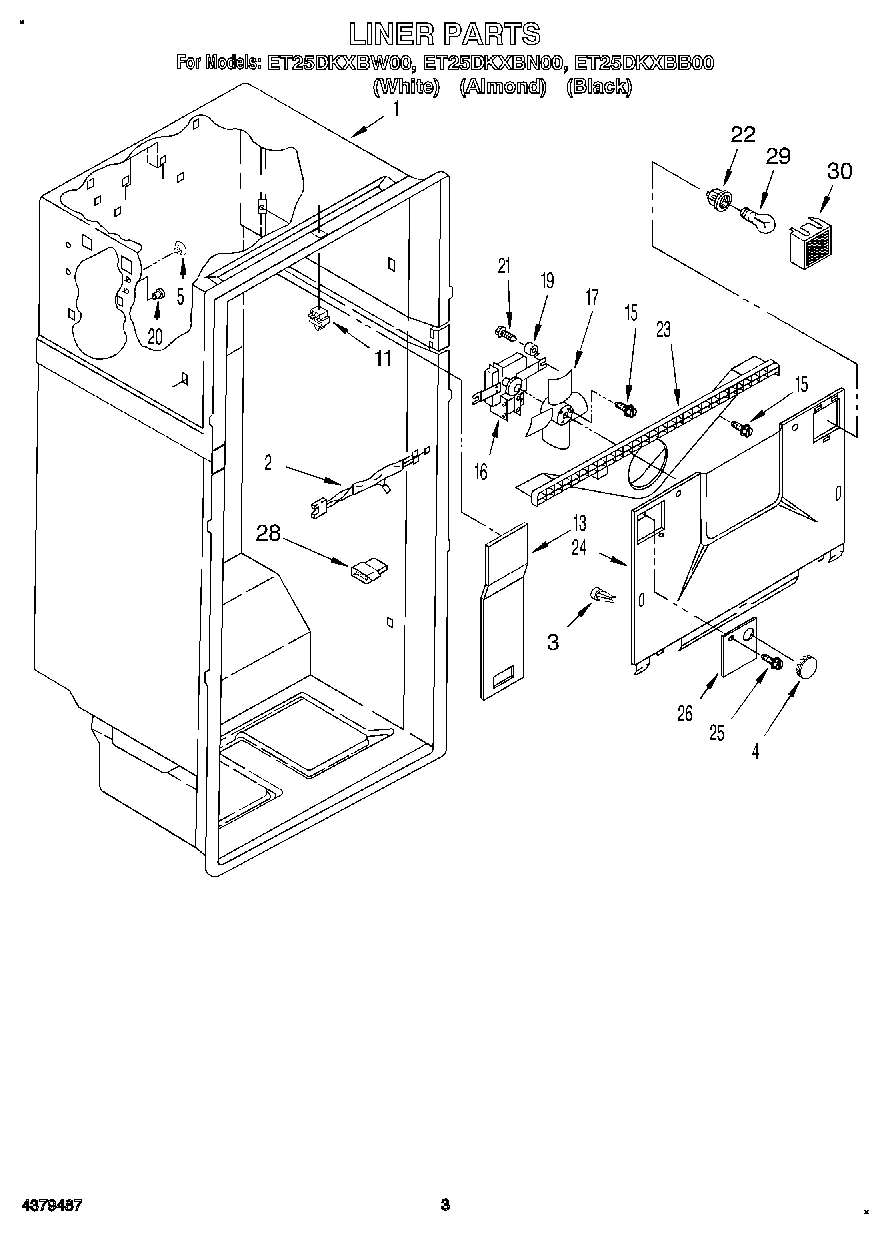

02 - LINER

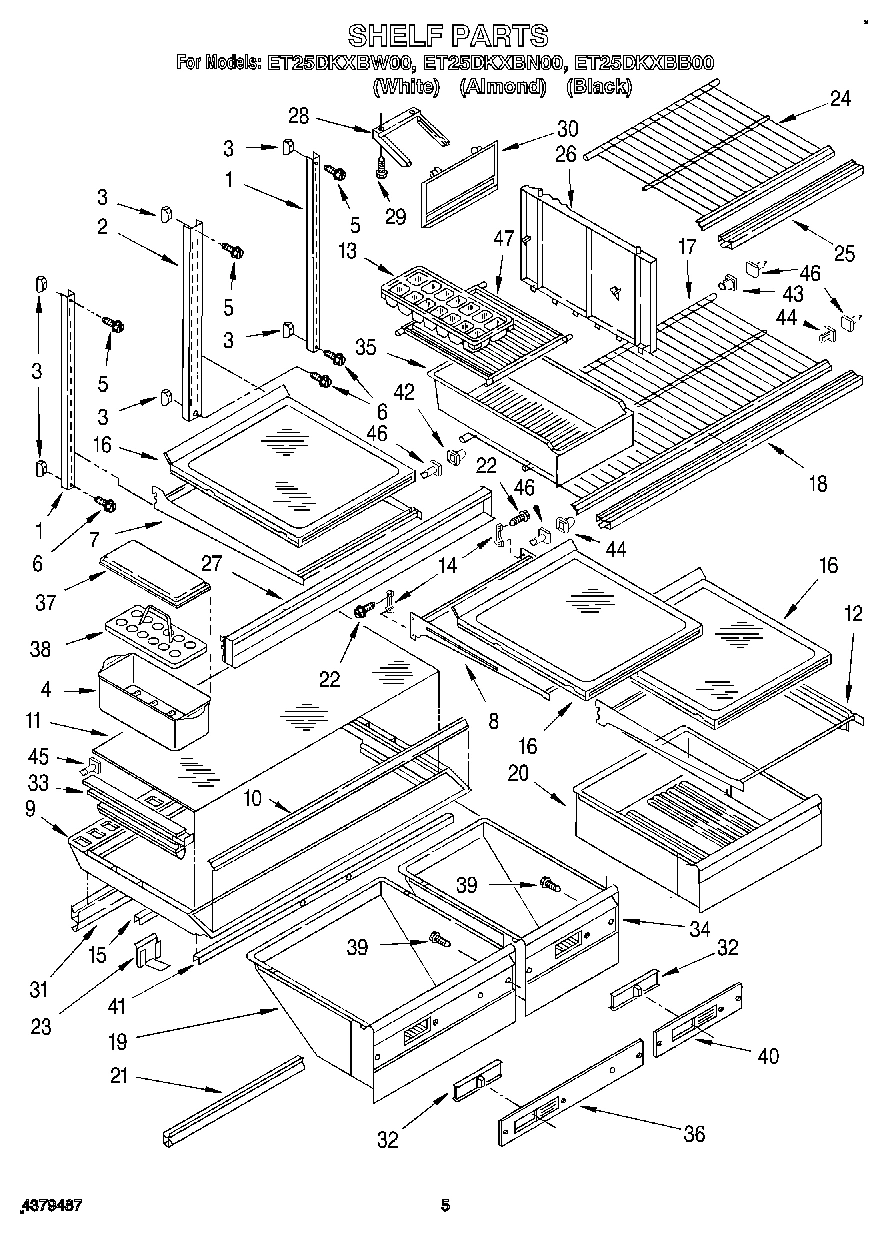

04 - SHELF, LIT/OPTIONAL

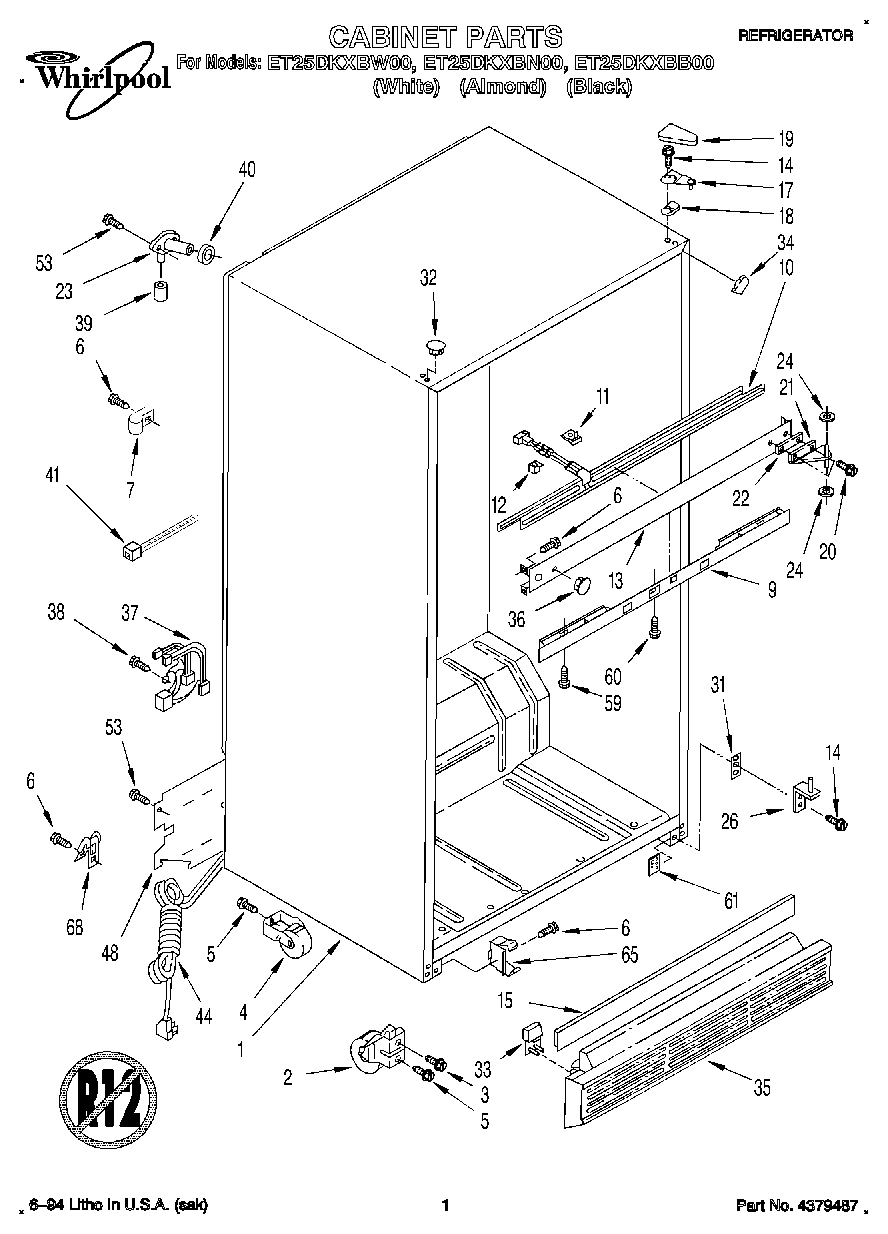

01 - CABINET

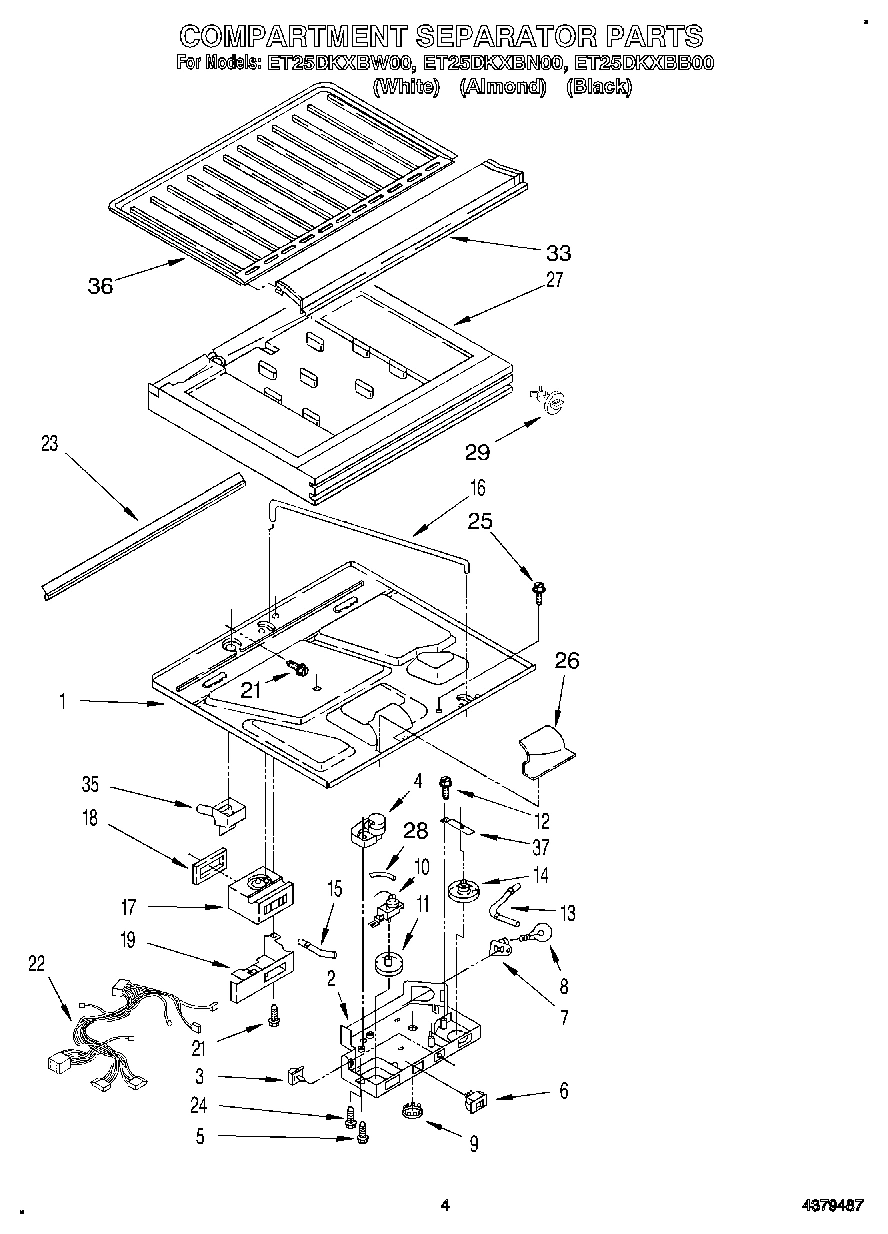

03 - COMPARTMENT SEPARATOR

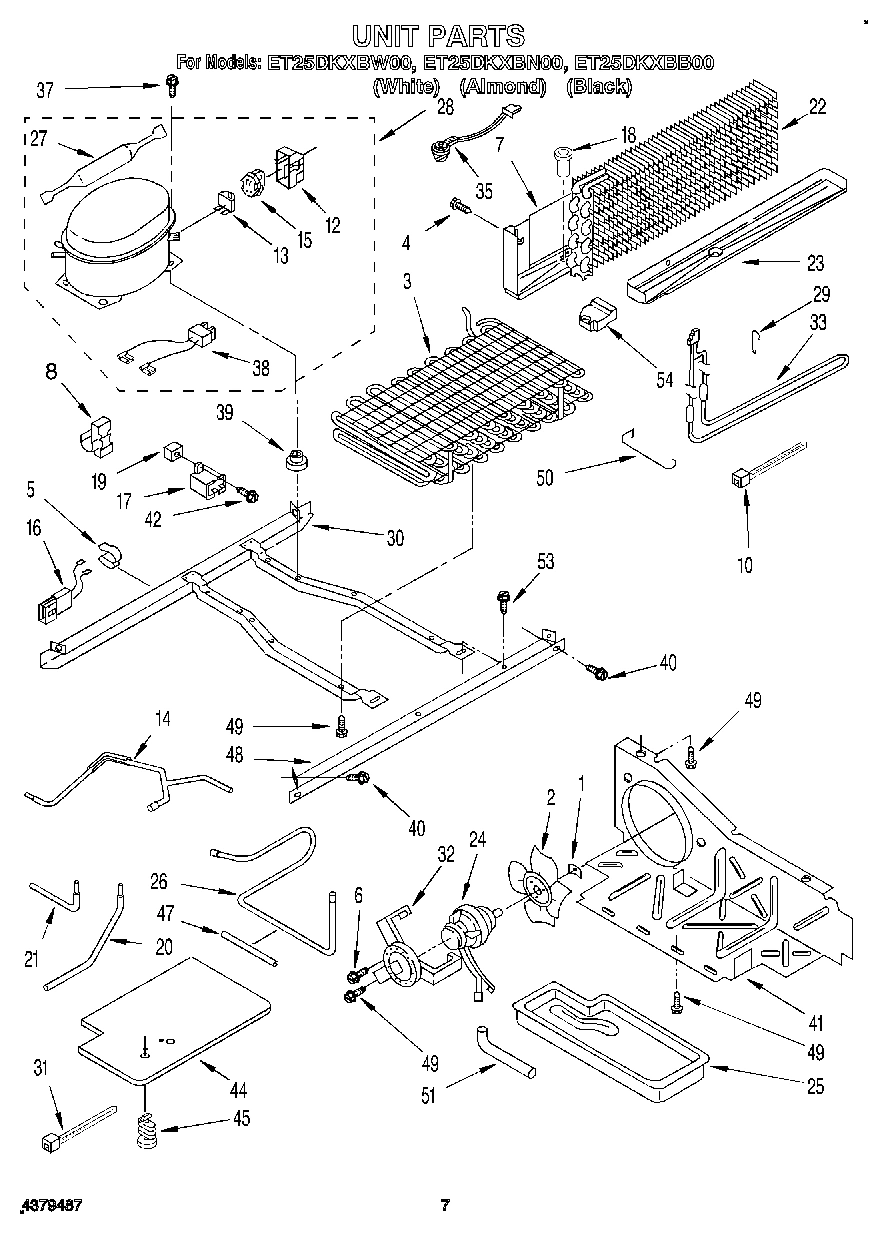

05 - UNIT

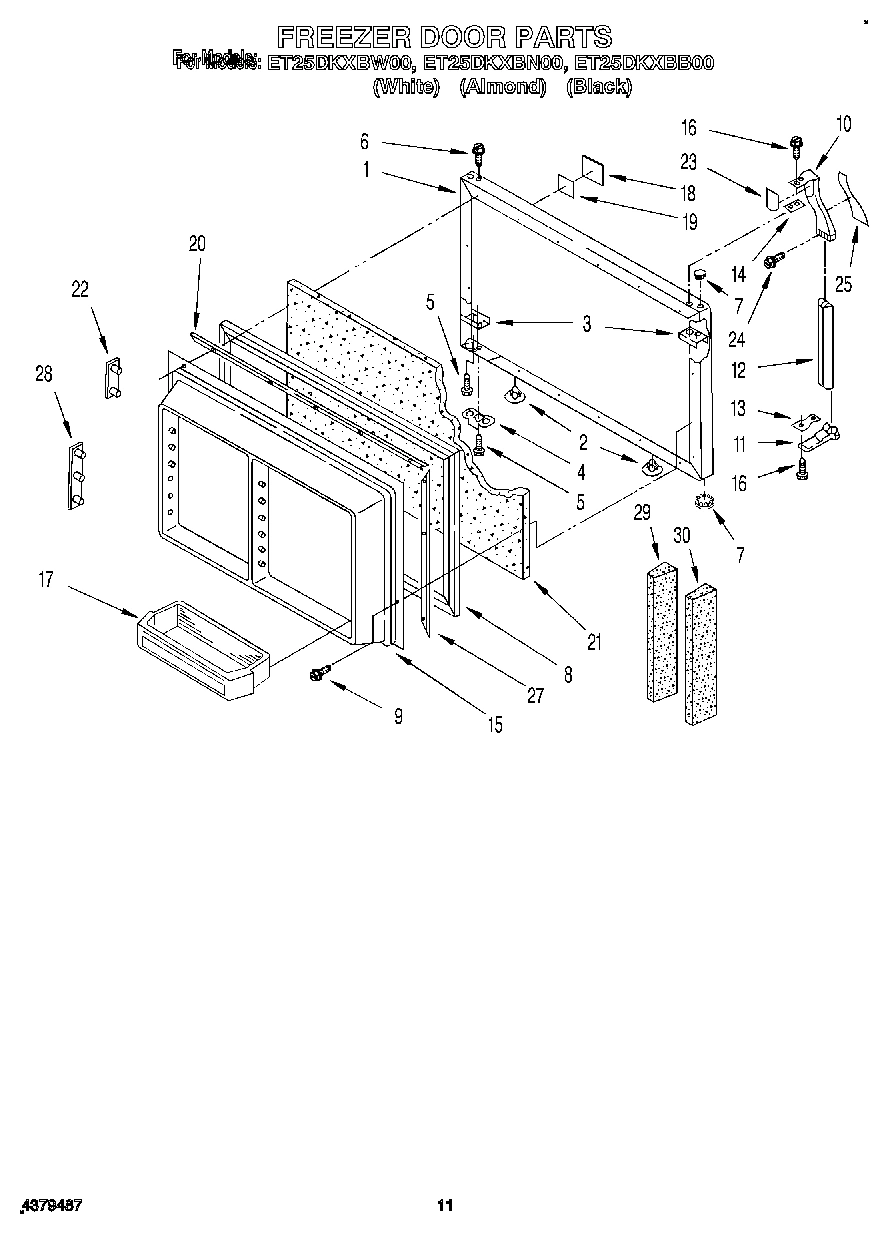

07 - FREEZER DOOR
Common parts from model Whirlpool ET25DKXBN00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2169122 WPL LIT2169122 Contact Us For Availability
WPL LIT2170893 WPL LIT2170893 Contact Us For Availability
WPL LIT2170980 WPL LIT2170980 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI146827A Contact Us For Availability
1
Shelf, Ladder (2) WPL 1118102 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI146826A Contact Us For Availability
1
Bottom, Compartment Separator WPL 2172826 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159164 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159167 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Bla WPL 2161856 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Shelf Ladder, Center WPL 1118101 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Box, Control WPL 1126029 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
2
Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Grommet (2) WPL 2172803 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
4
Hole Plug WPL 1103725 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
5
Clip, Wire WPL 548745 Contact Us For Availability
7
Shelf, Cantilever WPL 2160307 Contact Us For Availability
7
Drain Pan & Heat Shield WPL 1116511 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Slide Shelf Frame, Cantilever WPL 2169601 Contact Us For Availability
8
Wire Clip, Water Tube WPL 2155658 Contact Us For Availability
8
Door Gasket Magnetic (Almond Model) WPL 1121202 Contact Us For Availability
8
Door Gasket Magnetic (White Model) WPL 1125922 Contact Us For Availability
8
Door Gasket Magnetic (Black Model) WPL 2170603 Contact Us For Availability
9
Crisper Cover WPL 2162920 Contact Us For Availability
9
Control, Front Cover WPL 2148635 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Trim, Crisper Cover WPL 2162848 Contact Us For Availability
10
Heater, Mullion WPL 2154069 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Glass, Crisper Cover WPL 2162982 Contact Us For Availability
11
Clip, Rail (4) WPL 2149060 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
11
Handle End WPL 944157 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 2166328 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Handle, Center (Black) WPL 2159622 Contact Us For Availability
12
Handle, Center (Almond) WPL 2162694 Contact Us For Availability
12
Handle, Center (White) WPL 2162741 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Cover, Air Duct WPL 2159578 Contact Us For Availability
13
Center Rail WPL 2154187 Contact Us For Availability
13
Light, Bar WPL 1105475 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Hook, Shelf WPL 2169608 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
14
Tube, Discharge WPL 2162475 Contact Us For Availability
15
Crisper, Support WPL 2147047 Contact Us For Availability
15
Deck Rail Cover WPL 2154186 Contact Us For Availability
15
Light, Bar WPL 1105476 Contact Us For Availability
15
Relay (See Overload) WPL ARI146828A Contact Us For Availability
15
Interior Door Panel WPL 1123276 Contact Us For Availability
16
Shelf Assembly, Spillguard WPL 2160323 Contact Us For Availability
16
Rod, Connecting WPL 1118057 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
17
Shelf, Freezer WPL 1121154 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157253 Contact Us For Availability
17
Running Capacitor WPL 2169137 Contact Us For Availability
17
Bin, Shelf (4) WPL 2162893 Contact Us For Availability
18
Trim, Shelf Front WPL 2162936 Contact Us For Availability
18
Shim, Hinge Top WPL 2157269 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
18
Nameplate (White Model) WPL 2148544 Contact Us For Availability
18
Nameplate (Black Model) WPL 2162668 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2162698 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Pan, Crisper Wide WPL 2162859 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
20
Retainer, Gasket WPL 1121119 Contact Us For Availability
20
Grommet (4) WPL 1110779 Contact Us For Availability
20
Pan, Meat WPL 2162931 Contact Us For Availability
20
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Crisper, Gasket Front WPL 1116665 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
22
Screw WPL 489419 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
22
Evaporator WPL 2153980 Contact Us For Availability
22
Pin Plate WPL 1118048 Contact Us For Availability
23
Scroll, Fan WPL 1114593 Contact Us For Availability
23
Clip WPL 2149078 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159734 Contact Us For Availability
23
Drain Pan WPL 1114597 Contact Us For Availability
23
Shim, EndCap (Top) WPL 935074 Contact Us For Availability
24
Washer (Black) WPL 489200 Contact Us For Availability
24
Evaporator Cover WPL 1123399 Contact Us For Availability
24
Shelf, Freezer (Top) WPL 1114570 Contact Us For Availability
24
Screw, 6-20 x 3/8 WPL 489022 Contact Us For Availability
25
Trim, Shelf WPL 2162937 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Insert, Handle (White Model) WPL 1108828 Contact Us For Availability
25
Insert, Handle (Almond Model) WPL 1108830 Contact Us For Availability
25
Insert, Handle (Black Model) WPL 1114390 Contact Us For Availability
26
Divider WPL 1127416 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Tube, Suction WPL 2162473 Contact Us For Availability
27
Slide Track Assy., Shelf WPL 2169801 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1114561 Contact Us For Availability
27
Retainer, Gasket WPL 1121120 Contact Us For Availability
28
Slide, Ice Compartment WPL 2149136 Contact Us For Availability
28
Pin Plate WPL 1116986 Contact Us For Availability
29
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
29
Support, Heater WPL 2149120 Contact Us For Availability
29
Reinforcement, Mid Door WPL 1118008 Contact Us For Availability
30
Light Lens WPL 981365 Contact Us For Availability
30
Door, Ice Compartment WPL 2162944 Contact Us For Availability
30
Reinforcement, Side Door WPL 1118007 Contact Us For Availability
31
Crisper, Gasket Rear WPL 1116666 Contact Us For Availability
31
Spacer WPL 2172744 Contact Us For Availability
32
Slide, Crisper WPL 2162849 Contact Us For Availability
32
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Crisper Track, Center WPL 1118092 Contact Us For Availability
33
Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Separator, Compartment (Top) (Front) WPL 1115189 Contact Us For Availability
33
Heater, Defrost WPL 2162021 Contact Us For Availability
34
Pan, Crisper WPL 2162858 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Filler, Wrap Corner (Black) WPL 2162679 Contact Us For Availability
35
Grille (White) WPL 1125714 Contact Us For Availability
35
Grille (Almond) WPL 1125716 Contact Us For Availability
35
Grille (Black) WPL 1129002 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Crisper Pan Front WPL 2162852 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
36
Compartment Sep. Top-Rear WPL 2162455 Contact Us For Availability
37
Cover WPL 2164374 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
39
WPL 2152335 WPL 2152335 Contact Us For Availability
39
Screw WPL 489162 Contact Us For Availability
40
Front, Crisper Pan WPL 2162853 Contact Us For Availability
41
Crisper, Support WPL 1114568 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
44
Shelf Stud (3) WPL 946356 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
44
Cover, Unit Bottom WPL 2157369 Contact Us For Availability
45
Shelf Stud (2) WPL 1106612 Contact Us For Availability
46
support stud (8) WPL 946355 Contact Us For Availability
47
WPL 876029 WPL 876029 Contact Us For Availability
47
WPL 479502 WPL 479502 Contact Us For Availability
47
WPL 799344 WPL 799344 Contact Us For Availability
47
Shelf, Ice Compartment WPL 1106624 Contact Us For Availability
47
Door Reversal Instructions WPL 2172761 Contact Us For Availability
47
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
47
WPL 542639 WPL 542639 Contact Us For Availability
47
WPL 799833 WPL 799833 Contact Us For Availability
47
WPL 978883 WPL 978883 Contact Us For Availability
48
Cover, Unit WPL 2157366 Contact Us For Availability
51
Tube, Drain WPL 2154119 Contact Us For Availability
54
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
54
Wedge, Air Baffle WPL 1118017 Contact Us For Availability
54
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
