Model Whirlpool ET22RKXXN00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

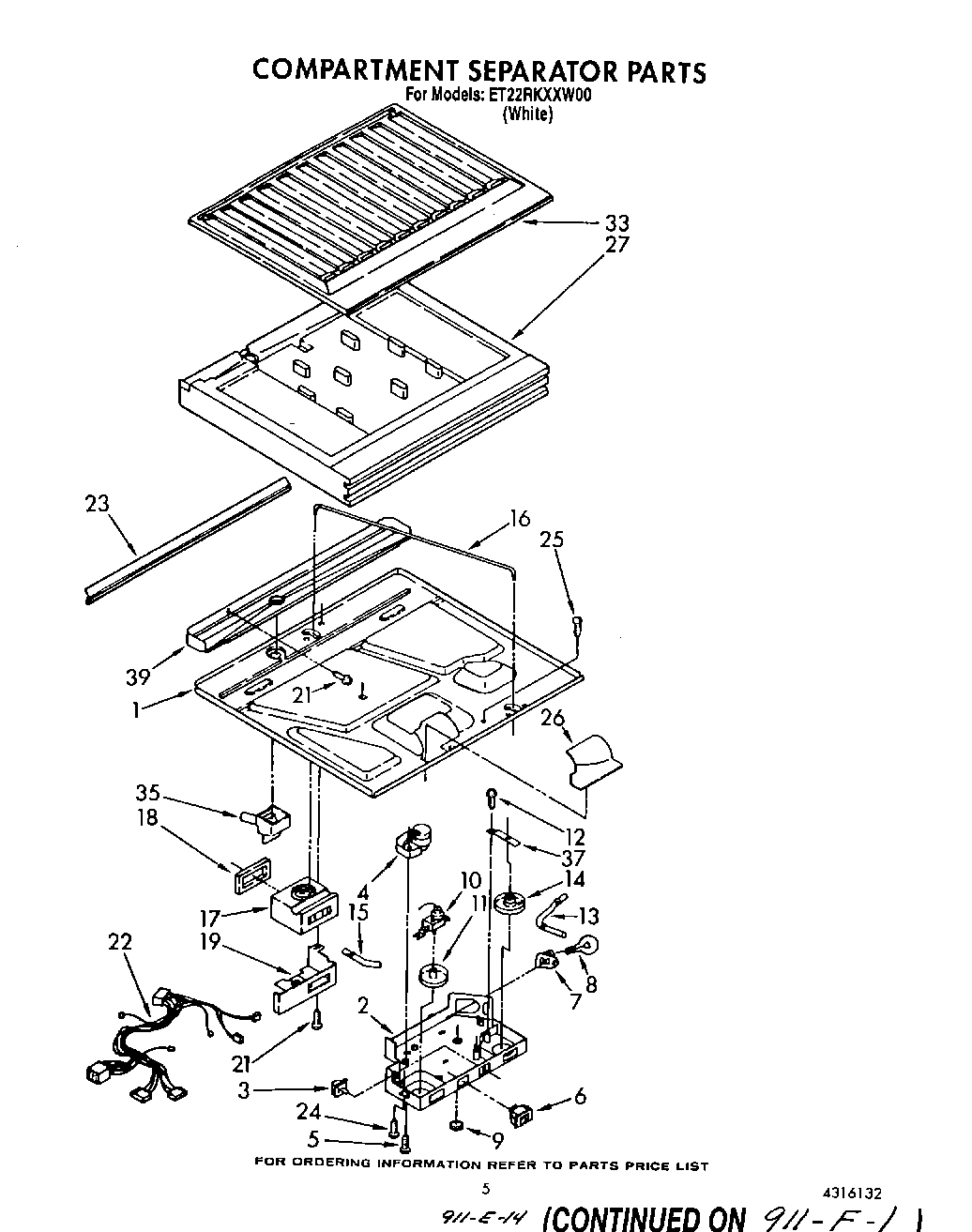

04 - COMPARTMENT SEPARATOR

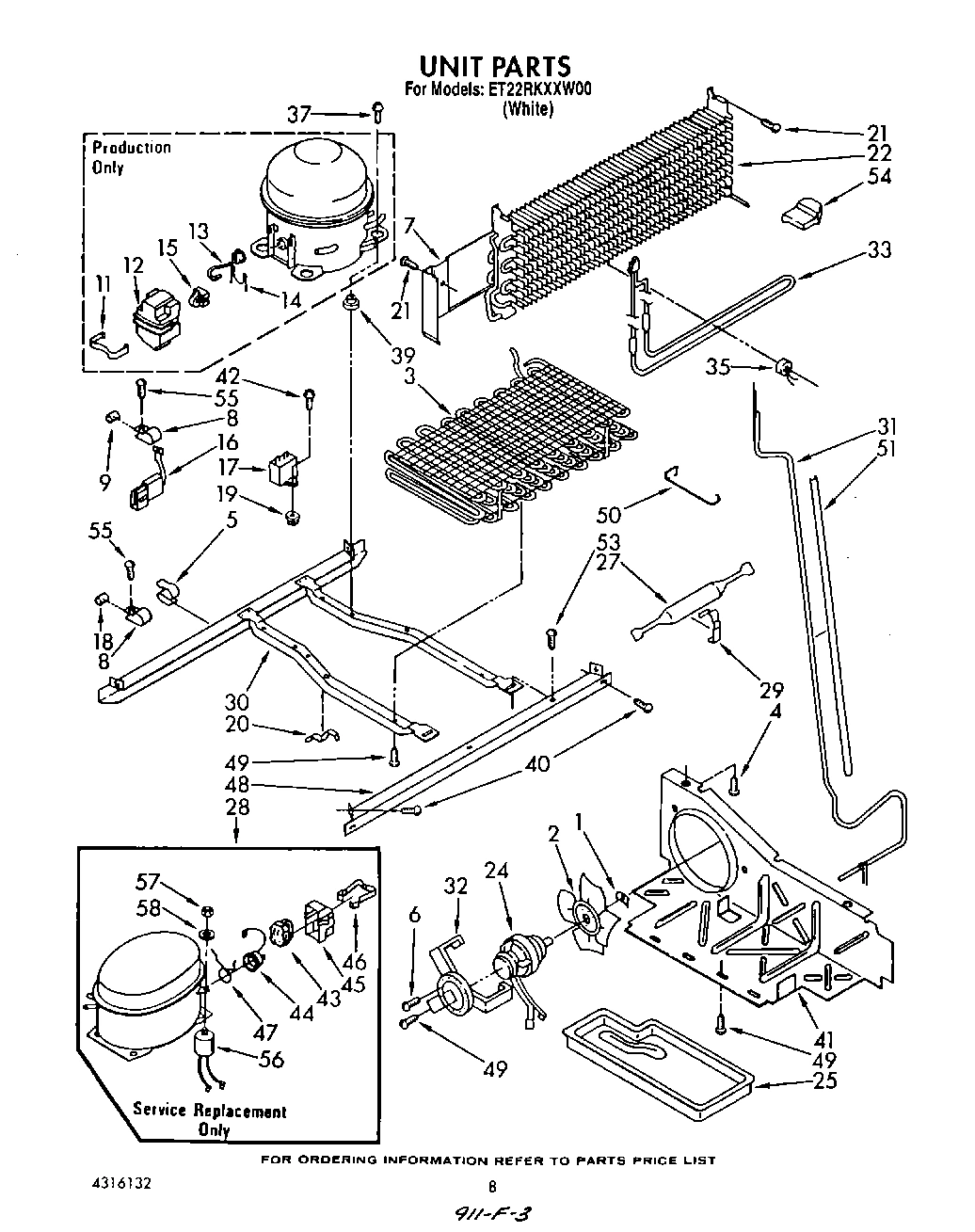

06 - UNIT

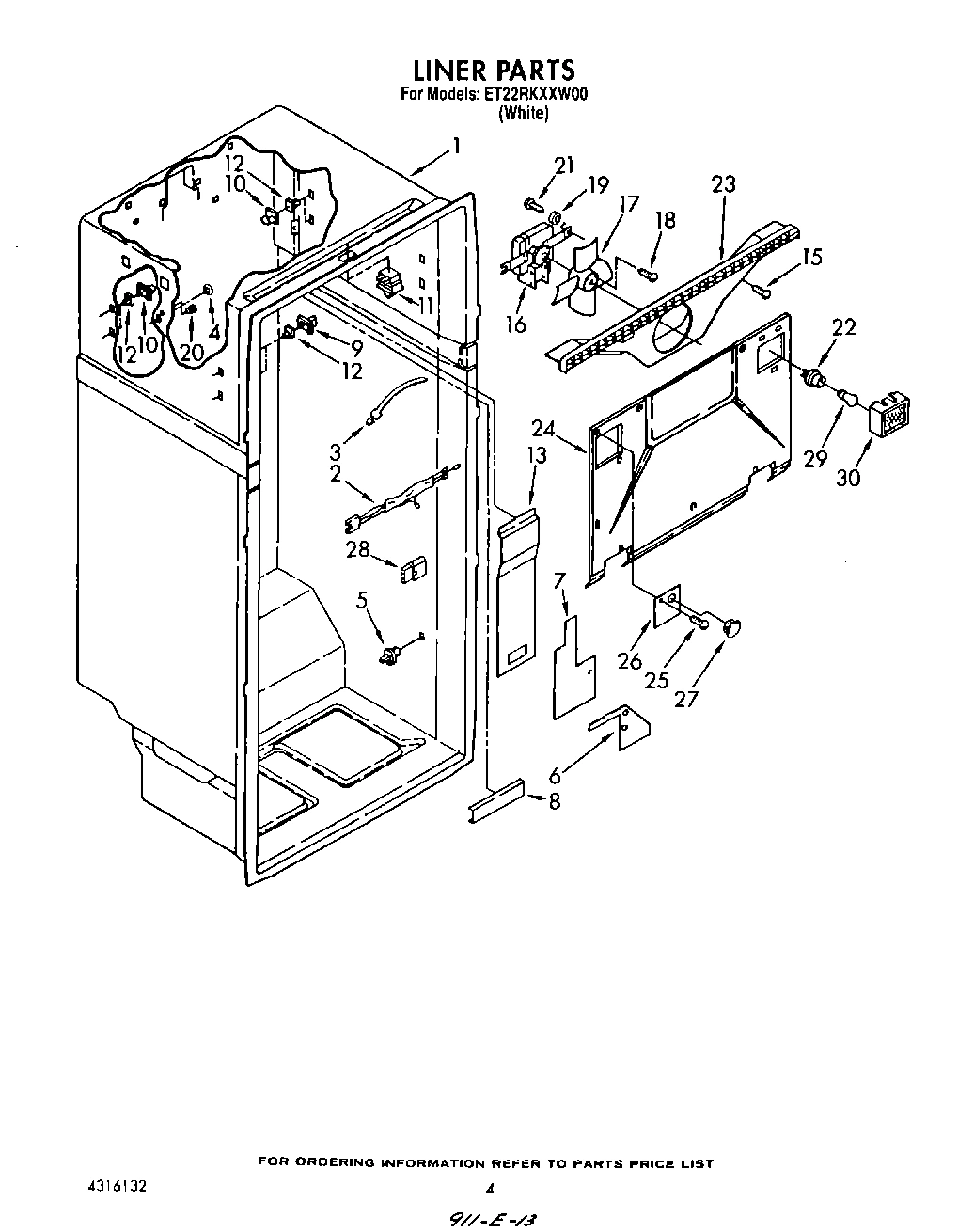

03 - LINER

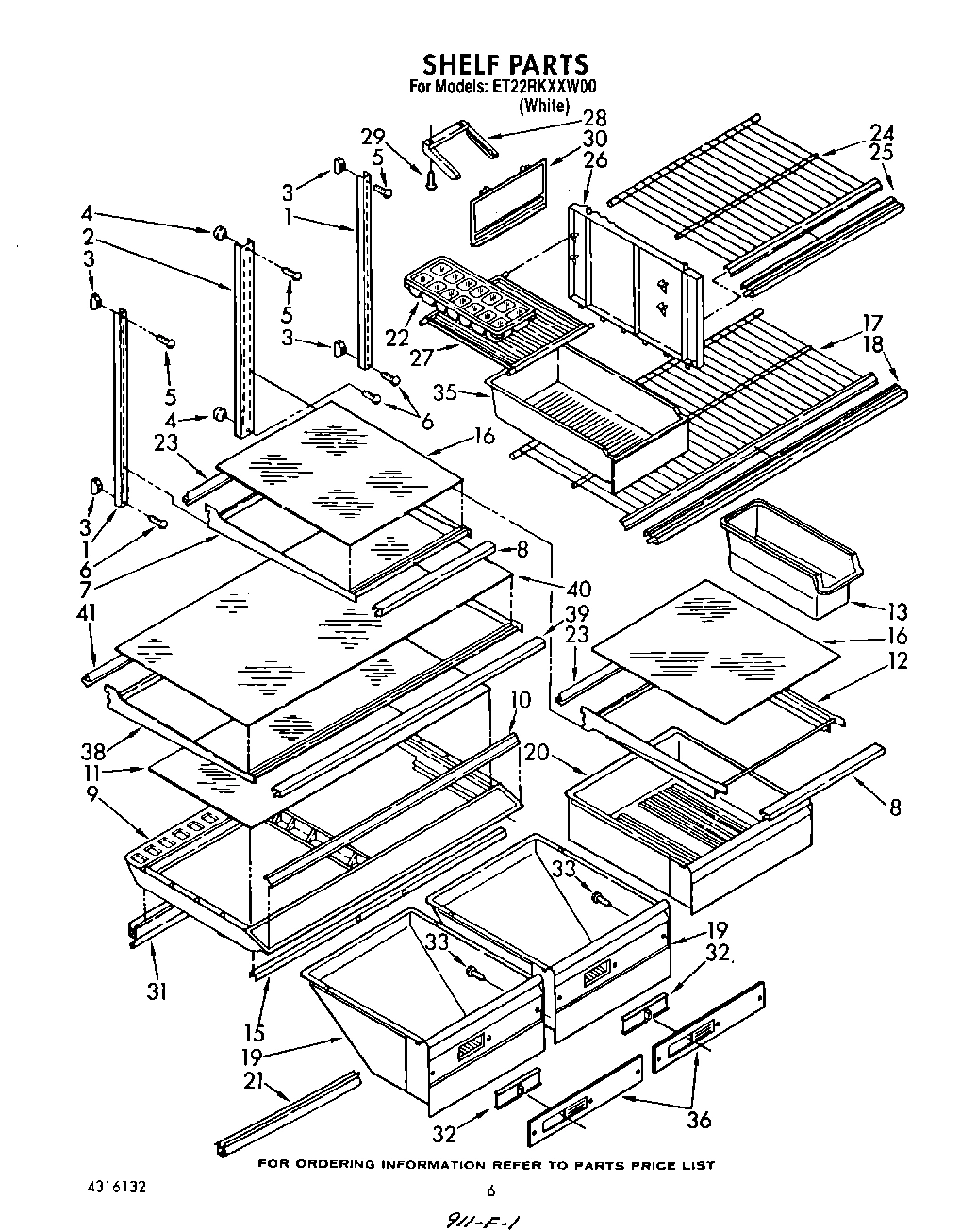

05 - SHELF, OPTIONAL

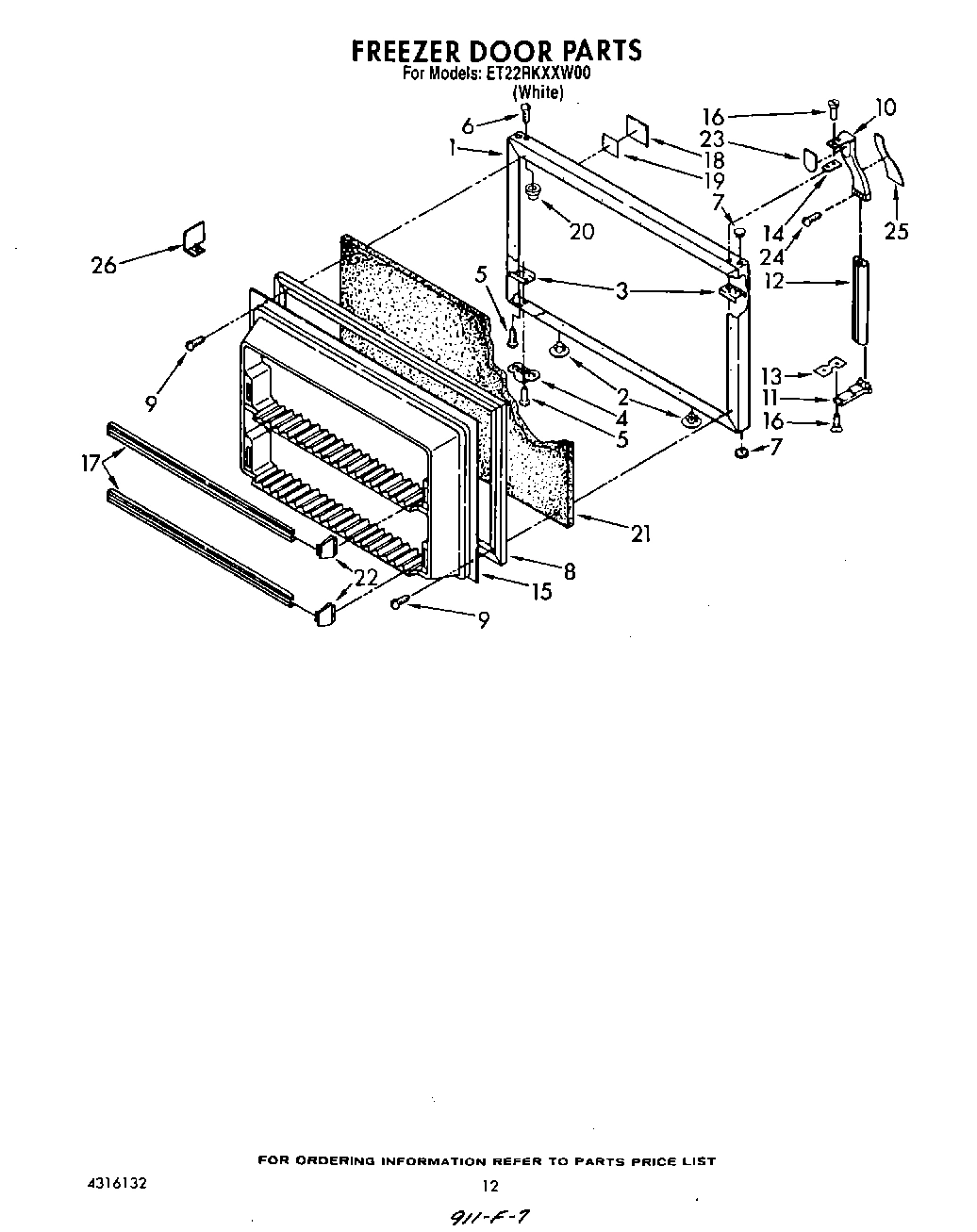

08 - FREEZER DOOR

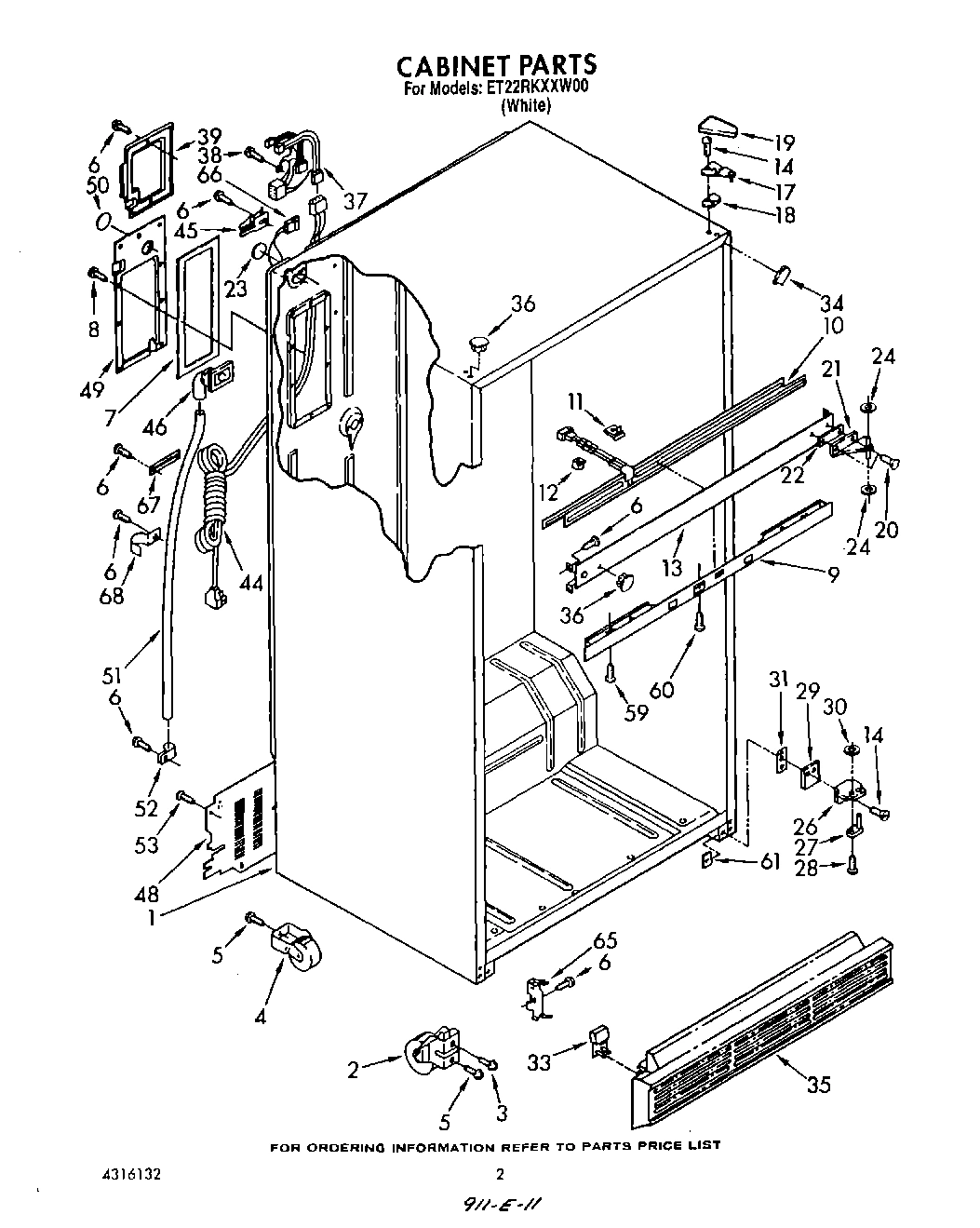

02 - CABINET

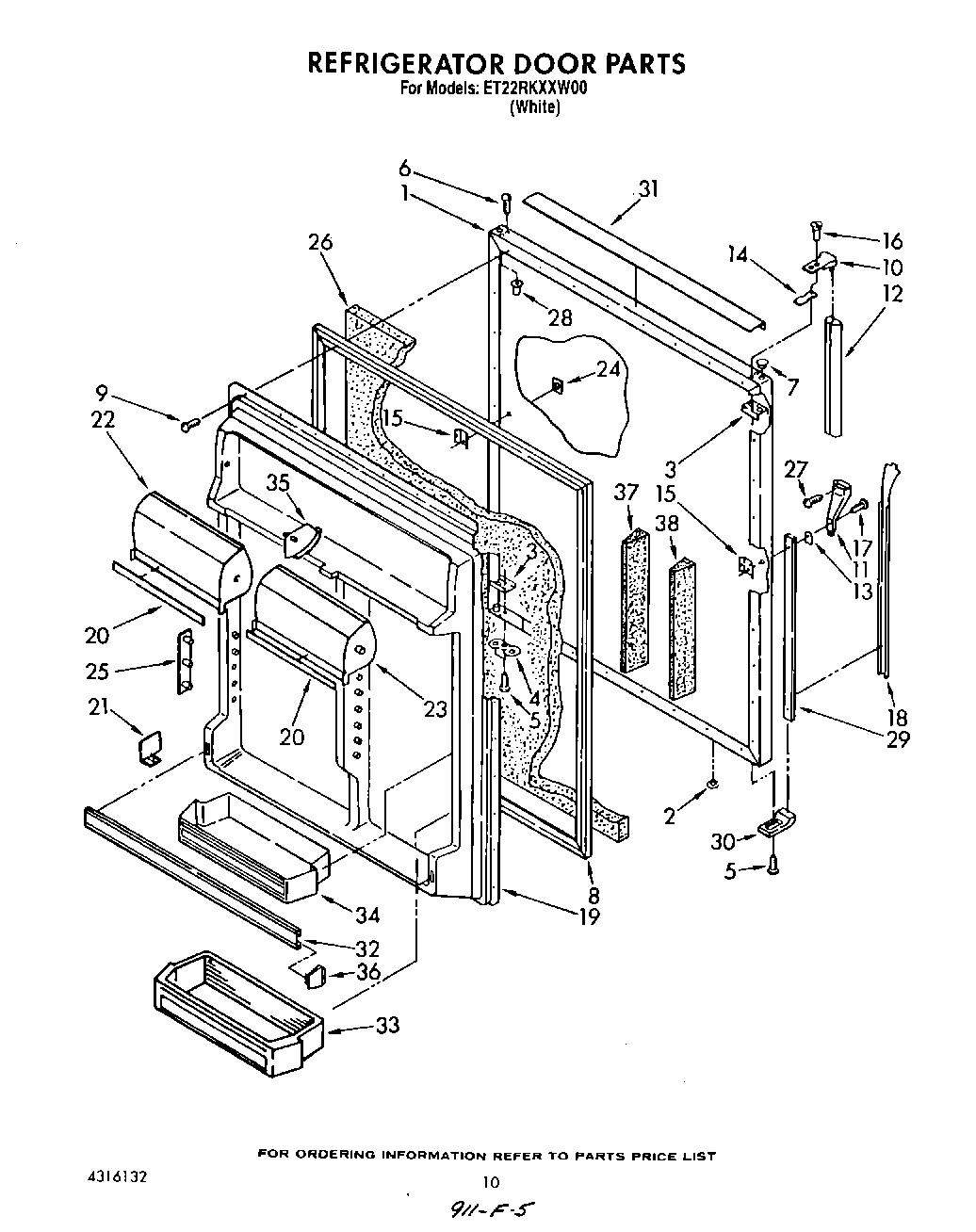

07 - REFRIGERATOR DOOR
Common parts from model Whirlpool ET22RKXXN00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL 350941 WPL 350941 Contact Us For Availability
WPL LIT1124256 WPL LIT1124256 Contact Us For Availability
WPL LIT2148618 WPL LIT2148618 Contact Us For Availability
WPL LIT2149861 WPL LIT2149861 Contact Us For Availability
WPL LIT4316132 WPL LIT4316132 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI50237A5 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1105509 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI50236A1 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 26) WPL 1105500 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
3
Strap, Mtg. WPL 1123230 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability
4
Screw, Support Center (2) WPL 520959 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Roller, Rear (2) WPL 2147324 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 (3) WPL 489345 Contact Us For Availability
6
Electrical Shield WPL 2151521 Contact Us For Availability
7
Electrical Shield WPL 1106696 Contact Us For Availability
7
Shelf, Cantilever (2) WPL 1110739 Contact Us For Availability
7
Sealing Gasket WPL 1114548 Contact Us For Availability
8
Electrical, Shield WPL 1106892 Contact Us For Availability
8
Trim, Shelf WPL 2148526 Contact Us For Availability
9
Stud (3) WPL 946356 Contact Us For Availability
9
Control, Front Cover WPL 2148533 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Trim, Crisper Cover WPL 1119480 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
10
Heater, Mullion WPL 1105433 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Glass, Crisper Cover WPL 1124553 Contact Us For Availability
11
Clip, Rail (4) WPL 1129018 Contact Us For Availability
12
Support, Stud (6) WPL 946355 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1110756 Contact Us For Availability
12
Handle, Center WPL 2150149 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Handle, Center WPL 2150150 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Cover, Air Duct WPL 1105447 Contact Us For Availability
13
Center Rail (White) WPL 1105424 Contact Us For Availability
13
Shim, Handle End (Side) WPL 935075 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Screw WPL 489327 Contact Us For Availability
15
Interior Door Panel WPL 1106865 Contact Us For Availability
16
Glass, Shelf WPL 1124554 Contact Us For Availability
17
Shelf, Freezer WPL 1106615 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2148555 Contact Us For Availability
17
Hinge, Top WPL 1123514 Contact Us For Availability
18
Shim, Hinge Top WPL 1123515 Contact Us For Availability
18
Trim, Shelf Front WPL 2148535 Contact Us For Availability
18
Nameplate WPL 2148544 Contact Us For Availability
18
Insert, Handle WPL 2150153 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Pan, Crisper WPL 2148522 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Interior Door Panel WPL 1124253 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Grommet, (6) WPL 1110779 Contact Us For Availability
20
Pan, Meat WPL 2148530 Contact Us For Availability
20
Screw WPL 489179 Contact Us For Availability
20
Trim, Door Compartment WPL 1122750 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Crisper Gasket, Front (2) WPL 1116512 Contact Us For Availability
21
Hinge, Center WPL 836153 Contact Us For Availability
21
Divider, Door Shelf WPL 2152335 Contact Us For Availability
22
Evaporator WPL 1103846 Contact Us For Availability
22
Socket, Light WPL 1123354 Contact Us For Availability
22
Shim, Center (Repair) WPL 836194 Contact Us For Availability
22
Shim, Hinge Center WPL 841604 Contact Us For Availability
22
Compartment Door, Right Side WPL 2148546 Contact Us For Availability
23
Scroll, Fan WPL 1127100 Contact Us For Availability
23
Reflector, Shelf WPL 1106768 Contact Us For Availability
23
Shim, EndCap (Top) WPL 935074 Contact Us For Availability
23
Hole Seal WPL 1129056 Contact Us For Availability
23
Compartment Door, Left Side WPL 2148548 Contact Us For Availability
24
Evaporator Cover WPL 1127142 Contact Us For Availability
24
Shelf, Freezer (Top) WPL 1106822 Contact Us For Availability
25
Tray, Evaporator WPL 1105524 Contact Us For Availability
25
Trim, Shelf WPL 2148537 Contact Us For Availability
25
Insert, Handle WPL 1108828 Contact Us For Availability
25
Pin Plate (8) WPL 1116986 Contact Us For Availability
26
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
26
Divider WPL 1106619 Contact Us For Availability
26
Divider, Door Shelf (2) WPL 1123293 Contact Us For Availability
26
Hinge Butt, Bottom WPL 836159 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Shelf, Ice Compartment (2) WPL 1106624 Contact Us For Availability
27
Screw, 6-20 x 3/8 (2) WPL 489022 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482982 Contact Us For Availability
28
Slide, Ice Compartment WPL 1106817 Contact Us For Availability
28
Cap, Hinge Sleeve (4) WPL 509929 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
29
Shim, Bottom WPL 836196 Contact Us For Availability
29
Retainer, Insert WPL 935871 Contact Us For Availability
30
Light Lens WPL 981365 Contact Us For Availability
30
Door, Ice Compartment WPL 2148538 Contact Us For Availability
30
Endcap, Insert Retainer WPL 1105804 Contact Us For Availability
31
Exchanger, Heat WPL 1105636 Contact Us For Availability
31
Crisper Gasket, Rear (2) WPL 1105653 Contact Us For Availability
31
Spacer WPL 1129868 Contact Us For Availability
31
Trim, Door WPL 1106148 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Slide, Crisper WPL 2148524 Contact Us For Availability
32
Trim, Door Shelf WPL 2148616 Contact Us For Availability
33
Heater, Defrost WPL 2149645 Contact Us For Availability
33
Screw WPL ARI50238A9 Contact Us For Availability
33
Corner Filler, Grille WPL 1125665 Contact Us For Availability
33
Bin, Door Shelf (2) WPL 2148549 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1110708 Contact Us For Availability
34
Bin, Door Shelf (Deep) (2) WPL 2148550 Contact Us For Availability
35
Grille WPL 1125663 Contact Us For Availability
36
Crisper, Pan Front WPL 2148523 Contact Us For Availability
36
Hole Plug (5) (White) WPL 1129062 Contact Us For Availability
37
Cabinet, Wiring Assembly WPL 2149634 Contact Us For Availability
37
Door Dike, Center WPL 1122711 Contact Us For Availability
38
Shelf, Full Cantilever WPL 1116350 Contact Us For Availability
38
Door Dike, Side (2) WPL 1122709 Contact Us For Availability
39
Trim, Shelf WPL 2148528 Contact Us For Availability
39
Cover, Wiring WPL 1105606 Contact Us For Availability
40
Glass, Full Shelf WPL 1124555 Contact Us For Availability
41
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
41
Baffle, Air WPL 1105530 Contact Us For Availability
41
Reflector, Shelf WPL 1120818 Contact Us For Availability
41
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
41
KIT, WPL 799833 Contact Us For Availability
41
WPL 978883 WPL 978883 Contact Us For Availability
44
Overload WPL 483054 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Cover, Terminal WPL 1105015 Contact Us For Availability
45
Clamp WPL 937357 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
46
Fitting, Drain WPL 937062 Contact Us For Availability
47
Overload Spring WPL 1114190 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cover, Unit WPL 2147329 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
49
Cover, Plug WPL 1105527 Contact Us For Availability
50
Guard, Fan WPL 1105614 Contact Us For Availability
50
Hole Seal WPL 1120224 Contact Us For Availability
52
Clamp WPL 836077 Contact Us For Availability
53
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
54
Wedge, Air Baffle WPL 1105632 Contact Us For Availability
56
Capacitor WPL 482996 Contact Us For Availability
57
Nut WPL 489142 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Washer WPL 489143 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability
67
Tube Clamp WPL 1105607 Contact Us For Availability
68
Clamp WPL 1110564 Contact Us For Availability
8316^6
Black Handle Insert WPL 819245 Contact Us For Availability
8317^7
Trim Kit WPL 819288 Contact Us For Availability
8318^8
Black DecorPanel WPL 819344 Contact Us For Availability
8320^0
Trimless Black Decor Panel R.H. WPL 4210431 Contact Us For Availability
8321^1
Trimless Black Decor Panel L.H. WPL 4210432 Contact Us For Availability
× ![]()
