Model Whirlpool ET22PKXBN01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
05 - UNIT
07 - FREEZER DOOR, LIT/OPTIONAL

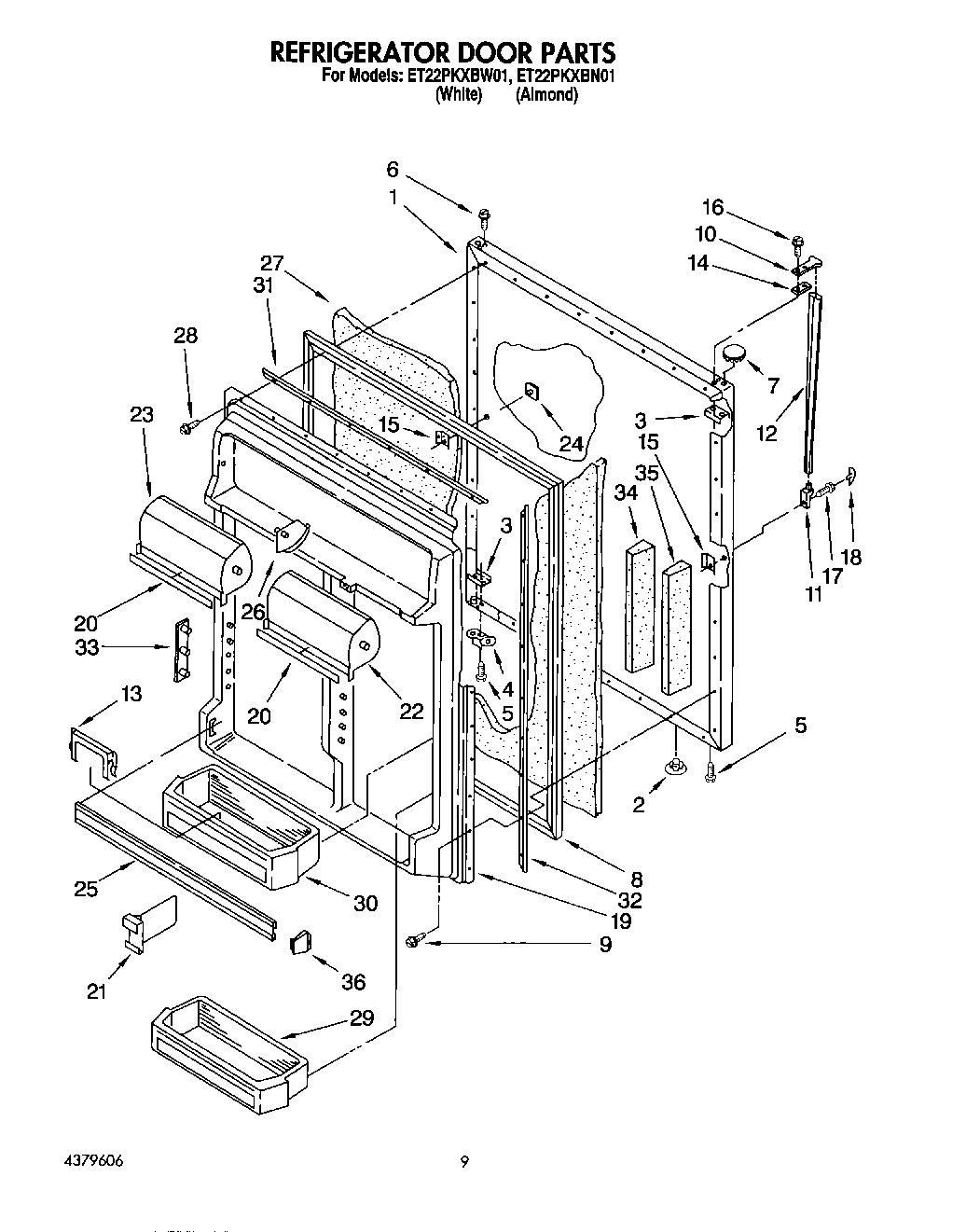

06 - REFRIGERATOR DOOR

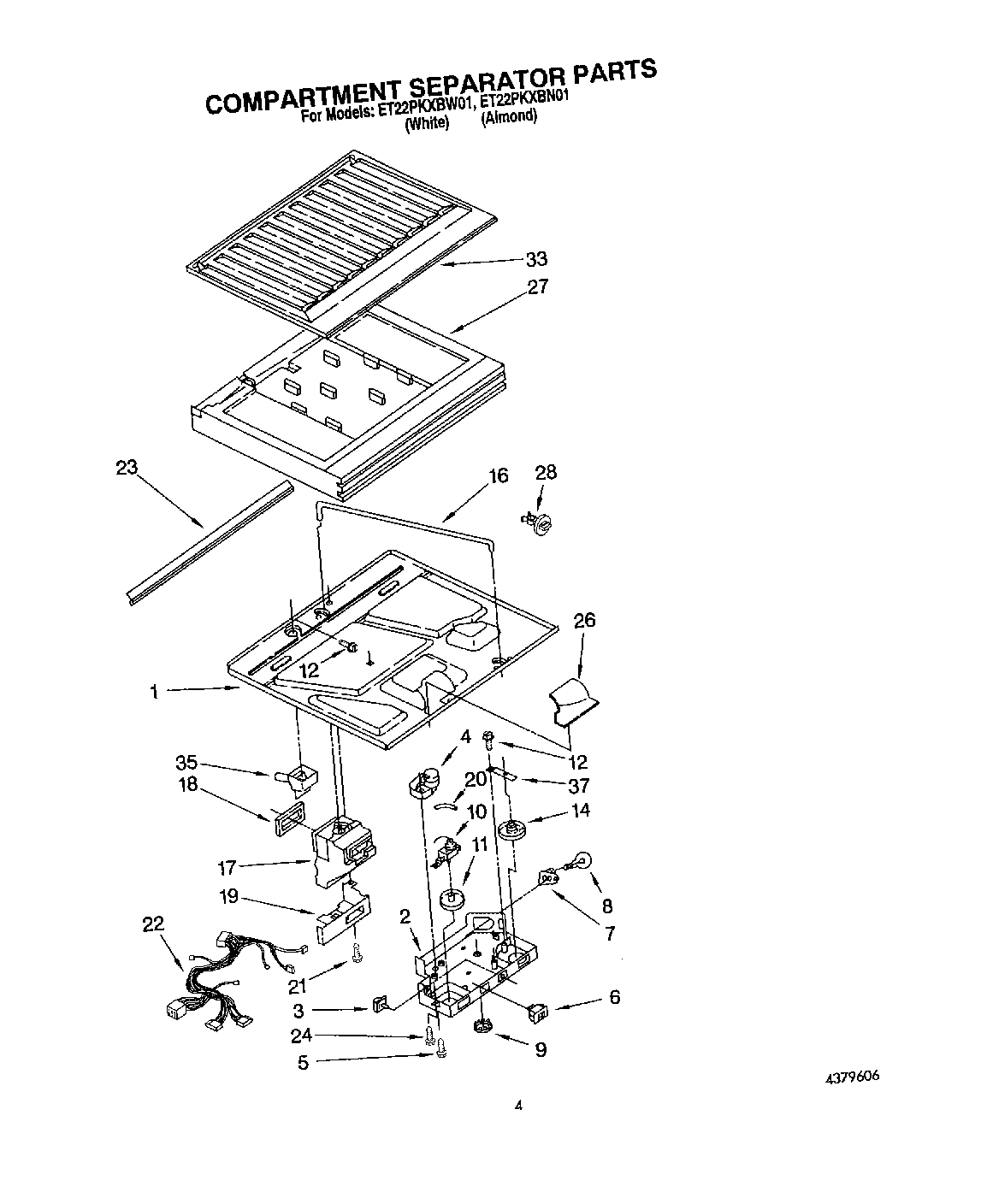

03 - COMPARTMENT SEPARATOR

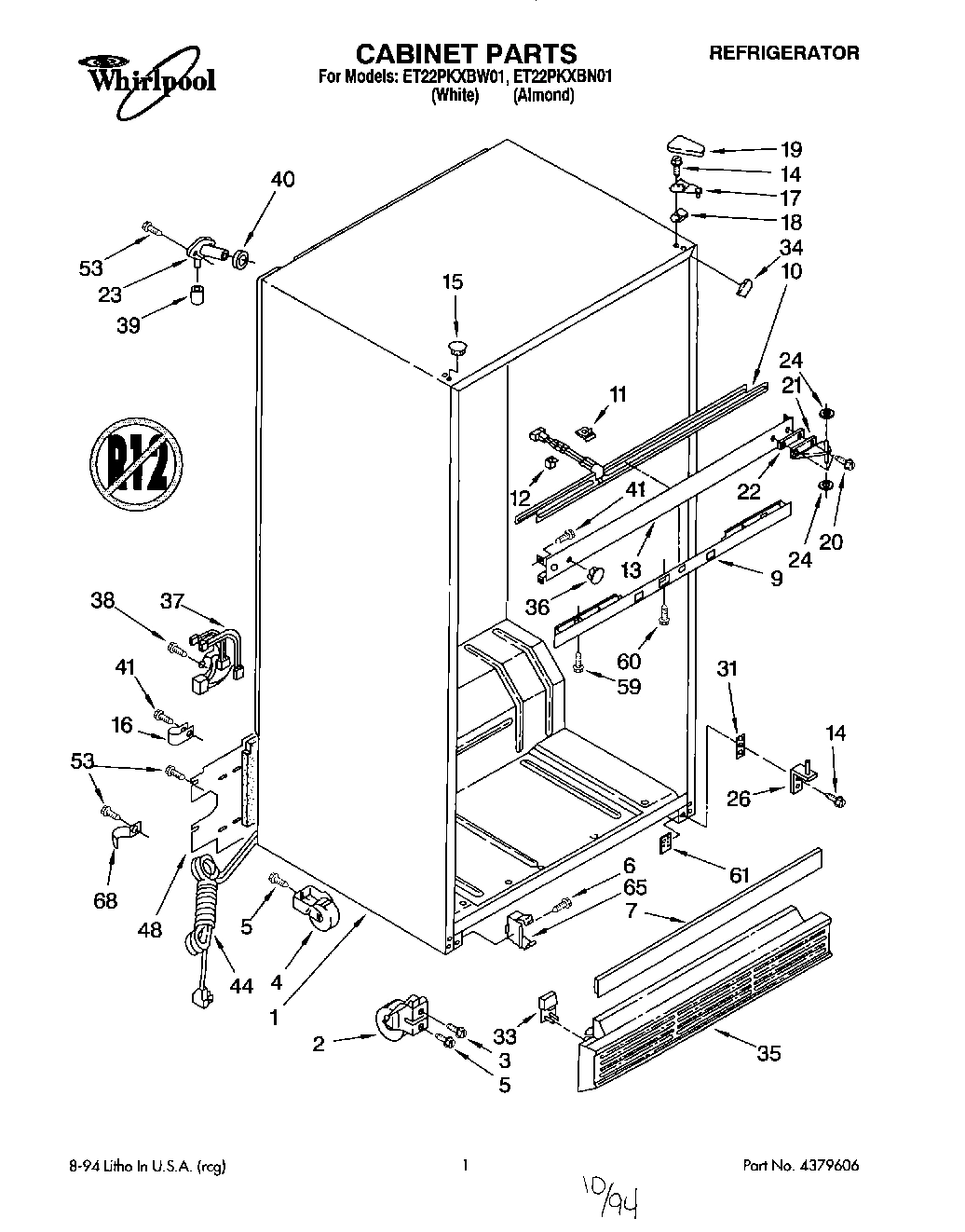

01 - CABINET

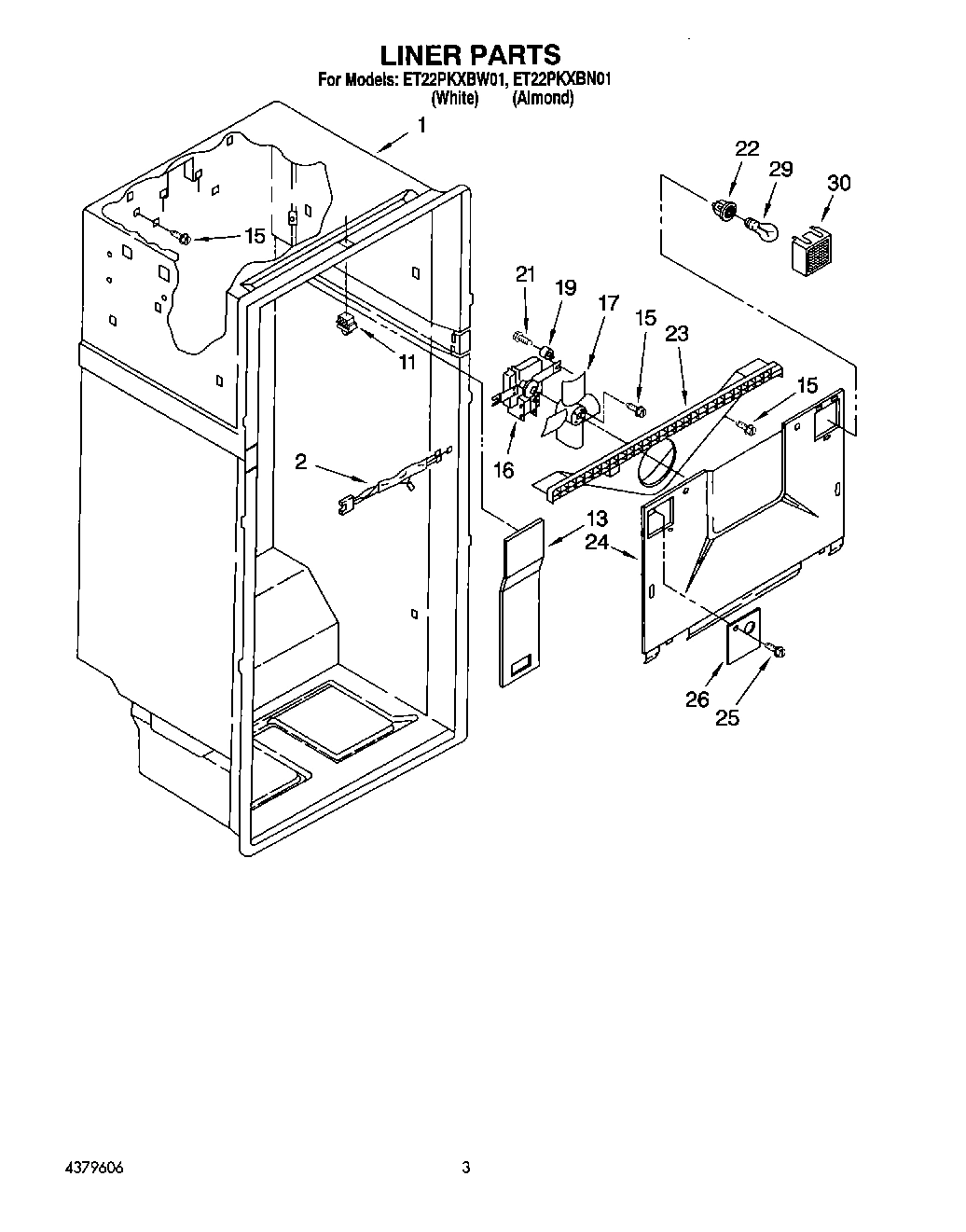

02 - LINER

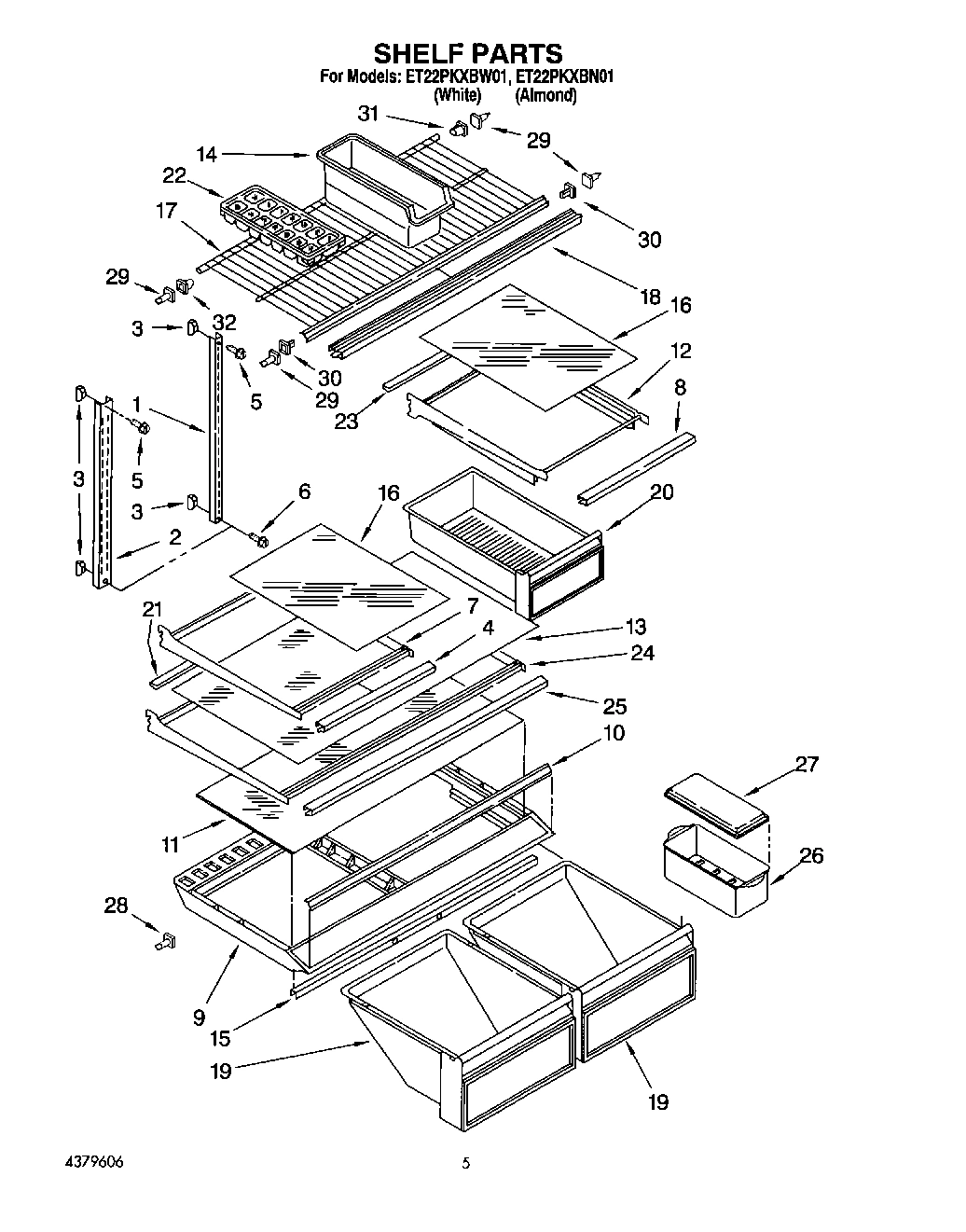

04 - SHELF
Common parts from model Whirlpool ET22PKXBN01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159163 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 27) WPL 1122549 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 27) WPL 1122658 Contact Us For Availability
1
Bottom, Compartment Separator WPL 2172820 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI50153A4 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI50154A9 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Box, Control WPL 2151992 Contact Us For Availability
2
Roller, Front WPL 2174749 Contact Us For Availability
2
Wiring, Fan Motor WPL 2169524 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
4
Reflector, Shelf WPL 2162943 Contact Us For Availability
5
Screw, WPL 489345 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Deck Rail Cover WPL 2172708 Contact Us For Availability
7
Shelf, Cantilever WPL 1110739 Contact Us For Availability
8
Trim, Shelf WPL 2162941 Contact Us For Availability
9
Hole Plug WPL 940014 Contact Us For Availability
9
Control, Front Cover WPL 2148533 Contact Us For Availability
10
Heater, Mullion WPL 2157307 Contact Us For Availability
10
Trim, Crisper Cover WPL 2170833 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
11
Clip, Center Rail (4) WPL 1129018 Contact Us For Availability
11
Glass, Crisper Cover WPL 1106929 Contact Us For Availability
12
Handle, Center (Almond) WPL 2159623 Contact Us For Availability
12
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1110756 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Retainer, Bottle WPL 2163566 Contact Us For Availability
13
Center Rail WPL 2172705 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
13
Glass Shelf WPL 1114434 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
15
Interior Door Panel WPL 1122575 Contact Us For Availability
15
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
16
Rod, Connecting WPL 1105460 Contact Us For Availability
16
Glass, Shelf WPL 1114474 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2170592 Contact Us For Availability
17
Air Diffuser Assembly WPL 2169522 Contact Us For Availability
17
Blade, Fan WPL 2169221 Contact Us For Availability
17
Shelf, Freezer WPL 1106615 Contact Us For Availability
18
Nameplate (White) WPL 2162781 Contact Us For Availability
18
Nameplate (Almond) WPL 2162782 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Shim, Hinge Top WPL 2157269 Contact Us For Availability
18
Trim, Shelf Front WPL 2162934 Contact Us For Availability
19
Interior Door Panel WPL 2156245 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Pan, Crisper WPL 2170935 Contact Us For Availability
20
Trim, Door Compartment WPL 2164839 Contact Us For Availability
20
Pan, Meat WPL 2170930 Contact Us For Availability
21
Divider-Door Bin WPL 2152335 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Reflector, Shelf WPL 2163604 Contact Us For Availability
22
Compartment Door (R.S.) WPL 2170943 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
23
Compartment Door (L.S.) WPL 2170944 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
23
Scroll, Fan WPL 2169467 Contact Us For Availability
23
Retainer, Glass WPL 1110744 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Evaporator Cover WPL 2157427 Contact Us For Availability
24
Shelf, Full Cantilever WPL 1116350 Contact Us For Availability
25
WPL 876029 WPL 876029 Contact Us For Availability
25
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
25
WPL 799344 WPL 799344 Contact Us For Availability
25
Retainer, Gasket WPL 1122553 Contact Us For Availability
25
Door Reversal Instructions WPL 2172761 Contact Us For Availability
25
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
25
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
25
WPL 799833 WPL 799833 Contact Us For Availability
25
WPL 978883 WPL 978883 Contact Us For Availability
25
Trim, Door WPL 2170588 Contact Us For Availability
25
Trim, Shelf WPL 2170596 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Insulation, Compartment Separator WPL 2172896 Contact Us For Availability
27
Cover, Bin WPL 2170949 Contact Us For Availability
28
Shelf Stud WPL 1106612 Contact Us For Availability
28
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
29
Shelf Bin (2) WPL 2170616 Contact Us For Availability
29
Stud, Support WPL 946355 Contact Us For Availability
30
Shelf Bin, Deep WPL 2170615 Contact Us For Availability
30
Light Lens WPL 981365 Contact Us For Availability
30
Stud, Front (2) WPL 946356 Contact Us For Availability
31
Retainer, Gasket WPL 1122551 Contact Us For Availability
31
Spacer WPL 2172744 Contact Us For Availability
32
Retainer, Gasket WPL 1122552 Contact Us For Availability
33
Pin Plate WPL 1116986 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2151663 Contact Us For Availability
33
Corner Filler, Grille WPL 1118078 Contact Us For Availability
34
Reinforcement Dike-Mid WPL 1122711 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
35
Reinforcement Dike-Side WPL 1122709 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Grille WPL 1129001 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
Wiring Assembly, Intermediate WPL 2153994 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
48
Cover, Unit WPL 2160490 Contact Us For Availability
56
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
