Model Whirlpool ET22PKXAN02 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

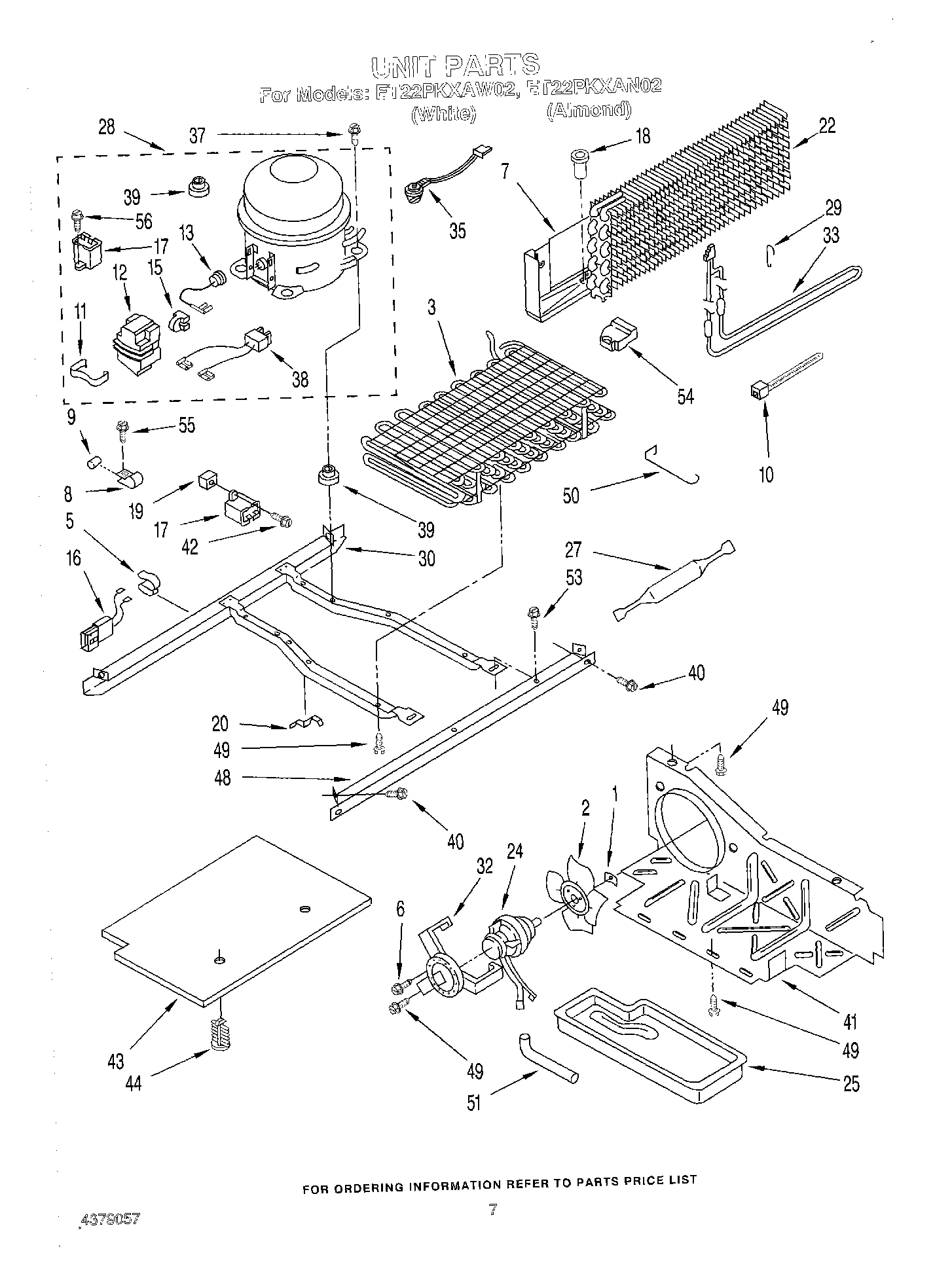

05 - UNIT

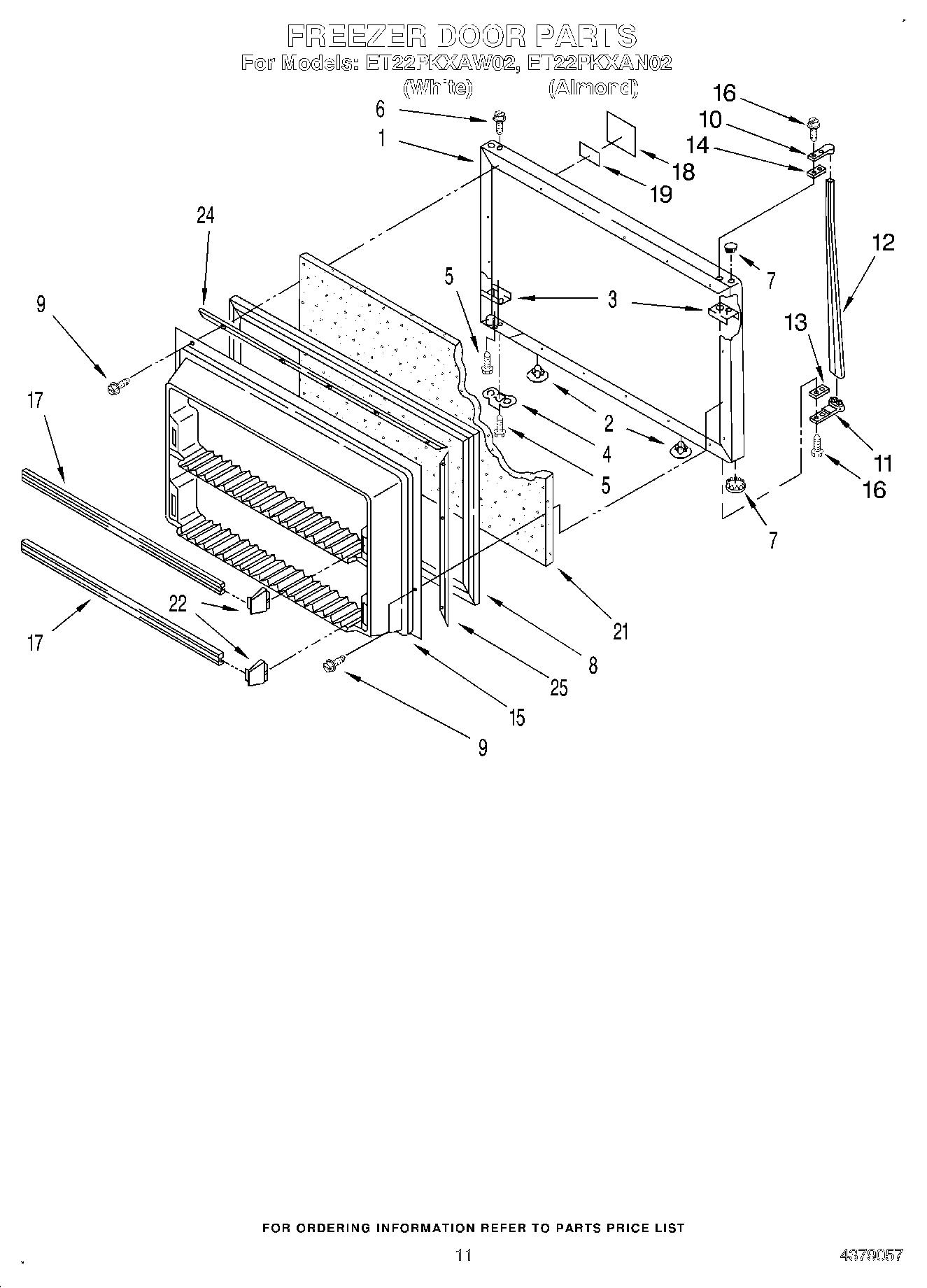

07 - FREEZER DOOR

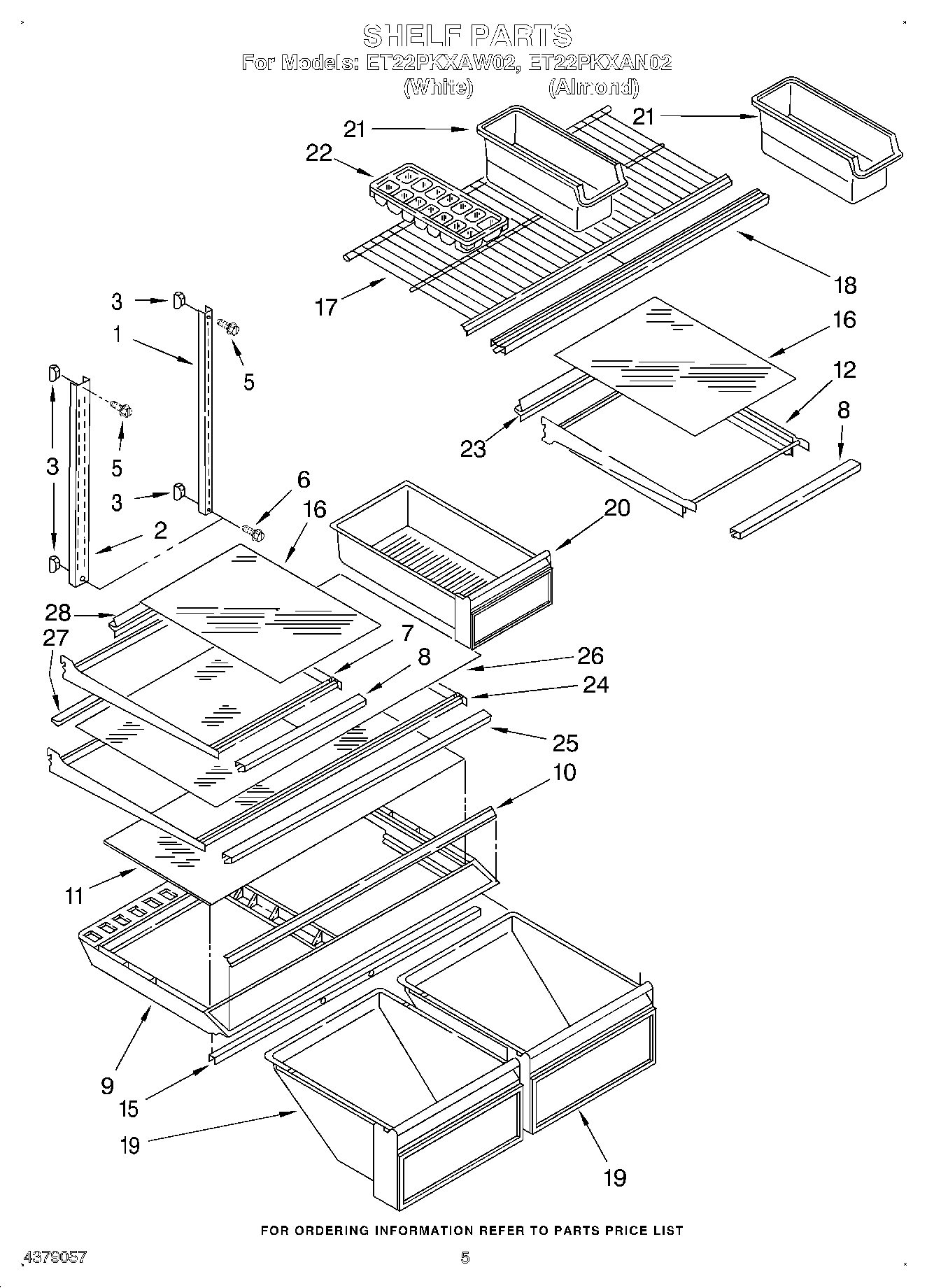

04 - SHELF

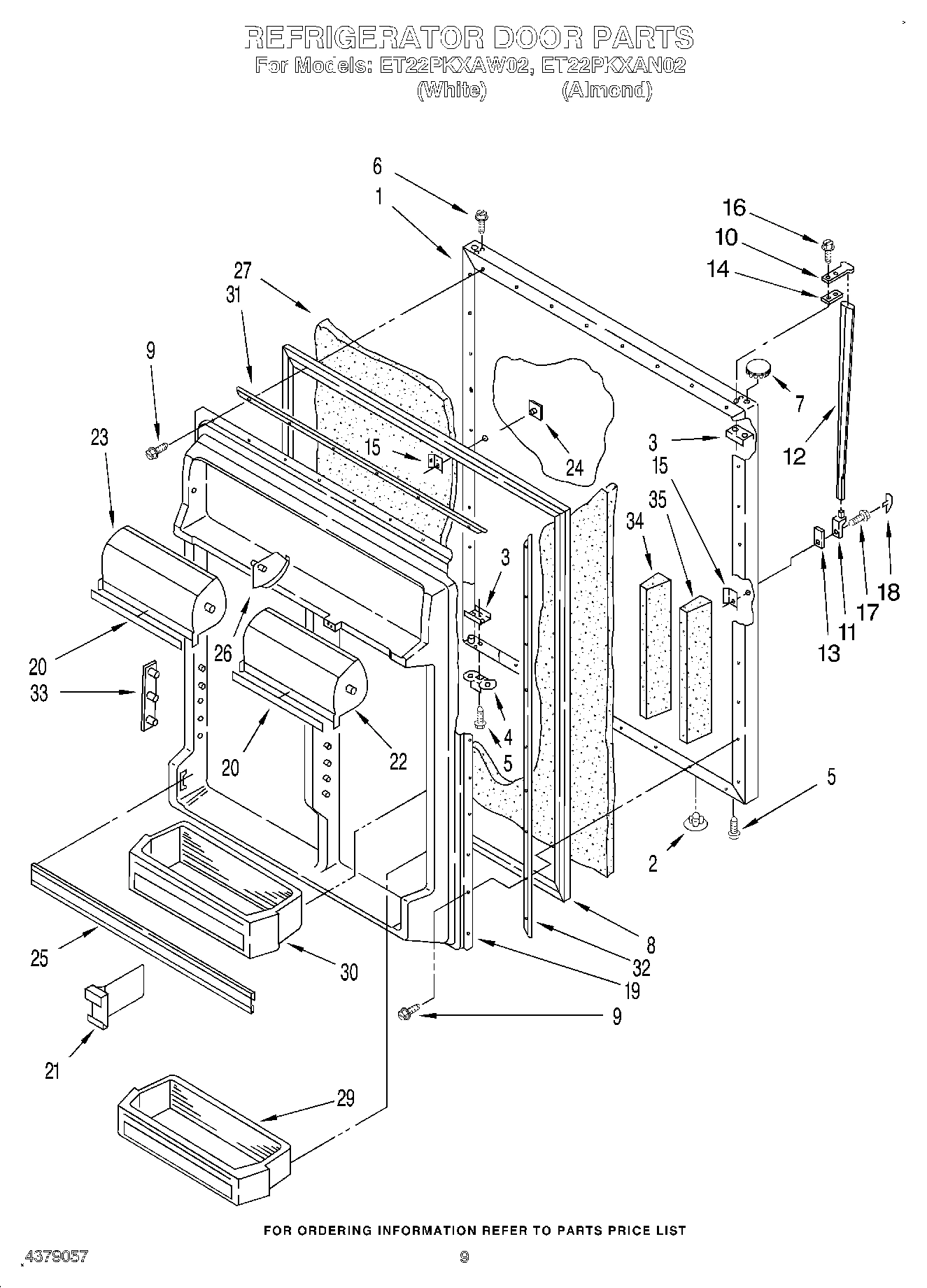

06 - REFRIGERATOR DOOR

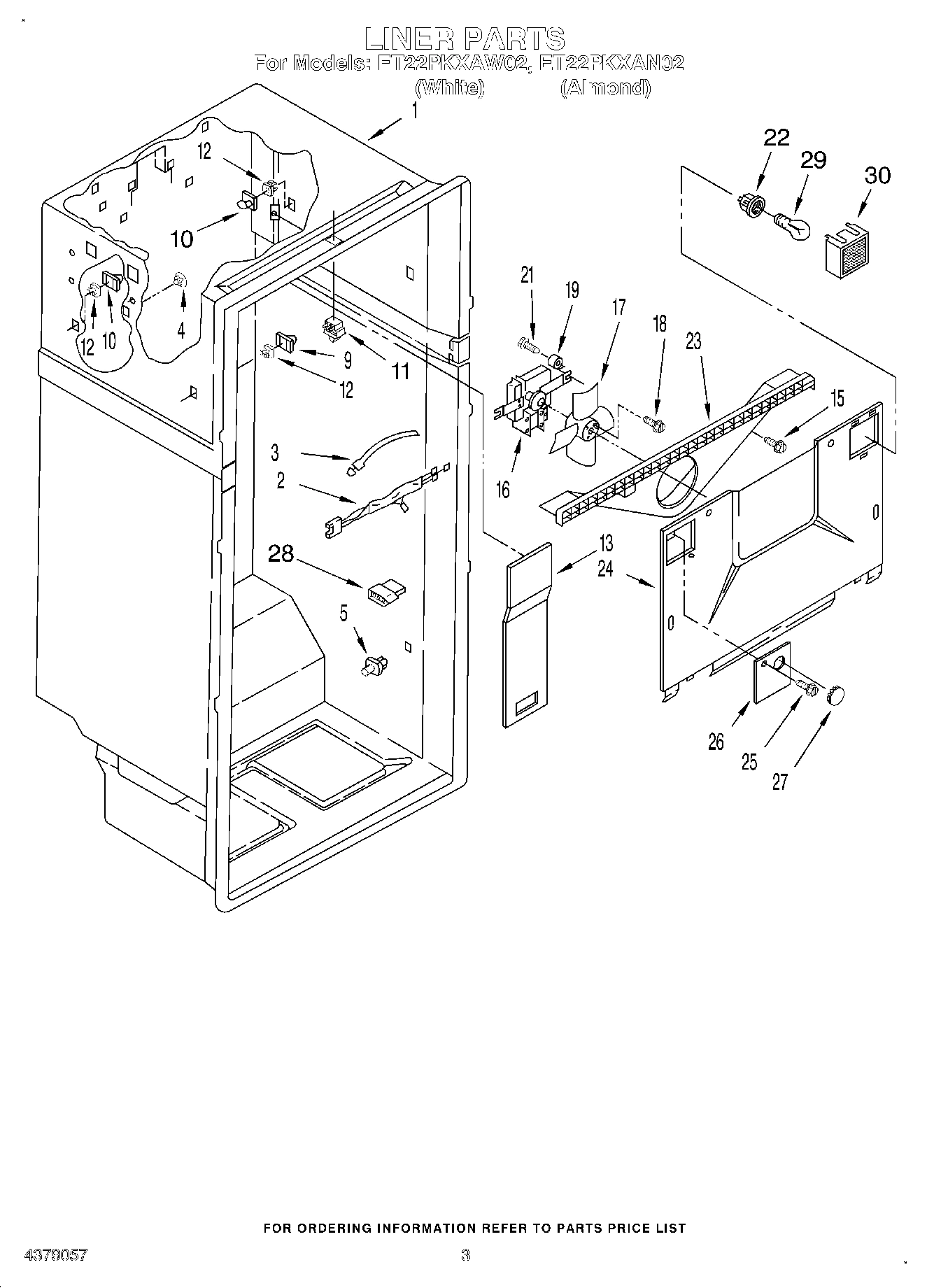

02 - LINER

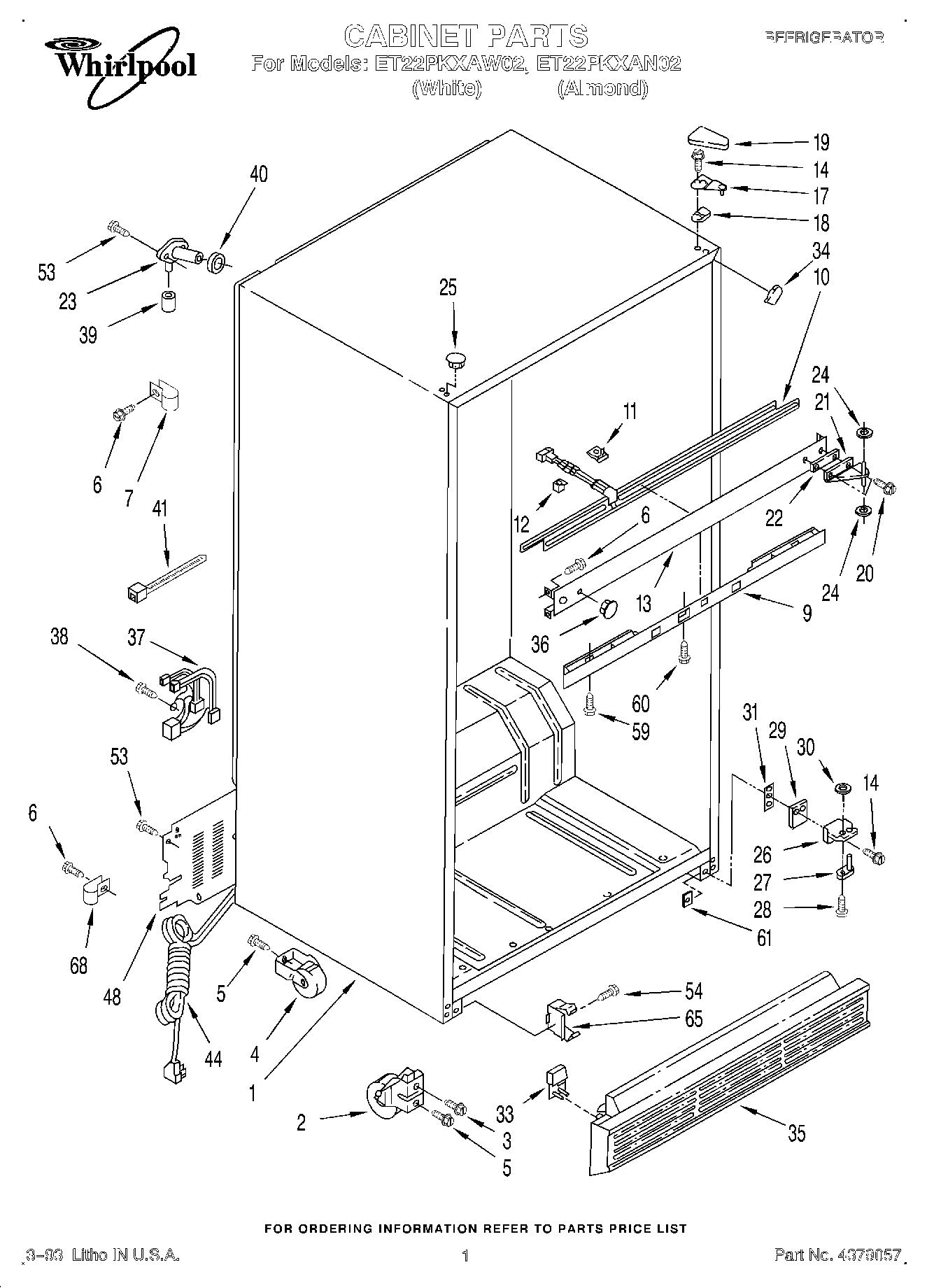

01 - CABINET

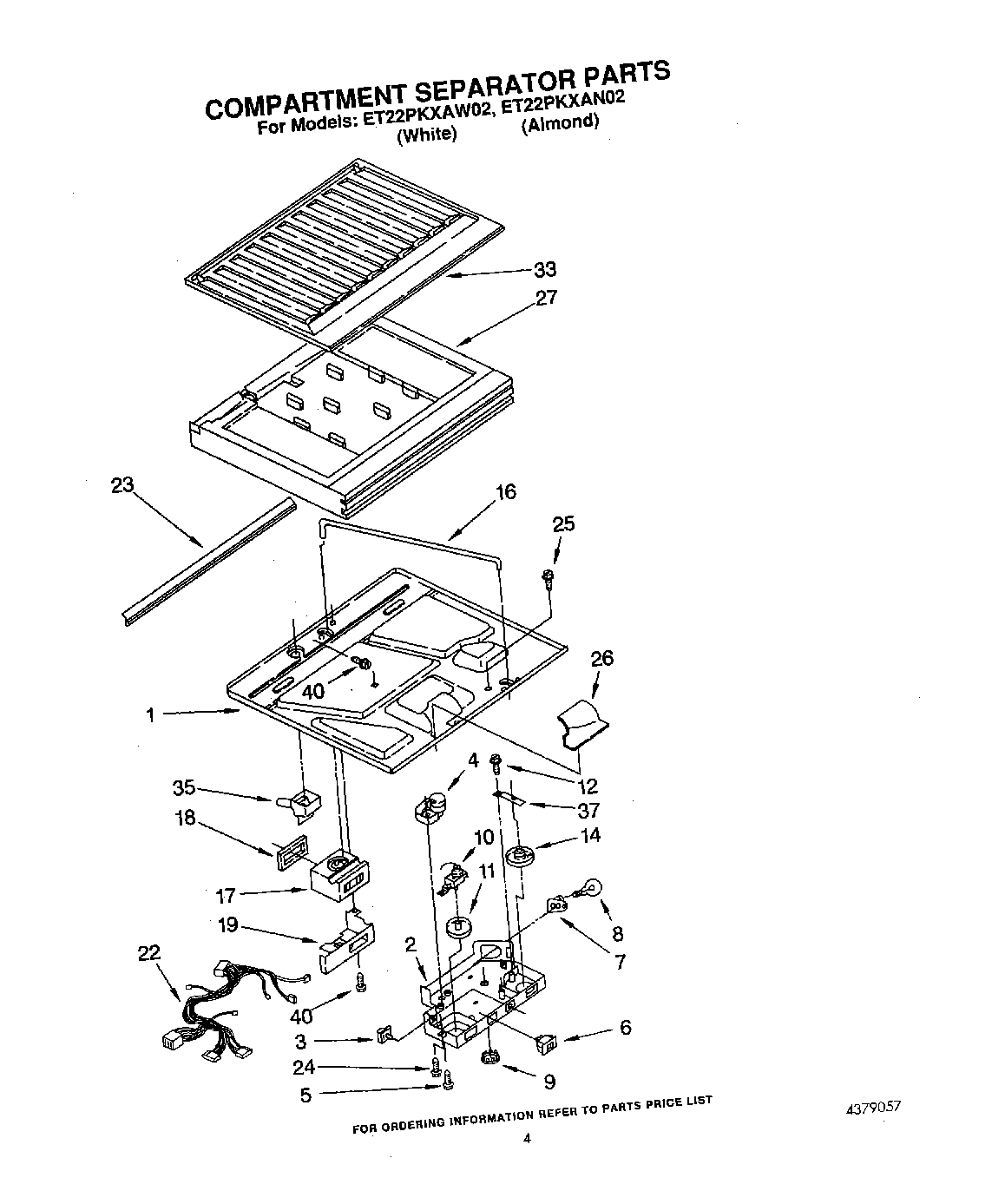

03 - COMPARTMENT SEPARATOR
Common parts from model Whirlpool ET22PKXAN02 TOP MOUNT REFRIGERATOR
WPL LIT2154076 WPL LIT2154076 Contact Us For Availability
WPL LIT2160153 WPL LIT2160153 Contact Us For Availability
WPL LIT2162812 WPL LIT2162812 Contact Us For Availability
WPL LIT4379057 WPL LIT4379057 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1122549 Contact Us For Availability
1
Panel, Refrigerator Door (Almond (Also Order WPL 1122658 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI50135A4 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI50134A6 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1105452 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Box, Control WPL 2151992 Contact Us For Availability
3
Strap, Mtg. WPL 1123230 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
5
Shelf Stud (2) WPL 1106612 Contact Us For Availability
5
Screw, WPL 489345 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 (6) WPL 488454 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Shelf, Cantilever (2) WPL 1110739 Contact Us For Availability
8
Trim, Shelf WPL 1110742 Contact Us For Availability
9
Stud (3) WPL 946356 Contact Us For Availability
9
Control, Front Cover WPL 2148533 Contact Us For Availability
10
Trim, Crisper Cover WPL 1105649 Contact Us For Availability
10
Heater, Mullion WPL 2157307 Contact Us For Availability
11
Glass, Crisper Cover WPL 1106929 Contact Us For Availability
11
Clip, Rail (4) WPL 1129018 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
12
Handle, Center (Almond) WPL 2159623 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1110756 Contact Us For Availability
12
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
12
Support, Stud (6) WPL 946355 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle WPL 992872 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
13
Center Rail WPL 1122566 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
15
Interior Door Panel WPL 1122575 Contact Us For Availability
16
Glass, Shelf WPL 1114474 Contact Us For Availability
16
Rod, Connecting WPL 1105460 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2159701 Contact Us For Availability
17
Shelf, Freezer WPL 1106615 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157252 Contact Us For Availability
18
Nameplate (White Model) WPL 2162781 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2162782 Contact Us For Availability
18
Trim, Shelf Front WPL 1106618 Contact Us For Availability
18
Shim, Hinge Top WPL 2157269 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Pan, Crisper WPL 2148160 Contact Us For Availability
19
Interior Door Panel WPL 2156245 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
20
Pan, Meat WPL 2148934 Contact Us For Availability
20
Trim, Door Compartment WPL 1124223 Contact Us For Availability
21
Divider, Door Bin WPL 2152336 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Hinge, Center WPL 2147335 Contact Us For Availability
22
Compartment Door, Right Side WPL 2148139 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
23
Reflector, Shelf WPL 1110744 Contact Us For Availability
23
Compartment Door, Left Side WPL 2148141 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
24
Shelf, Full Cantilever WPL 1116350 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Evaporator Cover WPL 2157427 Contact Us For Availability
25
Retainer, Gaske WPL 1122553 Contact Us For Availability
25
Trim, Shelf WPL 1114436 Contact Us For Availability
25
Trim, Door (3) WPL 2159700 Contact Us For Availability
25
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
26
Glass, Full Shelf WPL 1114434 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1123378 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Reflector, Shelf WPL 1114435 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105464 Contact Us For Availability
28
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
28
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
28
Torx Key WPL 1117510 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Reflector WPL 1110743 Contact Us For Availability
28
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
28
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
28
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
28
WPL 978883 WPL 978883 Contact Us For Availability
29
Bin WPL 2163334 Contact Us For Availability
29
Shim, Bottom WPL 1123379 Contact Us For Availability
30
Washer, 7/32 WPL 489200 Contact Us For Availability
30
Bin-Deep WPL 2163335 Contact Us For Availability
30
Light Lens WPL 981365 Contact Us For Availability
31
Retainer, Gasket WPL 1122551 Contact Us For Availability
31
Spacer WPL 1121117 Contact Us For Availability
32
Retainer, Gasket WPL 1122552 Contact Us For Availability
33
Pin Plate WPL 1116986 Contact Us For Availability
33
Corner Filler, Grille WPL 1118078 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2151663 Contact Us For Availability
34
Reinforcement Dike-Mid WPL 1122711 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
35
Reinforcement Dike-Side WPL 1122709 Contact Us For Availability
35
Grille WPL 1129001 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Hole Plug (5) (White) WPL 1129062 Contact Us For Availability
36
Hole Plug (5) (Almond) WPL 1129063 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
48
Cover, Unit WPL 2160490 Contact Us For Availability
56
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability
× ![]()
