Model Whirlpool ET22DMXBN00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
07 - ICEMAKER
05 - UNIT

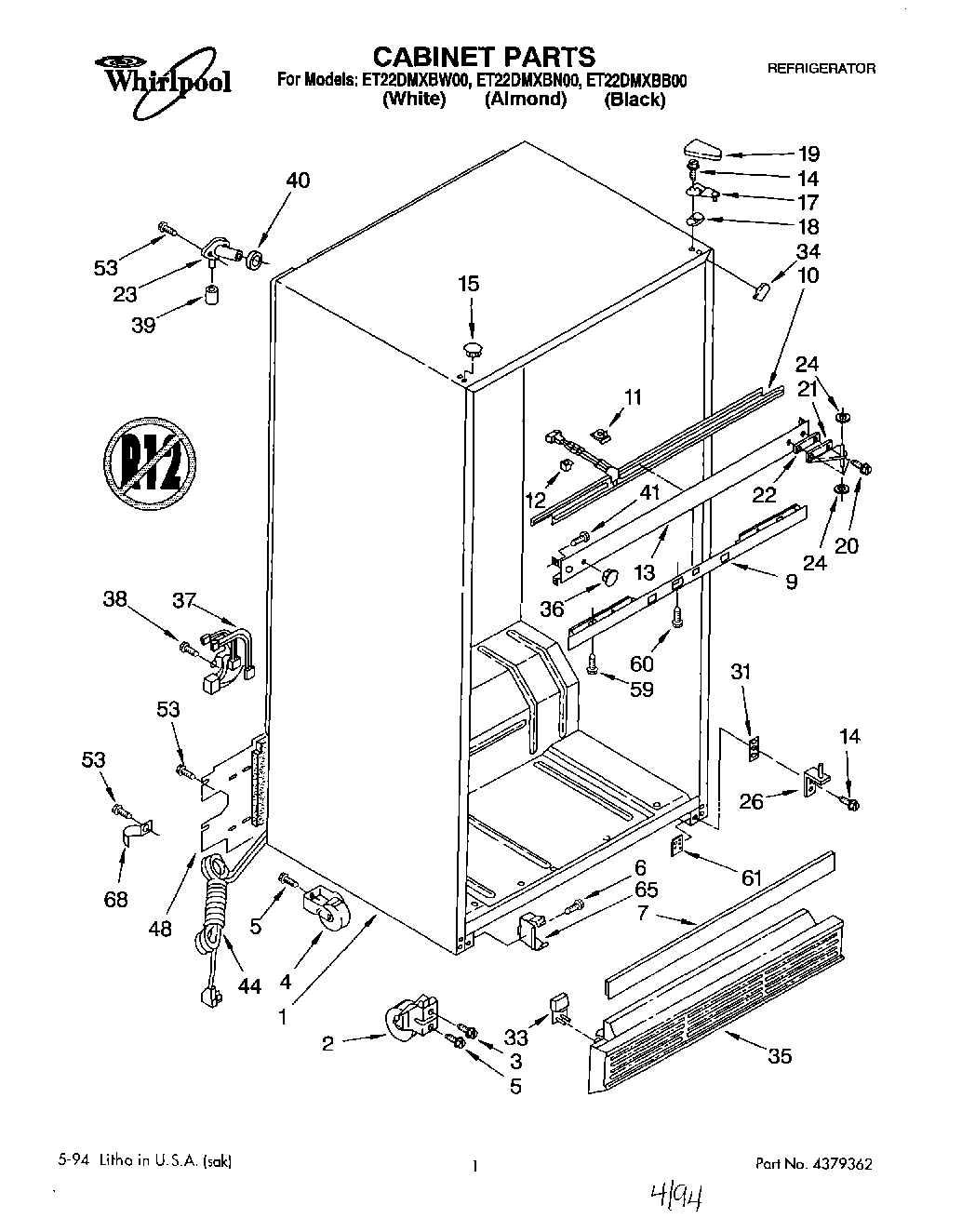

01 - CABINET

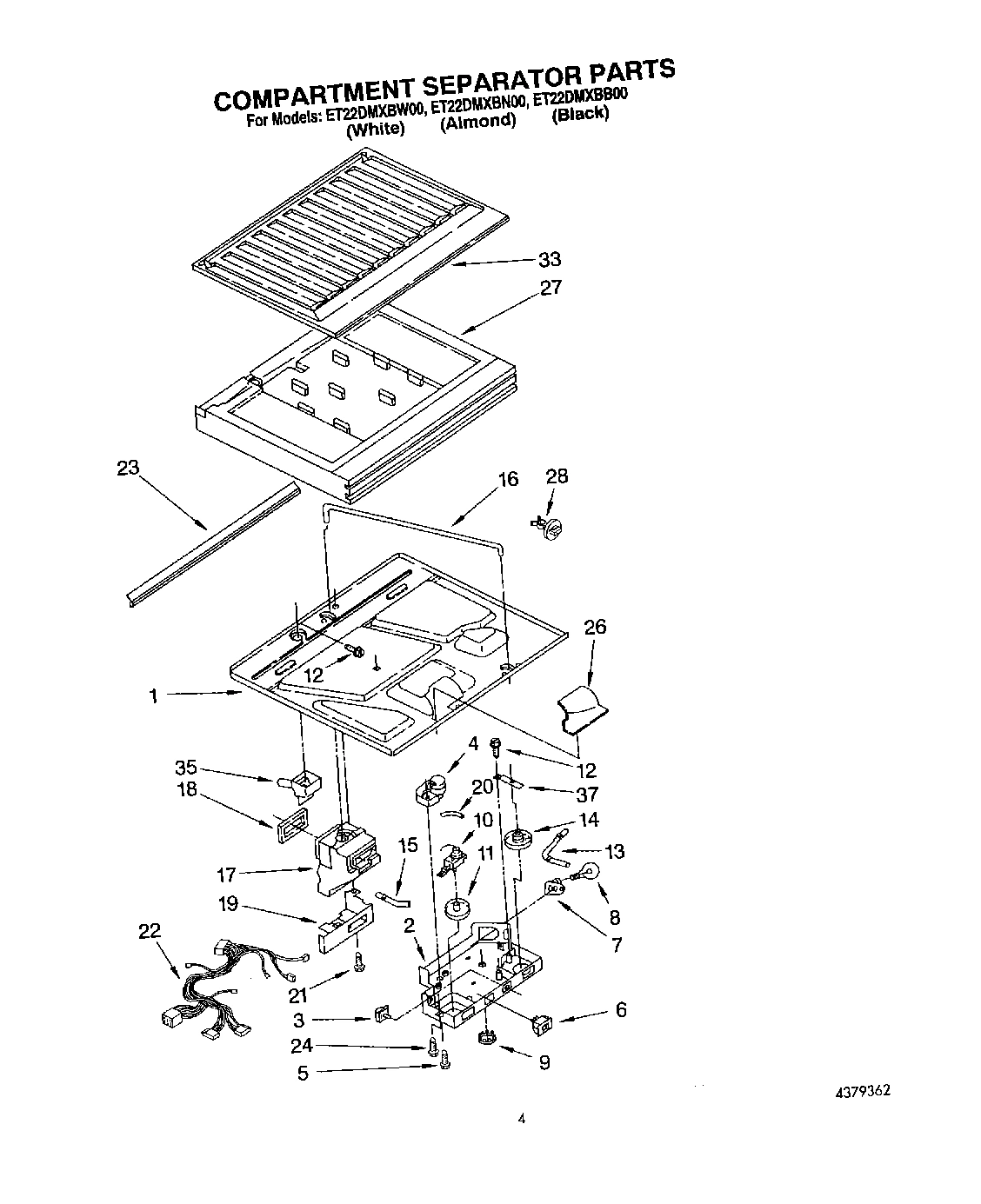

03 - COMPARTMENT SEPARATOR

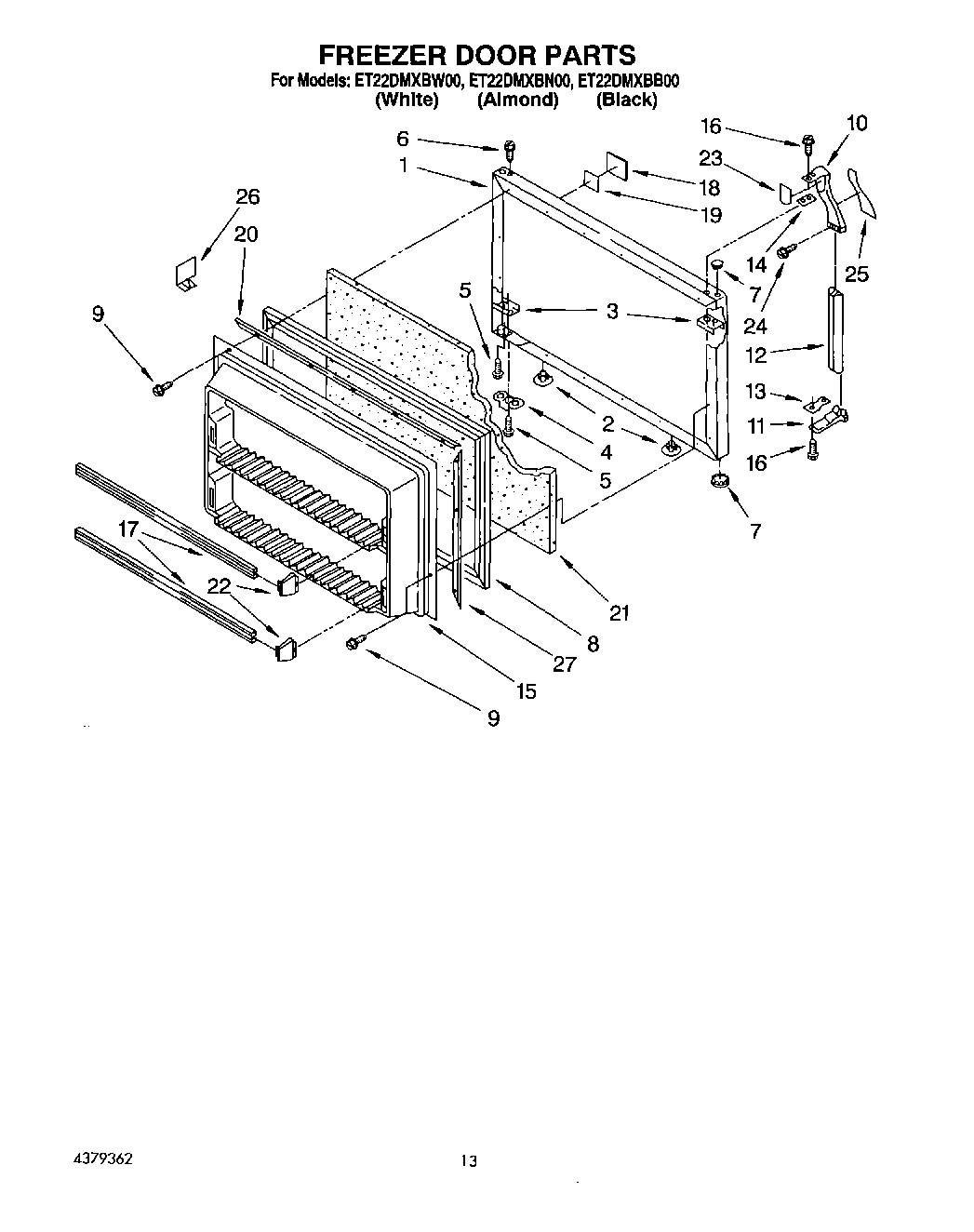

08 - FREEZER DOOR

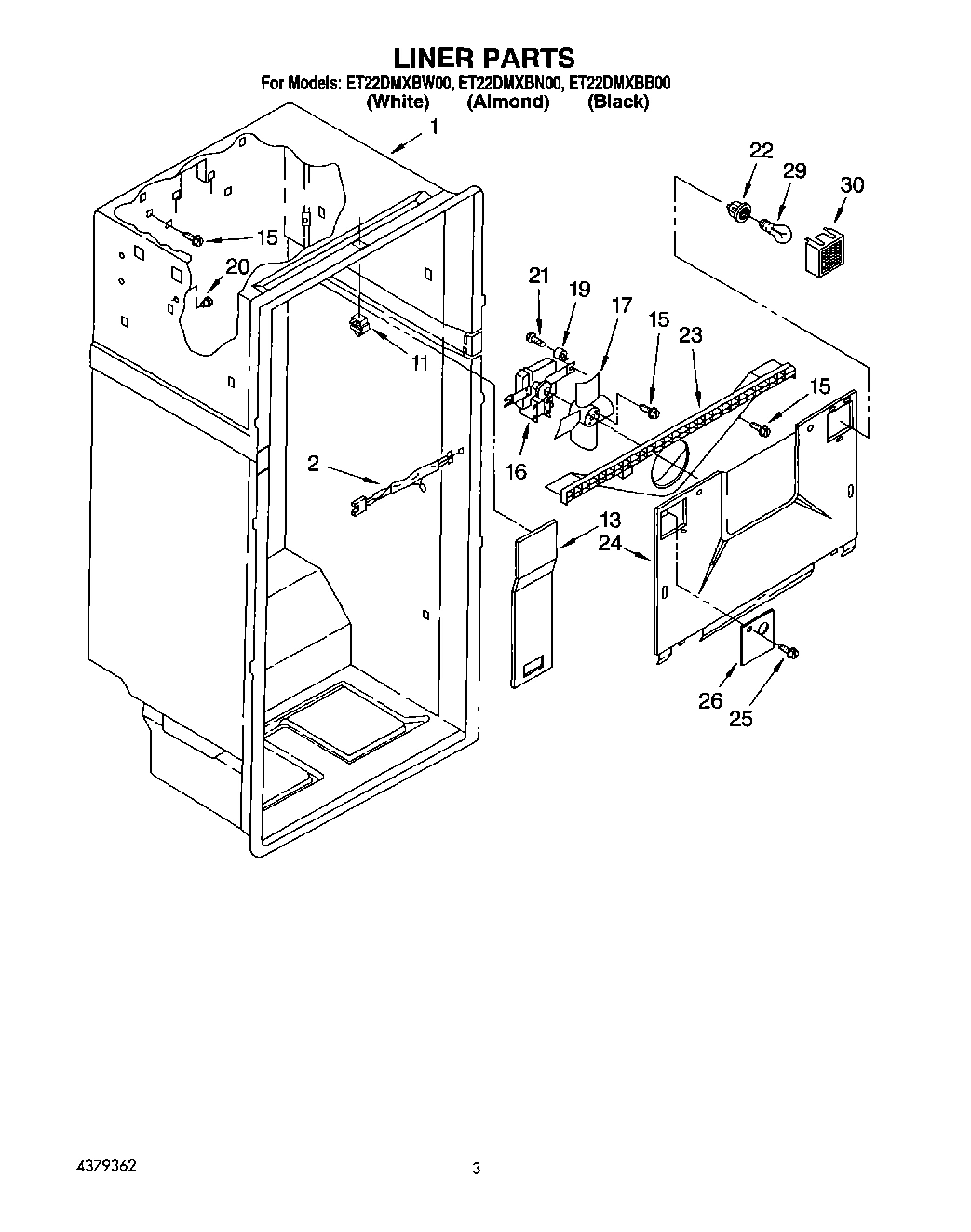

02 - LINER

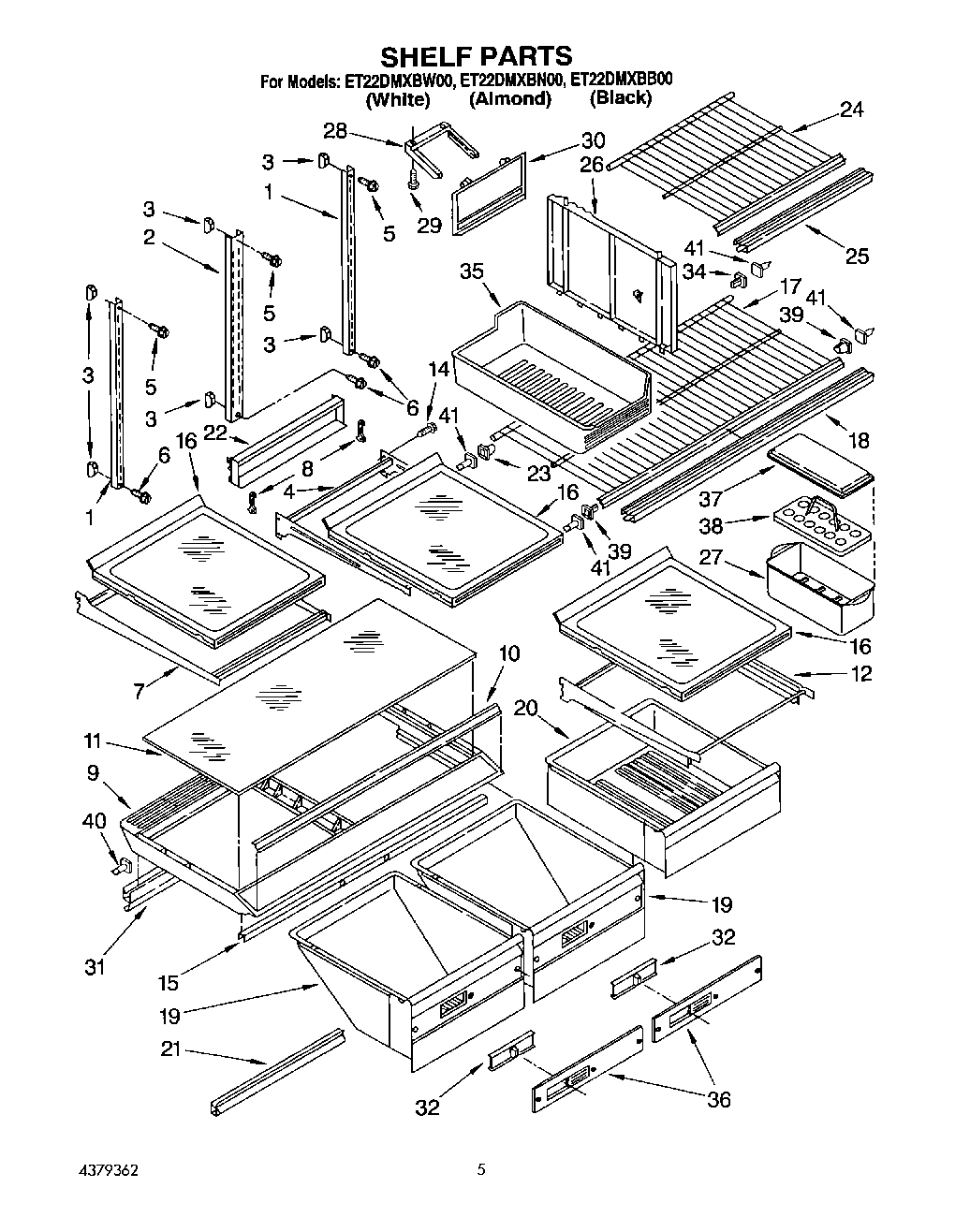

04 - SHELF, LITERATURE

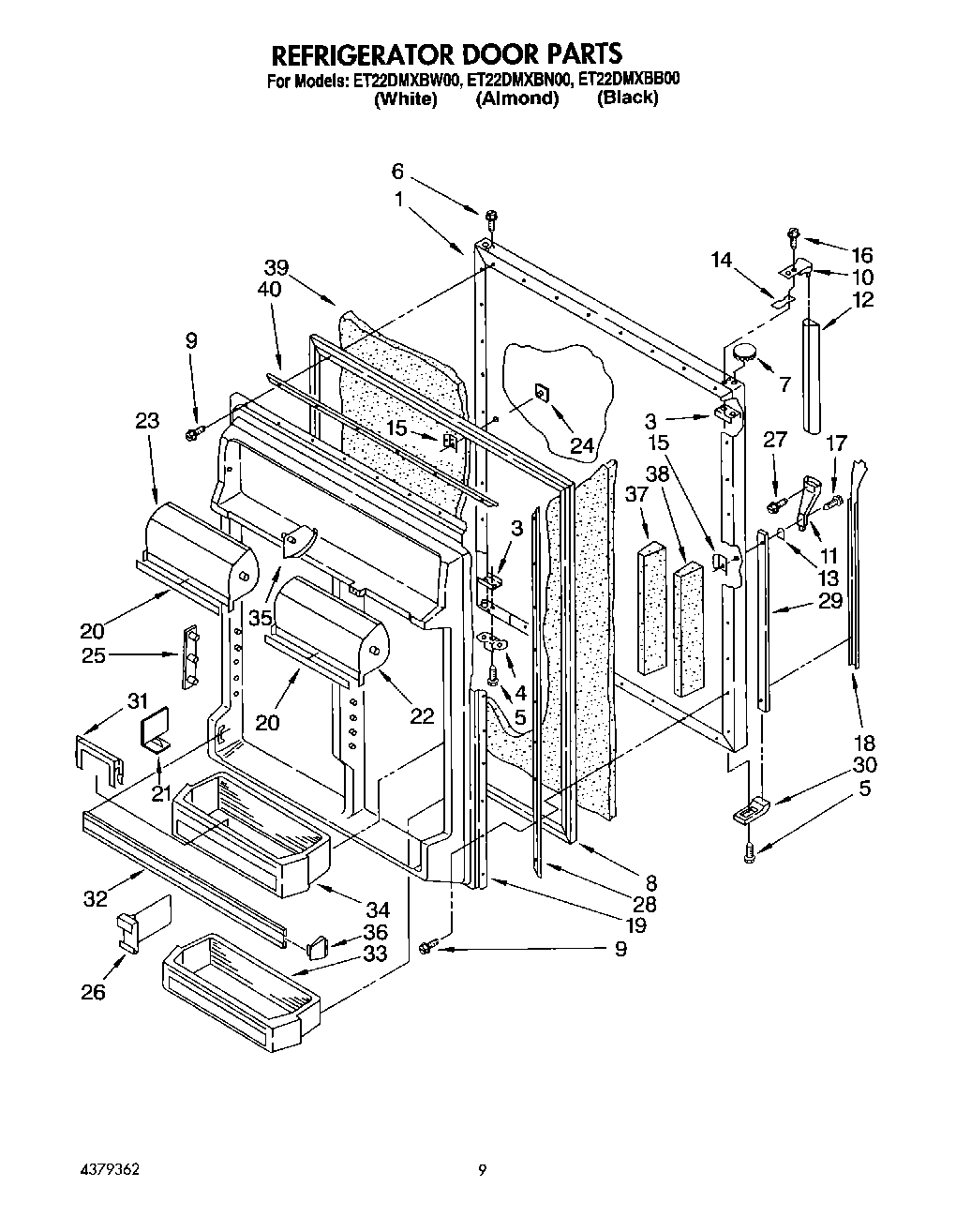

06 - REFRIGERATOR DOOR
Common parts from model Whirlpool ET22DMXBN00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2169122 WPL LIT2169122 Contact Us For Availability
WPL LIT2170892 WPL LIT2170892 Contact Us For Availability
WPL LIT2170979 WPL LIT2170979 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI146749A Contact Us For Availability
1
Bottom, Compartment Separator WPL 2172820 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159160 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159163 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Bla WPL 2161870 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI146750A Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 39) WPL 1122549 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 39) WPL 1122658 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 39) WPL 2161866 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Box, Control WPL 1126029 Contact Us For Availability
2
Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Shelf Assembly, Spillguard WPL 2169603 Contact Us For Availability
4
Bracket, Door Stop (Black Model) WPL 1115910 Contact Us For Availability
4
Bracket, Door Stop (White And Almond Models) WPL 944036 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
7
Deck Rail Cover WPL 2172708 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Shelf, Cantilever WPL 2160306 Contact Us For Availability
8
Door Gasket Magnetic (Black Model) WPL 2170599 Contact Us For Availability
8
Hook, Shelf WPL 2169608 Contact Us For Availability
8
Door Gasket, Magnetic (Black Model) WPL 2170598 Contact Us For Availability
9
Control, Front Cover WPL 2148533 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Heater, Mullion WPL 2157307 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
10
Trim, Crisper Cover WPL 2162846 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Clip, Center Rail (4) WPL 1129018 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
11
Glass, Crisper Cover WPL 2162981 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Handle, Center (Black) WPL 2159168 Contact Us For Availability
12
Handle, Center (White) WPL 2162586 Contact Us For Availability
12
Handle, Center (Almond Model) WPL 2162693 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 2166327 Contact Us For Availability
12
Handle, Center (Black) WPL 1120781 Contact Us For Availability
12
Handle, Center (White) WPL 2150150 Contact Us For Availability
12
Handle Center (Almond) WPL 943068 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Center Rail WPL 2172705 Contact Us For Availability
13
Light, Bar WPL 1105475 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
13
Shim, Handle End (Side) WPL 935075 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
14
Screw WPL 489419 Contact Us For Availability
15
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
15
Light, Bar WPL 1105476 Contact Us For Availability
15
Interior Door Panel WPL 1122575 Contact Us For Availability
16
Rod, Connecting WPL 1105460 Contact Us For Availability
16
Shelf Assembly, Spillguard WPL 2160318 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157253 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2162839 Contact Us For Availability
17
Shelf, Freezer WPL 1106615 Contact Us For Availability
18
Shim, Hinge Top WPL 2157269 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Nameplate (White Model) WPL 2148544 Contact Us For Availability
18
Nameplate (Black Model) WPL 2162668 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2162698 Contact Us For Availability
18
Trim, Shelf Front WPL 2162934 Contact Us For Availability
18
Insert, Handle (Black) WPL 1120830 Contact Us For Availability
18
Insert, Handle (White) WPL 2150153 Contact Us For Availability
18
Insert, Handle (Almond) WPL 2150154 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Pan, Crisper WPL 2162856 Contact Us For Availability
19
Interior Door Panel WPL 2156245 Contact Us For Availability
20
Grommet (4) WPL 1110779 Contact Us For Availability
20
Pan, Meat WPL 2162930 Contact Us For Availability
20
Trim, Compartment Door WPL 2170552 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Crisper Gasket, Front (2) WPL 1116512 Contact Us For Availability
21
Divider, Door Shelf WPL 2160050 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
22
Track Assembly, Shelf WPL 2169793 Contact Us For Availability
22
Compartment Door, Right Side WPL 2148807 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
23
Shim, EndCap (Top) WPL 935074 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
23
Compartment Door, Left Side WPL 2148809 Contact Us For Availability
24
Evaporator Cover WPL 2157427 Contact Us For Availability
24
Shelf, Freezer (Top) WPL 1106822 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Insert, Handle (White) WPL 1108828 Contact Us For Availability
25
Insert, Handle (Almond) WPL 1108830 Contact Us For Availability
25
Insert, Handle (Black) WPL 1114390 Contact Us For Availability
25
Trim, Shelf WPL 2162935 Contact Us For Availability
25
Pin Plate WPL 1116986 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Divider, Door Shelf (2) WPL 1123293 Contact Us For Availability
26
Divider WPL 1127416 Contact Us For Availability
26
Divider, Bin WPL 2152335 Contact Us For Availability
27
Retainer, Gasket WPL 1122553 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105464 Contact Us For Availability
27
Screw, 6-20 x 3/8 WPL 489022 Contact Us For Availability
28
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
28
Slide, Ice Compartment WPL 1106817 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
29
Retainer, Insert WPL 935871 Contact Us For Availability
30
Light Lens WPL 981365 Contact Us For Availability
30
Door, Ice Compartment WPL 2162944 Contact Us For Availability
30
Endcap, Ins WPL 1105804 Contact Us For Availability
31
Spacer WPL 2172744 Contact Us For Availability
31
Crisper Gasket, Rear (2) WPL 1105653 Contact Us For Availability
31
WPL 2163566 WPL 2163566 Contact Us For Availability
32
Slide, Crisper WPL 2162849 Contact Us For Availability
32
WPL 2162841 WPL 2162841 Contact Us For Availability
33
Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2151663 Contact Us For Availability
33
WPL 2162894 WPL 2162894 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Filler, Wrap Corner (Black) WPL 2162679 Contact Us For Availability
34
WPL 2162895 WPL 2162895 Contact Us For Availability
35
Grille (White) WPL 1125663 Contact Us For Availability
35
Grille (Almond) WPL 1125667 Contact Us For Availability
35
Grille (Black) WPL 1129001 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
36
Crisper, Pan Front WPL 2162851 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
Cover WPL 2164374 Contact Us For Availability
37
WPL 1122711 WPL 1122711 Contact Us For Availability
38
WPL 1122709 WPL 1122709 Contact Us For Availability
39
WPL 876029 WPL 876029 Contact Us For Availability
39
Shelf Stud WPL 946356 Contact Us For Availability
40
WPL 1122552 WPL 1122552 Contact Us For Availability
41
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
41
Door Reversal Instructions WPL 2172761 Contact Us For Availability
41
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
41
CEMENT, ALUMILASTIC ( WPL 542639 Contact Us For Availability
41
WPL 799833 WPL 799833 Contact Us For Availability
41
WPL 946355 WPL 946355 Contact Us For Availability
41
WPL 978883 WPL 978883 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
48
Cover, Unit WPL 2172768 Contact Us For Availability
51
Drain Extension WPL 2154119 Contact Us For Availability
56
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
56
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
