Model Whirlpool ET22DKXBW02 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
07 - FREEZER DOOR
01 - CABINET

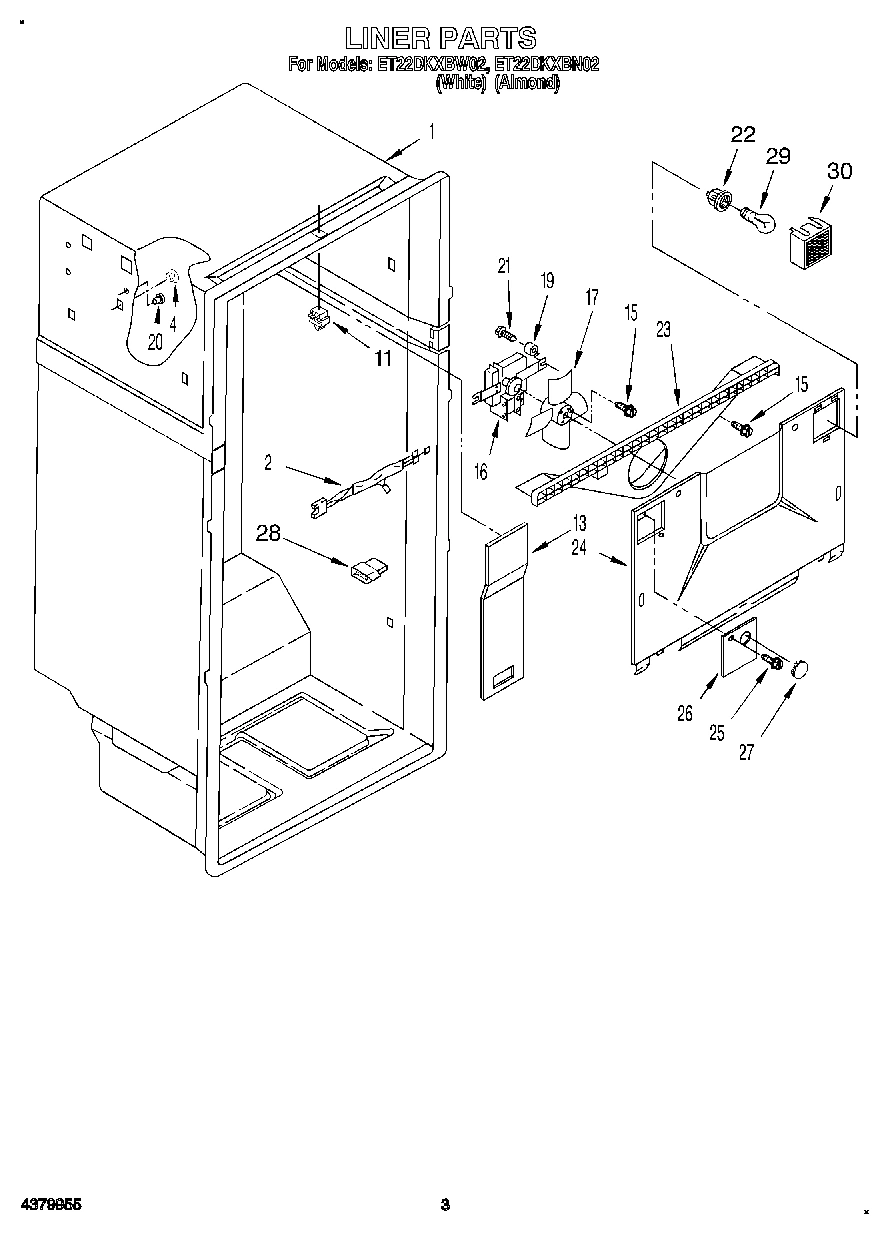

02 - LINER

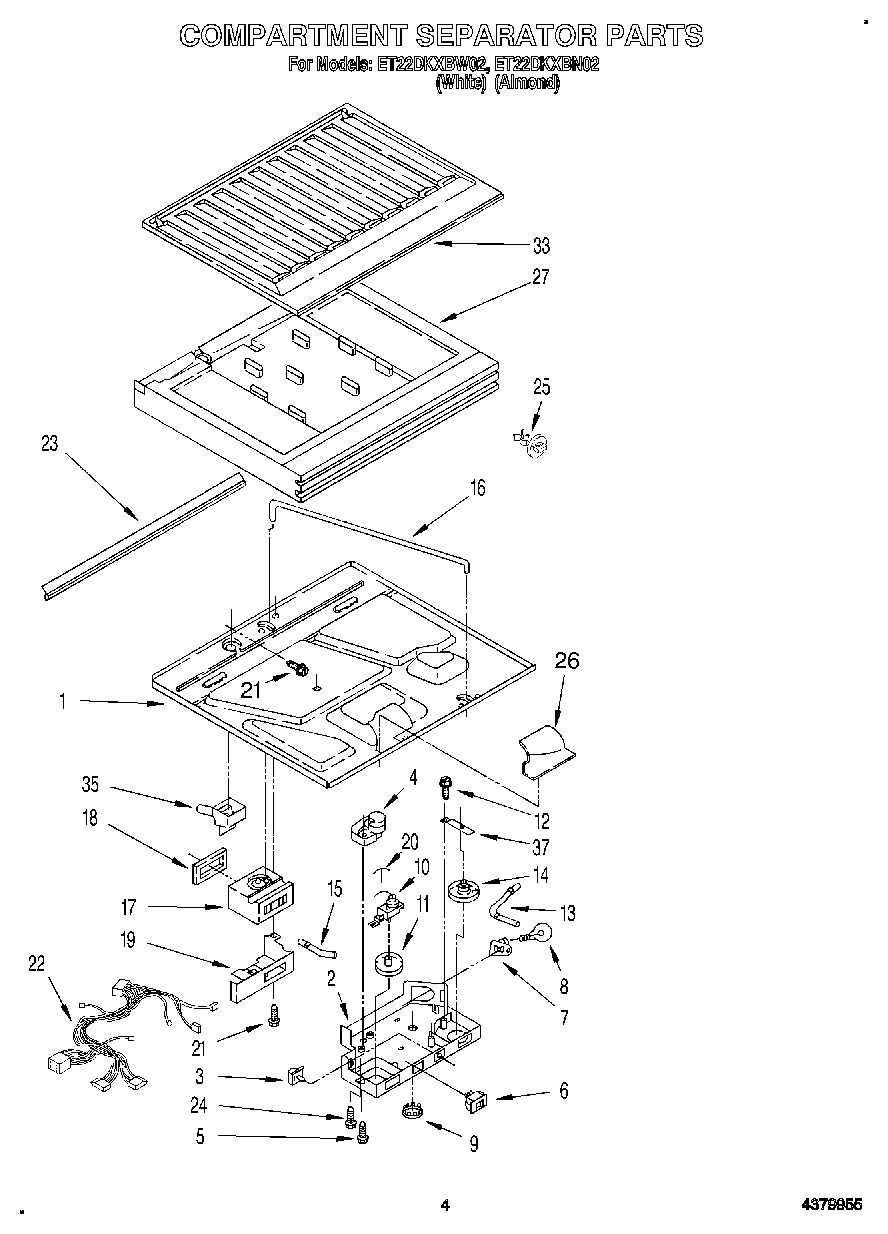

03 - COMPARTMENT SEPARATOR
05 - UNIT

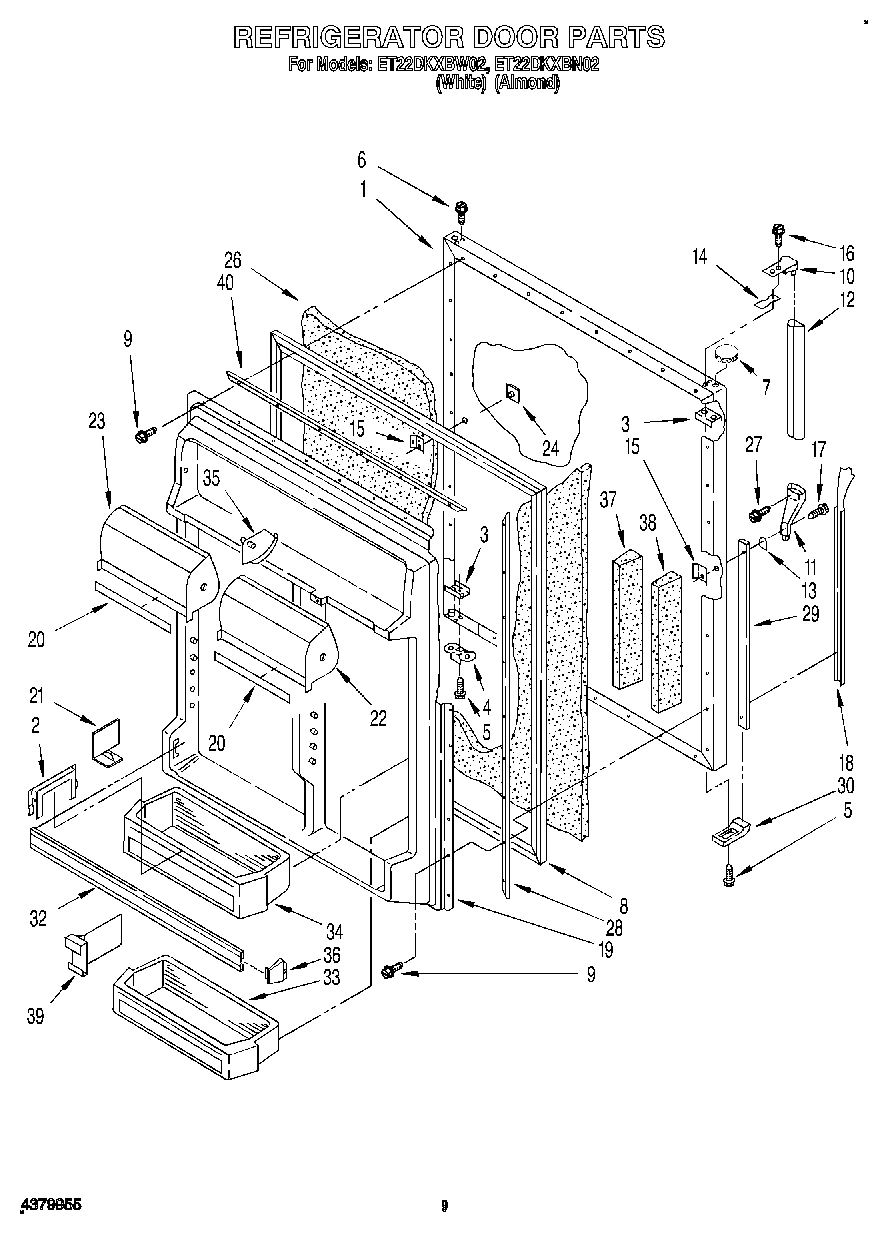

06 - REFRIGERATOR DOOR
04 - SHELF, LIT/OPTIONAL
Common parts from model Whirlpool ET22DKXBW02 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2170892 WPL LIT2170892 Contact Us For Availability
WPL LIT2170979 WPL LIT2170979 Contact Us For Availability
WPL LIT2176949 WPL LIT2176949 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI49970A9 Contact Us For Availability
1
Bottom, Compartment Separator WPL 2172820 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 26) WPL 1122549 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 26) WPL 1122658 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Box, Control WPL 1126029 Contact Us For Availability
2
Blade, Fan WPL 2176753 Contact Us For Availability
2
Retainer, Bottle WPL 2163566 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Screw, WPL 489345 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Shelf, Cantilever (2) WPL 2160306 Contact Us For Availability
8
Unit Harness WPL 2176857 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
10
Trim, Crisper Cover WPL 2162846 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
11
Glass, Crisper Cover WPL 2162981 Contact Us For Availability
12
Handle, Center (White) WPL 2150150 Contact Us For Availability
12
Handle Center (Almond) WPL 943068 Contact Us For Availability
12
Shelf Assembly, Cantilever WPL 2166327 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
13
Light, Bar WPL 1105475 Contact Us For Availability
13
Shim, Handle End (Side) WPL 935075 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
14
Slide Shelf Frame, Cantilever WPL 2169603 Contact Us For Availability
15
Light, Bar WPL 1105476 Contact Us For Availability
15
Relay (See Overload) WPL ARI49971A2 Contact Us For Availability
16
Rod, Connecting WPL 1105460 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
16
Shelf Assembly, Spillguard WPL 2160318 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157253 Contact Us For Availability
17
Running Capacitor WPL 2169137 Contact Us For Availability
17
Shelf, Freezer WPL 1106615 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
18
Insert, Handle (White) WPL 2150153 Contact Us For Availability
18
Insert, Handle (Almond) WPL 2150154 Contact Us For Availability
18
Trim, Shelf Front WPL 2162934 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Interior Door Panel WPL 2177226 Contact Us For Availability
19
Pan, Crisper WPL 2162856 Contact Us For Availability
20
Grommet (4) WPL 1110779 Contact Us For Availability
20
Trim, Door Compartment WPL 2164839 Contact Us For Availability
20
Pan, Meat WPL 2162930 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Divider, Door Shelf WPL 1123293 Contact Us For Availability
21
Crisper Gasket, Front (2) WPL 1116512 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
22
Evaporator WPL 2153979 Contact Us For Availability
22
Compartment Door, Right Side WPL 2163942 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
23
Compartment Door, Left Side WPL 2163945 Contact Us For Availability
24
Evaporator Cover WPL 2179450 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Shelf, Freezer (Top) WPL 1106822 Contact Us For Availability
25
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Trim, Shelf WPL 2162935 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Tube, Discharge WPL 2162475 Contact Us For Availability
26
Divider WPL 1127416 Contact Us For Availability
27
Retainer, Gasket WPL 1122553 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Insulation, Compartment Separator WPL 2172896 Contact Us For Availability
27
Screw, 6-20 x 3/8 WPL 489022 Contact Us For Availability
27
Hook, Shelf WPL 2169608 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
28
Slide, Ice Compartment WPL 1106817 Contact Us For Availability
29
Support, Heater WPL 851358 Contact Us For Availability
29
Retainer, Insert WPL 935871 Contact Us For Availability
30
Light Lens WPL 2174443 Contact Us For Availability
30
Endcap, Insert Retainer WPL 1105804 Contact Us For Availability
30
Door, Ice Compartment WPL 2162944 Contact Us For Availability
31
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
31
Crisper Gasket, Rear (2) WPL 1105653 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Trim, Door Shelf WPL 2173850 Contact Us For Availability
32
Slide, Humidity Control WPL 2162849 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2174327 Contact Us For Availability
33
Heater, Defrost WPL 2162019 Contact Us For Availability
33
Bin, Door Shelf (2) WPL 2162894 Contact Us For Availability
33
Screw WPL 489419 Contact Us For Availability
34
Bin, Door Shelf (Deep) (2) WPL 2162895 Contact Us For Availability
34
Slide Track Assy., Shelf WPL 2169793 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Plug-Trim WPL 2159300 Contact Us For Availability
36
Tube, Suction WPL 2162472 Contact Us For Availability
36
Crisper, Pan Front WPL 2162851 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
Door Dike, Center WPL 2174751 Contact Us For Availability
37
Cover WPL 2169935 Contact Us For Availability
38
Door Dike, Side (2) WPL 1122709 Contact Us For Availability
39
Divider, Bin WPL 2152335 Contact Us For Availability
39
Shelf Stud WPL 946356 Contact Us For Availability
40
Shelf Stud (2) WPL 1106612 Contact Us For Availability
40
Retainer, Gasket WPL 1122552 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
41
Support, Stud WPL 946355 Contact Us For Availability
43
WPL 876029 WPL 876029 Contact Us For Availability
43
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
43
WPL 799344 WPL 799344 Contact Us For Availability
43
Shelf, Ice Compartment WPL 1106624 Contact Us For Availability
43
Door Reversal Instructions WPL 2172761 Contact Us For Availability
43
CEMENT, ALUMIL WPL 542639 Contact Us For Availability
43
WPL 799833 WPL 799833 Contact Us For Availability
43
WPL 978883 WPL 978883 Contact Us For Availability
48
Cover, Unit WPL 2160490 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
51
Tube, Drain WPL 2183033 Contact Us For Availability
54
Support-Evaporator (Right Side) WPL 2174769 Contact Us For Availability
54
Support-Evaporator (Left Side) WPL 2174770 Contact Us For Availability
57
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
57
Cover, Unit Bottom WPL 2160505 Contact Us For Availability
57
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
