Model Whirlpool ET22DKXAW04 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

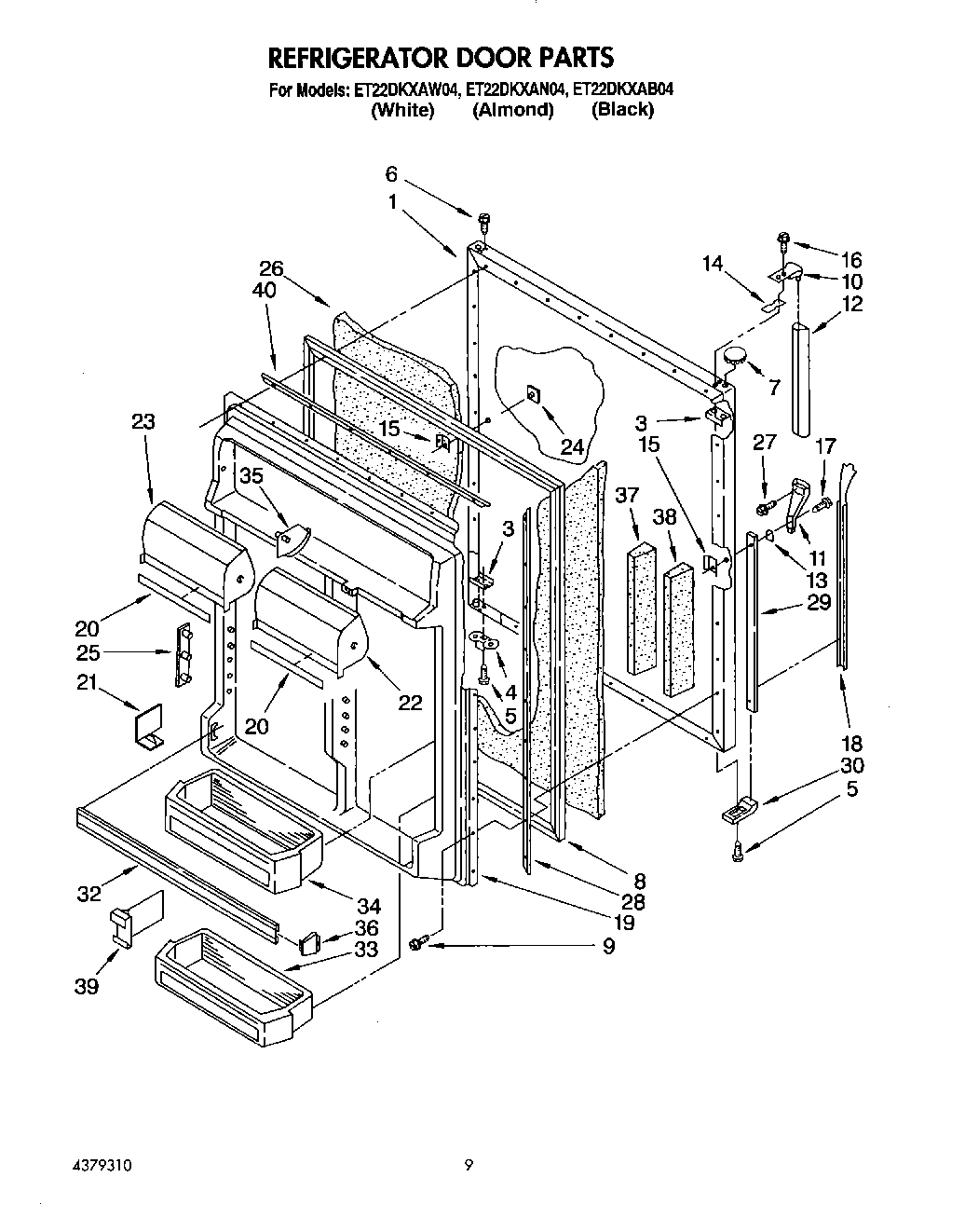

Panel, Refrigerator Door (Also Order Item 26) WPL 1122549 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 26) WPL 1122658 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 26) WPL 2161866 Contact Us For Availability

1

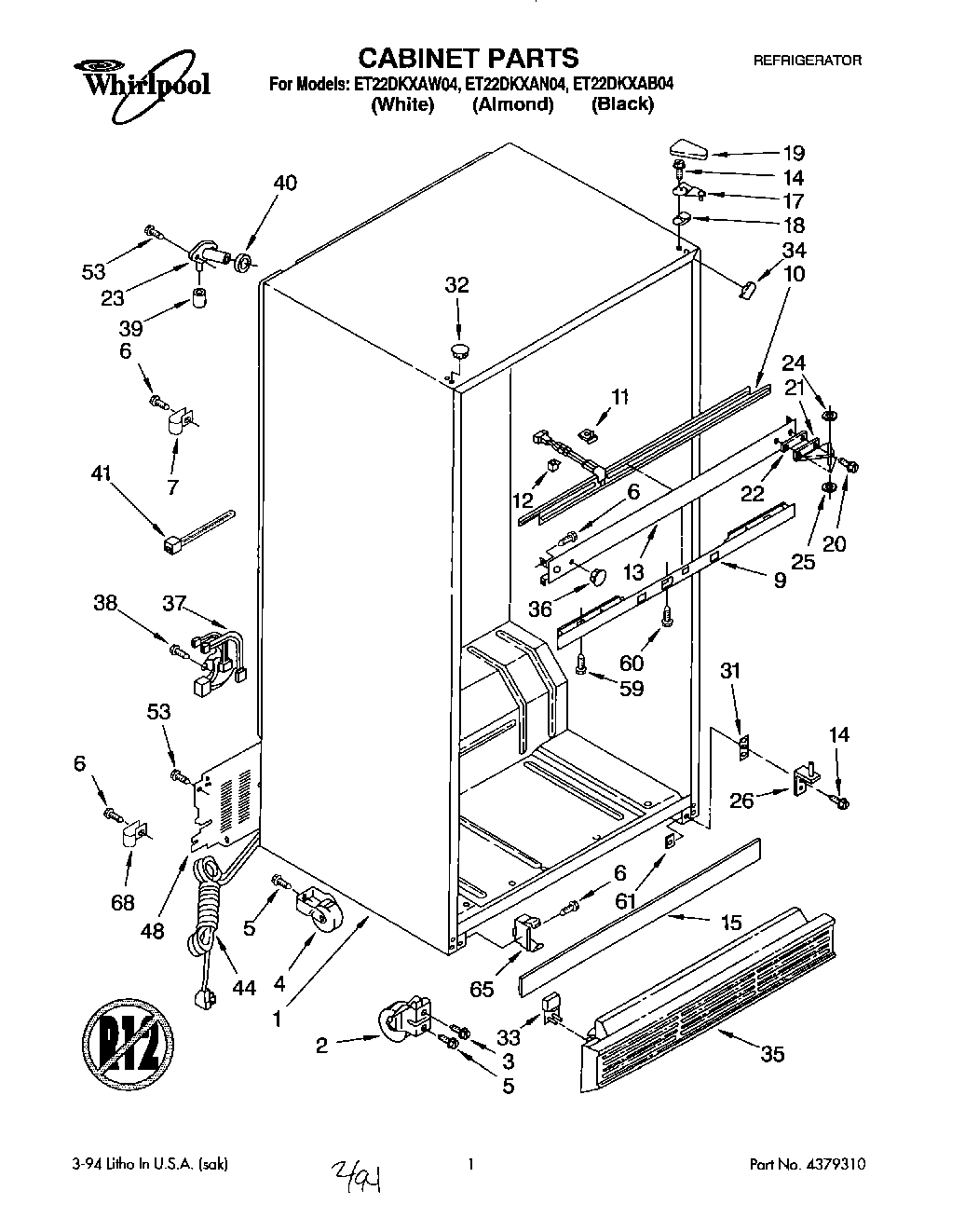

Cabinet (Not A Serviceable Part) WPL ARI146681A Contact Us For Availability

1

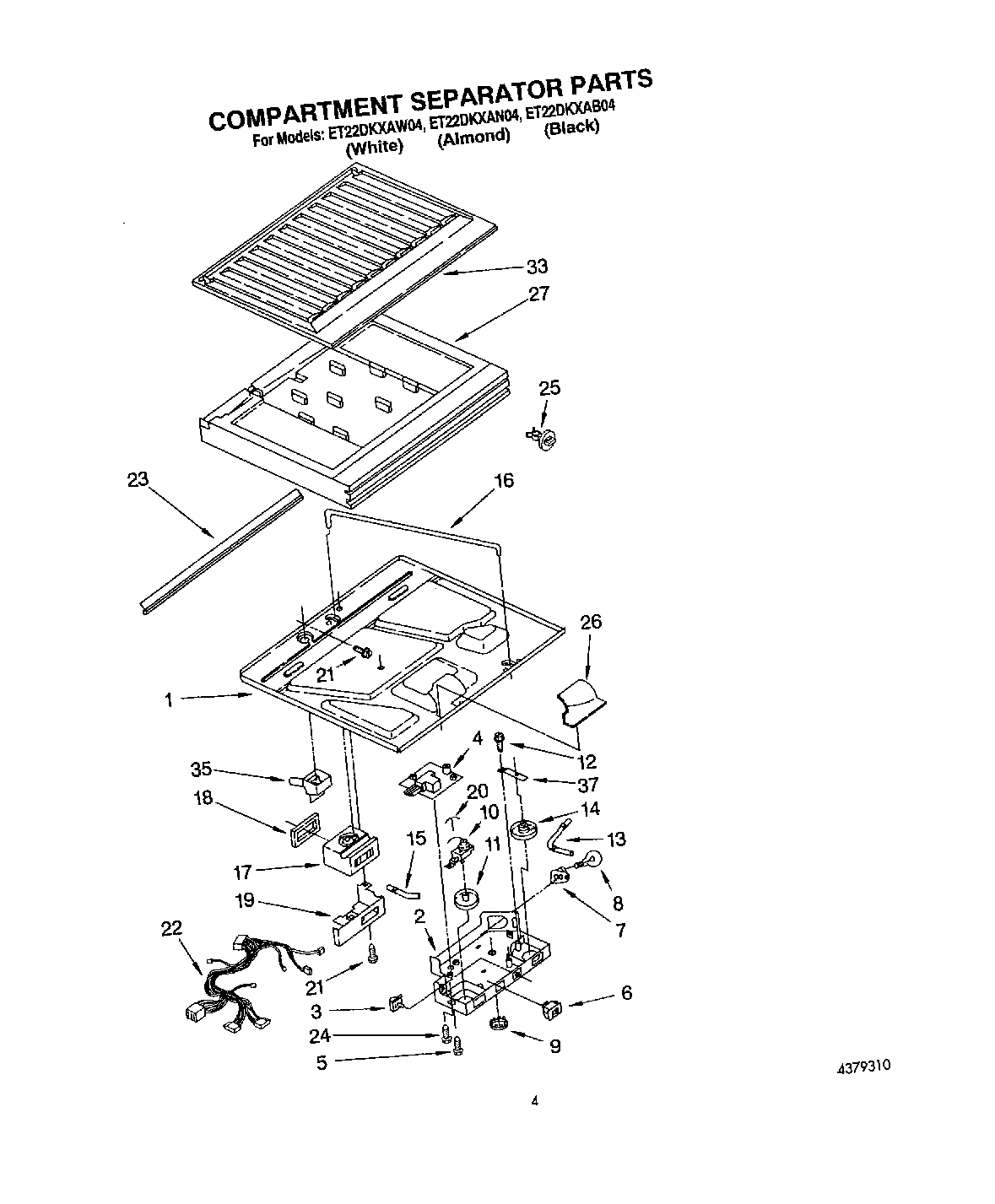

Bottom, Compartment Separator WPL 2172820 Contact Us For Availability

1

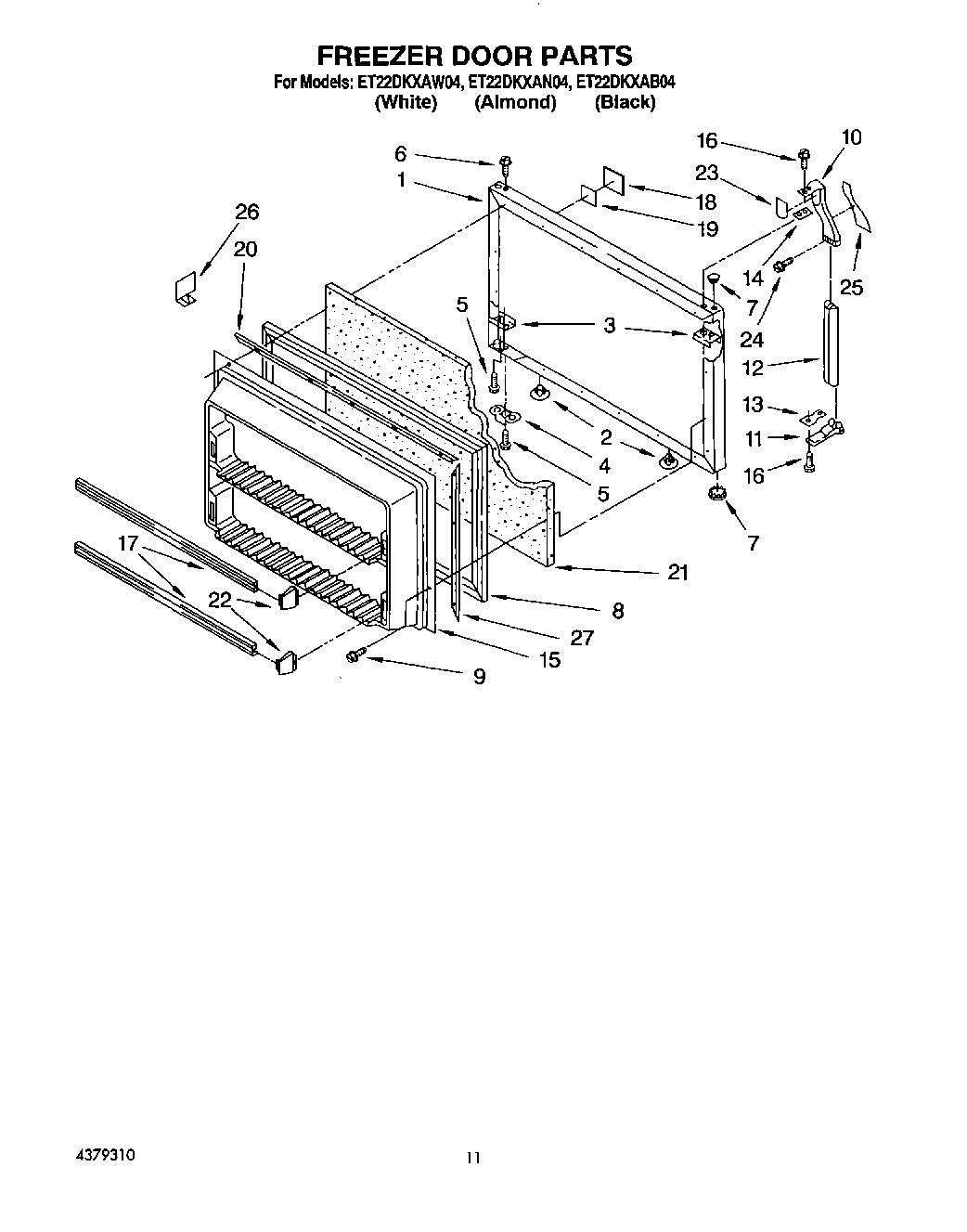

Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159160 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159163 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Bla WPL 2161870 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Roller, Front WPL 2152011 Contact Us For Availability

2

Box, Control WPL 2162826 Contact Us For Availability

2

Fan, Blade WPL 851732 Contact Us For Availability

2

Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability

2

Hole Plug (2) (White) WPL 534927 Contact Us For Availability

2

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

3

Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability

3

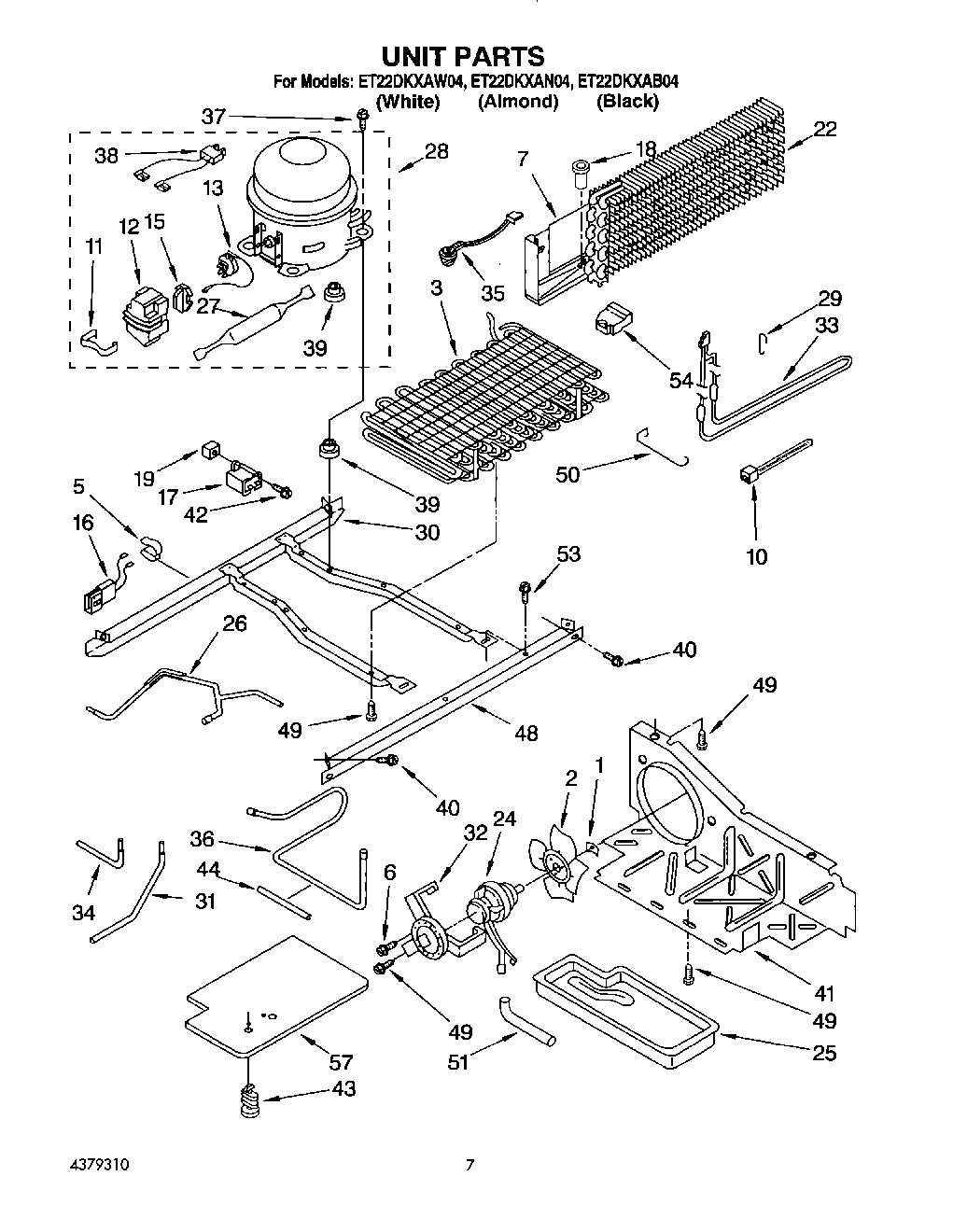

Condenser Assembly WPL 2164513 Contact Us For Availability

4

4388931 Whirlpool Defrost Timer In Stock WPL 4388931 $140.53

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Bracket, Door Stop (Black Model) WPL 1115910 Contact Us For Availability

4

Bracket, Door Stop (White And Almond Models) WPL 944036 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

5

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability

5

Clip, Wire WPL 548745 Contact Us For Availability

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

6

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability

8

2188450A Whirlpool Refrigerator Door Gasket Backorder WPL 2188450A $108.53

8

2188460A Whirlpool Refrigerator Door Gasket Backorder WPL 2188460A $89.09

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

Control, Front Cover WPL 2148533 Contact Us For Availability

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $89.70

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Handle End, Top WPL 944163 Contact Us For Availability

Heater, Mullion WPL 2157307 Contact Us For Availability

Handle End, Side WPL 1109189 Contact Us For Availability

Handle End WPL 944157 Contact Us For Availability

Clip, Rail (4) WPL 1129018 Contact Us For Availability

Knob, Thermostat WPL 1114315 Contact Us For Availability

Strap (Service) WPL 938384 Contact Us For Availability

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Handle, Center (Black) WPL 1120781 Contact Us For Availability

Handle, Center (White) WPL 2150150 Contact Us For Availability

Handle Center (Almond) WPL 943068 Contact Us For Availability

Spacer (3) WPL 2149077 Contact Us For Availability

Cover (Service) WPL 1108115 Contact Us For Availability

Handle, Center (Black Model) WPL 2159168 Contact Us For Availability

Handle, Center (White Model) WPL 2162586 Contact Us For Availability

Handle, Center (Almond Model) WPL 2162693 Contact Us For Availability

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $68.76

Shim, Handle WPL 943187 Contact Us For Availability

Shim, Handle End (Side) WPL 935075 Contact Us For Availability

Center Rail WPL 2172705 Contact Us For Availability

Light, Bar WPL 1105475 Contact Us For Availability

14

Spacer, Handle Door WPL 943188 Contact Us For Availability

14

Knob, Air Control WPL 1114314 Contact Us For Availability

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Deck Rail Cover WPL 2172708 Contact Us For Availability

Light, Bar WPL 1105476 Contact Us For Availability

Relay (See Overload) WPL ARI146683A Contact Us For Availability

Interior Door Panel WPL 1122575 Contact Us For Availability

16

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

16

Rod, Connecting WPL 1105460 Contact Us For Availability

16

Housing Plug WPL 1118850 Contact Us For Availability

WP2189412 Whirlpool Refrigerator Door Hinge Backorder WPL WP2189412 $37.95

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Air Diffuser Assembly WPL 2157253 Contact Us For Availability

Running Capacitor WPL 2154565 Contact Us For Availability

Trim, Door Shelf (2) WPL 2148555 Contact Us For Availability

Insert, Handle (Black) WPL 1120830 Contact Us For Availability

Insert, Handle (White) WPL 2150153 Contact Us For Availability

Insert, Handle (Almond) WPL 2150154 Contact Us For Availability

Shim, Hinge Top WPL 2157269 Contact Us For Availability

Gasket, Air Diffuser WPL 2157255 Contact Us For Availability

Drain Fitting WPL 2172811 Contact Us For Availability

Nameplate (White Model) WPL 2148544 Contact Us For Availability

Nameplate (Black Model) WPL 2162668 Contact Us For Availability

Nameplate (Almond Model) WPL 2162698 Contact Us For Availability

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.29

Interior Door Panel WPL 2156245 Contact Us For Availability

Hinge Cover (Almond) WPL 2160404 Contact Us For Availability

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

Screw Grommet WPL 509812 Contact Us For Availability

Strip, Tape WPL 991259 Contact Us For Availability

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Trim, Door Compartment WPL 1122750 Contact Us For Availability

Retainer, Gasket WPL 1122552 Contact Us For Availability

21

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

21

Divider, Door Shelf WPL 2160050 Contact Us For Availability

21

Hinge, Center WPL 2151453 Contact Us For Availability

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $6.84

Compartment Door, Right Side WPL 2148807 Contact Us For Availability

Shim, Hinge Center WPL 836155 Contact Us For Availability

Wiring Assembly, Control Box WPL 2159536 Contact Us For Availability

Evaporator WPL 2153978 Contact Us For Availability

W10854959 Whirlpool Refrigerator Shelf Stud Backorder WPL W10854959 $4.23

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

Compartment Door, Left Side WPL 2148809 Contact Us For Availability

Gasket, Bottom Separator WPL 2159684 Contact Us For Availability

Shim, EndCap (Top) WPL 935074 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $3.51

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

Screw, 6-20 x 3/8 WPL 489022 Contact Us For Availability

WP489200 Whirlpool Refrigerator Washer Backorder WPL WP489200 $4.61

Pin Plate WPL 1116986 Contact Us For Availability

Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability

Tray, Evaporator WPL 2154114 Contact Us For Availability

Insert, Handle (White) WPL 1108828 Contact Us For Availability

Insert, Handle (Almond) WPL 1108830 Contact Us For Availability

Insert, Handle (Black) WPL 1114390 Contact Us For Availability

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability

Insulation, Filler WPL 1108196 Contact Us For Availability

Tube, Discharge WPL 2162475 Contact Us For Availability

Divider, Door Shelf (2) WPL 1123293 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

27

Retainer, Gasket WPL 1122553 Contact Us For Availability

27

Insulation, Compartment Separator WPL 1105464 Contact Us For Availability

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

28

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $341.23

28

Retainer, Ga WPL 1122551 Contact Us For Availability

29

WPL 935871 WPL 935871 Contact Us For Availability

29

Support, Heater WPL 2149120 Contact Us For Availability

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $95.80

30

WPL 1105804 WPL 1105804 Contact Us For Availability

31

Spacer WPL 2172744 Contact Us For Availability

31

Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $6.68

WPL 2148616 WPL 2148616 Contact Us For Availability

Hole Plug (Almond) WPL 2151653 Contact Us For Availability

Fan, Motor Bracket WPL 2162062 Contact Us For Availability

WPL 2148549 WPL 2148549 Contact Us For Availability

Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability

Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability

Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability

Separator, Compartment (Top) WPL 2151663 Contact Us For Availability

Heater, Defrost WPL 2162019 Contact Us For Availability

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $33.89

WPL 2148550 WPL 2148550 Contact Us For Availability

Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability

Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability

Filler, Wrap Corner (Black) WPL 2162679 Contact Us For Availability

W11625904 Whirlpool Refrigerator Ice Pan In Stock WPL W11625904 $24.25

WP1118001 Whirlpool Hinge Pin Backorder WPL WP1118001 $3.70

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

Grille (White) WPL 1125663 Contact Us For Availability

Grille (Almond) WPL 1125667 Contact Us For Availability

Grille (Black) WPL 1129001 Contact Us For Availability

Cup, Drain WPL 937065 Contact Us For Availability

36

Crisper Pan, Front WPL 2148816 Contact Us For Availability

36

Hole Plug (White) WPL 1129062 Contact Us For Availability

36

Tube, Suction WPL 2162472 Contact Us For Availability

Egg Container, Top WPL 1107388 Contact Us For Availability

WPL 1122711 WPL 1122711 Contact Us For Availability

Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability

Bracket, Control Knob WPL 1105457 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Egg Container, Bottom WPL 1107384 Contact Us For Availability

Door Reversal Instructions WPL 2155034 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

CEMENT, A WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL 1122709 WPL 1122709 Contact Us For Availability

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

39

WPL 2152335 WPL 2152335 Contact Us For Availability

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

41

Air Baffle WPL 2162457 Contact Us For Availability

42

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

43

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

44

Cord, Service WPL 937360 Contact Us For Availability

48

Cover, Unit WPL 2160490 Contact Us For Availability

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

49

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $24.10

51

Tube, Drain WPL 2154119 Contact Us For Availability

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Support, Evap. (R.S.) WPL 1118805 Contact Us For Availability

54

Support, Evap. (L.S.) WPL 2159708 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Cover, Unit Bottom WPL 2160505 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

60

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

61

Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

68

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94
