Model Whirlpool ET20ZKXYW01 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2148071 WPL LIT2148071 Contact Us For Availability

WPL LIT2148939 WPL LIT2148939 Contact Us For Availability

WPL LIT2154422 WPL LIT2154422 Contact Us For Availability

WPL LIT4361022 WPL LIT4361022 Contact Us For Availability

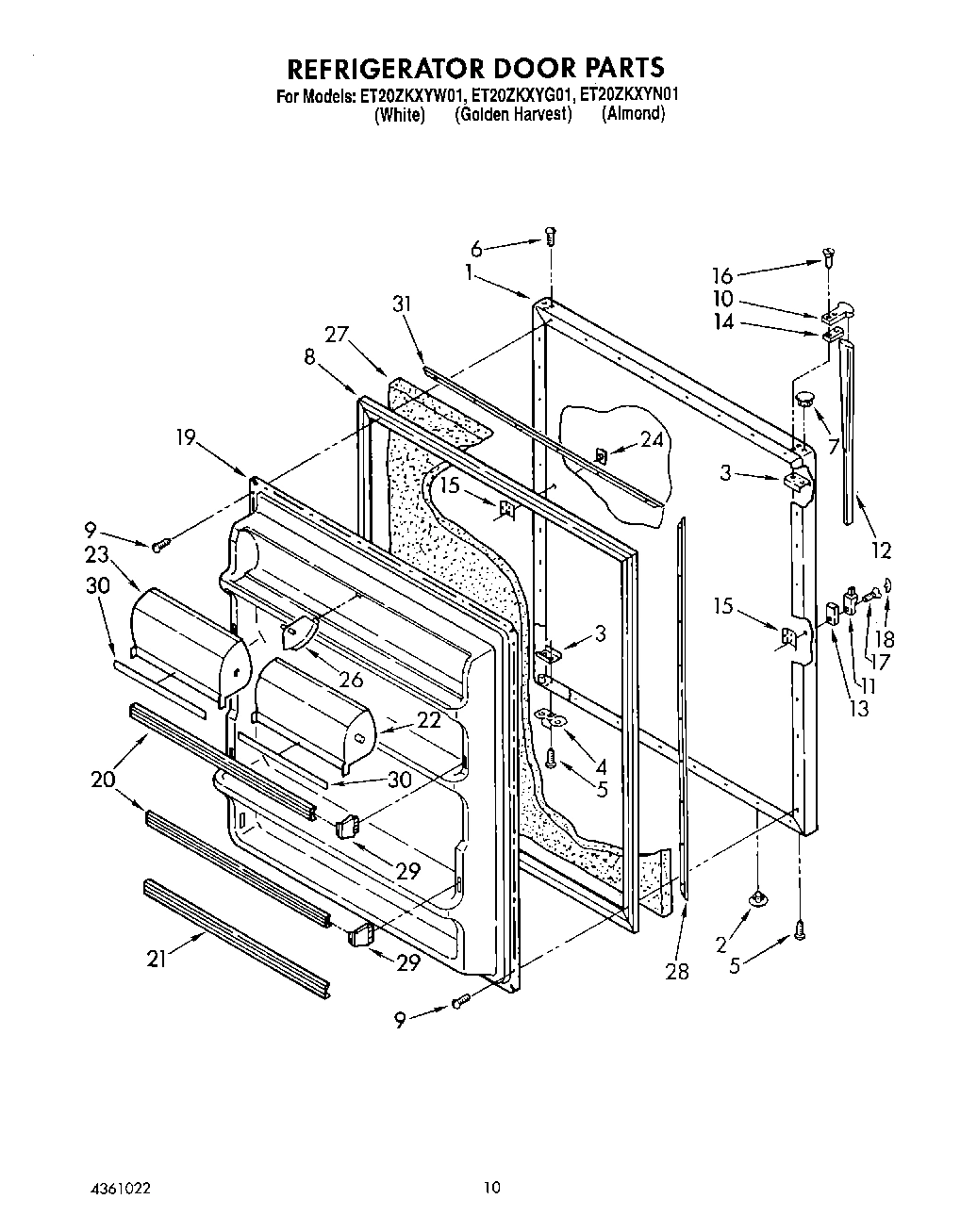

1

Panel, Refrigerator Door (White) WPL 1122549 Contact Us For Availability

1

Panel, Refrigerator Door (Golden Harvest (Als WPL 1122657 Contact Us For Availability

1

Panel, Refrigerator Door (Almond) WPL 1122658 Contact Us For Availability

1

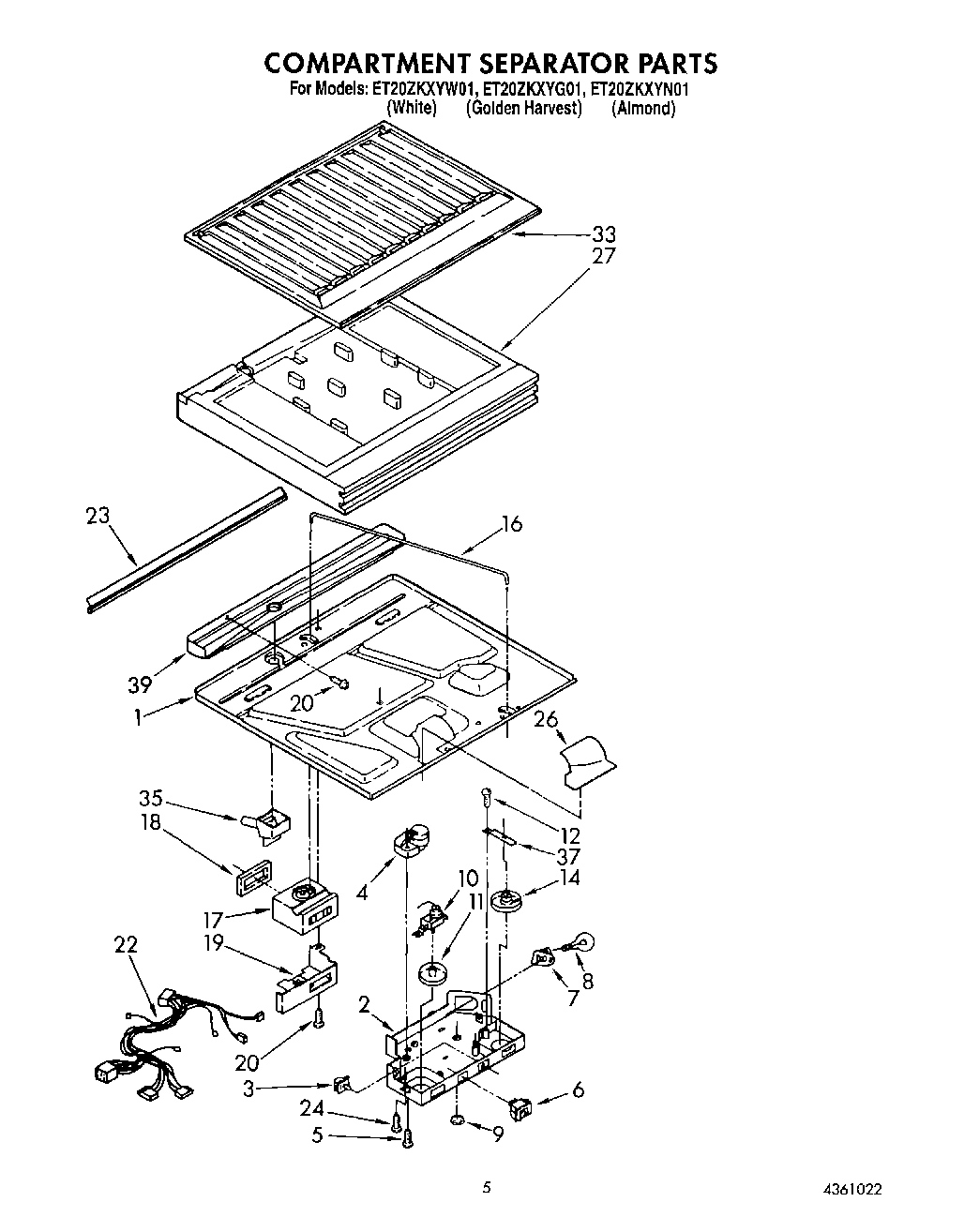

Bottom, Compartment Separator WPL 1122715 Contact Us For Availability

1

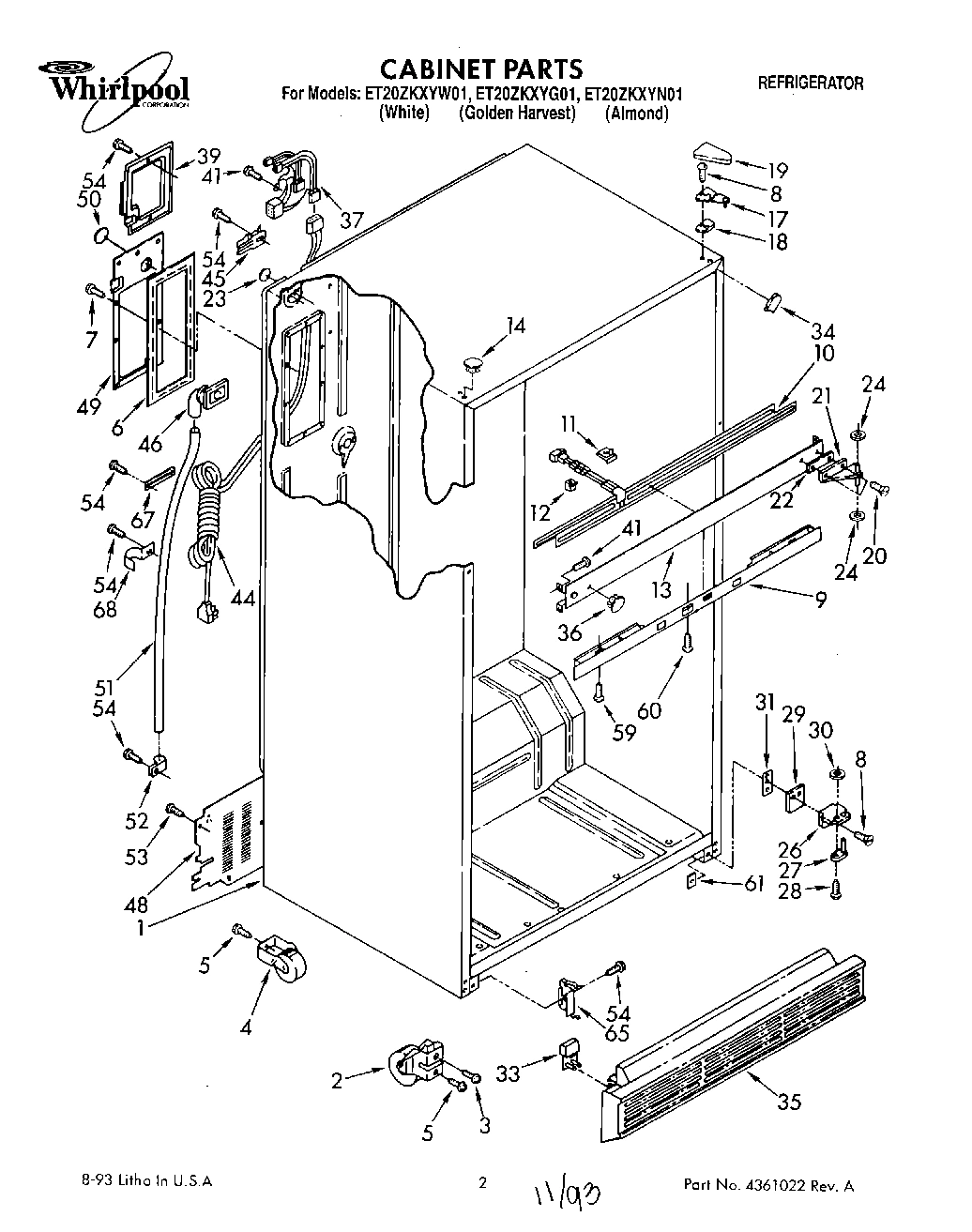

Liner (Not A Serviceable Part) WPL ARI49433A3 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI49432A3 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Hole Plug (2) WPL 534927 Contact Us For Availability

2

Box, Control WPL 1105455 Contact Us For Availability

2

Roller, Front WPL 2152011 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

3

Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Bracket, Door Stop WPL 1115910 Contact Us For Availability

4

Timer, Defrost (10 Hour) WPL 1127570 Contact Us For Availability

5

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

5

W10854959 Whirlpool Refrigerator Shelf Stud Backorder WPL W10854959 $4.23

5

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

5

Grommet, Compressor (4) (Production) WPL 1105200 Contact Us For Availability

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

6

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

6

Screw (4) WPL 489334 Contact Us For Availability

6

Electrical Shield WPL 2151521 Contact Us For Availability

6

Sealing Gasket WPL 1114548 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

7

Condenser Assembly WPL 2149613 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Electrical Shield WPL 1106696 Contact Us For Availability

8

2188450A Whirlpool Refrigerator Door Gasket Backorder WPL 2188450A $108.53

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

8

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

8

Support, Heater WPL 2149120 Contact Us For Availability

8

Electrical, Shield WPL 1106892 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

Strap, Mtg. WPL 1123230 Contact Us For Availability

9

Stud (2) WPL 946356 Contact Us For Availability

9

Control, Front Cover WPL 2148146 Contact Us For Availability

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $89.70

819091 Whirlpool Refrigerator Shelf Stud Backorder WPL 819091 $13.89

WP2191883 Whirlpool Refrigerator Handle Endca Backorder WPL WP2191883 $30.73

Heater, Mullion WPL 1105433 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP2183139 Whirlpool Refrigerator Handle End C Backorder WPL WP2183139 $24.12

Knob, Thermostat WPL 2148150 Contact Us For Availability

Clip, Center Rail (4) WPL 1129018 Contact Us For Availability

WP2162555 Whirlpool Refrigerator White Door H In Stock WPL WP2162555 $123.32

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

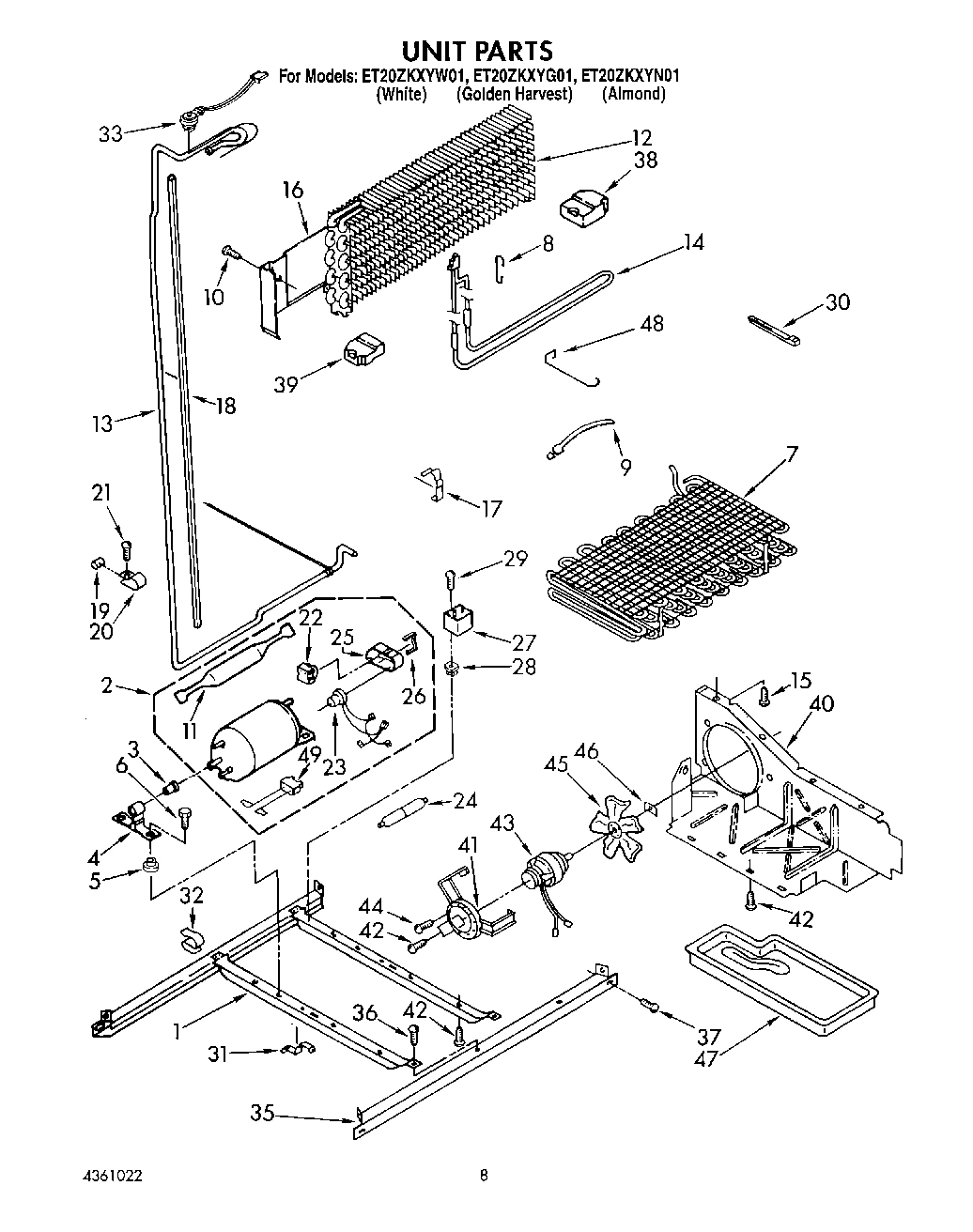

Evaporator Assembly WPL 1118548 Contact Us For Availability

Handle, Center (Golden Harvest) WPL 1106189 Contact Us For Availability

Handle, Center (Almond) WPL 2148036 Contact Us For Availability

support stud (8) WPL 946355 Contact Us For Availability

Spacer (3) WPL 2149077 Contact Us For Availability

Shim, Handle WPL 943187 Contact Us For Availability

Heat, Exchanger WPL 2149616 Contact Us For Availability

Shim, Handle End (Side) WPL 836194 Contact Us For Availability

Cover, Air Duct WPL 2157410 Contact Us For Availability

Center Rail (White) WPL 1122566 Contact Us For Availability

Center Rail (Golden Harvest) WPL 1122568 Contact Us For Availability

Center Rail (Almond) WPL 1122569 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

Spacer, Handle Door WPL 943188 Contact Us For Availability

Heater, Defrost WPL 2149645 Contact Us For Availability

Knob, Air Control WPL 2148151 Contact Us For Availability

Hole Plug (Almond) WPL 2151653 Contact Us For Availability

Hole Plug (Golden Harvest) WPL 2151654 Contact Us For Availability

15

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

Heat Shield WPL 1105545 Contact Us For Availability

Rod, Connecting WPL 1105459 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Clamp, Dryer WPL 1127590 Contact Us For Availability

Air Diffuser Assembly WPL 2157416 Contact Us For Availability

Hinge, Top WPL 1129045 Contact Us For Availability

WP1101634 Whirlpool Refrigerator Cover In Stock WPL WP1101634 $4.50

WP2002171 Whirlpool Refrigerator Sleeve Backorder WPL WP2002171 $10.19

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Nameplate WPL 2152334 Contact Us For Availability

Gasket, Air Diffuser WPL 1114325 Contact Us For Availability

Shim, Hinge Top WPL 1100511 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

Dampener (2) WPL 510769 Contact Us For Availability

Interior Door Panel WPL 2156208 Contact Us For Availability

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability

20

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

20

Tube Clamp (2) WPL 510716 Contact Us For Availability

20

Trim, Door (2) WPL 2148183 Contact Us For Availability

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Kit, Foam Slab WPL 876029 Contact Us For Availability

Trim, Door WPL 2148212 Contact Us For Availability

Screw WPL 489168 Contact Us For Availability

Hinge, Center WPL 2151453 Contact Us For Availability

Relay (See Overload) WPL ARI49434A1 Contact Us For Availability

Compartment Door, Right Side WPL 2148139 Contact Us For Availability

Wiring Assembly, Control Box WPL 2154411 Contact Us For Availability

Shim, Hinge Center WPL 836155 Contact Us For Availability

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $68.76

Retainer, Gasket WPL 1122553 Contact Us For Availability

Overload (Production (Inlcudes Relay)) WPL 2149980 Contact Us For Availability

Compartment Door, Left Side WPL 2148141 Contact Us For Availability

Gasket, Bottom Separator WPL 1114382 Contact Us For Availability

Scroll, Fan WPL 1127100 Contact Us For Availability

Hole Seal WPL 1129056 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

Muffler WPL 1121121 Contact Us For Availability

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

Hole Plug, Handle (Golden Harvest) WPL 1122694 Contact Us For Availability

Evaporator Cover WPL 1118711 Contact Us For Availability

25

Terminal Cover (Production) WPL 1105221 Contact Us For Availability

25

Terminal Cover (Service) WPL 1108115 Contact Us For Availability

WP1118001 Whirlpool Hinge Pin Backorder WPL WP1118001 $3.70

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

Strap, Cover (Production) WPL 1105222 Contact Us For Availability

Strap, Cover (Service) WPL 938384 Contact Us For Availability

Insulation, Filler WPL 942817 Contact Us For Availability

Hinge Butt, Bottom WPL 1123378 Contact Us For Availability

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Running Capacitor (Service) WPL 2154565 Contact Us For Availability

Insulation, Compartment Separator WPL 1105463 Contact Us For Availability

Hole Plug WPL 1103725 Contact Us For Availability

28

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

28

Screw Grommet WPL 509812 Contact Us For Availability

28

Retainer, Gasket WPL 1122551 Contact Us For Availability

29

4318297 Whirlpool Refrigerator Shelf Bar Endc In Stock WPL 4318297 $10.39

29

Shim, Bottom WPL 1123379 Contact Us For Availability

30

WP489200 Whirlpool Refrigerator Washer Backorder WPL WP489200 $4.61

30

Strap WPL 851095 Contact Us For Availability

30

Trim, Compartment Door WPL 1124223 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 479502 WPL 479502 Contact Us For Availability

Clip, Unit Cover WPL 548744 Contact Us For Availability

Retainer, Gasket WPL 1122552 Contact Us For Availability

Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Spacer WPL 1121117 Contact Us For Availability

32

Clip, Wire (2) WPL 548745 Contact Us For Availability

33

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

33

Separator, Compartment (Top) WPL 1129022 Contact Us For Availability

33

Corner Filler, Grille WPL 1125665 Contact Us For Availability

34

Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability

34

Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability

34

Filler, Wrap Corner (Golden Harvest) WPL 1118060 Contact Us For Availability

35

Unit, Rail WPL 2149717 Contact Us For Availability

35

Cup, Drain WPL 937065 Contact Us For Availability

35

Grille WPL 1129001 Contact Us For Availability

36

Hole Plug (5) (White) WPL 1129062 Contact Us For Availability

36

Hole Plug (5) (Almond) WPL 1129063 Contact Us For Availability

36

Hole Plug (5) (Golden Harvest) WPL 1129064 Contact Us For Availability

37

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

37

Bracket, Control Knob WPL 1105457 Contact Us For Availability

37

Cabinet, Wiring Assembly WPL 2149633 Contact Us For Availability

38

Support (R.S.) WPL 1118805 Contact Us For Availability

39

Support (L.S.) WPL 1118806 Contact Us For Availability

39

Drain Pan WPL 1105521 Contact Us For Availability

39

Cover, Wiring WPL 1105606 Contact Us For Availability

40

Air, Baffle WPL 1127938 Contact Us For Availability

41

Fan, Mounting Bracket WPL 548695 Contact Us For Availability

42

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

43

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

44

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

44

Cord, Service WPL 937360 Contact Us For Availability

45

Fan, Blade WPL 1108179 Contact Us For Availability

45

Clamp WPL 937357 Contact Us For Availability

46

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

46

Fitting, Drain WPL 937062 Contact Us For Availability

47

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

48

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $24.10

48

Cover, Unit WPL 1105531 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPL 978029 WPL 978029 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability

Cover, Plug WPL 2147326 Contact Us For Availability

50

Hole Seal WPL 1120224 Contact Us For Availability

51

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $36.64

52

Clamp WPL 836077 Contact Us For Availability

54

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

60

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

61

Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

67

WPL 1105607 WPL 1105607 Contact Us For Availability

68

WPL 1110564 WPL 1110564 Contact Us For Availability
