Model Whirlpool ET20ZKXAW01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
02 - LINER
03 - COMPARTMENT SEPARATOR

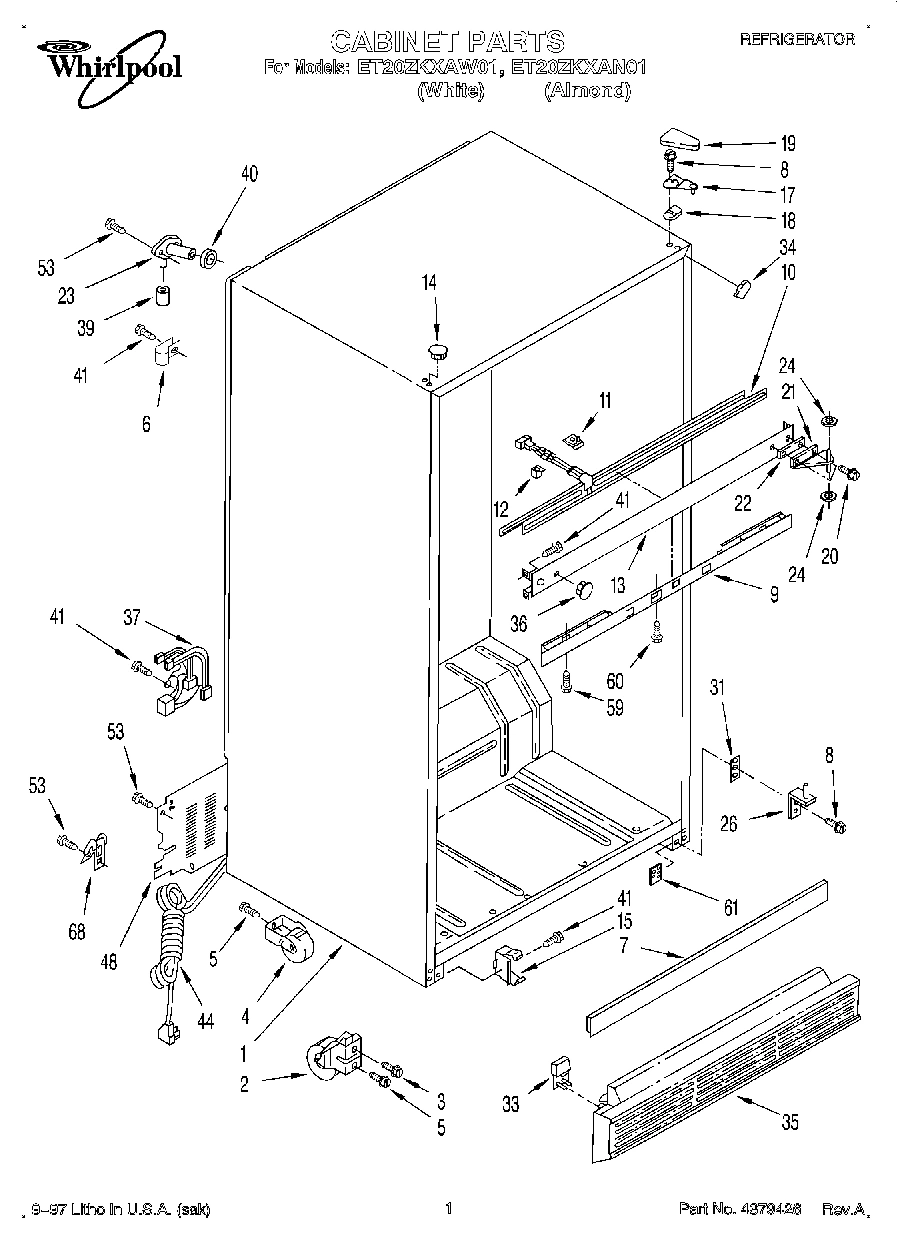

01 - CABINET

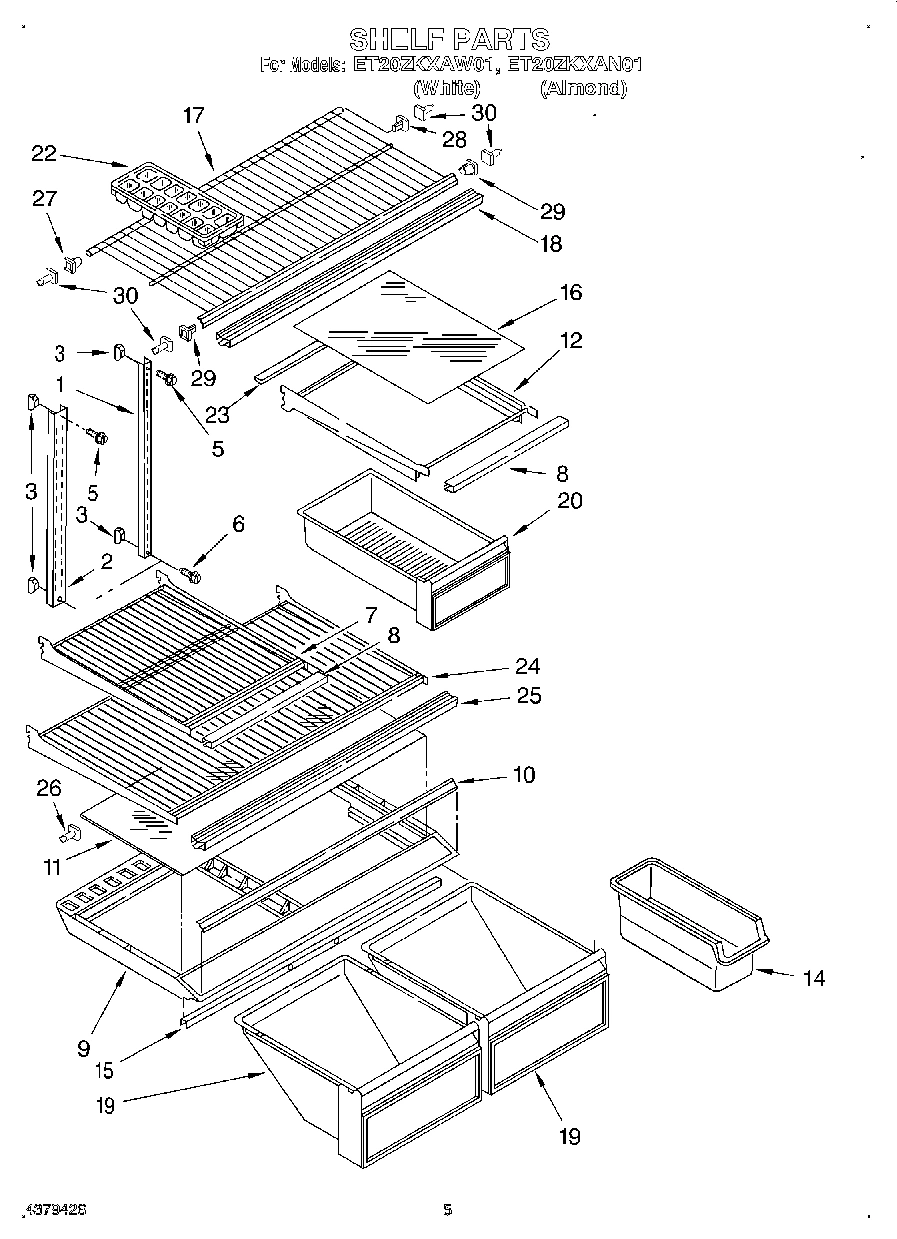

04 - SHELF
05 - FREEZER DOOR

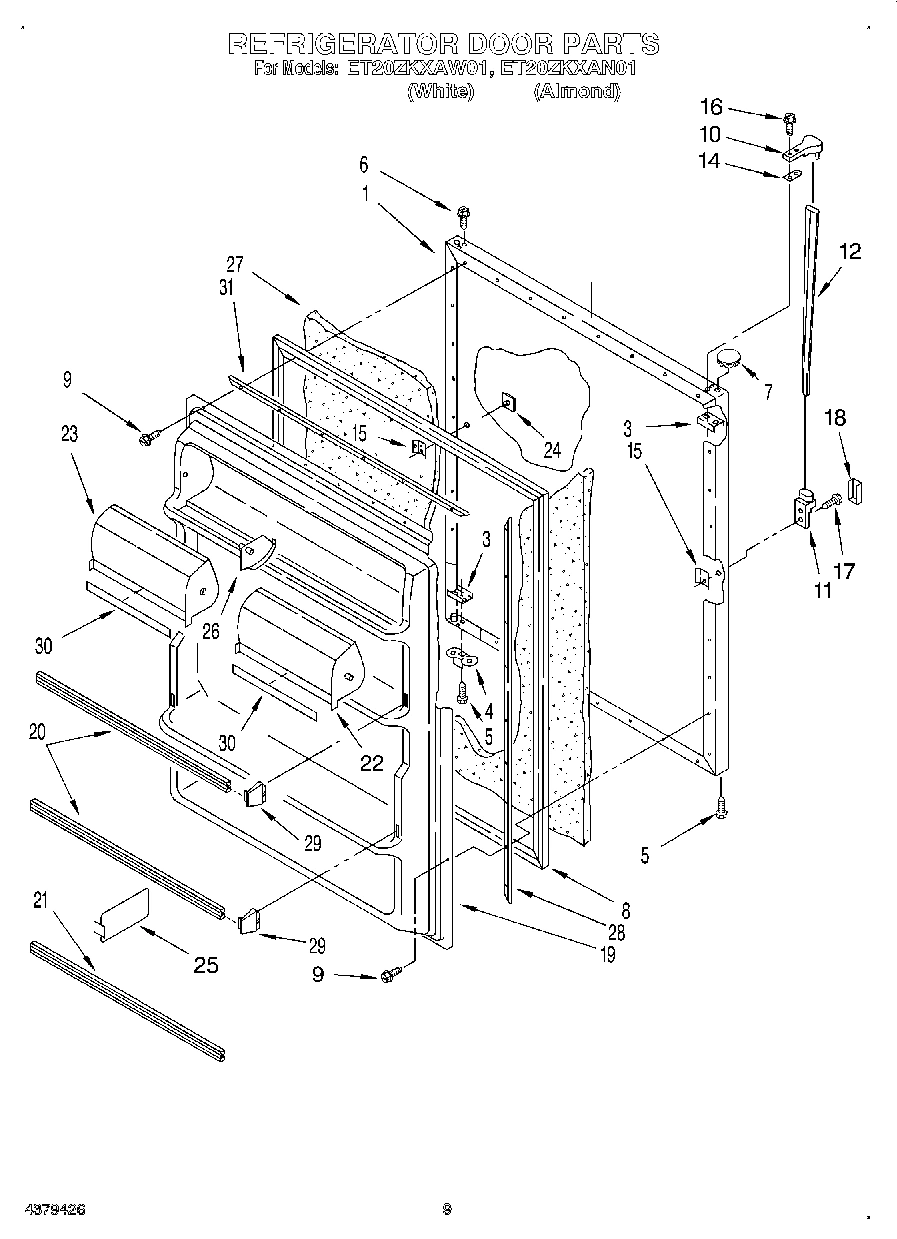

07 - REFRIGERATOR DOOR, LIT/OPTIONAL

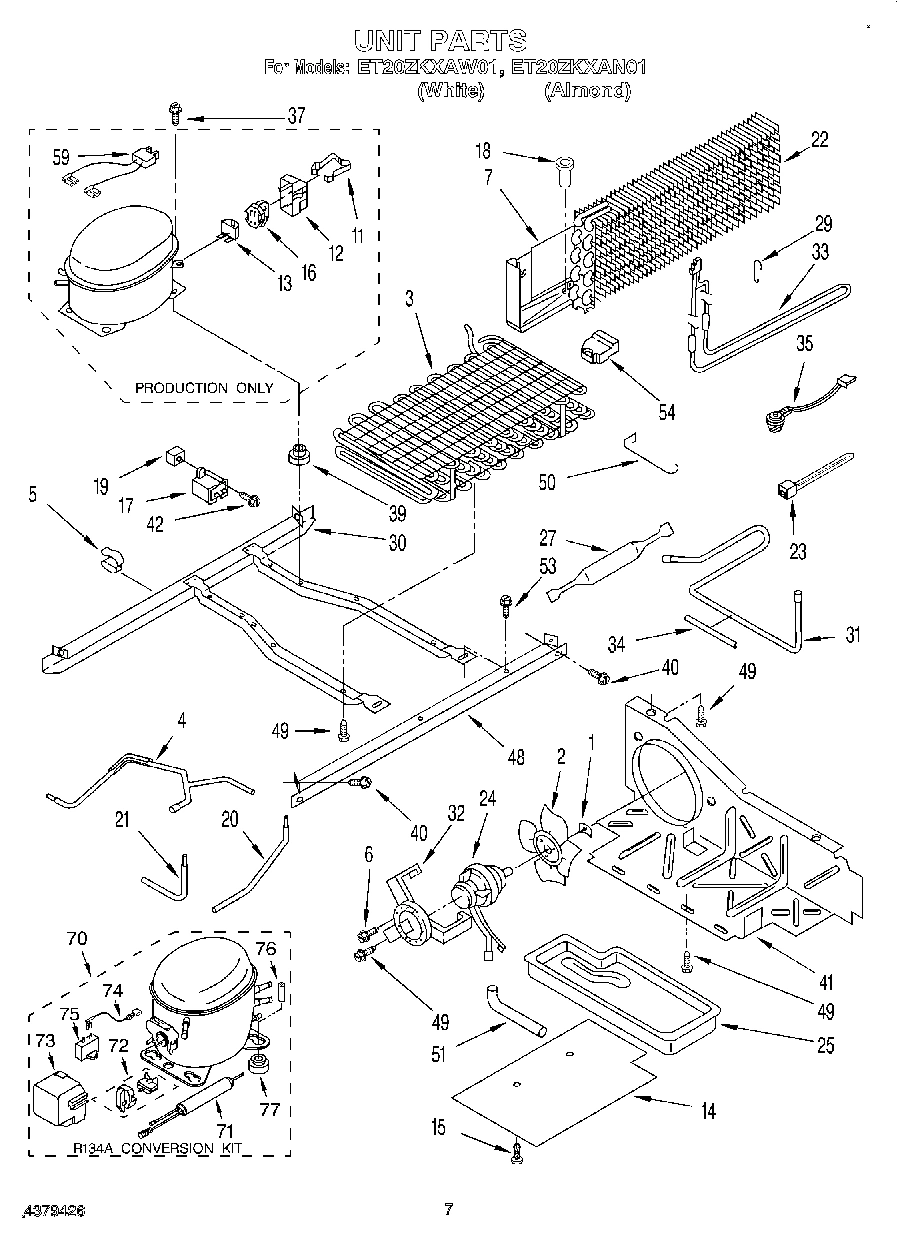

06 - UNIT
Common parts from model Whirlpool ET20ZKXAW01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2154075 WPL LIT2154075 Contact Us For Availability
WPL LIT2160154 WPL LIT2160154 Contact Us For Availability
WPL LIT2162811 WPL LIT2162811 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159160 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159163 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1122549 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1122658 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
3
Condenser Assy. WPL 2164513 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
4
Tube, Discharge WPL 2162475 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
5
Clip, Wire WPL 548745 Contact Us For Availability
7
Shelf, Cantilever WPL 2162583 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
8
Trim, Shelf WPL 1110742 Contact Us For Availability
10
Trim, Crisper Cover WPL 2172709 Contact Us For Availability
11
Clip, Center Rail (6) WPL 1129018 Contact Us For Availability
11
Glass, Crisper Cover WPL 1106929 Contact Us For Availability
11
Spring, Relay Case WPL 938384 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1122729 Contact Us For Availability
12
Handle, Center (Almond) WPL 2159623 Contact Us For Availability
12
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
12
Cover, Terminal WPL 1108115 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Center Rail WPL 2172705 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
14
Cover, Unit Lower WPL 2160505 Contact Us For Availability
15
Interior Door Panel WPL 1122575 Contact Us For Availability
16
Glass, Shelf WPL 2148208 Contact Us For Availability
16
Relay (See Overload) WPL ARI49395A4 Contact Us For Availability
17
Shelf, Freezer WPL 1106615 Contact Us For Availability
17
Running Capacitor WPL 2169137 Contact Us For Availability
18
Shim, Hinge Top WPL 2157269 Contact Us For Availability
18
Trim, Shelf Front WPL 1106618 Contact Us For Availability
18
Nameplate (White) WPL 2162781 Contact Us For Availability
18
Nameplate (Almond) WPL 2162782 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Pan, Crisper WPL 2148160 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Interior Door Panel WPL 2156208 Contact Us For Availability
19
Grommet, Screw WPL 509812 Contact Us For Availability
20
Pan, Meat WPL 2148934 Contact Us For Availability
20
Trim, Door Shelf WPL 2159701 Contact Us For Availability
20
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
21
Trim, Door WPL 2162588 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Compartment Door, Right Side WPL 2148139 Contact Us For Availability
22
Evaporator WPL 2153978 Contact Us For Availability
23
Retainer, Gasket WPL 1122553 Contact Us For Availability
23
Retainer, Glass WPL 1110744 Contact Us For Availability
23
Compartment Door, Left Side WPL 2148141 Contact Us For Availability
24
Shelf, Full Cantilever WPL 2162582 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Trim, Shelf WPL 1114436 Contact Us For Availability
25
Divider, Door Shelf WPL 2160049 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
29
Shelf Stud (2) WPL 946356 Contact Us For Availability
29
Support, Heater WPL 2149120 Contact Us For Availability
30
Support Stud (4) WPL 946355 Contact Us For Availability
30
Trim, Compartment Door WPL 1124223 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
31
WPL 479502 WPL 479502 Contact Us For Availability
31
Spacer WPL 2172744 Contact Us For Availability
31
Retainer, Gasket WPL 1122552 Contact Us For Availability
31
Door Reversal Instructions WPL 2172761 Contact Us For Availability
31
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
31
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
31
WPL 542639 WPL 542639 Contact Us For Availability
31
WPL 799833 WPL 799833 Contact Us For Availability
31
WPL 978883 WPL 978883 Contact Us For Availability
31
Tube, Suction WPL 2162472 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Corner Filler, Grille WPL 1118078 Contact Us For Availability
33
Heater, Defrost WPL 2162019 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
35
Grille WPL 1129001 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
37
Wiring Assembly, Intermediate WPL 2153994 Contact Us For Availability
41
Air Baffle WPL 2169417 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
48
Cover, Unit WPL 2160490 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
51
Drain Extension WPL 2154119 Contact Us For Availability
53
Screw, WPL 488454 Contact Us For Availability
54
Support, Evaporator (R.S.) WPL 1118805 Contact Us For Availability
54
Support-Evaporator (L.S.) WPL 2159708 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
