Model Whirlpool ET20VKXRWR0 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

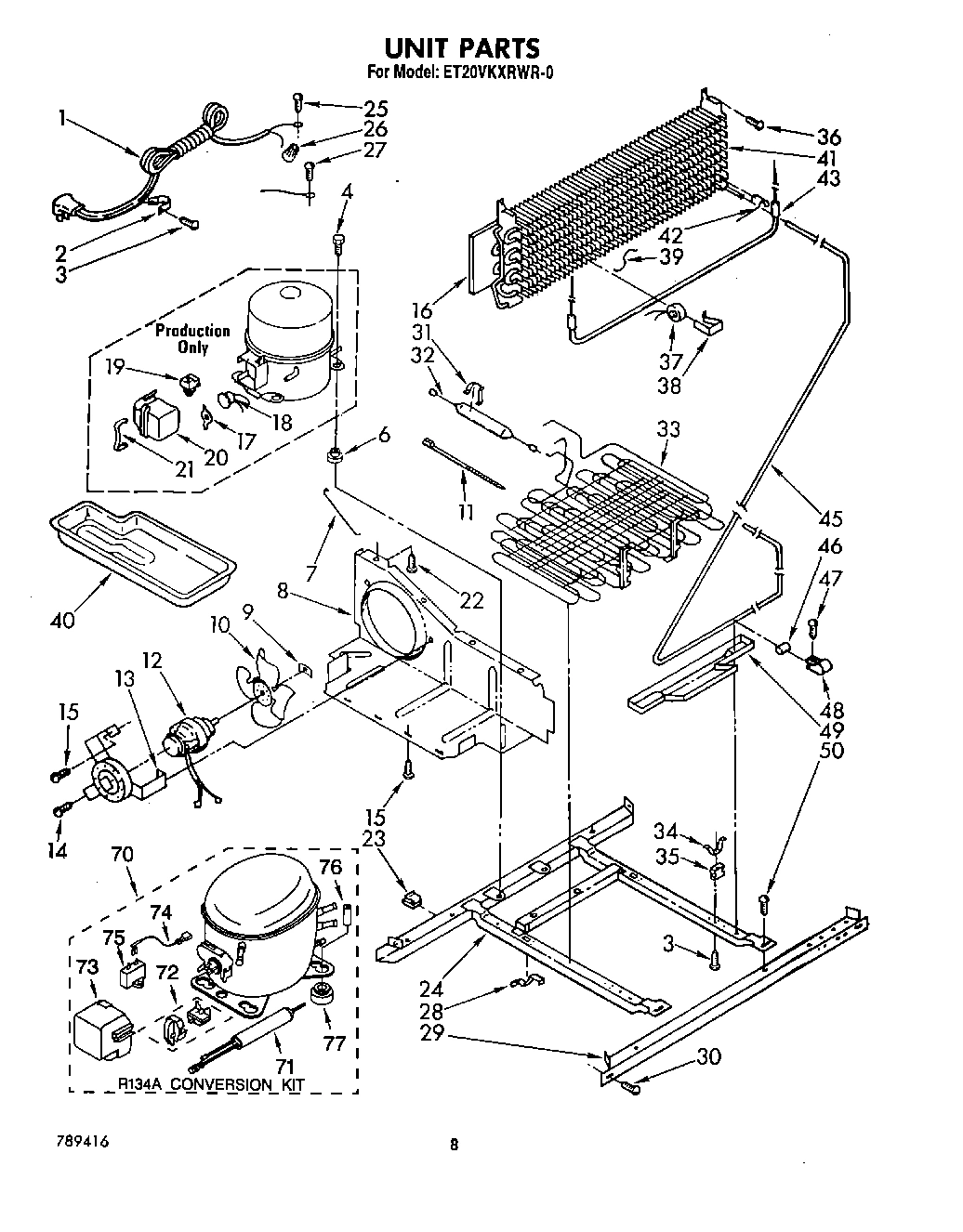

05 - UNIT

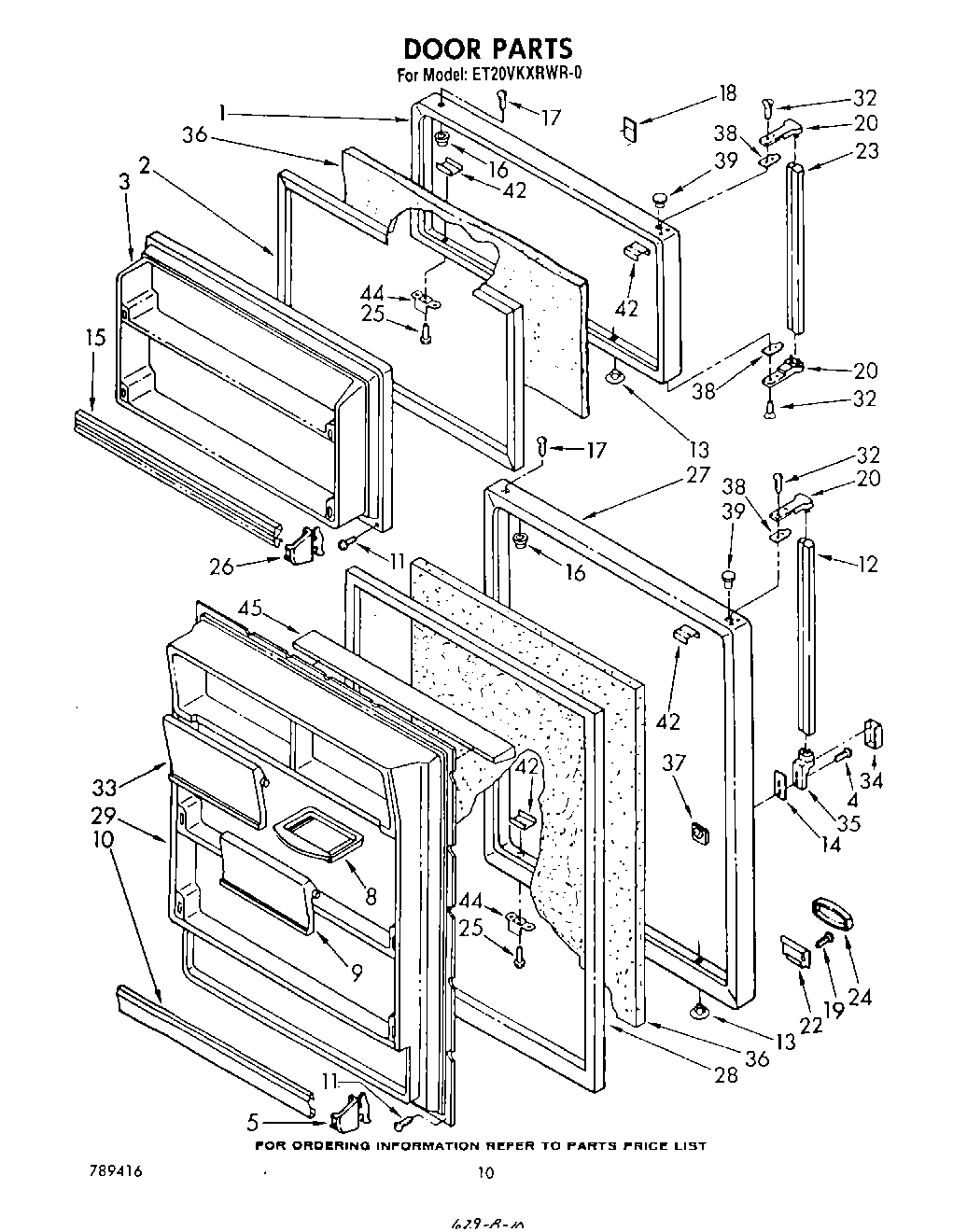

06 - DOOR , LIT/OPTIONAL

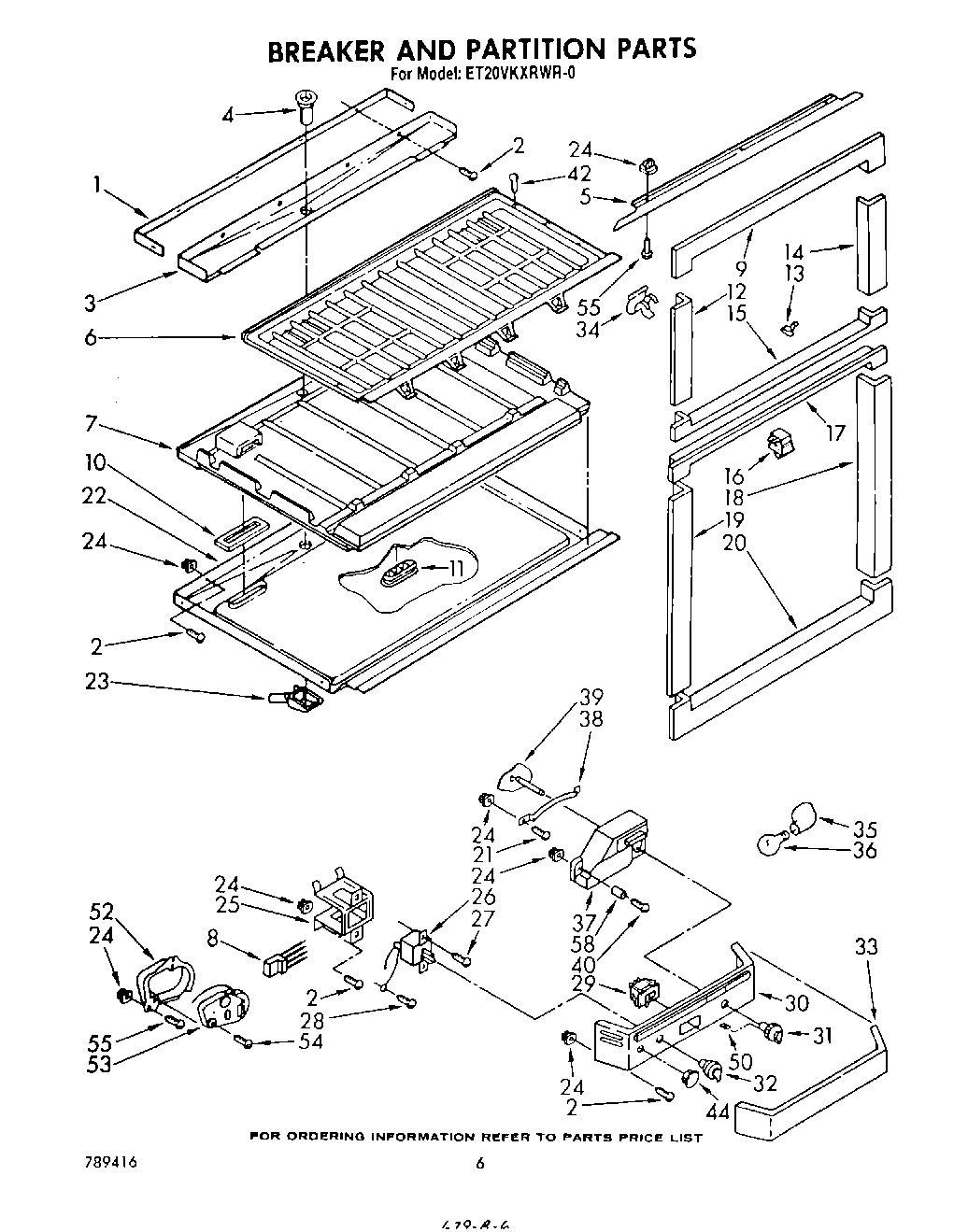

04 - BREAKER AND PARTITION

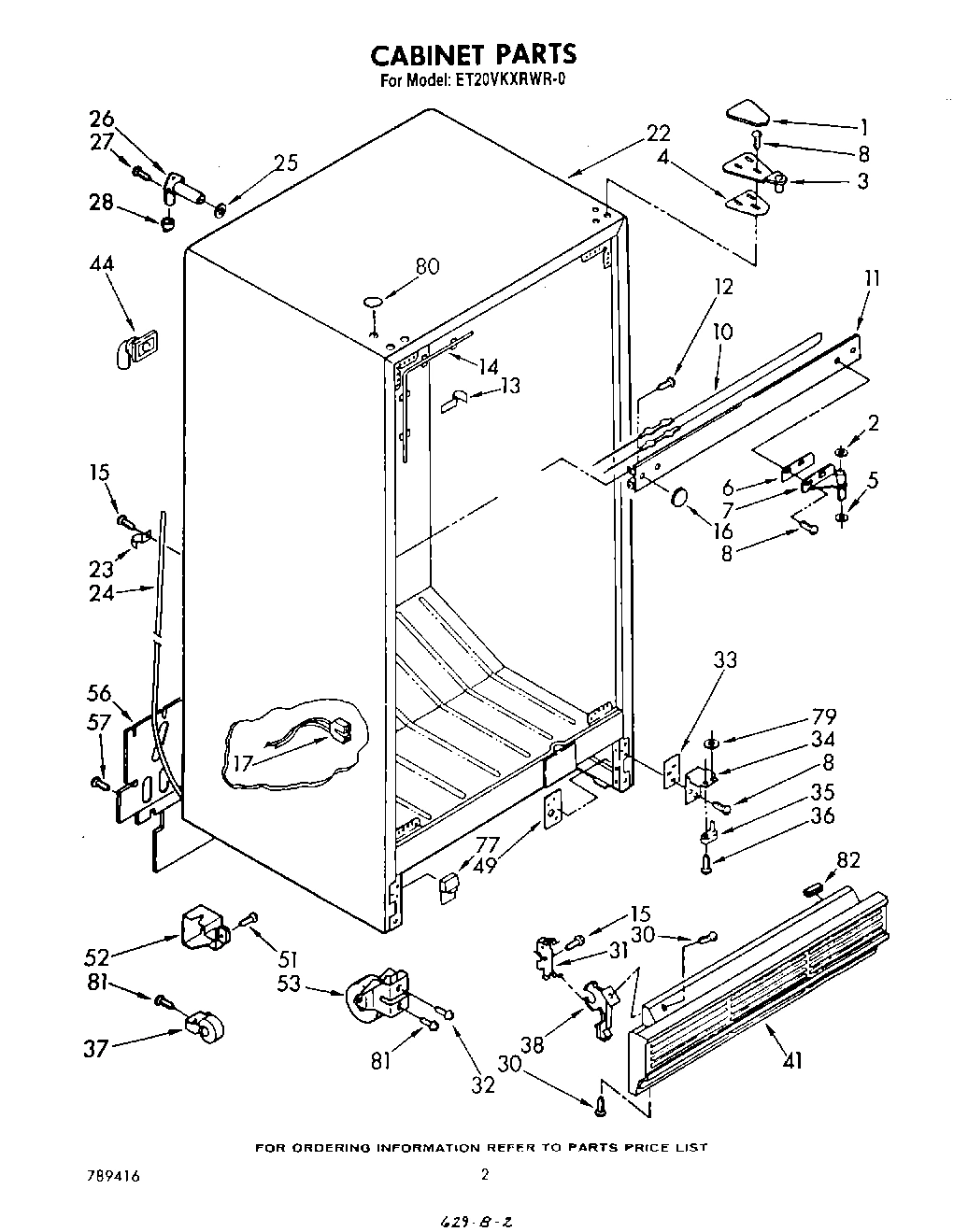

02 - CABINET

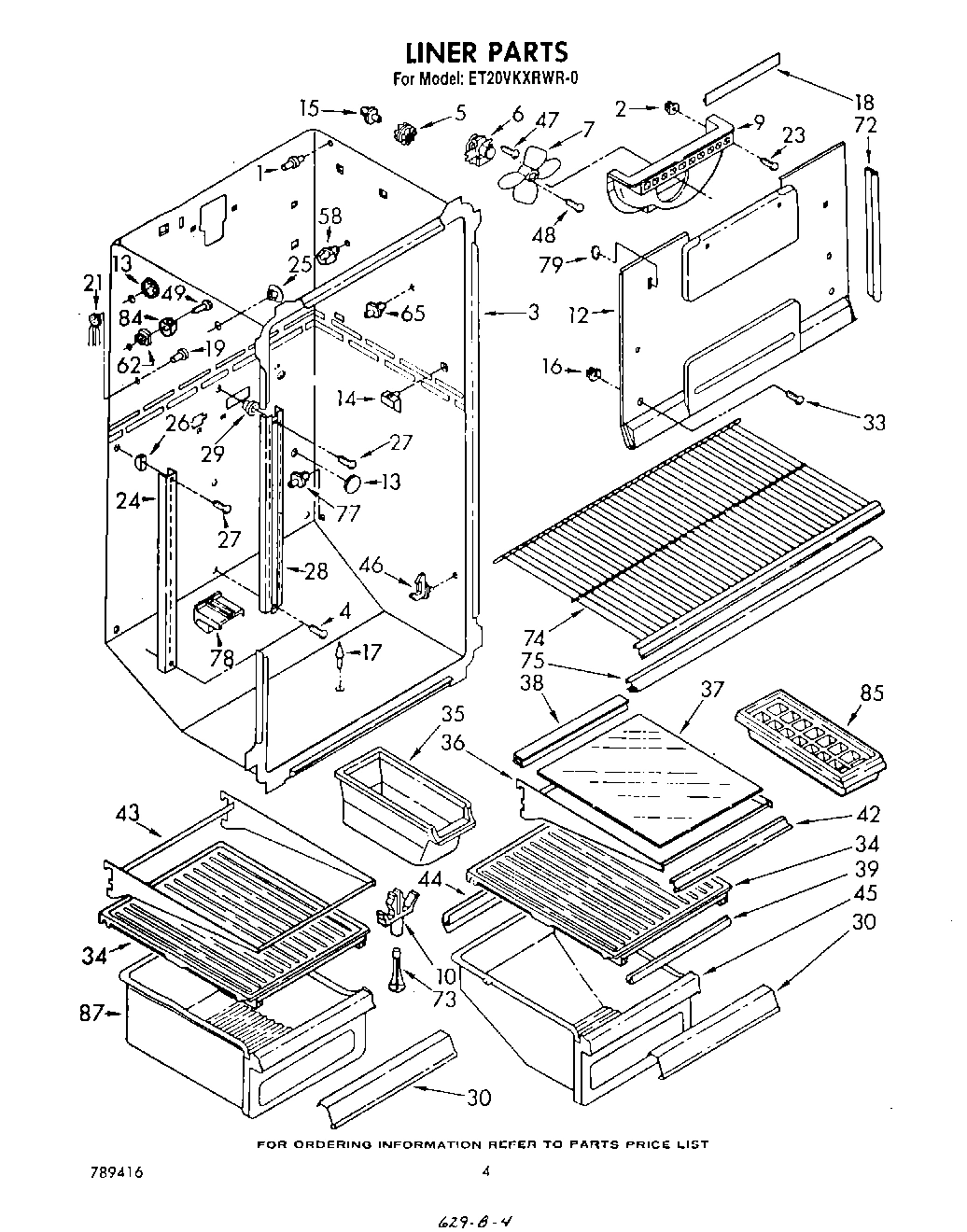

03 - LINER
Common parts from model Whirlpool ET20VKXRWR0 TOP MOUNT REFRIGERATOR
WPL 677813 WPL 677813 Contact Us For Availability
WPL 677818 WPL 677818 Contact Us For Availability
WPL 677821 WPL 677821 Contact Us For Availability
WPL 677967 WPL 677967 Contact Us For Availability
WPL 677971 WPL 677971 Contact Us For Availability
WPL LIT1108985 WPL LIT1108985 Contact Us For Availability
WPL LIT1108987 WPL LIT1108987 Contact Us For Availability
WPL LIT789416 WPL LIT789416 Contact Us For Availability
WPL LIT946646 WPL LIT946646 Contact Us For Availability
1
Door, Freezer (Also Order Item 36) (Toast) WPL 1103193 Contact Us For Availability
1
Door, Freezer (Also Order Item 36) (Platinum) WPL 1103194 Contact Us For Availability
1
Door, Freezer (Also Order Item 36) (White) WPL 944314 Contact Us For Availability
1
Door, Freezer (Also Order Item 36) (Coffee) WPL 944315 Contact Us For Availability
1
Door, Freezer (Also Order Item 36) (Golden Ha WPL 944316 Contact Us For Availability
1
Door, Freezer (Also Order Item 36) (Almond) WPL 944318 Contact Us For Availability
1
Gasket, Drain Pan WPL 843291 Contact Us For Availability
1
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
1
Cover, Hinge (Coffee) WPL 989895 Contact Us For Availability
1
Cover, Hinge (Golden Harvest) WPL 989896 Contact Us For Availability
1
Stud, Evaporator Cover WPL 526383 Contact Us For Availability
2
Grommet WPL 842339 Contact Us For Availability
3
Panel, Interior WPL 945208 Contact Us For Availability
3
Pan, Evaporator Drain WPL 841686 Contact Us For Availability
3
Hinge & Shim (Top) WPL 842039 Contact Us For Availability
3
Liner (Not A Serviceable Part) WPL ARI49377A8 Contact Us For Availability
4
Fitting, Drain Pan WPL 841770 Contact Us For Availability
4
Shim, Top Hinge WPL 836192 Contact Us For Availability
4
Screw, 8-32 x 1-1/4 (3) WPL 488960 Contact Us For Availability
4
Screw (Repair) WPL 488980 Contact Us For Availability
5
Baffle, Liner Top WPL 982582 Contact Us For Availability
5
Grommet (2) WPL 531933 Contact Us For Availability
6
Separator (Top) WPL 848423 Contact Us For Availability
6
Shim (.030) WPL 836155 Contact Us For Availability
7
Insulation, Separator WPL 991173 Contact Us For Availability
7
Hinge & Shim (Center) WPL 836153 Contact Us For Availability
8
Liner Wiring (Defrost Timer) WPL 481782 Contact Us For Availability
8
Screw, 12-14 x 3/4 WPL 488949 Contact Us For Availability
9
Door, Butter WPL 1108977 Contact Us For Availability
9
Breaker, Freezer (Top) WPL 839830 Contact Us For Availability
9
Scroll, Fan WPL 935067 Contact Us For Availability
10
Support, Cover WPL 848562 No Longer Available
10
Trim, Shelf (2) WPL 1108975 Contact Us For Availability
10
Gasket, Air Return (2) WPL 981725 Contact Us For Availability
10
Heater, Mullion WPL 989256 Contact Us For Availability
11
Air Return, Grommet WPL 946683 Contact Us For Availability
11
Center Rail (Toast) WPL 1100303 Contact Us For Availability
11
Center Rail (Platinum) WPL 1100304 Contact Us For Availability
11
Rail, Center (White) WPL 836067 Contact Us For Availability
11
Rail, Center (Coffee) WPL 989908 Contact Us For Availability
11
Rail, Center (Golden Harvest) WPL 989909 Contact Us For Availability
11
Rail, Center (Almond) WPL 989911 Contact Us For Availability
12
Handle, Center WPL 1108942 Contact Us For Availability
12
Handle, Center (For Platinum Model Only WPL 1109181 Contact Us For Availability
12
Breaker, Freezer (L.S.) WPL 841719 Contact Us For Availability
12
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
12
Screw (Repair) WPL 487470 Contact Us For Availability
12
Cover, Evaporator WPL 986624 Contact Us For Availability
13
Clip (8) WPL 534365 Contact Us For Availability
13
Clip, Heater (8) WPL 935663 Contact Us For Availability
13
Plug, Hole (4) WPL 519890 Contact Us For Availability
14
Shim, Handle WPL 935076 Contact Us For Availability
14
Breaker, Freezer (R.S.) WPL 841722 Contact Us For Availability
14
Heater, Stile WPL 936075 Contact Us For Availability
14
Stud, Retainer (4) WPL 836374 Contact Us For Availability
15
Trim, Shelf (2) WPL 986542 Contact Us For Availability
15
Breaker, Mullion (Top) WPL 841642 Contact Us For Availability
15
Grommet (2) WPL 845722 Contact Us For Availability
16
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
16
Plug, Hole (2) (Toast) WPL 1100174 Contact Us For Availability
16
Hole Plug (2) (Platinum) WPL 1100175 Contact Us For Availability
16
Plug, Hole (2) (White) WPL 835974 Contact Us For Availability
16
Plug, Hole (2) (Almond) WPL 989193 Contact Us For Availability
16
Plug, Hole (2) (Coffee) WPL 989881 Contact Us For Availability
16
Plug, Hole (2) (Golden Harvest) WPL 989882 Contact Us For Availability
16
Grommet (4) WPL 848445 Contact Us For Availability
17
Grommet, Crisper Post WPL 836409 Contact Us For Availability
17
Breaker, Mullion Bottom WPL 841643 Contact Us For Availability
17
Wiring Assembly (Water Valve) WPL 548734 Contact Us For Availability
18
Nameplate WPL 1106060 Contact Us For Availability
18
Nameplate (For Platinum Model Only) WPL 1110077 Contact Us For Availability
18
Breaker, Refrigerator (R.S.) WPL 841724 Contact Us For Availability
18
Gasket, Sealing WPL 935068 Contact Us For Availability
19
Breaker, Refrigerator (L.S.) WPL 841721 Contact Us For Availability
19
Cap, Receptacle WPL 850738 Contact Us For Availability
20
Cap, Handle (3) WPL 944157 Contact Us For Availability
20
Breaker, Refrigerator (Bottom) WPL 839829 Contact Us For Availability
21
Wiring, Ice Maker WPL 481658 Contact Us For Availability
22
Clip, Medallion WPL 843213 Contact Us For Availability
22
Separator (Bottom) WPL 981738 Contact Us For Availability
22
Cabinet (Not A Serviceable Part) WPL ARI49376A2 Contact Us For Availability
23
Handle, Center WPL 1108981 Contact Us For Availability
23
Handle, Center (For Platinum Model Only) WPL 1108983 Contact Us For Availability
23
Cup, Drain WPL 841708 Contact Us For Availability
23
Clamp WPL 836077 Contact Us For Availability
24
Medallion (Toast) WPL 1100194 Contact Us For Availability
24
Medallion (Platinum) WPL 1100195 Contact Us For Availability
24
Medallion (White) WPL 848382 Contact Us For Availability
24
Medallion (Coffee) WPL 989901 Contact Us For Availability
24
Medallion (Golden Harvest) WPL 989903 Contact Us For Availability
24
Medallion (Almond) WPL 989904 Contact Us For Availability
24
Ladder, Shelf (2) WPL 934267 Contact Us For Availability
25
Screw (Repair) WPL 488930 Contact Us For Availability
25
Bracket, Thermostat WPL 848446 Contact Us For Availability
25
Plug, Hole (2) WPL 659598 Contact Us For Availability
27
Door, Refrigerator (Also Order Item 36) (Toas WPL 1103191 Contact Us For Availability
27
Door, Refrigerator (Also Order Item 36) (Plat WPL 1103192 Contact Us For Availability
27
Door, Refrigerator (Also Order Item 36) (Whit WPL 944308 Contact Us For Availability
27
Door, WPL 944309 Contact Us For Availability
27
WPL 944310 WPL 944310 Contact Us For Availability
27
WPL 944312 WPL 944312 Contact Us For Availability
27
Screw, 8 x 1-1/4 (3) WPL 488357 Contact Us For Availability
28
Ladder, Shelf WPL 936230 Contact Us For Availability
29
WPL 945207 WPL 945207 Contact Us For Availability
29
Support, Ladder (2) WPL 520959 Contact Us For Availability
30
Panel, Control WPL 942214 Contact Us For Availability
30
Screw, 8-22 x 5/16 WPL 489085 Contact Us For Availability
30
Overlay, Pan WPL 986316 Contact Us For Availability
31
Knob, Control (Includes Illus. 50) WPL 837445 Contact Us For Availability
31
Clip, Grille WPL 989068 Contact Us For Availability
32
WPL 488923 WPL 488923 Contact Us For Availability
32
Knob, Thermostat WPL 836482 Contact Us For Availability
32
Screw, 5/16-24 x 1-1/4 WPL 488681 Contact Us For Availability
33
WPL 1108978 WPL 1108978 Contact Us For Availability
33
Lens, Light WPL 983910 Contact Us For Availability
33
Shim (Bottom) (.030) WPL 836196 Contact Us For Availability
34
WPL 987873 WPL 987873 Contact Us For Availability
34
Clip (2) WPL 836090 Contact Us For Availability
34
Butt, Hinge WPL 836159 Contact Us For Availability
34
Slide & Cover Pan WPL 1110033 Contact Us For Availability
35
Pin, Hinge WPL 654366 Contact Us For Availability
35
WPL 935105 WPL 935105 Contact Us For Availability
36
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
36
Shelf Cantilever WPL 1109029 Contact Us For Availability
37
Air Diffuser WPL 836487 Contact Us For Availability
37
Glass Shelf WPL 1109030 Contact Us For Availability
38
WPL 943188 WPL 943188 Contact Us For Availability
38
Retainer WPL 836493 Contact Us For Availability
38
Retainer Glass WPL 991459 Contact Us For Availability
39
WPL 1100188 WPL 1100188 Contact Us For Availability
39
WPL 1100189 WPL 1100189 Contact Us For Availability
39
WPL 989196 WPL 989196 Contact Us For Availability
39
WPL 989892 WPL 989892 Contact Us For Availability
39
Damper, Air WPL 984658 Contact Us For Availability
39
Gasket, Front (2) WPL 942028 Contact Us For Availability
40
Tray, Evaporating WPL 842041 Contact Us For Availability
41
Exterior, Grille (Toast) WPL 1100307 Contact Us For Availability
41
Exterior, Grille (Platinum) WPL 1100308 Contact Us For Availability
41
Grille, Exte WPL 944233 Contact Us For Availability
41
WPL 944234 WPL 944234 Contact Us For Availability
41
WPL 944235 WPL 944235 Contact Us For Availability
41
WPL 944237 WPL 944237 Contact Us For Availability
42
Trim, Shelf WPL 935223 Contact Us For Availability
43
Pan Shelf, Cantilever WPL 936285 Contact Us For Availability
44
Plug, Hole WPL 534927 Contact Us For Availability
44
WPL 944036 WPL 944036 Contact Us For Availability
44
WPL 841687 WPL 841687 Contact Us For Availability
44
Gasket, Rear (2) WPL 942027 Contact Us For Availability
45
WPL 876029 WPL 876029 Contact Us For Availability
45
WPL 479502 WPL 479502 Contact Us For Availability
45
WPL 799344 WPL 799344 Contact Us For Availability
45
WPL 261886 WPL 261886 Contact Us For Availability
45
WPL 261887 WPL 261887 Contact Us For Availability
45
WPL 261890 WPL 261890 Contact Us For Availability
45
WPL 261891 WPL 261891 Contact Us For Availability
45
WPL 285365 WPL 285365 Contact Us For Availability
45
WPL 285366 WPL 285366 Contact Us For Availability
45
WPL 285367 WPL 285367 Contact Us For Availability
45
WPL 285368 WPL 285368 Contact Us For Availability
45
WPL 350941 WPL 350941 Contact Us For Availability
45
WPL 542639 WPL 542639 Contact Us For Availability
45
WPL 72108 WPL 72108 Contact Us For Availability
45
WPL 72112 WPL 72112 Contact Us For Availability
45
WPL 799832 WPL 799832 Contact Us For Availability
45
WPL 799833 WPL 799833 Contact Us For Availability
45
WPL 799908 WPL 799908 Contact Us For Availability
45
WPL 849802 WPL 849802 Contact Us For Availability
45
WPL 978883 WPL 978883 Contact Us For Availability
45
Pan, Crisper (2) WPL 1108971 Contact Us For Availability
46
Stud, Shelf (2) WPL 836423 Contact Us For Availability
49
WPL 836162 WPL 836162 Contact Us For Availability
50
Knob, Retainer WPL 837444 Contact Us For Availability
52
Container Timer WPL 983079 Contact Us For Availability
52
WPL 549947 WPL 549947 Contact Us For Availability
53
Timer, Defrost WPL 943428 Contact Us For Availability
53
WPL 981127 WPL 981127 Contact Us For Availability
54
Screw, 8 x 1-3/8 (2) WPL 488678 Contact Us For Availability
56
WPL 850459 WPL 850459 Contact Us For Availability
58
Stud, Saddle (R.S.) WPL 523263 Contact Us For Availability
62
Grommet WPL 538449 Contact Us For Availability
65
Stud, Shelf (2) WPL 529758 Contact Us For Availability
72
Gasket, Evaporator Cover (2) WPL 981750 Contact Us For Availability
73
Post, Crisper WPL 836410 Contact Us For Availability
74
Shelf, Freezer WPL 935204 Contact Us For Availability
75
Trim, Shelf Front WPL 985070 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
Stud, Shelf (2) WPL 536475 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
77
WPL 1100182 WPL 1100182 Contact Us For Availability
77
WPL 1100183 WPL 1100183 Contact Us For Availability
77
WPL 838535 WPL 838535 Contact Us For Availability
77
WPL 989928 WPL 989928 Contact Us For Availability
77
WPL 989929 WPL 989929 Contact Us For Availability
77
WPL 989931 WPL 989931 Contact Us For Availability
78
Stud, Crisper Support WPL 836412 Contact Us For Availability
79
Hole, Plug WPL 659776 Contact Us For Availability
80
WPL 1100176 WPL 1100176 Contact Us For Availability
80
WPL 1100177 WPL 1100177 Contact Us For Availability
80
WPL 842031 WPL 842031 Contact Us For Availability
80
WPL 989195 WPL 989195 Contact Us For Availability
80
WPL 989875 WPL 989875 Contact Us For Availability
80
WPL 989876 WPL 989876 Contact Us For Availability
81
WPL 488454 WPL 488454 Contact Us For Availability
82
WPL 546131 WPL 546131 Contact Us For Availability
84
Stud, Shelf WPL 836492 Contact Us For Availability
87
Pan, Meat WPL 1108973 Contact Us For Availability
× ![]()
