Model Whirlpool ET20RKYXW01 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT1124256 WPL LIT1124256 Contact Us For Availability

WPL LIT2148866 WPL LIT2148866 Contact Us For Availability

WPL LIT2149859 WPL LIT2149859 Contact Us For Availability

WPL LIT4316150 WPL LIT4316150 Contact Us For Availability

1

Bottom, Compartment Separator WPL 1122715 Contact Us For Availability

1

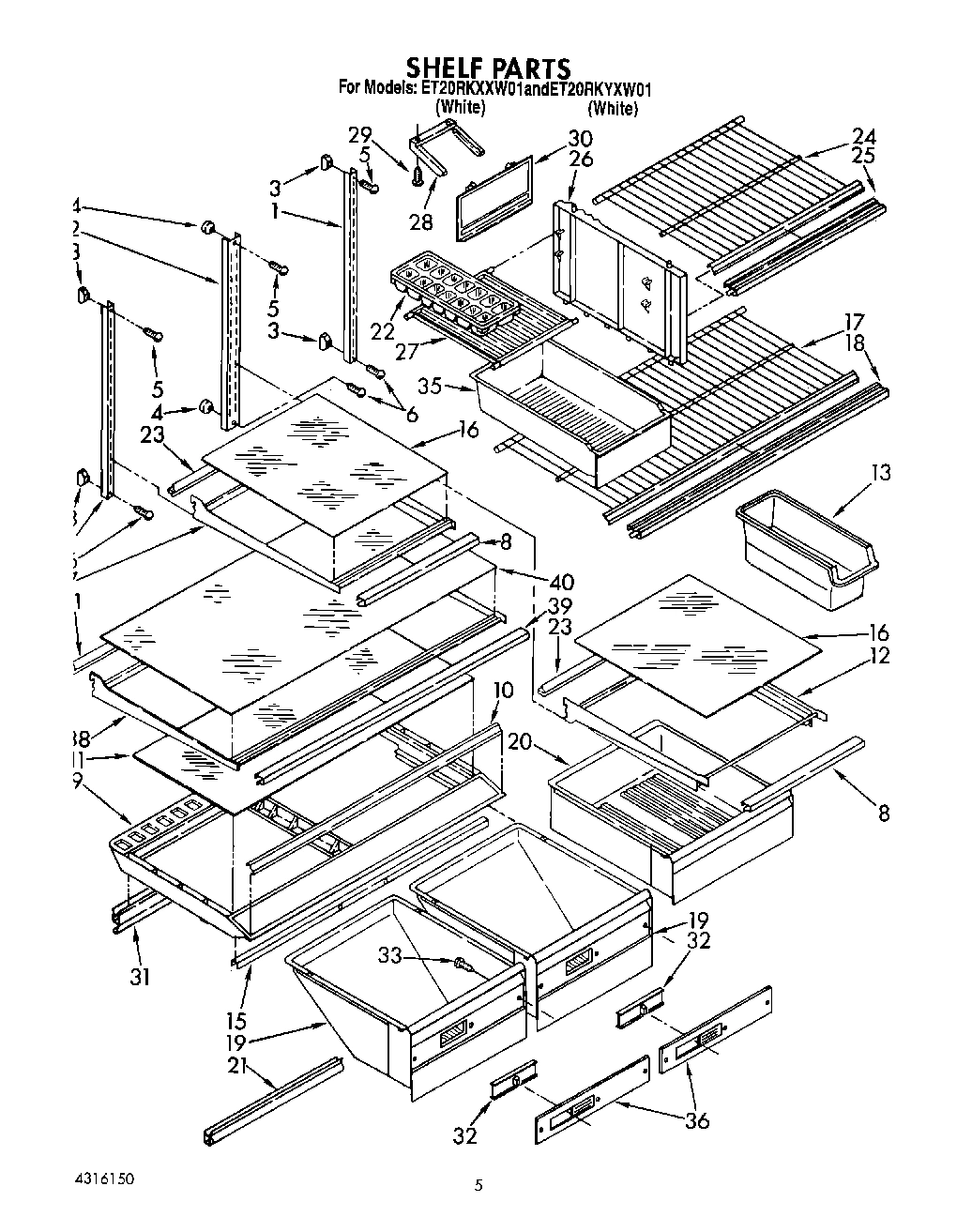

Shelf, Ladder (2) WPL 1114466 Contact Us For Availability

1

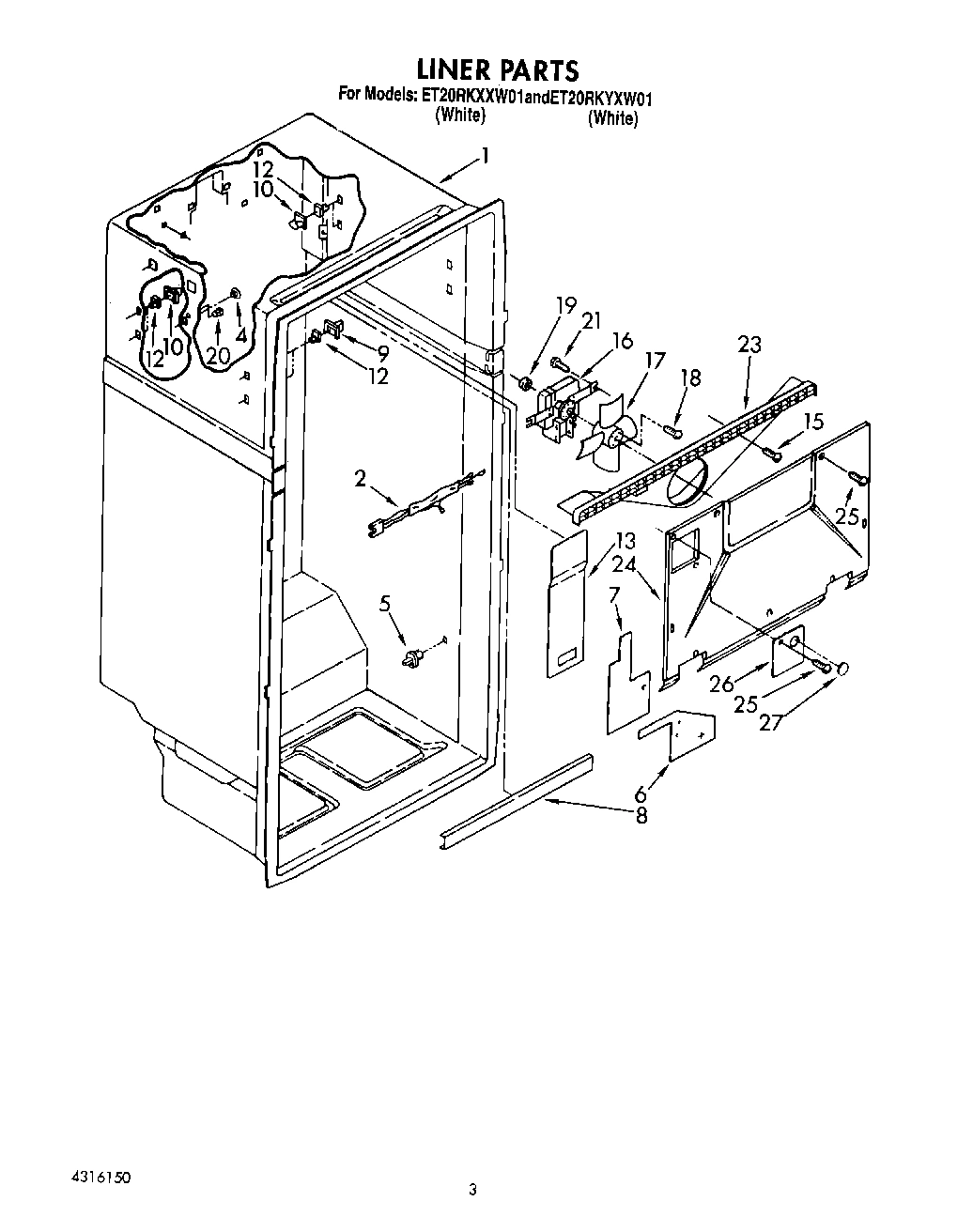

Liner (Not A Serviceable Part) WPL ARI49283A5 Contact Us For Availability

1

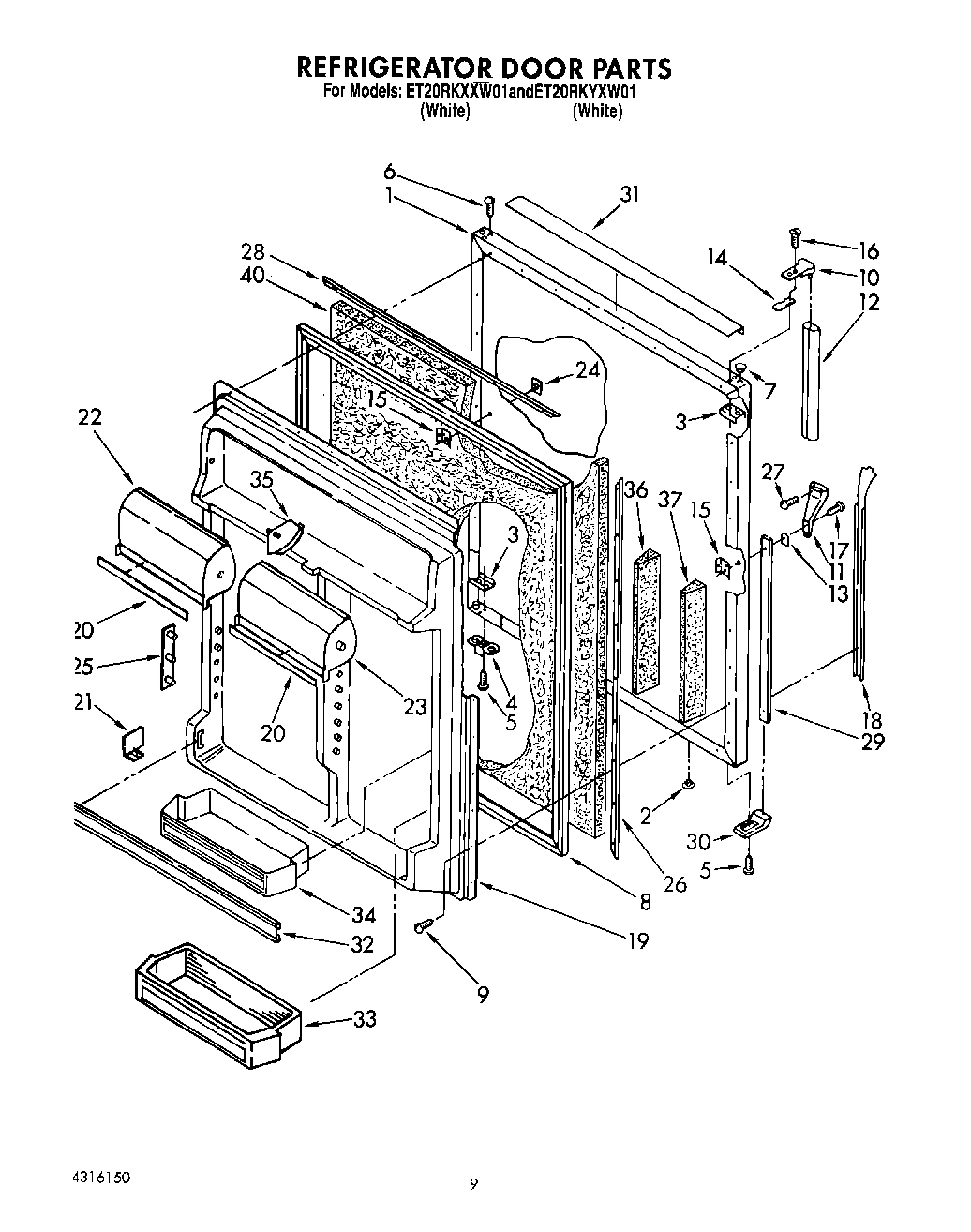

Panel, Refrigerator Door (Also Order Item 40) WPL 1122549 Contact Us For Availability

1

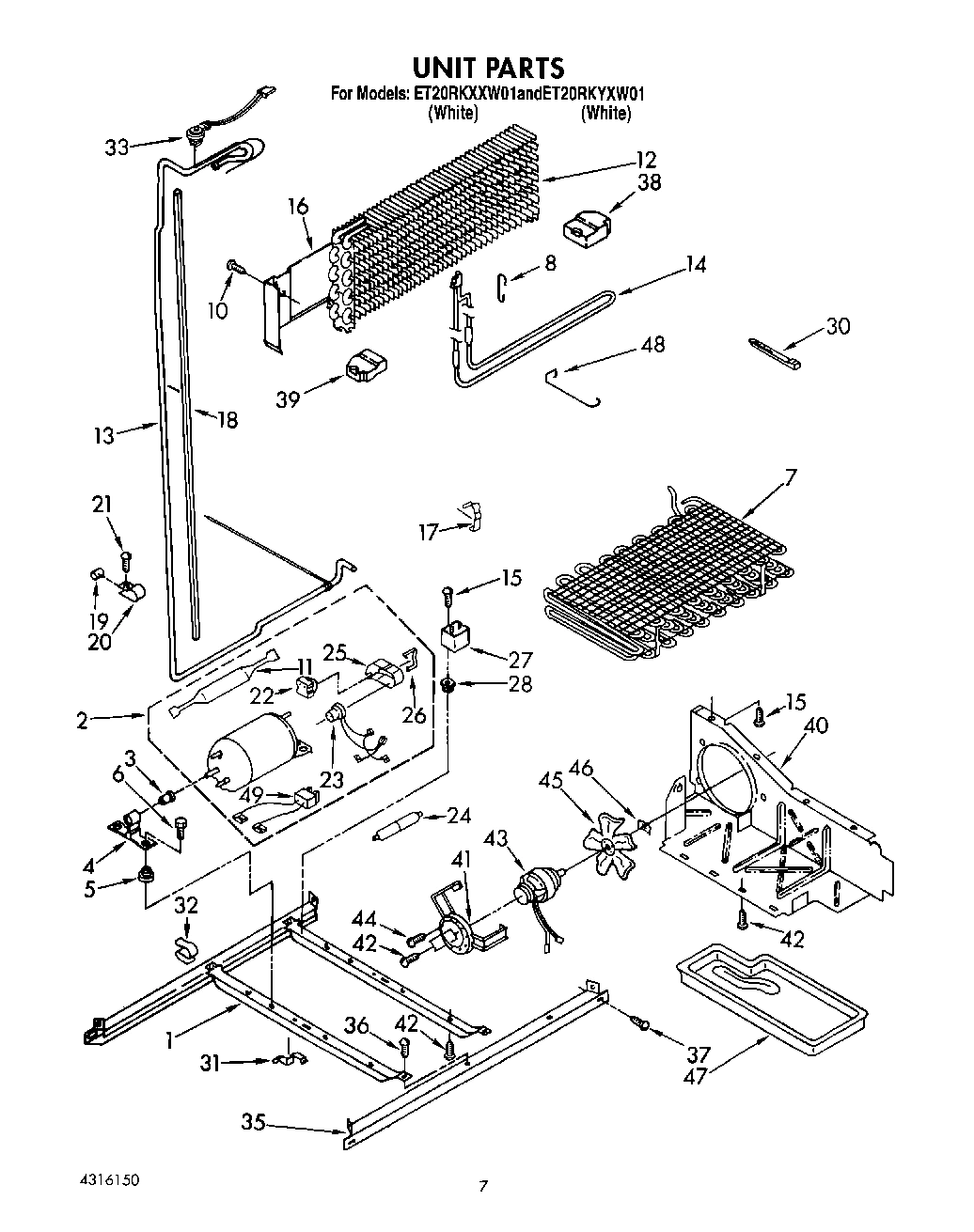

Unit, Frame WPL 2154451 Contact Us For Availability

1

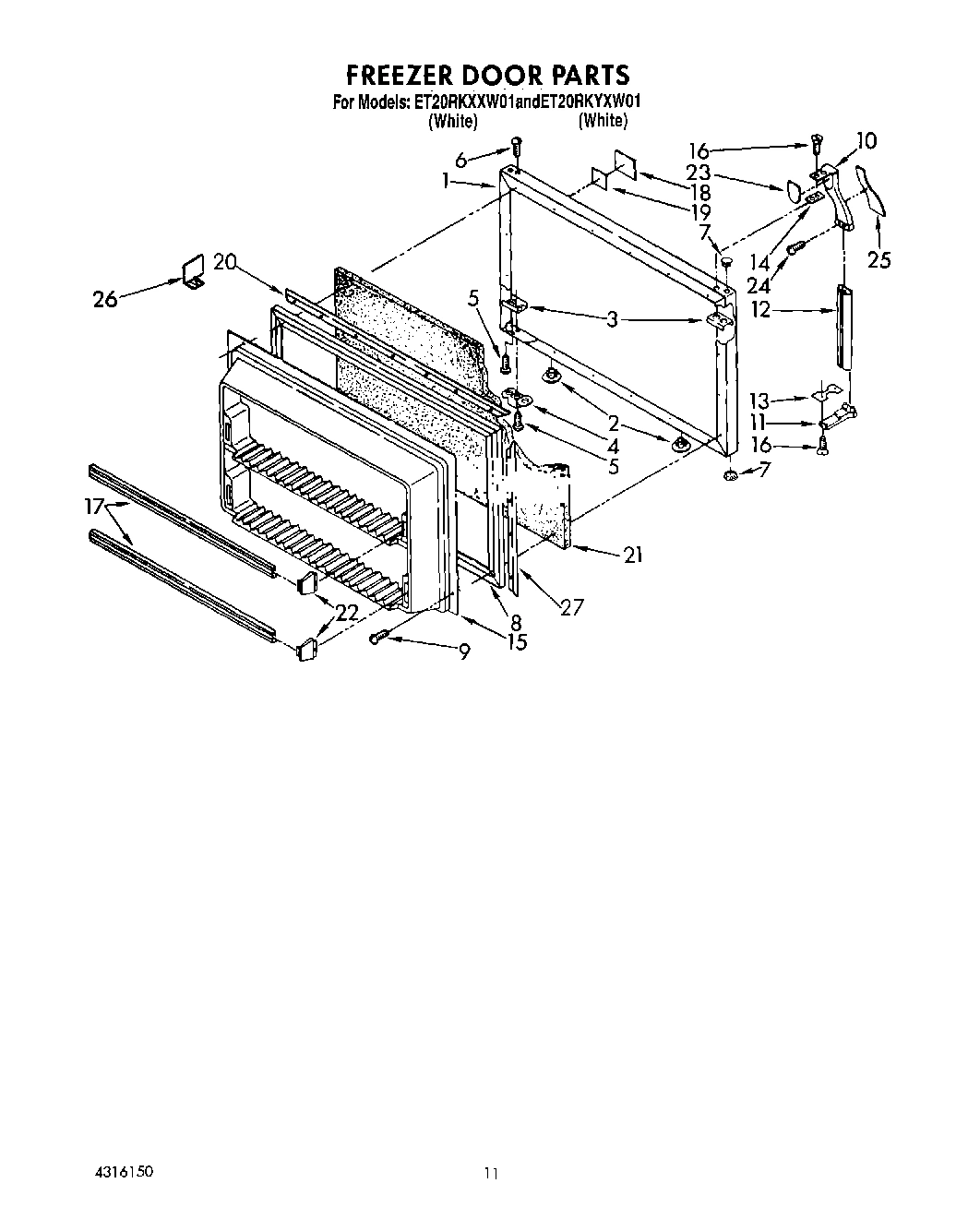

Panel, Freezer Door (Also Order Item 21) (Whi WPL 1122550 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Box, Control WPL 1126029 Contact Us For Availability

2

Shelf, Ladder Center WPL 1114465 Contact Us For Availability

2

Hole Plug (2) (White) WPL 534927 Contact Us For Availability

2

Compressor Kit (Includes Items 11, 22, 23, 25 WPL 4318250 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

3

Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

Timer, Defrost (10 Hour) WPL 1127570 Contact Us For Availability

4

Screw, Support Center (2) WPL 520959 Contact Us For Availability

4

Bracket, Door Stop WPL 944036 Contact Us For Availability

4

Bracket, Mounting WPL 1105220 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

5

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

5

W10854959 Whirlpool Refrigerator Shelf Stud Backorder WPL W10854959 $4.23

5

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Screw (3) WPL 489345 Contact Us For Availability

5

Grommet, Compressor (4) (Production) WPL 1105200 Contact Us For Availability

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

6

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

6

Electrical Shield WPL 2151521 Contact Us For Availability

6

Screw (4) WPL 489334 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

Shelf, Cantilever WPL 1120435 Contact Us For Availability

7

Electrical Shield WPL 1106696 Contact Us For Availability

7

Condenser Assembly WPL 2149613 Contact Us For Availability

8

2188450A Whirlpool Refrigerator Door Gasket Backorder WPL 2188450A $108.53

8

2188460A Whirlpool Refrigerator Door Gasket Backorder WPL 2188460A $89.09

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

8

Trim, Shelf WPL 2148526 Contact Us For Availability

8

Electrical, Shield WPL 1106892 Contact Us For Availability

8

Support, Heater WPL 2149120 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

WP2151749 Whirlpool Refrigerator Cover Backorder WPL WP2151749 $124.51

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

Stud (2) WPL 946356 Contact Us For Availability

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $89.70

819091 Whirlpool Refrigerator Shelf Stud Backorder WPL 819091 $13.89

Handle End, Top WPL 944163 Contact Us For Availability

Trim, Crisper Cover WPL 1119480 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

Handle End, Side WPL 1109189 Contact Us For Availability

Knob, Thermostat WPL 1114315 Contact Us For Availability

Glass, Crisper Cover WPL 1124553 Contact Us For Availability

Handle End WPL 944157 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Pan Shelf, Cantilever WPL 1122729 Contact Us For Availability

support stud (8) WPL 946355 Contact Us For Availability

Handle, Center WPL 2150150 Contact Us For Availability

Evaporator Assembly WPL 1118548 Contact Us For Availability

Handle, Center WPL 2150149 Contact Us For Availability

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

Shim, Handle WPL 943187 Contact Us For Availability

Light, Bar WPL 1105475 Contact Us For Availability

Cover, Air Duct WPL 1105447 Contact Us For Availability

Shim, Handle End (Side) WPL 935075 Contact Us For Availability

Heat, Exchanger WPL 2149616 Contact Us For Availability

14

Spacer, Handle Door WPL 943188 Contact Us For Availability

14

Knob, Air Control WPL 1114314 Contact Us For Availability

14

Heater, Defrost WPL 2149645 Contact Us For Availability

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Light, Bar WPL 1105476 Contact Us For Availability

Interior Door Panel WPL 1122575 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

Rod, Connecting WPL 1105459 Contact Us For Availability

Shelf, Glass WPL 1124551 Contact Us For Availability

Heat Shield WPL 1105545 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Air Diffuser Assembly WPL 1123221 Contact Us For Availability

Shelf, Freezer WPL 1106615 Contact Us For Availability

Clamp, Dryer WPL 1127590 Contact Us For Availability

Trim, Door Shelf (2) WPL 2148555 Contact Us For Availability

WP2002171 Whirlpool Refrigerator Sleeve Backorder WPL WP2002171 $10.19

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Gasket, Air Diffuser WPL 1114325 Contact Us For Availability

Trim, Shelf Front WPL 2148535 Contact Us For Availability

Insert, Handle WPL 2150153 Contact Us For Availability

Nameplate WPL 2148544 Contact Us For Availability

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

Pan, Crisper WPL 2148522 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

Interior Door Panel WPL 1126757 Contact Us For Availability

Dampener (2) WPL 510769 Contact Us For Availability

Strip, Tape WPL 991259 Contact Us For Availability

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

Ground Wire WPL 1114482 Contact Us For Availability

Pan, Meat WPL 2148530 Contact Us For Availability

Grommet, (6) WPL 1110779 Contact Us For Availability

Trim, Door Compartment (2) WPL 1122750 Contact Us For Availability

Retainer, Gasket WPL 1122552 Contact Us For Availability

Tube Clamp (2) WPL 510716 Contact Us For Availability

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Kit, Foam Slab WPL 876029 Contact Us For Availability

Crisper Gasket, Front (2) WPL 1116512 Contact Us For Availability

Screw WPL 489168 Contact Us For Availability

Divider, Door Shelf WPL 2152335 Contact Us For Availability

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $6.84

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Wiring Assemb1y, Control Box WPL 2149637 Contact Us For Availability

Compartment Door, Left Side WPL 2148548 Contact Us For Availability

Relay (See Overload) WPL ARI49284A3 Contact Us For Availability

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $68.76

Gasket, Bottom Separator WPL 1114382 Contact Us For Availability

Reflector, Shelf WPL 1106768 Contact Us For Availability

Scroll, Fan WPL 1127100 Contact Us For Availability

Compartment Door, Right Side WPL 2148546 Contact Us For Availability

Overload (Production (Includes Relay)) WPL 1116635 Contact Us For Availability

Shim, EndCap (Top) WPL 935074 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

Shelf, Freezer (Top) WPL 1106822 Contact Us For Availability

Evaporator Cover WPL 1118708 Contact Us For Availability

Screw, 6-20 x 3/8 (2) WPL 489022 Contact Us For Availability

Muffler WPL 1121121 Contact Us For Availability

Trim, Shelf WPL 2148537 Contact Us For Availability

Pin Plate (8) WPL 1116986 Contact Us For Availability

Terminal Cover (Production) WPL 1105221 Contact Us For Availability

Terminal Cover (Service) WPL 1108115 Contact Us For Availability

Insert, Handle WPL 1108828 Contact Us For Availability

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

Insulation, Filler WPL 942817 Contact Us For Availability

Divider WPL 2151670 Contact Us For Availability

Retainer, Gasket WPL 1122551 Contact Us For Availability

Strap, Cover (Production) WPL 1105222 Contact Us For Availability

Strap, Cover (Service) WPL 938384 Contact Us For Availability

Divider WPL 1123293 Contact Us For Availability

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Retainer, Gasket Door Shelf (2) WPL 1122553 Contact Us For Availability

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Insulation, Compartment Separator WPL 1105463 Contact Us For Availability

Shelf, Ice Compartment (2) WPL 1106624 Contact Us For Availability

Hole Plug WPL 1103725 Contact Us For Availability

Running Capacitor (Service) WPL 2154565 Contact Us For Availability

28

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

28

Slide, Ice Compartment WPL 1106817 Contact Us For Availability

28

Screw Grommet WPL 509812 Contact Us For Availability

29

Retainer, Insert WPL 935871 Contact Us For Availability

30

Door, Ice Compartment WPL 2148538 Contact Us For Availability

30

Endcap, Insert Retainer WPL 1105804 Contact Us For Availability

30

Strap WPL 851095 Contact Us For Availability

31

Crisper Gasket, Rear (2) WPL 1105653 Contact Us For Availability

31

Trim, Door WPL 1106148 Contact Us For Availability

31

Clip, Unit Cover WPL 548744 Contact Us For Availability

32

Slide, Humidity Control WPL 2148524 Contact Us For Availability

32

Trim, Door Shelf WPL 2148551 Contact Us For Availability

32

Clip, Wire (2) WPL 548745 Contact Us For Availability

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

Separator, Compartment (Top) WPL 1129022 Contact Us For Availability

Screw WPL 489268 Contact Us For Availability

Bin, Door Shelf (2) WPL 2148549 Contact Us For Availability

34

Bin, Door Shelf (Deep) (2) WPL 2148550 Contact Us For Availability

W11625904 Whirlpool Refrigerator Ice Pan In Stock WPL W11625904 $24.25

WP1118001 Whirlpool Hinge Pin Backorder WPL WP1118001 $3.70

Cup, Drain WPL 937065 Contact Us For Availability

Unit, Rail WPL 2149717 Contact Us For Availability

36

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

36

Crisper Pan, Front WPL 2148816 Contact Us For Availability

36

Door Dike, Center WPL 1122711 Contact Us For Availability

37

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

37

Bracket, Control Knob WPL 1105457 Contact Us For Availability

37

Door Dike, Side (2) WPL 1122709 Contact Us For Availability

38

Shelf, Full Cantilever WPL 1124283 Contact Us For Availability

38

Support (R.S.) WPL 1118805 Contact Us For Availability

39

Drain Pan WPL 1105521 Contact Us For Availability

39

Trim, Shelf WPL 2148528 Contact Us For Availability

39

Support (L.S.) WPL 1118806 Contact Us For Availability

Glass, Shelf WPL 1124552 Contact Us For Availability

Trimless Black Decor Panel R.H. WPL 4210431 Contact Us For Availability

Trimless Black Decor Panel L.H. WPL 4210432 Contact Us For Availability

Black Handle Insert WPL 819245 Contact Us For Availability

Trim Kit WPL 819288 Contact Us For Availability

Black DecorPanel WPL 819344 Contact Us For Availability

Air, Baffle WPL 1127938 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Reflector, Shelf WPL 1120818 Contact Us For Availability

xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability

Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Fan, Mounting Bracket WPL 548695 Contact Us For Availability

42

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

43

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

44

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

45

Fan, Blade WPL 989524 Contact Us For Availability

46

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

47

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

48

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $24.10

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPL 978029 WPL 978029 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability
