Model Whirlpool ET20PKXYN02 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

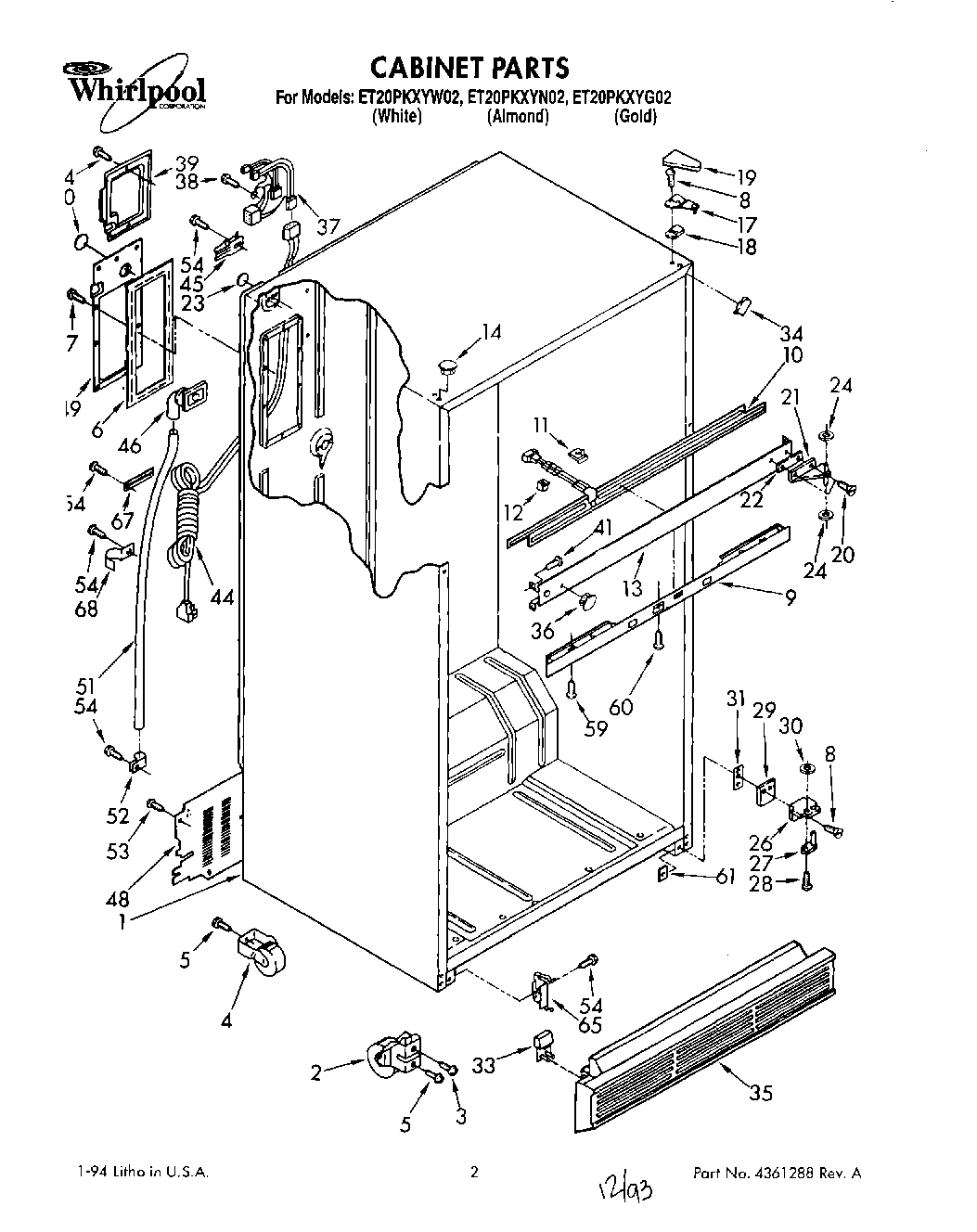

01 - CABINET

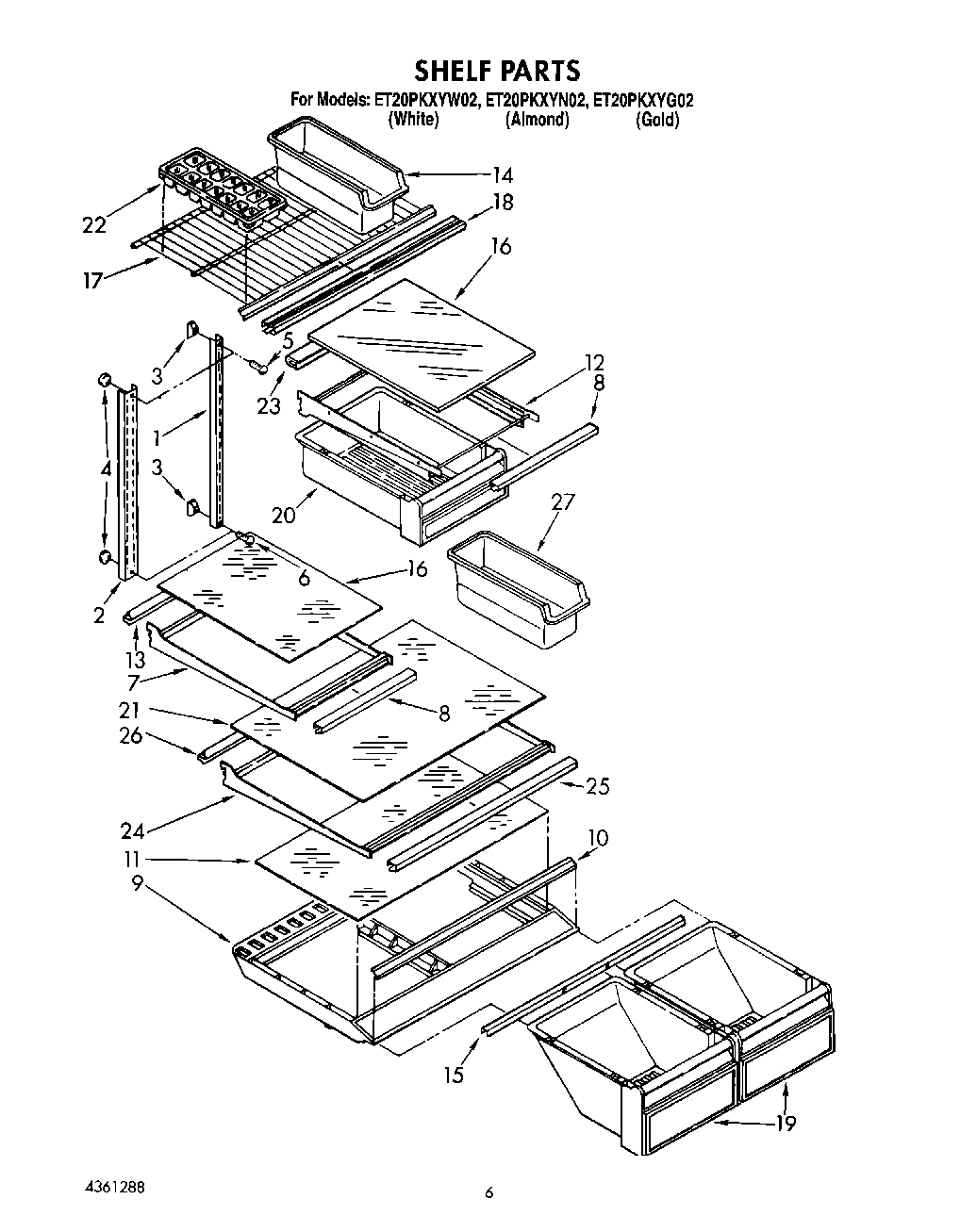

04 - SHELF
02 - LINER
03 - COMPARTMENT SEPARATOR
06 - UNIT
05 - FREEZER DOOR
07 - REFRIGERATOR DOOR, LIT/OPTIONAL
Common parts from model Whirlpool ET20PKXYN02 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2148071 WPL LIT2148071 Contact Us For Availability
WPL LIT2148939 WPL LIT2148939 Contact Us For Availability
WPL LIT4361288 WPL LIT4361288 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI49185A3 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1122715 Contact Us For Availability
1
Unit, Frame WPL 2154451 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1122550 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Gol WPL 1122662 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1122663 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1122549 Contact Us For Availability
1
Panel, Refrigerator Door (Golden Harvest (Als WPL 1122657 Contact Us For Availability
1
Panel, Refrigerator Door (Almond) WPL 1122658 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Box, Control WPL 1105455 Contact Us For Availability
2
Compressor Kit (Includes Items 11, 22, 23, 25 WPL 4318250 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (2) (Golden Harvest) WPL 989879 Contact Us For Availability
3
Strap, Mtg. WPL 1123230 Contact Us For Availability
3
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
4
Screw, Support Center (2) WPL 520959 Contact Us For Availability
4
Timer, Defrost (10 Hour) WPL 1127570 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
5
Shelf Stud (2) WPL 1106612 Contact Us For Availability
5
Screw, WPL 489345 Contact Us For Availability
5
Grommet, Compressor (4) (Production) WPL 1105200 Contact Us For Availability
6
Electrical Shield WPL 2151521 Contact Us For Availability
6
Switch, Toggle WPL 1106601 Contact Us For Availability
6
Screw (4) WPL 489334 Contact Us For Availability
7
Shelf, Cantilever WPL 1120435 Contact Us For Availability
7
Electrical Shield WPL 1106696 Contact Us For Availability
7
Condenser Assembly WPL 2149613 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Trim, Shelf WPL 1110742 Contact Us For Availability
8
Electrical, Shield WPL 1106892 Contact Us For Availability
8
Support, Heater WPL 2149120 Contact Us For Availability
9
Stud (2) WPL 946356 Contact Us For Availability
10
Trim, Crisper Cover WPL 1105649 Contact Us For Availability
11
Glass, Crisper Cover WPL 1106929 Contact Us For Availability
11
Knob, Thermostat WPL 2148150 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1122729 Contact Us For Availability
12
support stud (8) WPL 946355 Contact Us For Availability
12
Evaporator Assembly WPL 1118548 Contact Us For Availability
12
Handle, Center (Golden Harvest) WPL 1108729 Contact Us For Availability
12
Handle, Center (Almond) WPL 2148069 Contact Us For Availability
12
Handle, Center (Golden Harvest) WPL 1106189 Contact Us For Availability
12
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Reflector, Shelf WPL 1110743 Contact Us For Availability
13
Cover, Air Duct WPL 1105447 Contact Us For Availability
13
Ground Wire WPL 1114482 Contact Us For Availability
13
Heat, Exchanger WPL 2149616 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 2148151 Contact Us For Availability
14
Heater, Defrost WPL 2149645 Contact Us For Availability
15
Interior Door Panel WPL 1122575 Contact Us For Availability
16
Glass, Shelf WPL 2148208 Contact Us For Availability
16
Rod, Connecting WPL 1105459 Contact Us For Availability
16
Heat Shield WPL 1105545 Contact Us For Availability
17
Shelf, Freezer WPL 1106615 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157416 Contact Us For Availability
17
Clamp, Dryer WPL 1127590 Contact Us For Availability
18
Nameplate WPL 2152334 Contact Us For Availability
18
Trim, Shelf Front WPL 1106618 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
19
Pan, Crisper WPL 2148160 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Dampener (2) WPL 510769 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Interior Door Panel WPL 2156208 Contact Us For Availability
20
Pan, Meat WPL 2148934 Contact Us For Availability
20
Tube Clamp (2) WPL 510716 Contact Us For Availability
20
Trim, Door (2) WPL 2148183 Contact Us For Availability
21
Glass, Full Shelf WPL 2150161 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Trim, Door WPL 2148212 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2154411 Contact Us For Availability
22
Relay (See Overload) WPL ARI49186A4 Contact Us For Availability
22
Compartment Door, Right Side WPL 2148139 Contact Us For Availability
23
Retainer, Glass WPL 1110744 Contact Us For Availability
23
Scroll, Fan WPL 1127100 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1114382 Contact Us For Availability
23
Overload (Production (Includes Relay)) WPL 2154403 Contact Us For Availability
23
Compartment Door, Left Side WPL 2148141 Contact Us For Availability
24
Retainer, Gasket WPL 1122553 Contact Us For Availability
24
Shelf, Full Length Cantilever WPL 1124283 Contact Us For Availability
24
Evaporator Cover WPL 1118708 Contact Us For Availability
24
Muffler WPL 1121121 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Hole Plug, Handle (Golden Harvest) WPL 1122694 Contact Us For Availability
25
Trim, Shelf WPL 1114436 Contact Us For Availability
25
Terminal Cover (Service) WPL 1108115 Contact Us For Availability
25
Terminal Cover (Production) WPL 2154452 Contact Us For Availability
25
Divider, Shelf WPL 1114380 Contact Us For Availability
26
Reflector, Shelf WPL 1114435 Contact Us For Availability
26
Insulation, Filler WPL 942817 Contact Us For Availability
26
Strap, Cover (Service) WPL 938384 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105463 Contact Us For Availability
27
Running Capacitor (Service) WPL 2154565 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Screw Grommet WPL 509812 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
30
Washer, 7/32 WPL 489200 Contact Us For Availability
30
Strap WPL 851095 Contact Us For Availability
30
Trim, Compartment WPL 1124223 Contact Us For Availability
31
WPL 876029 WPL 876029 Contact Us For Availability
31
WPL 479502 WPL 479502 Contact Us For Availability
31
WPL 799344 WPL 799344 Contact Us For Availability
31
Clip, Unit Cover WPL 548744 Contact Us For Availability
31
Retainer, Gasket Door WPL 1122552 Contact Us For Availability
31
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
31
WPL 542639 WPL 542639 Contact Us For Availability
31
WPL 799833 WPL 799833 Contact Us For Availability
31
WPL 978883 WPL 978883 Contact Us For Availability
32
Clip, Wire (2) WPL 548745 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1129022 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Unit, Rail WPL 2149717 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
38
Support (R.S.) WPL 1118806 Contact Us For Availability
39
Drain Pan WPL 1105521 Contact Us For Availability
39
Support (L.S.) WPL 1118805 Contact Us For Availability
40
Air, Baffle WPL 1127938 Contact Us For Availability
41
Fan, Mounting Bracket WPL 548695 Contact Us For Availability
42
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
45
Fan, Blade WPL 1108179 Contact Us For Availability
49
WPL 978029 WPL 978029 Contact Us For Availability
49
WPL 978028 WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability
67
WPL 1105607 WPL 1105607 Contact Us For Availability
68
WPL 1110564 WPL 1110564 Contact Us For Availability
× ![]()
