Model Whirlpool ET20PKXTN00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

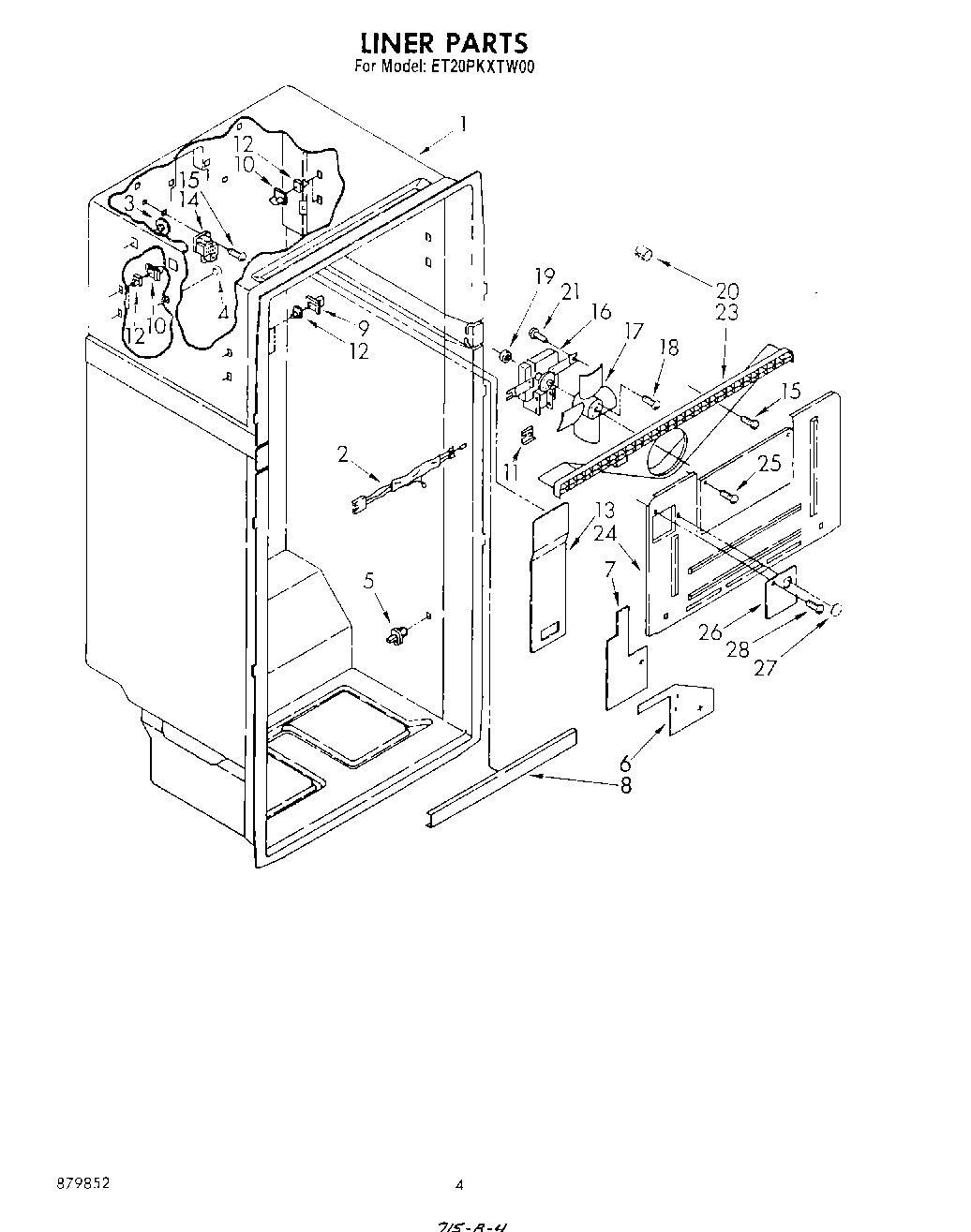

03 - LINER

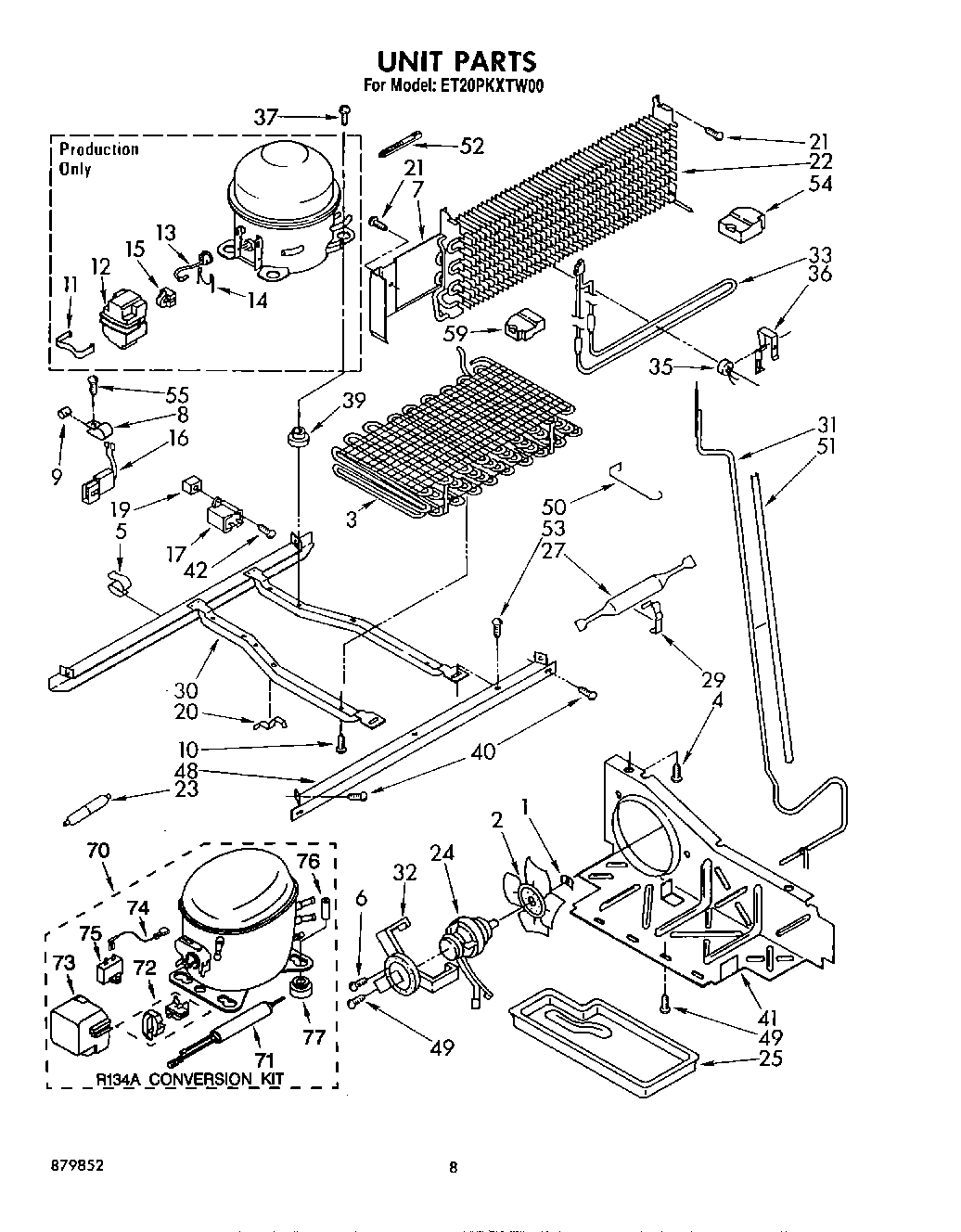

07 - UNIT
02 - CABINET
04 - COMPARTMENT SEPARATOR
05 - SHELF
06 - FREEZER DOOR
08 - REFRIGERATOR DOOR , LIT/OPTIONAL
Common parts from model Whirlpool ET20PKXTN00 TOP MOUNT REFRIGERATOR
WPL LIT1108203 WPL LIT1108203 Contact Us For Availability
WPL LIT1119784 WPL LIT1119784 Contact Us For Availability
WPL LIT1119786 WPL LIT1119786 Contact Us For Availability
WPL LIT879852 WPL LIT879852 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI49151A9 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1105450 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1105509 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1105511 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Gol WPL 1105512 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Pla WPL 1105513 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Toa WPL 1105514 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1105500 Contact Us For Availability
1
Panel, Refrigerator Door (Almond) WPL 1105502 Contact Us For Availability
1
Panel, Refrigerator Door (Golden Harvest) WPL 1105503 Contact Us For Availability
1
Panel, Refrigerator Door (Platinum) WPL 1105504 Contact Us For Availability
1
Panel, Refrigerator Door (Toast) WPL 1105505 Contact Us For Availability
2
Roller, Front WPL 981128 Contact Us For Availability
2
Box, Control WPL 1105455 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Hole Plug (2) (Toast) WPL 1100196 Contact Us For Availability
2
Hole Plug (2) (Platinum) WPL 1100197 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (2) (Golden Harvest) WPL 989879 Contact Us For Availability
3
Screw, 5/16-24 x 1 WPL 488681 Contact Us For Availability
4
Timer, Defrost (10 Hour) WPL 945486 Contact Us For Availability
4
Screw, Support Center (2) WPL 520959 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
5
Screw (Repair) WPL 488980 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 (3) WPL 489148 Contact Us For Availability
6
Sealing Gasket WPL 1114548 Contact Us For Availability
6
Screw (Repair) WPL 488930 Contact Us For Availability
7
Shelf, Cantilever WPL 1110739 Contact Us For Availability
7
Hole Plug (Toast) WPL 1100188 Contact Us For Availability
7
Hole Plug (Platinum) WPL 1100189 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Trim, Shelf WPL 1110742 Contact Us For Availability
9
Control, Front Cover WPL 1114312 Contact Us For Availability
10
Heater, Mullion WPL 1105433 Contact Us For Availability
10
Trim, Crisper Cover WPL 1105649 Contact Us For Availability
11
Clip, Mullion (3) WPL 1106779 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
11
Glass, Crisper Cover WPL 1114448 Contact Us For Availability
12
Handle, Center (For Platinum Model Only) WPL 1111547 Contact Us For Availability
12
Spacer (2) WPL 940024 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1119781 Contact Us For Availability
12
Handle, Center WPL 1108729 Contact Us For Availability
12
Handle, Center WPL 1106189 Contact Us For Availability
12
Handle Center (For Platinum Model Only) WPL 1109166 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Center Rail (White) WPL 1105424 Contact Us For Availability
13
Center Rail (Golden Harvest) WPL 1105426 Contact Us For Availability
13
Center Rail (Almond) WPL 1105427 Contact Us For Availability
13
Center Rail (Toast) WPL 1105428 Contact Us For Availability
13
Center Rail (Platinum) WPL 1105429 Contact Us For Availability
13
Stud, Hook WPL 529850 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
14
Glass, Meat Cover WPL 1114456 Contact Us For Availability
15
Interior Door Panel WPL 1106865 Contact Us For Availability
16
Rod, Connecting WPL 1105459 Contact Us For Availability
16
Glass, Shelf WPL 1114451 Contact Us For Availability
17
Shim, Hinge Top WPL 1100513 Contact Us For Availability
17
Air Diffuser Assembly WPL 1114442 Contact Us For Availability
17
Shelf, Freezer WPL 1106615 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 1105688 Contact Us For Availability
18
Shim, Top Hinge WPL 1100509 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
18
Trim, Shelf Front WPL 1106618 Contact Us For Availability
18
Nameplate WPL 1116206 Contact Us For Availability
19
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
19
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Pan, Crisper WPL 1114441 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Interior Door Panel WPL 1106856 Contact Us For Availability
20
Screw (Repair) WPL 488949 Contact Us For Availability
20
Pan, Meat WPL 1114439 Contact Us For Availability
20
Trim, Door (2) WPL 1105686 Contact Us For Availability
21
Hinge, Center WPL 836153 Contact Us For Availability
21
Trim, Door WPL 1105687 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Shim, Center (Repair) WPL 836195 Contact Us For Availability
22
Wiring, Assembly Control Box WPL 1105627 Contact Us For Availability
22
Compartment Door, Utility WPL 1114427 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1114382 Contact Us For Availability
23
Reflector WPL 1110743 Contact Us For Availability
23
Compartment, Butter Door WPL 1114426 Contact Us For Availability
24
Shelf, Full Length Cantilever WPL 1116350 Contact Us For Availability
24
Clip, Medallion WPL 1107329 Contact Us For Availability
25
Trim, Shelf WPL 1114436 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1115908 Contact Us For Availability
26
Insulation, Filler WPL 942817 Contact Us For Availability
26
Glass, Full Length Cantilever WPL 1114438 Contact Us For Availability
26
Medallion WPL 1111705 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105463 Contact Us For Availability
27
Reflector WPL 1114435 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Crisper, Gasket Front WPL 1116512 Contact Us For Availability
28
Cap, Hinge Sleeve (4) WPL 509929 Contact Us For Availability
29
Shim, Bottom WPL 836196 Contact Us For Availability
29
Crisper, Gasket Rear WPL 1105653 Contact Us For Availability
30
WPL 876029 WPL 876029 Contact Us For Availability
30
WPL 479502 WPL 479502 Contact Us For Availability
30
WPL 799344 WPL 799344 Contact Us For Availability
30
Washer, 7/32 WPL 489200 Contact Us For Availability
30
Enamel, Coffee (13 Oz. Spray Can) WPL 261886 Contact Us For Availability
30
Enamel, Coffee (1 Qt. Uncut) WPL 261887 Contact Us For Availability
30
xEnamel, Gold (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
30
Enamel, Gold (1 Qt. Uncut) WPL 261891 Contact Us For Availability
30
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
30
Paint, Spray (13 Oz.) (P WPL 285366 Contact Us For Availability
30
WPL 285367 WPL 285367 Contact Us For Availability
30
WPL 285368 WPL 285368 Contact Us For Availability
30
WPL 350941 WPL 350941 Contact Us For Availability
30
WPL 542639 WPL 542639 Contact Us For Availability
30
WPL 72108 WPL 72108 Contact Us For Availability
30
WPL 72112 WPL 72112 Contact Us For Availability
30
WPL 799832 WPL 799832 Contact Us For Availability
30
WPL 799833 WPL 799833 Contact Us For Availability
30
WPL 799908 WPL 799908 Contact Us For Availability
30
WPL 978883 WPL 978883 Contact Us For Availability
31
Spacer, Hinge WPL 1105474 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Plug, Hole (2) (Toast) WPL 1100174 Contact Us For Availability
32
Hole Plug (2) (Platinum) WPL 1100175 Contact Us For Availability
32
Hole, Plug (2) (White) WPL 835974 Contact Us For Availability
32
Hole, Plug (2) (Almond) WPL 989193 Contact Us For Availability
32
Hole, Plug (2) (Golden Harvest) WPL 989882 Contact Us For Availability
33
Heater, Defrost WPL 1105551 Contact Us For Availability
33
Corner Filler, Grille WPL 1106808 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1105465 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1110708 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1110709 Contact Us For Availability
34
Filler, Wrap Corner (Golden Harvest) WPL 1110710 Contact Us For Availability
34
Filler, Wrap Corner (Toast) WPL 1110711 Contact Us For Availability
34
Filler, Wrap Corner (Platinum) WPL 1110712 Contact Us For Availability
34
Drain Insert, Separator WPL 942849 Contact Us For Availability
35
Grille WPL 1106806 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Clamp WPL 1106913 Contact Us For Availability
36
Hole Plug (2) (T WPL 1100176 Contact Us For Availability
36
WPL 1100177 WPL 1100177 Contact Us For Availability
36
WPL 842031 WPL 842031 Contact Us For Availability
36
WPL 989195 WPL 989195 Contact Us For Availability
36
WPL 989876 WPL 989876 Contact Us For Availability
37
WPL 1114491 WPL 1114491 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
39
WPL 1105606 WPL 1105606 Contact Us For Availability
39
Drain Pan WPL 1105521 Contact Us For Availability
40
Gasket, Drain Pan WPL 1105522 Contact Us For Availability
41
Baffle, Air WPL 1105529 Contact Us For Availability
44
WPL 937360 WPL 937360 Contact Us For Availability
45
WPL 937357 WPL 937357 Contact Us For Availability
46
WPL 937062 WPL 937062 Contact Us For Availability
47
WPL 836372 WPL 836372 Contact Us For Availability
48
Unit Mounting Rail WPL 1105525 Contact Us For Availability
48
WPL 1105531 WPL 1105531 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
49
WPL 1105527 WPL 1105527 Contact Us For Availability
50
WPL 655411 WPL 655411 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
52
WPL 836077 WPL 836077 Contact Us For Availability
54
Support, Evaporator (R.S.) WPL 1118550 Contact Us For Availability
58
WPL 1106844 WPL 1106844 Contact Us For Availability
59
Support, Evaporator (L.S.) WPL 1118551 Contact Us For Availability
61
WPL 836162 WPL 836162 Contact Us For Availability
63
WPL 489173 WPL 489173 Contact Us For Availability
64
WPL 546131 WPL 546131 Contact Us For Availability
65
WPL 989068 WPL 989068 Contact Us For Availability
67
WPL 1105607 WPL 1105607 Contact Us For Availability
68
WPL 1110564 WPL 1110564 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
