Model Whirlpool ET20PKXAW00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

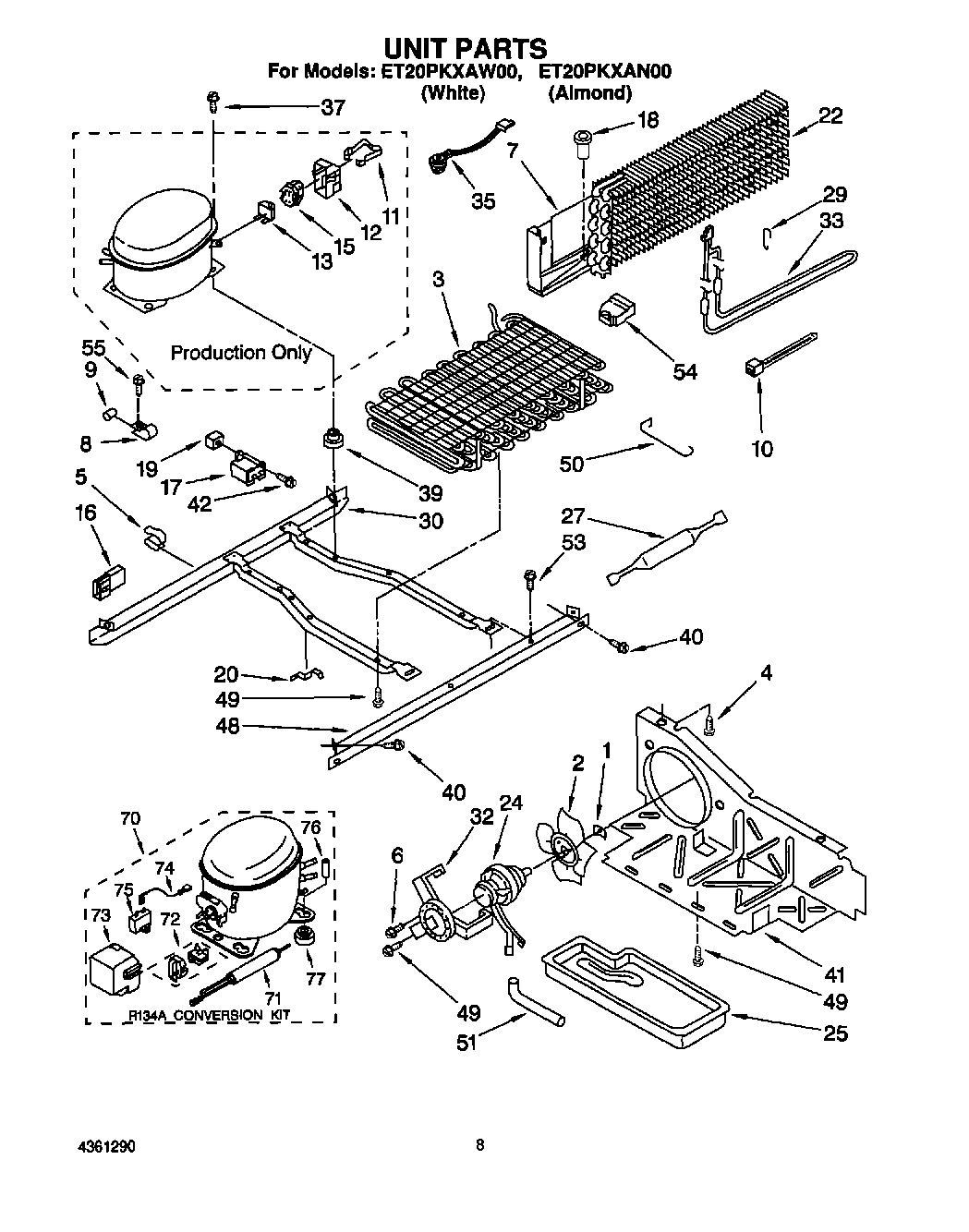

07 - UNIT

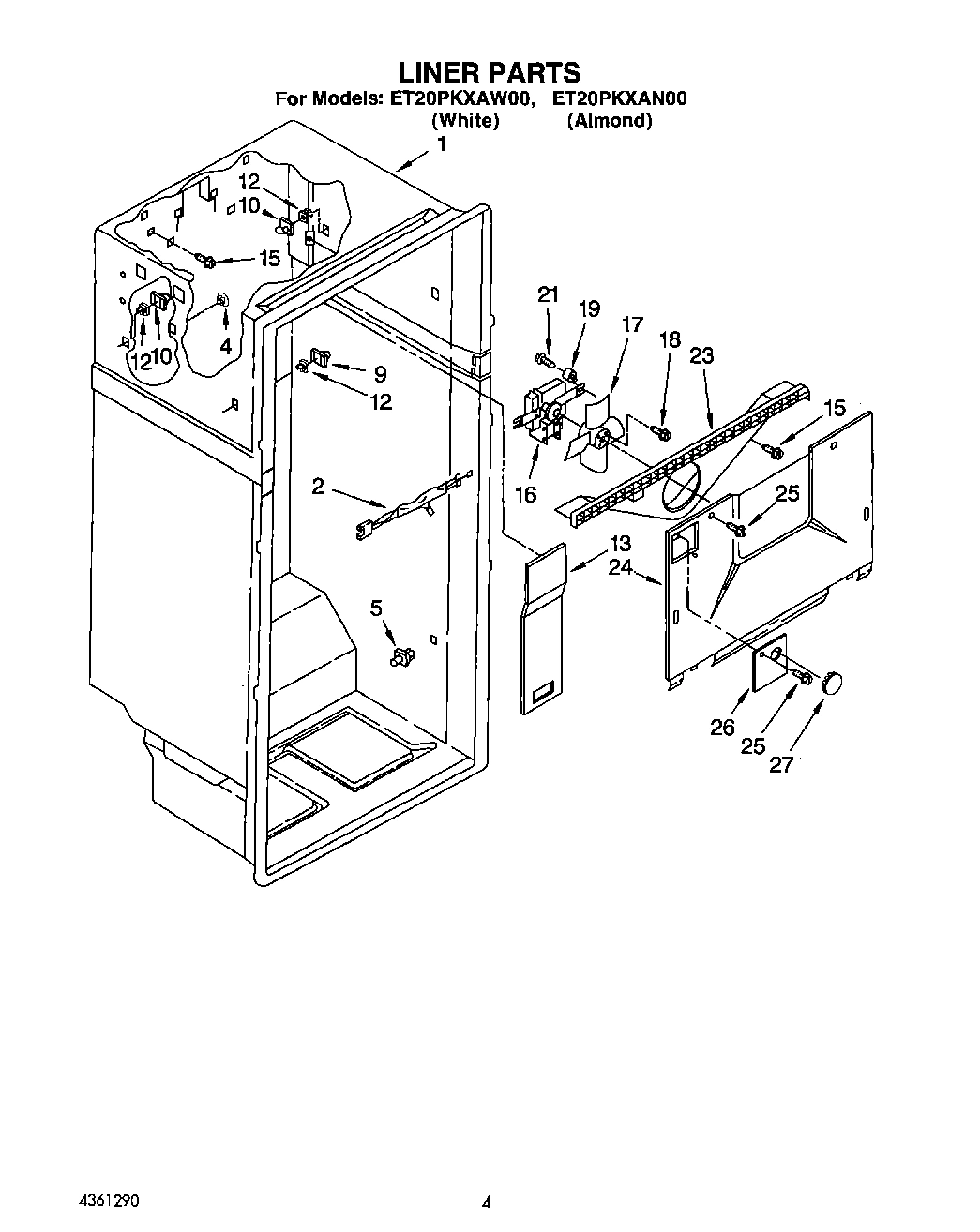

03 - LINER
06 - FREEZER DOOR
08 - REFRIGERATOR DOOR, LIT/OPTIONAL
05 - SHELF
02 - CABINET
04 - COMPARTMENT SEPARATOR
Common parts from model Whirlpool ET20PKXAW00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2154075 WPL LIT2154075 Contact Us For Availability
WPL LIT2160153 WPL LIT2160153 Contact Us For Availability
WPL LIT2162619 WPL LIT2162619 Contact Us For Availability
WPL LIT4361290 WPL LIT4361290 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159160 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159163 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1122549 Contact Us For Availability
1
Panel, Refrigerator Door (Almond (Also Order WPL 1122658 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI49097A4 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1105450 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Box, Control WPL 1126029 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
4
Reflector, Shelf WPL 1110743 Contact Us For Availability
4
Timer, Defrost WPL 2154982 Contact Us For Availability
5
Shelf Stud (2) WPL 1106612 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 (3) WPL 489345 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 (6) WPL 488454 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Shelf, Cantilever WPL 1120435 Contact Us For Availability
8
Trim, Shelf WPL 1110742 Contact Us For Availability
8
Screw WPL 489327 Contact Us For Availability
9
Control, Front Cover WPL 2148533 Contact Us For Availability
10
Trim, Crisper Cover WPL 1105649 Contact Us For Availability
10
Heater, Mullion WPL 2154065 Contact Us For Availability
11
Glass, Crisper Cover WPL 1106929 Contact Us For Availability
11
Clip, Center Rail (4) WPL 1129018 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
12
Handle, Center (Almond) WPL 2159623 Contact Us For Availability
12
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1122729 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle WPL 836194 Contact Us For Availability
13
Glass Shelf WPL 2150161 Contact Us For Availability
13
Center Rail (White) WPL 1122566 Contact Us For Availability
13
Center Rail (Almond) WPL 1122569 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
15
Interior Door Panel WPL 1122575 Contact Us For Availability
16
Glass, Shelf WPL 2148208 Contact Us For Availability
16
Rod, Connecting WPL 1105459 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2159701 Contact Us For Availability
17
Shelf, Freezer WPL 1106615 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157252 Contact Us For Availability
18
Nameplate WPL 2152334 Contact Us For Availability
18
Trim, Shelf Front WPL 1106618 Contact Us For Availability
18
Shim, Hinge Top WPL 1123517 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Interior Door Panel WPL 1126757 Contact Us For Availability
19
Pan, Crisper WPL 2148160 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
20
Bin-Door Shelf WPL 2163334 Contact Us For Availability
20
Pan, Meat WPL 2148934 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Trim, Door WPL 2163341 Contact Us For Availability
21
Reflector, Shelf WPL 1114435 Contact Us For Availability
21
Hinge, Center WPL 2147335 Contact Us For Availability
22
Compartment Door, Left Side WPL 2148141 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
23
Retainer, Gasket WPL 1122553 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
23
Compartment Door, Right Side WPL 2148139 Contact Us For Availability
23
Retainer, Glass WPL 1110744 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
24
Evaporator Cover WPL 2157426 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Shelf, Full Cantilever WPL 1124283 Contact Us For Availability
25
Divider, Door Shelf WPL 2152336 Contact Us For Availability
25
Trim, Shelf WPL 1114436 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1123378 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105463 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
29
Pin Plate (8) WPL 1116986 Contact Us For Availability
29
Shim, Bottom WPL 1123379 Contact Us For Availability
30
Washer, 7/32 WPL 489200 Contact Us For Availability
30
Trim, Compartment Door WPL 1124223 Contact Us For Availability
31
Retainer, Gasket WPL 1122552 Contact Us For Availability
31
Spacer WPL 1121117 Contact Us For Availability
33
Corner Filler, Grille WPL 1118078 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1129022 Contact Us For Availability
34
Bin-Door Shelf, Deep WPL 2163335 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
35
Grille WPL 1129001 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Reinforcement, Middle WPL 1122711 Contact Us For Availability
36
Hole Plug (5) (White) WPL 1129062 Contact Us For Availability
36
Hole Plug (5) (Almond) WPL 1129063 Contact Us For Availability
37
WPL 876029 WPL 876029 Contact Us For Availability
37
WPL 479502 WPL 479502 Contact Us For Availability
37
WPL 799344 WPL 799344 Contact Us For Availability
37
Reinforcement, Side WPL 1122709 Contact Us For Availability
37
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
37
Leveler, Enamel (13 Oz. Spray C WPL 350941 Contact Us For Availability
37
WPL 542639 WPL 542639 Contact Us For Availability
37
WPL 799833 WPL 799833 Contact Us For Availability
37
WPL 978883 WPL 978883 Contact Us For Availability
37
Wiring Assembly, Intermediate WPL 2153994 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
48
Cover, Unit WPL 1105531 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
