Model Whirlpool ET20NKXAN05 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
07 - REFRIGERATOR DOOR, LIT/OPTIONAL
04 - SHELF

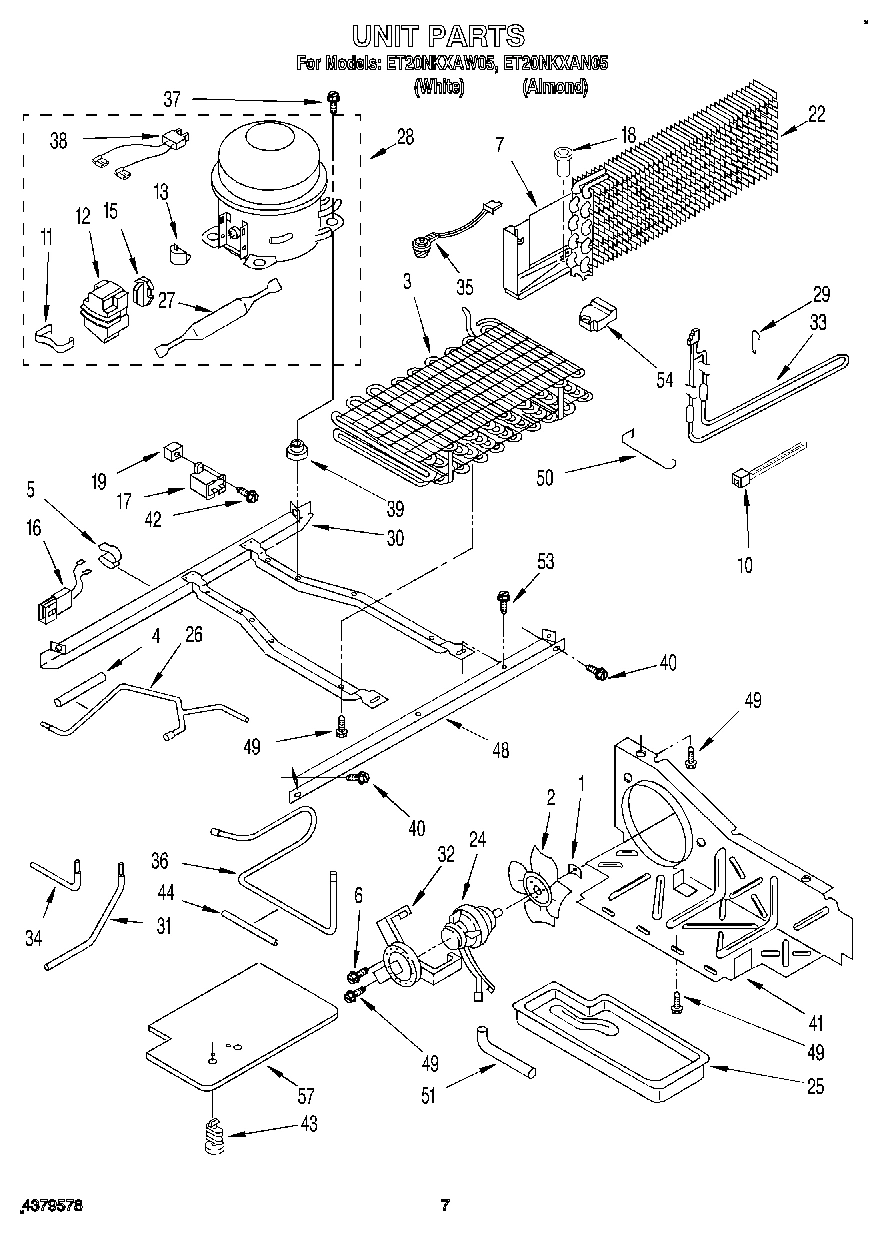

06 - UNIT

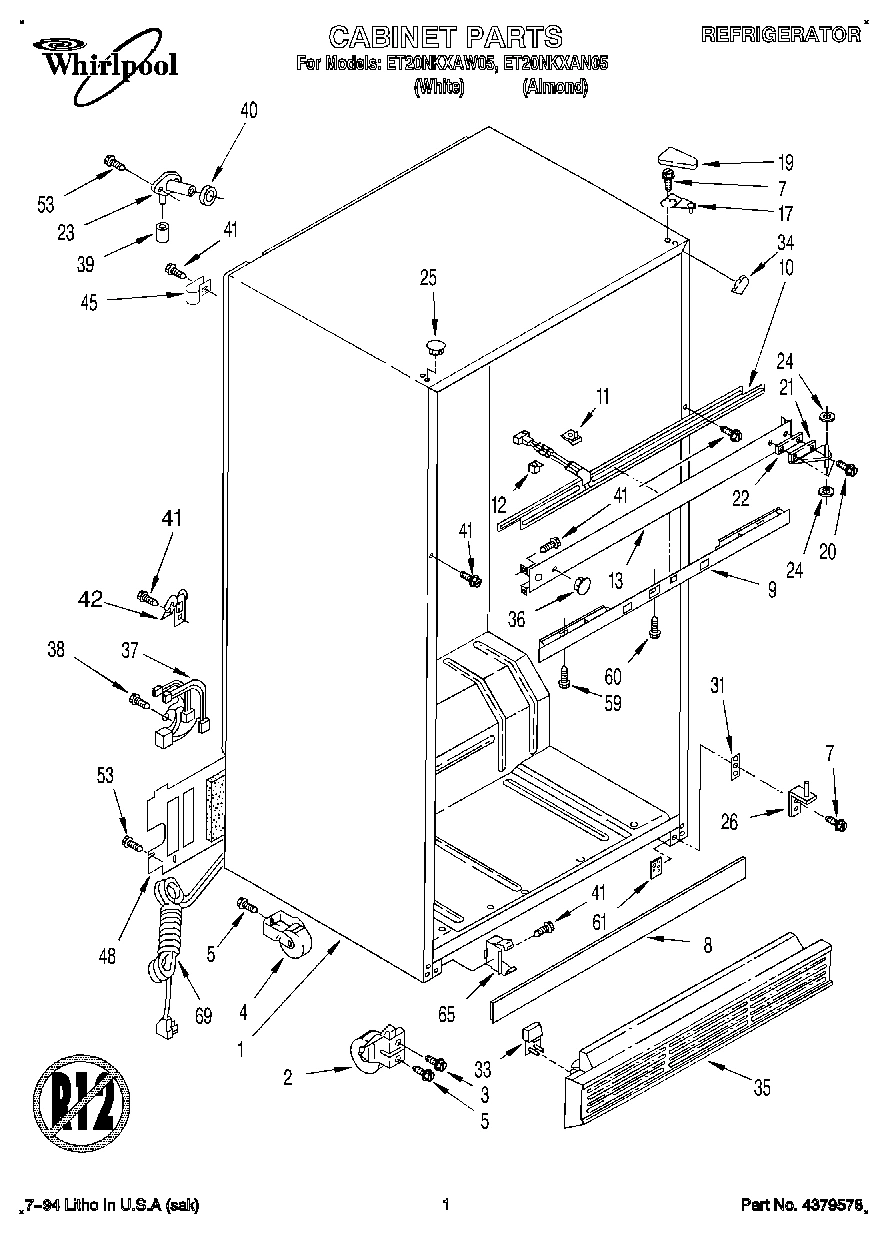

01 - CABINET

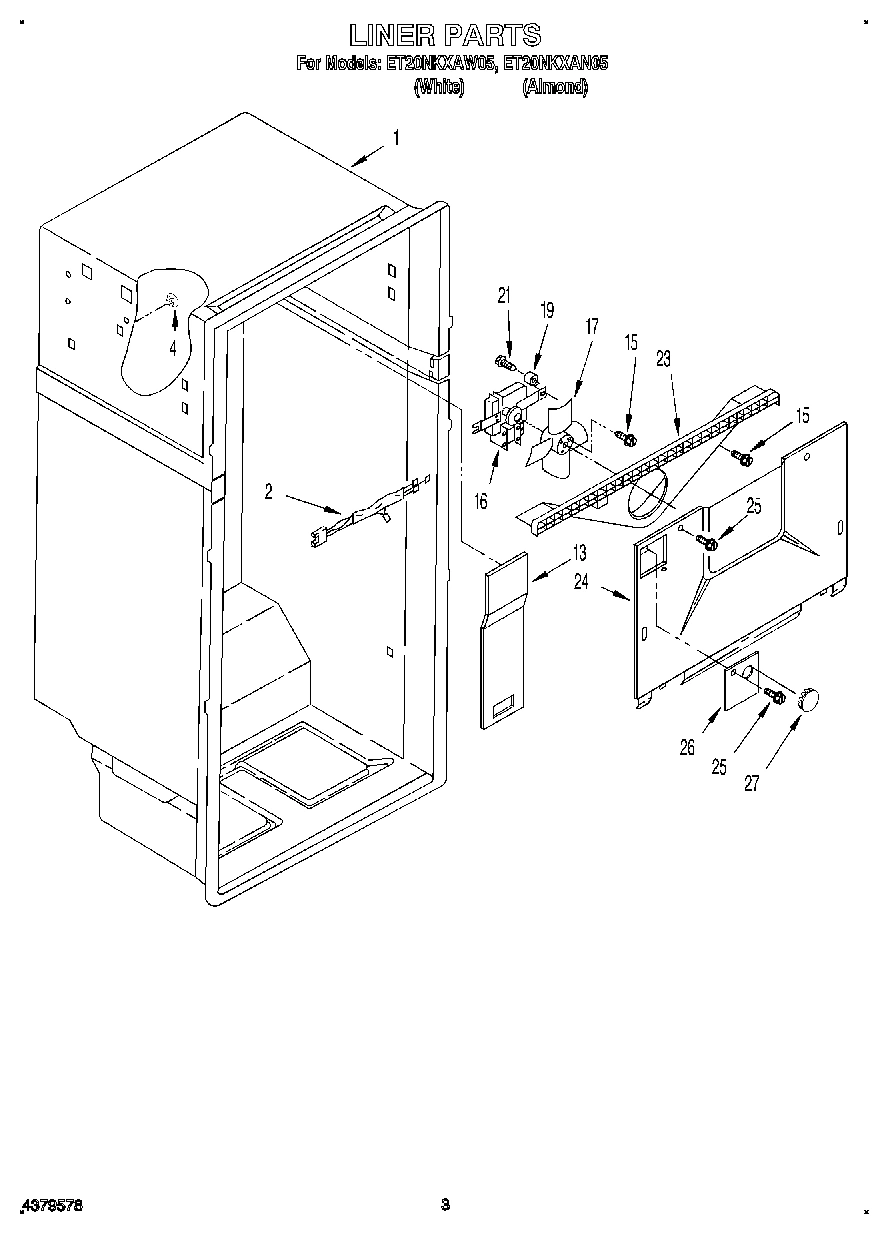

02 - LINER

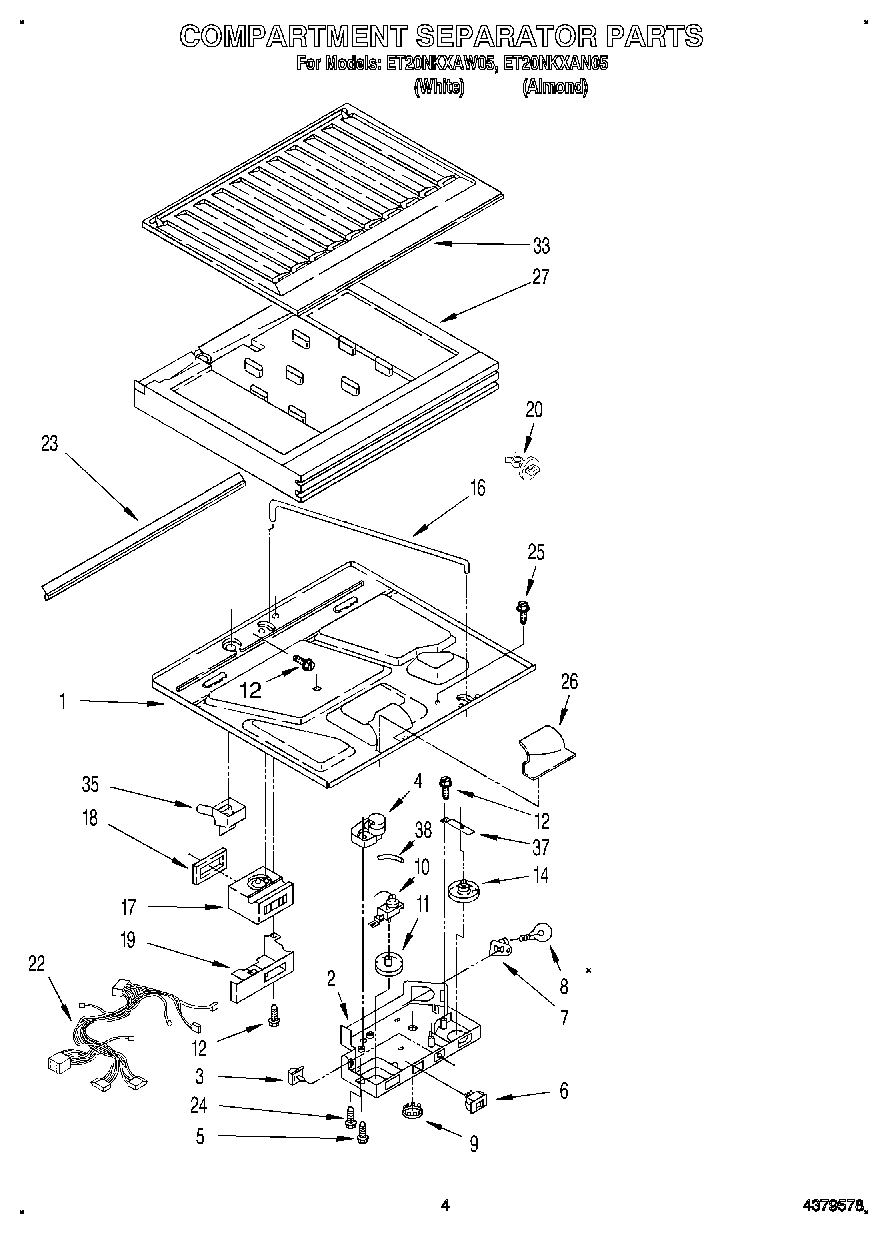

03 - COMPARTMENT SEPARATOR

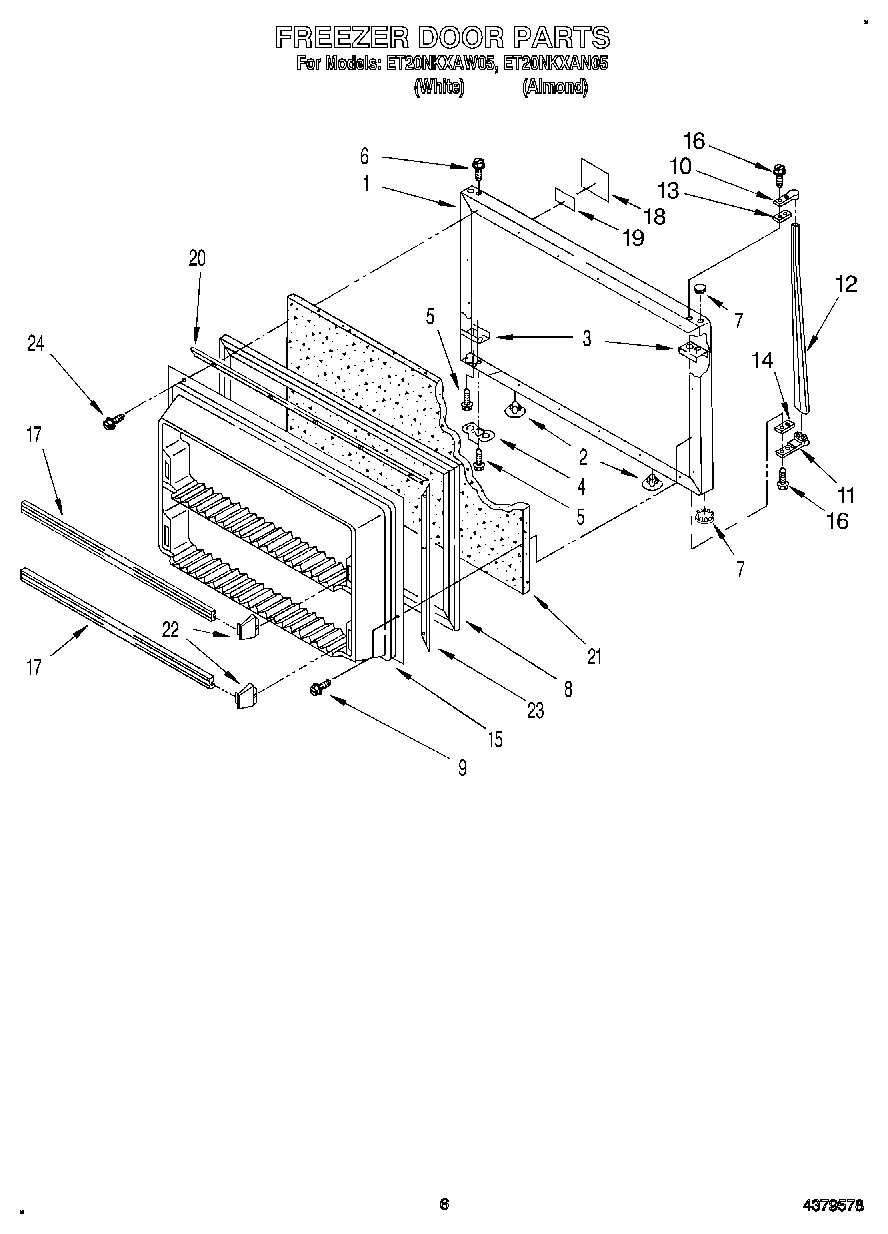

05 - FREEZER DOOR
Common parts from model Whirlpool ET20NKXAN05 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI48880A5 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI48881A1 Contact Us For Availability
1
Bottom, Compartment Separator WPL 2172816 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159160 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159163 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Box, Control WPL 2151992 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
4
Shelf Stud (2) WPL 1106612 Contact Us For Availability
4
Timer, Defrost (10 Hour) WPL 2154982 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Clip, Wire WPL 548745 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Deck Rail Cover WPL 2172708 Contact Us For Availability
9
Control, Front Cover WPL 2148533 Contact Us For Availability
10
Heater, Mullion WPL 2157307 Contact Us For Availability
11
Glass, Crisper Cover WPL 1106929 Contact Us For Availability
11
Strap (Production) WPL 943322 Contact Us For Availability
11
Clip, Center Rail (6) WPL 1129018 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
12
Cover, Meat Pan WPL 944739 Contact Us For Availability
12
Cover (Production) WPL 1105055 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Handle, Center (Almond) WPL 2159623 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shelf Stud (2) WPL 946356 Contact Us For Availability
13
Overload (Production (Includes Relay)) WPL 2164416 Contact Us For Availability
13
Center Rail WPL 2172705 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
15
Relay (See Overload) WPL ARI48882A8 Contact Us For Availability
15
Interior Door Panel WPL 1122575 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
16
Rod, Connecting WPL 1105459 Contact Us For Availability
17
Shelf, Freezer WPL 1106615 Contact Us For Availability
17
Running Capacitor (Service) WPL 2154565 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157252 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 1114327 Contact Us For Availability
18
Support Stud (4) WPL 946355 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Nameplate (White Model) WPL 2162781 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2162782 Contact Us For Availability
19
Pan, Crisper WPL 2148160 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
20
Pan, Meat WPL 1124976 Contact Us For Availability
20
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
20
Retainer, Gasket WPL 1122552 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
Evaporator WPL 2153978 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
23
Retainer, Gasket WPL 1122553 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
24
Shelf, Full Cantilever (2) WPL 2162582 Contact Us For Availability
24
Evaporator Cover WPL 2157428 Contact Us For Availability
25
Trim, Shelf WPL 1114436 Contact Us For Availability
25
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
26
Tube, Dishcharge WPL 2159618 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105463 Contact Us For Availability
29
Support, Heater WPL 2149120 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
31
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
31
WPL 799344 WPL 799344 Contact Us For Availability
31
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
31
Spacer WPL 2172745 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Heater, Defrost WPL 2162019 Contact Us For Availability
33
Corner Filler, Grille WPL 1118078 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1129022 Contact Us For Availability
34
Filler, Wrap Corner (2) (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (2) (Almond) WPL 1118059 Contact Us For Availability
35
Grille WPL 1129001 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Tube, Suction WPL 2159616 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
37
Wiring Assembly, Intermediate WPL 2153994 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
39
Grommet (Production) WPL 2162067 Contact Us For Availability
41
Air Baffle WPL 2169417 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cover, Unit WPL 2160490 Contact Us For Availability
51
Tube, Drain WPL 2154119 Contact Us For Availability
54
Support, Evap. (R.S.) WPL 1118805 Contact Us For Availability
54
Support, Evap. (L.S.) WPL 2159708 Contact Us For Availability
57
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
57
Cover, Unit Bottom WPL 2160505 Contact Us For Availability
57
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
69
Cord, Service WPL 937360 Contact Us For Availability
× ![]()
