Model Whirlpool ET20MKXRWR0 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
03 - LINER
06 - UNIT

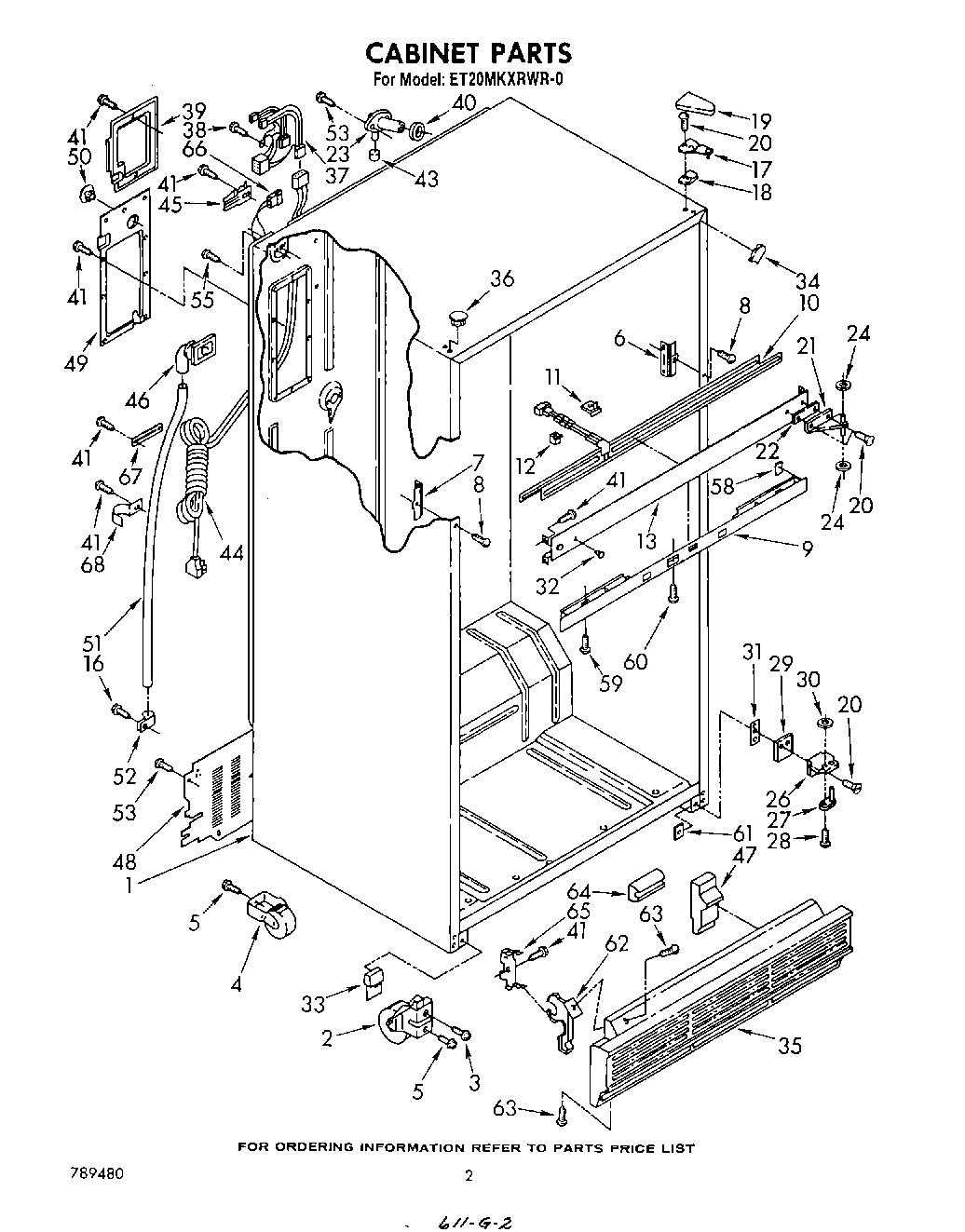

02 - CABINET

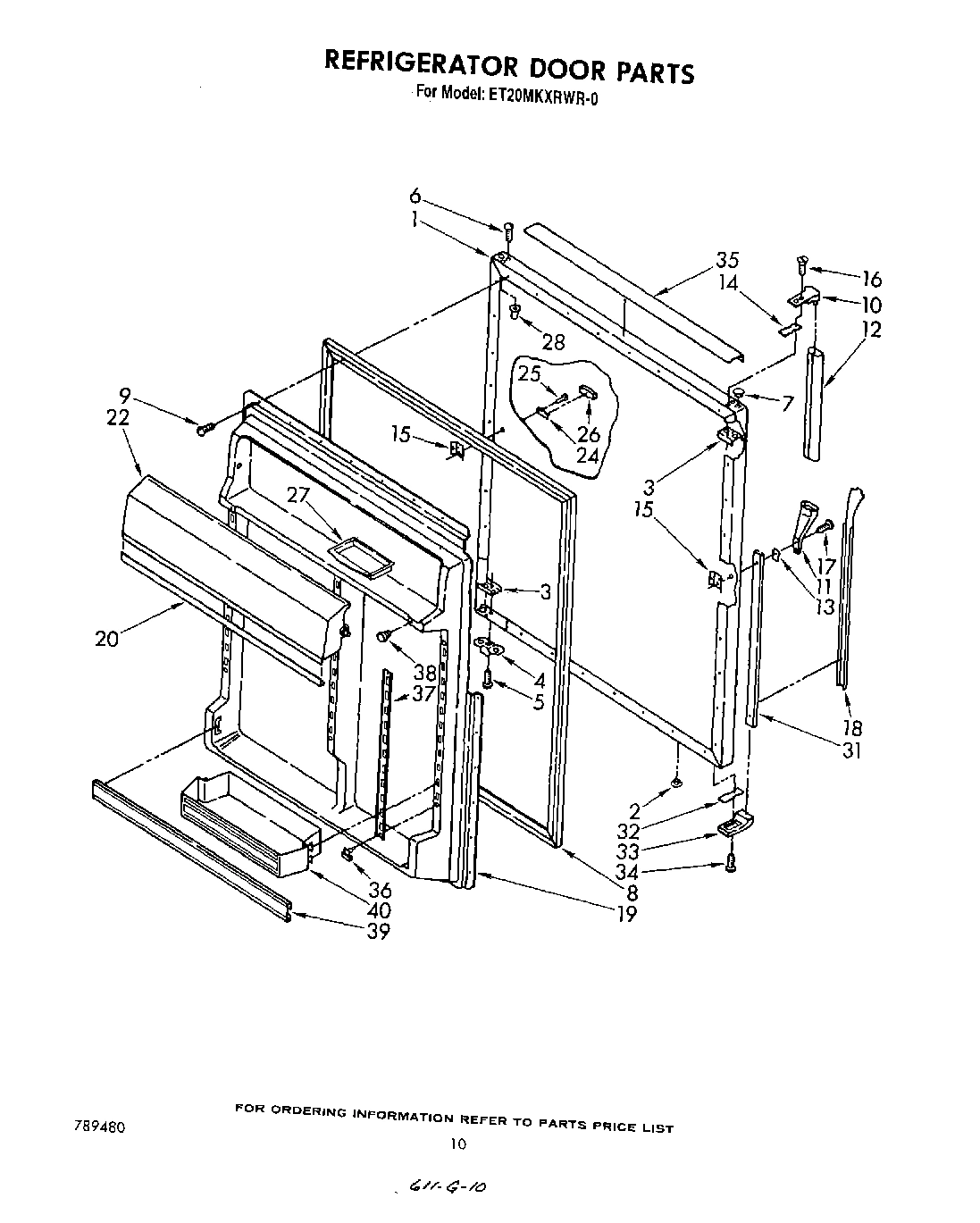

07 - REFRIGERATOR DOOR

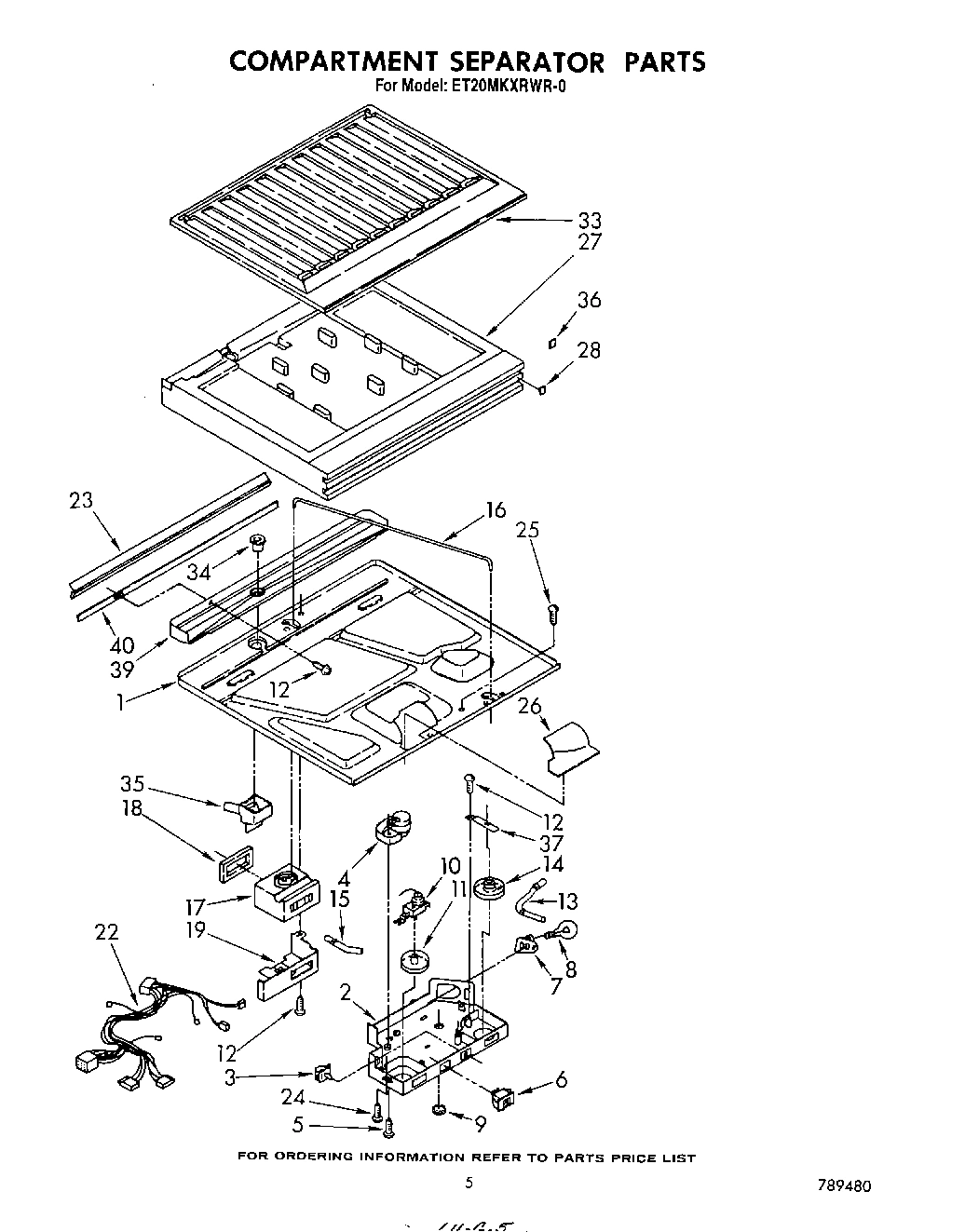

04 - COMPARTMENT SEPARATOR

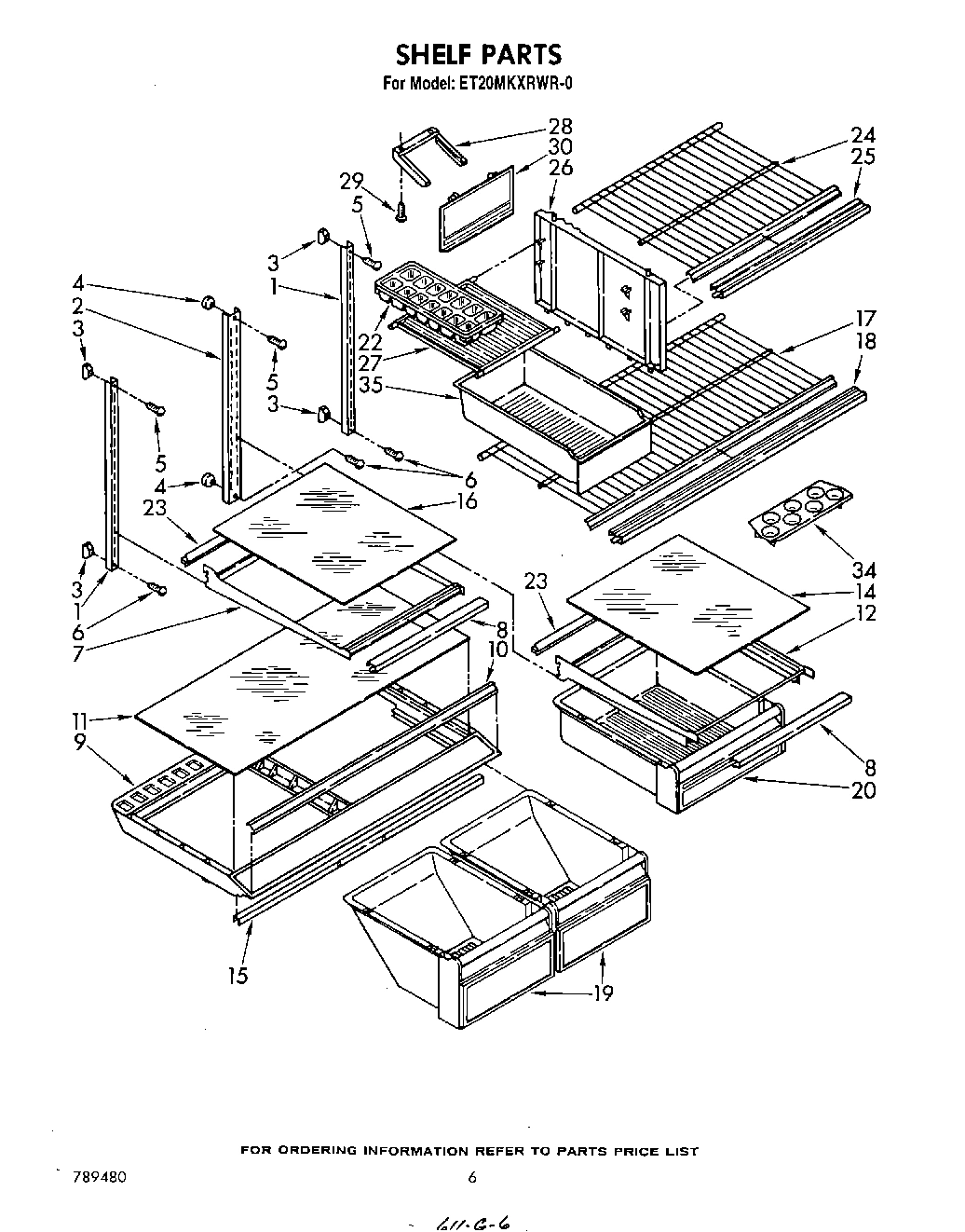

05 - SHELF , LIT/OPTIONAL

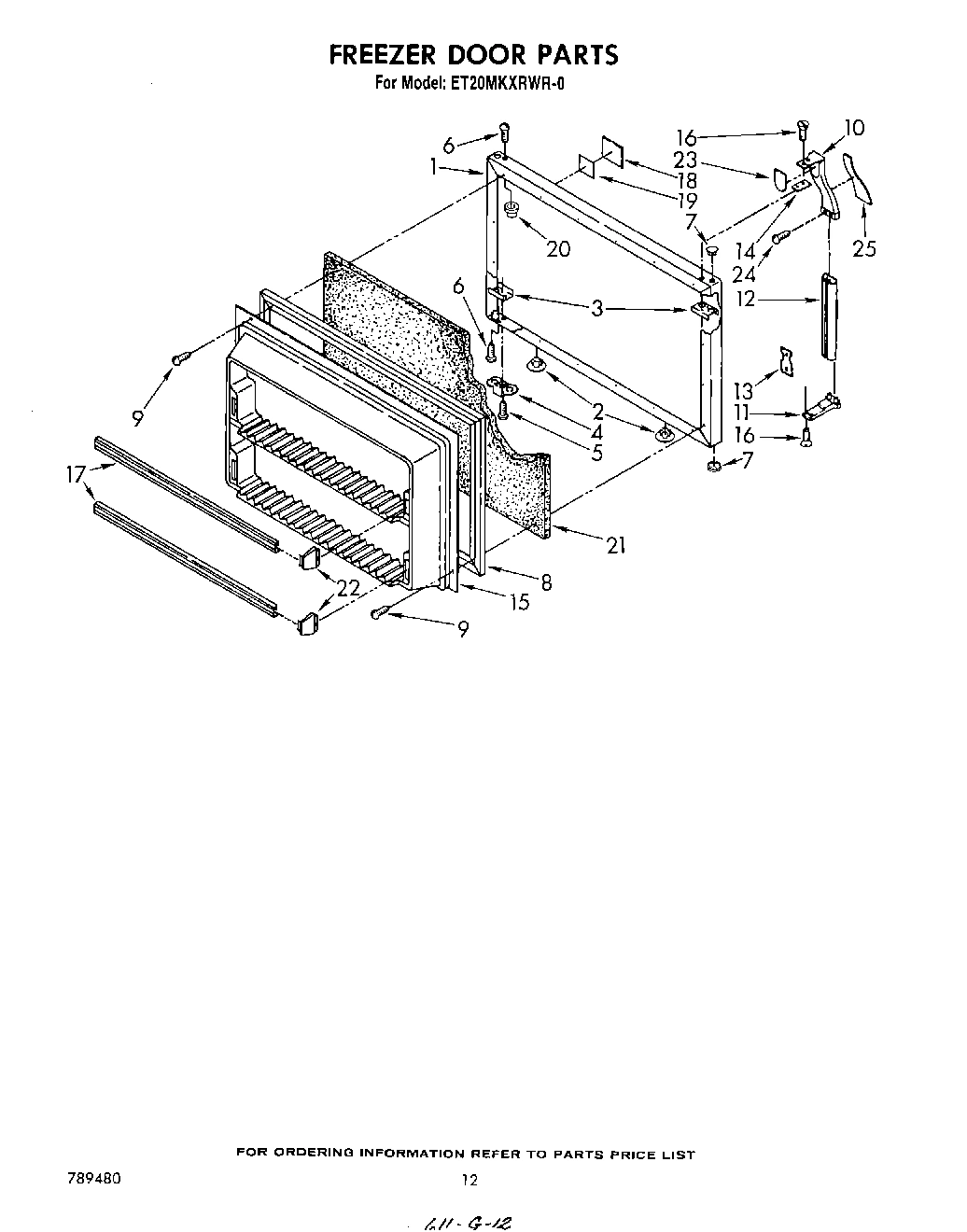

08 - FREEZER DOOR
Common parts from model Whirlpool ET20MKXRWR0 TOP MOUNT REFRIGERATOR
WPL LIT1106732 WPL LIT1106732 Contact Us For Availability
WPL LIT1108664 WPL LIT1108664 Contact Us For Availability
WPL LIT1108684 WPL LIT1108684 Contact Us For Availability
WPL LIT789480 WPL LIT789480 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI146664A Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1105500 Contact Us For Availability
1
Panel, Refrigerator Door (Almond) WPL 1105502 Contact Us For Availability
1
Panel, Refrigerator Door (Golden Harvest) WPL 1105503 Contact Us For Availability
1
Panel, Refrigerator Door (Platinum) WPL 1105504 Contact Us For Availability
1
Panel, Refrigerator Door (Toast) WPL 1105505 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1105450 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1103177 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1105509 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1105511 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Gol WPL 1105512 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Pla WPL 1105513 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Toa WPL 1105514 Contact Us For Availability
2
Roller, Front WPL 981128 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Box, Control WPL 1106805 Contact Us For Availability
2
Shelf, Ladder Center WPL 1106914 Contact Us For Availability
3
Screw, 5/16-24 x 1 WPL 488681 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
4
Timer, Defrost (10 Hour) WPL 945486 Contact Us For Availability
4
Screw, Support Center (2) WPL 520959 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Shelf Stud (2) WPL 1106612 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
5
Screw (Repair) WPL 488980 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 (3) WPL 489148 Contact Us For Availability
6
Mounting, Bracket Mullion (R.S) WPL 1105421 Contact Us For Availability
6
Screw (Repair) WPL 488930 Contact Us For Availability
6
Screw, 8 x 1-1/4 (3) WPL 488357 Contact Us For Availability
7
Mounting, Bracket Mullion (L.S) WPL 1105422 Contact Us For Availability
7
Hole Plug (Toast) WPL 1100188 Contact Us For Availability
7
Hole Plug (Platinum) WPL 1100189 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Shelf, Cantilever (3) WPL 1106686 Contact Us For Availability
8
Trim, Shelf WPL 1106957 Contact Us For Availability
9
Control, Front Cover WPL 1105467 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Heater, Mullion WPL 1105433 Contact Us For Availability
10
Trim, Crisper Cover WPL 1105649 Contact Us For Availability
11
Clip, Mullion (3) WPL 1106779 Contact Us For Availability
11
Handle End WPL 944157 Contact Us For Availability
11
Handle End, Side WPL 935103 Contact Us For Availability
11
Knob, Thermostat WPL 1105458 Contact Us For Availability
11
Glass, Crisper Cover WPL 1106929 Contact Us For Availability
12
Spacer (2) WPL 940024 Contact Us For Availability
12
Handle, Center WPL 1106054 Contact Us For Availability
12
Handle, Center (For Platinum Model Only) WPL 1110378 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1108655 Contact Us For Availability
12
Handle, Center WPL 1106079 Contact Us For Availability
12
Handle, Center (For Platinum Model Only) WPL 1110382 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Center Rail (White) WPL 1105424 Contact Us For Availability
13
Center Rail (Golden Harvest) WPL 1105426 Contact Us For Availability
13
Center Rail (Almond) WPL 1105427 Contact Us For Availability
13
Center Rail (Toast) WPL 1105428 Contact Us For Availability
13
Center Rail (Platinum) WPL 1105429 Contact Us For Availability
13
Shim, Handle End (Side) WPL 935075 Contact Us For Availability
13
Light, Bar WPL 1105475 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 1105456 Contact Us For Availability
15
Light, Bar WPL 1105476 Contact Us For Availability
15
Interior Door Panel WPL 1106865 Contact Us For Availability
16
Rod, Connecting WPL 1105459 Contact Us For Availability
16
Shelf, Glass WPL 1106928 Contact Us For Availability
17
Shim, Hinge Top WPL 1100513 Contact Us For Availability
17
Air Diffuser Assembly WPL 1108618 Contact Us For Availability
17
Shelf, Freezer WPL 1106615 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 1105688 Contact Us For Availability
18
Shim, Top Hinge WPL 1100509 Contact Us For Availability
18
Insert, Handle (White) WPL 1108835 Contact Us For Availability
18
Insert, Handle (Golden Harvest) WPL 1108836 Contact Us For Availability
18
Insert, Handle (Almond) WPL 1108837 Contact Us For Availability
18
Insert, Handle (Toast) WPL 1108838 Contact Us For Availability
18
Insert, Handle (Platinum) WPL 1108839 Contact Us For Availability
18
Gasket, Air Diffuser WPL 937225 Contact Us For Availability
18
Trim, Shelf Front WPL 1106958 Contact Us For Availability
18
Nameplate WPL 945116 Contact Us For Availability
19
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
19
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
19
Interior Door Panel WPL 1106932 Contact Us For Availability
19
Cover, Air Diffuser WPL 937226 Contact Us For Availability
19
Pan, Crisper WPL 1105471 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
20
Screw (Repair) WPL 488949 Contact Us For Availability
20
Trim, Door Compartment WPL 1106959 Contact Us For Availability
20
Cap, Hinge Sleeve (4) WPL 509929 Contact Us For Availability
20
Pan, Meat WPL 1105472 Contact Us For Availability
21
Hinge, Center WPL 836153 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Shim, Center (Repair) WPL 836195 Contact Us For Availability
22
Compartment Door, Utility WPL 1106600 Contact Us For Availability
22
Wiring, Assembly Control Box WPL 1106698 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1105462 Contact Us For Availability
23
Reflector, Shelf WPL 1106769 Contact Us For Availability
23
Shim, EndCap (Top) WPL 935074 Contact Us For Availability
24
Clip, Medallion WPL 843213 Contact Us For Availability
24
Shelf, Freezer (Top) WPL 1106822 Contact Us For Availability
24
Screw, 6-20 x 3/8 (2) WPL 489022 Contact Us For Availability
25
Trim, Shelf WPL 1106825 Contact Us For Availability
25
Insert, Handle (White) WPL 1108828 Contact Us For Availability
25
Insert, Handle (Golden Harvest) WPL 1108829 Contact Us For Availability
25
Insert, Handle (Almond) WPL 1108830 Contact Us For Availability
25
Insert, Handle (Toast) WPL 1108831 Contact Us For Availability
25
Insert, Handle (Platinum) WPL 1108832 Contact Us For Availability
26
Hinge Butt, Bottom WPL 836159 Contact Us For Availability
26
Medallion (Toast) WPL 1100194 Contact Us For Availability
26
Medallion (Platinum) WPL 1100195 Contact Us For Availability
26
Medallion (White) WPL 848382 Contact Us For Availability
26
Medallion (Golden Harvest) WPL 989903 Contact Us For Availability
26
Medallion (Almond) WPL 989904 Contact Us For Availability
26
Insulation, Filler WPL 942817 Contact Us For Availability
26
Divider WPL 1106619 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105463 Contact Us For Availability
27
Shelf, Ice Compartment (2) WPL 1106624 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Pad (2) WPL 1105651 Contact Us For Availability
28
Slide, Ice Compartment WPL 1106817 Contact Us For Availability
29
Clamp, Drier WPL 548508 Contact Us For Availability
29
Shim, Bottom WPL 836196 Contact Us For Availability
30
Unit Mounting Frame WPL 1105534 Contact Us For Availability
30
Door, Ice Compartment WPL 1106818 Contact Us For Availability
31
Exchanger, Heat WPL 1105546 Contact Us For Availability
31
Spacer, Hinge WPL 1105474 Contact Us For Availability
31
Retainer, Insert WPL 935871 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Plug, Hole (2) (Toast) WPL 1100174 Contact Us For Availability
32
Hole Plug (2) (Platinum) WPL 1100175 Contact Us For Availability
32
Hole, Plug (2) (White) WPL 835974 Contact Us For Availability
32
Hole, Plug (2) (Almond) WPL 989193 Contact Us For Availability
32
Hole, Plug (2) (Golden Harvest) WPL 989882 Contact Us For Availability
32
Shim, Endcap WPL 1105805 Contact Us For Availability
33
Heater, Defrost WPL 1105551 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1105477 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1105478 Contact Us For Availability
33
Corner Filler, Grille (Golden Harvest) WPL 1105479 Contact Us For Availability
33
Corner Filler, Grille (Platinum) WPL 1105480 Contact Us For Availability
33
Corner Filler, Gri WPL 1105481 Contact Us For Availability
33
Endcap, Insert Retainer WPL 1105804 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1105465 Contact Us For Availability
34
WPL 1110708 WPL 1110708 Contact Us For Availability
34
WPL 1110709 WPL 1110709 Contact Us For Availability
34
WPL 1110710 WPL 1110710 Contact Us For Availability
34
WPL 1110711 WPL 1110711 Contact Us For Availability
34
WPL 1110712 WPL 1110712 Contact Us For Availability
34
Drain Insert, Separator WPL 942849 Contact Us For Availability
34
Tray, Egg (2) WPL 1108652 Contact Us For Availability
35
WPL 876029 WPL 876029 Contact Us For Availability
35
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
35
WPL 799344 WPL 799344 Contact Us For Availability
35
WPL 1105489 WPL 1105489 Contact Us For Availability
35
WPL 1105491 WPL 1105491 Contact Us For Availability
35
WPL 1105492 WPL 1105492 Contact Us For Availability
35
WPL 1105493 WPL 1105493 Contact Us For Availability
35
WPL 1105494 WPL 1105494 Contact Us For Availability
35
WPL 1106148 WPL 1106148 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
35
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
35
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
35
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
35
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
35
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
35
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
35
WPL 542639 WPL 542639 Contact Us For Availability
35
WPL 72112 WPL 72112 Contact Us For Availability
35
WPL 799832 WPL 799832 Contact Us For Availability
35
WPL 799833 WPL 799833 Contact Us For Availability
35
WPL 799908 WPL 799908 Contact Us For Availability
35
WPL 978883 WPL 978883 Contact Us For Availability
36
Clamp WPL 1106913 Contact Us For Availability
36
WPL 1100176 WPL 1100176 Contact Us For Availability
36
WPL 1100177 WPL 1100177 Contact Us For Availability
36
WPL 842031 WPL 842031 Contact Us For Availability
36
WPL 989195 WPL 989195 Contact Us For Availability
36
WPL 989876 WPL 989876 Contact Us For Availability
36
WPL 1106864 WPL 1106864 Contact Us For Availability
36
Pad (2) WPL 1106843 Contact Us For Availability
37
WPL 1105690 WPL 1105690 Contact Us For Availability
37
WPL 1108631 WPL 1108631 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
38
WPL 532154 WPL 532154 Contact Us For Availability
39
WPL 1105606 WPL 1105606 Contact Us For Availability
39
WPL 1106978 WPL 1106978 Contact Us For Availability
39
Drain Pan WPL 1105521 Contact Us For Availability
40
WPL 1105697 WPL 1105697 Contact Us For Availability
40
Gasket, Drain Pan WPL 1105522 Contact Us For Availability
41
Baffle, Air WPL 1105529 Contact Us For Availability
44
WPL 937360 WPL 937360 Contact Us For Availability
45
WPL 937357 WPL 937357 Contact Us For Availability
46
WPL 937062 WPL 937062 Contact Us For Availability
47
WPL 836372 WPL 836372 Contact Us For Availability
48
Unit Mounting Rail WPL 1105525 Contact Us For Availability
48
WPL 1105531 WPL 1105531 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
49
WPL 1105527 WPL 1105527 Contact Us For Availability
50
WPL 655411 WPL 655411 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
52
WPL 836077 WPL 836077 Contact Us For Availability
54
Wedge, Air Baffle WPL 1105632 Contact Us For Availability
58
WPL 1106844 WPL 1106844 Contact Us For Availability
61
WPL 836162 WPL 836162 Contact Us For Availability
63
WPL 489085 WPL 489085 Contact Us For Availability
64
WPL 546131 WPL 546131 Contact Us For Availability
65
WPL 989068 WPL 989068 Contact Us For Availability
67
WPL 1105607 WPL 1105607 Contact Us For Availability
68
WPL 1110564 WPL 1110564 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
