Model Whirlpool ET20MKXPWR1 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

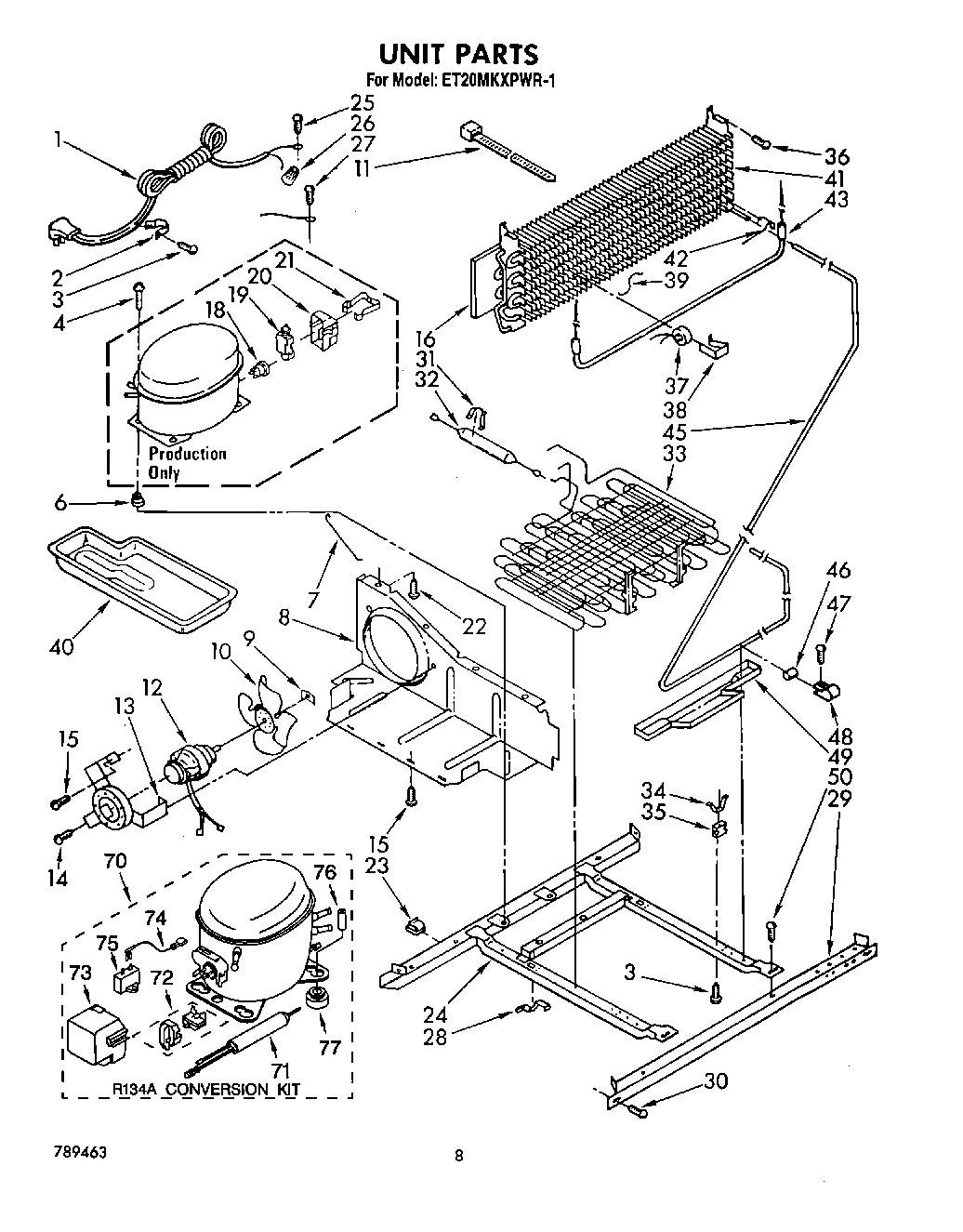

05 - UNIT

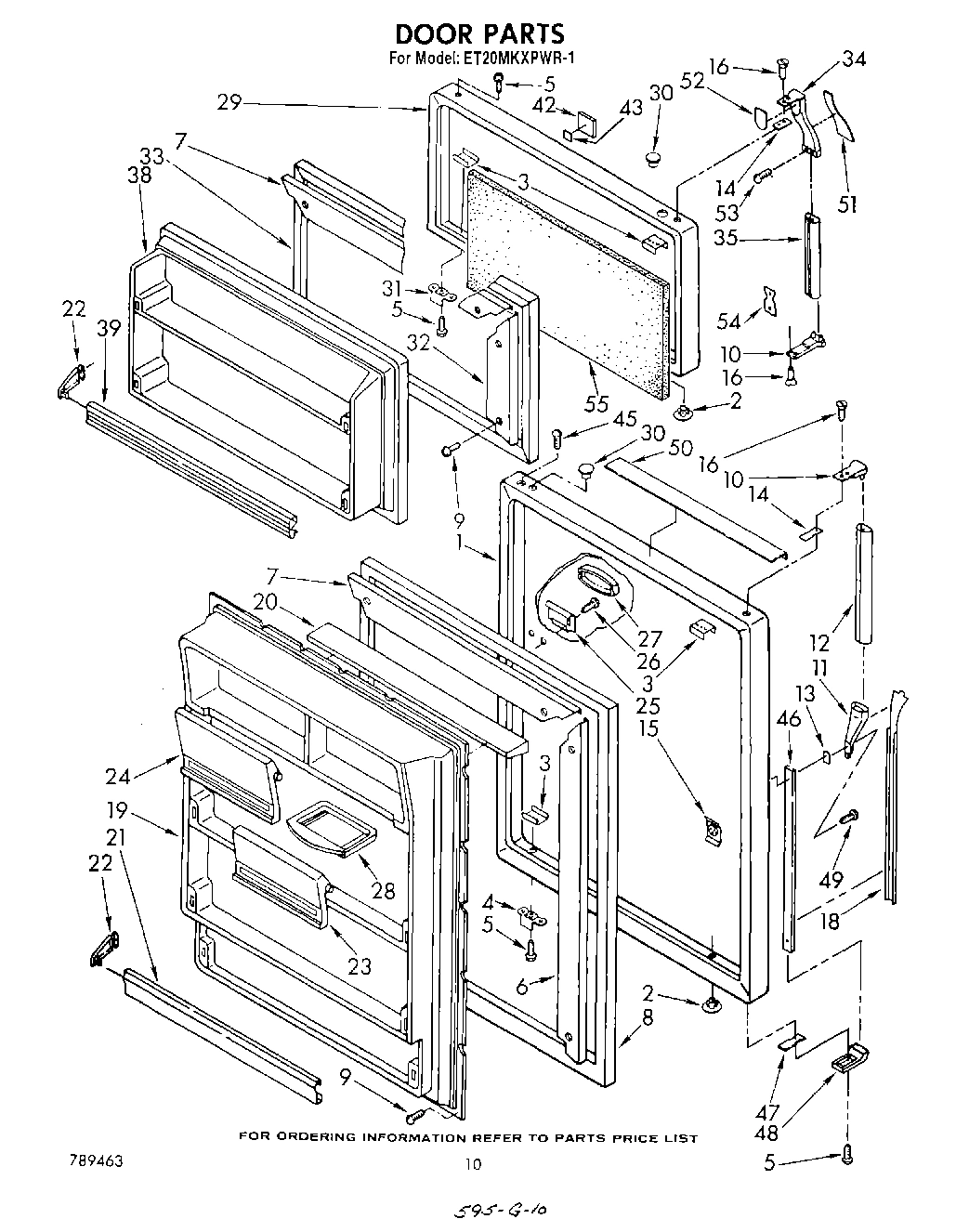

06 - DOOR , NOT ILLUSTRATED AND OPTIONAL

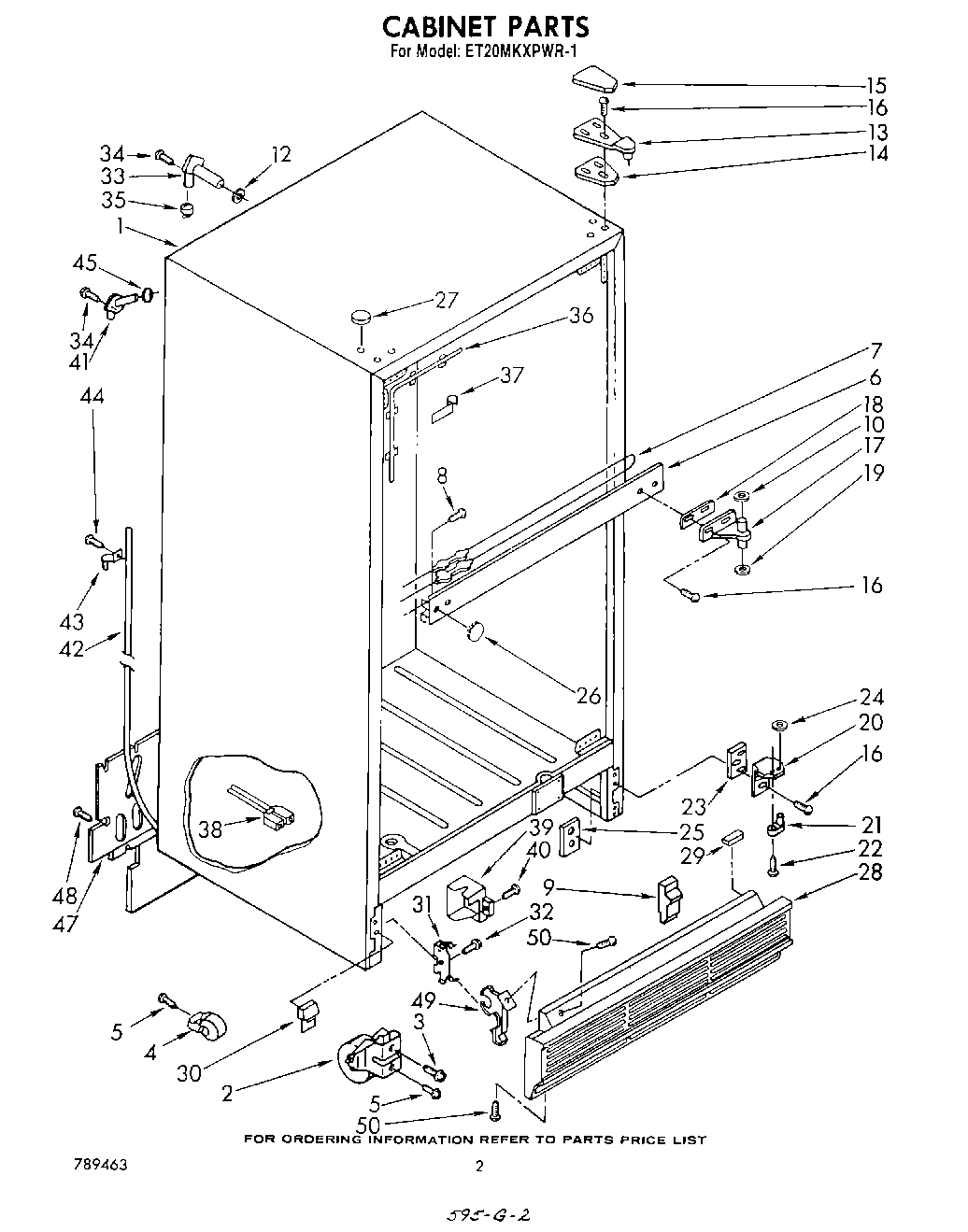

02 - CABINET

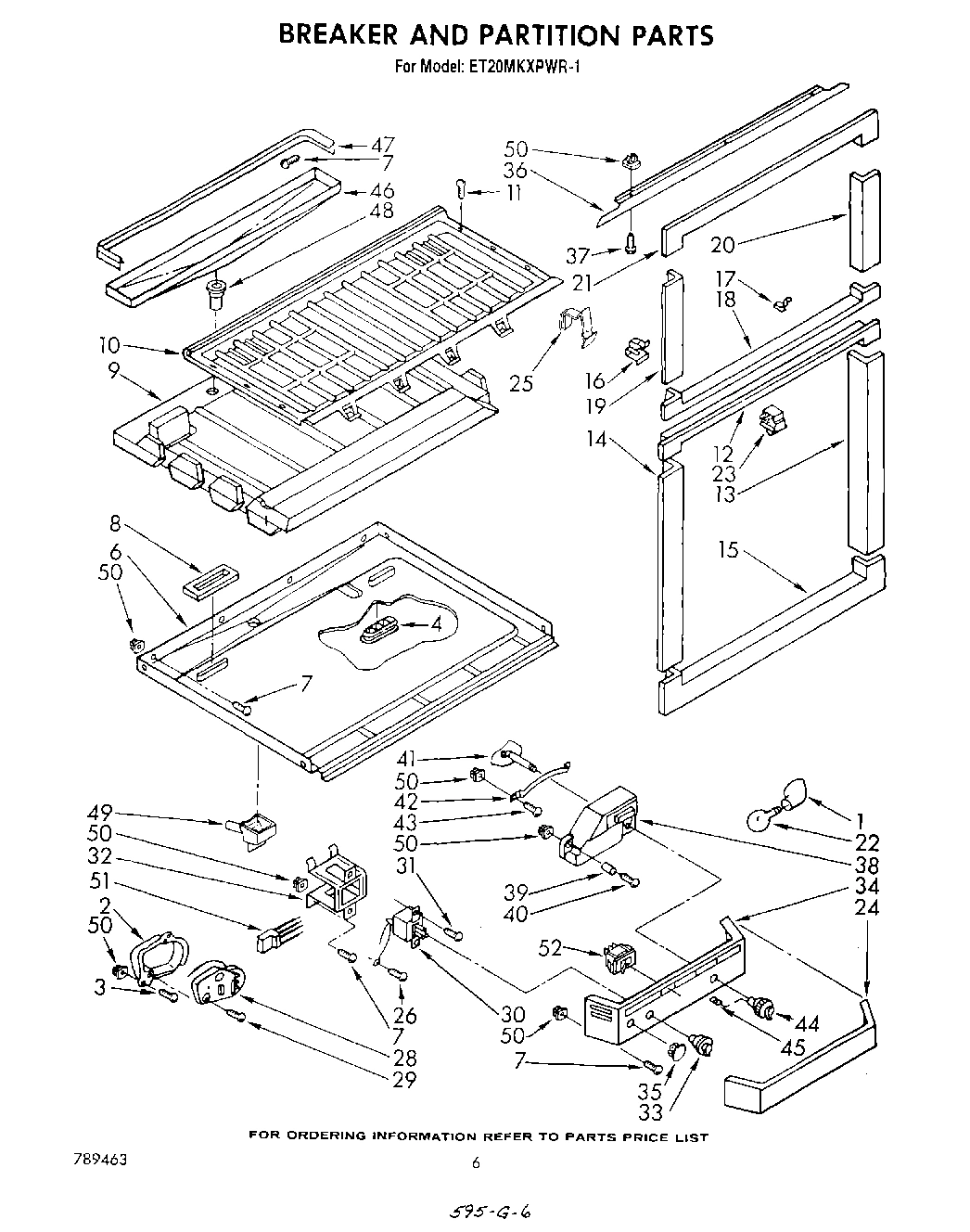

04 - BREAKER AND PARTITION

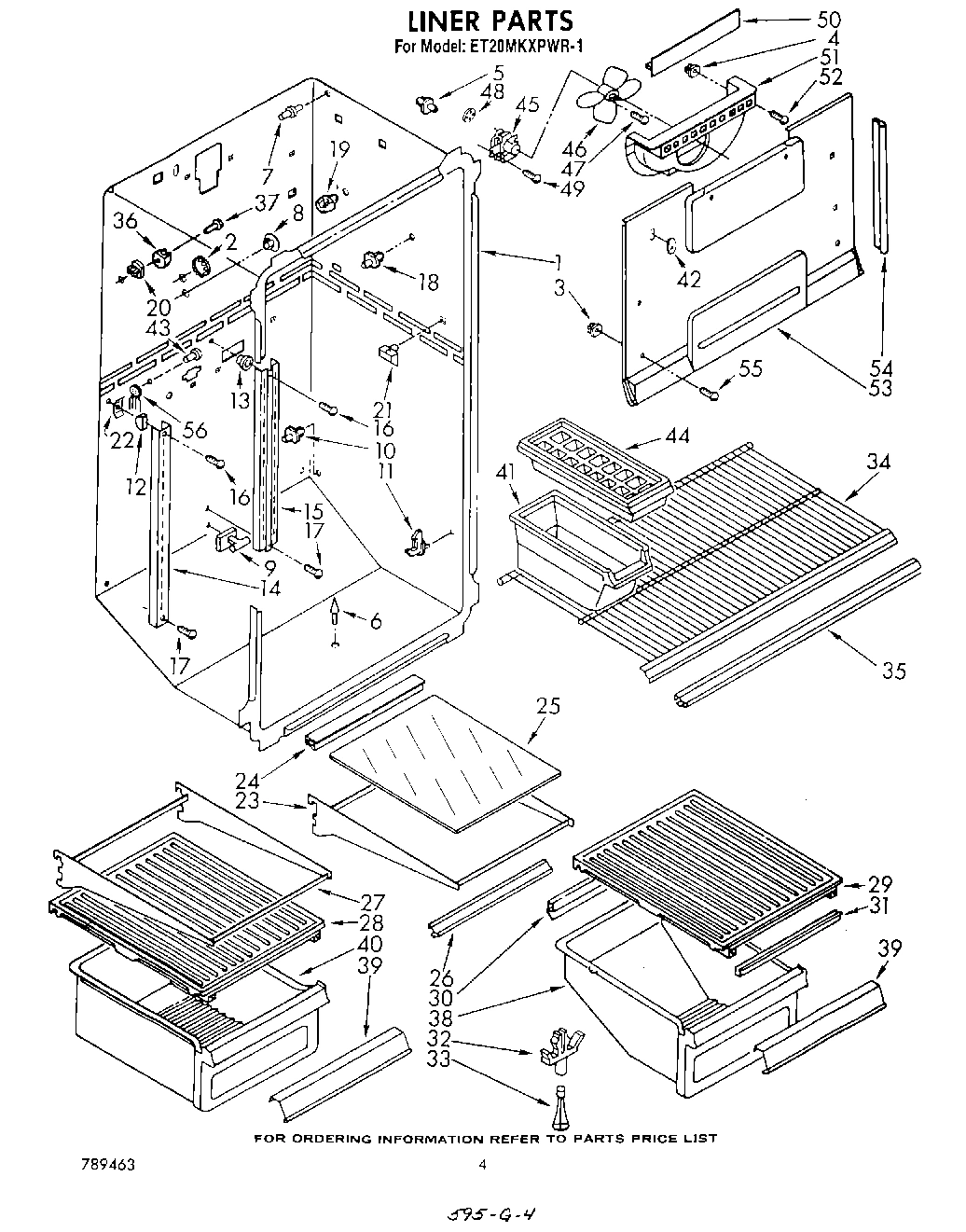

03 - LINER
Common parts from model Whirlpool ET20MKXPWR1 TOP MOUNT REFRIGERATOR
WPL LIT1106081 WPL LIT1106081 Contact Us For Availability
WPL LIT1106083 WPL LIT1106083 Contact Us For Availability
WPL LIT789463 WPL LIT789463 Contact Us For Availability
WPL LIT946646 WPL LIT946646 Contact Us For Availability
1
Door, Refrigerator (Toast) WPL 1100309 Contact Us For Availability
1
Refrigerator Door (Platinum) WPL 1100310 Contact Us For Availability
1
Refrigerator Door (White) WPL 943169 Contact Us For Availability
1
Refrigerator Door (Golden Harvest) WPL 943171 Contact Us For Availability
1
Refrigerator Door (Almond) WPL 943173 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI48865A6 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI48866A3 Contact Us For Availability
2
Hole Plug (Toast) WPL 1100196 Contact Us For Availability
2
Hole Plug (Platinum) WPL 1100197 Contact Us For Availability
2
Hole Plug (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (Golden Harvest) WPL 989879 Contact Us For Availability
2
Roller, Front WPL 981127 Contact Us For Availability
2
Container Timer WPL 983079 Contact Us For Availability
2
Hole, Plug WPL 519890 Contact Us For Availability
3
Screw, 5/16-24 x 1 WPL 488681 Contact Us For Availability
3
Grommet WPL 848445 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
4
Grommet, Air Return (2) WPL 946683 Contact Us For Availability
4
Grommet WPL 842339 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 (4) WPL 488454 Contact Us For Availability
5
Screw, Grommet WPL 845722 Contact Us For Availability
6
Grommet, Crisper Cover WPL 836409 Contact Us For Availability
6
Retainer, Gasket Side WPL 836117 Contact Us For Availability
6
Center Rail (Toast) WPL 1100303 Contact Us For Availability
6
Center Rail (Platinum) WPL 1100304 Contact Us For Availability
6
Center Rail (White) WPL 836067 Contact Us For Availability
6
Center Rail (Golden Harvest) WPL 989909 Contact Us For Availability
6
Center Rail (Almond) WPL 989911 Contact Us For Availability
6
Separator (Bottom) WPL 981738 Contact Us For Availability
7
Retainer, Gasket Top WPL 836118 Contact Us For Availability
7
Heater, Mullion WPL 989256 Contact Us For Availability
7
Stud WPL 526383 Contact Us For Availability
8
Screw (Repair) WPL 487470 Contact Us For Availability
8
Gasket, Air Return WPL 981725 Contact Us For Availability
8
Hole, Plug WPL 659598 Contact Us For Availability
9
Insert, Air Baffle WPL 836372 Contact Us For Availability
9
Insulation, Separator WPL 991173 Contact Us For Availability
9
Stud, Support Rear WPL 836412 Contact Us For Availability
10
Shelf, Stud WPL 536475 Contact Us For Availability
10
End Cap, Handle (Top) WPL 944157 Contact Us For Availability
10
Separator (Top) WPL 848423 Contact Us For Availability
11
Shelf, Stud WPL 836423 Contact Us For Availability
11
End Cap, Handle (Center) WPL 935103 Contact Us For Availability
12
Handle, Center WPL 1106054 Contact Us For Availability
12
Breaker, Mullion Bottom WPL 841643 Contact Us For Availability
13
Shim, Center Handle WPL 935075 Contact Us For Availability
13
Hinge, Top WPL 842039 Contact Us For Availability
13
Breaker, R.S. WPL 841724 Contact Us For Availability
13
Screw Support, Center Ladder (2) WPL 520959 Contact Us For Availability
14
Spacer, Handle WPL 943188 Contact Us For Availability
14
Shim, Hinge WPL 836192 Contact Us For Availability
14
Breaker, L.S. WPL 841721 Contact Us For Availability
14
Shelf, Ladder (2) WPL 1106032 Contact Us For Availability
15
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
15
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
15
Breaker, Bottom WPL 839829 Contact Us For Availability
15
Shelf, Ladder Center WPL 1106033 Contact Us For Availability
16
Screw (Repair) WPL 488923 Contact Us For Availability
16
Screw (Repair) WPL 488949 Contact Us For Availability
16
Breaker, Clip WPL 836090 Contact Us For Availability
16
Screw, 8 x 1-1/4 (3) WPL 488357 Contact Us For Availability
17
Hinge, Center WPL 836153 Contact Us For Availability
17
Breaker, Trim Clip WPL 534365 Contact Us For Availability
17
Screw, 8-32 x 1-1/4 WPL 488960 Contact Us For Availability
17
Screw (Repair) WPL 488980 Contact Us For Availability
18
Insert, Handle WPL 1106076 Contact Us For Availability
18
Shim, Hinge Center WPL 836155 Contact Us For Availability
18
Breaker, Mullion (Top) WPL 841642 Contact Us For Availability
18
Shelf, Stud (2) WPL 529758 Contact Us For Availability
19
Interior Panel WPL 482529 Contact Us For Availability
19
Breaker L.S. WPL 841719 Contact Us For Availability
19
Shelf Stud Saddle (R.S.) WPL 523263 Contact Us For Availability
20
Support, Door Dike WPL 849802 Contact Us For Availability
20
Hinge, Bottom WPL 836159 Contact Us For Availability
20
Breaker R.S. WPL 841722 Contact Us For Availability
20
Screw Grommet WPL 538449 Contact Us For Availability
21
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
21
Trim, Door Shelf WPL 1108758 Contact Us For Availability
21
Breaker, Top WPL 940918 Contact Us For Availability
21
Retainer, Stud (4) WPL 836374 Contact Us For Availability
22
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
22
Screw, Anchor (3) WPL 983604 Contact Us For Availability
23
Compartment Door, Butter WPL 1106052 Contact Us For Availability
23
Shim, Bottom Hinge WPL 836196 Contact Us For Availability
23
Shelf, Cantilever WPL 1106072 Contact Us For Availability
24
Compartment, Utility WPL 1108731 Contact Us For Availability
24
Light Lens WPL 983910 Contact Us For Availability
24
Retainer, Glass Shelf WPL 991328 Contact Us For Availability
25
Clip, Medallion WPL 843213 Contact Us For Availability
25
Tap Plate WPL 836162 Contact Us For Availability
25
Clip, Wrap WPL 939139 Contact Us For Availability
25
Glass, Shelf WPL 1106073 Contact Us For Availability
26
Hole Plug (Toast) WPL 1100174 Contact Us For Availability
26
Hole Plug (Platinum) WPL 1100175 Contact Us For Availability
26
Hole, Plug (White) WPL 835974 Contact Us For Availability
26
Hole, Plug (Almond) WPL 989193 Contact Us For Availability
26
Hole Plug (Golden Harvest) WPL 989882 Contact Us For Availability
26
Trim, Shelf WPL 935223 Contact Us For Availability
27
Medallion (Toast) WPL 1100194 Contact Us For Availability
27
Medallion (Platinum) WPL 1100195 Contact Us For Availability
27
Medallion (White) WPL 848382 Contact Us For Availability
27
Medallion (Golden Harvest) WPL 989903 Contact Us For Availability
27
Medallion (Almond) WPL 989904 Contact Us For Availability
27
Hole Plug (Toast) WPL 1100176 Contact Us For Availability
27
Hole Plug (Platinum) WPL 1100177 Contact Us For Availability
27
Hole Plug (White) WPL 842031 Contact Us For Availability
27
Hole Plug (Almond) WPL 989195 Contact Us For Availability
27
Hole Plug (Golden Harvest) WPL 989876 Contact Us For Availability
27
Pan Shelf, Cantilever WPL 936285 Contact Us For Availability
28
Exterior, Grille (Toast) WPL 1100307 Contact Us For Availability
28
Exterior, Grille (Platinum) WPL 1100308 Contact Us For Availability
28
Exterior, Grille (White) WPL 944233 Contact Us For Availability
28
Exterior, Grille (Golden Harvest) WPL 944235 Contact Us For Availability
28
Exterior, Grille (Almond) WPL 944237 Contact Us For Availability
28
Timer, Defrost WPL 945512 Contact Us For Availability
28
Pan, Cover WPL 1106070 Contact Us For Availability
29
Freezer Door (Also Order Item 55 When Replace WPL 1100311 Contact Us For Availability
29
Freezer Door (Also Order Item 55 When Replace WPL 1100312 Contact Us For Availability
29
Freezer Door (Also Order Item 55 When Replace WPL 943175 Contact Us For Availability
29
WPL 943177 WPL 943177 Contact Us For Availability
29
WPL 943179 WPL 943179 Contact Us For Availability
29
Bumper, Grille WPL 546131 Contact Us For Availability
29
Screw, 8 x 3/8 (2) WPL 488678 Contact Us For Availability
29
Pan, Cover WPL 1106069 Contact Us For Availability
30
WPL 1100188 WPL 1100188 Contact Us For Availability
30
WPL 1100189 WPL 1100189 Contact Us For Availability
30
WPL 989196 WPL 989196 Contact Us For Availability
30
Filler, Grille (Toast) WPL 1100182 Contact Us For Availability
30
Filler, Gril WPL 1100183 Contact Us For Availability
30
WPL 838535 WPL 838535 Contact Us For Availability
30
WPL 989929 WPL 989929 Contact Us For Availability
30
WPL 989931 WPL 989931 Contact Us For Availability
30
Crisper Gasket, Rear WPL 942027 Contact Us For Availability
31
WPL 944035 WPL 944035 Contact Us For Availability
31
WPL 989068 WPL 989068 Contact Us For Availability
31
Crisper Gasket, Front WPL 942028 Contact Us For Availability
32
Support, Cover WPL 848562 Contact Us For Availability
32
WPL 836119 WPL 836119 Contact Us For Availability
32
Bracket, Thermostat WPL 848446 Contact Us For Availability
33
Post, Cover WPL 836410 Contact Us For Availability
33
Knob, Temperature Control WPL 836482 Contact Us For Availability
34
WPL 944163 WPL 944163 Contact Us For Availability
34
Panel, Control WPL 942214 Contact Us For Availability
34
Shelf, Freezer WPL 981497 Contact Us For Availability
35
Hole Plug WPL 534927 Contact Us For Availability
35
WPL 1106079 WPL 1106079 Contact Us For Availability
35
Trim, Shelf WPL 985070 Contact Us For Availability
36
WPL 936075 WPL 936075 Contact Us For Availability
36
Air Baffle WPL 982582 Contact Us For Availability
36
Shelf Stud, Saddle L.S. WPL 836492 Contact Us For Availability
37
WPL 935663 WPL 935663 Contact Us For Availability
38
WPL 1103184 WPL 1103184 Contact Us For Availability
38
WPL 548734 WPL 548734 Contact Us For Availability
38
Air Diffuser WPL 836487 Contact Us For Availability
38
Pan, Crisper WPL 1106042 Contact Us For Availability
39
WPL 1108759 WPL 1108759 Contact Us For Availability
39
WPL 549947 WPL 549947 Contact Us For Availability
39
Overlay, Pan WPL 986316 Contact Us For Availability
40
Tray, Evaporating WPL 842041 Contact Us For Availability
40
Meat, Pan WPL 1106044 Contact Us For Availability
41
WPL 943919 WPL 943919 Contact Us For Availability
41
Damper, Air WPL 984658 Contact Us For Availability
42
WPL 945116 WPL 945116 Contact Us For Availability
42
Retrainer, Air Dampener WPL 836493 Contact Us For Availability
42
Hole Plug, Evaporator WPL 659776 Contact Us For Availability
43
WPL 991259 WPL 991259 Contact Us For Availability
43
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
43
WPL 836077 WPL 836077 Contact Us For Availability
43
Receptacle Cap WPL 850738 Contact Us For Availability
44
Control Knob WPL 837445 Contact Us For Availability
45
WPL 940121 WPL 940121 Contact Us For Availability
45
Knob, Retainer WPL 837444 Contact Us For Availability
46
WPL 935871 WPL 935871 Contact Us For Availability
46
Drain Pan WPL 841686 Contact Us For Availability
47
WPL 1105805 WPL 1105805 Contact Us For Availability
47
WPL 850459 WPL 850459 Contact Us For Availability
47
Gasket, Drain Pan WPL 843291 Contact Us For Availability
48
WPL 1105804 WPL 1105804 Contact Us For Availability
48
Fitting, Drain Pan WPL 841770 Contact Us For Availability
48
Grommet (2) WPL 531933 Contact Us For Availability
49
Cup, Drain WPL 943918 Contact Us For Availability
50
WPL 1106148 WPL 1106148 Contact Us For Availability
50
WPL 489085 WPL 489085 Contact Us For Availability
50
Gasket, Sealing WPL 935068 Contact Us For Availability
51
WPL 1106059 WPL 1106059 Contact Us For Availability
51
Liner Wiring (Defrost Timer) WPL 481782 Contact Us For Availability
51
Scroll, Fan WPL 935067 Contact Us For Availability
52
WPL 935074 WPL 935074 Contact Us For Availability
53
WPL 489022 WPL 489022 Contact Us For Availability
53
Cover, Evaporator WPL 986624 Contact Us For Availability
54
WPL 943187 WPL 943187 Contact Us For Availability
54
Gasket, Evaporator WPL 981750 Contact Us For Availability
55
WPL 876029 WPL 876029 Contact Us For Availability
55
WPL 479502 WPL 479502 Contact Us For Availability
55
WPL 261890 WPL 261890 Contact Us For Availability
55
WPL 261891 WPL 261891 Contact Us For Availability
55
WPL 285365 WPL 285365 Contact Us For Availability
55
WPL 285366 WPL 285366 Contact Us For Availability
55
WPL 285367 WPL 285367 Contact Us For Availability
55
WPL 285368 WPL 285368 Contact Us For Availability
55
WPL 350941 WPL 350941 Contact Us For Availability
55
WPL 542639 WPL 542639 Contact Us For Availability
55
WPL 72112 WPL 72112 Contact Us For Availability
55
WPL 799340 WPL 799340 Contact Us For Availability
55
WPL 799351 WPL 799351 Contact Us For Availability
55
WPL 799833 WPL 799833 Contact Us For Availability
55
WPL 978883 WPL 978883 Contact Us For Availability
56
Wiring, Ice Maker WPL 481658 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
