Model Whirlpool ET20MKXLWR2 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
05 - UNIT
06 - DOOR , LIT/OPTIONAL

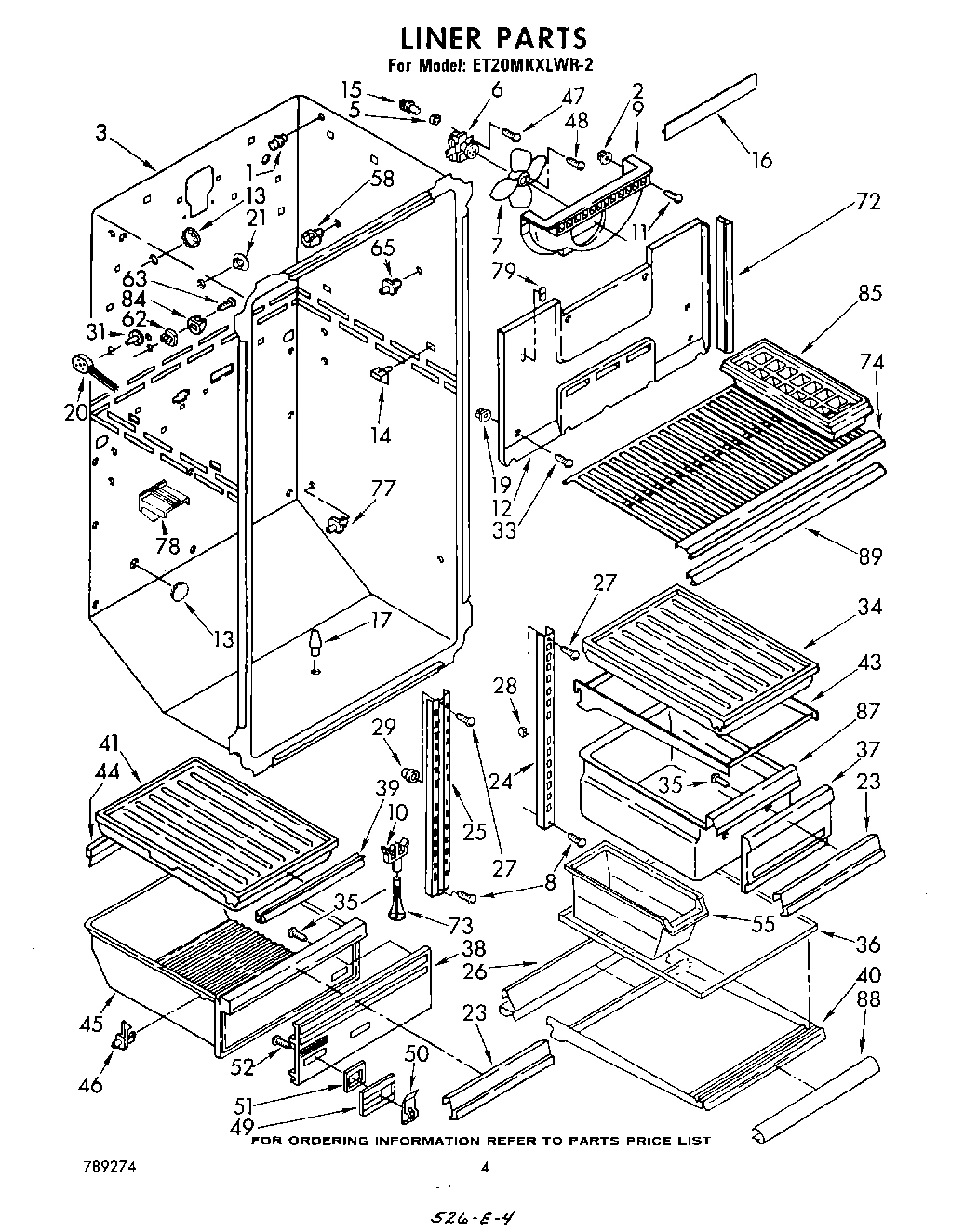

03 - LINER

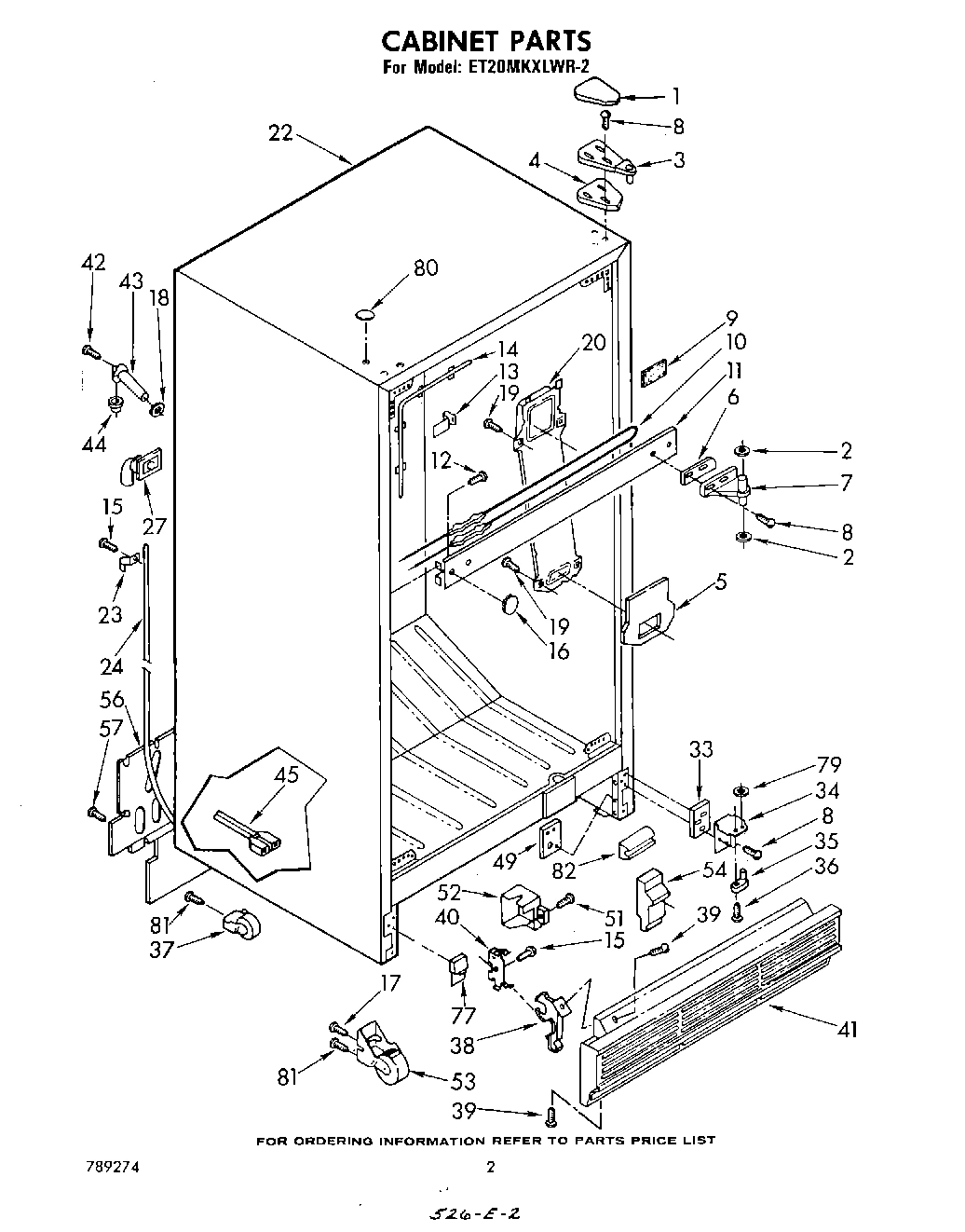

02 - CABINET

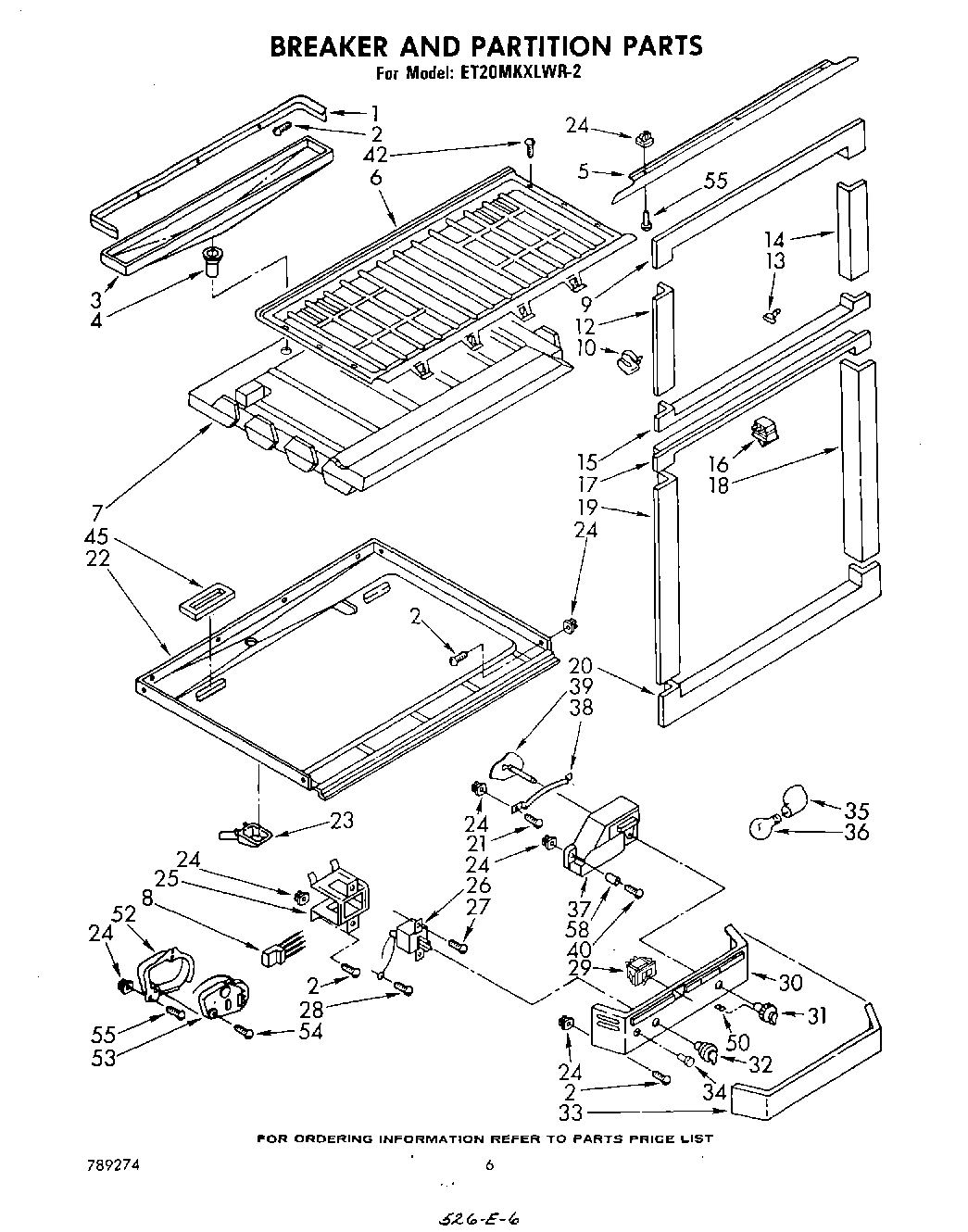

04 - BREAKER AND PARTITION
Common parts from model Whirlpool ET20MKXLWR2 TOP MOUNT REFRIGERATOR
WPL LIT677813 WPL LIT677813 Contact Us For Availability
WPL LIT677818 WPL LIT677818 Contact Us For Availability
WPL LIT677821 WPL LIT677821 Contact Us For Availability
WPL LIT677967 WPL LIT677967 Contact Us For Availability
WPL LIT789274 WPL LIT789274 Contact Us For Availability
WPL LIT943166 WPL LIT943166 Contact Us For Availability
WPL LIT946646 WPL LIT946646 Contact Us For Availability
WPL LIT946867 WPL LIT946867 Contact Us For Availability
1
Door, Freezer (Also Order Item 41) (Toast) WPL 1103193 Contact Us For Availability
1
Door, Freezer (Also Order Item 41) (Platinum) WPL 1103194 Contact Us For Availability
1
Door, Freezer (Also Order Item 41) (White) WPL 944314 Contact Us For Availability
1
Door, Freezer (Also Order Item 41) (Coffee) WPL 944315 Contact Us For Availability
1
Door, Freezer (Also Order Item 41) (Golden Ha WPL 944316 Contact Us For Availability
1
Door, Freezer (Also Order Item 41) (Almond) WPL 944318 Contact Us For Availability
1
Stud, Evaporator Cover WPL 526383 Contact Us For Availability
1
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
1
Cover, Hinge (Coffee) WPL 989895 Contact Us For Availability
1
Cover, Hinge (Golden Harvest) WPL 989896 Contact Us For Availability
1
Gasket, Drain Pan WPL 843291 Contact Us For Availability
3
Panel, Interior (For Platinum Model Only) WPL 1100332 Contact Us For Availability
3
Panel, Interior WPL 943163 Contact Us For Availability
3
Liner (Not A Serviceable Part) WPL ARI48864A9 Contact Us For Availability
3
Hinge & Shim (Top) WPL 842039 Contact Us For Availability
3
Pan, Evaporator Drain WPL 841686 Contact Us For Availability
4
Cap, Hinge WPL 509929 Contact Us For Availability
4
Shim, Top Hinge WPL 836192 Contact Us For Availability
4
Fitting, Drain Pan WPL 841770 Contact Us For Availability
5
Retainer, Trim (For Platinum Model Only) WPL 849223 Contact Us For Availability
5
Retainer, Trim (2) WPL 944359 Contact Us For Availability
5
Grommet (2) WPL 531933 Contact Us For Availability
5
Air Duct Spacer WPL 984571 Contact Us For Availability
5
Baffle, Liner Top WPL 982582 Contact Us For Availability
6
Retainer, Top & Bottom (2) WPL 836118 Contact Us For Availability
6
Shim WPL 836155 Contact Us For Availability
6
Separator (Top) WPL 848423 Contact Us For Availability
7
Retainer, Side (2) WPL 836117 Contact Us For Availability
7
Hinge & Shim (Center) WPL 836153 Contact Us For Availability
7
Insulation, Separator WPL 991173 Contact Us For Availability
8
Screw, 8-32 x 1-1/4 (3) WPL 488960 Contact Us For Availability
8
Screw (Repair) WPL 488980 Contact Us For Availability
8
Screw, 12-14 x 3/4 WPL 488949 Contact Us For Availability
8
Wiring, Liner (Defrost Timer) WPL 481782 Contact Us For Availability
9
Door, Butter WPL 935228 Contact Us For Availability
9
Scroll, Fan WPL 935067 Contact Us For Availability
9
Seal, Strip WPL 985316 Contact Us For Availability
9
Breaker, Freezer (Top) WPL 940918 Contact Us For Availability
10
Support, Cover WPL 848562 No Longer Available
10
Trim, Shelf WPL 985073 Contact Us For Availability
10
Heater, Mullion WPL 989256 Contact Us For Availability
10
Clip (2) WPL 836090 Contact Us For Availability
11
Center Rail (Toast) WPL 1100303 Contact Us For Availability
11
Center Rail (Platinum) WPL 1100304 Contact Us For Availability
11
Rail, Center (White) WPL 836067 Contact Us For Availability
11
Rail, Center (Coffee) WPL 989908 Contact Us For Availability
11
Rail, Center (Golden Harvest) WPL 989909 Contact Us For Availability
11
Rail, Center (Almond) WPL 989911 Contact Us For Availability
12
Insert, Handle WPL 935881 Contact Us For Availability
12
Cover, Evaporator WPL 986624 Contact Us For Availability
12
Screw (Repair) WPL 487470 Contact Us For Availability
12
Breaker, Freezer (L.S.) WPL 841719 Contact Us For Availability
13
Plug, Hole (4) WPL 519890 Contact Us For Availability
13
Clip, Heater (8) WPL 935663 Contact Us For Availability
13
Clip (8) WPL 534365 Contact Us For Availability
14
Shim, Handle WPL 935075 Contact Us For Availability
14
Stud, Retainer (4) WPL 836374 Contact Us For Availability
14
Heater, Stile WPL 936075 Contact Us For Availability
14
Breaker, Freezer (R.S.) WPL 841722 Contact Us For Availability
15
Trim, Shelf (2) WPL 943195 Contact Us For Availability
15
Grommet (2) WPL 845722 Contact Us For Availability
15
Breaker, Mullion (Top) WPL 841642 Contact Us For Availability
16
Gasket, Sealing WPL 935068 Contact Us For Availability
16
Plug, Hole (2) (Toast) WPL 1100174 Contact Us For Availability
16
Hole Plug (2) (Platinum) WPL 1100175 Contact Us For Availability
16
Plug, Hole (2) (White) WPL 835974 Contact Us For Availability
16
Plug, Hole (2) (Almond) WPL 989193 Contact Us For Availability
16
Plug, Hole (2) (Coffee) WPL 989881 Contact Us For Availability
16
Plug, Hole (2) (Golden Harvest) WPL 989882 Contact Us For Availability
17
Grommet, Post WPL 836409 Contact Us For Availability
17
Screw, 5/16-24 x 1-1/4 WPL 488681 Contact Us For Availability
17
Breaker, Mullion Bottom WPL 841643 Contact Us For Availability
18
Insert, Nameplate WPL 945116 Contact Us For Availability
18
Breaker, Refrigerator (R.S.) WPL 841724 Contact Us For Availability
19
Grommet (4) WPL 848445 Contact Us For Availability
19
Breaker, Refrigerator (L.S.) WPL 841721 Contact Us For Availability
20
Cap, Handle WPL 944157 Contact Us For Availability
20
Wiring, Cabinet (Ice Maker) WPL 481658 Contact Us For Availability
20
Duct, Air WPL 841710 Contact Us For Availability
20
Breaker, Refrigerator (Bottom) WPL 839829 Contact Us For Availability
21
Retainer, Side (2) WPL 836119 Contact Us For Availability
21
Plug, Hole (2) WPL 659598 Contact Us For Availability
21
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
22
Clip, Medallion WPL 843213 Contact Us For Availability
22
Cabinet (Not A Serviceable Part) WPL ARI48863A2 Contact Us For Availability
22
Separator (Bottom) WPL 981738 Contact Us For Availability
23
Center, Handle (Toast) WPL 1100200 Contact Us For Availability
23
Center, Handle (Platinum) WPL 1100201 Contact Us For Availability
23
Handle, Center (Golden Harvest) WPL 935081 Contact Us For Availability
23
Handle, Center (Almond) WPL 943081 Contact Us For Availability
23
Handle, Center (White, Coffee) WPL 944164 Contact Us For Availability
23
Overlay, Pan WPL 984749 Contact Us For Availability
23
Clamp WPL 836077 Contact Us For Availability
23
Cup, Drain WPL 841708 Contact Us For Availability
24
Medallion (Toast) WPL 1100194 Contact Us For Availability
24
Medallion (Platinum) WPL 1100195 Contact Us For Availability
24
Medallion (White) WPL 848382 Contact Us For Availability
24
Medallion (Coffee) WPL 989901 Contact Us For Availability
24
Medallion (Golden Harvest) WPL 989903 Contact Us For Availability
24
WPL 989904 WPL 989904 Contact Us For Availability
24
Grommet WPL 842339 Contact Us For Availability
24
Ladder, Shelf (2) WPL 934267 Contact Us For Availability
25
Ladder, Shelf (Center) WPL 936230 Contact Us For Availability
25
Bracket, Thermostat WPL 848446 Contact Us For Availability
26
Reflector, Shelf WPL 991328 Contact Us For Availability
27
WPL 1104864 WPL 1104864 Contact Us For Availability
27
WPL 1104865 WPL 1104865 Contact Us For Availability
27
WPL 1104866 WPL 1104866 Contact Us For Availability
27
WPL 1104868 WPL 1104868 Contact Us For Availability
27
WPL 1104869 WPL 1104869 Contact Us For Availability
27
WPL 1104870 WPL 1104870 Contact Us For Availability
27
Drain Fitting WPL 841687 Contact Us For Availability
29
WPL 482372 WPL 482372 Contact Us For Availability
29
WPL 944357 WPL 944357 Contact Us For Availability
29
Support, Ladder (Center) (2) WPL 520959 Contact Us For Availability
30
WPL 944163 WPL 944163 Contact Us For Availability
30
Panel, Control WPL 942214 Contact Us For Availability
31
WPL 943187 WPL 943187 Contact Us For Availability
31
Cap, Receptacle WPL 850738 Contact Us For Availability
31
Knob, Control (Includes Illus. 50) WPL 837445 Contact Us For Availability
32
WPL 488923 WPL 488923 Contact Us For Availability
32
Knob, Thermostat WPL 836482 Contact Us For Availability
33
WPL 935143 WPL 935143 Contact Us For Availability
33
Shim, Bottom WPL 836196 Contact Us For Availability
33
Lens, Light WPL 983910 Contact Us For Availability
34
Plug, Hole WPL 534927 Contact Us For Availability
34
WPL 1100192 WPL 1100192 Contact Us For Availability
34
WPL 1100193 WPL 1100193 Contact Us For Availability
34
WPL 935084 WPL 935084 Contact Us For Availability
34
WPL 943068 WPL 943068 Contact Us For Availability
34
WPL 944158 WPL 944158 Contact Us For Availability
34
Cover, Meat Pan WPL 935827 Contact Us For Availability
34
Butt, Hinge WPL 836159 Contact Us For Availability
35
Pin, Hinge WPL 654366 Contact Us For Availability
35
WPL 935103 WPL 935103 Contact Us For Availability
35
Screw (Repair) WPL 488132 Contact Us For Availability
36
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
36
Glass, Cantilever Shelf WPL 944355 Contact Us For Availability
37
WPL 488930 WPL 488930 Contact Us For Availability
37
Front Cover, Meat Pan (For Platinum Model Onl WPL 1100356 Contact Us For Availability
37
Front Cover, Meat Pan WPL 935221 Contact Us For Availability
37
Air Diffuser WPL 836487 Contact Us For Availability
38
WPL 943188 WPL 943188 Contact Us For Availability
38
Crisper, Front Cover (For Platinum Model Only WPL 1100354 Contact Us For Availability
38
Cover, Crisper (Front) WPL 942249 Contact Us For Availability
38
Retainer WPL 836493 Contact Us For Availability
39
WPL 1100188 WPL 1100188 Contact Us For Availability
39
WPL 1100189 WPL 1100189 Contact Us For Availability
39
WPL 989196 WPL 989196 Contact Us For Availability
39
WPL 989892 WPL 989892 Contact Us For Availability
39
Gasket, Front WPL 983114 Contact Us For Availability
39
Screw, 8-22 x 5/16 WPL 489085 Contact Us For Availability
39
Damper, Air WPL 836247 Contact Us For Availability
40
Tray, Evaporating WPL 842041 Contact Us For Availability
40
WPL 839430 WPL 839430 Contact Us For Availability
40
Screw, 8 x 1-1/4 (2) WPL 488357 Contact Us For Availability
40
Shelf, Cantilever (4) WPL 936795 Contact Us For Availability
40
Clip, Grille WPL 989068 Contact Us For Availability
41
Slide & Cover, Pan (2) WPL 935124 Contact Us For Availability
41
Exterior, Grille (Toast) WPL 1100307 Contact Us For Availability
41
Exterior, Grille (Platinum) WPL 1100308 Contact Us For Availability
41
Grille, Exterior (White) WPL 944233 Contact Us For Availability
41
Grille, Exterior (Coffee) WPL 944234 Contact Us For Availability
41
Gri WPL 944235 Contact Us For Availability
41
WPL 944237 WPL 944237 Contact Us For Availability
42
WPL 537095 WPL 537095 Contact Us For Availability
43
Pan, Cantilever Shelf WPL 936770 Contact Us For Availability
44
WPL 944360 WPL 944360 Contact Us For Availability
44
WPL 985074 WPL 985074 Contact Us For Availability
44
Gasket, Rear (2) WPL 982158 Contact Us For Availability
45
WPL 849802 WPL 849802 Contact Us For Availability
45
Pan, Crisper (2) WPL 942248 Contact Us For Availability
45
WPL 548734 WPL 548734 Contact Us For Availability
45
Gasket, Air Return (2) WPL 981725 Contact Us For Availability
46
Stud, Shelf (2) WPL 836423 Contact Us For Availability
49
Housing, Humidity Control WPL 942234 Contact Us For Availability
49
WPL 836162 WPL 836162 Contact Us For Availability
50
WPL 944036 WPL 944036 Contact Us For Availability
50
Slide Control WPL 942235 Contact Us For Availability
50
Knob, Retainer WPL 837444 Contact Us For Availability
51
WPL 935871 WPL 935871 Contact Us For Availability
51
Seal, Control WPL 942236 Contact Us For Availability
52
WPL 944166 WPL 944166 Contact Us For Availability
52
Screw, 6-19 x 7/16 WPL 489041 Contact Us For Availability
52
WPL 549947 WPL 549947 Contact Us For Availability
52
Container Timer WPL 983079 Contact Us For Availability
53
WPL 944167 WPL 944167 Contact Us For Availability
53
WPL 981127 WPL 981127 Contact Us For Availability
53
Timer, Defrost WPL 943428 Contact Us For Availability
54
WPL 944035 WPL 944035 Contact Us For Availability
54
WPL 836372 WPL 836372 Contact Us For Availability
54
Screw, 8 x 1-3/8 (2) WPL 488678 Contact Us For Availability
55
WPL 935077 WPL 935077 Contact Us For Availability
56
WPL 935074 WPL 935074 Contact Us For Availability
56
WPL 850459 WPL 850459 Contact Us For Availability
57
WPL 1100334 WPL 1100334 Contact Us For Availability
57
WPL 943155 WPL 943155 Contact Us For Availability
58
Stud, Saddle (R.S.) WPL 523263 Contact Us For Availability
59
WPL 991259 WPL 991259 Contact Us For Availability
60
WPL 876029 WPL 876029 Contact Us For Availability
60
WPL 479502 WPL 479502 Contact Us For Availability
60
WPL 799344 WPL 799344 Contact Us For Availability
60
WPL 261886 WPL 261886 Contact Us For Availability
60
WPL 261887 WPL 261887 Contact Us For Availability
60
WPL 261890 WPL 261890 Contact Us For Availability
60
WPL 261891 WPL 261891 Contact Us For Availability
60
WPL 285365 WPL 285365 Contact Us For Availability
60
WPL 285366 WPL 285366 Contact Us For Availability
60
WPL 285367 WPL 285367 Contact Us For Availability
60
WPL 285368 WPL 285368 Contact Us For Availability
60
WPL 350941 WPL 350941 Contact Us For Availability
60
WPL 489022 WPL 489022 Contact Us For Availability
60
WPL 542639 WPL 542639 Contact Us For Availability
60
WPL 72108 WPL 72108 Contact Us For Availability
60
WPL 72112 WPL 72112 Contact Us For Availability
60
WPL 799832 WPL 799832 Contact Us For Availability
60
WPL 799833 WPL 799833 Contact Us For Availability
60
WPL 799908 WPL 799908 Contact Us For Availability
60
WPL 978883 WPL 978883 Contact Us For Availability
62
Grommet WPL 538449 Contact Us For Availability
65
Stud, WPL 529758 Contact Us For Availability
72
WPL 981750 WPL 981750 Contact Us For Availability
73
WPL 836410 WPL 836410 Contact Us For Availability
74
WPL 981497 WPL 981497 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
WPL 536475 WPL 536475 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
77
WPL 1100182 WPL 1100182 Contact Us For Availability
77
WPL 1100183 WPL 1100183 Contact Us For Availability
77
WPL 838535 WPL 838535 Contact Us For Availability
77
WPL 989928 WPL 989928 Contact Us For Availability
77
WPL 989929 WPL 989929 Contact Us For Availability
77
WPL 989931 WPL 989931 Contact Us For Availability
78
WPL 836412 WPL 836412 Contact Us For Availability
79
WPL 659776 WPL 659776 Contact Us For Availability
80
WPL 1100176 WPL 1100176 Contact Us For Availability
80
WPL 1100177 WPL 1100177 Contact Us For Availability
80
WPL 842031 WPL 842031 Contact Us For Availability
80
WPL 989195 WPL 989195 Contact Us For Availability
80
WPL 989875 WPL 989875 Contact Us For Availability
80
WPL 989876 WPL 989876 Contact Us For Availability
81
WPL 488454 WPL 488454 Contact Us For Availability
82
WPL 546131 WPL 546131 Contact Us For Availability
84
WPL 836492 WPL 836492 Contact Us For Availability
87
WPL 849020 WPL 849020 Contact Us For Availability
88
WPL 935223 WPL 935223 Contact Us For Availability
89
WPL 985070 WPL 985070 Contact Us For Availability
× ![]()
