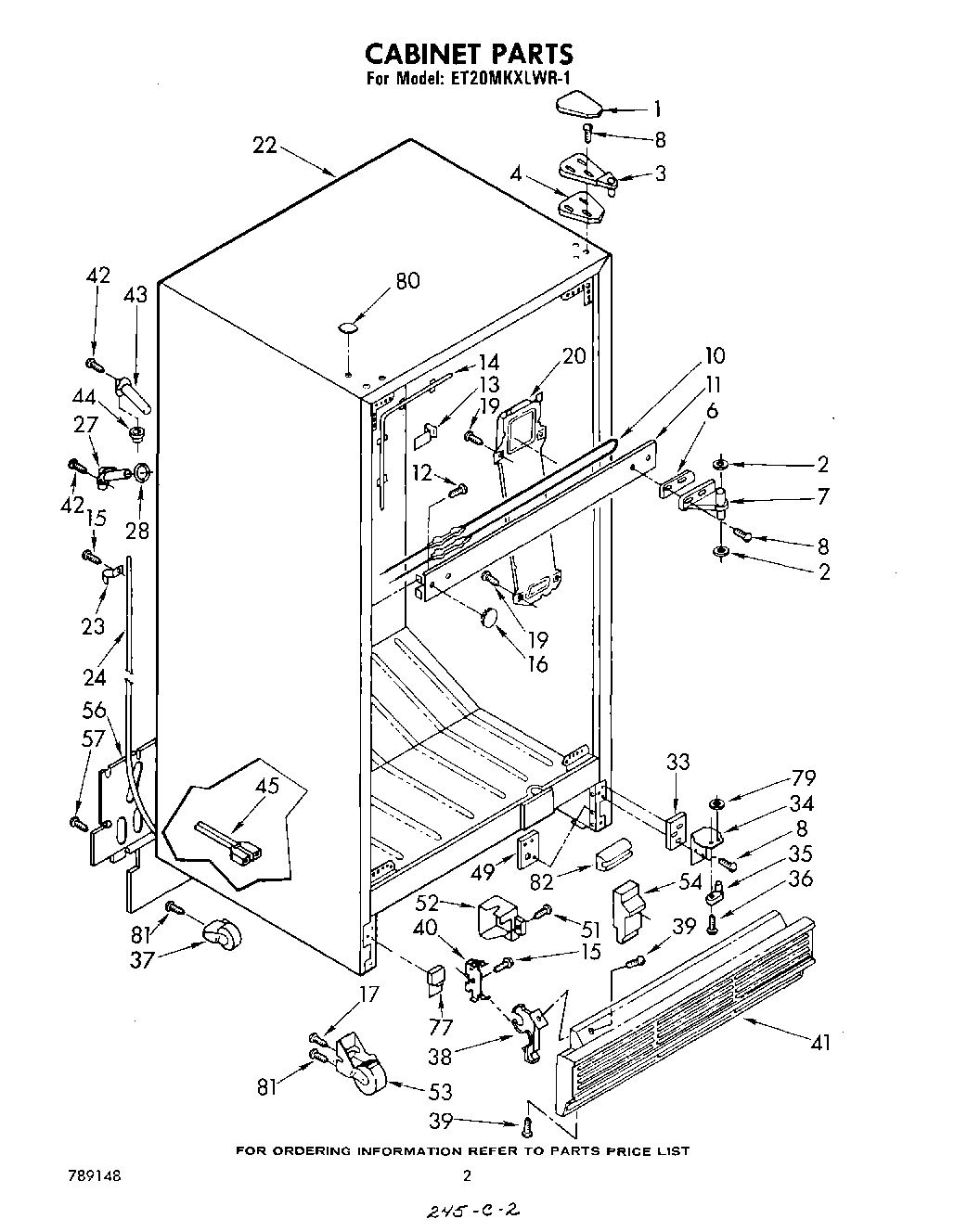

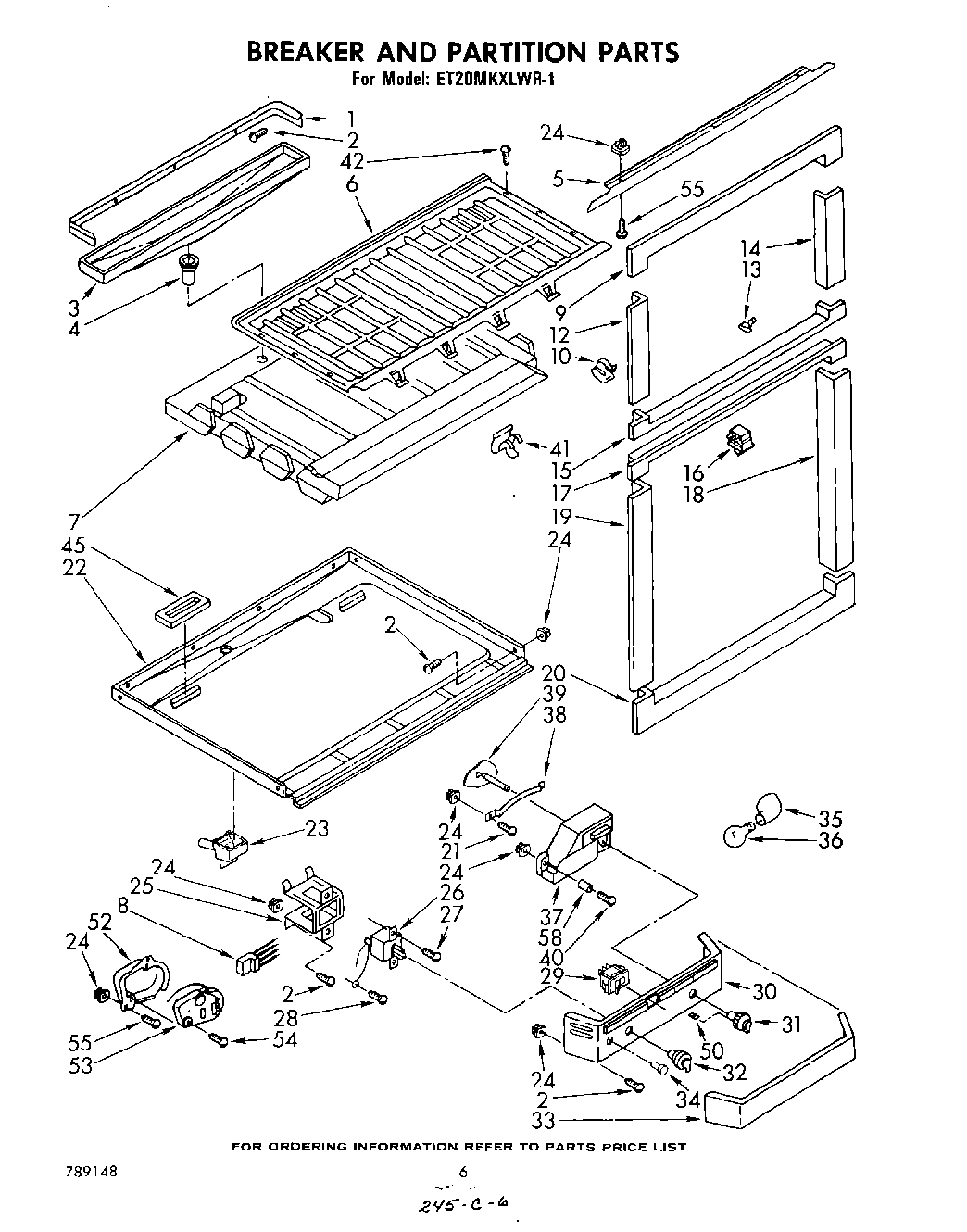

Model Whirlpool ET20MKXLWR1 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

1

Door, Freezer (Also Order Item 41) (Toast) WPL 1100311 Contact Us For Availability

1

Door, Freezer (Also Order Item 41) (Platinum) WPL 1100312 Contact Us For Availability

1

Door, Freezer (Also Order Item 41) (White) WPL 943175 Contact Us For Availability

1

Door, Freezer (Also Order Item 41) (Coffee) WPL 943176 Contact Us For Availability

1

Door, Freezer (Also Order Item 41) (Golden Ha WPL 943177 Contact Us For Availability

1

Door, Freezer (Also Order Item 41) (New Avoca WPL 943178 Contact Us For Availability

1

Door, Freezer (Also Order Item 41) (Almond) WPL 943179 Contact Us For Availability

1

Gasket, Drain Pan WPL 843291 Contact Us For Availability

1

Cord, Service WPL 850626 Contact Us For Availability

1

Hinge Cover (Toast) WPL 1100172 Contact Us For Availability

1

Cover, Hinge (Coffee) WPL 989895 Contact Us For Availability

1

Cover, Hinge (Golden Harvest) WPL 989896 Contact Us For Availability

1

Cover, Hinge (New Avocado) WPL 989897 Contact Us For Availability

2

2188460A Whirlpool Refrigerator Door Gasket Backorder WPL 2188460A $93.54

2

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

2

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

3

Panel, Interior (For Platinum Model Only) WPL 1100332 Contact Us For Availability

3

Panel, Interior WPL 943163 Contact Us For Availability

3

Pan, Evaporator Drain WPL 841686 Contact Us For Availability

3

Hinge & Shim (Top) WPL 842039 Contact Us For Availability

4

Fitting, Drain Pan WPL 841770 Contact Us For Availability

4

Shim, Top Hinge WPL 836192 Contact Us For Availability

5

Retainer, Trim (For Platinum Model Only) WPL 849223 Contact Us For Availability

5

Retainer, Trim (2) WPL 944359 Contact Us For Availability

5

Baffle, Liner Top WPL 982582 Contact Us For Availability

6

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

6

Retainer, Top & Bottom (2) WPL 836118 Contact Us For Availability

6

Separator (Top) WPL 848423 Contact Us For Availability

6

Shim WPL 836155 Contact Us For Availability

7

Retainer, Side (2) WPL 836117 Contact Us For Availability

7

Insulation, Separator WPL 991173 Contact Us For Availability

7

Guard, Fan WPL 850156 Contact Us For Availability

7

Hinge & Shim (Center) WPL 836153 Contact Us For Availability

8

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

8

Wiring, Liner (Defrost Timer) WPL 481782 Contact Us For Availability

8

Baffle, Air WPL 850764 Contact Us For Availability

8

Screw, 12-14 x 3/4 WPL 488949 Contact Us For Availability

9

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

9

Door, Butter WPL 935228 Contact Us For Availability

9

Breaker, Freezer (Top) WPL 940918 Contact Us For Availability

Support, Cover WPL 848562 No Longer Available

Trim, Shelf WPL 985073 Contact Us For Availability

Clip (2) WPL 836090 Contact Us For Availability

Fan WPL 989524 Contact Us For Availability

Heater, Mullion WPL 989256 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Center Rail (Toast) WPL 1100303 Contact Us For Availability

Center Rail (Platinum) WPL 1100304 Contact Us For Availability

Rail, Center (White) WPL 836067 Contact Us For Availability

Rail, Center (Coffee) WPL 989908 Contact Us For Availability

Rail, Center (Golden Harvest) WPL 989909 Contact Us For Availability

Rail, Center (New Avocado) WPL 989910 Contact Us For Availability

Rail, Center (Almond) WPL 989911 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

Insert, Handle WPL 935881 Contact Us For Availability

Breaker, Freezer (L.S.) WPL 841719 Contact Us For Availability

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

Screw (Repair) WPL 487470 Contact Us For Availability

13

Clip (8) WPL 534365 Contact Us For Availability

13

Bracket, Motor WPL 548695 Contact Us For Availability

13

Clip, Heater (8) WPL 935663 Contact Us For Availability

Shim, Handle WPL 935075 Contact Us For Availability

Breaker, Freezer (R.S.) WPL 841722 Contact Us For Availability

Screw WPL 488868 Contact Us For Availability

Heater, Stile WPL 936075 Contact Us For Availability

15

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

15

Trim, Shelf (2) WPL 943195 Contact Us For Availability

15

Breaker, Mullion (Top) WPL 841642 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

Baffle, Evaporator WPL 981736 Contact Us For Availability

Plug, Hole (2) (Toast) WPL 1100174 Contact Us For Availability

Hole Plug (2) (Platinum) WPL 1100175 Contact Us For Availability

Plug, Hole (2) (White) WPL 835974 Contact Us For Availability

Plug, Hole (2) (Almond) WPL 989193 Contact Us For Availability

Plug, Hole (2) (Coffee) WPL 989881 Contact Us For Availability

Plug, Hole (2) (Golden Harvest) WPL 989882 Contact Us For Availability

Plug, Hole (2) (New Avocado) WPL 989883 Contact Us For Availability

Grommet, Post WPL 836409 Contact Us For Availability

Breaker, Mullion Bottom WPL 841643 Contact Us For Availability

Overload Spring WPL 943494 Contact Us For Availability

Screw, 5/16-24 x 1-1/4 WPL 488681 Contact Us For Availability

18

Insert, Nameplate WPL 945116 Contact Us For Availability

18

Breaker, Refrigerator (R.S.) WPL 841724 Contact Us For Availability

18

Overload WPL 943492 Contact Us For Availability

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

Breaker, Refrigerator (L.S.) WPL 841721 Contact Us For Availability

Relay WPL 945431 Contact Us For Availability

Cap, Handle WPL 944157 Contact Us For Availability

Breaker, Refrigerator (Bottom) WPL 839829 Contact Us For Availability

Case, Relay WPL 943496 Contact Us For Availability

Duct, Air WPL 841710 Contact Us For Availability

21

Retainer, Side (2) WPL 836119 Contact Us For Availability

21

Spring, Case WPL 943497 Contact Us For Availability

Clip, Medallion WPL 843213 Contact Us For Availability

Separator (Bottom) WPL 981738 Contact Us For Availability

Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability

Cabinet (Not A Serviceable Part) WPL ARI48861A6 Contact Us For Availability

Center, Handle (Toast) WPL 1100200 Contact Us For Availability

Center, Handle (Platinum) WPL 1100201 Contact Us For Availability

Handle, Center (New Avocado) WPL 935080 Contact Us For Availability

Handle, Center (Golden Harvest) WPL 935081 Contact Us For Availability

Handle, Center (Almond) WPL 943081 Contact Us For Availability

Handle, Center (White, Coffee) WPL 944164 Contact Us For Availability

Cup, Drain WPL 943918 Contact Us For Availability

Clip, Wire (2) WPL 548745 Contact Us For Availability

Clamp WPL 836077 Contact Us For Availability

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $38.47

Medallion (Toast) WPL 1100194 Contact Us For Availability

Medallion (Platinum) WPL 1100195 Contact Us For Availability

Medallion (White) WPL 848382 Contact Us For Availability

Medallion (C WPL 989901 Contact Us For Availability

WPL 989902 WPL 989902 Contact Us For Availability

WPL 989903 WPL 989903 Contact Us For Availability

WPL 989904 WPL 989904 Contact Us For Availability

Grommet WPL 842339 Contact Us For Availability

Frame WPL 850751 Contact Us For Availability

25

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

25

Bracket, Thermostat WPL 848446 Contact Us For Availability

25

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

26

WP819470 Whirlpool Refrigerator Thermostat In Stock WPL WP819470 $62.70

26

Wire Connector WPL 227991 Contact Us For Availability

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

WPL 1100350 WPL 1100350 Contact Us For Availability

WPL 1100351 WPL 1100351 Contact Us For Availability

WPL 944169 WPL 944169 Contact Us For Availability

WPL 944170 WPL 944170 Contact Us For Availability

WPL 944171 WPL 944171 Contact Us For Availability

WPL 944172 WPL 944172 Contact Us For Availability

WPL 944173 WPL 944173 Contact Us For Availability

Drain Fitting WPL 943919 Contact Us For Availability

2188450A Whirlpool Refrigerator Door Gasket In Stock WPL 2188450A $112.07

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Clip (2) WPL 548744 Contact Us For Availability

Gasket, Seal WPL 940121 Contact Us For Availability

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

WPL 482372 WPL 482372 Contact Us For Availability

WPL 944357 WPL 944357 Contact Us For Availability

Rail, Front WPL 548662 Contact Us For Availability

30

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

30

WPL 944163 WPL 944163 Contact Us For Availability

30

Panel, Control WPL 942214 Contact Us For Availability

31

WPL 943187 WPL 943187 Contact Us For Availability

31

Knob, Control (Includes Illus. 50) WPL 837445 Contact Us For Availability

31

Clamp WPL 548508 Contact Us For Availability

32

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $2.51

32

WPL 488923 WPL 488923 Contact Us For Availability

32

Knob, Thermostat WPL 836482 Contact Us For Availability

WPL 935143 WPL 935143 Contact Us For Availability

Lens, Light WPL 983910 Contact Us For Availability

Condenser & Precooler WPL 943480 Contact Us For Availability

Shim, Bottom WPL 836196 Contact Us For Availability

Plug, Hole WPL 534927 Contact Us For Availability

WPL 1100192 WPL 1100192 Contact Us For Availability

WPL 1100193 WPL 1100193 Contact Us For Availability

WPL 935083 WPL 935083 Contact Us For Availability

WPL 935084 WPL 935084 Contact Us For Availability

WPL 943068 WPL 943068 Contact Us For Availability

WPL 944158 WPL 944158 Contact Us For Availability

Clamp (4) WPL 548738 Contact Us For Availability

Butt, Hinge WPL 836159 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

Pin, Hinge WPL 654366 Contact Us For Availability

WPL 935103 WPL 935103 Contact Us For Availability

Grommet (4) WPL 943447 Contact Us For Availability

36

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

36

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

36

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

WP4387489 Whirlpool Refrigerator Bi-Metal Def In Stock WPL WP4387489 $33.76

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

WPL 488930 WPL 488930 Contact Us For Availability

Air Diffuser WPL 836487 Contact Us For Availability

WP944224 Whirlpool Refrigerator Support In Stock WPL WP944224 $3.70

WPL 943188 WPL 943188 Contact Us For Availability

Retainer WPL 836493 Contact Us For Availability

Clamp WPL 513584 Contact Us For Availability

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

WPL 1100188 WPL 1100188 Contact Us For Availability

WPL 1100189 WPL 1100189 Contact Us For Availability

WPL 989196 WPL 989196 Contact Us For Availability

WPL 989892 WPL 989892 Contact Us For Availability

WPL 989894 WPL 989894 Contact Us For Availability

Damper, Air WPL 836247 Contact Us For Availability

Support, Heater WPL 851358 Contact Us For Availability

Screw, 8-22 x 5/16 WPL 489085 Contact Us For Availability

Tray, Evaporating WPL 842041 Contact Us For Availability

WPL 839430 WPL 839430 Contact Us For Availability

Screw, 8 x 1-1/4 (2) WPL 488357 Contact Us For Availability

Clip, Grille WPL 989068 Contact Us For Availability

Clip, Mullion (2) WPL 939139 Contact Us For Availability

Evaporator WPL 943498 Contact Us For Availability

Exterior, Grille (Toast) WPL 1100307 Contact Us For Availability

Exterior, Grille (Platinum) WPL 1100308 Contact Us For Availability

WPL 944233 WPL 944233 Contact Us For Availability

WPL 944234 WPL 944234 Contact Us For Availability

WPL 944235 WPL 944235 Contact Us For Availability

WPL 944236 WPL 944236 Contact Us For Availability

WPL 944237 WPL 944237 Contact Us For Availability

42

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

42

WPL 537095 WPL 537095 Contact Us For Availability

42

Clip, Heater (2) WPL 850721 Contact Us For Availability

43

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

43

Heater, Defrost WPL 989612 Contact Us For Availability

44

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

44

WPL 944360 WPL 944360 Contact Us For Availability

44

WPL 985074 WPL 985074 Contact Us For Availability

WPL 849802 WPL 849802 Contact Us For Availability

Gasket, Air Return (2) WPL 981725 Contact Us For Availability

Exchanger, Heat WPL 943487 Contact Us For Availability

WPL 548734 WPL 548734 Contact Us For Availability

46

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

46

Stud, Shelf (2) WPL 836423 Contact Us For Availability

46

Dampener (2) WPL 510769 Contact Us For Availability

47

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

48

Clamp (2) WPL 510716 Contact Us For Availability

49

Pan, Drip WPL 989269 Contact Us For Availability

49

WPL 836162 WPL 836162 Contact Us For Availability

50

WPL 944036 WPL 944036 Contact Us For Availability

50

Knob, Retainer WPL 837444 Contact Us For Availability

51

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

51

Seal, Control WPL 942236 Contact Us For Availability

51

WPL 935871 WPL 935871 Contact Us For Availability

Screw, 6-19 x 7/16 WPL 489041 Contact Us For Availability

WPL 944166 WPL 944166 Contact Us For Availability

Container Timer WPL 983079 Contact Us For Availability

WPL 549947 WPL 549947 Contact Us For Availability

53

WPL 944167 WPL 944167 Contact Us For Availability

53

Timer, Defrost WPL 943428 Contact Us For Availability

53

WPL 981127 WPL 981127 Contact Us For Availability

54

WPL 944035 WPL 944035 Contact Us For Availability

54

Screw, 8 x 1-3/8 (2) WPL 488678 Contact Us For Availability

54

WPL 836372 WPL 836372 Contact Us For Availability

55

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

55

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

55

WPL 935077 WPL 935077 Contact Us For Availability

56

WPL 935074 WPL 935074 Contact Us For Availability

56

WPL 850459 WPL 850459 Contact Us For Availability

57

WPL 1100334 WPL 1100334 Contact Us For Availability

57

WPL 943135 WPL 943135 Contact Us For Availability

58

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $4.59

58

Stud, Saddle (R.S WPL 523263 Contact Us For Availability

59

WPL 991259 WPL 991259 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly Backorder WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

WPL 479502 WPL 479502 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 489022 WPL 489022 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 789148 WPL 789148 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 943166 WPL 943166 Contact Us For Availability

WPL 944003 WPL 944003 Contact Us For Availability

WPL 946646 WPL 946646 Contact Us For Availability

WPL 946867 WPL 946867 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

62

WPL 538449 WPL 538449 Contact Us For Availability

65

WPL 529758 WPL 529758 Contact Us For Availability

70

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

70

Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability

71

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

72

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $72.20

72

WPL 981750 WPL 981750 Contact Us For Availability

73

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

73

WPL 836410 WPL 836410 Contact Us For Availability

74

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

74

WPL 981497 WPL 981497 Contact Us For Availability

75

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

76

Sleeve WPL 4387559 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $28.53

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

WPL 536475 WPL 536475 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

WPL 1100182 WPL 1100182 Contact Us For Availability

WPL 1100183 WPL 1100183 Contact Us For Availability

WPL 838535 WPL 838535 Contact Us For Availability

WPL 989928 WPL 989928 Contact Us For Availability

WPL 989929 WPL 989929 Contact Us For Availability

WPL 989930 WPL 989930 Contact Us For Availability

WPL 989931 WPL 989931 Contact Us For Availability

78

WPL 836412 WPL 836412 Contact Us For Availability

79

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

79

WPL 659776 WPL 659776 Contact Us For Availability

WPL 1100176 WPL 1100176 Contact Us For Availability

WPL 1100177 WPL 1100177 Contact Us For Availability

WPL 842031 WPL 842031 Contact Us For Availability

WPL 989195 WPL 989195 Contact Us For Availability

WPL 989875 WPL 989875 Contact Us For Availability

WPL 989876 WPL 989876 Contact Us For Availability

WPL 989877 WPL 989877 Contact Us For Availability

81

WPL 488454 WPL 488454 Contact Us For Availability

82

WPL 546131 WPL 546131 Contact Us For Availability

84

WPL 836492 WPL 836492 Contact Us For Availability

85

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

87

WPL 849020 WPL 849020 Contact Us For Availability

88

WPL 935223 WPL 935223 Contact Us For Availability

89

WPL 985070 WPL 985070 Contact Us For Availability
