Model Whirlpool ET20HKXMWR2 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
02 - CABINET
04 - BREAKER AND PARTITION

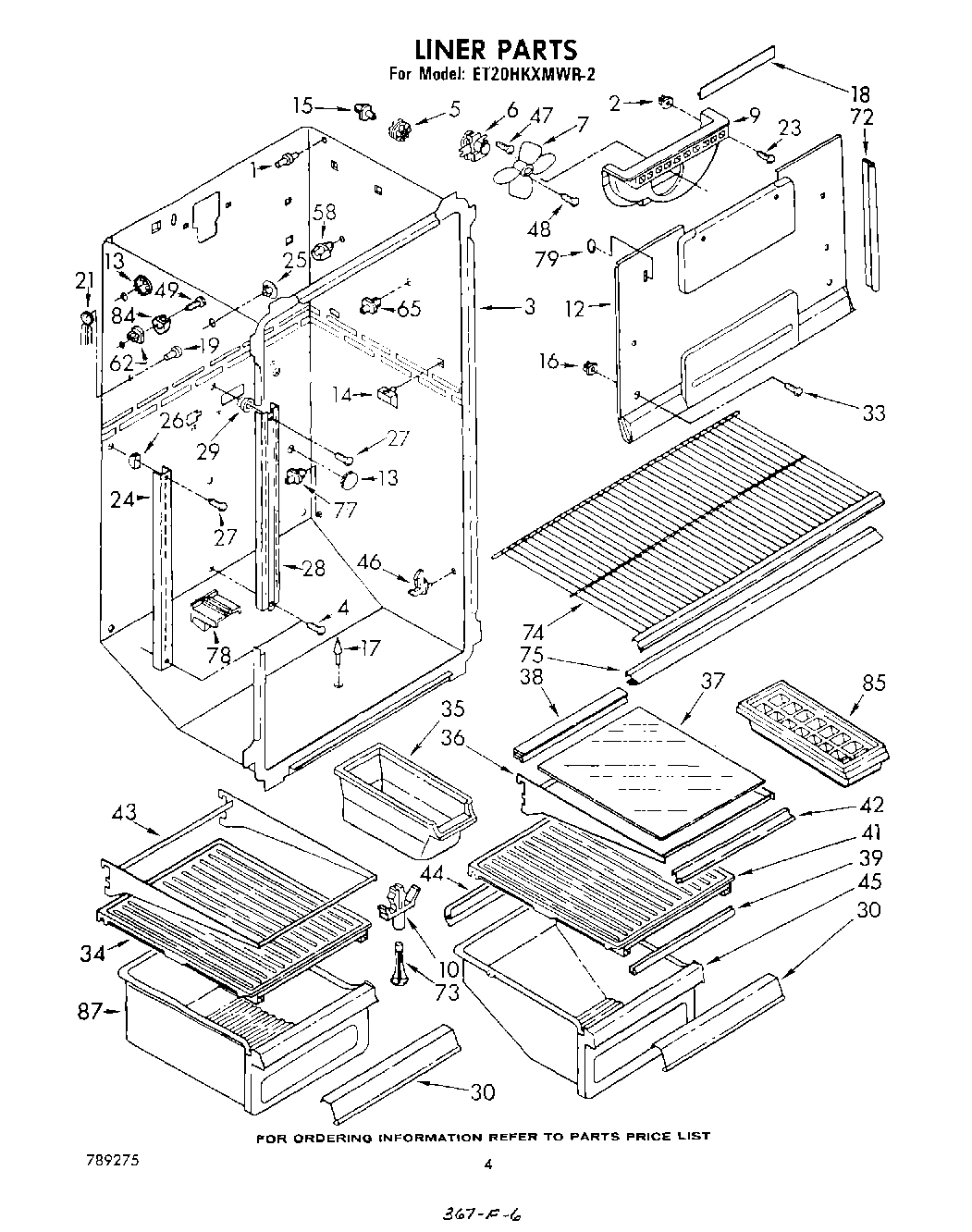

03 - LINER

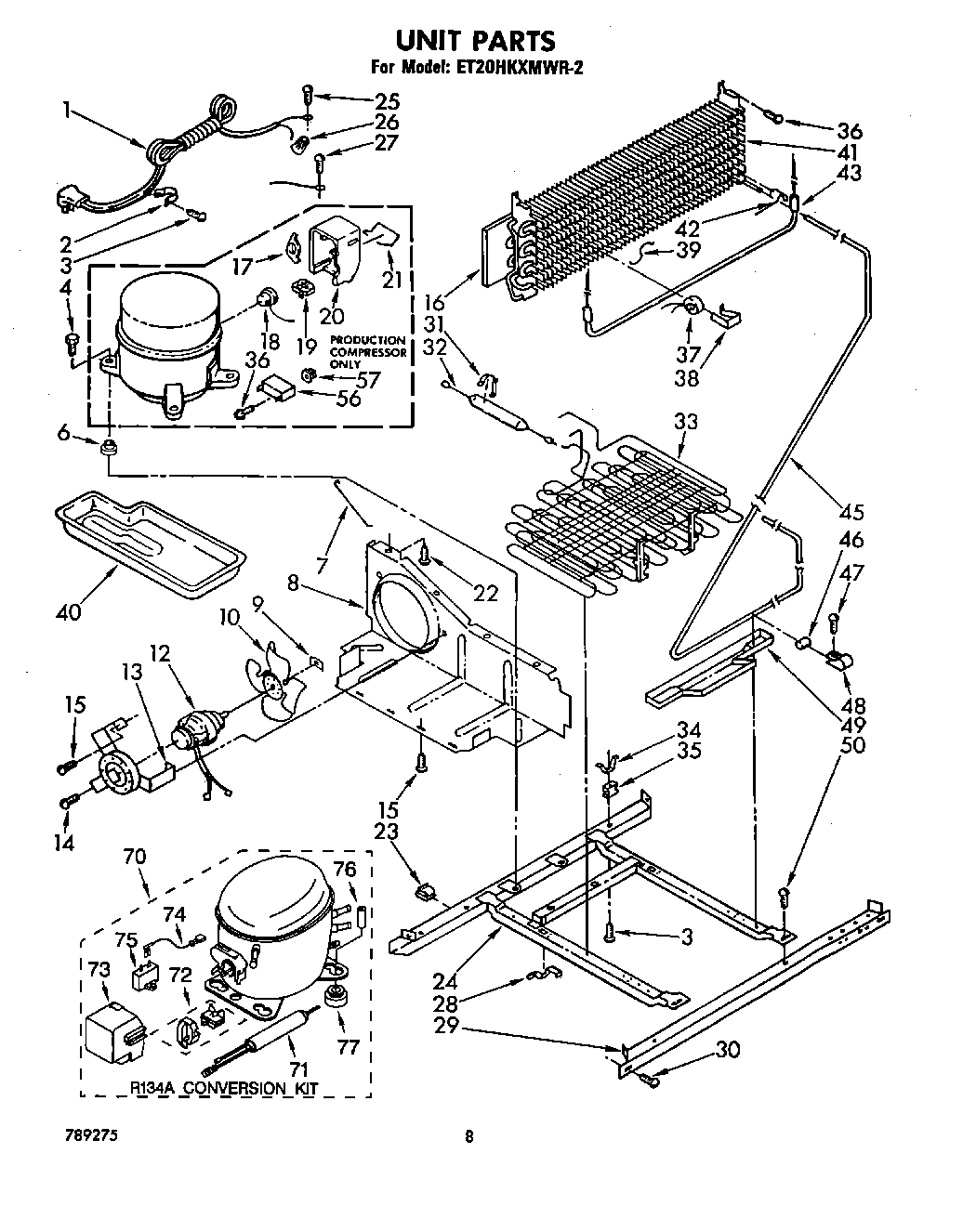

05 - UNIT

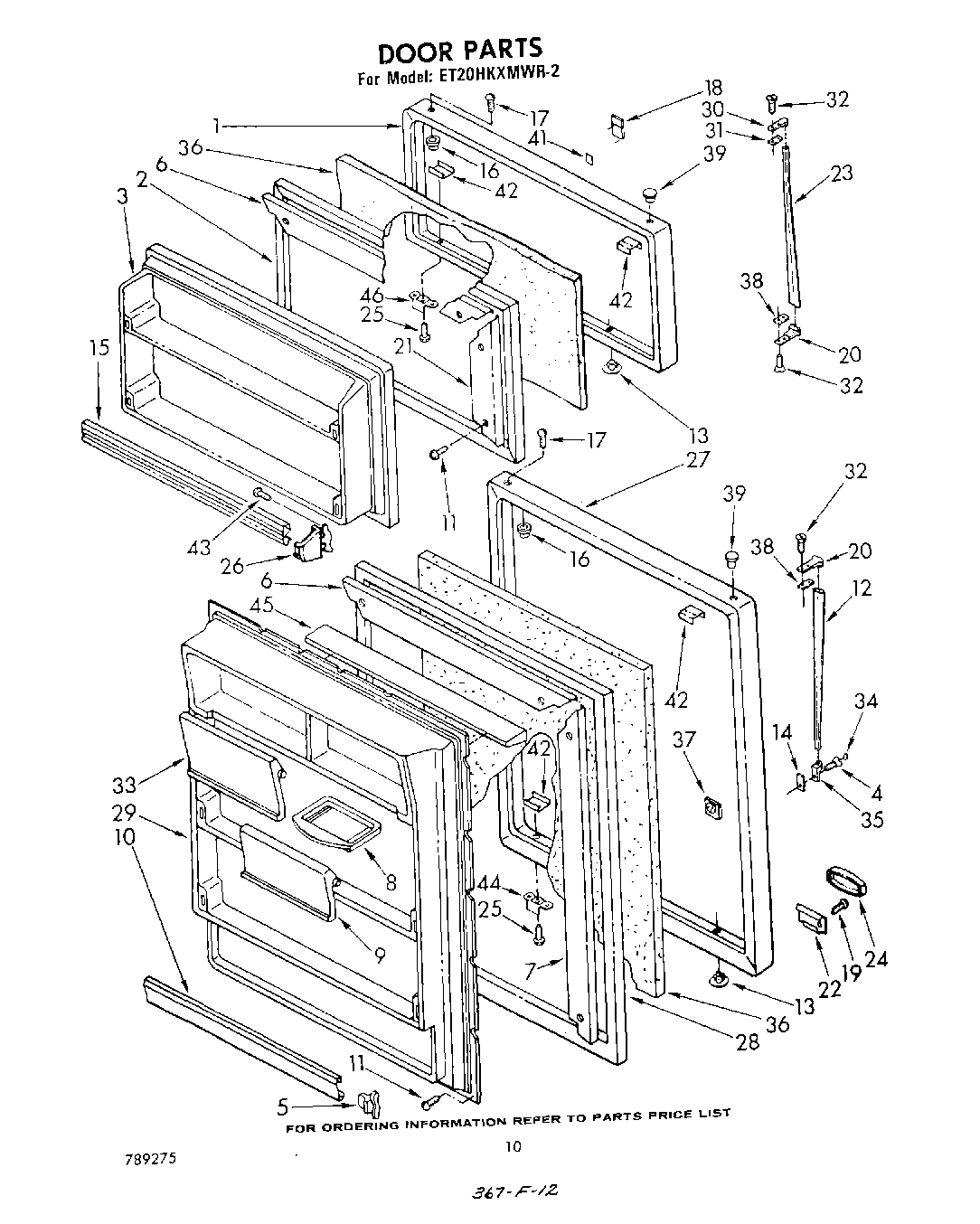

06 - DOOR , PARTS NOT ILLUSTRATED
Common parts from model Whirlpool ET20HKXMWR2 TOP MOUNT REFRIGERATOR
WPL 677813 WPL 677813 Contact Us For Availability
WPL 677818 WPL 677818 Contact Us For Availability
WPL 677821 WPL 677821 Contact Us For Availability
WPL 677967 WPL 677967 Contact Us For Availability
WPL LIT789275 WPL LIT789275 Contact Us For Availability
WPL LIT942935 WPL LIT942935 Contact Us For Availability
WPL LIT946597 WPL LIT946597 Contact Us For Availability
WPL LIT946957 WPL LIT946957 Contact Us For Availability
1
Gasket, Drain Pan WPL 843291 Contact Us For Availability
1
Stud, Evaporator Cover WPL 526383 Contact Us For Availability
1
Cord, Service WPL 850626 Contact Us For Availability
1
Door, Freezer (Also Order Item 36) (Toast) WPL 1103193 Contact Us For Availability
1
Door, Freezer (Also Order Item 36) (Platinum) WPL 1103194 Contact Us For Availability
1
Door, Freezer (Also Order Item 36) (White) WPL 944314 Contact Us For Availability
1
Door, Freezer (Also Order Item 36) (Coffee) WPL 944315 Contact Us For Availability
1
Door, Freezer (Also Order Item 36) (Golden Ha WPL 944316 Contact Us For Availability
1
Door, Freezer (Also Order Item 36) (Almond) WPL 944318 Contact Us For Availability
2
Grommet WPL 842339 Contact Us For Availability
3
Pan, Evaporator Drain WPL 841686 Contact Us For Availability
3
Liner (Not A Serviceable Part) WPL ARI48854A5 Contact Us For Availability
3
Panel, Interior (For Platinum Model Only) WPL 1100332 Contact Us For Availability
3
Panel, Interior WPL 943163 Contact Us For Availability
4
Fitting, Drain Pan WPL 841770 Contact Us For Availability
4
Screw, 8-32 x 1-1/4 (3) WPL 488960 Contact Us For Availability
4
Screw (Repair) WPL 488980 Contact Us For Availability
5
Retainer, Trim (For Platinum Model Only) WPL 839904 Contact Us For Availability
5
Baffle, Liner Top WPL 982582 Contact Us For Availability
5
Grommet (2) WPL 531933 Contact Us For Availability
6
Separator (Top) WPL 848423 Contact Us For Availability
6
Retainer, Top & Bottom (2) WPL 836118 Contact Us For Availability
7
Insulation, Separator WPL 991173 Contact Us For Availability
7
Guard, Fan WPL 850156 Contact Us For Availability
7
Retainer, Side (2) WPL 836117 Contact Us For Availability
8
Liner Wiring (Defrost Timer) WPL 481782 Contact Us For Availability
8
Baffle, Air WPL 850764 Contact Us For Availability
9
Breaker, Freezer (Top) WPL 839830 Contact Us For Availability
9
Scroll, Fan WPL 935067 Contact Us For Availability
9
Door, Butter WPL 935208 Contact Us For Availability
10
Support, Cover WPL 848562 No Longer Available
10
Gasket, Air Return (2) WPL 981725 Contact Us For Availability
10
Fan WPL 989524 Contact Us For Availability
10
Trim, Shelf (2) WPL 935919 Contact Us For Availability
12
Breaker, Freezer (L.S.) WPL 841719 Contact Us For Availability
12
Cover, Evaporator WPL 986624 Contact Us For Availability
12
Handle, Center (For Platinum Model Only) WPL 1104738 Contact Us For Availability
12
Handle, Center WPL 982946 Contact Us For Availability
13
Clip (8) WPL 534365 Contact Us For Availability
13
Plug, Hole (2) WPL 534927 Contact Us For Availability
13
Plug, Hole (4) WPL 519890 Contact Us For Availability
13
Bracket, Motor WPL 548695 Contact Us For Availability
14
Shim, Handle WPL 992872 Contact Us For Availability
14
Breaker, Freezer (R.S.) WPL 841722 Contact Us For Availability
14
Stud, Retainer (4) WPL 836374 Contact Us For Availability
15
Breaker, Mullion (Top) WPL 841642 Contact Us For Availability
15
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
15
Grommet (2) WPL 845722 Contact Us For Availability
15
Trim, Shelf (2) WPL 943195 Contact Us For Availability
16
Grommet (4) WPL 848445 Contact Us For Availability
16
Baffle, Evaporator WPL 981736 Contact Us For Availability
16
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
17
Grommet, Crisper Post WPL 836409 Contact Us For Availability
17
Breaker, Mullion Bottom WPL 841643 Contact Us For Availability
17
Overload Spring WPL 943494 Contact Us For Availability
18
Breaker, Refrigerator (R.S.) WPL 841724 Contact Us For Availability
18
Gasket, Sealing WPL 935068 Contact Us For Availability
18
Overload WPL 946689 Contact Us For Availability
18
Insert, Nameplate WPL 945107 Contact Us For Availability
19
Breaker, Refrigerator (L.S.) WPL 841721 Contact Us For Availability
19
Cap, Receptacle WPL 850738 Contact Us For Availability
19
Relay WPL 945535 Contact Us For Availability
20
Breaker, Refrigerator (Bottom) WPL 839829 Contact Us For Availability
20
Case, Relay WPL 943496 Contact Us For Availability
21
Wiring, Ice Maker WPL 481658 Contact Us For Availability
21
Spring, Case WPL 943497 Contact Us For Availability
21
Retainer, Side (2) WPL 836119 Contact Us For Availability
22
Separator (Bottom) WPL 981738 Contact Us For Availability
22
Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability
22
Clip, Medallion WPL 843213 Contact Us For Availability
23
Cup, Drain WPL 841708 Contact Us For Availability
23
Clip, Wire (2) WPL 548745 Contact Us For Availability
23
Handle, Center (For Platinum Model Only) WPL 1104739 Contact Us For Availability
23
Handle, Center WPL 982944 Contact Us For Availability
24
Ladder, Shelf (2) WPL 934267 Contact Us For Availability
24
Frame WPL 945457 Contact Us For Availability
24
Medallion (Toast) WPL 1100194 Contact Us For Availability
24
Medallion (Platinum) WPL 1100195 Contact Us For Availability
24
Medallion (White) WPL 848382 Contact Us For Availability
24
Medallion (Coffee) WPL 989901 Contact Us For Availability
24
Medallion (Golden Harvest) WPL 989903 Contact Us For Availability
24
Medallion (Almond) WPL 989904 Contact Us For Availability
25
Bracket, Thermostat WPL 848446 Contact Us For Availability
25
Plug, Hole (2) WPL 659598 Contact Us For Availability
25
Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability
25
Screw (Repair) WPL 488930 Contact Us For Availability
26
Wire Connector WPL 227991 Contact Us For Availability
26
Retaine WPL 1100334 Contact Us For Availability
26
WPL 943135 WPL 943135 Contact Us For Availability
27
Screw, 8 x 1-1/4 (3) WPL 488357 Contact Us For Availability
27
WPL 1103191 WPL 1103191 Contact Us For Availability
27
WPL 1103192 WPL 1103192 Contact Us For Availability
27
WPL 944308 WPL 944308 Contact Us For Availability
27
WPL 944309 WPL 944309 Contact Us For Availability
27
WPL 944310 WPL 944310 Contact Us For Availability
27
WPL 944312 WPL 944312 Contact Us For Availability
28
Ladder, Shelf WPL 936230 Contact Us For Availability
28
Clip (2) WPL 548744 Contact Us For Availability
29
Support, Ladder (2) WPL 520959 Contact Us For Availability
29
Rail, Front WPL 548662 Contact Us For Availability
29
WPL 938745 WPL 938745 Contact Us For Availability
29
WPL 943161 WPL 943161 Contact Us For Availability
30
Panel, Control WPL 942214 Contact Us For Availability
30
Overlay, Pan WPL 986316 Contact Us For Availability
31
WPL 943187 WPL 943187 Contact Us For Availability
31
Knob, Control (Includes Illus. 50) WPL 837445 Contact Us For Availability
31
Clamp WPL 548508 Contact Us For Availability
32
Knob, Thermostat WPL 836482 Contact Us For Availability
32
WPL 488923 WPL 488923 Contact Us For Availability
33
Lens, Light WPL 983910 Contact Us For Availability
33
Condenser & Precooler WPL 943480 Contact Us For Availability
33
WPL 935209 WPL 935209 Contact Us For Availability
34
Clip (2) WPL 836090 Contact Us For Availability
34
Slide & Cover Pan WPL 935123 Contact Us For Availability
34
Clamp (4) WPL 548738 Contact Us For Availability
35
Pin, Hinge WPL 654366 Contact Us For Availability
35
Grommet (4) WPL 943447 Contact Us For Availability
36
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
36
Shelf, Cantilever WPL 936795 Contact Us For Availability
37
Air Diffuser WPL 836487 Contact Us For Availability
37
Glass Shelf WPL 944355 Contact Us For Availability
38
WPL 943188 WPL 943188 Contact Us For Availability
38
Retainer WPL 836493 Contact Us For Availability
38
Retainer Glass WPL 942186 Contact Us For Availability
38
Clamp WPL 513584 Contact Us For Availability
39
Damper, Air WPL 836247 Contact Us For Availability
39
Gasket, Front (2) WPL 942028 Contact Us For Availability
39
Support, Heater WPL 851358 Contact Us For Availability
39
WPL 1100188 WPL 1100188 Contact Us For Availability
39
WPL 1100189 WPL 1100189 Contact Us For Availability
39
WPL 989196 WPL 989196 Contact Us For Availability
39
WPL 989892 WPL 989892 Contact Us For Availability
40
Tray, Evaporating WPL 842041 Contact Us For Availability
41
WPL 944234 WPL 944234 Contact Us For Availability
41
WPL 944235 WPL 944235 Contact Us For Availability
41
WPL 944237 WPL 944237 Contact Us For Availability
41
Pan Slide & Cover WPL 942190 Contact Us For Availability
41
Evaporator WPL 946507 Contact Us For Availability
41
WPL 991259 WPL 991259 Contact Us For Availability
42
Trim, Shelf WPL 935223 Contact Us For Availability
42
Clip, Heater (2) WPL 850721 Contact Us For Availability
43
Pan Shelf, Cantilever WPL 936285 Contact Us For Availability
43
Heater, Defrost WPL 989612 Contact Us For Availability
44
WPL 841687 WPL 841687 Contact Us For Availability
44
Gasket, Rear (2) WPL 942027 Contact Us For Availability
44
WPL 944036 WPL 944036 Contact Us For Availability
45
Crisper Pan (For Platinum Model Only) WPL 1100327 Contact Us For Availability
45
Pan, Crisper (2) WPL 935201 Contact Us For Availability
45
Exchanger, Heat WPL 1100994 Contact Us For Availability
45
WPL 849802 WPL 849802 Contact Us For Availability
46
WPL 876029 WPL 876029 Contact Us For Availability
46
Stud, Shelf (2) WPL 836423 Contact Us For Availability
46
WPL 479502 WPL 479502 Contact Us For Availability
46
WPL 799344 WPL 799344 Contact Us For Availability
46
Dampener (2) WPL 510769 Contact Us For Availability
46
WPL 261886 WPL 261886 Contact Us For Availability
46
WPL 261887 WPL 261887 Contact Us For Availability
46
WPL 261890 WPL 261890 Contact Us For Availability
46
WPL 261891 WPL 261891 Contact Us For Availability
46
WPL 285365 WPL 285365 Contact Us For Availability
46
WPL 285366 WPL 285366 Contact Us For Availability
46
WPL 285367 WPL 285367 Contact Us For Availability
46
WPL 285368 WPL 285368 Contact Us For Availability
46
WPL 350941 WPL 350941 Contact Us For Availability
46
WPL 542639 WPL 542639 Contact Us For Availability
46
WPL 72108 WPL 72108 Contact Us For Availability
46
WPL 72112 WPL 72112 Contact Us For Availability
46
WPL 799832 WPL 799832 Contact Us For Availability
46
WPL 799833 WPL 799833 Contact Us For Availability
46
WPL 799908 WPL 799908 Contact Us For Availability
46
WPL 944035 WPL 944035 Contact Us For Availability
46
WPL 978883 WPL 978883 Contact Us For Availability
48
Clamp (2) WPL 510716 Contact Us For Availability
49
WPL 836162 WPL 836162 Contact Us For Availability
49
Pan, Drip WPL 945572 Contact Us For Availability
50
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
50
Knob, Retainer WPL 837444 Contact Us For Availability
52
WPL 549947 WPL 549947 Contact Us For Availability
52
Container Timer WPL 983079 Contact Us For Availability
53
WPL 981127 WPL 981127 Contact Us For Availability
53
Timer, Defrost WPL 943428 Contact Us For Availability
54
WPL 836372 WPL 836372 Contact Us For Availability
54
Screw, 8 x 1-3/8 (2) WPL 488678 Contact Us For Availability
56
WPL 850459 WPL 850459 Contact Us For Availability
56
Running Capacitor (For Original Compressor Us WPL 1100814 Contact Us For Availability
57
Screw Grommet WPL 509812 Contact Us For Availability
58
Stud, Saddle (R.S.) WPL 523263 Contact Us For Availability
62
Grommet WPL 538449 Contact Us For Availability
65
Stud, Shelf (2) WPL 529758 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
72
Gasket, Evaporator Cover (2) WPL 981750 Contact Us For Availability
73
Post, Crisper WPL 836410 Contact Us For Availability
74
Shelf, Freezer WPL 981497 Contact Us For Availability
75
Trim, Shelf Front WPL 985070 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
Stud, Shelf (2) WPL 536475 Contact Us For Availability
77
WPL 1100182 WPL 1100182 Contact Us For Availability
77
WPL 1100183 WPL 1100183 Contact Us For Availability
77
WPL 838535 WPL 838535 Contact Us For Availability
77
WPL 989928 WPL 989928 Contact Us For Availability
77
WPL 989929 WPL 989929 Contact Us For Availability
77
WPL 989931 WPL 989931 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
78
Stud, Crisper Support WPL 836412 Contact Us For Availability
79
Hole, Plug WPL 659776 Contact Us For Availability
80
WPL 1100176 WPL 1100176 Contact Us For Availability
80
WPL 1100177 WPL 1100177 Contact Us For Availability
80
WPL 842031 WPL 842031 Contact Us For Availability
80
WPL 989195 WPL 989195 Contact Us For Availability
80
WPL 989875 WPL 989875 Contact Us For Availability
80
WPL 989876 WPL 989876 Contact Us For Availability
82
WPL 546131 WPL 546131 Contact Us For Availability
84
Stud, Shelf WPL 836492 Contact Us For Availability
87
Pan, Meat (For Platinum Model Only) WPL 1100329 Contact Us For Availability
87
Pan, Meat WPL 935203 Contact Us For Availability
× ![]()
