Model Whirlpool ET20DKXWW01 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT1124256 WPL LIT1124256 Contact Us For Availability

WPL LIT1127854 WPL LIT1127854 Contact Us For Availability

WPL LIT2148359 WPL LIT2148359 Contact Us For Availability

WPL LIT4316063 WPL LIT4316063 Contact Us For Availability

1

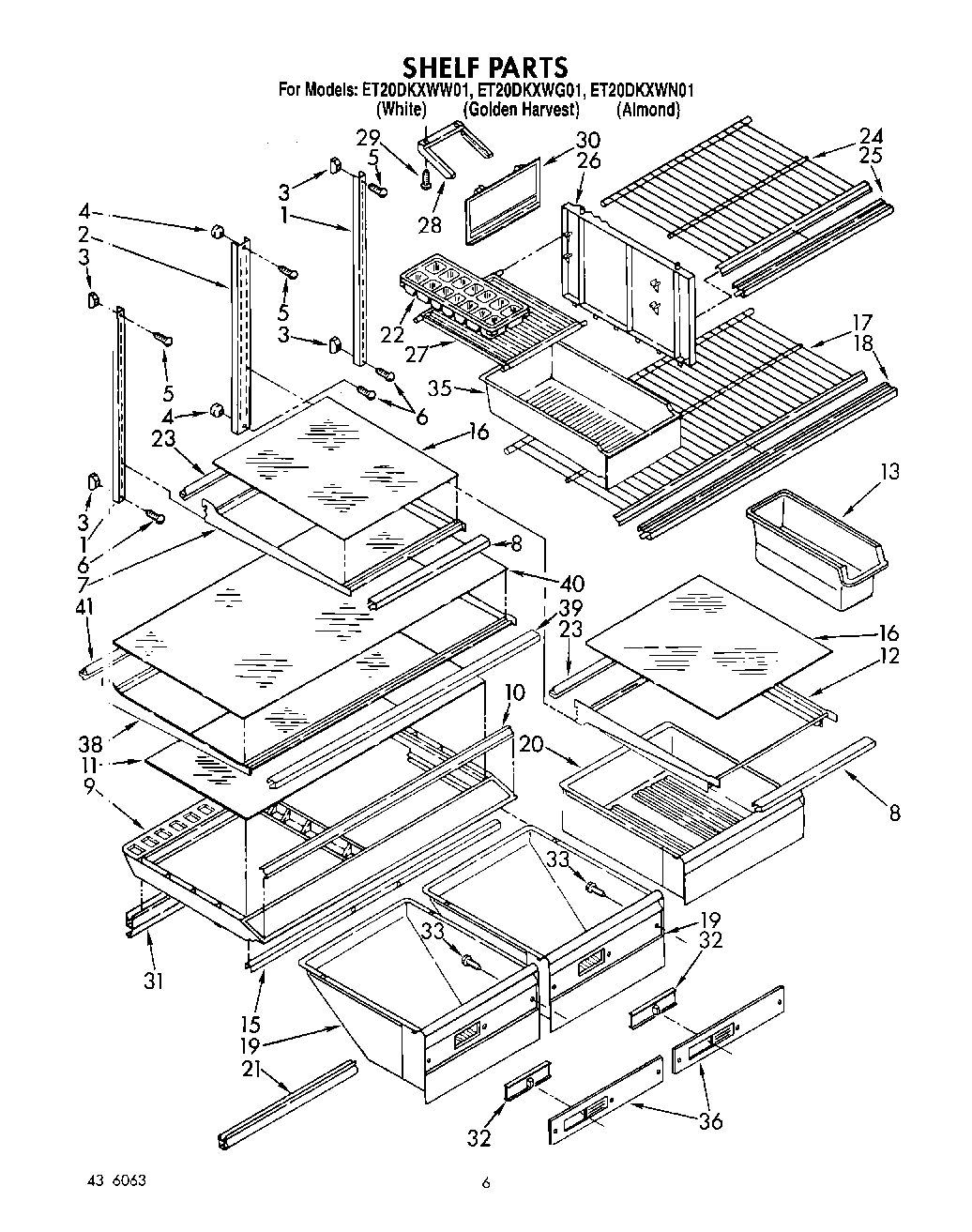

Shelf, Ladder (2) WPL 1114466 Contact Us For Availability

1

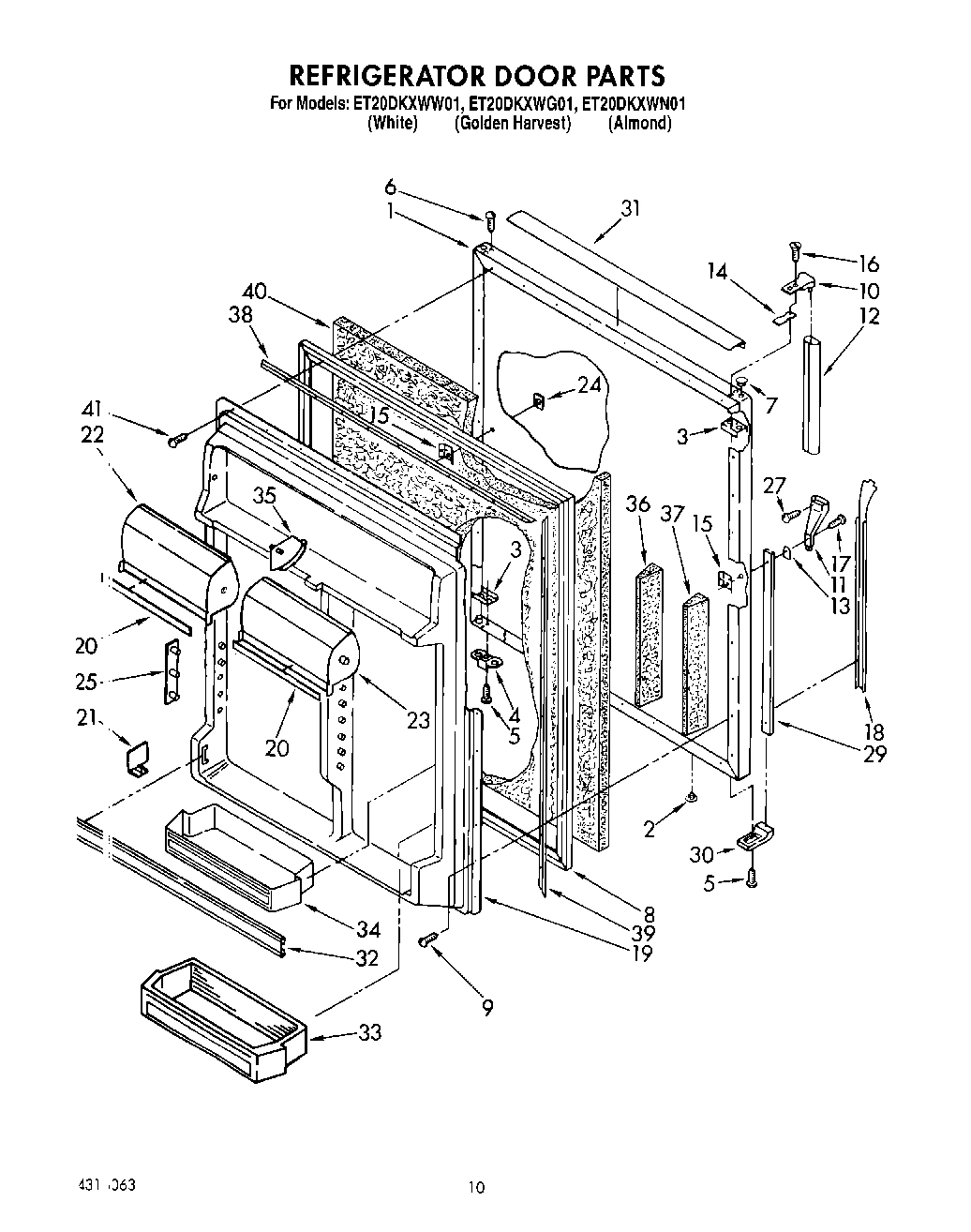

Panel, Refrigerator Door (Also Order Item 40) WPL 1122549 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 40) WPL 1122657 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 40) WPL 1122658 Contact Us For Availability

1

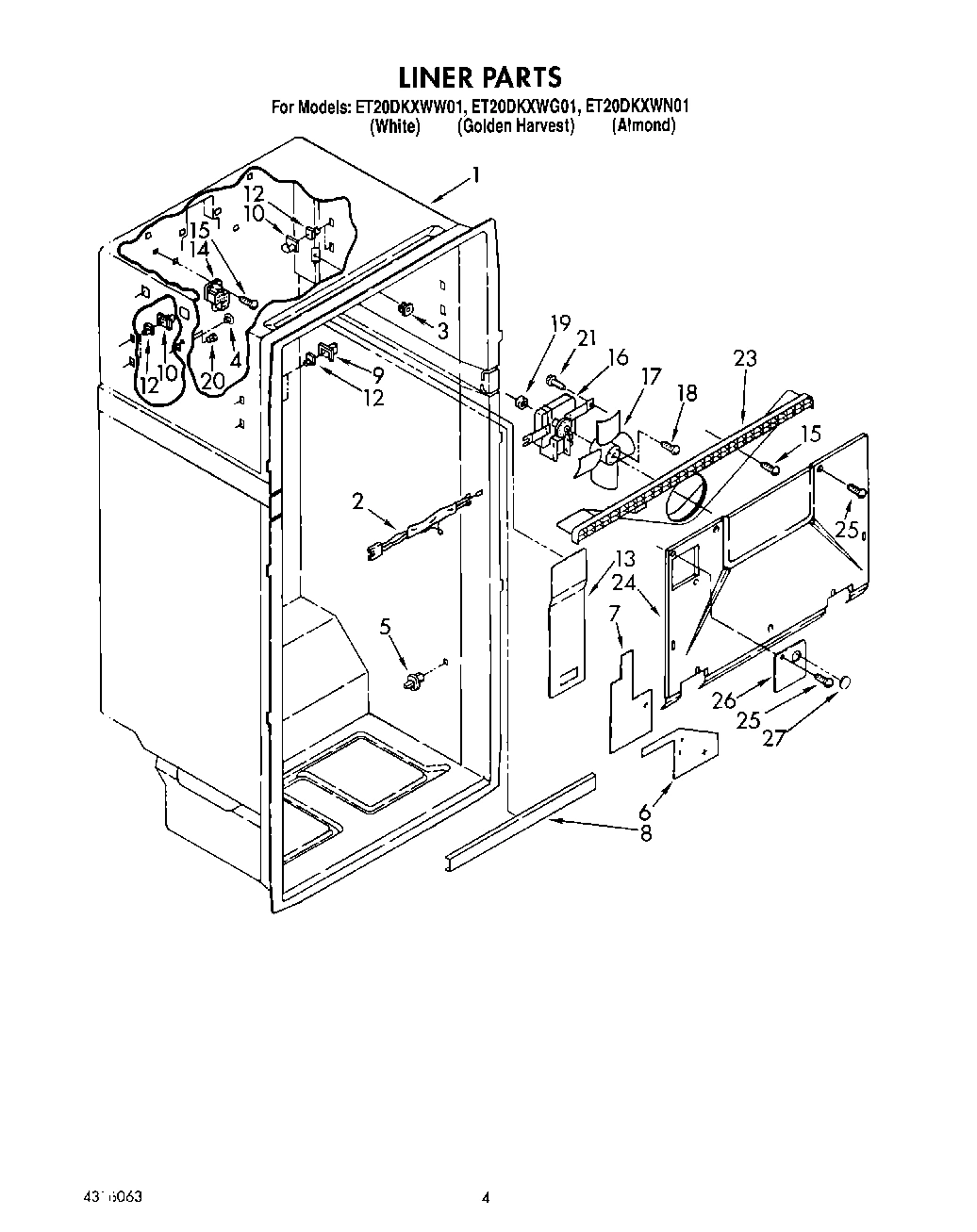

Liner (Not A Serviceable Part) WPL ARI48612A6 Contact Us For Availability

1

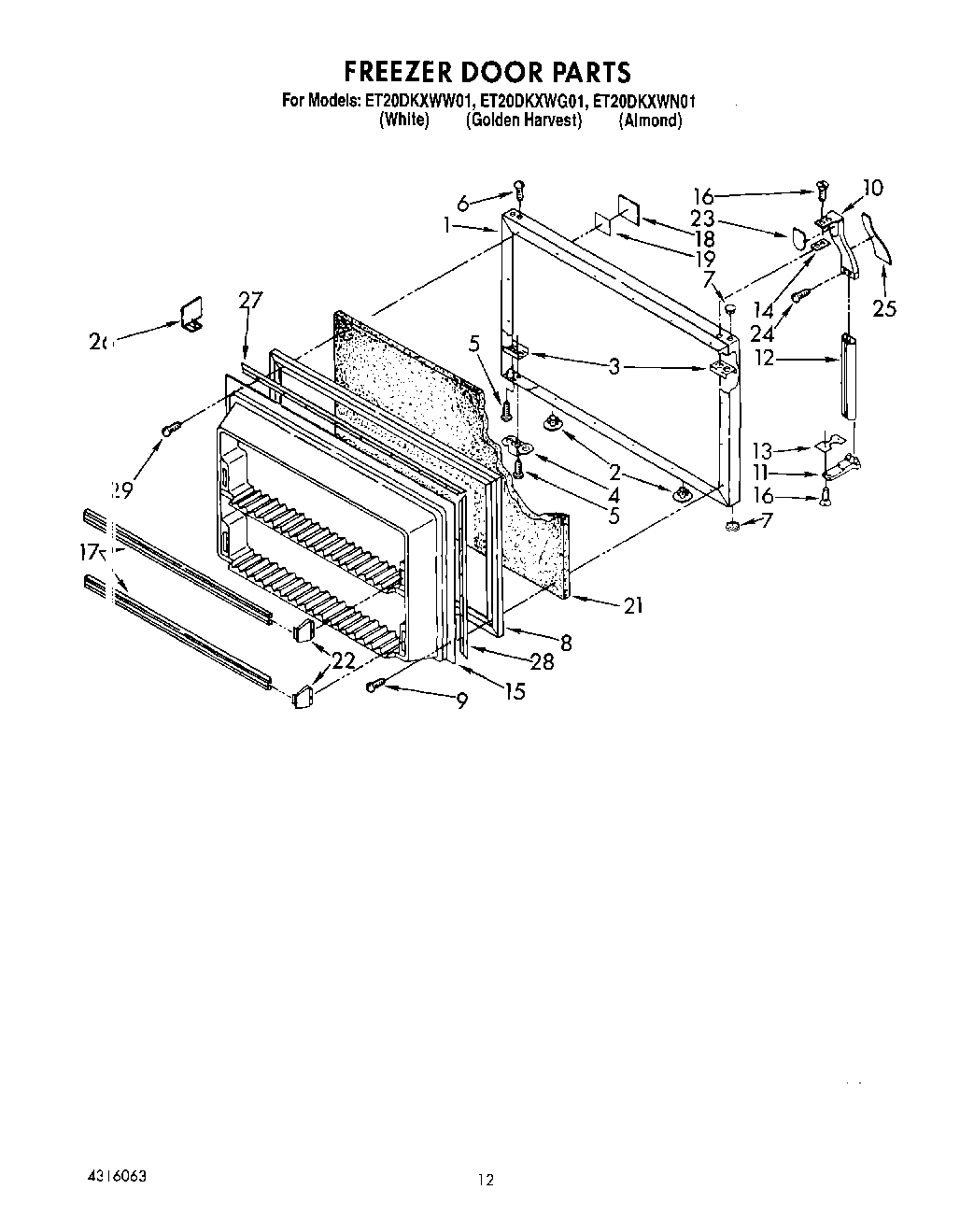

Panel, Freezer Door (Also Order Item 21) (Whi WPL 1122550 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Gol WPL 1122662 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 1122663 Contact Us For Availability

1

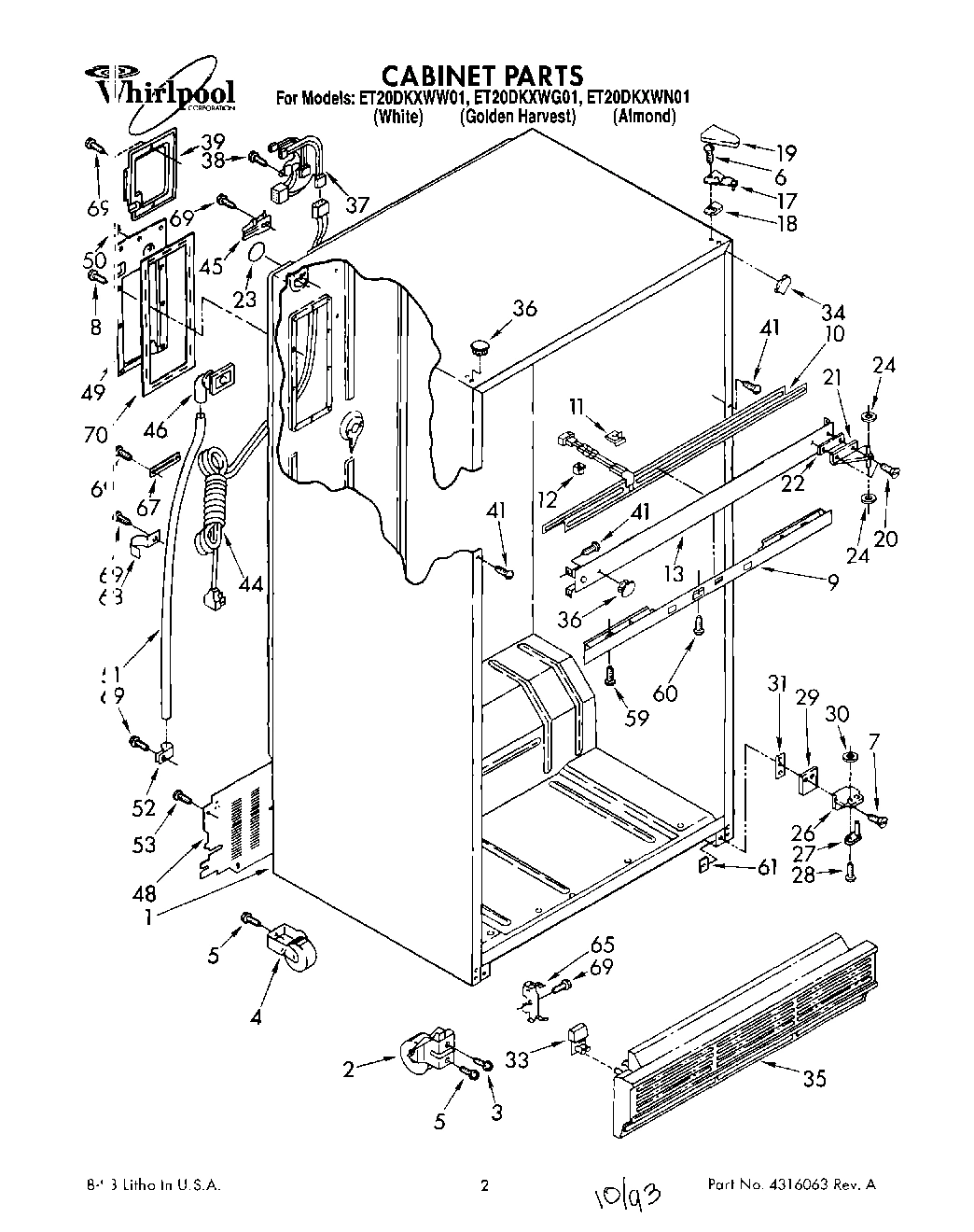

Cabinet (Not A Serviceable Part) WPL ARI48611A2 Contact Us For Availability

1

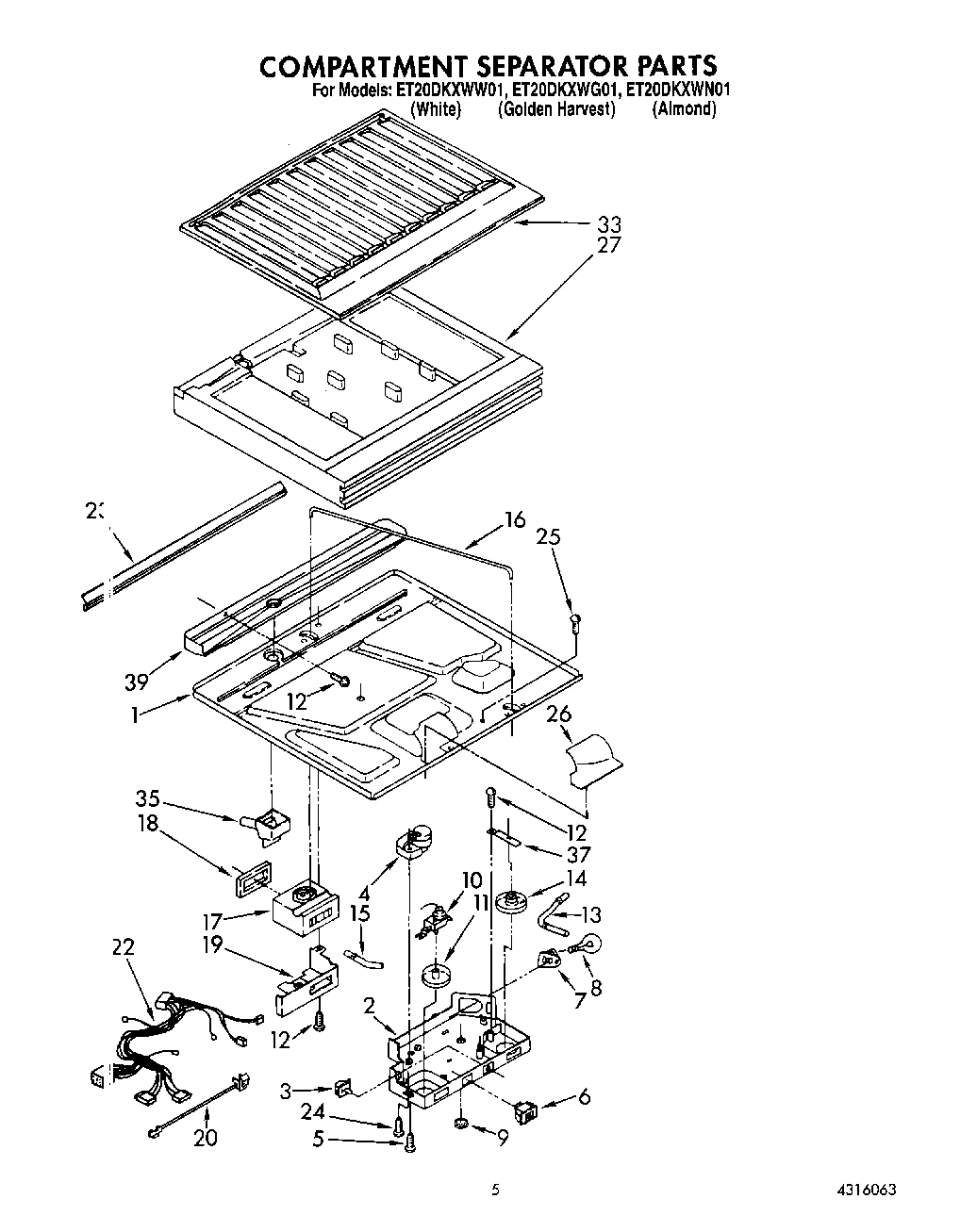

Bottom, Compartment Separator WPL 1122715 Contact Us For Availability

2

Shelf, Ladder Center WPL 1114465 Contact Us For Availability

2

Hole Plug (2) (White) WPL 534927 Contact Us For Availability

2

Wiring, Fan Motor WPL 1114721 Contact Us For Availability

2

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

2

Hole Plug (2) (Golden Harvest) WPL 989879 Contact Us For Availability

2

Roller, Front WPL 981128 Contact Us For Availability

2

Box, Control WPL 1106805 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

3

Grommet (2) WPL 848445 Contact Us For Availability

3

Screw WPL 488681 Contact Us For Availability

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

Screw, Support Center (2) WPL 520959 Contact Us For Availability

4

Bracket, Door Stop WPL 1115910 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

4

Roller, Rear (2) WPL 2147324 Contact Us For Availability

4

Timer, Defrost (10 Hour) WPL 1127570 Contact Us For Availability

5

W10854959 Whirlpool Refrigerator Shelf Stud Backorder WPL W10854959 $4.23

5

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

5

Screw (Repair) WPL 488980 Contact Us For Availability

5

Screw (3) WPL 489345 Contact Us For Availability

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

6

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

6

Screw (Repair) WPL 488930 Contact Us For Availability

6

Electrical, Shield WPL 1106829 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

Shelf, Cantilever WPL 1120435 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Electrical Shield WPL 1106696 Contact Us For Availability

7

Screw WPL 489327 Contact Us For Availability

8

2188450A Whirlpool Refrigerator Door Gasket Backorder WPL 2188450A $108.53

8

2188460A Whirlpool Refrigerator Door Gasket Backorder WPL 2188460A $89.09

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

8

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

8

Trim, Shelf WPL 1110741 Contact Us For Availability

8

Electrical, Shield WPL 1106892 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

WP2151749 Whirlpool Refrigerator Cover Backorder WPL WP2151749 $124.51

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

Stud (2) WPL 946356 Contact Us For Availability

9

Control, Front Cover WPL 2148449 Contact Us For Availability

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $89.70

819091 Whirlpool Refrigerator Shelf Stud Backorder WPL 819091 $13.89

Handle End, Top WPL 944163 Contact Us For Availability

Trim, Crisper Cover WPL 1105649 Contact Us For Availability

Heater, Mullion WPL 1105433 Contact Us For Availability

Handle End, Side WPL 1109189 Contact Us For Availability

Glass, Crisper Cover WPL 1124553 Contact Us For Availability

Handle End WPL 944157 Contact Us For Availability

Clip, Mullion (3) WPL 1106779 Contact Us For Availability

Knob, Thermostat WPL 1114315 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Pan Shelf, Cantilever WPL 1126748 Contact Us For Availability

Handle, Center WPL 1106054 Contact Us For Availability

support stud (8) WPL 946355 Contact Us For Availability

Handle, Center WPL 1106079 Contact Us For Availability

Spacer (3) WPL 2149077 Contact Us For Availability

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

Shim, Handle WPL 943187 Contact Us For Availability

Shim, Handle End (Side) WPL 935075 Contact Us For Availability

Cover, Air Duct WPL 1105447 Contact Us For Availability

Center Rail (White) WPL 1122566 Contact Us For Availability

Center Rail (Golden Harvest) WPL 1122568 Contact Us For Availability

Center Rail (Almond) WPL 1122569 Contact Us For Availability

Light, Bar WPL 1105475 Contact Us For Availability

14

Spacer, Handle Door WPL 943188 Contact Us For Availability

14

Terminal Block, Multiple WPL 942842 Contact Us For Availability

14

Knob, Air Control WPL 1114314 Contact Us For Availability

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Interior Door Panel WPL 1122575 Contact Us For Availability

Light, Bar WPL 1105476 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

Shelf, Glass WPL 1124551 Contact Us For Availability

Screw (Repair) WPL 488923 Contact Us For Availability

Rod, Connecting WPL 1105459 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Shelf, Freezer WPL 1106615 Contact Us For Availability

Trim, Door Shelf (2) WPL 1124227 Contact Us For Availability

Hinge, Top WPL 1129045 Contact Us For Availability

Air Diffuser Assembly WPL 1123221 Contact Us For Availability

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Trim, Shelf Front WPL 1106618 Contact Us For Availability

Insert, Handle WPL 1119655 Contact Us For Availability

Nameplate WPL 1111555 Contact Us For Availability

Shim, Hinge Top WPL 1100511 Contact Us For Availability

Gasket, Air Diffuser WPL 1114325 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

Pan, Crisper WPL 1124286 Contact Us For Availability

Interior Door Panel WPL 1126757 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

Strip, Tape WPL 991259 Contact Us For Availability

Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Pan, Meat WPL 1124218 Contact Us For Availability

Trim, Door Compartment (2) WPL 1124223 Contact Us For Availability

Grommet, (6) WPL 1110779 Contact Us For Availability

Screw (Repair) WPL 489297 Contact Us For Availability

Ground Wire WPL 1114482 Contact Us For Availability

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Crisper Gasket, Front (2) WPL 1116512 Contact Us For Availability

Screw WPL 489168 Contact Us For Availability

Hinge, Center WPL 2151453 Contact Us For Availability

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $6.84

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Compartment Door, Left Side WPL 1124225 Contact Us For Availability

Shim, Hinge Center WPL 836194 Contact Us For Availability

Shim, Center (Repair) WPL 836195 Contact Us For Availability

Wiring Assembly, Control Box WPL 1127838 Contact Us For Availability

Reflector, Shelf WPL 1110743 Contact Us For Availability

Compartment Door, Right Side WPL 1124222 Contact Us For Availability

Scroll, Fan WPL 1127100 Contact Us For Availability

Shim, EndCap (Top) WPL 935074 Contact Us For Availability

Hole Seal WPL 1129056 Contact Us For Availability

Gasket, Bottom Separator WPL 1114382 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

Shelf, Freezer (Top) WPL 1106822 Contact Us For Availability

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

Hole Plug, Handle (Golden Harvest) WPL 1122694 Contact Us For Availability

Screw, 6-20 x 3/8 (2) WPL 489022 Contact Us For Availability

Evaporator Cover WPL 1118708 Contact Us For Availability

25

Trim, Shelf WPL 2148451 Contact Us For Availability

25

Pin Plate (8) WPL 1116986 Contact Us For Availability

25

Insert, Handle WPL 1106059 Contact Us For Availability

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

Divider WPL 1106619 Contact Us For Availability

Divider, Door Shelf (2) WPL 1114380 Contact Us For Availability

Hinge Butt, Bottom WPL 1123378 Contact Us For Availability

Insulation, Filler WPL 942817 Contact Us For Availability

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Shelf, Ice Compartment (2) WPL 1106624 Contact Us For Availability

Gasket Retainer, Top & Bottom WPL 1122552 Contact Us For Availability

Hole Plug WPL 1103725 Contact Us For Availability

Insulation, Compartment Separator WPL 1105463 Contact Us For Availability

28

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

28

Gasket Retainer, Side (2) WPL 1122553 Contact Us For Availability

28

Slide, Ice Compartment WPL 1106817 Contact Us For Availability

29

Retainer, Insert WPL 935871 Contact Us For Availability

29

Shim, Bottom WPL 1123379 Contact Us For Availability

30

WP489200 Whirlpool Refrigerator Washer Backorder WPL WP489200 $4.61

30

Door, Ice Compartment WPL 1114355 Contact Us For Availability

30

Endcap, Insert Retainer WPL 1105804 Contact Us For Availability

31

Crisper Gasket, Rear (2) WPL 1105653 Contact Us For Availability

31

Trim, Door WPL 1106148 Contact Us For Availability

31

Spacer WPL 1121117 Contact Us For Availability

32

Slide, Humidity Control WPL 1116718 Contact Us For Availability

32

Trim, Door Shelf WPL 1114376 Contact Us For Availability

Screw (6) WPL 489226 Contact Us For Availability

Bin, Door Shelf (2) WPL 1124208 Contact Us For Availability

Corner Filler, Grille WPL 1118078 Contact Us For Availability

Separator, Compartment (Top) WPL 1129022 Contact Us For Availability

Bin, Door Shelf (Deep) (2) WPL 1124209 Contact Us For Availability

Filler, Wrap Corner (2) (White) WPL 1118058 Contact Us For Availability

Filler, Wrap Corner (2) (Almond) WPL 1118059 Contact Us For Availability

Filler, Wrap Corner (2) (Golden Harvest) WPL 1118060 Contact Us For Availability

W11625904 Whirlpool Refrigerator Ice Pan In Stock WPL W11625904 $24.25

WP1118001 Whirlpool Hinge Pin Backorder WPL WP1118001 $3.70

Grille WPL 1129001 Contact Us For Availability

Cup, Drain WPL 937065 Contact Us For Availability

Crisper Pan, Front WPL 1114776 Contact Us For Availability

Door Dike, Center WPL 1122711 Contact Us For Availability

Hole Plug (4) (White) WPL 842031 Contact Us For Availability

Hole Plug (4) (Almond) WPL 989195 Contact Us For Availability

Hole Plug (4) (Golden Harvest) WPL 989876 Contact Us For Availability

37

Door Dike, Side (2) WPL 1122709 Contact Us For Availability

37

Cabinet, Wiring Assembly WPL 1118814 Contact Us For Availability

37

Bracket, Control Knob WPL 1105457 Contact Us For Availability

38

Shelf, Full Cantilever WPL 1124283 Contact Us For Availability

Trim, Shelf WPL 1119562 Contact Us For Availability

Gasket Retainer WPL 1122551 Contact Us For Availability

Cover, Wiring WPL 1105606 Contact Us For Availability

Drain Pan WPL 1105521 Contact Us For Availability

40

WPL 876029 WPL 876029 Contact Us For Availability

40

Glass, Shelf WPL 1124552 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Reflector, Shelf WPL 1114435 Contact Us For Availability

xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability

Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL 4210431 WPL 4210431 Contact Us For Availability

WPL 4210432 WPL 4210432 Contact Us For Availability

WPL 819245 WPL 819245 Contact Us For Availability

WPL 819288 WPL 819288 Contact Us For Availability

WPL 819344 WPL 819344 Contact Us For Availability

44

Cord, Service WPL 937360 Contact Us For Availability

45

Clamp WPL 937357 Contact Us For Availability

46

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

46

Fitting, Drain WPL 937062 Contact Us For Availability

48

Cover, Unit WPL 2147330 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPL 978029 WPL 978029 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability

Cover, Plug WPL 2147326 Contact Us For Availability

50

Hole Seal WPL 1120224 Contact Us For Availability

51

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $36.64

52

Clamp WPL 836077 Contact Us For Availability

60

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

61

Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

67

Tube Clamp WPL 1105607 Contact Us For Availability

68

WPL 1110564 WPL 1110564 Contact Us For Availability

69

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

69

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

70

WPL 1114548 WPL 1114548 Contact Us For Availability
